WS463710 - Warming drawers and cabinets GAGGENAU - Free user manual and instructions
Find the device manual for free WS463710 GAGGENAU in PDF.
| Product type | Warming drawer and cabinet |
| Brand | Gaggenau |
| Model | WS463710 |
| Use | Preheating dishes, keeping food warm, gentle thawing, dough rising |
| Number of settings | 5 (0 to 4) |
| Setting 1 | Thawing delicate frozen food, dough rising |
| Setting 2 | Keeping bread warm, preheating drinking vessels, thawing |
| Setting 3 | Keeping food and drinks warm, heating pastries |
| Setting 4 | Preheating dishes |
| Service indicator | Flashing then continuous light |
| Compartment lighting | Yes, activated on opening, can be switched off |
| Dish capacity | Approximately 6 place settings |
| Heating | Heating plate with fan |
| Opening | Recessed handle at bottom |
| Safety lock | Heating only when drawer is closed |
| Cleaning | Exterior: water and dish soap; plate: lukewarm water; glass front: glass cleaner |
| Power supply | Grounded plug, 13 A max (Denmark adapter) |
| Rating plate | Inside drawer, E and FD numbers |
| Customer service | Toll-free number CA: 877 442 4436 |
Frequently Asked Questions - WS463710 GAGGENAU
User questions about WS463710 GAGGENAU
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming drawers and cabinets in PDF format for free! Find your manual WS463710 - GAGGENAU and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WS463710 by GAGGENAU.

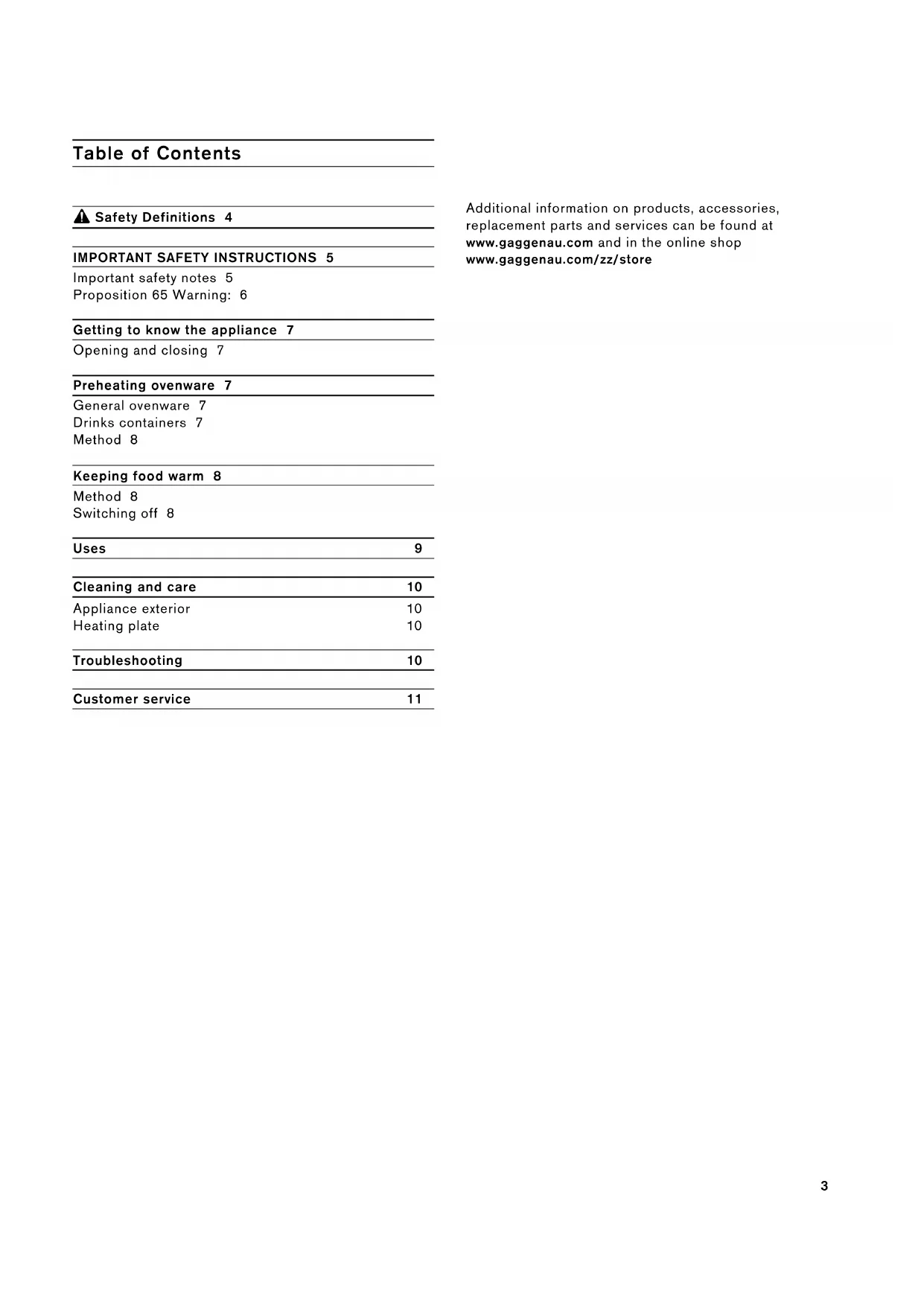

USER MANUAL WS463710 GAGGENAU
IMPORTANT SAFETY INSTRUCTIONS 5
Important safety notes 5
Proposition 65 Warning: 6
Getting to know the appliance 7
Opening and closing 7
Preheating ovenware 7
General ovenware 7
Drinks containers 7
Method 8
Keeping food warm 8
Method 8
Switching off 8
Uses 9
Cleaning and care 10
Appliance exterior 10
Heating plate 10
Troubleshooting 10
Customer service 11
Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau.com/zz/store
Safety Definitions
WARNING
This indicates that death or serious injuries may occur as a result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT SAFEGUARDS SAVE THESE INSTRUCTIONS.
Important safety notes
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Keep the Use and Care manual and the Installation Instructions for later use or a later owner.
Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.
This device is only intended for private household use and in a domestic capacity. The device should be used exclusively for warming dishes and keeping food warm.
Do not use this appliance outdoors.
This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or a lack of experience or knowledge if they are supervised by a person who is responsible for their safety or if they have been instructed by them about safe use of the appliance and they have understood the resulting dangers.
Children must not play with the appliance. Cleaning and user maintenance must not be done by children unless they are 15 years old or older and are supervised.
Keep children under 8 years old away from the appliance and the connecting lead.
WARNING
Burn risk
The hotplate in the warming drawer can get very hot. Never touch the heated hotplate. Keep children away.
WARNING
Severe health risk
Clean with Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface.
WARNING
Risk of burns
Accessories or cookware become very hot. Always use oven cloths to remove hot accessories or cookware from the oven interior.
WARNING
Risk of electric shock
The cable insulation of electrical appliances can melt on hot parts of the appliance. Never let connecting cables of electrical appliances come into contact with hot parts of the appliance.
WARNING
Risk of electrical shock
Moisture entering the appliance can cause an electrical shock. Don't use a high-pressure cleaner or steam cleaner.
WARNING
Risk of electrical shock
A defective appliance can cause an electrical shock. Never switch on a defective appliance. Remove the mains plug or deactivate the fuse in the fuse box. Call after-sales service.
WARNING
Electric Shock Hazard
Fissures or cracks in the glass plate can result in electric shocks. Switch off fuse in the fuse box. Call customer service.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
Risk of electric shock
Incorrect repairs are dangerous. Repairs may only be carried out by an authorized servicer. If the appliance is not functioning properly, unplug the power cord or switch off the fuse in the fuse box. Contact Customer Support.
WARNING
Risk of electric shock
The appliance is equipped with an EU grounding-type receptacle. To ensure protective grounding in a socket outlet for Denmark, the appliance must be connected with a suitable plug adapter. This adapter (permissible up to 13 amps) is obtainable through after-sales service (spare part No. 623333).
WARNING
Fire hazard
The hotplate in the warming drawer can get very hot, flammable materials can catch fire. Never store flammable objects or plastic containers in the warming drawer.
WARNING
To protect against electrical shock do not immerse cord or plug in water or other liquids.
WARNING
Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
WARNING
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
WARNING
Do not use appliance für other than the intended use.
WARNING
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", the remove plug from wall outlet.
WARNING
To ensure continued protection against risk of electrical shock, connect to properly grounded outlets only.
Proposition 65 Warning:
This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:
STATE OF CALIFORNIA PROPOSITION 65 WARNING:
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SAVE THESE INSTRUCTIONS.

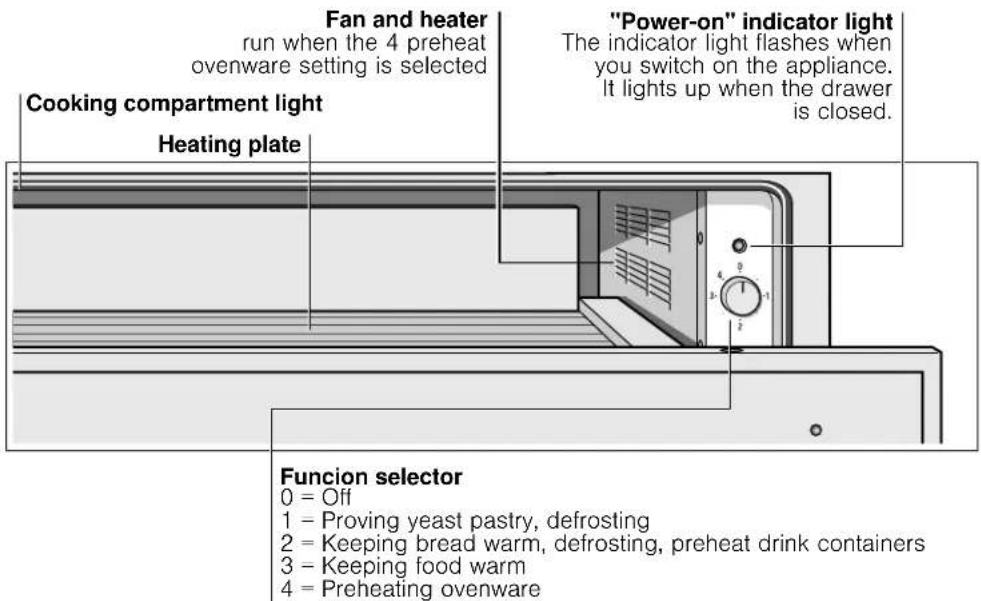

Getting to know the appliance
You can use the warming drawer to preheat ovenware or to keep food warm.
Opening and closing
The appliance has a recess at the bottom which can be used as a handle to open and close it.
While opening and closing the illumination automatically turns on and off.
You can also turn off illumination completely by reaching into the appliance, using the slide switch on the upper left side.
Preheating ovenware
Food stays warm for longer in preheated ovenware. Drinks also remain warm for longer.
General ovenware
Only load the warming drawer up to 25 kg.
Arranging ovenware
As far as possible, distribute the ovenware over the entire surface. It takes longer to warm through tall stacks of plates than individual pieces of ovenware, e.g. 2 serving dishes.
Drinks containers
Always heat drinks containers, e.g. espresso cups, using setting 2.
WARNING
Risk of burning
At setting 3 or 4, the drinks containers will get very hot and may cause serious injury.
Method
1 Place the ovenware in the drawer.
2 Set the function selector to setting 4. Always heat drinks containers using setting 2.
The "power on" indicator light flashes.
3 Close the warming drawer.
The "power on" indicator light lights up. The appliance heats up.
How long does preheating take
The length of time required for preheating depends on the material the ovenware is made of and its thickness, as well as the quantity, height and arrangement of the ovenware. As far as possible, distribute the ovenware over the entire surface.
It takes approximately 15-25 minutes to preheat dinnerware for 6 people.
Switching off
Open the drawer. Switch off the function selector.
Removing ovenware
Remove ovenware from the drawer using oven gloves or an oven cloth.
WARNING
Risk of burning
The upper surface of the heating plate will be hot. The base of the ovenware will be hotter than the top.
Keeping food warm
Do not place hot saucepans or pans on the glass surface of the warming drawer immediately after removing them from the hot drawer. This could damage the glass surface.
Do not fill the ovenware to such an extent that food spills over.
Cover the food with a heat-resistant lid or aluminium foil.
It is recommended that you do not keep food warm for longer than an hour.
Suitable foods: The appliance is suitable for keeping meat, poultry, fish, sauces, vegetables, side dishes and soups warm.
Method
1 Place the ovenware in the drawer.
2 Set the function selector to setting 3 and preheat the appliance for 10 minutes.
3 Add the food to the preheated ovenware.
4 Close the drawer again.
The "power on" indicator light lights up. The appliance heats up.
Switching off
Switch off the function selector. Remove the food from the drawer using oven gloves or an oven cloth.
Uses
The table shows various uses for the warming drawer. Set the function selector to the desired setting. Preheat the ovenware as indicated in the table.
| Level Food / ovenware Note | |
| 1 Delicate deep-frozen food e.g. cream cakes, butter, sausages, cheese | Defrost |
| 1 Leaving yeast dough to rise Cover | |
| 2 Deep-frozen food e.g. meat, cakes, bread Defrost | |
| 2 Keeping eggs warm e.g. hard-boiled eggs, scrambled eggs Preheat ovenware, cover food | |
| 2 Keeping bread warm e.g. toast, bread rolls Preheat ovenware, cover food | |
| 2 Preheating drinks containers e.g. espresso cups | |
| 2 Delicate food e.g. slow-cooked meat Cover ovenware | |
| 3 Keeping food warm Preheat ovenware, cover food | |
| 3 Keeping drinks warm Preheat ovenware, cover drinks | |
| 3 Warming flat dough-based foods e.g. pancakes, wraps, tacos | Preheat ovenware, cover food |
| 3 Warming dry cakes e.g. crumble cakes, muffins Preheat ovenware, cover food | |
| 3 Melting cooking chocolate or chocolate coating Preheat ovenware, break up food into small pieces | |
| 3 Dissolving gelatine Open, approximately 20 minutes | |
| 4 Preheating ovenware Not suitable for drinks containers | |
Cleaning and care
Do not use high-pressure cleaners or steam jets. Only clean the drawer when the appliance is switched off. Function selector Setting = 0.
Appliance exterior
Wipe the appliance with water and a little detergent. Then dry it with a soft cloth.
Caustic or abrasive cleaning products are not suitable. If a caustic or abrasive substance comes into contact with the frontage, wash it off immediately with water.
Stainless steel surfaces
Always remove any spots of limescale, grease, cornflour and egg white immediately. Corrosion can form under such spots. Clean the appliance using water and a little detergent. Then dry the surface with a soft cloth.
Appliances with glass fronts
Clean the glass front with glass cleaner and a soft cloth. Do not use a glass scraper.
Heating plate
Clean the heating plate using warm water and a little detergent.
Troubleshooting
Malfunctions often have simple explanations. Please read the following instructions before calling the after-sales service:
The ovenware or food remain cold. Check whether:
• the appliance is switched on
there has been a power cut
• the drawer is closed completely
The ovenware or food are not warmed sufficiently. This may indicate that:
● the ovenware or food were not warmed for a sufficient length of time
● the drawer was left open for a long time
The "power on" indicator light flashes. Check whether the drawer is closed.
The indicator light flashes rapidly when the warming drawer is closed. Call the after-sales service.
The "power on" indicator light does not light up. The indicator light is faulty. Consult the after-sales service
The fuse in the fuse box has blown. Disconnect the appliance at the mains and consult the after-sales service.
Repairs must only be carried out by qualified specialists. Incorrect repairs may result in serious injury to the user.
Customer service
Our after-sales service is there for you if your oven should need to be repaired. You will find the address and telephone number of your nearest after-sales service centre in the phone book. The after-sales service centres listed will also be happy to advise you of a service point in your local area.
E number and FD number
When contacting the after-sales service, always specify the product number (E no.) and the production number (FD no.) of your appliance. The rating plate bearing these numbers can be found by opening the warming drawer. Make a note of these numbers in the space below to save time in the event of your appliance malfunctioning.
E no. FD no.
After-sales service 📞
Please find the contact data of all countries in the enclosed customer service list.
To book a service visit and product advice
USA 877 442 4436
toll-free
CANADA 877 442 4436
toll-free
Table des Matières
Plaque chauffante 19
1901 Main Street, Suite 600
Irvine, CA 92614
+1-877-442-4436
www.gaggenau.com/us
© 2018 BSH Home Appliances
