WS482710 - Warming drawers and cabinets GAGGENAU - Free user manual and instructions

Product type	Warming drawer
Brand	Gaggenau
Model	WS482710
Dimensions (W x D x H)	60 cm x 55 cm x 14 cm
Weight	Approximately 30 kg
Power supply	230 V / 50 Hz, 1500 W
Capacity	Table service for 6 people
Main functions	Preheating dishes, keeping warm, defrosting, dough rising
Selector positions	0 (Off), 1 (Dough rising/gentle defrosting), 2 (Bread/warm keeping, drink cups), 3 (Keeping dishes), 4 (Preheating dishes)
Heating type	Heating plate + fan
Indicator light	Flashes when switched on, becomes steady when drawer is closed
Interior lighting	Yes, automatic with option for permanent deactivation
Child safety	Not specified
Cleaning	Clean with water and mild dish soap; wipe with a soft cloth; do not use steam cleaner
Maintenance	Remove limescale, grease, and starch stains immediately; stainless steel surfaces: water and dish soap
Repairability	Repairs only by authorized technician; spare parts via customer service
Customer service	Phone: [phone] (toll-free); other contacts in manual
Product numbers	E (product) and FD (manufacturing) numbers on rating plate
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - WS482710 GAGGENAU

How to preheat dishes with the Gaggenau WS482710 warming drawer?

Place the dishes in the drawer, set the selector to position 4 (preheating dishes). The indicator flashes then becomes steady once closed. Preheating takes about 15 to 25 minutes for a service of 6 people. Use oven mitts to remove the dishes. Do not use position 4 for drink containers.

Can I keep food warm in the Gaggenau WS482710 drawer?

Yes, set the selector to position 3. Preheat the drawer for 10 minutes first, then place the food in a covered container. Do not exceed 1 hour of keeping warm. Food must be in heat-resistant dishes. Do not place hot pans directly on the glass bottom.

How to defrost or rise dough with this drawer?

For gentle defrosting (pie, butter, cheese) or dough rising, use position 1. Cover the dough. The duration depends on the quantity. Position 2 is for more intense defrosting (meat, cake, bread).

What to do if the indicator light flashes intensely?

Intense flashing indicates a fault. First check that the drawer is properly closed. If it remains abnormal, unplug the appliance and contact customer service. Do not attempt to repair it yourself.

How to clean the Gaggenau WS482710 warming drawer?

Clean only when appliance is off (selector on 0). Use a soft cloth with water and a little dish soap. For stainless steel, dry immediately. The heating plate can be cleaned with warm water. Never use a steam or high-pressure cleaner.

Can I heat espresso cups in this drawer?

Yes, but only on position 2. Positions 3 or 4 would make the containers too hot and risk burning them. Place them in the drawer and let them heat for a few minutes.

What to do if the dishes don't heat enough?

Check that the appliance is on, the drawer is properly closed, and there is no power outage. Make sure you have respected the preheating time (15-25 min). If the problem persists, contact customer service.

How to permanently deactivate the interior lighting?

Reach into the compartment and turn off the lighting at the top left. The lighting will then stay off until the next manual operation.

Where to find the serial number of my Gaggenau WS482710 drawer?

Open the drawer and look at the rating plate inside. You will find the E (product) and FD (manufacturing) numbers. Write them down for any customer service intervention.

What are the important safety instructions?

Never touch the heating plate while in operation (risk of burns). Do not use outdoors. Do not clean with a steam cleaner. Disconnect in case of fault. Repairs must be carried out by an authorized professional.

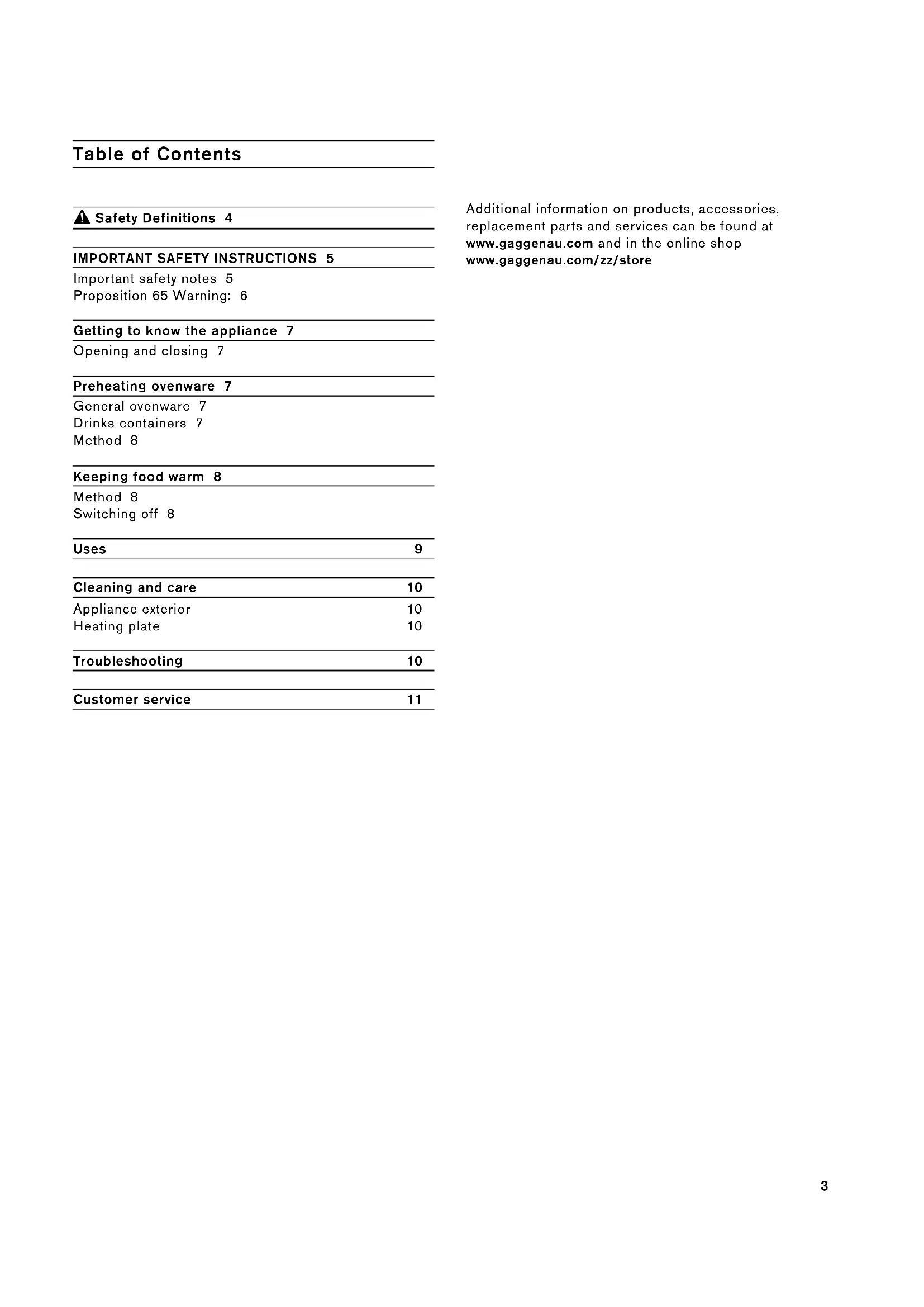

USER MANUAL WS482710 GAGGENAU

IMPORTANT SAFETY INSTRUCTIONS 5

Important safety notes 5

Proposition 65 Warning: 6

Getting to know the appliance 7

Opening and closing 7

Preheating ovenware 7

General ovenware 7

Drinks containers 7

Method 8

Keeping food warm 8

Method 8

Switching off 8

Uses 9

Cleaning and care 10

Appliance exterior 10

Heating plate 10

Troubleshooting 10

Customer service 11

Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau.com/zz/store

Safety Definitions

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

IMPORTANT SAFEGUARDS SAVE THESE INSTRUCTIONS.

Important safety notes

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Keep the Use and Care manual and the Installation Instructions for later use or a later owner.

Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.

This device is only intended for private household use and in a domestic capacity. The device should be used exclusively for warming dishes and keeping food warm.

Do not use this appliance outdoors.

This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or a lack of experience or knowledge if they are supervised by a person who is responsible for their safety or if they have been instructed by them about safe use of the appliance and they have understood the resulting dangers.

Children must not play with the appliance. Cleaning and user maintenance must not be done by children unless they are 15 years old or older and are supervised.

Keep children under 8 years old away from the appliance and the connecting lead.

WARNING

Burn risk

The hotplate in the warming drawer can get very hot. Never touch the heated hotplate. Keep children away.

WARNING

Severe health risk

Clean with Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface.

WARNING

Risk of burns

Accessories or cookware become very hot. Always use oven cloths to remove hot accessories or cookware from the oven interior.

WARNING

Risk of electric shock

The cable insulation of electrical appliances can melt on hot parts of the appliance. Never let connecting cables of electrical appliances come into contact with hot parts of the appliance.

WARNING

Risk of electrical shock

Moisture entering the appliance can cause an electrical shock. Don't use a high-pressure cleaner or steam cleaner.

WARNING

Risk of electrical shock

A defective appliance can cause an electrical shock. Never switch on a defective appliance. Remove the mains plug or deactivate the fuse in the fuse box. Call after-sales service.

WARNING

Electric Shock Hazard

Fissures or cracks in the glass plate can result in electric shocks. Switch off fuse in the fuse box. Call customer service.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

Risk of electric shock

Incorrect repairs are dangerous. Repairs may only be carried out by an authorized servicer. If the appliance is not functioning properly, unplug the power cord or switch off the fuse in the fuse box. Contact Customer Support.

WARNING

Risk of electric shock

The appliance is equipped with an EU grounding-type receptacle. To ensure protective grounding in a socket outlet for Denmark, the appliance must be connected with a suitable plug adapter. This adapter (permissible up to 13 amps) is obtainable through after-sales service (spare part No. 623333).

WARNING

Fire hazard

The hotplate in the warming drawer can get very hot, flammable materials can catch fire. Never store flammable objects or plastic containers in the warming drawer.

WARNING

To protect against electrical shock do not immerse cord or plug in water or other liquids.

WARNING

Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

WARNING

The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

WARNING

Do not use appliance für other than the intended use.

WARNING

Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", the remove plug from wall outlet.

WARNING

To ensure continued protection against risk of electrical shock, connect to properly grounded outlets only.

Proposition 65 Warning:

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SAVE THESE INSTRUCTIONS.

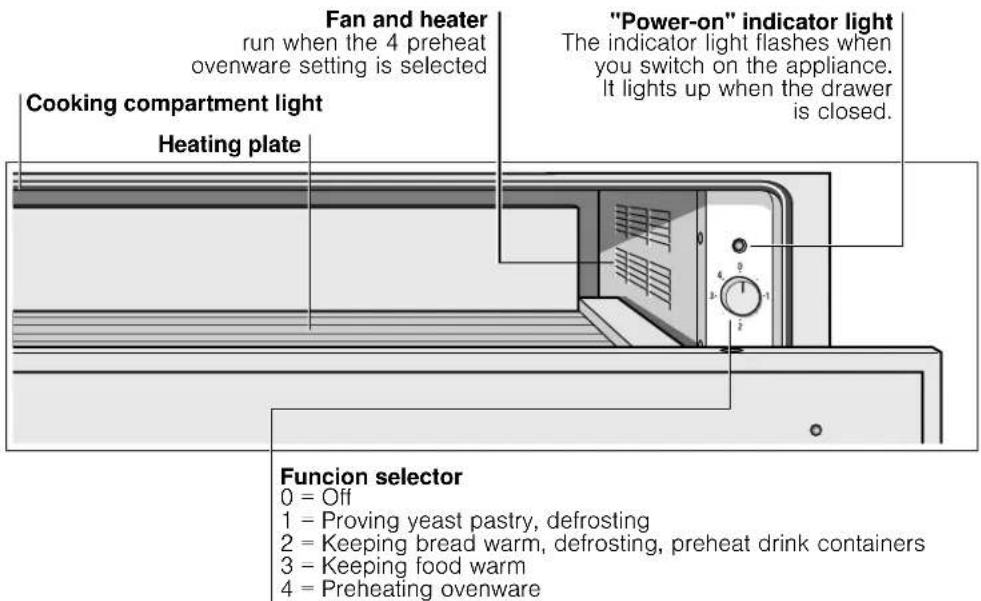

Getting to know the appliance

You can use the warming drawer to preheat ovenware or to keep food warm.

Fan and heater run when the 4 preheat ovenware setting is selected Cooking compartment light Heating plate "Power-on" indicator light The indicator light flashes when you switch on the appliance. It lights up when the drawer is closed. Funcion selector 0 = Off 1 = Proving yeast pastry, defrosting 2 = Keeping bread warm, defrosting, preheat drink containers 3 = Keeping food warm 4 = Preheating ovenware

The appliance will only heat up if the drawer is closed correctly.

Opening and closing

The appliance has a recess at the bottom which can be used as a handle to open and close it.

While opening and closing the illumination automatically turns on and off.

You can also turn off illumination completely by reaching into the appliance, using the slide switch on the upper left side.

Preheating ovenware

Food stays warm for longer in preheated ovenware. Drinks also remain warm for longer.

General ovenware

Only load the warming drawer up to 25 kg.

Arranging ovenware

As far as possible, distribute the ovenware over the entire surface. It takes longer to warm through tall stacks of plates than individual pieces of ovenware, e.g. 2 serving dishes.

Drinks containers

Always heat drinks containers, e.g. espresso cups, using setting 2.

WARNING

Risk of burning

At setting 3 or 4, the drinks containers will get very hot and may cause serious injury.

Method

1 Place the ovenware in the drawer.
2 Set the function selector to setting 4. Always heat drinks containers using setting 2. The "power on" indicator light flashes.
3 Close the warming drawer. The "power on" indicator light lights up. The appliance heats up.

How long does preheating take

The length of time required for preheating depends on the material the ovenware is made of and its thickness, as well as the quantity, height and arrangement of the ovenware. As far as possible, distribute the ovenware over the entire surface.

It takes approximately 15-25 minutes to preheat dinnerware for 6 people.

Switching off

Open the drawer. Switch off the function selector.

Removing ovenware

Remove ovenware from the drawer using oven gloves or an oven cloth.

WARNING

Risk of burning

The upper surface of the heating plate will be hot. The base of the ovenware will be hotter than the top.

Keeping food warm

Do not place hot saucepans or pans on the glass surface of the warming drawer immediately after removing them from the hot drawer. This could damage the glass surface.

Do not fill the ovenware to such an extent that food spills over.

Cover the food with a heat-resistant lid or aluminium foil.

It is recommended that you do not keep food warm for longer than an hour.

Suitable foods: The appliance is suitable for keeping meat, poultry, fish, sauces, vegetables, side dishes and soups warm.

Method

1 Place the ovenware in the drawer.
2 Set the function selector to setting 3 and preheat the appliance for 10 minutes.
3 Add the food to the preheated ovenware.
4 Close the drawer again. The "power on" indicator light lights up. The appliance heats up.

Switching off

Switch off the function selector. Remove the food from the drawer using oven gloves or an oven cloth.

Uses

The table shows various uses for the warming drawer. Set the function selector to the desired setting. Preheat the ovenware as indicated in the table.

Level Food / ovenware Note
1 Delicate deep-frozen food e.g. cream cakes, butter, sausages, cheese	Defrost
1 Leaving yeast dough to rise Cover
2 Deep-frozen food e.g. meat, cakes, bread Defrost
2 Keeping eggs warm e.g. hard-boiled eggs, scrambled eggs Preheat ovenware, cover food
2 Keeping bread warm e.g. toast, bread rolls Preheat ovenware, cover food
2 Preheating drinks containers e.g. espresso cups
2 Delicate food e.g. slow-cooked meat Cover ovenware
3 Keeping food warm Preheat ovenware, cover food
3 Keeping drinks warm Preheat ovenware, cover drinks
3 Warming flat dough-based foods e.g. pancakes, wraps, tacos	Preheat ovenware, cover food
3 Warming dry cakes e.g. crumble cakes, muffins Preheat ovenware, cover food
3 Melting cooking chocolate or chocolate coating Preheat ovenware, break up food into small pieces
3 Dissolving gelatine Open, approximately 20 minutes
4 Preheating ovenware Not suitable for drinks containers

Cleaning and care

Do not use high-pressure cleaners or steam jets. Only clean the drawer when the appliance is switched off. Function selector Setting = 0.

Appliance exterior

Wipe the appliance with water and a little detergent. Then dry it with a soft cloth.

Caustic or abrasive cleaning products are not suitable. If a caustic or abrasive substance comes into contact with the frontage, wash it off immediately with water.

Stainless steel surfaces

Always remove any spots of limescale, grease, cornflour and egg white immediately. Corrosion can form under such spots. Clean the appliance using water and a little detergent. Then dry the surface with a soft cloth.

Appliances with glass fronts

Clean the glass front with glass cleaner and a soft cloth. Do not use a glass scraper.

Heating plate

Clean the heating plate using warm water and a little detergent.

Troubleshooting

Malfunctions often have simple explanations. Please read the following instructions before calling the after-sales service:

The ovenware or food remain cold. Check whether:

• the appliance is switched on
there has been a power cut
• the drawer is closed completely

The ovenware or food are not warmed sufficiently. This may indicate that:

● the ovenware or food were not warmed for a sufficient length of time
● the drawer was left open for a long time

The "power on" indicator light flashes. Check whether the drawer is closed.

The indicator light flashes rapidly when the warming drawer is closed. Call the after-sales service.

The "power on" indicator light does not light up. The indicator light is faulty. Consult the after-sales service

The fuse in the fuse box has blown. Disconnect the appliance at the mains and consult the after-sales service.

Repairs must only be carried out by qualified specialists. Incorrect repairs may result in serious injury to the user.

Customer service

Our after-sales service is there for you if your oven should need to be repaired. You will find the address and telephone number of your nearest after-sales service centre in the phone book. The after-sales service centres listed will also be happy to advise you of a service point in your local area.

E number and FD number

When contacting the after-sales service, always specify the product number (E no.) and the production number (FD no.) of your appliance. The rating plate bearing these numbers can be found by opening the warming drawer. Make a note of these numbers in the space below to save time in the event of your appliance malfunctioning.

E no. FD no.

After-sales service 📞

Please find the contact data of all countries in the enclosed customer service list.

To book a service visit and product advice

USA 877 442 4436

toll-free

CANADA 877 442 4436

toll-free

Table des Matières

Plaque chauffante 19

1901 Main Street, Suite 600

Irvine, CA 92614

[phone]

www.gaggenau.com/us

© 2018 BSH Home Appliances
