Product type	Built-in warming drawer
Brand	Gaggenau
Model	WSP221710
Temperature settings	4 settings: 1 (40 °C), 2 (60 °C), 3 (80 °C), 4 (80 °C with convection)
Maximum load capacity	25 kg (55 lbs)
Main uses	Preheating dishes, keeping food warm, defrosting, proving dough
Opening and closing	By pressing the middle of the drawer, assisted opening
Operation indicator	Flashes when opened, stays on when drawer is closed
Safety	Risk of burns, do not touch heating plate, do not use outdoors
Front materials	Stainless steel or glass depending on version
Cleaning	Water and mild dish soap, do not use steam cleaner or high pressure cleaner
Maintenance of stainless steel surfaces	Remove limescale, grease, and starch stains immediately
Maintenance of a glass front	Glass cleaner and soft cloth, do not use a scraper
Rating plate	Inside the drawer, lists E (product) and FD (manufacturing) numbers
After-sales service	Contact Gaggenau customer service, E and FD numbers required
Recommended accessories	Use oven mitts to remove hot dishes
Warranty	Consult manual or dealer

Frequently Asked Questions - WSP221710 GAGGENAU

How to preheat dishes with the warming drawer?

Place the dishes in the drawer, set the selector to position 4 (or position 2 for drinking vessels), then close the drawer. Preheating takes about 15 to 25 minutes for 6 place settings. Use oven mitts to remove hot dishes.

Can I keep food warm in the drawer?

Yes, set the selector to position 3. Preheat the appliance for 10 minutes first, then place the food in suitable dishware and cover it. Do not exceed 1 hour of keeping warm.

What is the maximum temperature reached?

Position 4 reaches about 80 °C with convection. Position 3 reaches 80 °C, position 2 60 °C, and position 1 40 °C.

How to clean the heating plate?

Clean the heating plate with warm water and dish soap, after turning off the appliance and allowing it to cool. Do not use steam cleaner or high pressure cleaner.

What to do if the operation indicator flashes?

Check that the drawer is properly closed. If it flashes intensely when the drawer is closed, contact customer service.

Can I use plastic containers in the warming drawer?

No, never place flammable objects or plastic containers in the drawer, as the heating plate becomes very hot and could cause them to melt or catch fire.

How long does it take to preheat dishes?

The preheating time depends on the material, thickness, and quantity of dishes. For 6 place settings, allow about 15 to 25 minutes. Distribute the dishes over the entire surface for even heating.

Can I leave the appliance on for a long time?

It is not recommended to keep food warm for more than one hour. For preheating dishes, you can use it until the dishes are hot, but do not leave the appliance unattended.

What to do in case of a power outage?

The appliance turns off automatically. After power returns, check that the selector is set to Off, then turn it on if necessary. If the fuse blows, unplug the appliance and contact customer service.

Where can I find the serial number of my appliance?

Open the warming drawer. The rating plate is inside and contains the E (product) and FD (manufacturing) numbers. Make a note of them for any customer service intervention.

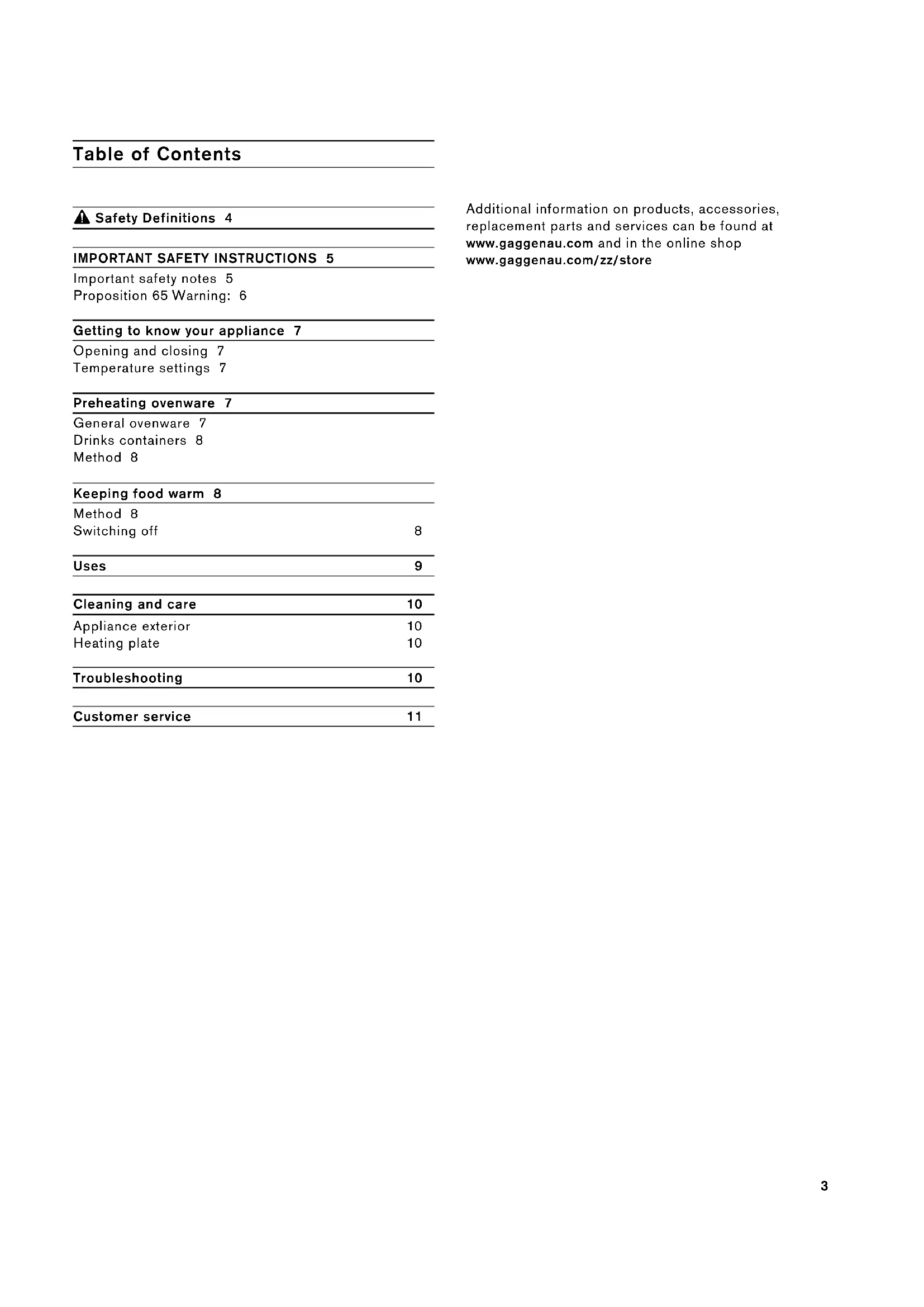

USER MANUAL WSP221710 GAGGENAU

IMPORTANT SAFETY INSTRUCTIONS 5

Important safety notes 5

Proposition 65 Warning: 6

Getting to know your appliance 7

Opening and closing 7

Temperature settings 7

Preheating ovenware 7

General ovenware 7

Drinks containers 8

Method 8

Keeping food warm 8

Method 8

Switching off 8

Uses 9

Cleaning and care 10

Appliance exterior 10

Heating plate 10

Troubleshooting 10

Customer service 11

Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau.com/zz/store

Safety Definitions

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

IMPORTANT SAFEGUARDS SAVE THESE INSTRUCTIONS.

Important safety notes

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Keep the Use and Care manual and the Installation Instructions for later use or a later owner.

Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.

This device is only intended for private household use and in a domestic capacity. The device should be used exclusively for warming dishes and keeping food warm.

Do not use this appliance outdoors.

This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or a lack of experience or knowledge if they are supervised by a person who is responsible for their safety or if they have been instructed by them about safe use of the appliance and they have understood the resulting dangers.

Children must not play with the appliance. Cleaning and user maintenance must not be done by children unless they are 15 years old or older and are supervised.

Keep children under 8 years old away from the appliance and the connecting lead.

WARNING

Burn risk

The hotplate in the warming drawer can get very hot. Never touch the heated hotplate. Keep children away.

WARNING

Severe health risk

Clean with Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface.

WARNING

Risk of burns

Accessories or cookware become very hot. Always use oven cloths to remove hot accessories or cookware from the oven interior.

WARNING

Risk of electric shock

The cable insulation of electrical appliances can melt on hot parts of the appliance. Never let connecting cables of electrical appliances come into contact with hot parts of the appliance.

WARNING

Risk of electrical shock

Moisture entering the appliance can cause an electrical shock. Don't use a high-pressure cleaner or steam cleaner.

WARNING

Risk of electrical shock

A defective appliance can cause an electrical shock. Never switch on a defective appliance. Remove the mains plug or deactivate the fuse in the fuse box. Call after-sales service.

WARNING

Electric Shock Hazard

Fissures or cracks in the glass plate can result in electric shocks. Switch off fuse in the fuse box. Call customer service.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

Risk of electric shock

Incorrect repairs are dangerous. Repairs may only be carried out by an authorized servicer. If the appliance is not functioning properly, unplug the power cord or switch off the fuse in the fuse box. Contact Customer Support.

WARNING

Risk of electric shock

The appliance is equipped with an EU grounding-type receptacle. To ensure protective grounding in a socket outlet for Denmark, the appliance must be connected with a suitable plug adapter. This adapter (permissible up to 13 amps) is obtainable through after-sales service (spare part No. 623333).

WARNING

Fire hazard

The hotplate in the warming drawer can get very hot, flammable materials can catch fire. Never store flammable objects or plastic containers in the warming drawer.

WARNING

To protect against electrical shock do not immerse cord or plug in water or other liquids.

WARNING

Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

WARNING

The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

WARNING

Do not use appliance für other than the intended use.

WARNING

Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", the remove plug from wall outlet.

WARNING

To ensure continued protection against risk of electrical shock, connect to properly grounded outlets only.

Proposition 65 Warning:

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SAVE THESE INSTRUCTIONS.

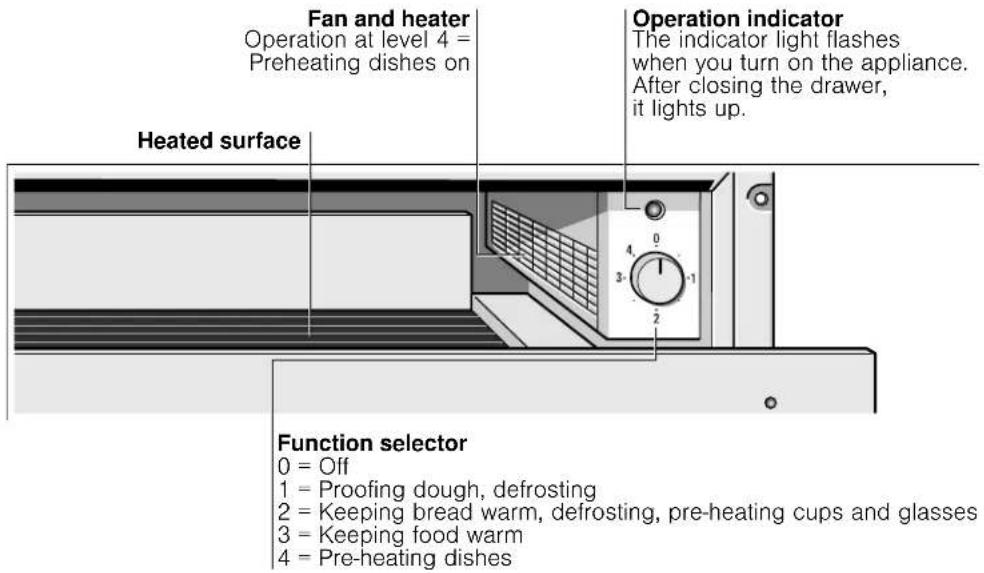

Getting to know your appliance

The warming drawer can be used to preheat dishes or keep food warm.

Fan and heater Operation at level 4 = Preheating dishes on Operation indicator The indicator light flashes when you turn on the appliance. After closing the drawer, it lights up. Heated surface Function selector 0 = Off 1 = Proofing dough, defrosting 2 = Keeping bread warm, defrosting, pre-heating cups and glasses 3 = Keeping food warm 4 = Pre-heating dishes

The appliance heats up only when the drawer is closed correctly.

Opening and closing

Press on the center of the drawer to open or close it.

When you open it, the drawer gently springs out. You can then easily pull it out.

WARNING

Risk of burns

The inner surfaces of the warming drawer can be very hot and can cause injury.

Temperature settings

Setting Surface temperature of drawer bottom

1 100°F (40°C)

2 140°F (60°C)

3 175°F (80°C)

4 175°F (80°C) + convection

CAUTION

Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140^ F ( 60^ C) or warmer. For beef use a portable meat thermometer to check internal temperatures.

Preheating ovenware

Food stays warm for longer in preheated ovenware. Drinks also remain warm for longer.

General ovenware

Only load the warming drawer up to 55 lbs (25 kg). You can preheat dinnerware for 6 people, for example.

Low drawer (51⁄2" (14 cm) in height)

6 dinner plates ∅ 91⁄2" (24 cm)

6 soup bowls ∅ 4" (10 cm)

1 serving dish ∅ 71⁄2" (19 cm)

1 serving dish ∅ 63⁄4" (17 cm)

1 meat plate 121⁄2" (32 cm)

Arranging ovenware

As far as possible, distribute the ovenware over the entire surface. It takes longer to warm through tall stacks of plates than individual pieces of ovenware, e.g. 2 serving dishes.

Drinks containers

Always heat drinks containers, e.g. espresso cups, using setting 2.

WARNING

Risk of burning

At setting 3 or 4, the drinks containers will get very hot and may cause serious injury.

Method

1 Place the ovenware in the drawer.
2 Set the function selector to setting 4. Always heat drinks containers using setting 2. The "power on" indicator light flashes.
3 Close the warming drawer. The "power on" indicator light lights up. The appliance heats up.

How long does preheating take

The length of time required for preheating depends on the material the ovenware is made of and its thickness, as well as the quantity, height and arrangement of the ovenware. As far as possible, distribute the ovenware over the entire surface.

It takes approximately 15-25 minutes to preheat dinnerware for 6 people.

Switching off

Open the drawer. Switch off the function selector.

Removing ovenware

Remove ovenware from the drawer using oven gloves or an oven cloth.

WARNING

Risk of burning

The upper surface of the heating plate will be hot. The base of the ovenware will be hotter than the top.

Keeping food warm

Do not place hot saucepans or pans on the glass surface of the warming drawer immediately after removing them from the hot drawer. This could damage the glass surface.

Do not fill the ovenware to such an extent that food spills over.

Cover the food with a heat-resistant lid or aluminium foil.

It is recommended that you do not keep food warm for longer than an hour.

Suitable foods: The appliance is suitable for keeping meat, poultry, fish, sauces, vegetables, side dishes and soups warm.

Method

1 Place the ovenware in the drawer.
2 Set the function selector to setting 3 and preheat the appliance for 10 minutes.
3 Add the food to the preheated ovenware.
4 Close the drawer again. The "power on" indicator light lights up. The appliance heats up.

Switching off

Switch off the function selector. Remove the food from the drawer using oven gloves or an oven cloth.

Uses

The table shows various uses for the warming drawer. Set the function selector to the desired setting. Preheat the ovenware as indicated in the table.

Level Food / ovenware Note
1 Delicate deep-frozen food e.g. cream cakes, butter, sausages, cheese	Defrost
1 Leaving yeast dough to rise Cover
2 Deep-frozen food e.g. meat, cakes, bread Defrost
2 Keeping eggs warm e.g. hard-boiled eggs, scrambled eggs Preheat ovenware, cover food
2 Keeping bread warm e.g. toast, bread rolls Preheat ovenware, cover food
2 Preheating drinks containers e.g. espresso cups
2 Delicate food e.g. slow-cooked meat Cover ovenware
3 Keeping food warm Preheat ovenware, cover food
3 Keeping drinks warm Preheat ovenware, cover drinks
3 Warming flat dough-based foods e.g. pancakes, wraps, tacos	Preheat ovenware, cover food
3 Warming dry cakes e.g. crumble cakes, muffins Preheat ovenware, cover food
3 Melting cooking chocolate or chocolate coating Preheat ovenware, break up food into small pieces
3 Dissolving gelatine Open, approximately 20 minutes
4 Preheating ovenware Not suitable for drinks containers

Cleaning and care

Do not use high-pressure cleaners or steam jets. Only clean the drawer when the appliance is switched off. Function selector Setting = 0.

Appliance exterior

Wipe the appliance with water and a little detergent. Then dry it with a soft cloth.

Caustic or abrasive cleaning products are not suitable. If a caustic or abrasive substance comes into contact with the frontage, wash it off immediately with water.

Stainless steel surfaces

Always remove any spots of limescale, grease, cornflour and egg white immediately. Corrosion can form under such spots. Clean the appliance using water and a little detergent. Then dry the surface with a soft cloth.

Appliances with glass fronts

Clean the glass front with glass cleaner and a soft cloth. Do not use a glass scraper.

Heating plate

Clean the heating plate using warm water and a little detergent.

Troubleshooting

Malfunctions often have simple explanations. Please read the following instructions before calling the after-sales service:

The ovenware or food remain cold. Check whether:

• the appliance is switched on
there has been a power cut
• the drawer is closed completely

The ovenware or food are not warmed sufficiently. This may indicate that:

● the ovenware or food were not warmed for a sufficient length of time
● the drawer was left open for a long time

The "power on" indicator light flashes. Check whether the drawer is closed.

The indicator light flashes rapidly when the warming drawer is closed. Call the after-sales service.

The "power on" indicator light does not light up. The indicator light is faulty. Consult the after-sales service

The fuse in the fuse box has blown. Disconnect the appliance at the mains and consult the after-sales service.

Repairs must only be carried out by qualified specialists. Incorrect repairs may result in serious injury to the user.

Customer service

Our after-sales service is there for you if your oven should need to be repaired. You will find the address and telephone number of your nearest after-sales service centre in the phone book. The after-sales service centres listed will also be happy to advise you of a service point in your local area.

E number and FD number

When contacting the after-sales service, always specify the product number (E no.) and the production number (FD no.) of your appliance. The rating plate bearing these numbers can be found by opening the warming drawer. Make a note of these numbers in the space below to save time in the event of your appliance malfunctioning.

E no. FD no.

After-sales service 📞

Please find the contact data of all countries in the enclosed customer service list.

To book a service visit and product advice

USA 877 442 4436

toll-free

CANADA 877 442 4436

toll-free

Contenido

Plaque chauffante 28

1901 Main Street, Suite 600

Irvine, CA 92614

[phone]

www.gaggenau.com/us

© 2018 BSH Home Appliances
