| Product type | Digital watch |
| Brand | Calypso |
| Model | K5740 |
| Main functions | Normal time, alarm, stopwatch, dual time zone, backlight |
| Display | Digital with LED backlight |
| Time format | 12 / 24 hours |
| Calendar | Perpetual until 2099 |
| Power supply | Standard button cell (estimated CR2032) |
| Backlight | LED, button activation, duration about 3 seconds |
| Stopwatch | 1/100 s, range up to 23h59'59 |
| Alarm | Daily, duration about 60 seconds, deactivation by any button |
| Hourly chime | Activable / deactivable |
| Dual time zone | Independently adjustable |
| Water resistance | Limited water resistance (do not immerse) |
| Case material | Resin (estimated) |
| Strap | Resin or silicone (estimated) |
| Case dimensions | Approx. 40 mm diameter |
| Weight | Approx. 50 g |
| Maintenance | Clean with a soft cloth and clean water, avoid chemicals |
| Safety | Do not open the case, avoid strong shocks and extreme temperatures |
| Precautions | Avoid electric and electrostatic fields |
| Recycling | WEEE selective collection, dispose at an approved point of sale |
Frequently Asked Questions - K5740 Calypso
User questions about K5740 Calypso
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Watch in PDF format for free! Find your manual K5740 - Calypso and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K5740 by Calypso.
USER MANUAL K5740 Calypso
DIGITAL
■ MANUAL DE INSTRUCCIONES 4
■ INSTRUCTION MANUAL 14
■ MANUEL D'INSTRUCTION 24
■ BETRIEBSANLEITUNG 34
■ MANUALE DI FUNZIONAMENTO 44
■ MANUALDEINSTRUÇÕES54


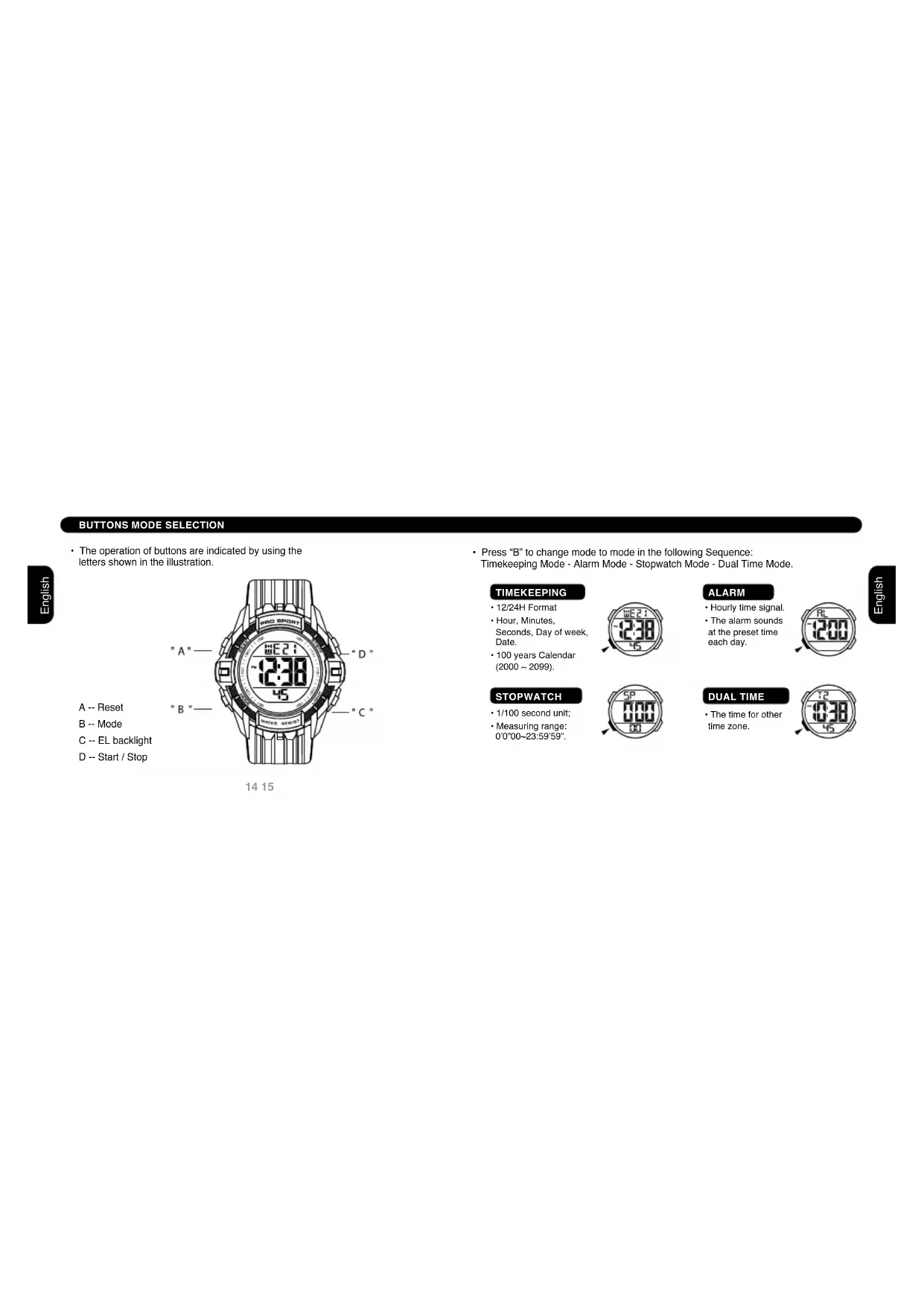

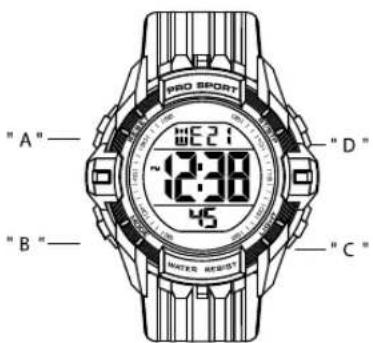

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSOBUTTONS MODE SELECTION
- The operation of buttons are indicated by using the letters shown in the illustration.
A -- Reset
B -- Mode
C -- EL backlight
D -- Start / Stop
TIMEKEEPING
• 12/24H Format
• Hour, Minutes,
Seconds, Day of week,
Date.
• 100 years Calendar
(2000 \~ 2099)
ALARM
• Hourly time signal.
• The alarm sounds at the preset time each day.
STOPWATCH
- 1/100 second unit;
• Measuring range: 0'0"00\~23:59'59".
DUAL TIME
• The time for other time zone.

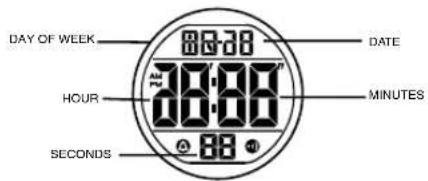

DISPLAY TIMEKEEPING
• The screen shown in below:
- The backlight that uses an EL (electro-luminescent) cause the display to glow for easy reading in the dark.
Use EL Backlight
- In any mode, press "C" to illuminate the display about 3 seconds.
12/24H Format
- In the timekeeping mode, press "A" to switch between 12/24H formats.
Time Setting
- In the timekeeping mode, press and hold "A" until the seconds to flash (flashing indicated in set mode).
- Press "D" to reset the seconds.
- Press "B" change to the next selection.
Calendar
- In the timekeeping mode, press and hold "D" to display: Year, Month, Date
- Press "D" to increase the number, press and hold to increase at high speed.
- Repeat step 3 and 4, the selection in the following sequence: Seconds - Hour - Minutes - Year Month - Date.
- Press "A" to exit the set state, after you set(The day of week is automatically displayed in accordance with year, month and date setting).
Alarm and Chime
- In the alarm mode, press "D" to on/off the alarm and chime in the following sequences: Alarm & Chime off - Alarm on Chime on - Alarm & Chime on.
Alarm Time Setting
- In the alarm mode, press "A" the hour to flash(flashing indicated in set mode.
- Press "D" to increase the hour, press and hold to increase at high speed.
- Press "B" to select the minutes.
- Press "D" to increase the minutes, press and hold to increase at high speed.
- Press "A" to exit the set state, after you set.
- The alarm sounds at the preset time each day for about 60 seconds, press any button to break it.
STOPWATCHALARM
A Lap Time Split Time
- In the stopwatch mode, press "D" to start the stopwatch.
- To stop the stopwatch by pressing "D" again.
- Press "A" to reset the stopwatch.
- In the stopwatch mode, press "D" to start the stopwatch.
- Press "A" to display the split time, stopwatch timing continues internally.
- Press "A" to clear the split time and to continue time measurement.
- Repeat step 2 and 3, you can measure themulti split time.
- Press "D" to stop the stopwatch.
DUAL TIME
CARE OF YOUR WATCH
Dual Time Setting
- In the dual time mode, press "A" the hour to flash (flashing indicated in set mode).
2.2. Press "D" to increase the hour, press and hold to increase at high speed. - Press "B" to select the minutes.
- Press "D" to change the minutes(press once change 30 minutes).
- Press "A" to exit the set state, after you set.
- This watch contains electronic components. Never attempt to open the case or remove the back cover.
- Do not operate push buttons below the surface of the water while swimming or diving.
- Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
- Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
- Avoid exposing the watch to extreme temperature.
- Clean the watch with soft cloth and clean water only. Avoid using chemicals.
- Keep your watch away from the conditions of strong electric field and estatic electricity.
By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection's selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.
