Xera 232520130 - Lighting Lucide - Free user manual and instructions

Brand	Lucide
Model	Xera 232520130
Category	Interior lighting
Product type	Chandelier / Ceiling light
Dimensions (approx.)	Diameter 30 cm, Height 20 cm
Weight (approx.)	1.0 kg
Power supply	220-240 V ~ 50/60 Hz
Bulb type	E27 (screw base)
Maximum power	60 W (bulb included)
Protection rating	IP20 (dry interior)
Electrical class	Class II (double insulation)
Main functions	Ambient lighting
Installation	Ceiling mounting, connection to mains
Care and cleaning	Clean with a dry cloth, avoid water
Safety	Cut off power before intervention, keep safe distance from flammable materials
Spare parts and repairability	Bulb replaceable by user; other repairs by a qualified electrician
Warranty	2 years, except glass (14 days)

Frequently Asked Questions - Xera 232520130 Lucide

What type of bulb to use for the Lucide Xera 232520130?

Use a bulb with E27 base and a maximum power of 60 W. Follow the type and power indicated on the product.

Is this luminaire dimmable?

The product is not specifically indicated as dimmable. Use a compatible bulb if you want dimming, but check compatibility with your dimmer.

Can I install this luminaire in a bathroom?

No, this model is rated IP20, suitable only for indoor use in dry rooms. For a bathroom, a higher protection rating (IP44 or above) is required.

How to clean the luminaire?

Unplug the power and clean with a soft, dry cloth. Never use water, solvents, or abrasive products.

What to do if the bulb does not turn on?

First check that the bulb is screwed in properly and in good condition. Test another bulb. If the problem persists, turn off the power and check the electrical connections. If in doubt, contact an electrician.

Does this luminaire require earthing?

No, the Lucide Xera 232520130 is Class II (double insulation). It must not be connected to the earth wire.

What is the safety distance to keep from flammable materials?

Respect the minimum distance indicated on the lamp (often 50 cm). Make sure no flammable items (curtains, furniture) are nearby.

Does the warranty cover bulbs?

The 2-year warranty covers defects in materials and workmanship. Bulbs and glass parts are excluded after 14 days from purchase.

How to install this ceiling light?

Installation must be carried out by a competent person. Turn off power at the circuit breaker. Fix the bracket to the ceiling, connect the wires (live, neutral, no earth for class II) and mount the luminaire. Follow the diagram in the manual.

What to do in case of glass breakage?

Immediately replace the protective glass. If it is damaged, do not use the luminaire. Contact the manufacturer or an authorized dealer for a replacement part.

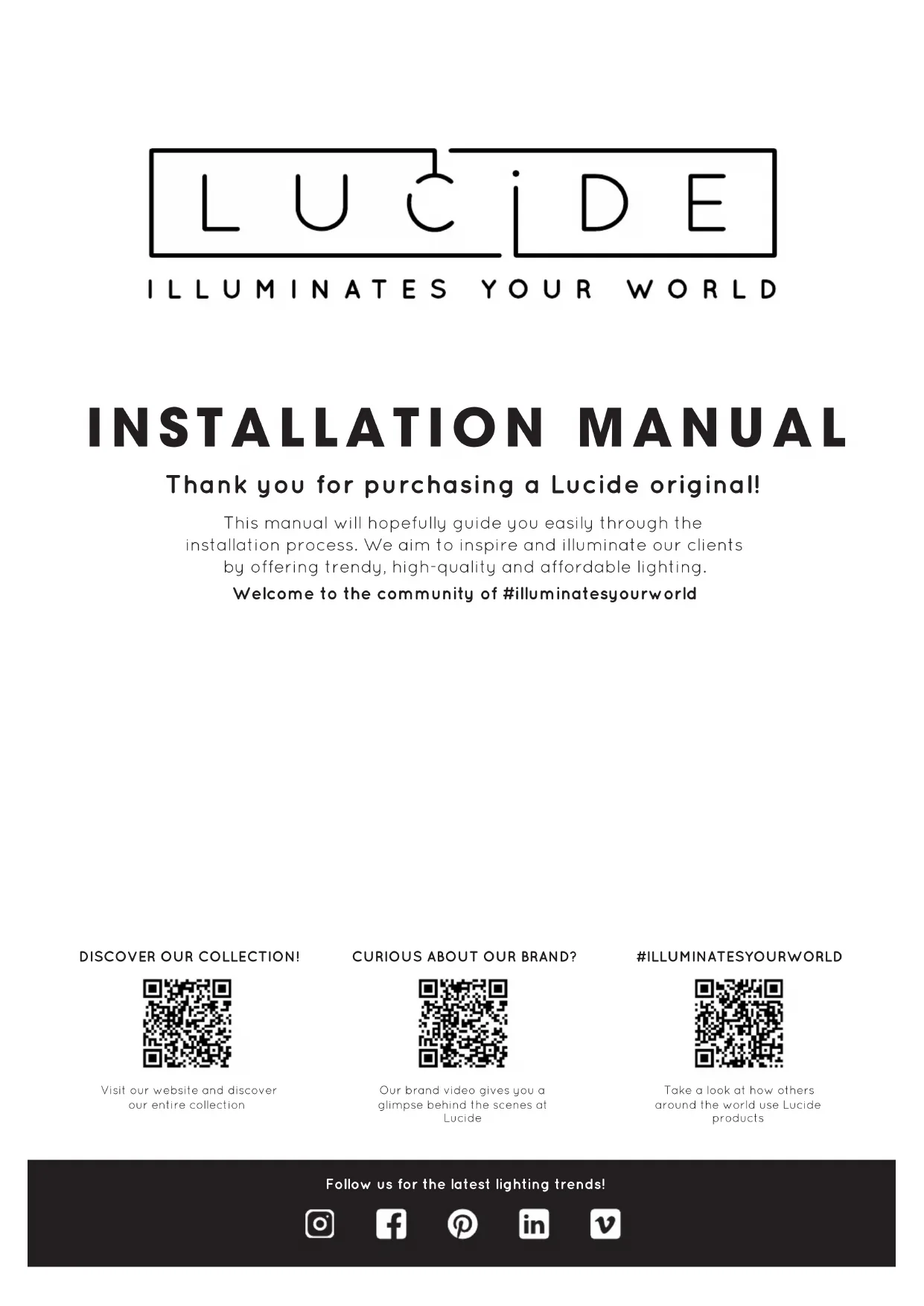

USER MANUAL Xera 232520130 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 23252/01/30
EAN code: 5411212233646

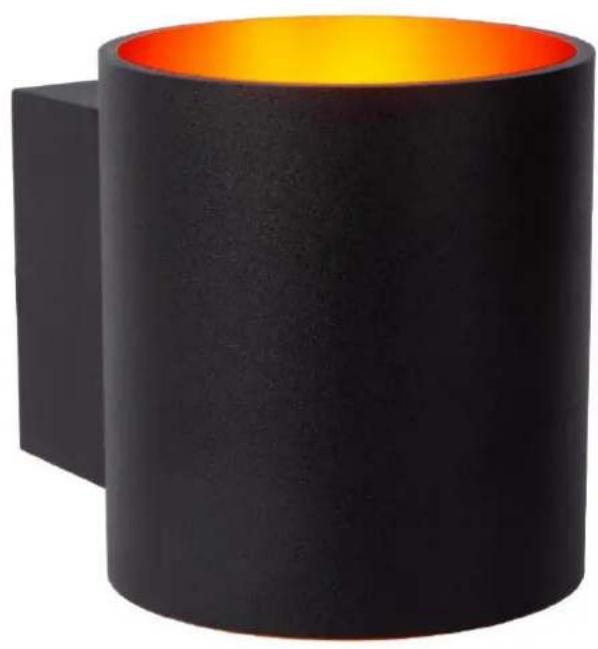

XERA

RECOMMENDED LUCIDE LIGHT SOURCE

49095/03/31
Dmissible: Yes
Included: No

General

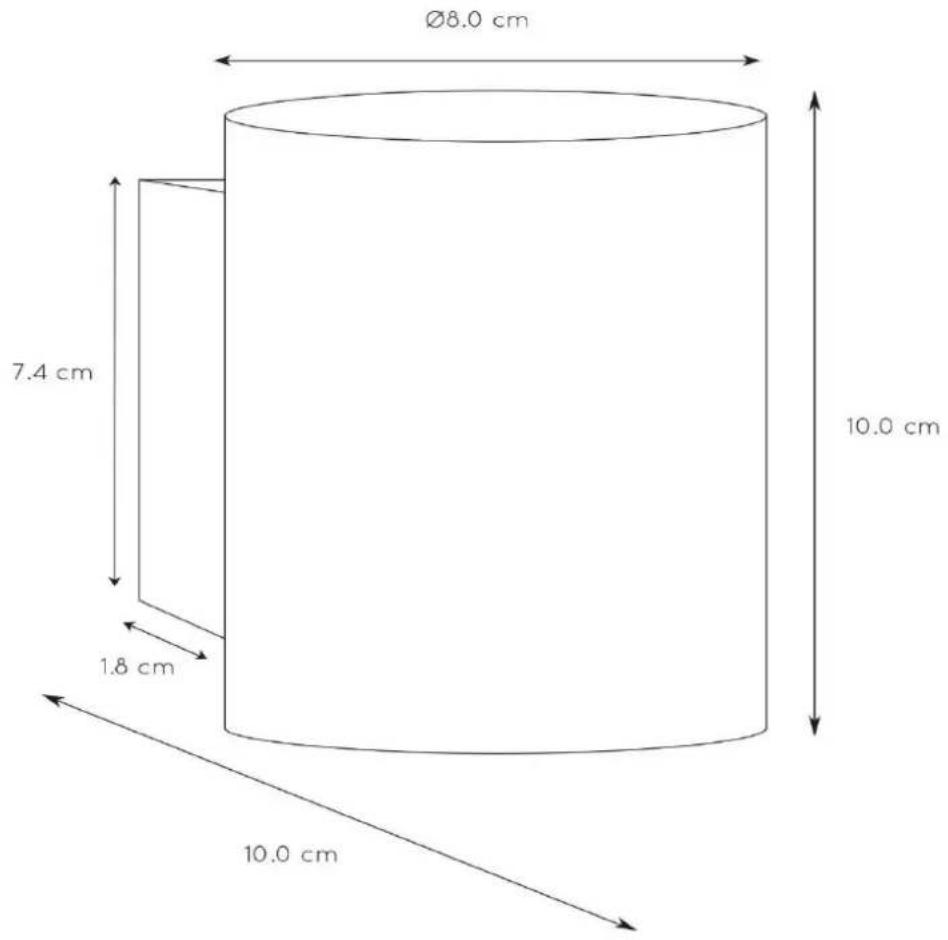

Dimensions LxW xH: 10cm x 8cm x 10cm
Main material: Aluminum
Color: Black and Matt Gold / Brass
Style: Modern
Shape: Round
Weight: 0.30kg
Warranty: 2 Years

Specifications

Dimmable: Yes
Light direction: Uplight & Downlight
Adjustable in height: Not In Height Adj
Directional: Not Directional
Cable: No Cable On Product
Sensor: Without Sensor
Control: Light Switch Control
Power supply: Adapter/Power Grid
IP-Class: 20
Electric Class: 1
Number of light sources: 1
Lamp socket: G9
Wattage: 1 × 42W Power requirements: 220 - 240V 50Hz

LUCIDE

XERA

Item number: 23252/01/30

EAN code: 5411212233646

LUCIDE

XERA

Item number: 23252/01/30

EAN code: 5411212233646

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
