FDWU524WS - Dishwasher VIKING - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Viking
Model	FDWU524WS
Capacity (place settings)	14
Dimensions (W x H x D)	60.96 cm x 85 cm x 60 cm
Net Weight	48 kg
Voltage/Frequency	120 V / 60 Hz
Power Rating	1,500 W
Noise Level	44 dB(A)
Wash Programs	Normal, Intensive, Eco, Quick, Rinse
Options	Drying, Delay Start, Half Load
Tub Material	Stainless Steel
Control Type	Electronic Button Controls
Door Panel	Customizable (kit included)
Safety Features	Child Lock, Leak Protection
Filter	Self-Cleaning
Water Consumption	10 L per cycle
Energy Consumption	1.1 kWh per cycle
Warranty	Limited Warranty (see manual)

Frequently Asked Questions - FDWU524WS VIKING

How to install the customized door panel?

Follow the steps provided in the installation guide: attach the brackets to the back of the panel, then screw the panel onto the dishwasher in position 5. Adjust the alignment and cut the kickplate if necessary.

How to start a wash cycle?

Load the dishes, add detergent, select the desired program using the control panel, then press the Start button.

What to do if the dishwasher does not start?

Check the power supply, that the door is properly closed, the lock is engaged, and the cycle is not paused. Consult the manual for error codes.

How to clean the filter?

Remove the filter at the bottom of the tub, rinse it under running water, brush it if necessary, then replace it correctly. A clean filter ensures optimal efficiency.

Why is the dishwasher making noise?

Noises can come from the spinning wash arms, the disposer, or improperly positioned items. Check that dishes are not blocking the arms and that utensils are placed correctly.

What to do in case of a leak?

Immediately turn off the water supply and power. Check the connections, the door seal, and the bottom of the tub. Contact customer service if necessary.

How to use the delayed start?

Press the Delay Start button to select the number of hours delay, then start the program. The dishwasher will start automatically at the selected time.

How to maintain the wash arms?

Remove the wash arms, clean the nozzles with a toothpick or brush, then rinse them with clean water. Reinstall them by clipping them back into place.

What to do if dishes are not dry?

Select a program with drying enabled, use a rinse aid, and make sure dishes are not too tightly packed. Drying is improved with the Extra Dry option.

Where to find spare parts?

Spare parts are available from Viking customer service at 1-888-845-4641 or via vikingrange.com. Have the model number FDWU524WS ready.

USER MANUAL FDWU524WS VIKING

The unit comes with everything needed to make installing the door panel easy.

n- (2) Custom Door Plugs
w- (2) Plug Screws
x- (2) Door Screws

Tools Needed:
Drin w/ Phillips Driver

Phillips Head
Screwdriver

Provided Parts:

Step 1

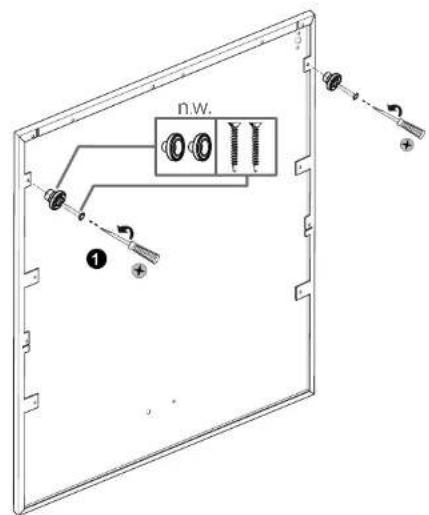

Install the custom door plugs to the back of the door panel using the (2) plug screws

2

Installation

Step 2

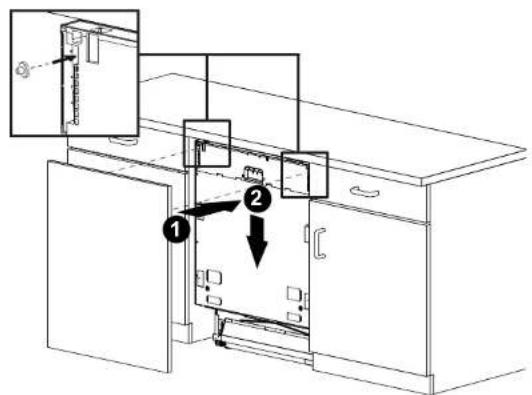

Mount the panel door onto the dishwasher with the plastic custom door plugs installed in step one.

Step 3

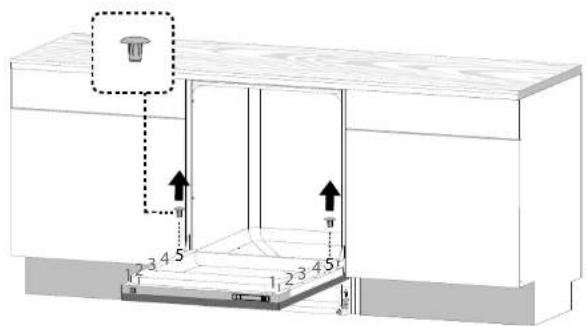

Open the door and remove the cap inside the door at position 5

Step 4

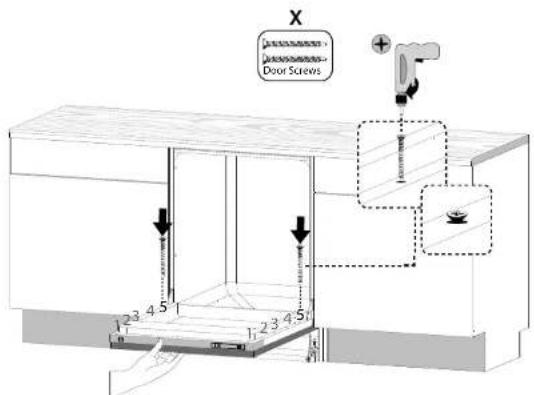

Using the door screws provided, attach the panel to the dishwasher at position 5.

3

Installation

Step 5

Check the position of the panel door and make sure it is aligned properly.

Step 6

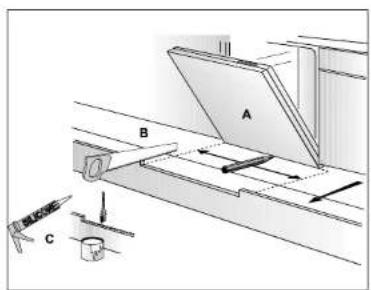

Check whether the bottom of the door hits the kickplate of the kitchen cabinet (A). If the door hits the kickplate, cut the necessary section out of the kickplate (B). Apply silicon or sealant to the cut edge of the kitchen cabinet kickplate or paint so it does not absorb moisture (C).

Installation
