| Product Type | Refrigerator / Beverage Center |
| Brand | Danby |
| Model | DBC039A1BDB |
| Dimensions (W x H x D) | 49.3 cm x 84.5 cm x 61.3 cm |
| Storage Capacity | 124 cans of 350 ml or 88 cans + 7 wine bottles of 750 ml |
| Adjustable Temperature Range | 4 °C to 18 °C (39 °F to 64 °F) |
| Default Temperature | 12 °C (54 °F) |
| Display | LED screen with touch controls |
| Interior Light | LED, with continuous or automatic mode |
| Door | Tinted tempered glass, reversible (left/right) |
| Security Lock | Child lock with key |
| Shelves | 3 removable shelves + 1 wine rack for 7 bottles |
| Adjustable Legs | Yes, for leveling |
| Defrost | Automatic |
| Open Door Alarm | Yes, after 5 minutes |
| Temperature Alarm | Codes HI, LO, CL when out of range |
| Temperature Memory | Yes, in case of power failure |
| Power Supply | 120 V / 60 Hz (standard grounded outlet) |
| Installation | Freestanding, 12.7 cm clearance around |
| Cleaning | Interior: baking soda or mild detergent; exterior: damp cloth |
| Warranty | 12 months parts and labor (in-home) |
Frequently Asked Questions - DBC039A1BDB DANBY
User questions about DBC039A1BDB DANBY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual DBC039A1BDB - DANBY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DBC039A1BDB by DANBY.
USER MANUAL DBC039A1BDB DANBY
Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.
Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.
Note the information below; you will need this information to obtain service under warranty.
You must provide the original purchase receipt to validate your warranty and receive service.
Model Number:
Serial Number:
Date of Purchase:
Need Help?
Before you call for service, here are a few things you can do to help us serve you better.
Read this owner's manual:
It contains instructions to help you use and maintain your appliance properly.
If you receive a damaged appliance:
Immediately contact the retailer or builder that sold you the appliance.
Save time and money:
Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.
1-800-26-Danby (1-800-263-2629)
Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAFETY REQUIREMENTS
DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.
- Do not use mechanical devices to defrost refrigerator.
- Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
- Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
- Dispose of properly in accordance with federal or local regulations.
- Follow handling instructions carefully.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
CAUTION: Children should be supervised to ensure that they do not play with the appliance.
DANGER: Risk of child entrapment. Before throwing away an old appliance:
- Remove the door or lid.
- Leave shelves in place so that children may not easily climb inside.
This appliance is intended to be used in household and similar applications such as:
Staff kitchen areas in shops, offi ces and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.
SAFETY REQUIREMENTS
This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
GROUNDING INSTRUCTIONS
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord.
Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualifi ed person in order to avoid hazard.
SAVE THESE INSTRUCTIONS!
INSTALLATION INSTRUCTIONS
OPERATING INSTRUCTIONS
LOCATION
- Two people should be used when moving the appliance.
- Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
- Place the appliance on a floor that is strong enough to support it when it is fully loaded.
- Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
- Do not use the appliance near water, for example in a wet basement or near a sink.
- This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
- Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
- This appliance is 19.4 inches (49.3 cm) wide by 33.3 inches (84.5 cm) high by 24 inches (61.3 cm) deep. Make sure that you leave the minimum amount of space between the appliance and all surrounding walls and vents.
- Allow 12.7cm (5 inches) of space between the back, sides and top of the appliance and all adjacent walls.
- This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

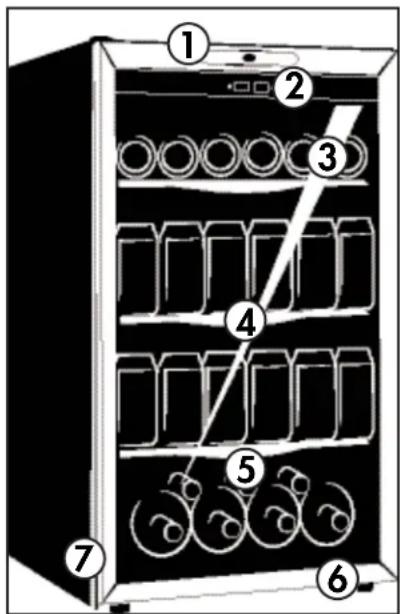

FEATURES
- Child Proof Lock With Key
- Electronic Display and Controls: For viewing and regulating the temperature of the beverage center.
- Tempered Glass Door: Tinted for UV protection while still allowing for easy interior viewing.
- Shelves with Stainless Steel Look Trim
- Wine Rack: Allows for storage of up to seven bottles of wine.
- Adjustable Foot: Adjust to level the appliance.
- Magnetic Door Gaskets: tight fi tting seals retain all the cooling power and humidity levels.
LEVELING INSTRUCTIONS
There is an adjustable foot on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.
- Turn the leveling foot counter-clockwise until the top of the foot is touching the bottom of the chassis.
- Slowly turn the leveling foot clockwise until the appliance is level.
OPERATING INSTRUCTIONS

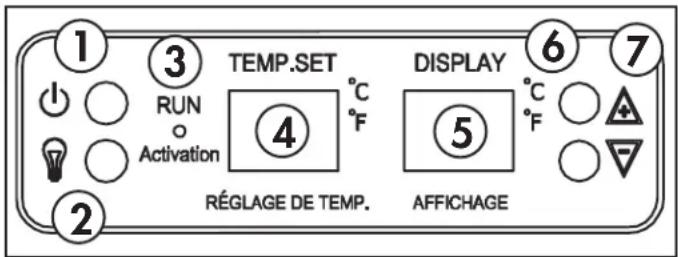

CONTROL PANEL
- Power Button: Press this button to turn the appliance on. Press and hold this button for 3 seconds to turn the appliance off.
- Light Button: Controls the interior light.
- Run: Indicator light illuminates to signify that the cooling mode is currently in operation.
- Temperature Display: Shows the set temperature.
- Current Temperature Display: Shows the current temperature.
- ^ C / ^ : Adjacent indicator light denotes which scale of temperature is displayed.
- Up and Down Buttons: Used to raise or lower the temperature in 1^ degree increments.
INTERIOR LIGHT
The interior light will default to turning on and off when the door is opened or closed.
Press the light button once to turn the light off while the door is open. The light will resume default functioning when the door is closed.
Press the light button twice to set the light to continuous illumination. The light will remain on when the door is opened and closed.
When the light is set to continuous illumination, press the light button once to return to default functioning.
FUNCTION INSTRUCTION
The default temperature setting is 54^ (12^) . The default temperature scale is ^ F .
To switch the display between ^ F and ^ C, press the Up and Down buttons simultaneously for approximately 3-5 seconds.
The temperature can be set as low as 39^ (4^) or as high as 64^ (18^) .
Actual temperature inside the appliance can vary based on ambient temperature, how often the door is opened and how many warm bottles have recently been added to the appliance.
Each depression of the Up and Down buttons will adjust the temperature in 1^ increments.
Door Ajar Alarm: If the door is not closed completely for 5 minutes, an alarm will sound. Close the door to silence the alarm.
If the door is closed and the alarm continues to sound, check that the actuator at the bottom of the door is making contact with the switch on the appliance.
Temperature Memory: If the appliance loses power, the control panel will remember the set temperature. Once power is restored, the appliance will return to normal functioning automatically.
Temperature Alarm: If the inner cabinet temperature is higher than 73^ (23^) for one hour, the error code "HI" will show on the display panel and an alarm will sound.
If the inner cabinet temperature is lower than 32^ (0^) the error code "LO" will show on the display panel and an alarm will sound.
If the inner cabinet temperature remains at 32^ (0^) for more than 30 minutes, the error code "CL" will show on the display panel and an alarm will sound. The appliance will stop functioning to prevent the contents from freezing.
OPERATING INSTRUCTIONS

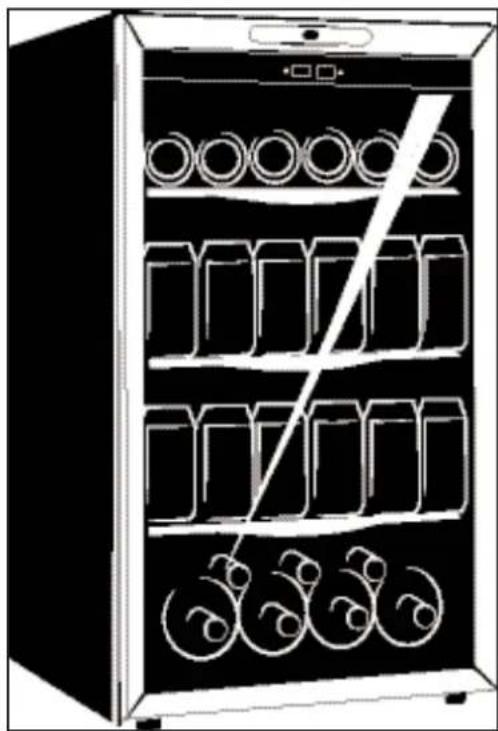

STORAGE INSTRUCTIONS
The maximum capacity of this appliance is 124 cans in 350ml size or 88 cans and 7 wine bottles in 750ml size.
The top shelf holds 18 cans laying on their sides.
The second and third shelves each hold 35 cans.
The wine rack can store up to 7 bottles of wine in 750 ml size.

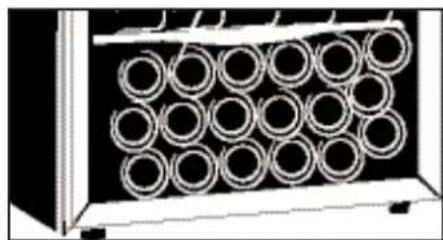

Alternately, the wine rack can be removed and the bottom section can hold 36 cans when they are stacked laying on their sides.
SHELF INSTRUCTIONS
Do not cover the gaps on the racks with the aluminum foil or any other material that will prevent adequate air circulation within the cabinet.
To remove a shelf from its locked position, tilt the shelf as shown and pull outward.
To reinstall, ensure the shelf is resting securely on the support brackets and push the shelf inward until it locks into place.
Note: The wine rack is not secured in place. Do not attempt to pull on the rack when it is stocked.
OPERATING INSTRUCTIONS
DOOR REVERSAL INSTRUCTIONS
If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging in to avoid damage to internal components.

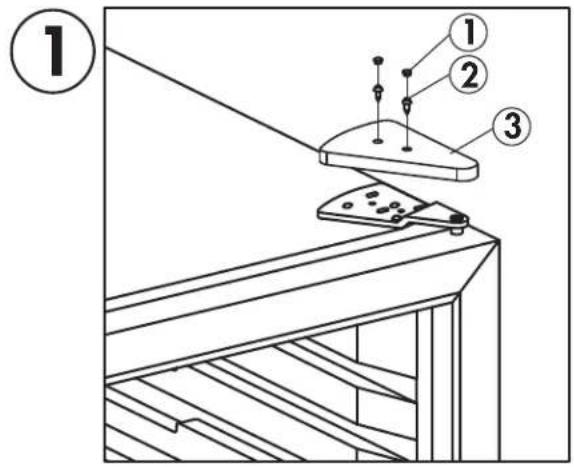

- Remove the screw covers and the screws securing the hinge cover. Remove the hinge cover.

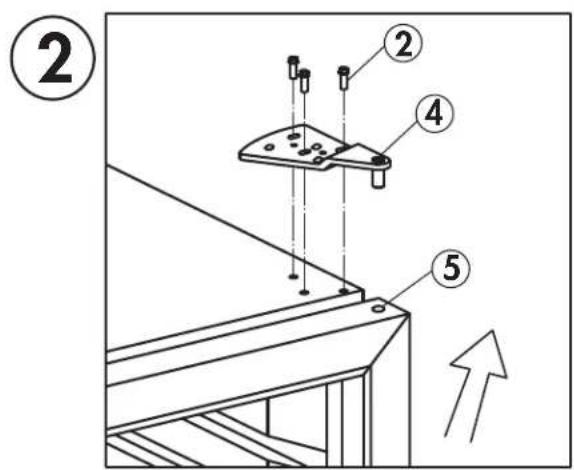

- Remove the screws securing the upper hinge and remove the upper hinge. Remove the door from the cabinet. Remove the screw hole covers from the left side of the cabinet and install them in the screw holes on the right side of the cabinet. Remove the hinge hole cover from the left side of the door and install it in the hinge hole on the right side of the door.

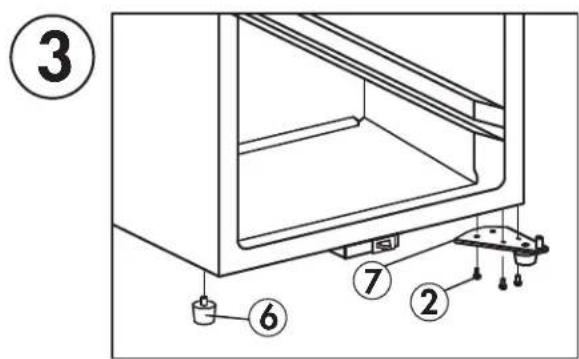

- Remove the solid foot and the lower hinge. Install the solid foot on the right side of the cabinet and the lower hinge on the left side of the cabinet.

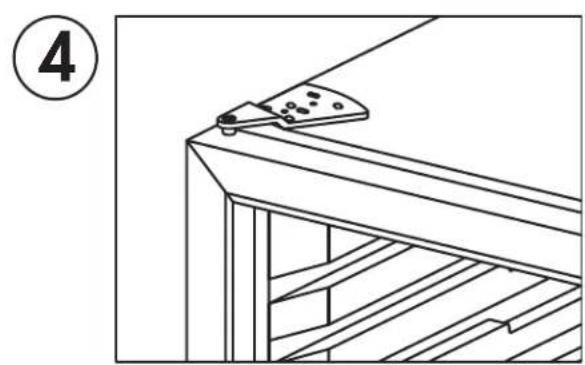

- Install the door on the cabinet. Install the upper hinge on the left side of the cabinet. Before tightening the screws on the upper hinge, ensure that the door is level with the cabinet and that the rubber gasket is making a good seal with the cabinet all the way around.
CARE & MAINTENANCE
CLEANING
Ensure the appliance is unplugged before cleaning.
- To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
- Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
- Clean the outside with a soft, damp cloth and some mild detergent.
It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.
Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.
Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.
ERROR CODES
If the "HI", "LO" or "CL" error codes appear on the display for more than 5 minutes, a power reset may rectify the issue. Unplug the appliance, wait 5 minutes and then plug the unit back in. If the error code persists after a power reset, contact consumer care or an authorized service agent.
DEFROST
This unit is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.
VACATION
- Short vacations: Leave the appliance operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.
MOVING
- Make sure the appliance is empty.
- Secure the shelves with tape.
- Secure the door with tape.
- Turn the adjustable fool up to the base to avoid damage.
- Protect the outside of the appliance with a blanket or similar item.
- Be sure the appliance stays in the upright position during transportation.
- If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.
DISPOSAL
This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.
TROUBLESHOOTING
Danby Consumer Care: 1-800-263-2629
Hours of operation:
Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time
Friday 8:30 am - 4:00 pm Eastern Standard Time
Information in this manual is subject to change without notice.
| PROBLEM POSSIBLE CAUSE | |
| No power • A fuse may be blown or the circuit breaker tripped • Plug not fully inserted into the wall outlet | |
| Internal temperature not cold enough | • Door is not shut properly or opened excessively |
| Appliance runs continuously | • Exhaust vent is obstructed |
| Alarm sounding and “HI” on the display panel | • Recently added a large quantity of warm bottles to the cabinet |
| • Close proximity to heat source or direct sunlight | |
| • Ambient temperature or humidity is very high | |
| • Possible system leak, evaporator fan failure or compressor failure | |
| Condensation on the cabinet or door • Door is not | shut properly or opened excessively |
| • Ambient temperature or humidity is very high | |
| Alarm sounding and “LO” or “CL” on the display panel | • Ambient temperature is excessively low |
| • Sensor failure | |
| • Evaporator temperature is too low | |
LIMITED "IN HOME" WARRANTY
This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.
To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.
Boundaries of Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.
Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie, Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.
Warranty Service In Home
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: [519] 837-0920 FAX: [519] 837-0449
1-800-263-2629 04/17
Danby Products Inc.
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
Bienvenue
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: (519) 837-0920 Telecopier: (519) 837-0449
1-800-263-2629
02/18
Danby Products Inc.
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 Telecopieur: (419) 425-8629
Bienvenido
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: [519] 837-0920 FAX: [519] 837-0449
1-800-263-2629
04/17
DanbyProductsInc.
PO Box 669, Findlay, Ohio, U.S.A. 45840
Telephone: (419) 425-8627 FAX: (419) 425-8629
NOTES / REMARQUES / NOTAS :
NOTES / REMARQUES / NOTAS :
NOTES / REMARQUES / NOTAS :
