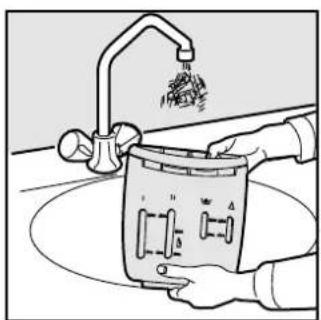

Remontage: Remontage:

Line drawing of a hand placing a small object into a trash bin (no text or symbols)

Fig. 1

Line drawing of hands inserting a device into a device (no text or symbols)

Fig. 2

Illustration of hands cleaning a kitchen sink with a faucet and water filter (no text or symbols)

Fig. 3

Line drawing of a car dashboard with handle and vent slots (no text or symbols)

Fig. 4

Diagram of a device with a hand holding a clip, showing a black arrow pointing to a component (no text or symbols present)

Diagram of a kitchen appliance with a tray and side panel, showing a rotary knob and scroll (no text or symbols)

Fig. 1
Fig. 2

Top loading washing machine

Instructions for installation and use WT 50

Illustration of a couple sitting beside a large refrigerator with banana slices (no text or symbols)

QuickQGicidek Guide

Here are the 12 topics explained in this manual. Read, learn and have fun: you will discover many secret ways to get a better wash, more easily and making your washing machine last longer. And especially keeping an eye on safety.

1. Installation and removal (p. 2)

Installation, after delivery or transport, is the most important operation for the correct functioning of your washing machine. Always check:

1. That the electric system complies with the law;
2. That the inlet and draining pipes are connected correctly;
3. That the washing machine is levelled properly: something worth checking for the life of your washing machine and the quality of your wash;
4. That the tub fastening screws (on the back of the appliance) have been removed.

2. Safety for you and your children (p. 12)

Here you will find the necessary guidelines for the safety of your entire household. Because safety is very important indeed.

3. What goes in your washing machine and how to start it (p. 4)

A correct distribution of your laundry is vital both to the successful outcome of the wash and to the life of your appliance. Learn all the tips and secrets to dividing your linen: colour, type of fabric and tendency of creating fuzz are the most important criteria.

4. Understanding the control panel (p. 5)

The control panel is very simple. It has only a few essential buttons to help you choose any type of wash cycle, ranging from the most energetic, capable of cleaning a mechanic's overalls, to the most delicate for wool. Familiarising with it will help you get the best out of your wash, while spending less and helping your washing machine last longer. It's easy.

5. Guide to the wash programmes (p. 6)

Herein is an easy table to help you choose the right programme, temperature, detergents and possible additives. Choose the right programme and you will get better results with your wash while saving time, water and energy, day after day.

6. Guide to understanding labels and symbols (p. 7-8)

The international symbols on the labels of your garments are easy to understand and equally important for the success of your wash. The guide includes simple instructions to help you choose the suitable wash programme, the right temperature, wash cycles, ironing methods and specific Indesit symbols.

Illustration of a couple sitting beside a large refrigerator (no text or symbols)

7. Useful tips to avoid mistakes (p. 8)Useful tips to

Years back, our grandmothers were the ones who gave us good advice - and in those days synthetic fibres did not exist: washing was easy. Today, your washing machine gives you helpful advice.

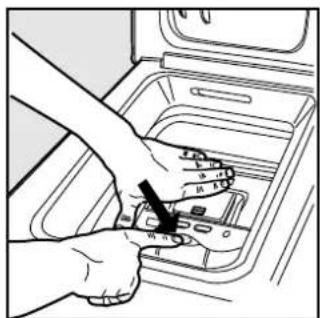

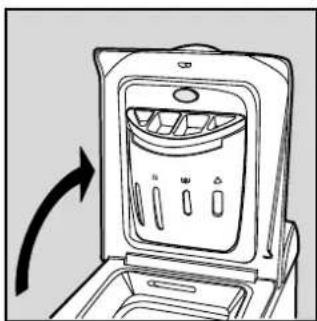

8. How to close the drum (p. 9)How to close the dr

Open and shut the doors fully for a safe wash cycle.

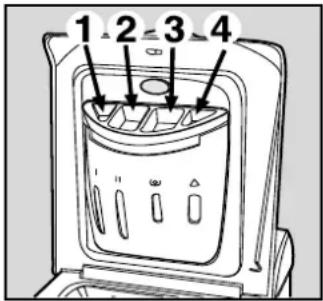

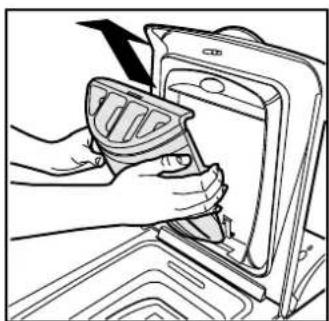

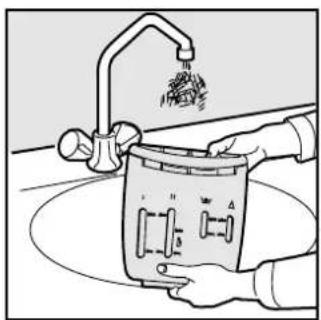

9. The detergent dispenser (p. 10)The detergent dis

How to use the detergent dispenser.

10. Problems and solutions (p.léfinanand2) solutions

Before calling a technician, read these pages: immediate solutions may be found for a number of problems. If the problem persists, call Indesit customer services and any failure will be repaired as soon as possible.

11. Care and maintenance (p.03)e and maintenance

Your washing machine is a true friend: with just a bit of care, it will repay you with loyalty and devotion. With the necessary upkeep, it will wash for years and years to come.

12. Technical features (p. 14)

Herein are the technical features of your washing machine: model type number, electric and water specifications, size, capacity, speed of the spin cycle and compliance with Italian and European rules and regulations.

Installation and removal

When theWhen the appliance arrivesappliance arrive

Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washing machine.

After removing the appliance from its packaging, check that it is intact. If in doubt, contact a qualified technician immediately. The inside of the machine is blocked, for transportation, by four screws and rubber washers on the back panel.

Do not throw the blocking screws and the spacers away. In the event of a removal, they can be used to block the components inside the appliance again and so protect it during transport.

e appliance arr -SCUTO-

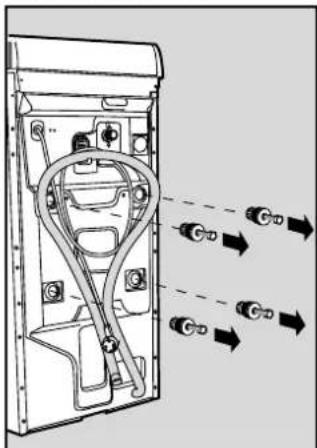

Unblocking: removeUnblocking: remove

the 4 screws!

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols present)

Before using the washing machine, remove the screws, remove the rubber washers with the relative spacer (keeping all the parts) and use the plastic tabs provided to fill in the holes.

Warning: should the screws be re-used, make sure you fasten the shorter at the top.

Levelling

The washing machine must be levelled appropriately in order to guarantee its correct functioning. To level the appliance, the feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2°. When placed on fitted carpet, make sure the ventilation is not obstructed within its surroundings.

The feet are adjustable.

Connection to the waterConnection mainsmains

Water pressure must range within the values indicated on the data plate on the rear of your washing machine. Connect the inlet hose (situated unassembled inside the drum) to a cold water tap with a 3/4 gas threaded mouth. If the water pipes are new or left unused, run the water until it is clear and free of debris. Attach the hose to the appliance, in line with the appropriate water pipe inlet at the top right.

Diagram of a device with a pipe and valve, showing a circular component inserted into a housing (no text or symbols)

Water hose inlet to be fitted to the top right.

to the water

The hook to be used in case the drain hose ends at a height below 60 cm.

If the hose drains into a tub or sink, apply the plastic guide and tie it to the tap.

Diagram of a faucet with a bulb inserted into the drain, showing tubing and a handle (no text or symbols)

The guide for draining into tubs and sinks.

Connecting the drain hoseCo On the back of the appliance, towards the top, you will find a hook onto which you should fasten the drain hose if necessary. Insert the other end in a wall draining duct or place it on the edge of a sink or tub avoiding excessive kinks and bending. It should be placed at a height ranging from 60 to 100 cm.100 cm.

In case it is necessary to fix the end of the hose at a height below 60 cm from the ground, it must be fixed in the appropriate hook placed on the back panel as mentioned above.

The hose must never The hose must never there is the water being in water Warning!

Extensions are inadvisable. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. In case of wall draining pipes, their efficiency must be checked by a qualified technician. The dwelling is on one of the upper moors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

Electric connection Electric connec

Before connecting the appliance to the electric socket, be sure that:

1) the electric socket is able to sustain the appliance's maximum power load indicated on the data plate and in compliance with the law;
2) the supply voltage is included within the values indicated on the data plate;
3) the socket is compatible with the appliance's plug. If not, do not use adapters, but replace either the socket or the plug;
4) electric household appliances must be equipped with an "earthing" system,
5) that the machine is not placed on top of the power supply cable once the connection has been

mustadever In water Warning!

Any modifications made to the factory settings or an irregular electric connection, any electrical, mechanical or hydraulic modification whatsoever to the appliance shall render the guarantee invalid and shall relieve the manufacturer and retailer of any and all liability.

Plastic bags, polystyrene foam, screws and other packaging parts are not children's toys, and are potentially dangerous.

More and more important

Your safety and that ofety are your children with a child who has been built in compliance with the strictness of national safety regulations. To protect you and do your family.

Read these indications and all the information in this manual carefully: they are an important source, not only of numerous useful tips, but also of vital information on safety, use and maintenance

1. Should it have to be moved, pull the white lever, situated on the left beneath the base, and the retractable wheels will appear, thus allowing for easy movement.

2. Before loading the

3. In case of malfunctioning, 1. In case of malfunctioning, first unplug the appliance first up plug the appliance from the wall socket and from the water bottle washing turn off the water taptum off the machine open barefoot

not under any circumstances touch internal parts in order to attempt repairs. This will also render the guarantee invalid.

"I only want an authorised specialised technician with original Indesit spare parts!"

1. The washing machineThe washing machine should not be installed in should not be installed in an outdoor environmentan outdoor environment

not even when a roof shelters the area, because it may be very dangerous to leave it exposed to rain and thunderstorms.

1. It must only be used by it must only be used by adults adults exclusively for washing clothes following the instructions provided in this manual.

or with wet or damp hands or feet.

1. Never use extensions or multiple plugs, which are particularly dangerous in humid environments. The power supply cable must never be bent or dangerously compressed.

2. Do not remove the filter while the appliance is on.

open barefoot authorised nician with spare machine installed in ronment e used by

Do not use hand wash detergent because the abundance of foam could come out from the lid and cause damage.

1. Never pull on the plug or the washing machine to disconnect it from the wall socket: it is extremely dangerous.

2. While the appliance is functioning, do not touch the drain water as it could reach very high temperatures. Keep it out of children's reach. Never Never force the washing machine door because this could damage the safety block on the opening, which serves to protect from accidental openings.

3. This appliance is intended for domestic use. Industrial use (in hotels, restaurants and laundries) compromises its original manufacturing characteristics and invalidates the guarantee.

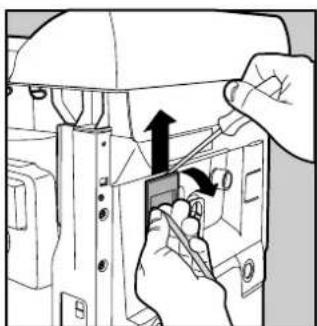

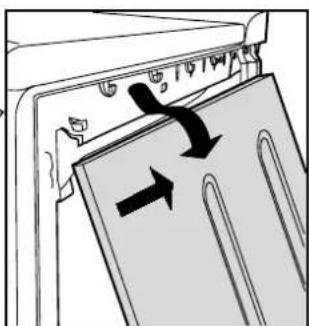

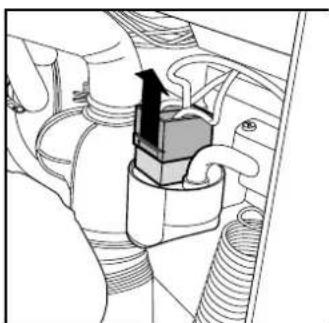

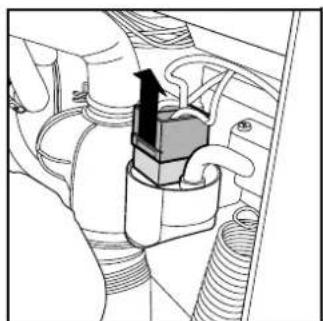

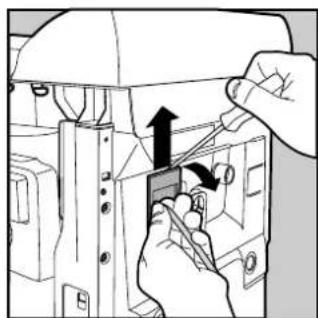

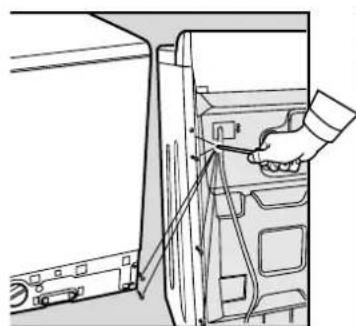

How to change the power supply cable

The power supply cable is special and can be purchased exclusively from authorised Ariston Technical Service Centres.

To replace it, do as follows:

1. Make sure that the washing machine is switched off and unplugged.

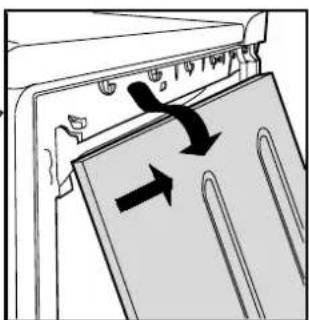

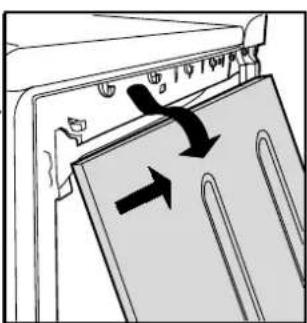

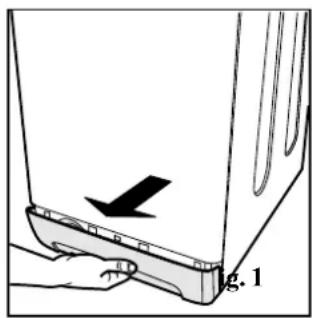

2. Remove the appliance base and unscrew the 2 screws on the bottom right-hand side, then unscrew the 6 rear screws, on the left-hand side, and remove the side panel by tipping it slightly outwards and pulling it out. (fig. 1 and 2).

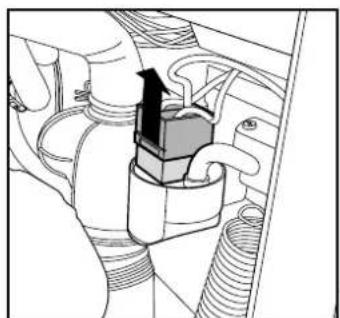

3. Disconnect the electricity supply to the radio interference suppressor by removing the connector (fig. 3).

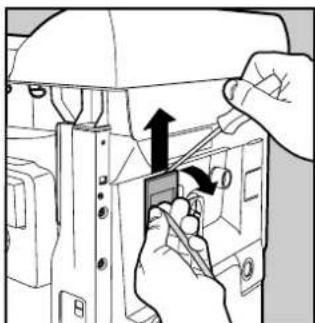

4. Unscrew the 2 outer filter fastening screws and, with the help of a screwdriver (see fig. 4), release it from the back panel by pulling upwards.

5. Once you have positioned the new power supply cable, reconnect the connector, making sure the safety hook is securely in place.

You must contact a qualified professional to replace the power supply cable. The same must respect the applicable norms in force.

Line drawing of a computer tower with a hand inserting a cable into the tower (no text or symbols)

Fig. 1

Diagram of a door handle with arrows indicating movement or force (no text or symbols)

Fig. 2

Technical diagram of a mechanical assembly with no visible text or symbols

Fig. 3

Illustration of hands installing or adjusting a mechanical component with arrows indicating direction (no text or symbols present)

Fig. 4

What goes in y What is being in machine?ash

Before washing, you can do a great deal for better results. Divide your garments according to fabric and colour. Read the labels and follow their indications. Alternate small items with large ones.

Before washing.

Divide your washing according to the type of fabric and colour resistance: sturdy fabrics should be separated from delicate ones.

Light colours should be separated from dark ones.

Empty all pockets (coins, paper, money and small objects) and check the buttons. Mend immediately or remove loose buttons as they could fall off during the wash cycle.

The labels say it all.

Always look at the labels: they tell you everything about your garment and how to wash it in the best way possible.

The table on page 7 shows you all the secrets of the symbols found on labels. Their indications are a valuable guide to a better wash and to longer lasting clothes.

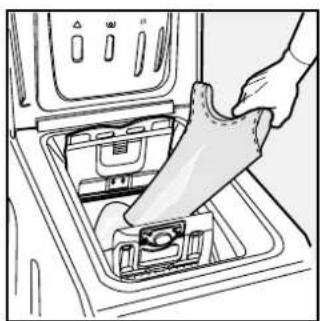

Alternate small itemsA with large ones.

Unfold all your washing. Place it loose inside the drum and follow the indications as to the recommended load quantity for the different wash programmes. Your clothes will come out cleaner and with fewer creases.

Dividing your garments according to fabric and colour is very important for good results.

Garments treated with Garments petrol-based stain remover.

Do not place garments in your washing machine that have been treated with petrol, pure alcohol, trichlorethylene etc. until these products have evaporated completely.

treated with -SCVTO-

How to start the appliance How to start the appl

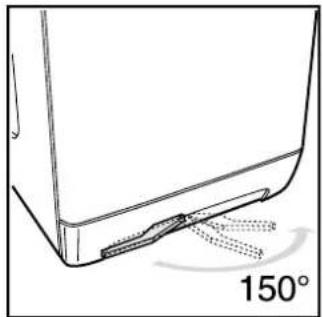

Putting your appliance in place and moving it.

If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the appliance effortlessly, just pull the lever, situated on the left-hand side beneath the base. Once the appliance is in the required position, put the lever back in place. The washing machine is now firmly in place. See figure, just for equipped models.

Technical line drawing of a mechanical component with a 150° angle标注 (no text or symbols beyond the angle marker)

After installing your new washing machine, start a wash cycle (with the appliance empty) by setting programme "1" at 60 degrees C.

Starting the washing machine in the right way is important for the quality of your wash, for preventing problems and for lengthening the life of your appliance. After loading your washing and pouring in the

For delicate garments: protect underwear, tights and stockings, children's socks and delicate items by placing them in a canvas pouch

detergent together with any additives, always check that:

1. The appliance doors are firmly shut.
2. The plug is inserted in the socket.
3. The water tap is turned on.
4. button E is on the O position.
5. The set of retractable wheels is stored away (i.e. the wheels are not touching the floor).

Choose the desired programme

The programme is selected according to the type of garments that need to be washed and how dirty these are. To select the programme, consult the table on page 6. Turn knob A and set it to the number corresponding to the desired programme. Select the temperature using knob B and, if necessary, press the function buttons (C-D); finally press the ON-OFF button E (position I).

completed with either a spincomplet cycle or by draining the watercycle or without wringing (withoutwithout spin)spin)

In the first case, simply turn the knob A clockwise one click. In the second one, turn the knob A to the drain setting symbol).

In both cases, the knob Ain both must be turned when themust by machine is off.machine is off.

( • ) Stop/Anti-crease ( ) Stop/Anti-crease (Synthetics-Wool) At the end of t

The symbol feature next to the last one (●) interrupts the wash cycle, letting the laundry soak in the water before the spin cycle.

It is activated only during the wash cycles for synthetic materials and wool.

This feature is very useful because it prevents delicate and synthetic clothing from wrinkling (for example, when you are unable to remove the laundry at the end of the wash cycle and it has to stay in the machine for several hours).

wait for approximately two minutes.

Then turn the washing machine off by pressing ON-OFF button E (O position). You can now open the washing machine doors safely. After having removed the freshly cleaned washing, leave the doors open or ajar so that the humidity left inside can evaporate.

Always turn the water tap off.

Remember that, in the event of a power failure, or should the washing machine switch itself off, the programme selected will start up again

The wash programme can be The wash program was corrupted.

Understanding the control panel

Here I'm in commandHere I'm in

Making the right choice is important. And it's easy.

Diagram showing a refrigerator control panel with labeled buttons (A, B, C, D, E, F) and a woman holding the refrigerator.

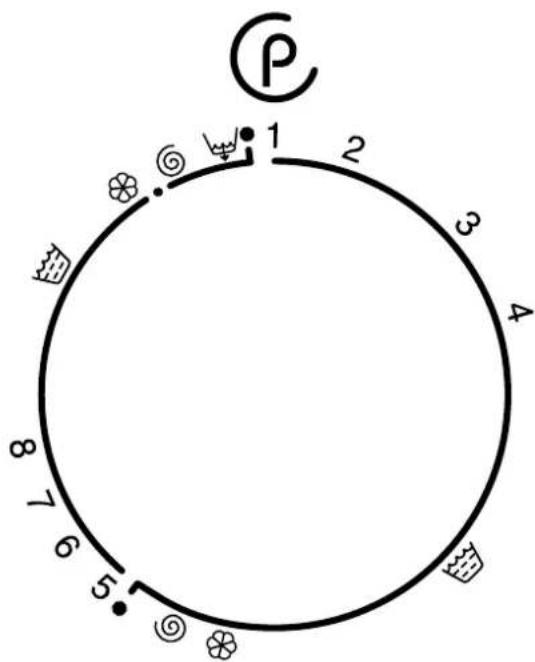

Programme selector knob

Use this dial to select one of the 15 wash programmes availabale for all your laundry requirements (see programme table on page 6).

N.B. This knob must be turned clockwise only and when the machine is off.

Temperature contrehiperabarenobntr

It is used to set the wash temperature indicated in the programme table. 6). It also allows you to reduce the temperature recommended for the selected programme, and even to set a cold wash cycle (snow symbol *).

No spin button No spin button

It is used to exclude spinning. Use it only for articles which are difficult to iron and only with the programmes for Synthetics and Delicates.

The knob with your washing machine's wash programmes

Half loadHalf load

This button reduces the quantity of water used during rinsing. We recommend the use of this button with programmes for Delicates and Synthetics only and when the drum does not contain a full load; the quantity of detergent should also be reduced.

ON-OFFON-OFF

When button G is pressed, the washing machine is switched on, when it is not the machine is switched off.

Turning the machining of the eseshine of dogs light means the not cancel the selected not cancel the selected programme.programme.
    note right of A: ©P
    note right of A: 1, 2, 3, 4, 5, 6, 7, 8

ON-OFF lamp ON-OFF lamp Lamp H flashes when the appliance is switched on and awaiting a programme to be set.

ne off does light means the at cancel the selected appliance has adopted the selected programme.

Door blocked lamp Door blocked

This lamp indicates that the washing machine door is blocked to prevent it from being opened accidentally. To avoid any damages, you must wait for the lamp to switch itself off before you open the door. You must wait around two minutes.

What are you washing today?

A programme for all seasons

Type of fabric and degree of soil

Pro-gramme knob

Temper. Knob

Deter-gent for pre-wash

Deter-gent for wash

Fabric softener

Traditional or delicate bleach

Cycle length (minutes)

Description of wash cycle

COTTON
Exceptionally soiled whites (sheets, tablecloths, etc.)	1	M	a	x	°	C	◆		Pre-wash, Wash at high temperature, rinses, intermediate and final spin cycles
Exceptionally soiled whites (sheets, tablecloths, etc.)	2	M	a	x	°	C	◆	Delicate/Traditional	Heavy duty washes at high temperature, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3 60°C						◆	Delicate/Traditional	Normal wash cycle at 60°C, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	4 40°C						◆	Delicate/Traditional	Wash cycle at 40°C, rinse cycles, intermediate and final spin cycles
Rinse cycles/Bleach							◆	Delicate/Traditional	Rinse cycles, intermediate and final spin cycles

Spin cycle Draining and final spin cycle
Stop/Reset Interrupts/	●
SYNTHETICS
Heavily soiled fast colour synthetics (baby linen, etc.)	5 60°C	◆	◆	Delicate	90 Heavy duty wash cycle at 60°C, rinse cycle, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	6 50°C	◆	◆	Delicate	80 Normal wash cycle at 50°C, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	7 40°C	◆	◆		70 Delicate wash cycle at 40°C, rinse cycles and delicate spin cycle
Rinse cycles/Bleach			◆	Delicate	Rinse cycles, anti-crease or delicate spin cycle
Fabric softener			◆		Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle
Rinse hold Rinse hold for especially delicate					garments

Spin cycle Draining and delicate spin cycle
Stop/Reset Interrupts	●
DELICATES
Wool	8 40°C	◆	◆	60 Wash cycle at 40°C, rinse cycles and delicate spin cycle
Rinse cycles			◆	Rinse cycles, anti-crease or drainingo
Rinse hold Rinse hold for especially delicate				garments
Spin cycle Draining and delicate spin cycle
Draining Draining
Stop/Reset Interrupts/	●

The information contained in the table is purely indicative. It could in fact vary depending on the appliance model, the quantity and type of garments to wash, the hardness and temperature of the mains water supply, as well as the temperature of the environment.

Understadeling labels...standing lab

Learn the meaning of these symbols and you will get better results, your garments will last longer and your machine will repay you by washing better.

All over Europe, garment labels contain messages expressed in small yet important symbols. Understanding them is very important if you want to get better results and treat your garments the way they deserve to be treated.

These symbols are divided in five different categories and shapes: wash cycle 📁,

Useful tips

Turn shirts inside out to get better results and make them last longer.

Always empty pockets of their contents.

Look at the label: it will always give you useful advice.

Illustration of a man and woman dancing together, no text or symbols present

Make sure you select the right temperature...

Consult and learn the symbols in this table: they will help you obtain a better wash, obtain a device that is properly, and get a better performance out of your washing machine.

Wash cycle Bleaching Ironing Dry cleaning Drying				[6KAD]		[SYBK]
Strong Movement Delicate Movement						High temp. Mild Temp.
[AYK7] Wash cycle 95°C			[SH4K] Can be bleached in cold water	[5YCW] Hot iron max 200°C	A Dry cleaning with all solvents	[YBOS] Can be tumble-dried [SYKH]
Wash cycle 60°C Do not bleach [DB42]				Warm iron max 150°C	Dry cleaning with perchloride, aviation gasoline, pure alcohol, R111 and R113	Do not tumble dry [HSXA]
[OHK4] Wash cycle 40°C				Cool iron max 110°C	F Dry cleaning with aviation gasoline, pure alcohol and R113	Lay flat to dry [ATDA]
Wash cycle 30°C				[C65S] Do not iron	⊗ Do not dry clean	Hang to dry non-spin dried garments
Delicate hand wash						Dry on hangers [900A]
Do not wash in water [IMAGE]

... and the symbols for the various Indesit models:...

	ONOFF
	Door lock
	Temperature
	Programmes:
	Rinse cycles
	Fabric softener
	Rinse hold
	Spin cycle
	Draining
	Stop/Reset

	Spin cycle variation
	Spin cycle exclusion
	Pre-wash
	Stain removal
	Extra Rinse
	Anti-crease - rinse hold
	Wash cycle intensity
	90° Wash
	60° Wash
	Delicate wash

	Daily wash at 30° in 30'
	Cold wash
	Hand wash
	Rapid wash
	Half load
	Extra economy wash
	Easy iron
	Silk and curtains
	Garment hygiene

Useful tips to avoid white mistakes said mistakes

■ General Rules:

• Cotton - Linen. Fill the drum but do not overload it.
• Synthetics. Do not fill more than half the drum.
• Delicates and Wool. Do not fill the drum more than a third.
• Heavily soiled garments: reduce the quantity.
• Persistent or special stains. Treat these before washing by rubbing the toughest stains with a special detergent, with detergent paste or specific stain removers (see the inset on treating special stains with stain removers on page 9)

■ Never use your washing machine to wash machine to wash

or non-hemmed linen. If it is absolutely necessary, place it in a bag for protection. Brightly coloured linen with whites.

How you should weigh?

1 sheet 400-500 gr.
1 pillow case 150-200 gr.
1 tablecloth 400-500 gr.
1 bathrobe 900-1,200 gr.
1 towel 150-500 gr.

■ Watch the weight!h the weight

For best results, do not exceed the weight limits stated below (figures show weight when dry):

• Sturdy fabrics:Sturdy fabrics: max 5 kg
• Synthetic fabrics: Synthetic fabrics: max 2.5 kg
• Delicate fabrics: max 2 kg
• Pure virgin wool: max 1 kg
• Towelling max 2.3 kg

Mix clothing of different

sizes with towelling: bathrobes, towels, etc. This way no "ball" will form during the spin cycle and the garments will stay balanced.

Coloured T-shirts, printed ones and shirts last longer if turned inside out before washing.

Printed T-shirts and sweat-shirts should always be ironed inside out.

Salopette alert.

Very popular "salopette" type overalls have straps with hooks that can damage the drum of your washing machine or other garments during the wash. By placing the hooks in the bib pocket and fastening them with safety pins, all risks are avoided.

■ Holidays: unplug the appliance.

When you go on holiday, we recommend that you unplug your washing machine, shutting off the water inlet tap and leaving the door opened or ajar. This way, both the drum and the gasket will remain nice and dry and unpleasant odours will not develop inside the washing machine.

How to wash almost anything

Curtains.

Curtains tend to crease a great deal. Here is a tip to reduce creasing: fold the curtains and place them in a pillow case or mesh bag. Do not load anything else, so that the overall weight does not exceed the half load.

■ Quilted coats and wind-cheaters.

You can wash quilted coats and wind-cheaters, too, if they are padded with goose or duck down. Do not load more than 2-3 kg and never load 5 kg. Repeat rinse once or twice using the gentle spin.

Trainers.

Once you have removed mud and dirt from trainers, you can wash them with jeans and other tough garments. Do not wash trainers with whites.

WOOLCYCLE

For best results, use a specific detergent, taking care not to exceed a load of 1 kg.

When detergents and water are not enough...

How to get rid of some special stains How

• Red wine. Leave to soak with detergent, rinse and treat with acetic acid or citric acid, then rinse. Treat any residue with bleach.
• Blood. Fresh stains should be treated immediately with cold water. In the event of dry blood stains, leave to soak overnight with a special detergent and then rub with soapy water.
• Dry grease stains. Moisten with turpentine, dab the stains with your fingertips and a cotton cloth, after placing the garment on a soft surface.
• Rust. Oxysalt (can be found in a chemists) hot molten, or a cold anti-rust product. Old stains may have already damaged the fabric: risk of holes...
• Mould stains Treat with bleach, rinse thoroughly (only white and coloured garments resistant to chlorine).
• Oil paint. Moisten with detergent petrol, dab the stains after placing the garment on top of a soft cloth, then treat repeatedly with the detergent.
• Ink and biro. Dab with cotton soaked in methyl alcohol or alcohol at 90°.
• Tar. Dab with fresh butter, rub in turpentine then wash immediately.
• Wax. Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with turpentine or methyl alcohol.
• Chewing gum. Rub in nail polish remover and wipe with a clean rag.
• Mould. Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar, then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately.
• Lipstick. Dab with ether on wool or cotton. Use trichlorethylene for silk.
• Nail polish. Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the garment as the sheet gradually changes colour.
• Grass. Dab with a wad of cotton soaked in methyl alcohol.

For a safe wash cycle

How to open and shut the drumw to open air

Diagram of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Diagram showing hands installing or adjusting a device inside a container with labeled parts and directional arrows

Fig. 2

A) OPENING (Fig. 1).A)ft OPENINGa(Fig.1)D open it completely.

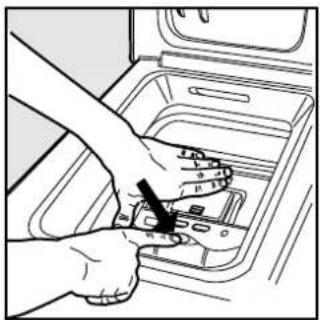

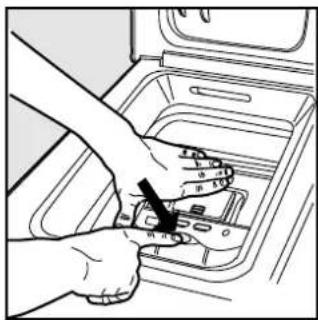

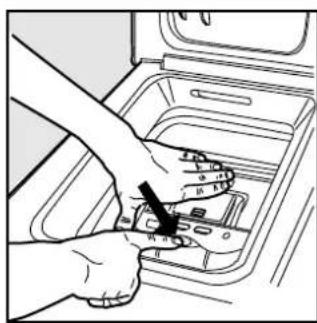

B) Then open the drum using both hands as shown in Fig. 2:B) Then op

- press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers;- therefore follow the appliance doors along as these unhook and open easily.

C) LOADING THE WENSHING MAGBHENG (Fig.8).

Line drawing of a hand inserting a plastic bag into a shared drawer inside a vehicle (no text or symbols)

Fig. 3

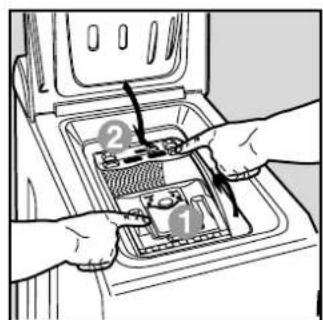

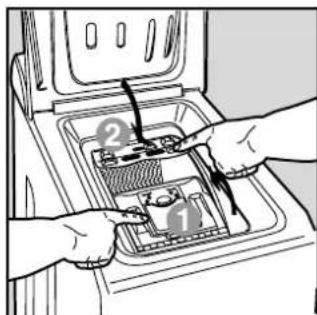

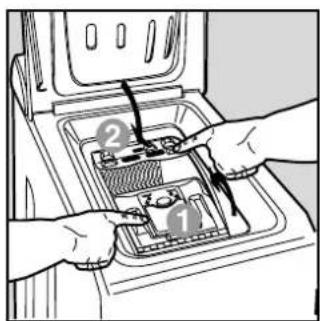

Diagram showing hands installing or adjusting a device with numbered components, likely for installation or repair instructions.

Fig. 4

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

It's important for a good wash

The secrets of the detergent dispenser

The first secret: the detergent dispenser is in a handy position underneath the appliance door.

You should add detergent and any additives following the dosage recommended by the manufacturers: generally, all the indications you need are on the box.

Doses vary dosing to according to that liquid is a detergent is particularly suitable to wash by water up to 60 degrees and those not requiring pre-washing. More detergent does not necessarily mean greater efficiency, wash efficiency, the contrary...contrary... containers that are to be placed directly inside the washing

Experience will help you select the right dosage almost automatically: it will become your secret.

When pouring in the softener in compartment 3, avoid exceeding the "max" level indicated.

The washing machine automatically adds the softener to

1 2 3 4

the wash in each pro-gramme.

Liquid detergent is to be poured in just a few seconds before starting the wash cycle.

Remember that liquid de- serving is particularly sui- able for wash cycle water ness and how soiled the degrees and those not requiring pre-washing.

Liquid or powder detergents necessarily mean greater amounts of the containers that are to be placed directly inside the washing machine drum, according to the instructions found on the detergent box.

Never use hand wash detergent, because it may form too much foam, which could damage the washing machine. One last secret: when washing with cold water, always reduce the amount of detergent you use: it dissolves less easily in cold water than in hot water, so part of it would be wasted.

In compartment 1: Detergent for pre-wash (powder)

In compartment 2: Detergent for the wash cycle (powder and liquid)the

In compartment 3: Fabric softener

In compartment 4: Bleach

Pre-wash, bleach and fabric Pre softenersoftener

Should it be necessary to bleach, set the special programmes and pour the bleach into compartment 4 of the detergent dispenser. When you pour the bleach in, take care not to exceed the "max" level indicated.

The use of bleach excludes the possibility of running a pre-wash.

Traditional bleach can only be used on sturdy white fabrics, whereas delicate bleach can be used for coloured fabrics and synthetics. You cannot bleach with the "Silk" programme and with the

"Special Programmes" (On specific Models see page 6).

N.B.:

1) Concentrated bleach must be diluted in all cases.
2) For concentrated detergents (in powder or liquid), use a programme without pre-washing.
3) For detergents contained in a ball or in tablets, do not run a pre-wash.

Fabric Softener AdditionFabric

Fabric softener makes your washing softer and decreases the electrostatic load of synthetic fibres. Fabric softe-

Degrees of water hardness

	^_-	^.H
Soft	0-7	0-15
2 - Medium	8-14	16-25
Wash Halel (powder and liquid)		26-37
4 - Very hard	more than 21	more than 37

Fabric softeners can be used for towelling fabrics, knit wear, curtains, etc. Pour the fabric softener into compartment 3 of the dispenser following

Cutting costs efficiently

A guide to running your household appliances cheaply while respecting the environment.

FULL LOAD

The best way to save on energy, water, detergent and time is to use your washing machine, washing a full recommended load.

A full load instead of two half loads allows you to SAVE up to 50% of energy.

USE LESS DETERGENT IF: you are washing few garments, the washing is only soiled lightly, foam forms during washing or the water is not very hard, or soft even (please see small table above with the degrees of water hardness). To find out how hard the water in your area is, contact your local Water Works.

IS PRE-WASHING STRICTLY NECESSARY?

Only for extremely soiled garments.

Programming a wash WITHOUT pre-washing for lightly soiled or medium soiled garments allows you to SAVE on detergent, time, water and between 5 and 15% of energy.

IS WASHING WITH HOT WATER STRICTLY NECESSARY?

Treating stains with a stain remover or soaking garments with dry stains in water before washing can reduce the need to programme a wash using hot water.

Use a wash programme at 60^ to SAVE up to 50% of energy.

BEFORE USING A DRYING CYCLE ...

Select a high speed spin cycle, where the spin speed can be adjusted, if the washing should be dried in a tumble-dryer. A reduced water content in the washing allows you to SAVE both time and energy in the drying programme.

the manufacturer's instructions. The fabric softener is automatically inserted into the machine during the last rinse. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners.

Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked, thus interrupting the suction effect of the device.

For cleaning instructions, see page 13. Never pour fabric softeners together with starch into the dispenser, as the overflow system could get clogged.

Troubleshooting

BefBef calling,readathing,leadlbgwing

Your washing machine could fail to work. In most cases, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points.

The washing machine The washing machine fails to start fails to start work if the door is open or not shut properly.

Is the plug correctly is the plug correctly inserted in the socket?inserted in the SOKOFF button could have been moved pressed?

whilst cleaning.

If it is, then a programmed start has been set.

Is there electricity in the Is there electricity in the house? Is the programmed

A circuit breaker could have gone off, perhaps because too many appliances are on at the same time. Or perhaps because of a general power failure in your entire area.

Is the programmed start knob, on those models concerned, in the correct position?

Is the water tap turned on?

For safety reasons, if the washing machine does not load water, it cannot start a

Is the appliance door shuts the appliance door shut properly?

For safety reasons, the

Illustration of two people interacting, one pointing at the other's hand (no text or symbols present)

RIGHT WRONG

Turning off the water tap after each wash limits the use of the washing machine's hydraulic system and eliminate leakage risks when no-one is at home.

Try to only leave the appliance in use unattended if the place where it is located is equipped with a floor drain.

Always leave all appliance doors ajar.

This will avoid the formation of bad odours.

Clean the appliance's exteriors delicately.

To clean the exteriors and the rubber parts of the appliance, always use a cloth dipped in lukewarm soapy water.

Leave the washing machine plugged in while cleaning. Even during maintenance, the appliance should always be unplugged.

Use solvents and aggressive abrasives.

Never use solvents or abrasives to clean the external and rubber parts of the washing machine.

Neglect the detergent dispenser.

It is removable and can easily be cleaned by leaving it under running water.

Go on holiday without thinking about it. Before leaving, always make sure that the washing machine is unplugged and that the water tap is turned off.

Illustration of a couple washing a kitchen appliance (no text or symbols)

Illustration of a person using a faucet to clean or manage water (no text or symbols)

Illustration of a person sitting on a large box with a small creature nearby (no text or symbols)

The washing machine The washing machine fails to load waterfails todondwatersly loads and unloads water.

Is the tap correctly is the tap correctly attached to the pipe?attached to the pipe? drain hose

o the pipe? drain hose positioned too low? It must

Is there a water shortage? Is there a water shortage?

There could be work in progress in your building or street.

ranging from 60 to 100 cm.

Is there enough pressure? Is the ionemersed prewater?

The autoclave may be malfunctioning.

Is the hose's mouth

Is the tap filter clean? Is the tap filter clean have a breather water is very calcareous, or if work has recently been carried out on the water piping, the tap filter could be clogged with particles and debris. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for assistance. If you live on an upper floor

Is the rubber hose bent? Is the ofybbebuhsing bent? may The tract of the rubber hose bringing water to the washing machine must be as straight as possible. Make sure it is not squashed or bent.

Illustration of a person and two adults standing beside a large object with a question mark, no visible text or symbols.

The washing machine The washing machine does not drain or spin. Does not drain or spin.

■ Does the selected Does the selected programme foresee waterprogramme foresee water

draining?drainingwash cycles require enabling the draining manually.

Is the washing machine washing ingot enough room drain duct clogged? drain groundcged appliance

there an extension on the drain hose? If so, is it

I-crease positioned incorrectly, tion... in those

blocking the water flow?

een - been enabled?

This function requires enabling the draining manually.

Is the drain pump clogged? Is the drain pump clogged?

To check it, turn off the tap, unplug the washing machine and follow the instructions on page 11, or call for technical assistance.

the drain pump clogged?

Always get assistance from authorised technicians and always insist on original spare parts

The washing machine vibrates too much during the spin cycle.

■Has the internal floating unit been correctly unblocked during installation? See pa

on installation procedures.

■Has the washing machine been levelled correctly?

The levelling of the appliance should be checked periodically. In time, the appliance could move imperceptibly. Adjust the feet and check them with a level.

Illustration of a person standing beside a large box, holding an object (no text or symbols visible)

The washing machineThe washing machine", leaks. or the like.

Illustration of a person relaxing in a bottle with bubbles rising (no text or symbols)

Too much foam.

Is the detergent suitable for washing-machine use? Make sure that it bears the definition "for washing-machines" or

washing machine", or the like.

Is the metal ring of the inlet is the metal ring of the inlet, those properly attached?hose properly attached?

Turn off the tap, unplug the appliance and try tightening its attachment without forcing it.

amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling

Is the detergent dispensers is the detergent dispenser of the obstructed? Try extracting appliance.

it and washing it under tap water.

If, despite all checks, the washing machine fails to

Is the drain hose wells attached? Turn off the tap, unplug the appliance and try tightening its attachment. function and the problem persists, call your nearest authorised Customer Service Centre, providing the following information:

• the type of malfunctioning
• the model type (no. Model..)
• the serial number (S/N .....)

These indications can be found on the data plate situated on the back of the washing machine front base. (fig. 1).

Easy Care and Maintenance

Treat it well and it'll be your best well a

friend for friend ever It is just as important for you to keep it in shape.

Your washing machine is designed to last a lifetime without any problems. A few simple steps help keep it in shape and last longer.

Firstly, you must turn off the water tap after each wash: the constant pressure of water could warp a few of the component parts.

In addition, by doing so, you will avoid the risk of leaks when no-one is at home.

If the water in your area is too hard, use a deliming product (water is hard if it often leaves whitish stains around taps or drains, especially of bath tubs. For more accurate information as to the type of water in your system, call the local water works or a local plumber).

Pockets must always be emptied by removing even coins, pins, badges and any other hard object.

The washing machine exterior should be cleaned with a cloth dipped in lukewarm soapy water.

It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes.

Never exaggerate with detergent doses.

Normal detergents already contain deliming agents. Only if the water is particularly hard, that is, rich in lime content, do we recommend the use of a specific product at every wash. A periodical wash cycle with a dose of a deliming product, without detergents or washing, may prove useful.

Never use too much detergent or additives because this could cause an excess amount of foam, scaling and possible damage to the component parts of your washing machine.

Black-and-white illustration of a woman holding a small object, with motion lines indicating speed or motion (no text or symbols)

Do not forget to empty all pockets: small metallic objects can cause damage to your washing machine's drum during the spin cycle.

How to clean the detergent dispenseerent dispense

Disassembly:

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning: Cleaning:

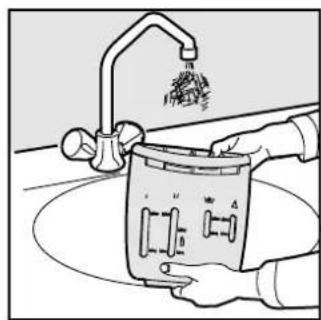

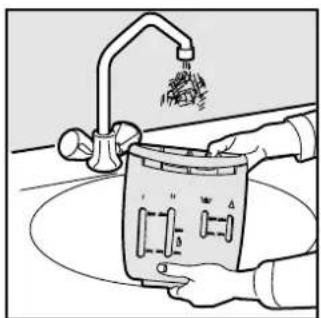

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Illustration of a hand placing a small object into a washing machine (no text or symbols visible)

Fig. 1

Line drawing of hands installing or removing a device into a folder (no text or symbols visible)

Fig. 2

Illustration of hands using a water tap to clean or wash the surface (no text or symbols visible)

Fig. 3

Line drawing of a car dashboard with handle and vent slots (no text or symbols)

Fig. 4

When in need, check the pump and the rubber hose. When in need, check

The washing machine comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Small objects may accidentally fall into the pump: coins, hair clips, loose buttons and other small items. To avoid possible damage, they are withheld in an accessible pre-chamber, situated at the lower end of the pump.

Diagram of a device with a hand holding a bracket and a black arrow indicating a downward motion (no text or symbols present)

Fig. 1

To access this pre-chamber, just remove the panel covering the bottom of the washing machine (fig. 1); then lift the cover rotating it anti-clockwise (fig. 2) and check its contents accurately.

The rubber hose

Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washing machine, water pressure is very strong and a cracked hose could easily split open.

Diagram of a refrigerator with a tray and a circular arrow indicating rotation (no text or symbols)

Fig. 2

Warning: make sure that the wash cycle has come to a full stop and unplug the appliance before removing the lid as well as before any type of maintenance procedure. It is normal to find that a little water comes out after removing the lid. When replacing the panel, make sure you insert the hooks situated at the bottom of the washing machine in the right slots before pushing it back against the appliance.

Technical features

Model	WT 50
Dimensions	width cm 40
	height cm 85
	depth cm 60
Capacity	from 1 to 5 kg
Electric connections	voltage 230 Volts 50Hz maximum absorbed power 2100 W
Water connections	maximum pressure 1 Mpa (10 bar) minimum pressure 0.05 Mpa (0.5 bar) drum ca pacity 42 litres
Spin speed/min	up to 500 r.p.m.
Controlling programmes in accordance with IEC Norm 456	run with a load of 5.0 kg, programme 2, 60°C
	This appliance conforms with the following European Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications - 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

The manufacturer reserves the right to make any modifications whatsoever, at any time and without notice, to the appliance or any of its accessories that may be deemed necessary for technical or commercial requirements.

Illustration of a woman holding a book next to a large refrigerator (no text or symbols visible)

Lavadora con carga superior

Illustration of a couple sitting on a large refrigerator (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Diagram of a faucet with a handle and valve, no text or symbols present

Illustration of a couple sitting together, one holding a refrigerator (no text or symbols)

Line drawing of a computer tower with cable routing from the front panel (no text or symbols)

Fig. 1

Diagram of a door handle mechanism with arrows indicating movement or force (no text or symbols)

Fig. 2

Technical diagram of a mechanical assembly with hoses and a central component (no visible text or labels)

Fig. 3

Illustration of hands installing or adjusting a mechanical component with arrows indicating direction (no text or symbols)

Fig.4

Technical line drawing of a mechanical component with a 150° angle标注 (no text or symbols beyond the angle marker)

Line drawing of a kitchen appliance with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Illustration of hands installing or adjusting a mechanical component inside a storage unit (no text or symbols visible)

Fig. 2

Line drawing of a hand inserting a plastic bag into a washing machine (no text or symbols)

Fig. 3

Diagram showing hands installing or adjusting a device into a container with numbered labels 1 and 2

Fig. 4

Illustration of a person using a washing machine with a faucet and a question mark above their head (no text or symbols)

Illustration of a person sitting on a chair with a smoke rising (no text or symbols)

CORRECTO CORBETOO

Illustration of a person holding a magnifying glass with a question mark above their head, no text or symbols present.

La lavadora no descarga o no centrifuga.

Illustration of a person washing clothes with hands near the head (no text or symbols)

Illustration of a hand pressing down on a device component with a black arrow indicating the downward motion (no text or symbols present)

Fig. 1

Diagram of a kitchen appliance with a drain and a scroll wheel, showing no text or symbols

Fig. 2

Line drawing of a hand placing a small object into a washing machine (no text or symbols)

Fig. 1

Line drawing of hands installing or adjusting a device component (no text or symbols visible)

Fig. 2

Illustration of hands washing a water dispenser with a faucet (no text or symbols)

Fig. 3

Line drawing of a car dashboard with handle and vent slots (no text or symbols)

Fig.4

Illustration of a couple smiling while sitting beside a large refrigerator (no text or symbols visible)

Γρήγορος οδηγός

Illustration of a couple sitting beside a large refrigerator with banana slices (no text or symbols)

Technical diagram showing component assembly with numbered parts and directional arrows indicating motion or flow

Illustration of a couple smiling while interacting around a refrigerator (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a faucet with a handle and valve, no text or symbols present

Diagram of a computer tower with a hand inserting a cable into the tower panel (no text or symbols visible)

Eik. 2

Diagram of a door handle with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with hoses and a central component (no visible text or labels)

Eik. 3 Eik. 4

Diagram showing hands installing or adjusting a component with arrows indicating direction of movement

Technical line drawing of a mechanical component with a 150° angle标注 (no text or symbols beyond the angle marker)

Diagram of a car air conditioner panel with labeled buttons and a woman reading the appliance.

Illustration of a man and woman dancing together, no text or symbols present

Diagram of a kitchen appliance with an open drawer and a directional arrow indicating rotation (no text or symbols)

Euk. 1

Person using a tool to clean or install a battery inside a washing machine (no text or symbols visible)

Elk.2

Line drawing of a hand inserting a plastic bag into a shared drawer inside a vehicle (no text or symbols)

Eik.3 Eik.4

Diagram showing hands installing or adjusting a device into a container with numbered labels 1 and 2

Illustration of a couple washing clothes at a kitchen counter, with a question mark below (no text or symbols on the main image)

ΣΩΣΤΟ ΛΑΘΟΣ

Illustration of a person sitting on a washing machine with a faucet and question marks above, symbolizing water scarcity or problem-solving (no text present)

Illustration of a person sleeping on a large appliance with steam rising nearby (no text or symbols)

Illustration of two people standing beside a washing machine with a thought bubble (no text or symbols)

Illustration of a person blowing bubbles from a large cheese block (no text or symbols)

Illustration of a person standing beside a large box with a question mark above, no text or symbols present.

Illustration of a person standing beside a large box, holding their head (no text or symbols visible)

Diagram of a hand pressing down on a device component with an arrow indicating force or direction (no text or symbols present)

Diagram of a refrigerator with a hand panel and circular arrow indicating rotation (no text or symbols)

Eik.1
Eik.2

Black-and-white illustration of a woman sweeping away from a large pile of paper (no text or symbols)

Line drawing of a hand placing a small object into a washing machine (no text or symbols)

Euk. 1

Καθαρισμός:

Line drawing of hands inserting a device into a device panel (no text or symbols)

Euk. 2

Illustration of hands cleaning a kitchen sink with a faucet and water filter (no text or symbols)

Eik. 3

Επανασυναρμολόγηση:

Line drawing of a car dashboard with handlebars and vent slots (no text or symbols)

Euk.4
