USER MANUAL VP4360 Concept

Cordless hand-held vacuum cleaner

INSTALACE NABIJECI ZAKLADNY

Nabijeci zakladniz lze poucht jako volne stojici (v takovem pripezte umstete zakladu na rovy a stabilin povrch) nebo pripnevennu na zed' (nabijeci zakladniz pripevmte zeBirthdayomhozdinak 3robu).

Pozn.Vobou pripadech Ize k nabijeci zakladne (7) pripevni tstojanek pro priflusenstvi (8).

POUZITVYSAVACE

-VP43701,5,6,7,8,10[zoabacOPS PROPDUKU] -VP43801,2,3,4,6,7,8,10[zoabacOPS PROPDUKTU]

-VP4380:1,2,3,4,6,7,8,10(Id. a termek leirasati

Megj: a VP4360 es VP4370 porosviko estebem c sarnog csk a tortozektar olvany egy rresztartalmazza, amely elegend o termc scomagolabanan talahito tarozekok szamara.

AZ AKKUMULATORTOLTESE

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
	VP4360 VP4370 V P4380
Battery voltage	11.1 V	14.8 V	18.5 V
Charger voltage AC 100-240 V - 50/60 Hz
				DC = 14 V DC = 18 V DC = 22.5 V
Input 70 W 90 W 110 W
Sound level	≤80 dB (A)	≤80 dB (A)	≤80 dB (A)
Battery	Li-1on 2000 mAh	Li-1on 2200 mAh	Li-1on 2200 mAh
Operation time	approx. 45 min	approx. 40 min	approx. 35 min
Full charging time	approx. 5 h	approx. 4 h	approx. 4 h

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
• Do not leave the appliance without supervision when it is turned on.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.

VP4360/VP4370/VP4380

EN

concept

concept

EN

• Do not touch the appliance with wet hands.
• Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
  Take extra caution when vacuuming on stairs.
• If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.
• When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not vacuum anything burning like cigarettes, matches or hot ash.
• Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids (such as petrol) and do not use the appliance in rooms where these substances may be present.
• Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
• Do not immerse the power cord or the charger in water or any other liquid.
• Check the appliance and the charger cord for damage regularly. Never switch on a damaged appliance.
• Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
• Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage one of the vacuum cleaner filters.
• Do not use the appliance with dirty filters.
• Do not put the battery in fire or expose it to temperatures above 40^ C .
• Do not touch the moving parts of the appliance during operation.

• Do not repair the appliance yourself. Contact an authorized service centre.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

concept

concept

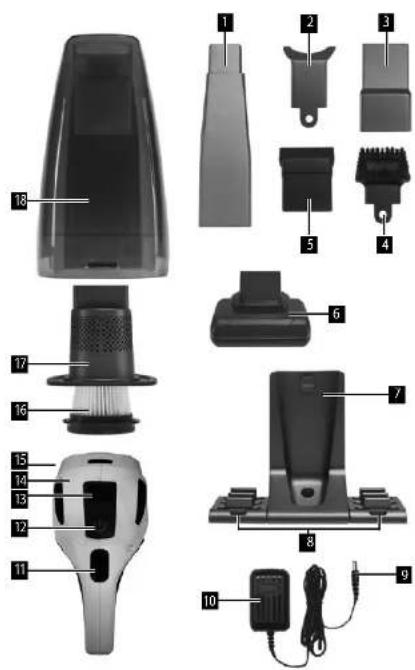

PRODUCT DESCRIPTION

1. Long slot nozzle
2. Long slot nozzle attachment
   3.Slot nozzle
3. Long slot nozzle attachment - brush
4. Nozzle for wet vacuuming
5. Turbo nozzle
6. Charging base
7. Accessory stand

8. Charger connector

9. Charger

10. On/Off switch
11. Charging indicator
    13.Dust container release button
12. Appliance body
13. LED lighting
14. H8A filter
15. Filter holder
16. Filter holder 18. Dust container

OPERATING INSTRUCTIONS

ASSEMBLING THE VACUUM CLEANER

Warning

Always switch off the appliance and disconnect the charger from wall socket before assembling or removing accessories!

ACCESSIONS

The following accessories are included in the package for each type of appliance:

-VP4360:1,4,5,7,8,10 (see product description)
-VP4370:1,5,6,7,8,10(see product description)
-VP4380:1,2,3,4,6,7,8,10(see product description)
Note: For VP4360 and VP4370 vacuum cleaners, only one part of the accessory stand is included, which is sufficient for the accessories included in the product package.

CHARGING THE BATTERY

• Make sure the vacuum cleaner is turned off before charging. The charger [10] can be connected directly to the vacuum cleaner or paired with the charging base [7]. Connect the vacuum cleaner to the charger connector [9].
• When charging, the charging indicator (12) flashes red. When fully charged, the indicator light is green. When charging is complete, the appliance automatically switches to recharging. However, do not leave the vacuum cleaner permanently connected to the charger to avoid possible damage to the battery or its capacity.
  If the charging indicator (12) starts flashing green during vacuuming, the vacuum cleaner is discharged and will turn off within about 1 minute.
  if the vacuum cleaner is completely discharged, the charging indicator (12) starts flashing alternately green and red when the appliance is switched on. The vacuum cleaner must be charged.

IF YOU WANT TO KEEP THE BATTERY LIFE AS LONG AS POSSIBLE, CHARGE IT AFTER IT IS FULLY DISCHARGED.

INSTALLING THE CHARGING BASE

The charging base can be used as freestanding (in this case, place the base on a flat and stable surface) or attached to the wall (attach the charging base to the wall with dowels and screws).

Note: In both cases, the accessory stand (8) can be attached to the charging base (7).

USING THE VACUUM CLEANER

Note: VP4360 and VP4370 vacuum cleaners can be used for both dry and wet vacuuming. Make sure that both the filter holder and the HEPA filter are fitted correctly before use.

1. Remove the vacuum cleaner from the charging base.
2. Slide the switch (11) to position 1 to switch the vacuum cleaner on at a lower power level (the charging indicator (12) light is yellow).
3. Slide the switch (11) to position 2 to switch the vacuum cleaner on at a higher power level (the charging indicator (12) light is green).
4. For wet vacuuming (VP4360 and VP4370 only), use a wet vacuum nozzle that has a wiper function and the vacuum cleaner sucks liquid when moving backwards. Move the vacuum cleaner very carefully to prevent liquid from entering the vacuum cleaner motor. Do not shake or turn over the vacuum cleaner. The filter holder and the HEPA filter only prevent the liquid from being sucked into the vacuum cleaner motor, but do not act as a protection against liquid ingress into the vacuum cleaner motor. The maximum amount of liquid sucked is approximately 150 ml. At larger amounts, the liquid will flow through the nozzle back out of the dust container.
   Note: For wet vacuuming, vacuum only at a lower power level (switch in position 1) and do not overfill the dust container more than the marked "MAX" line.
   VP4380 vacuum cleaner is not designed for vacuuming liquids!

EN

concept

concept

EN

CHECKING THE FULLNESS OF DUST CONTAINER

If the suction power of the vacuum cleaner is reduced or the dust container is full, empty it and clean the vacuum cleaner filter.

MAINTENANCE

It is recommended to empty the dust container and clean the vacuum cleaner filters after each use of the vacuum cleaner.

EMPTYING THE DUST CONTAINER

1. Disconnect the charger from the mains.
2. Hold the vacuum cleaner down with a dust container.
3. Press the latch to release the dust container.
4. Remove the filter holder and empty the vacuum cleaner dust container.
5. Reverse the procedure to attach the filter holder and the filter and put the dust container back.

CLEANING AND REPLACING THE PERMANENT FILTER

The vacuum cleaner filter can be cleaned by mechanical tapping and cleaning with a soft brush. A much soiled filter can be washed after this step and cleaned with a soft brush in lukewarm water without detergents. It is important to let the wet parts dry thoroughly. A wet filter would be depleted by vacuoming! Do not use a hair dryer for drying! Note: Wet cleaning can cause more wear on the filter and thereby shortening its life.

• The filter should be cleaned or replaced with visible soiling or when the suction power of the vacuum cleaner drops. Check it after each use of the vacuum cleaner.
• To avoid damaging the vacuum cleaner, do not use it without a properly fitted filter and filter holder.
• You can purchase a suitable filter type from your dealer or order from the manufacturer.

CLEANING AND MAINTENANCE

Accessories and vacuum cleaner can be cleaned with a damp cloth. Do not immerse the power cord or the charger in water or any other liquid. Do not use aggressive substances such as solvents or abrasives for cleaning!

TROUBLESHOOTING

Problem Cause Remedy
The motor is not working. The battery is discharged. Charge the battery.
Reduction of suction power.	Filled or clogged dust container.	Empty and clean the dust container.
	The filter is clogged Clean or replace the filter.
Operating time at full charge is less than 1 minute.	The battery life is over. Replace the battery with a new one. Contact an authorized service centre.
The vacuum cleaner is warming up.	Warming up of the vacuum cleaner during operation is normal, it is not a malfunction.

ACCESSIONS

The following accessories can be purchased for the appliance: Filter order code 42392245 price according to the valid price list

BATTERY DISPOSAL

The appliance contains a Li-Ion battery. This type of battery contains substances that can damage the environment in their disintegration. Before disposing of the appliance or replacing the battery, the original battery must be removed and returned to a suitable collection point. To remove the battery, open the cover on the bottom of the vacuum cleaner.

EN

concept

concept

DE

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

50

VP4360/VP4370/VP4380

Danksagung

CONCEPT POLSKA sp. z o.o.

ul Ostrowskiego 30, 53-238 Wroclaw

tel:[phone],fax:[phone]

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims it, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to.
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  to malfunctions caused by an inexpert third-party intervention,
  to malfunctions caused by natural disaster,
  to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual including malfunctions caused by water and other sediments.
  to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner.
  to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Vysokomytska 1800,565 01 Chocen

Czech Republic

tel:[phone]

fax[phone]

Company ID No.13216660

email: [e-mail]

www.www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:
