FP2500MC - Food Processor BLACK & DECKER - Free user manual and instructions

Brand	Black & Decker
Model	FP2500MC
Category	Food processor
Type	Food processor
Bowl capacity	2.6 L (11 cups)
Bowl material	Plastic
Speeds	High, Low, Pulse
Functions	Chop, slice, shred, knead, mix, puree, mince
Included accessories	Stainless steel knife, reversible slicing/shredding disc, kneading blade, disc stem, pusher, wide mouth funnel
Safety	Bowl, cover and funnel safety lock; polarized plug; tamper-resistant screw
Base maintenance	Wipe with a damp cloth, do not immerse
Cleaning removable parts	Dishwasher safe (top rack) or hand wash
Warranty	2-year limited (USA and Canada)
Customer service (Canada)	1-800-231-9786
Accessories/parts (Canada)	1-800-738-0245
Replacement parts available	Yes, part numbers listed in the manual
Cord	With cord wrap under base
Non-slip feet	4 suction feet

Frequently Asked Questions - FP2500MC BLACK & DECKER

How to assemble the food processor?

Place the bowl on the base, lock it by turning to the right. Insert the knife or disc, then the cover and funnel. Make sure all parts are properly locked before starting.

How to use the pulse control?

The pulse control [P] allows precise control for chopping or mixing. Press and hold to operate; release to stop. Ideal for short preparations.

What to do if liquid leaks from the bottom of the bowl?

This may happen if the bowl is too full. Do not exceed 710 ml (3 cups) of liquid. Remove the knife only after unlocking and removing the bowl from the base.

How to clean the blades?

The blades are very sharp. Hand wash them with a bottle brush or place them on the top rack of the dishwasher. Do not soak them for long.

Can I put the parts in the dishwasher?

Yes, all removable parts (bowl, cover, blades, disc, etc.) are dishwasher safe on the top rack only. Hand washing preserves the appearance better.

How to slice vegetables evenly?

Cut food to a size slightly smaller than the funnel length. Fill the funnel evenly and apply constant but light pressure on the pusher.

Why are foods chopped unevenly?

The bowl may be too full or you are using continuous mode instead of pulse. Use the pulse control at 5-second intervals and cut food into similar-sized pieces.

How to use the kneading blade?

Place the kneading blade in the bowl, add dry ingredients, then add liquids through the funnel while running. Do not exceed 475 ml (2 cups) of flour with this blade.

What if the cover locks with difficulty?

Apply a little vegetable oil to the rim of the cover and bowl. This will ease rotation and locking.

Where to find replacement part numbers?

Part numbers are listed in the user manual. For example, pusher (07234EZB), large knife (77793), etc. Contact parts service at 1-800-738-0245 (Canada).

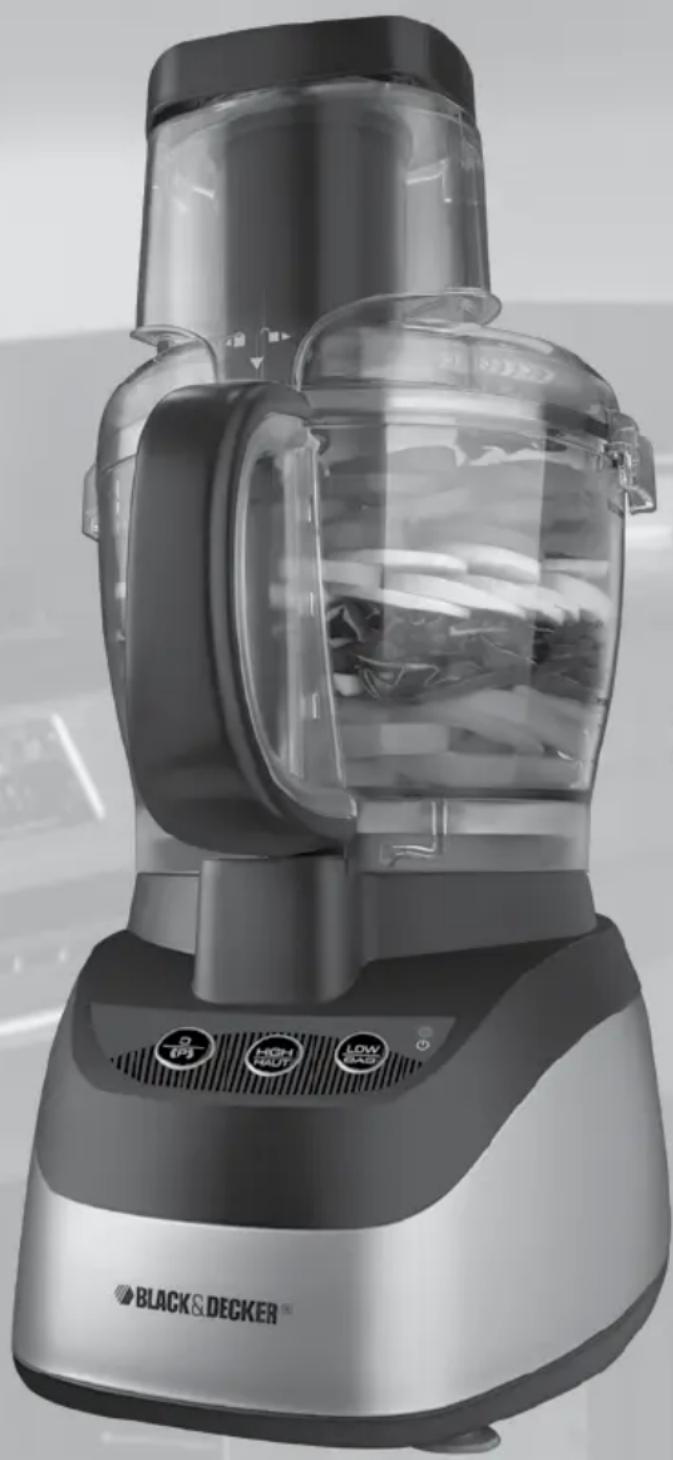

USER MANUAL FP2500MC BLACK & DECKER

WIDE-MOUTH FOOD PROCESSOR

ROBOT CULINAIRE À GRAND ORIFICE

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service and to register your product, go to www.prodprotect.com/applica

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
To protect against risk of electrical shock, do not put base, cord or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contacting moving parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
- Keep hands and utensils away from moving blades or discs while processing food to prevent the possibility of severe personal injury or damage to the food processor. A scraper may be used, but it must be used only when the food processor is not running.
Blades are sharp. Handle carefully.
To reduce the risk of injury, never place cutting blade or discs on base without first putting bowl properly in place.
Be certain cover is securely locked in place before operating appliance.
Never feed food into chute by hand. Always use food pusher.
Do not attempt to defeat the cover interlock mechanism.
Do not use appliance for other than intended use.
- Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used, but only when the food chopper is not running.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

Note: The maximum rating is based on the chopping blade. Other attachments may draw significantly less power.

POLARIZED PLUG

This appliance has a polarized plug [one blade is wider than the other]. To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15 amperes. (For 220 volts rated products, use an extension cord rated no less than 6 amperes.) When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

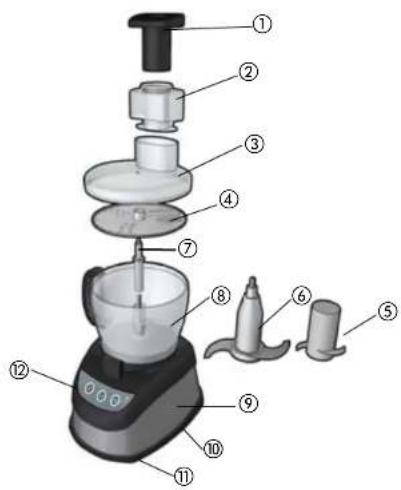

Product may vary slightly from what is illustrated.

A

† 1. Small food pusher (Part # 07234EZB)
2. Wide-mouth feed chute with pulser (Part # 77788)
3. Processing workbowl cover (Part # 77786)
† 4. Reversible slicing/shredding disc (Part # 77792-1)
t 5. Dough blade (Part # 77840)
† 6. Stainless steel chopping blade [Part # 77793]
7. Disc stem (Part # 77789)
+ 8. 11-cup (2.6L) processing workbowl (Part # 77841)

1. Base
2. Cord wrap (under base)
   † 11. Non-skid suction feet (under base) (Part # 09183-1)
3. Control panel
   Note: † indicates consumer replaceable/removable parts

How to Use

This product is for household use only.

• Remove all packing material and any stickers from the product.

Important: Handle chopping blades and slice/shred disc carefully. They are very sharp.

• Please go to www.prodprotect.com/applica to register your warranty.
• Wash all removable parts as instructed in CARE AND CLEANING section of this manual.
• Select a level, dry countertop where the appliance is to be used, allowing air space on all sides to provide proper ventilation for the motor.

ASSEMBLING THE PROCESSOR

HOW TO INSERT AND REMOVE THE CENTER POST

The center posts of both bowls are removable:

1. Turn the bowl upside down.

1. Grasp the clear outer tabs and turn the center post clockwise until the lower tabs are free. Lift the post out [B].
2. To return to its original position, place center post into smaller opening in bottom of workbowl and turn counterclockwise until tabs snap into place.

HOW TO LOCK THE WORKBOWL IN POSITION

1. Attach center post to workbowl. Place the workbowl on the base with handle turned to the right of the locking mechanism (C) over the unlock symbol.

1. Hold handle and rotate workbowl clockwise toward the lock symbol until it clicks firmly into place (D). Be sure to lock the workbowl in place before attaching the blades and cover.

HOW TO LOCK THE COVER

1. Place cover over workbowl with the small latch to the right of the workbowl's handle (E).
2. Hold feed chute of workbowl cover and rotate cover clockwise until cover locks into place.

Important: For your protection this appliance has an interlock system. The processor will not operate unless the workbowl, cover and wide-mouth feed chute are properly locked in place.

1. If using the workbowl, place the wide-mouth feed chute on top of the cover with the small tab to the right of the workbowl's handle. Turn clockwise until it clicks into position over the handle.
2. Insert the food pusher into the central tube of the wide-mouth feed chute. Turn clockwise to lock in place. The pusher is used to guide foods through the feed chute and can be removed when adding liquid or additional foods while the processor is running. To remove, turn counterclockwise.

CONTROLS

The controls are located on the front of the base (F). Press PULSE [P], HIGH or LOW to select a function (see directions below).

Off/Pulse [0/P]

• Processor should be stored in OFF [0] position and unplugged when not in use.

• Use PULSE [P] for short processing tasks. This lets you control the size and uniformity of foods being chopped.

• The OFF/PULSE (O/P) button must be pressed and held for the appliance to operate in PULSE mode. When released, the appliance will stop.

• The motor of the processor will run as long as the OFF/PULSE (0/P) button is held down. Press the button and then release to allow the blades to stop running and the food to fall to the bottom of the workbowl.
• Pulsing gives better control when chopping, mincing, mixing and blending foods. You can control the size of the foods, from coarse to fine.

High and Low

When either speed is selected, the processor will run continuously until the OFF/PULSE (O/P) button is pressed.

HOW TO CHOP IN THE WORKBOWL

The chopping blade is used to coarsely or finely chop, mince, mix and puree foods to a smooth consistency.

1. Lock workbowl into position (see Illustrations B and C).

1. Hold chopping blade by center shaft and insert onto center post [G].

Caution: The blade attachments are very sharp. Use caution when handling and storing.

1. Place food in workbowl.

2. Place cover on workbowl and lock into place by rotating clockwise (see Illustration D).

3. When using workbowl, place the wide-mouth feed chute and food pusher in place.

Important: Never use your fingers to direct food through the chute.

1. Select your desired speed (PULSE (P), LOW or HIGH).
   Note: Process foods for no more than a few seconds at a time. Pulsing produces excellent results and offers greater control.
2. If using workbowl, food can be added while processor is running; remove food pusher and insert food through the feed chute. Replace food pusher in chute.

Important: Be sure chopping blade has completely stopped spinning before removing cover from processor.

1. Press the OFF/PULSE [O/P] button and allow blades to stop revolving before removing cover. Twist cover toward to remove.
2. Unlock workbowl by turning it counterclockwise and lift off base.

Note: Remove bowl from appliance before removing blade to prevent food from leaking through the center opening of the bowl.

1. Carefully remove chopping blade.
2. Unplug appliance when not in use.

Helpful Tips for Chopping and Blending:

The processor works very quickly.
- Watch carefully to avoid over-processing foods.
The PULSE (P) button offers the best control and results.
- For best results, process foods that are about the same size.
- Do not overload the bowl.
- Never walk away from the processor while it is on.
- Use hot but never boiling liquids.
- Do not process more than 3 cups of liquid in the workbowl at one time.
- To process meat, use no more than 2 cups in the workbowl of 14 -inch cubes. Process using PULSE (P) in 5 second intervals.
- Insert a funnel into the feed chute when adding ingredients such as, oil, flour and sugar.

USING THE DOUGH BLADE

This blade makes preparing dough and pastry efficient and time-saving.

1. Use this blade in the workbowl. This blade does not extend to the outside rim of the workbowl, so it cannot incorporate flour when very small amounts of flour are being processed.
   Note: Use the metal blade for mixtures that contain less 2 cups of flour.
2. Push dough blade down as far as it will go into workbowl.
3. Insert all the dry ingredients into the workbowl.
4. Place cover on workbowl. Add wide-mouth feed chute and food pusher. Process to blend.
5. Add liquids through the small feed chute with machine running.

HOW TO SLICE OR SHRED IN WORKBOWL

1. Lock workbowl into position [see Illustrations B and C].
2. Place disc stem onto center post in workbowl.
3. Carefully place slicing/shredding disc on stem with appropriate side up [depending on work to be done].

Caution: The blade attachments are very sharp. Use caution when handling and storing.

1. Place cover on workbowl and lock into place by rotating cover clockwise (see Illustration D).
2. Fill feed chute with food. Select regular opening or wide-mouth, depending upon size of food to be processed. Position food pusher over food (H or Ha).

OR

1. Select PULSE (P), LOW or HIGH; press firmly on food pusher to guide food through processor, but do not force it.

Note: Heavy pressure on the pusher does not speed the work; use the pusher only as a guide. Let the processor do the work.

1. When finished, press OFF/PULSE (O/P) and wait for disc to stop rotating before removing cover. Twist cover toward to remove.
2. Carefully remove slice/shred disc. Unlock workbowl by turning it counterclockwise and lifting it off the base.
3. Unplug appliance when not in use.

Helpful Tips When Slicing and Shredding:

• Before slicing round fruits and vegetables in the processor, cut a thin slice from the bottom so food will be more stable. Place food cut side down in feed chute.
  Always remove seeds and pits before processing.
• Select foods that are firm and not overripe.
• Remove the core from hard vegetables, such as cabbage.

• When slicing thinner vegetables, cut them just short of the length of the feed chute and stand them vertically in feed chute so they are solidly packed and cannot turn or tilt.

• Shredd hard cheeses at room temperature.

• Soft and semi-hard cheeses should be well chilled before shredding.
• After food has been processed, remove the cover and invert on countertop. Remove the slice/shredd disc before removing the workbowl from the processor. Place the disc on top of the inverted workbowl cover.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Note: Do not attempt to sharpen the cutting edges of the blades or discs. They are permanently sharpened at the factory and will be ruined by attempted sharpening.

Note: Before cleaning, be sure unit is turned off and cord is unplugged.

• Completely disassemble processor parts before washing.
• Whenever possible, rinse parts immediately after processing for easy cleanup.
• Wipe base and feet with a damp cloth and dry thoroughly. Stubborn spots can be removed by rubbing with a damp cloth and a mild, nonabrasive cleaner. Do not immerse base in liquid.
• All removable parts can be washed by hand or in a dishwasher. Hand washing of plastic parts will help to maintain the processor's appearance.
• If washing by hand, fill workbowl with hot soapy water and rapidly raise and lower the cutting blade and discs up and down on the center shaft.
• If your sink has a sprayer nozzle, you will find it helpful in rinsing the blades.
• If washing in a dishwasher, place removable parts on top rack only – not in or near utensil basket.
• Some staining of parts may occur. Make a paste of 2 tablespoons baking soda / 1 tablespoon of water. Apply to stains and let stand overnight. Rinse and dry.
• Do not use rough scouring pads or cleansers on any plastic or metal parts.
• Do not allow blades or discs to soak in water for long periods of time.
• Remove the workbowl cover and blade. Invert an empty 35-mm film canister over the hole in the workbowl. Fill with hot, soapy water and allow to soak.
• Remember to clean the internal shaft of the chopping blade; use a baby bottle brush to remove any clogged food particles.
• If you are having trouble closing the cover over the workbowl, apply a small amount of vegetable oil to the rim of the cover and workbowl. This should make the pieces work smoother when attaching the cover to the bowl.

RECIPES

AU GRATIN POTATOES

112 Ibs.baking potatoes [about 3]

1 large onion

6 ounces Swiss cheese

1 slice dry French, Italian or white bread

12 tsp. salt

1 / 2 tsp. garlic pepper

14 cup melted butter or margarine

Using slicing blade of food processor, slice potatoes and then onion into workbowl; set aside.

Using shredding blade, shred cheese; set aside.

In workbowl fitted with cutting blade, make bread crumbs using French bread; set aside.

Season potatoes with salt and garlic pepper. Alternate layers of potatoes, onions and 1 cup cheese in buttered, 112 -quart, shallow baking dish. Drizzle evenly with melted butter. Top with reserved 1/2 cup cheese and bread crumbs.

Cover with foil and bake in preheated toaster oven at 425^ for 30 minutes. Remove foil and bake 15 minutes longer or until golden and potatoes are tender.

Great accompaniment, grilled steak or roast beef.

Makes 4 to 6 servings.

BASIC WHITE BREAD

3% cup water

1 / 2 cup milk

3 tbsp. butter or margarine

1% tsp. active dry yeast

312 to 314 cups unsifted all-purpose flour

1 tbsp. sugar

1 tsp. salt

In small saucepan, combine water, milk and butter. Heat to lukewarm (105^ to 115^) . Stir in yeast to dissolve. Let rest 5 minutes.

Position dough blade in workbowl of food processor. Add 3 cups flour, sugar and salt. With processor running, gradually add yeast mixture down feed chute. Add additional flour to make a soft dough. Continue processing dough for 1 to 112 minutes.

Remove workbowl from processor; remove blade. Turn dough out onto lightly floured work surface. Knead several minutes until smooth and elastic. Shape into a ball and place in greased bowl, turning to grease top.

Cover and let rise at room temperature until doubled in bulk, about 1 hour.

Punch dough down and shape into a loaf. Place in greased 9'' × 5'' × 3'' [23 × 13 × 8 ~cm] loaf pan. Cover and let rise at room temperature until doubled in bulk, about 1 hour.

Bake at 375^ [191°C] for 35 minutes or until loaf is deep golden brown and sounds hollow when tapped. Remove from pan and cool on wire rack.

Yield: 1 loaf.

Note: This recipe should not be doubled in the food processor.

ASIAN COLESLANW

1 small head cabbage

1 small purple onion

1 medium red pepper, cored and seeded

12 cup toasted sliced almonds

1/4 cup rice wine vinegar

2 tbsp. fresh lime juice

1 tsp grated fresh ginger

1 tsp. granulated sugar

2 tsp. toasted sesame seeds

1 tsp. black sesame seeds

Using shredding side of the slicing/shredding disc of the food processor, shred cabbage into workbowl; set aside in large bowl.

Using slicing side of the slicing/shredding disc, slice onion and pepper; add to cabbage. Add almonds and toss to blend.

In small bowl or measuring cup, whisk together vinegar, lime juice and soy sauce. Add remaining ingredients and blend well. Pour over cabbage mixture and toss to blend.

Cover and refrigerate until ready to serve or cover and let stand about 15 minutes to allow flavors to blend.

Great accompaniment for grilled chicken or fish.

Makes about 7 cups.

SPEEDY PROCESSOR PIZZA DOUGH

1% tsp. active dry yeast

113 cups warm water (105^ - 115^)

1 / 4 tsp.sugar

312 to 34 cups unsifted all-purpose flour

1 tsp. salt

2 tbsp. olive oil

Sprinkle yeast over water; add sugar and let stand until yeast is dissolved (about 5 minutes).

Position dough blade in workbowl of food processor. Add 3 cups flour, salt and olive oil. With processor running, gradually add yeast mixture down feed chute. Add additional flour to make a soft dough. Continue processing dough for 1 to 112 minutes. Stop and let dough rest for 10 minutes.

On lightly floured board, knead several times and form into ball. Place in greased bowl, turning to grease top.

Cover and let rise at room temperature until doubled in bulk, about 1 hour. Punch dough down. For thin crust pizza, divide dough in half. Roll out on lightly floured board to about 14-inch circle. Transfer to pizza pan or baking stone sprinkled with cornmeal. Lift edges to form a crust around edge of pan.

Spoon desired sauce onto crust and spread evenly. Top with desired toppings. Bake at 450^ [232^] for 12 minutes, or until crust is golden and filling is hot.

Yield: 2 pizza crusts.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Food is unevenly chopped.	Workbowl is overfilled.You may be running the bowl continuously instead of on PULSE [P]. Food may be cut in random sizes.	Smaller amounts will process more evenly. Use the PULSE [P] button in 5-second increments or less. Allow the blades to stop completely before pressing the PULSE [P] button again. Cut food in same size pieces before placing in processor.
Liquid leaks from the bottom of the workbowl.	Too much liquid in the workbowl.	Process smaller amounts. When processing liquids, do not add more than 3 cups to workbowl. Do not remove the blade before removing workbowl from processor when processing liquids.
Sliced foods are uneven and slanted.	The feed chute has not been well packed or uneven pressure has been applied to the food pusher during processing.	Cut pieces in even lengths, just a little shorter than the length of the feed chute. Pack the chute carefully and maintain even pressure on the food pusher as the food is being processed.

PROBLEM POSSIBLE CAUSE SOLUTION
Foods being sliced or shredded fill up on one side of the bowl.	This is normal. Stop processing occasionally and either even out the food in the workbowl or move it to another bowl. When food accumulates close to the disc, empty the workbowl before continuing.
Some pieces of food remain on top of the slicing/shredding disc.	This is normal. Slice or shred those pieces by hand or save for another use, like soups that will be pureed.
Soft cheese collects on top of the slice/shredd disc.	The cheese was not cold enough. The pressure exerted on the pusher was too great.	Be sure soft cheeses are well chilled or place in freezer until knife inserted into cheese penetrates about 1/2-inch. Remember food pusher is to be used as a guide; never exert hard pressure on the food pusher.

Donne:2 croutes a pizza.

DEPANNAGE

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

[Applies only in the United States and Canada]

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two year(s) from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACKS DECKER is a registered trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made in People's Republic of China Printed in People's Republic of China

BESOIN D'AIDE?
