USER MANUAL U 12 A1 DHA HOTPOINT

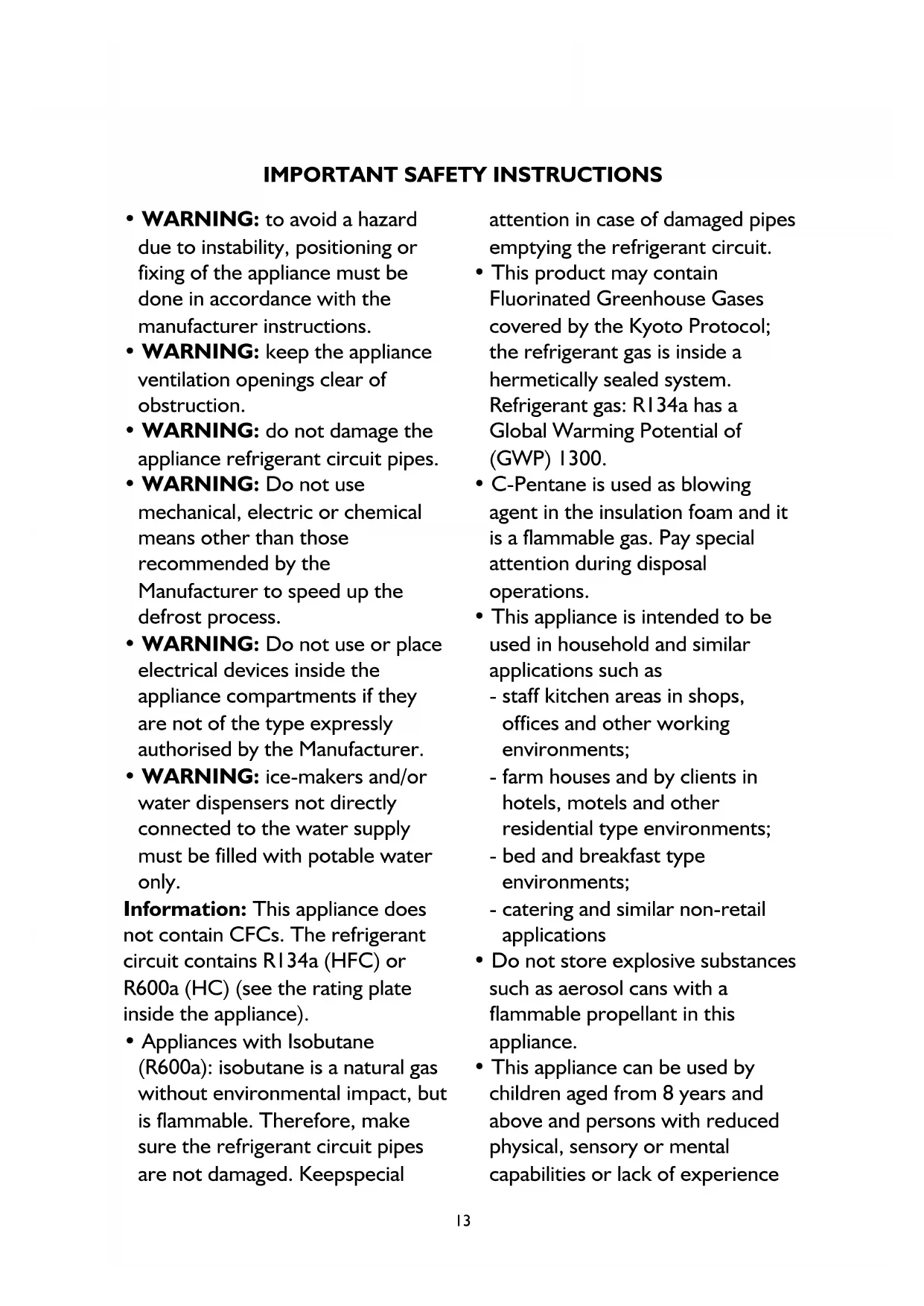

• WARNING: to avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions.

• WARNING: keep the appliance ventilation openings clear of obstruction.

• WARNING: do not damage the appliance refrigerant circuit pipes.

• WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

• WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

• WARNING: ice-makers and/or water dispensers not directly connected to the water supply must be filled with potable water only. Information: This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

• Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged. Keepspecial attention in case of damaged pipes emptying the refrigerant circuit.

• This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system. Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300.

• C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas. Pay special attention during disposal operations.

• This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience

IMPORTANT SAFETY INSTRUCTIONS14

and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children without supervision.

• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.

• It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by means of an accessible multi-pole switch installed upstream of the socket in conformity with national safety standards.

• Plug the appliance into a grounding socket: the appliance must be correctly connected to an approved earthing system.

• Do not use single/multi adapters or extension cords.

• During installation, make sure the appliance does not damage the power cable.

• Do not pull the aplliance power cable

• The appliance must be handled and installed by two or more persons.

• In order to avoid an hazard, installation and maintenance, including Power cable replacement, must be carried out by a qualified technician, in compliance with the manufacturer’s instructions and the local safety regulations in force. Do not repair or replace any part of the appliance unless specifically stated in the user manual.15

The packing material is 100% recyclable and bears the recycling symbol . For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material. This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons. The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance. Declaration of conformity

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

• This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the “Low Voltage” Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments); - the protection requirements of Directive “EMC” 2004/108/EC.

BEFORE USING THE APPLIANCE

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.

• Be careful not to damage the floors (e.g. parquet) when moving the appliance.

• Make sure the appliance is not near a heat source.

• Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.

• The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

• Make sure the voltage specified on the rating plate corresponds to that of your home. SAFE USE

• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.

• Do not swallow the contents (non-toxic) of the ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

• For products designed to use an air filter inside an accessible fan cover, the filter shall be always in position when the refrigerator is in function.

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.

• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

• Do not store glass containers with liquids in the freezer compartment since they may break.

• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

• “The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009)”. The Manufacturer declines any liability for injury to persons or animals or damage to property if the above advice and precautions are not respected. Climatic Class Amb. T. (°C) SN From 10 to 32 N From 16 to 32 ST From 16 to 38 T From 16 to 43 ENERGY-SAVING TIPS

• Install the appliance in a dry, well ventilated room far away from any heat source (e.g. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.

• To guarantee adequate ventilation follow installation instructions.

• Insufficient ventilation on back of the product increases energy consumption and decreases cooling efficiency.

• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.

• Allow warm food and drinks to cool down before placing in the appliance.

• Do not obstruct the fan (if available) with food items.

• After placing the food check if the door of compartments closes properly, especially the freezer door.

• Reduce to a minimum door opening.

• When thawing frozen food, place them in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator.

• Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). In case not differently specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

• Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

• You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelve, maintaining an equivalent energy consumption.

• Damaged gasket must be replaced as soon as possible.

• High energy class products are fitted with highefficiency motors that remain operational for longer, but have a low power consumption. Do not worry if the engine continues to run for longer periods.17 The freezer can be used for storing already frozen food and for freezing fresh food. The amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance data plate. The freezer operates at ambient temperatures between +10°C and +38°C. Optimal performance is achieved at temperatures between +16°C and +38°C. Switching on the freezer

• There is no need to set the freezer temperature on the thermostat because the appliance is already factory set.

• Plug in the appliance. The green power LED and the red internal freezer temperature warning LED will light up; the LED will switch off automatically after a few minutes. Adjusting the thermostat Select the freezer compartment temperature using the thermostat knob: 1 = Minimum chilling 5 = Maximum chilling The ambient air temperature, door opening frequency and the amount of food to freeze can affect freezer temperature adjustments. We therefore recommend starting with a medium temperature setting (2-3). Description of LEDs The green LED indicates whether the appliance is ON. The red LED (and the acoustic alarm on some models) indicates that the internal temperature of the appliance is not suitable for storing food. This occurs:

• After switching on the appliance.

• When the appliance is switched on again after defrosting and cleaning operations.

• When too much fresh food is placed in the freezer.

• When the door is not closed properly.

• When the cooling system is faulty (see “Troubleshooting guide”).

• When the thermostat is set to higher values (lower temperatures). The yellow LED indicates that the fast freeze function is activated. Activating the Fast freeze function To freeze the maximum amount of food, press the fast freeze button 24 hours before placing fresh food in the freezer. The recommended amount of food to be frozen is indicated on the data plate on the inside of the appliance. When putting food in to freeze, the red LED may light up until the ideal temperature is reached. 24 hours after placing the food in to freeze, deactivate the fast freeze function. Tips for freezing and storing fresh food

• Wrap and seal the fresh food to be frozen. Use: aluminium foil, transparent film, waterproof plastic wrap, polyethylene containers with lids and freezer containers, provided they are suitable for the food to be frozen.

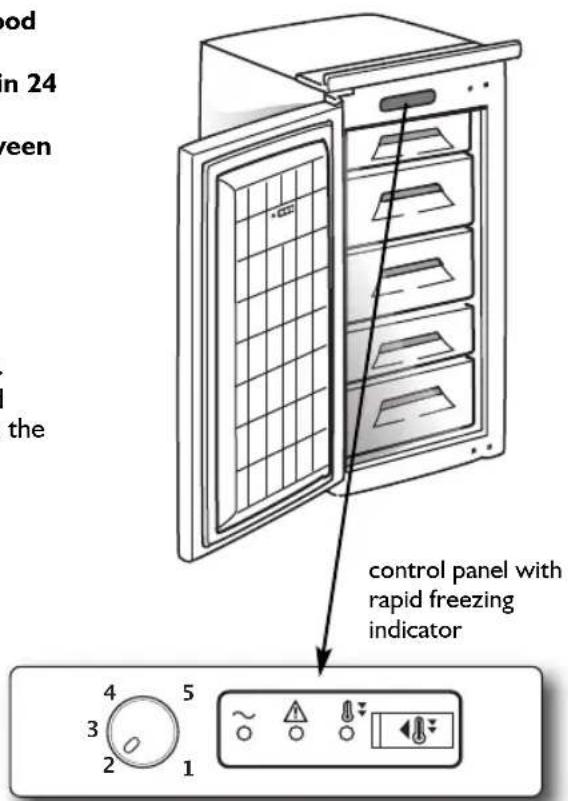

control panel with rapid freezing indicator18

• Food (with the exception of meat, see below) must be fresh, ripe and of the best possible quality. This is the only way of obtaining excellent frozen products.

• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavour. Some meat, especially game, should be hung before it is frozen. Note:

• Always leave hot food to cool before placing in the freezer.

• Use fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen. Freezing and storing fresh food

• Place foods to be frozen in the two upper baskets. Important: The adjacent table shows the recommended maximum storage time for frozen fresh foods. Classifying frozen food Put the frozen products into the drawers (baskets) and classify them. For correct use, follow the storage life indications on the table. Note for checking frozen food Place a low temperature thermometer in the middle of the frozen food to check the temperature. Do not place it on top of the frozen food, as this would determine the temperature of the air and not the temperature of the food. Advice for storing frozen food When buying frozen food, make sure that:

• The packaging is not damaged, since the product quality may have deteriorated. If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.

• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.

• Once at home, place the frozen food immediately in the freezer.

• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.

• Avoid (or minimise) temperature variations. Observe the expiry date on the packaging.

• Always observe the storage guidelines on the frozen food packaging. Removing the baskets

• Pull the baskets out fully, then lift them up slightly in order to remove. Note on useful capacity The useful capacity is calculated without the four top baskets. The freezer can also be used without the baskets if more space is required, e.g. when freezing poultry or similar products. Producing ice cubes

• Fill the ice cube tray 2/3 full and place it in the tray or in a basket.

• Use a spoon handle to detach the tray if it is stuck to the bottom of the freezer. Do not use sharp or pointed instruments.

• Bend the ice tray slightly to remove the cubes. Note: If the freezer door does not re-open immediately after closing, wait two or three minutes in order to allow the vacuum created to stabilise. Switching off the freezer

• Unplug the appliance. The green LED goes out, as well as any other LED that is lit. MONTHS FOOD19 Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply. Defrost the freezer compartment once or twice a year, or when the ice on the walls reaches a thickness of about 3 mm. If possible, defrost the freezer when it is nearly empty.

• SIf there are still frozen foods in the freezer, press the fast freeze button a few hours before defrosting to further chill the food.

• Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.

• Disconnect the freezer from the mains power supply.

• Leave the door open to allow the ice to melt.

• Pull out the defrost water drain and place a container under the drain.

• Clean the interior of the freezer with a sponge and warm water and/or neutral detergent. Do not use abrasive substances.

• Rinse the interior and dry thoroughly.

• Close the feezer and activate the fast freeze function. Arrange the food and a few hours later deactivate the fast freeze function. Prolonged disuse

• Disconnect the freezer from the mains power supply.

• Leave the doors open to prevent formation of unpleasant odours. Door seal

• From time to time clean the door seal with water and then dry well. Do not use oil or grease. Important

• Ensure that the vent outlets are unobstructed in order to allow correct air circulation.

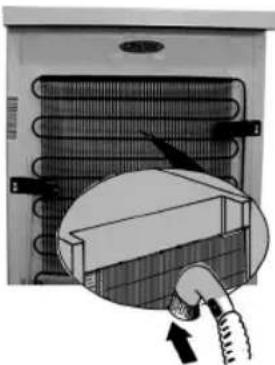

Clean the condenser at the rear of the appliance regularly, using a vacuum cleaner or brush. In the event of prolonged absences

• In the event of prolonged absences

• Disconnect the freezer from the mains power supply.

• Defrost and clean the inside.

• Leave the door open to prevent the formation of unpleasant odours and to eliminate any dampness.

CLEANING AND MAINTENANCE20

1. The appliance does not work.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the power cord damaged?

2. Temperature inside the compartments is not low enough.

• Are the doors closed properly?

• Is the appliance installed near a heat source?

• Is the thermostat setting correct?

• Are the air circulation vents blocked?

3. Temperature inside the freezer is too low.

• Is the thermostat setting correct?

4. Water collects at the bottom of the freezer.

• Have you cleaned the freezer well before switching it on again?

• Is the appliance connected and working properly?

• Is the door shut properly?

5. The yellow, red and green LEDs do not light up. Perform the checks for point 1, then

contact the After-sales Service.

6. The red LED remains lit.

• Was the appliance switched on correctly?

• Has too much food been frozen at once?

• Is the door shut properly?

• Is the freezer faulty?

• Is the thermostat setting too high? Attention:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.

• Gurgling and hissing noises due to expansion in the refrigerant circuit are normal. TROUBLESHOOTING GUIDE Before contacting After-Sales Service:

1. See if you can solve the problem yourself with

the help of the “Troubleshooting guide”).

2. Switch the appliance on again to see if the

problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.

3. If the problem persists after this course of

action, contact After-sales Service. Specify:

• the nature of the problem,

• the Service number (the number after the word SERVICE on the data plate),

• your telephone number and area code. Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. AFTER-SALES SERVICE21

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.

• If this is not possible, the following minimum distances must be observed: - 30 cm from coal or paraffin stoves - 3 cm from electric stoves.

• Install the appliance in a dry, well-ventilated place.

• Clean the interior (see "How to defrost and clean the freezer").

• Check the door seal is not damaged or deformed, especially after installation or reversal of door opening. Electrical connection

• Electrical connections must be made in accordance with local regulations.

• Voltage and power consumption are indicated on the rating plate inside the appliance.

• Regulations require that the appliance is earthed. The manufacturer declines all liabilities for injury to persons or animals or damage to property resulting from failure to observe these regulations.

• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.

• Do not use extension leads or adapters. Disconnecting the appliance

• It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket. Door reversibility

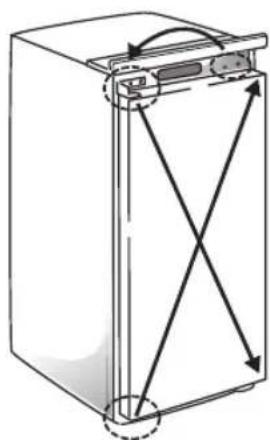

1) Loosen the two screws securing the top hinge (left or right)

4) Loosen the two screws securing the bottom hinge (left or

5) Re-fit the two caps at the top on the opposite side

6) Re-fit the two caps at the bottom on the opposite side

7) Re-fit the top hinge at the bottom on the opposite side

8) Position the door on top of the bottom hinge pin

9) Re-fit the bottom hinge at the top on the opposite side

10) Screw in the two hinges

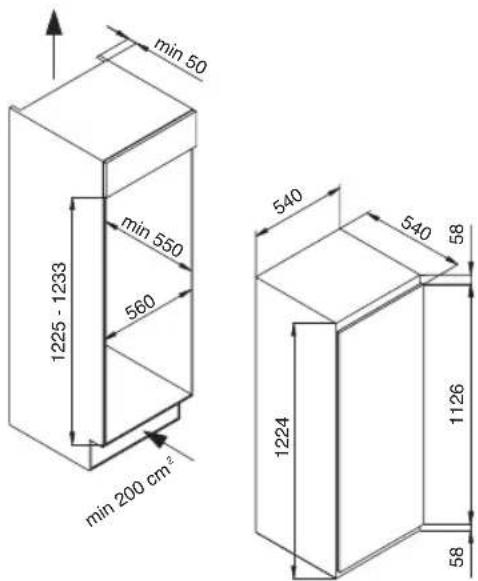

You will need a flat head screwdriver. INSTALLATION min 200 cm

min 550 min 5022 For Great Britain only Warning - this appliance must be earthed Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

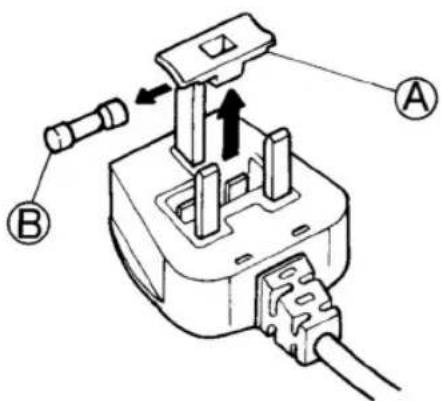

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important: The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted. Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store. Socket outlet / plug If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service on 0870 600 8989 for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations. For the Republic of Ireland only The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type. In this case, the wire which is coloured GREEN AND YELLOW must be connected to the EARTH contact, and the two wires to the two pins, irrespective of colour. The supply to the socket must be fitted with a 16 amp fuse.
