USER MANUAL R 18DSAL HITACHI

Line drawing of a handheld vacuum cleaner (no text or symbols)

Without charger and battery

Household Type

For indoor use only

Dry Type

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this cleaner can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the cleaner. Please keep this manual available for other users and owners before they use the cleaner. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION .... 3

MEANINGS OF SIGNAL WORDS 3

SAFETY 3

GENERAL POWER TOOL SAFETY WARNINGS....3

SPECIFIC SAFETY RULES AND SYMBOLS .... 5

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER 6

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER ..... 7

CAUTION ON LITHIUM-ION BATTERY 8

REGARDING LITHIUM-ION BATTERY TRANSPORTATION 9

PRECAUTIONS FOR CORDLESS CLEANER ..... 9

FUNCTIONAL DESCRIPTION 11

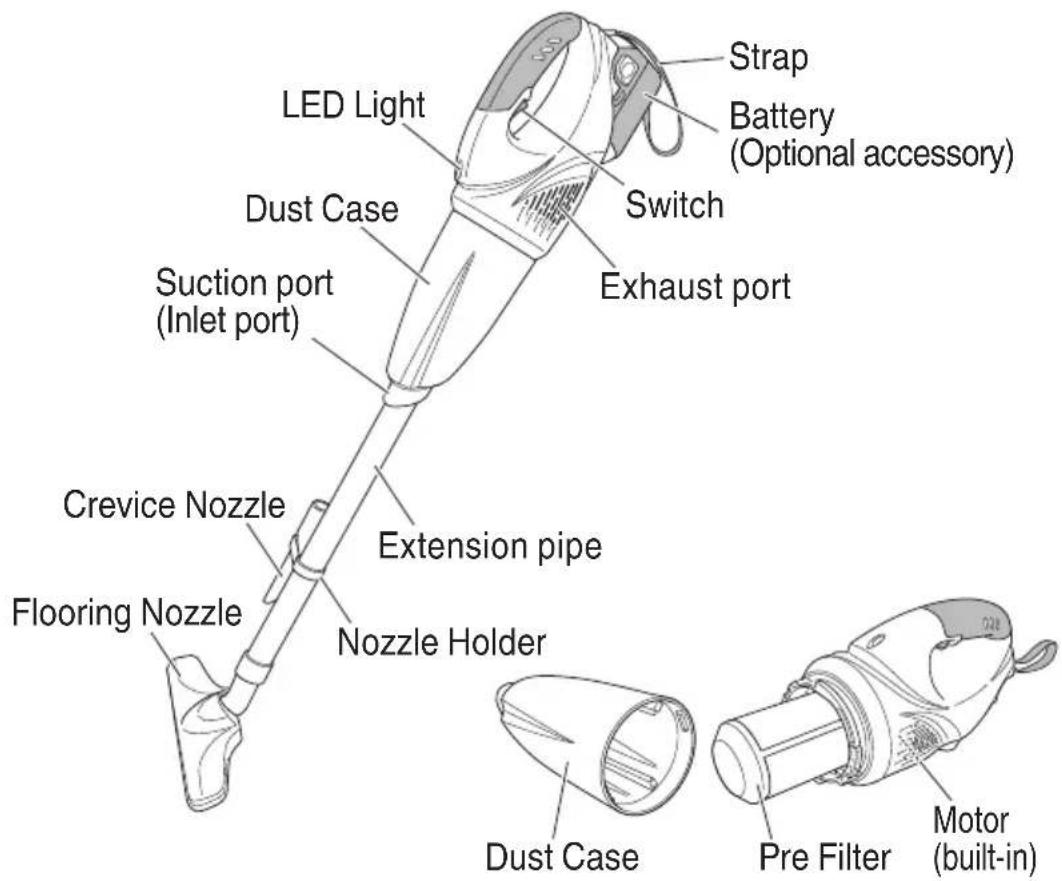

NAME OF PARTS 11

SPECIFICATIONS....12

ASSEMBLY AND OPERATION....12

APPLICATIONS....12

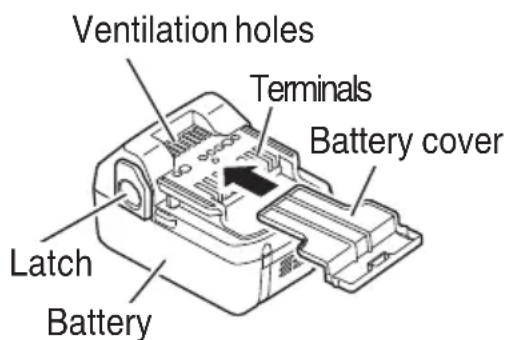

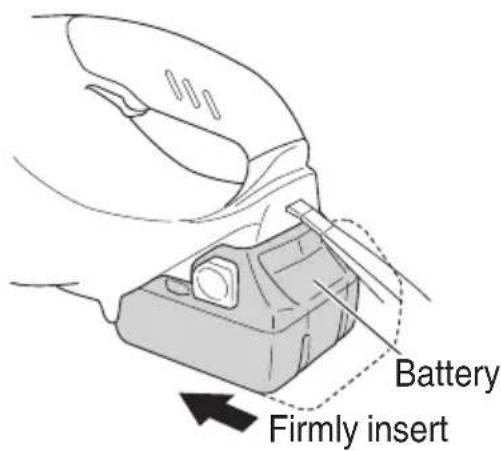

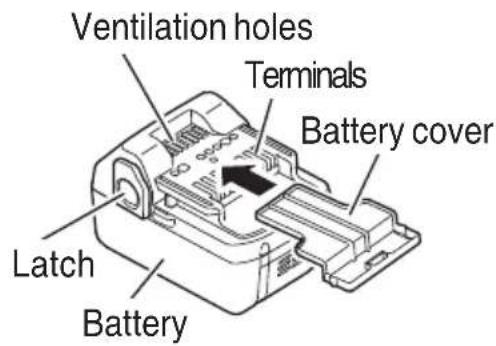

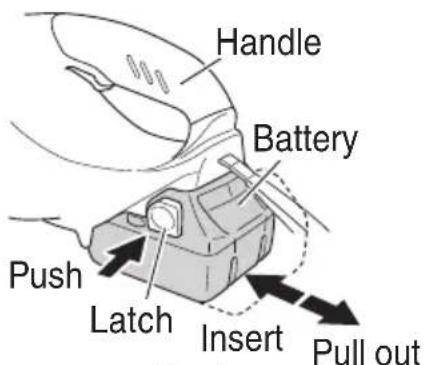

BATTERY REMOVAL / INSTALLATION 12

CHARGING 13

TROUBLESHOOTING....19

ACCESSORIES 20

STANDARD ACCESSORIES 20

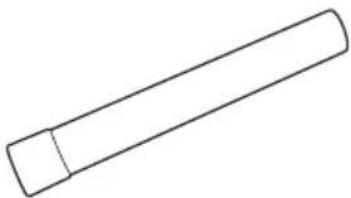

OPTIONAL ACCESSORIES 21

PARTS LIST 62

TABLE DES MATIÈRES

Français

Page Page

INFORMATIONS IMPORTANTES DE SÉCURITÉ ... 22

SIGNIFICATION DES MOTS D'AVERTISSEMENT ... 22

SÉCURITÉ 22

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX CONCERNANT LES OUTILS ÉLECTRIQUES...22

REGLES DE SÉCURITÉ SPÉCIFIQUES ET SYMBOLES 25

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR LE CHARGEUR DE BATTERIE ...... 26

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE ...... 27

PRÉCAUTIONS RELATIVES A LA BATTERIE AU LITHIUM ION 28

À PROPOS DU TRANSPORT DE LA BATTERIE LITHIUM-ION 29

PRÉCAUTIONS POUR L'ASPIRATEUR SANS FIL...29

DESCRIPTION FONCTIONNELLE 31

NOM DES PARTIES 31

SPECIFICATIONS 32

ASSEMBLAGE ET FONCTIONNEMENT ....32

UTILISATIONS 32

RETRAIT/INSTALLATION DE LA BATTERIE ..... 32

CHARGE 33

AVANT LE FONCTIONNEMENT 33

COMMENT UTILISER 35

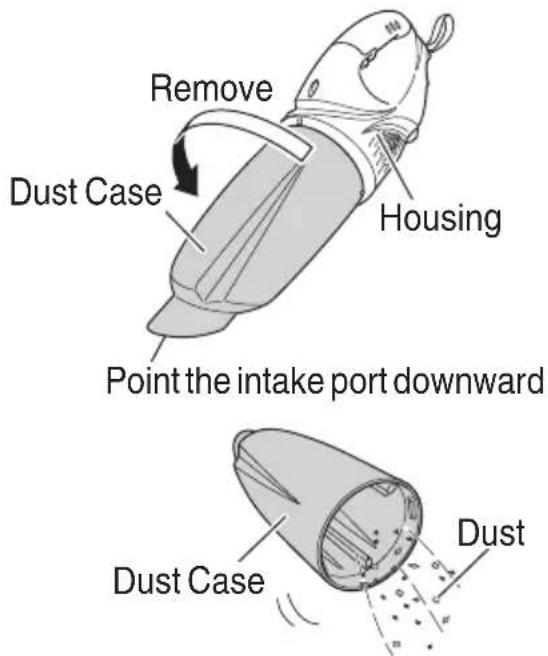

VIDANGE DU BOÎTIER À POUSSIÈRE ...... 36

ENTRETIEN ET INSPECTION 37

GUIDE DE DÉPANNAGE 39

ACCESSOIRES 40

ACCESSOIRES STANDARD 40

ACCESSOIRES EN OPTION.... 41

LISTE DES PIECES 62

ÍNDICE

Español

Página Página

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifi cally designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

● Lead from lead-based paints,
● Crystalline silica from bricks and cement and other masonry products, and
● Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Do not put your hands or face near the cleaner opening during use.
   Doing so might lead to injuries.
2. Do not block the cleaner opening or intake. Blocking the cleaner opening will cause an increase in the motor rotation speed abnormally and might damage the vanes on the inner section of the unit or cause injuries. The motor might also overheat and cause a fire.
3. Do not use in locations where inflammable materials such as lacquer, paint, benzene, thinner or gasoline are present. Also do not let items such as lighted cigarette butts be suctioned inside at such locations.
   Explosion or fires might result.
4. If you notice the unit is operating poorly or making abnormal noises, immediately stop using and shut off the power switch. Request an inspection and repair from the dealer where you purchased the unit or a Hitachi Authorized Service Center.
   Continuing to use while operating abnormally might cause injuries.

5. If the unit is mistakenly dropped or strikes another object, make a thorough check of the unit for cracks, breakage or deformation, etc.
   Injuries might occur if the unit has cracks, breakage or deformation.

6. Do not use near objects generating high heat such as stoves.

Fires might occur if used near such locations.

1. Make a thorough inspection if using the cleaner to clean viscous powder or dust particles.

Powder or dust particles might be suctioned in and adhere internally, causing the vanes to break or injuries to occur.

1. Do not leave on locations such as benches or floors while still rotating.

Injuries might occur.

1. ALWAYS wear ear protectors when using the cleaner for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. When working at elevated locations, clear the area of all other people and be aware of conditions below you.

2. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the cleaner's moving parts.

1. NEVER use a cleaner for applications other than those specified.

NEVER use a cleaner for applications other than those specified in the Instruction Manual.

1. Handle cleaner correctly.

Operate the cleaner according to the instructions provided herein. Do not drop or throw the cleaner. NEVER allow the cleaner to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use cleaner if the plastic housing or handle is cracked.

Cracks in the cleaner's housing or handle can lead to electric shock. Such cleaner should not be used until repaired.

1. NEVER use a cleaner which is defective or operating abnormally.

If the cleaner appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

1. Carefully handle cleaner.

Should a cleaner be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

1. Defi nitions for symbols used on this cleaner V ....volts

— ....direct current

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YKSL.

2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge HITACHI rechargeable battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.

7. Make sure cord is located so that it wial be stepped on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

Thattblades of extension cord are the same number, size, and shape as those of plug on battery charger:

b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large en ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by divi the wattage rating by the voltage rating-for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YKSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPE BSL18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).
12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION

Keep children and infirm persons away. When not in use, tools should be stored out of reach of children and infirm persons.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

2. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   ○ During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.

6. Do not use the battery for a purpose other than those specified.

7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fire immediately when leakage or foul odor are detected.

10. Do not use in a location where strong static electricity generates.

11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fi re. When storing the lithium ion battery, obey surely the rules of following contents.

Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case.
○ Either install the battery in the power tool or store by securely pres battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

Ventilation holes Terminals Battery cover Latch Battery

Fig. 1

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

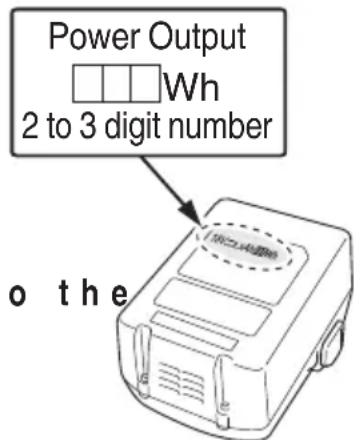

● Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
- For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Power Output Wh 2 to 3 digit number o the

Fig. 2

PRECAUTIONS FOR CORDLESS CLEANER

1. Always charge the battery at a temperature of 0^ C – 40^ C. A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C. The most suitable temperature for charging is that of 20^ C – 25^ C.

2. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery. Do not charge more than two batteries consecutively.

3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fi re. If the battery is burnt, it may explode.
7. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
8. Using an exhausted battery will damage the charger.
9. Do not insert object into the air ventilation slots of the charger.

Inserting metal objects or infl ammables injuries. into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

1. Prevent the appliance from sucking in the following: Fire or injury may result.
   ○ Foaming liquids such as oil, hot water, chemicals or detergent.
   ○ Generated spark during metal grinding or cutting.
   ○ High temperature things, such as lighted cigarette.
   ○ Inflammable substances (gasoline, thinner, benzene, kerosene, paint, etc.), explosive substances (nitroglycerine, etc.), combustible substances (aluminum, zinc, magnesium, titanium, red phosphorus, yellow phosphorus, celluloid, etc.)
   ○ Sharp things, such as nail and razor.
   Solidification materials, such as cement powder and toner, and conductive fine dusts, such as metal powder and carbon powder.
2. Set the filter correctly before use. Do not use the appliance without the filter or with it set in a wrong position, or do not use a torn filter. May cause failures, such as motor burnout.
3. This appliance is for indoor use. Do not use in the rain. Keep away from water or oil.

Malfunction may result as this appliance is not waterproof.

1. Do not use the appliance with its suction opening or exhaust opening obstructed. The temperature of the motor may rise abnormally, causing troubles such as deformation of parts or motor burnout.
2. Do not operate the appliance when the suction opening is blocked.

The motor may overheat, causing deformation of parts or malfunction of the motor.

1. When you drop or bump the appliance accidentally, check for breakage, crack, or deformation in the appliance. Breakage, crack or deformation may cause injuries.
2. When the appliance is out of condition or emits abnormal sound during use, immediately turn off the switch and request repair from your local retailer or authorized servicing agent. If you continue to use the appliance as it is, it may lead to injuries.

hazard or

FUNCTIONAL DESCRIPTION

NOTE:

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the cleaner.

NEVER operate, or attempt any maintenance on the cleaner unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own cleaner.

NAME OF PARTS

1. Cordless Cleaner

LED Light Dust Case Suction port (Inlet port) Crevice Nozzle Flooring Nozzle Extension pipe Nozzle Holder Switch Exhaust port Strip Battery (Optional accessory) Dust Case Pre Filter Motor (built-in)

SPECIFICATIONS

Model R18DSAL
Voltage 18 V
Motor DC motor
Continuous operating time	Approx. 24 min.(using BSL1830C)
Suction Work Rate 40 W
Dust collecting capacity	560 mL
Usable battery(Optional accessories)	BSL18xx: Li-ion 18 V
Usable charger(Optional accessories)	UC18YKSL
Weight	1.4 kg (BSL1830C attached)

ASSEMBLY AND OPERATION

APPLICATIONS

○ Light-duty vacuuming of dry surfaces

BATTERY REMOVAL / INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latches to remove the battery (see Fig. 3, 4).

Ventilation holes Terminals Battery cover Latch Battery

Fig. 3

Handle Battery Push Latch Insert Pull out

Fig. 4

CAUTION

Never short-circuit the battery.

1. Battery installation

Insert the battery while observing its polarities (see Fig. 4).

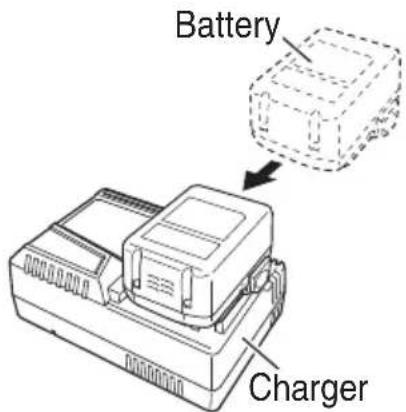

CHARGING

For rechargeable batteries, please charge in according to the handling instructions of the charger which you are using. (Fig. 5)

Battery Charger

Fig. 5

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

1. Mounting and dismounting the fi Iter and pre fi Iter

Before using the appliance, check that the fi Iter is securely mounted.

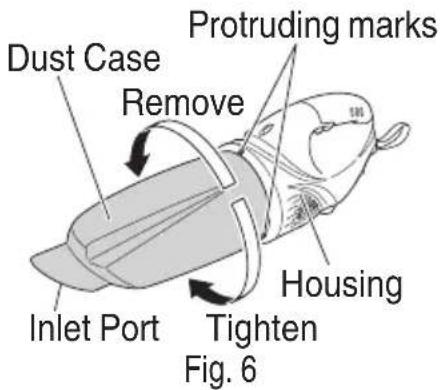

(1) Remove the dust case (Fig. 6)

Looking at the dust case from the inlet port, turn it counterclockwise for approximately 120 degrees to align the protruding marks on the dust case and the housing, and then pull it off.

Dust Case Remove Protruding marks Inlet Port Housing Tighten Fig. 6

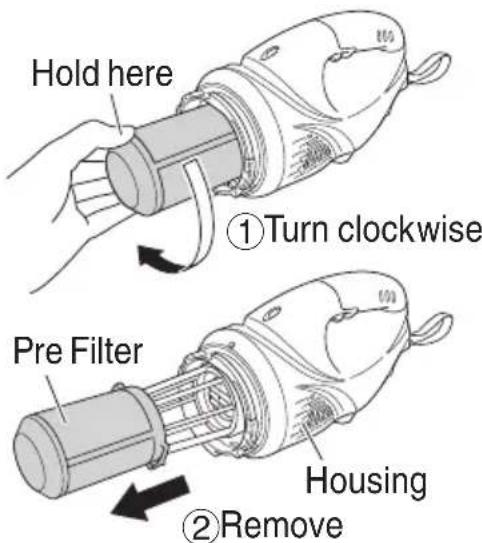

(2) Remove the pre fi iter. (Fig. 7)

Turn the pre filter clockwise to remove it from the housing.

Hold here ①Turn clockwise Pre Filter Housing ②Remove

Fig. 7

(3) Check the filter (Fig. 8)

After removing the pre filter, check to see if the filter is installed.

Also, check to see if the edges of the filter are turned up or not.

Pre Filter Filter

Fig. 8

NOTE

If the filter is not properly fitted, dirt or grime can enter the fan unit and cause damage or malfunction.

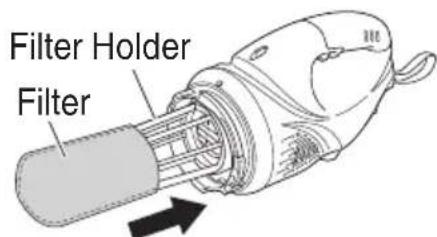

(4) Install the filter (Fig. 9)

Fit the filter over the filter holder.

Filter Holder Filter

Fig. 9

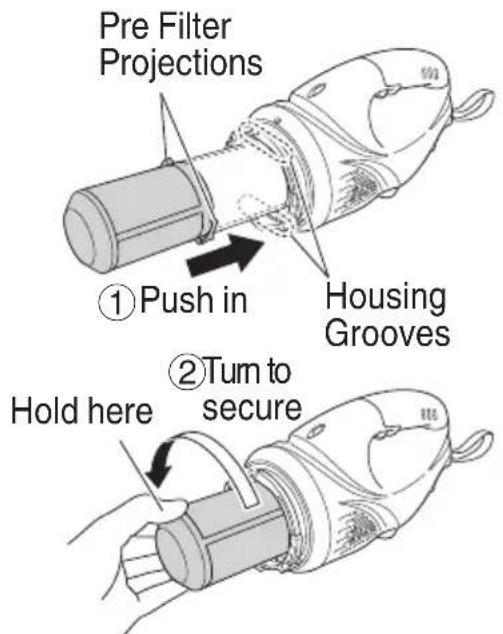

(5) Install the pre-fi iter (Fig. 10)

When installing the pre-fi iter, press the housing on with the projections in a horizontal position. Then, turn the pre-fi iter until the projections are fixed in the grooves of the housing.

Pre Filter Projections ①Push in Housing Grooves ②Turn to secure Hold here

Fig. 10

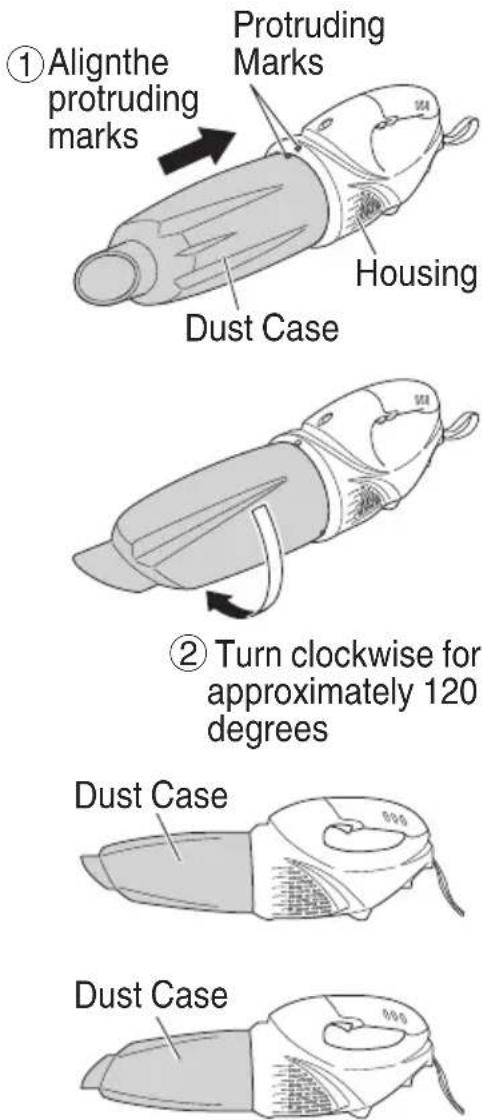

(6) Install the dust case (Fig. 11)

Place the dust case over the housing, making sure that the protruding marks on both are aligned. Then, turn the dust case clockwise for approximately 120 degrees.

① Align the protruding marks Protruding Marks Housing Dust Case ② Turn clockwise for approximately 120 degrees Dust Case Dust Case

* The dust case can also be installed with the nozzle facing upwards.

Fig. 11

HOW TO USE

WARNING

To prevent accidents when installing or removing the rechargeable battery, make sure that the appliance is switched off.
○ This cleaner is only dry dust. Do not vacuum water or other liquids.

CAUTION

○ Make sure that the rechargeable battery is properly installed. If not properly installed, the battery may fall out, causing injury.
○ Make sure the filter and pre filter is installed when operating the appliance. Failure to do so may result in injury or malfunction.

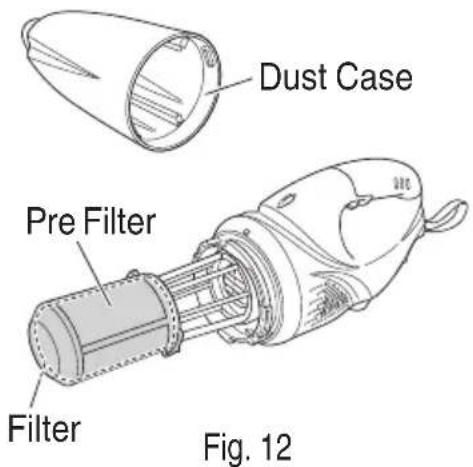

1. Verify the filter (Fig. 12)

Check to make sure the fi iter is installed.

Dust Case Pre Filter Filter Fig. 12

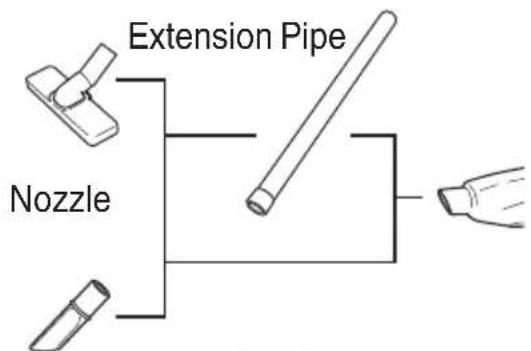

1. Attach the nozzle (Fig. 13)

Depending on the operation, insert the nozzle to the intake port of the appliance. The appliance can be used without a nozzle.

Extension Pipe Nozzle

Fig. 13

NOTE

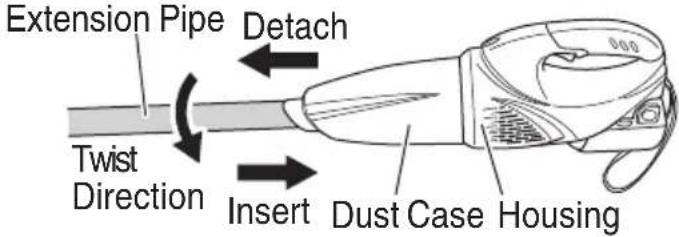

When attaching the nozzle or extension pipe, insert as you twist in the direction indicated by the arrow. (Fig. 14)

Nozzle and

Extension Pipe Detach Twist Direction Insert Dust Case Housing

Fig. 14

Twist in the direction indicated by the arrow when detaching as well. Twisting in the opposite direction could result in detaching the dust case from the housing.

1. Install the battery (Fig. 15)

As shown in the diagram below, firmly insert until a click is heard.

Battery Firmly insert

Fig. 15

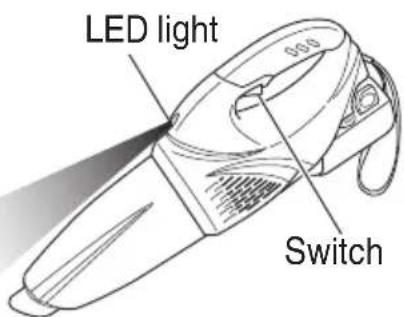

1. Switch on the appliance (Fig. 16)

When the switch is pulled, the appliance and the LED light are both activated. Release the switch and the appliance and LED light are both shut off.

LED light Switch

Fig. 16

CAUTION

Do not expose directly your eye to the light by looking into the light. If your eye is continuously exposed to the light, your eye will be hurt.

EMPTYING THE DUST CASE

CAUTION

To prevent accident power is switched off and remove the rechargeable battery from the appliance.
Do not subject the dust case to strong impacts as this may cause deformation or damage.
○ Empty the dust case frequently and keep the appliance, fi Iter, etc. clean. Failure to do so may reduce vacuuming effi ciency or cause malfunction of the motor or odor.

1. Turn the dust case and pull it from the housing. (Fig. 17)

Remove Dust Case Housing Point the intake port downward Dust Case Dust

Fig. 17

NOTE

Point the intake port downward as dust can spill when removing the dust case.

1. Dispose the dust in the dust case.
2. If the suction does not recover after disposing the dust, clean the pre filter as well as the filter.
3. Attach the filter, pre filter and dust case to the housing.

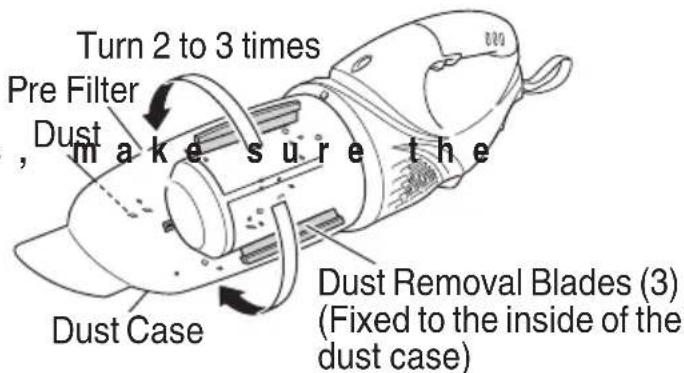

Eff ectively removing dust (Fig. 18)

The appliance has a built-in mechanism for scraping off dust attached to the pre filter when removing the dust case.

To even more effectively scrape off the dust, repeatedly turn the dust case back and forth (2 to 3 times or more).

Turn 2 to 3 times Pre Filter Dust , make sure the Dust Case Dust Removal Blades (3) (Fixed to the inside of the dust case)

Fig. 18

MAINTENANCE AND INSPECTION

CAUTION

Pull out battery before doing any inspection or maintenance.

1. Cleaning the filter

CAUTION

○ Do not wash the filter in a washing machine.
○ Do not wash the fi Iter in hot water or dry it by fi re.

If the vacuuming efficiency is poor even when the dust case has been emptied, remove the filter and wash it in cold or warm water. (The water should not be hot to the touch.)

After washing, dry out of direct sunlight.

NOTE

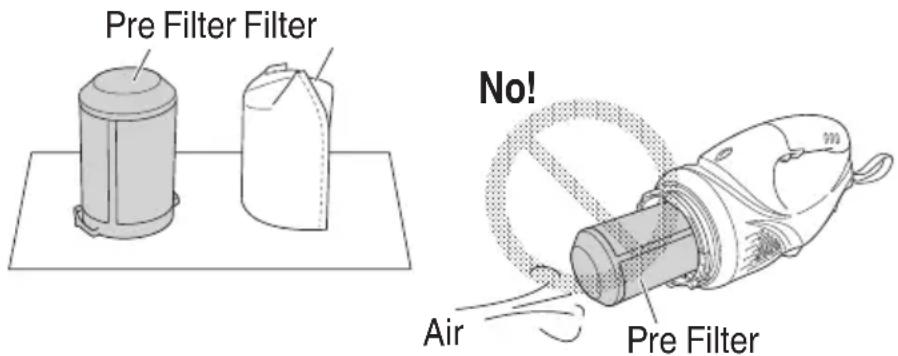

○ Do not use gasoline, thinner, benzene or kerosene as they can melt plastic.
○ Do not use an air gun or similar tool to clean the pre filter, filter or the appliance itself. (Fig. 19)
Doing so could push dirt into the appliance and cause malfunction.

Pre Filter Filter No! Air Pre Filter

Fig. 19

1. Inspecting the mounting screws
   Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so may result in serious hazard.
2. Maintenance of the motor
   The motor unit winding is the very "heart" of the power tool.
   Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

NOTE

Regularly idle the motor to clean out dirt and dust.

Damage may result if dirt or dust collects in the motor.

1. Cleaning of the outside

When the impact driver is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, as they melt plastics.

1. Storage

Store the cordless cleaner in a place in which the temperature is less than 50^ C and out of reach of children.

When storing the appliance in a vertical position, hook the strap to a hanger.

NOTE

○ Do not store in a location where children can easily reach or take out the appliance.
○ Do not store in a damp location or in an area exposed to rainfall.
○ Do not store in direct sunlight or in a location where temperatures may suddenly change
○ Do not store in a location with volatile materials that could ignite or explode.

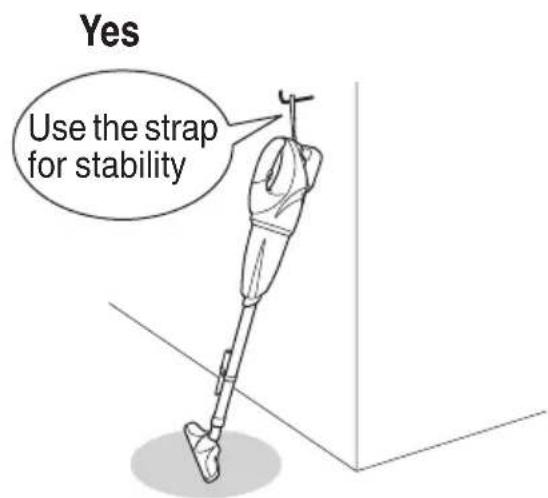

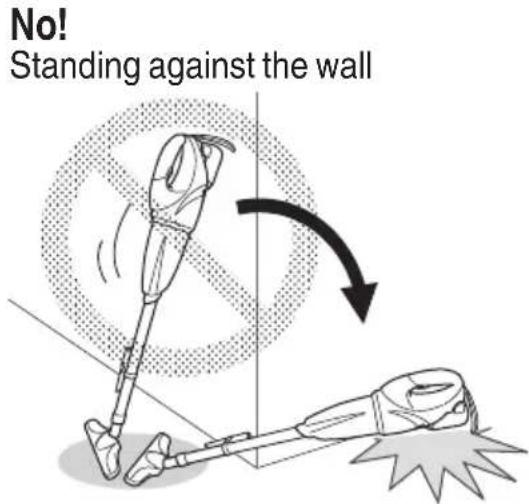

☐ Do not stand the appliance against a wall without using the strap to fix it in place. (Fig. 20) Failure to do so may result in damage from a fall.

Yes Use the strap for stability

No! Standing against the wall

Fig. 20

NOTE

Storing Lithium-ion Batteries

Make sure the batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

6. Service and repairs

All quality cleaner will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

7. Service parts list

CAUTION

Repair, modification and inspection of Hitachi Cleaner must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the cleaner to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of cleaner, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Cleaner is constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

Important notice on the batteries for the Hitachi cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the Hitachi Authorized Service Center.

Symptom Possible	cause Remedy
Tool doesn't run No remaining battery power Charge the battery.
		The switch was pulled back when the battery was installed
Tool suddenly stopped Tool was overburdened Get rid of the problem causing the overburden.
			The battery is overheated. Let the battery cool down.
Poor suction	Dust case is full. Dispose the dust.
	Nozzle is plugged. Remove the obstruction.
	Nozzle or extension pipe is loose. Firmly tighten the unit.
	Nozzle or extension pipe is cracked or damaged.	Exchange the unit with a new one.
	Filter or pre filter is clogged.	Turn the dust case and scrape off dust with dust removal blade, or remove the filter/pre filter and lightly strike it or wash with water.
Exhaust or the main unit is hot	The motor is overheating because the dust case is full, or the filter/pre filter is clogged.	Dispose the dust. Or else, clean the filter/pre filter.
Abnormal noise/foul odor	Filter or pre filter in not properly installed, resulting in foreign matter getting into the motor.	Remove the dust case, point the intake port downward and gently shake to remove foreign matter and dust.Should abnormal noise/foul odor persist, the motor may be damaged.Immediately discontinue use and arrange for repairs.

ACCESSORIES

WARNING

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this cleaner. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your cleaner.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE:

Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

Table 1

		R18DSAL
Flooring Nozzle		1
Crevice Nozzle		1
Extension Pipe(With Nozzle Holder)	older	1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES.....sold separately

Select accessories that are suited to a specific task. For details contact Hitachi Authorized Service Center.

Line drawing of a mechanical device with internal components (no text or symbols)

18 V (Li-ion) Battery

Line drawing of a portable electronic device with ports and buttons (no text or symbols)

UC18YKSL (14.4 V - 18 V) Charger

Part Number: 329897 Battery cover

Part Number: 332714 Flexible Hose

Part Number: 332712 Rack Brush

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

Part Number: 332716 Extension Pipe (Short)

Simple line drawing of a corner joint with textured surface (no text or symbols)

Part Number: 332712 Rack Brush

Part Number: 337793 Filter (1 pc.) Part Number: 371824 Filter (10 pcs.)

Line drawing of a mechanical component with three ports and a central circular feature (no text or symbols)

Part Number: 332715 Angle Joint

Simple line drawing of a cylindrical container with a side panel (no text or symbols)

Part Number: 337792 Pre Filter

Line drawing of a handheld hairdryer with a circular button and no text or symbols

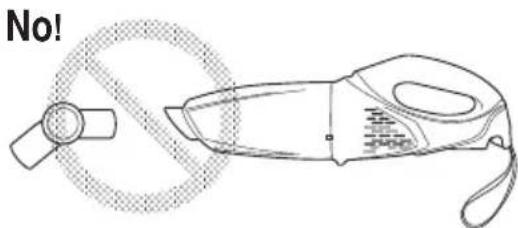

* Angle joint cannot be directly installed to the main unit. Use it as a set with the extension pipe or other accessory.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Line drawing of a mechanical device with internal components (no text or symbols)

18 V (Li-ion) Batterie

Line drawing of a portable electronic device with ports and ventilation slots (no text or symbols)

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

Simple line drawing of a bent pipe or elbow joint with no text or symbols

Line drawing of a mechanical component with two ports and a central circular feature (no text or symbols)

Simple line drawing of a cylindrical container with a side mount (no text or symbols)

Line drawing of a handheld device with a circular stopper and handle, no text or symbols present

Luz LED Interruptor

Fig. 16

PRECAUCIÓN

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a portable electronic device with ports and buttons (no text or symbols)

UC18YKSL (14.4 V - 18 V) Cargador

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

Simple line drawing of a corner joint with textured surface (no text or symbols)

Line drawing of a mechanical component with a circular top and two rectangular ends (no text or symbols)

Simple line drawing of a cylindrical container with a side outlet (no text or symbols)

Diagram showing a handheld device with a circular warning symbol and '¡No!' text, likely indicating no warning or absence.

Exploded view diagram of a vacuum cleaner with numbered parts and a list table for item number.

Item No.	Part Name Q'TY
1 DUST CASE (WHITE) 1
2	V A L V E 1
3	W A S H E R 1
4 TAPPING SCREW (W/FLANGE) D3X16 8
5	P R E F I L T E R	1
6 FILTER 1
7 FILTER HOLDER 1
8 FILTER BLADE 3
9 RUBBER COVER 1
10	FAN COVER	1
11	HOUSING SET	1
12	MOTOR FAN (B)	1
13	SWITCH	1
14	TRIGGER	1
15	SPRING (B)	1
16	PRINTED CIRCUIT BOARD	1
17	INTERNAL WIRE (A)	1
18	NOISE PACKING (A)	2
19	BATTERY TERMINAL	1
20	STRAP 1
21	INTERNAL WIRE (A)	1
22	NAME PLATE	1
23	CUSHION 1
501	FLOORING NOZZLE	1
502	CREVICE NOZZLE	1
503	EXTENSION PIPE (W/NOZZLE HOLDER)	1
504	ROLLER	4
505	ROLLER SHAFT	4
506	NOZZLE BLADE	1

Line drawing of a quill pen with inkwell (no text or symbols)

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR HITACHI.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
