RF461304 - Fridge GAGGENAU - Free user manual and instructions

Brand	Gaggenau
Model	RF461304
Product Type	Refrigerator
Connectivity	Home Connect (Wi-Fi)
Dimensions (H x W x D)	Approximately 177 x 56 x 55 cm (standard estimate for a built-in refrigerator)
Weight	Approximately 70 kg (estimate)
Power supply	220-240 V, 50-60 Hz
Total capacity	Approximately 300 L (estimate)
Energy class	A++ (typical estimate for Gaggenau)
Main functions	Refrigeration, Home Connect, electronic display
Control	Touch panel (buttons S, <, √, _)
Installation	Built-in
Care and cleaning	Clean with a soft cloth and soapy water
Safety	Secure WPS function, Home Connect data encryption
Spare parts and repairability	Parts available via Gaggenau after-sales service
General information	User manual available online

Frequently Asked Questions - RF461304 GAGGENAU

How to install the Home Connect app?

Download the Home Connect app from the App Store or Google Play Store. Create a user account and follow the app instructions to connect your refrigerator.

How to connect my refrigerator to Wi-Fi?

Two methods: WPS (automatic) or manual connection. For WPS, press the S button, go to Basic Settings > Home Network, select Automatic (WPS), then activate WPS on your router within 2 minutes. For manual connection, select Manual and follow the instructions in the app.

What to do if Wi-Fi connection fails?

Check that the refrigerator is within range of the WLAN network and that your smartphone/tablet is connected to the same network. Make sure the password is correct. If the problem persists, restart the router and try again.

How to adjust the refrigerator temperature?

Temperature is adjusted via the control panel. Press the S button, navigate with the < and √ buttons to find the temperature setting, then adjust as needed. The full manual provides details.

How to clean my Gaggenau refrigerator?

Use a soft cloth with soapy water. Avoid abrasive products. For the interior, remove the shelves and clean them separately. Dry thoroughly before putting back.

Can I use the refrigerator without Home Connect?

Yes, all basic functions (refrigeration, temperature adjustment) are available without Home Connect. Connectivity is an additional option.

How to reset network settings?

Go to the Basic Settings > Home Network menu. You will find an option to reset network settings. Refer to the manual for exact instructions.

Where to find the full user manual?

The full manual is available for free on notice-facile.com in PDF format. You can download it or view it online.

What to do in case of breakdown or malfunction?

Contact Gaggenau after-sales service. Before calling, consult the manual for basic solutions (restart, reset). You can also use the Home Connect app for assistance.

Is the refrigerator compatible with all routers?

It is compatible with standard WLAN networks (802.11 b/g/n) and supports WPS. Make sure your router is configured in WPA2 mode for optimal security.

USER MANUAL RF461304 GAGGENAU

Hand holding smartphone with floating icons of kitchen appliances on a dark screen (no text or symbols)

EN Connect your refrigerator to the future. 8

Home connect

Welcome to the connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your home appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your home appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

* The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com

Explore: With the Home Connect app you can...

Manage your appliance

In the app's appliance section you have an overview of your connected home appliances, offering a variety of functions beyond simple remote control. Monitor the home appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your home appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started!

What you need

1 | Your refrigerator must be installed properly and turned on.
2 | A smartphone or tablet equipped with a current version of iOS or Android operating system.
3 | Your refrigerator within the Wi-Fi signal of your home network.
4 | The name of your Wi-Fi network (SSID) and its password (key).
5 | This installation guide.

Important information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted. Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for the "Home Connect" app in the store's search and install it.

The Home Connect app:

3 | Open the app and register to create a Home Connect account.

4 | Write down your Home Connect account credentials (user account and password), you will need them later.

√ The app will guide you through the steps of adding your appliance to Home Connect. It will refer to this guide only when needed.

Step 2: Connect your refrigerator with your home network

1 | Your dishwasher must be installed properly and turned on.
2 | Open your Home Connect app to add your refrigerator.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Information:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

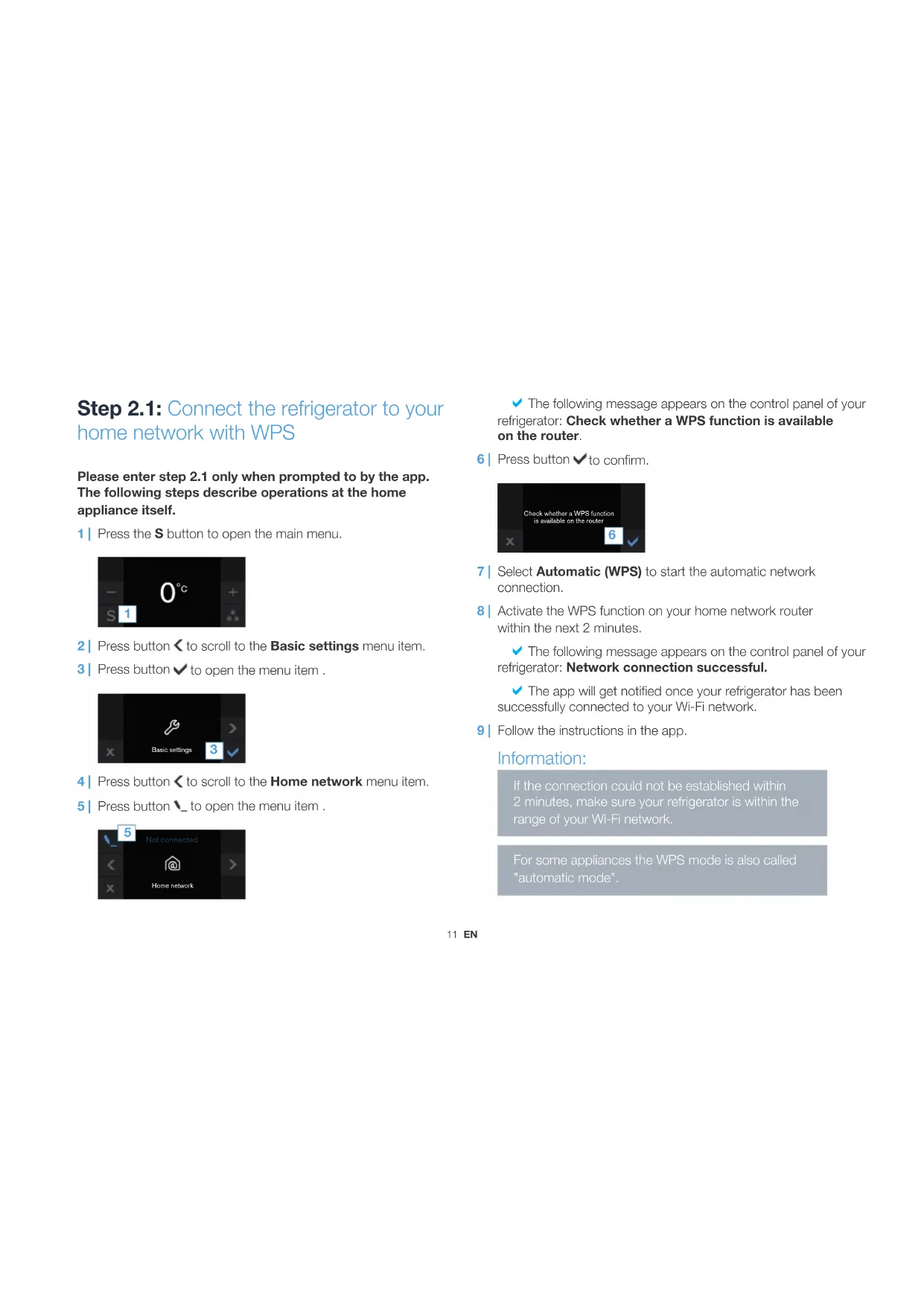

Step 2.1: Connect the refrigerator to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the home appliance itself.

1 | Press the S button to open the main menu.

2 | Press button < to scroll to the Basic settings menu item.
3 | Press button √ to open the menu item.

4 | Press button < to scroll to the Home network menu item.
5 | Press button \_ to open the menu item.

√ The following message appears on the control panel of your refrigerator: Check whether a WPS function is available on the router.

6 | Press button √ to confirm.

7 | Select Automatic (WPS) to start the automatic network connection.
8 | Activate the WPS function on your home network router within the next 2 minutes.

√ The following message appears on the control panel of your refrigerator: Network connection successful.
√ The app will get notified once your refrigerator has been successfully connected to your Wi-Fi network.

9 | Follow the instructions in the app.

Information:

If the connection could not be established within 2 minutes, make sure your refrigerator is within the range of your Wi-Fi network.

For some appliances the WPS mode is also called "automatic mode".

Step 2.2: Manually connecting your refrigerator to your home network (Wi-Fi)

Please enter step 2.2 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Press the S button to open the main menu.

2 | Press button < to scroll to the Basic settings menu item.

3 | Press button √ to open the menu item.

4 | Press button < to scroll to the Home network menu item.

5 | Press button \ to open the menu item.

√ The following message appears on the control panel of your refrigerator: Check whether a WPS function is available on the router.

6 | Press button √ to confirm.

7 | Select Manual to start the automatic network connection.

√ The following message appears on the control panel of your refrigerator: Continue with manual network connection in the app.

8 | Press button √ to confirm.

√ The appliance will open a temporary Wi-Fi network, "Home Connect" for 2 minutes.

Using this temporary Wi-Fi network, the app will transfer the name (SSID) and the password of your home network to the refrigerator, thereby enabling the refrigerator to connect to your home network.

√ The following message appears on the control panel of your refrigerator: Network connection successful.

9 | Follow the instructions in the app.

Information:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode". If the step-by-step mode does not work please check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connect your refrigerator to the Home Connect app

Please enter step 3 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Open the Home network menu on your refrigerator.
2 | Press button < to move to menu item Connect to app.
3 | Press \_ button to open the menu item.

4 | The following message appears on the control panel of your refrigerator:. Connect to mobile device.
5 | Press button √ to confirm.

√ The app will now attempt to connect to the refrigerator. The following message appears on the control panel of your refrigerator: Synchronization is running.

6 | Follow the instructions in the app to complete the process.

√ When connection is successful, the following message appears on the control panel of your refrigerator: Connection to app successful.

7 | Press button √ to confirm.

√ The following message appears in the status bar of the control panel

8 | Follow the instructions in the app.

Information:

If the connection could not be established make sure your smartphone/tablet is within range of your Wi-Fi network.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

To learn more about smart appliances with Home Connect and the partner ecosystem visit www.home-connect.com

Installation instructions in other languages can be found under "Home Connect" in the instruction manual supplied with your appliance.

If you have any questions, just visit us at www.home-connect.com

Abstract diagram with three colored circles containing icons: a document, a kitchen pot, and a person (no text or symbols)

Home Connect is a service of BSH Home Appliances Corporation.

Apple App Store and iOS are Apple Inc. trademarks, Google Play Store and Android are Google Inc. trademarks, Wi-Fi is a Wi-Fi Alliance trademark.

de, en, fr, it, es (9805) 8001065909
