RTP8x2 - Car speaker MTX Audio - Free user manual and instructions

Product Type	Powered Subwoofer Enclosure (Active Subwoofer)
Brand	MTX Audio
Model	RTP8x2
Speakers	2 x 20 cm (2 x 8")
Amplification Type	Integrated mono class-D amplifier
Maximum Power	720 W
RMS Power	240 W
Remote Bass Control	Yes (EBC included)
Audio Inputs	Low level (RCA) and high level (adapters provided)
Input Sensitivity Range (Gain)	0.2 V to 6 V
Dimensions (W x H x D)	33 x 31 x 58 cm
Power Supply	+12 V DC (vehicle battery)
Recommended Fuse	To be installed within 20 cm of the battery
Thermal Protection	Yes (red LED Protection)
Recommended Cable Gauge	6 mm² copper
Cleaning and Maintenance	Soft dry cloth; avoid chemical products
Safety Precautions	Disconnect the battery before installation; use a fuse; check connections
Repairability	Contact a specialized installer for any intervention

Frequently Asked Questions - RTP8x2 MTX Audio

What is the power of the built-in amplifier?

The mono class-D amplifier delivers a power of 720 W max and 240 W RMS.

How to connect the power supply?

Connect the +12V terminal directly to the battery with a 6 mm² copper cable. Install a fuse within 20 cm of the battery. The ground (GND) must be connected to a bare metal part of the vehicle with the same cable.

How to use the high level input?

If your source does not have RCA outputs, use the provided high level adapters. Connect the speaker wires of the source to the adapters, then connect them to the High Level Input connector of the amplifier.

How to adjust the gain (sensitivity)?

Turn the Gain potentiometer to minimum. Turn up the source volume to 3/4, then increase the Gain until you hear distortion. Reduce by one notch for optimal calibration.

What to do if the protection LED lights up?

The red Prot. LED indicates thermal protection (overheating). Let the amplifier cool down and ensure it is well ventilated.

How to connect the remote control (EBC)?

Connect the provided EBC remote to the EBC Remote port of the amplifier. It allows you to adjust the subwoofer level from the front seats.

What are the dimensions of the enclosure?

The dimensions are 33 x 31 x 58 cm (W x H x D). Make sure you have enough space for ventilation and clearance of the subwoofers.

Can I use standard RCA cables?

Yes, but MTX recommends quality twisted RCA cables (e.g., StreetWires) to avoid noise. The input level must be between 0.2 V and 6 V.

How to connect the remote wire (turn-on)?

Connect the REM terminal to a +12 V wire switched by the source's ignition (often blue, labeled 'Remote' or 'Power Antenna'). This turns the amplifier on/off automatically.

Where to find the complete manual?

The user manual is available for free download in PDF format on notice-facile.com. You can also request a translation by choosing your language.

USER MANUAL RTP8x2 MTX Audio

twitter.com/MTXEurope

facebook.com/MTXEurope

MG AUDIO RTP8x2 MG AUDIO MG AUDIO

RTP8x2

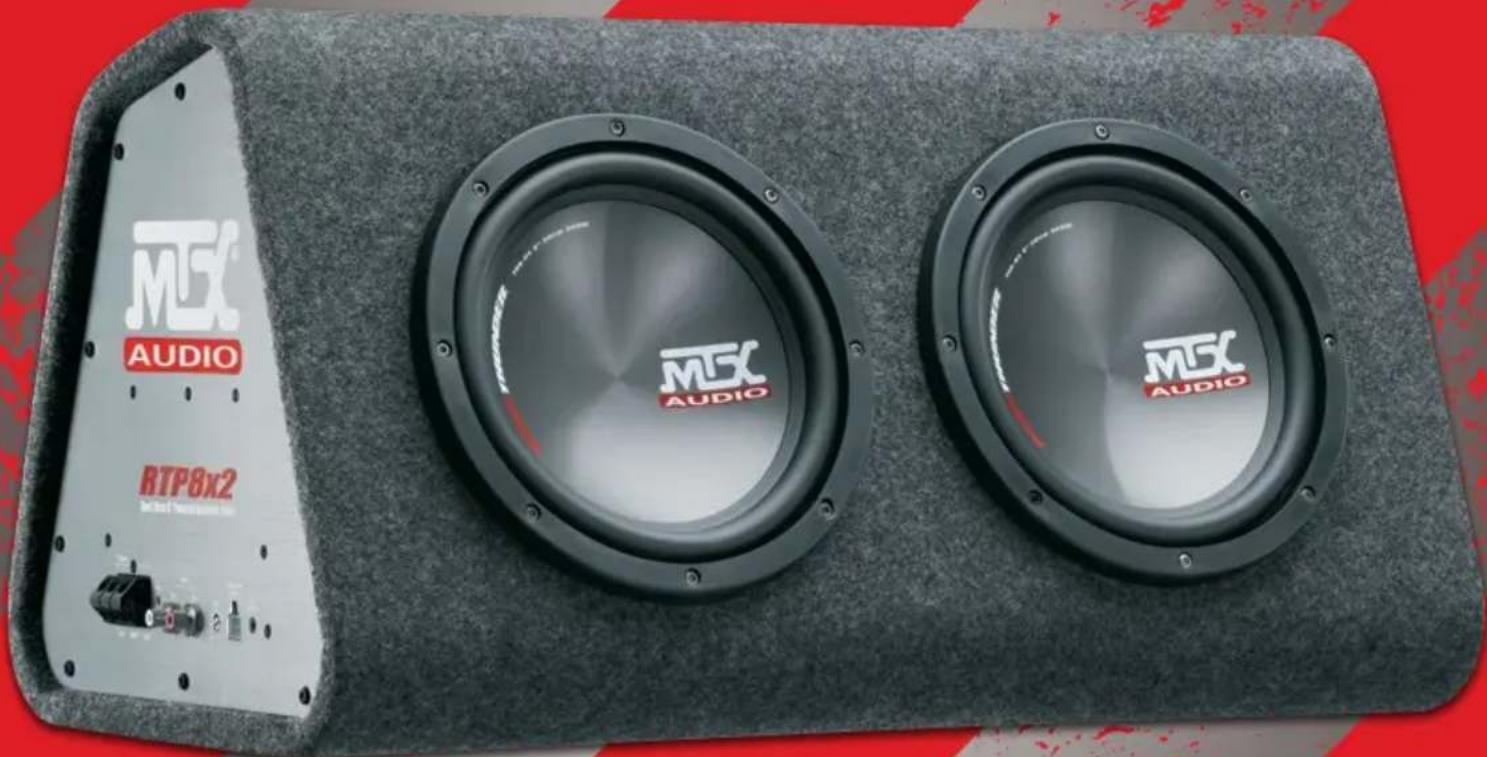

Dual 20cm (2x8") Powered Vented Enclosure, 720W Peak, 240W RMS CEA

Designed by MTX in Phoenix, AZ - USA

Thank You!

Thank you for purchasing an MTX Audio High-End amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of waking the neighbors, slammin' your friends or flat out stomping wanna-be players. Congrats and enjoy the ultimate audio experience with MTX!

Specifications :

• Powered vented enclosure
• Mono block class-D amplifier
• Subwoofers: 2x20cm (2x8")
  • Amplifier Max Power : 720W
  • Amplifier RMS Power : 240W
• High and low level inputs
  • EBC (External Bass Control) remote included
• Dimensions: 33x31x58cm

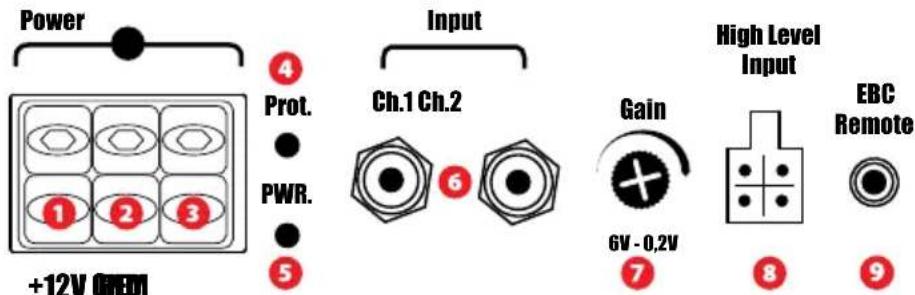

Control Panel on the Amplifier :

Power +12V ONED 4 Prot. PWR. 5 Input Ch.1 Ch.2 6 Gain 6V - 0,2V 7 High Level Input 8 EBC Remote 9

Power Terminal (+12V): This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12V) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using a minimum of 6mm2 full copper power wire with the MTX RTP8x2.

Remote Terminal (REM) — The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked "remote" or "power antenna".

Ground Terminal (GND) : A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.

Protection LED (Prot.) : When the amp is in thermal protection, the LED turns to red.

PowerOn LED (PWR.) : The LED illuminates red when the amp is switched on.

RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 200mV output for proper operation of the amplifier). MTX recommends only high quality RCA cables to decrease the possibility of radiated noise entering the system.

Gain Control (Gain): The gain control matches the input sensitivity of the amplifier to the source unit being used.

The operating range varies from 200mv to 6V. Adjusting the gain:

1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.

Speaker level inputs (High Level Input) : This input will allow the amplifier to operate from source units with speaker-level outputs.

Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier.

Note: When speaker level inputs are used, a remote turn on wire must be used to switch the amplifier on and off.

Remote bass control port (EBC) : use this port to connect the optional MTX EBC. It allows you to control the output level siting at the front of the car.

Installation & Mounting :

MTX recommends your new MTX RTP8x2 to be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicles electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to turn on your system!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX RTP8x2. Keep in mind there should be sufficient air flow for proper cooling.

3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier (+12V) terminal (1). Do Not connect to the battery at this time.
   Note : Use only proper gauge wire for both positive and negative connections.

4. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuitbreaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.

5. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the amplifier (3).

6. Connect a remote turn-on wire from the source unit to amplifier remote terminal (2). If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit's Power Antenna lead.

7. Connecting signal cables to the amplifier: There are two ways to supply the signal to your MTX RTP8x2.

- To get maximum performance, we suggest connecting a high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier.

- If a source unit is being used without RCA outputs, use the included high-level amplifier's speaker terminals (8) using the right gauge speaker wire.

1. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.
