Technical Features	36-inch wall-mounted hood, powerful motor, integrated LED lighting, 4 extraction speeds.
Extraction Capacity	Up to 600 CFM (cubic feet per minute).
Noise Level	Quiet operation, maximum noise level of 65 dB.
Filtration Type	Aluminum grease filters, dishwasher safe.
Usage	Ideal for large kitchens, touch control for easy use.
Maintenance	Filters to be cleaned every 3 months, regular maintenance recommended for optimal performance.
Safety	Overheat protection, compliant with electrical safety standards.
General Information	Modern stainless steel design, 1-year limited warranty.

Frequently Asked Questions - JXW8936DS JENN-AIR

How do I clean the JennAir JXW8936DS hood?

To clean the hood, first unplug it. Use a mixture of warm water and mild soap to wipe the exterior. The metal filters should be washed in warm soapy water or in the dishwasher.

What type of filter does the JennAir JXW8936DS hood use?

The hood uses metal filters that are reusable and washable. Make sure to clean them regularly for optimal performance.

What should I do if the hood does not turn on?

Check if the hood is properly plugged in and if the circuit breaker has not tripped. If everything is in order and it still does not turn on, contact customer service.

The JennAir JXW8936DS hood is noisy, is this normal?

Some noise is normal, especially at high speeds. If the noise is excessive or unusual, check if the hood is properly installed and if the filters are clean.

How do I adjust the hood lighting?

The hood lighting can be adjusted via the control panel. Press the lighting button to turn the lights on or off, and hold it down to adjust the brightness.

Is there a warranty for the JennAir JXW8936DS hood?

Yes, the hood is generally covered by a limited warranty. Check the documents provided with your product for details on the duration and conditions of the warranty.

Can the JennAir JXW8936DS hood be installed above a gas stove?

Yes, the hood can be installed above a gas stove, but make sure to follow the installation instructions for the recommended height.

How do I adjust the hood fan speed?

The fan speed can be adjusted via the control panel by selecting one of the speed options. Choose a higher speed for more intensive cooking levels.

USER MANUAL JXW8936DS JENN-AIR

JENN-AIR® 36" (91.4 CM) WALL-MOUNT CANOPY RANGE HOOD

HOTTE DE CUISINIÈRE JENN-AIR® POUR MONTAGE MURAL 36" (91,4 CM)

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

JENN-AIR®

2843/W10640311D

TABLE OF CONTENTS TABLE DES MATIÈRES

RANGE HOOD SAFETY 3

INSTALLATION REQUIREMENTS....5

Tools and Parts....5

Location Requirements....5

Venting Requirements....6

Electrical Requirements 7

INSTALLATION INSTRUCTIONS....9

Prepare Location....9

Install Range Hood....11

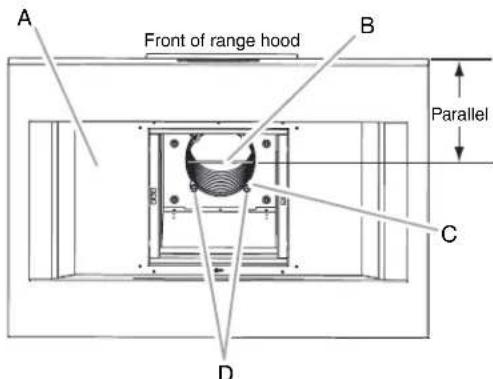

Connect Vent System 11

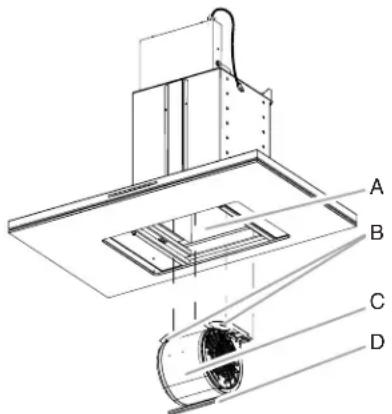

Reinstall Motor 12

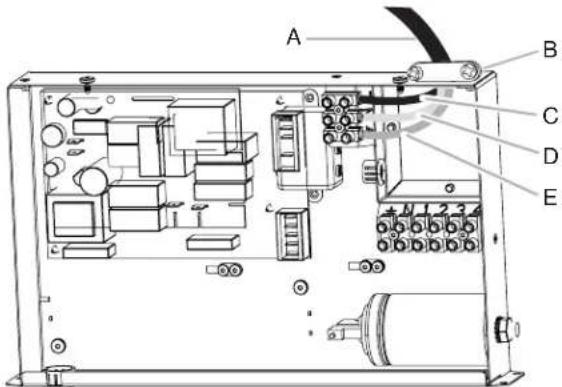

Make Electrical Connection....12

Install Chimney Covers....13

Complete Installation 14

RANGE HOOD USE....14

Controls and Features....14

RANGE HOOD CARE....15

Cleaning 15

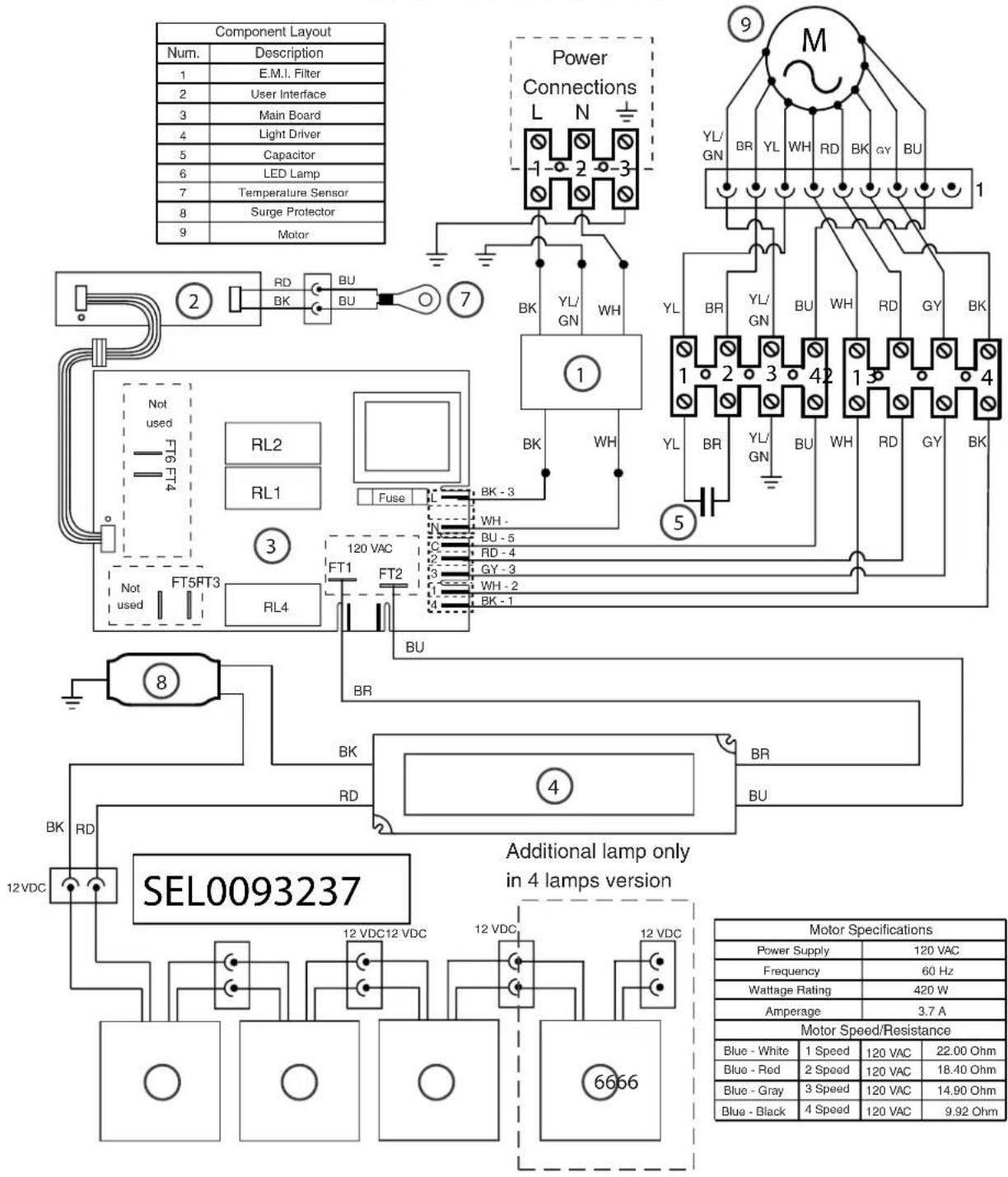

WIRING DIAGRAM....17

ASSISTANCE OR SERVICE....18

In the U.S.A. 18

In Canada....18

Accessories....18

WARRANTY 19

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....20

EXIGENCES D'INSTALLATION ....22

INSTRUCTIONS D'INSTALLATION....27

ASSISTANCE OU SERVICE....37

Au Canada....37

Accessoires....37

GARANTIE....38

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
– The fire department is being called.
- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed:

Level
■Drill with 1 14 " (3.0 cm) and 316 " (5.0 mm) drill bits
Pencil
■Wire stripper or utility knife
■Tape measure or ruler
■Pliers
■Caulking gun and weatherproof caulking compound
■Vent clamps
■Jigsaw or keyhole saw
■Flat-blade screwdriver
■Metal snips
■Phillips screwdriver
■TORX ^®† T20 ^®† bit or driver

Parts needed:

For hard wire installations, you will also need:

■Home power supply cable
■ 1/2" (12.7 mm) UL listed or CSA approved strain relief

For vented installations, you will also need:

■1 wall or roof cap

■Metal vent system

For non-vented (recirculating) installations, you will also need:

■Chimney Kit Recirculation for non-vented (recirculating) installations only. See the “Assistance or Service” section to order.
■Charcoal Filter Kit Part Number W10272069. See "Assistance or Service" section to order.

Parts supplied:

Remove parts from packages. Check that all parts are included.

■Hood canopy assembly with ventilator and lights installed
■Vent mounting boss (attached to hood canopy assembly)

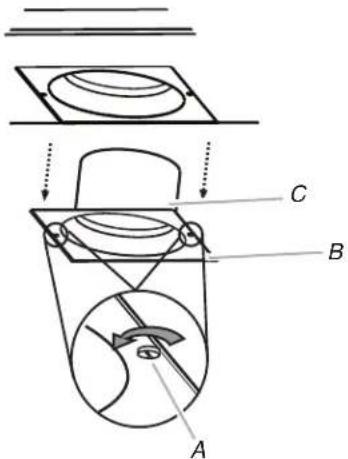

■Damper
■3 - 3.5 x 9.5 mm screws damper to mounting boss

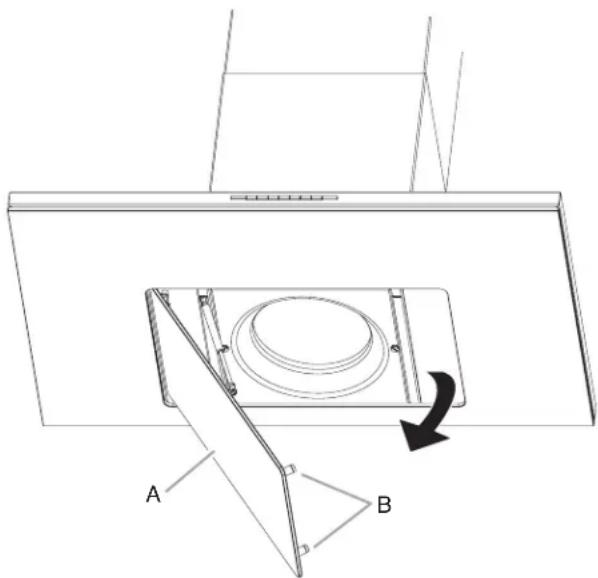

■Metal grease filter installed in hood canopy

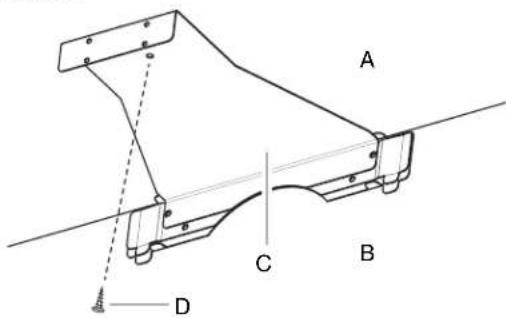

■Chimney cover support bracket

■2-piece chimney cover

■2 - 8 x 80 mm hanger bolts (T20 ^® TORX ^® drive)

■2 - 8 mm nuts

■2 - flat washers

■2 - 5 x 40 mm Torx ^® T20 ^® drive screws for chimney bracket mounting.

■2 - 5 mm wall anchors

■ ^1/_2 " (13 mm) special nut tightening tool

■2 - plastic spacers for lower chimney

TORX and †®T20 are registered trademarks of Acument Intellectual Properties, LLC.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors, and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

The canopy hood mounting location must be capable of supporting 100 lbs (45.4 kg).

This range hood is recommended for use with cooktops with a maximum total rating of 78,000 Btus or less.

Grounded electrical outlet is required. See the "Electrical Requirements" section.

For non-vented (recirculating) Installation see "Non-vented (recirculating) Installations" in the "Install Range Hood" section. Chimney Kit Recirculation and Charcoal Filter Kit Part Number W10272069 are available from your dealer or an authorized parts distributor. See the "Assistance or Service" section to order.

All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations:

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A or latest edition, or with local codes.

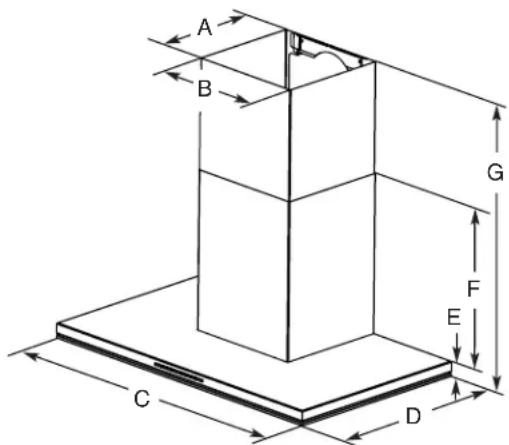

Product Dimensions

A. 12 ^3 / _8 " (31.4 cm)

B. 13 ^1/8 " (33.4 cm)

C. 36" (91.4 cm)

D. 21^9/16'' (54.8 cm)

E. 1^5/8^m (4.2 cm)

F. 25 ^9/16 " (65.0 cm)

G. 33^1/8 " (84.1 cm) min.

54 ^3/4 " (139.1 cm) max.

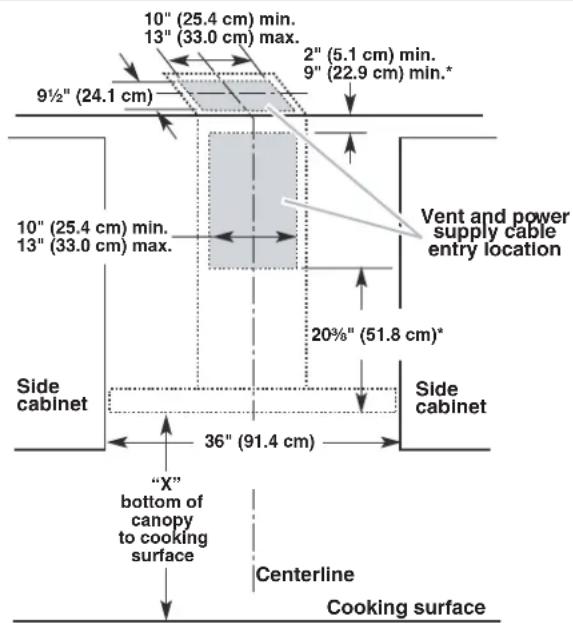

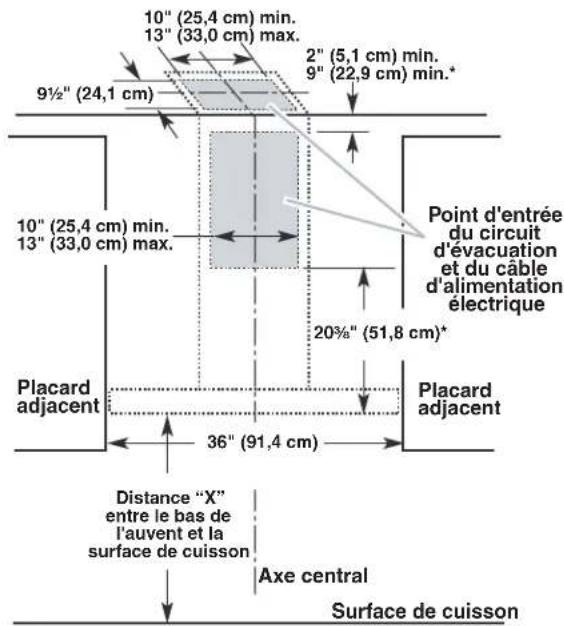

Cabinet Dimensions

*For non-vented (recirculating) installations

IMPORTANT:

Minimum distance "X": 24" (61.0 cm) from electric cooking surface

Minimum distance "X": 30" (76.2 cm) from gas cooking surface

Suggested maximum distance "X": 36" (91.4 cm)

NOTE: For best performance of the Auto Sense feature, the range hood should be installed at 24" (61.0 cm) from an electric cooking surface and 30" (76.2 cm) from a gas cooking surface. The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 10" (2.39 m) 10' 4" (3.24 m)
Gas cooking surface	8' 4" (2.54 m) 10' 4" (3.24 m)

Non-Vented (Recirculating) Installations

	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 10" (2.39 m) 10' 4" (3.24 m)
Gas cooking surface	8' 4" (2.54 m) 10' 4" (3.24 m)

*NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the range hood and the cooking surface. For higher ceilings from 10' 4" to 12' (3.24 m to 3.66 m), a Stainless Steel Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See the "Assistance or Service" section to order.

Venting Requirements (vented models only)

■Vent system must terminate to the outdoors, except for non-vented (recirculating) installations.
■Do not terminate the vent system in an attic or other enclosed area.
■Do not use 4" (10.2 cm) laundry-type wall cap.
■Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■Use no more than three 90° elbows.
■Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
■Do not install 2 elbows together.
■Use clamps to seal all joints in the vent system.
■The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
■Use caulking to seal exterior wall or roof opening around the cap.
■The size of the vent should be uniform.

Cold Weather Installations:

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air:

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

A 6" to 8" (15.2 cm to 20.3 cm) vent adapter is available for 8" (20.3 cm) vent systems. See the "Assistance or Service" section to order.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

Rear discharge:

A 90° elbow may be installed immediately above the hood.

For Non-Vented (recirculating) Installations:

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector. Fumes and vapors are recycled through the upper chimney cover louvers.

To order the charcoal filter and recirculation kit, see "Accessories" in the "Assistance and Service" section.

Roof Venting

A. Roof cap
B. 6" (15.2 cm) round vent

Wall Venting

A. Wall cap
B. 6" (15.2 cm) round vent

Non-Vented (recirculating)

A. Deflector
B. 6" (15.2 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

90° elbow 5.0 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example vent system:

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

$$ 1 - 9 0 ^ {\circ} \text { elbow } = 5. 0 \text { ft (1.5 m) } $$

$$ 1 - \text { wall cap } = 0. 0 \text { ft (0.0 m) } $$

$$ 8 \mathrm{ft} (2. 4 \mathrm{m}) \text { straight } = 8. 0 \mathrm{ft} (2. 4 \mathrm{m}) $$

Length of system = 13.0 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■A 120-volt, 60 Hz., AC-only, 15-amp, fused electrical circuit is required.

For 3 Prong Grounded Power Cord:

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■This range hood is equipped with a power supply cord having a 3 prong grounding plug.
■To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the responsibility of the customer to have the properly grounded outlet installed by a qualified electrician.
■The grounded 3 prong outlet is to be located above the range hood at a maximum distance of 40" (101.6 cm) from where the power cord exits the hood. See illustration.

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected range hood: This range hood must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This range hood is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper grounding can result in a risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the range hood is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the range hood.

SAVE THESE INSTRUCTIONS

For Hard Wire from Home Power Supply:

■If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the filter on the rear wall of the range hood.
■Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■It is recommended that the vent system be installed before hood is installed.
■Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
■Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.
2. Determine which venting method to use: roof, wall, or non-vented.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.
2. Remove the motor from the canopy assembly (see the "Motor Removal" section in this section).

Motor Removal

To remove motor:

1. Remove the filter cover and metal grease filter (see the "Metal Grease Filters" section in the "Range Hood Care" section).

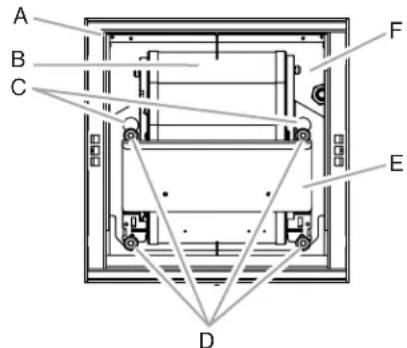

2. Disconnect the blower motor wiring at the 9-pin connector.
3. Locate the special 12 " (13 mm) tool inside the range hood blower housing in the left front corner behind the insulation pad. Use it to loosen the 4 nuts located inside the blower housing that mounts the motor to the module top cover.
4. Grasp the motor plate and slide the motor toward the back of the module housing to the large openings in the keyhole slots.

A. Special 1/2" (13 mm) tool
B. Motor assembly
C. Keyhole slots (large opening) (4)
D. ^1/_2 " (13 mm) motor mounting nuts (4)
E. Motor plate
F. Module top cover

1. Remove the motor from the range hood.

A. Blower housing
B. Keyhole slots (4)
C. Motor assembly
D. Motor plate

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where the canopy hood will be installed.
2. Select a mounting height between a minimum of 24" (61.0 cm) for an electric cooking surface, a minimum of 30" (76.2 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a horizontal reference line on the wall.
3. Measure up from the horizontal mounting height reference line 21^15/16 " (55.7 cm) and draw a parallel horizontal line. Measure from the centerline 4^5/8 " (11.8 cm) in each direction along the upper horizontal line. Mark the centers for the fastener locations.

A. Centerline
B. Fastener locations
C. Mounting height reference (hood bottom line)

IMPORTANT: All screws must be installed into wall wooden support structure. If there is no wooden support structure to screw into, additional wall framing supports will be required. This mounting structure must be capable of supporting 100 lbs (45.4 kg).

1. Drill ^3/_16 " (4.8 mm) pilot holes at all locations where screws are being installed into wood.

2. Using a TORX ^ T20 ^ bit and driver, install the 2 - 8 x 80 mm hanger bolts. Leave a 1 ^1/4 " (31.8 mm) gap between the wall and the end of the hanger bolt for sliding the range hood into place.

Vent Cover Bracket Installation

1. Use chimney cover mounting bracket centered on the centerline of the wall and flush to the ceiling to mark the center points of the outermost holes for mounting screws. Mark and drill 2 - 316 " (4.8 mm) holes.
2. Install the 5 mm wall anchors.

For Vented Installations Only:

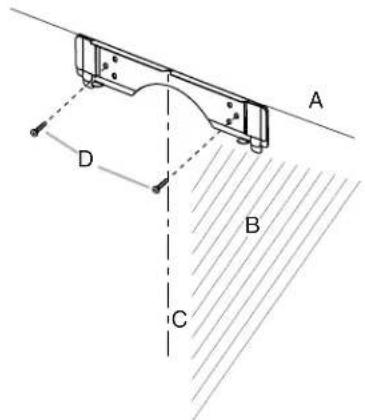

1. Attach the chimney cover bracket to the wall using 2 - 5 x 40 mm screws (D).

A. Ceiling
B. Wall
C. Centerline
D. 5 x 40 mm screws (2)

For Non-Vented (recirculating) Installations Only:

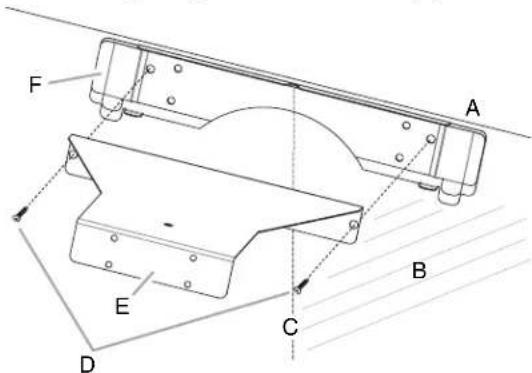

1. Attach the chimney cover bracket and air deflector bracket to the wall using the (2) 5 x 40 mm screws (D).

A. Ceiling
B. Wall
C. Centerline for range hood

D. 5 x 40 mm screws (2)
E. Air deflector bracket
F. Chimney cover bracket

1. Install the 5 x 40 mm screw through the top of the air deflector bracket into the ceiling.

NOTE: To use the optional 5 mm wall anchor supplied with the recirculation kit in the ceiling, locate and mark the hole through the top of the air deflector bracket. Remove the bracket and drill a ^3/16 (4.8 mm) hole and install the 5 mm wall anchor.

A. Ceiling
B. Wall
C. Air deflector bracket
D. 5 x 40 mm screw

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the hood. See the "Venting Requirements" section.

For Vented Installations Only:

■Using a jigsaw or keyhole saw, cut a 6 ^1/2 " (16.5 cm) diameter hole in the wall or ceiling for the vent duct.
■Install the vent duct system through the hole.

Seal all connections with vent clamps.

For Use with Grounded Power Supply Cord:

■This range hood is equipped with a power supply cord having a 3 prong grounding plug.

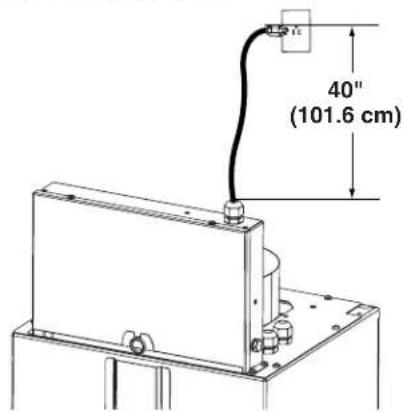

■A 3 prong receptacle is required to be located at a maximum distance of 40" (101.6 cm) above the range hood terminal box. If a mating outlet is not available, it is the responsibility of the customer to have a properly grounded outlet installed by a qualified electrician.

For Use with a Hard Wire Home Power Supply Cable:

■Determine the required height for the home power supply cable and drill a 1 ^1/4 " (3.2 cm) hole at this location.
■Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 12 " conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

1. Use caulk to seal all openings.

Install Range Hood

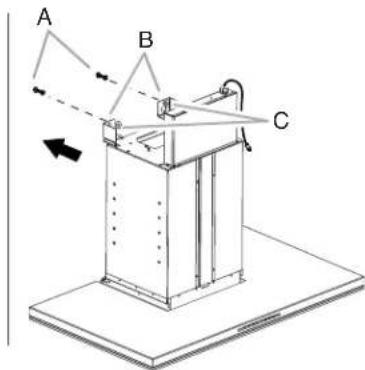

1. Using 2 or more people, hang range hood on the 2 mounting screws through the mounting slots on the back of the hood.

A. Mounting hanger bolts
B. Mounting slots
C. Flat washers and nuts

1. Install the flat washers and nuts to the hanger bolts. Level the range hood and tighten the nuts.

Connect Vent System

For Vented Installations:

1. Assemble the damper (if needed) to the mounting boss using (3) 3.5 x 9.5 mm screws.
2. Assemble the vent system to the damper (if used) or the mounting boss.

A. Metal duct
B. Vent clamps
C. Mounting boss

1. Secure all of the connections with vent clamps.
2. Check that the backdraft damper (if used) works properly.

For Non-Vented (recirculating) Installations:

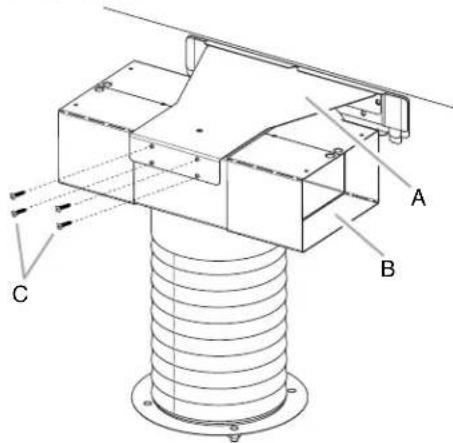

1. Mount the air deflector and flexible duct assembly to the air deflector bracket using (4) 3.5 x 9.5 mm screws supplied with the Recirculation Kit.

A. Air deflector bracket
B. Air deflector/flexible duct assembly
C. 3.5 x 9.5 mm screws (4)

1. Loosen the 4 nuts on the mounting boss. The back flange of each nut should be approximately 316 (5 mm) from the face of the mounting boss.
2. Expand the flexible section of vent duct to the top of the range hood top plate.
3. Check the mounting boss handle for alignment. The mounting boss handle must align parallel with the front of the range. If alignment is needed, loosen one of the vent clamps and adjust as necessary. Retighten any vent clamps that are loosened.
4. Secure all of the connections with vent clamps.
5. Reach inside the range hood cavity and grasp the handle of the mounting boss. Pull down to align the nuts through the cut-out holes in the module top cover. Push back into the half-slots to assemble. Tighten the 4 nuts using the 1/2'' (13 mm) special tool or 1/2'' (13 mm) socket and driver with extension.

A. Inside of range hood cavity
B. Mounting boss handle
C. Half slots in module top cover (4)
D. Nuts (4)

NOTE: For ceiling heights above 9 ft (1.8 m), an appropriate length of 6" (15.2 cm) ducting (not supplied) will be required.

Reinstall Motor

1. Place the motor into the module housing, positioning it with the large keyholes in motor mounting plate towards the back of the canopy.
2. Grasping the motor plate, push the motor up into the module housing. Locate the large keyholes over the motor mounting nuts, push up against the module top cover, and pull the motor forward to lock into the small keyholes slots.
3. Use the special 12 " (13 mm) tool and tighten the 4 nuts to secure the motor.

Make Electrical Connection

For 3 Prong Grounded Power Cord:

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug 3 prong power cord into a grounded 3 prong outlet located above the range hood.

For Hard Wire from Home Power Supply:

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

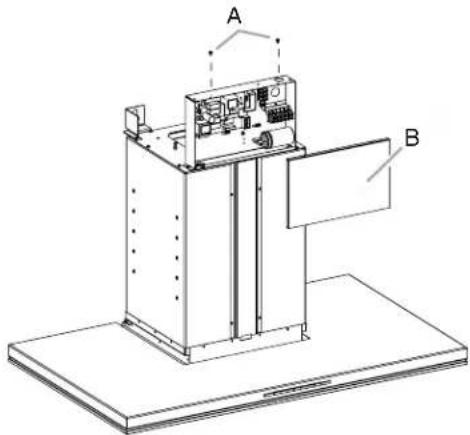

2. Remove the terminal box cover.

A. Screws
B. Terminal box cover

1. Disconnect grounded power cord wires from terminal block. Loosen the screws labeled "L," "N," and "Ground Symbol."

2. Remove power cord strain relief from terminal box and remove power cord.

A. Power cord
B. Power cord strain relief
C. Location "L" (black wire)
D. Location "N" (white wire)
E. Location ground symbol (green or bare ground wire)

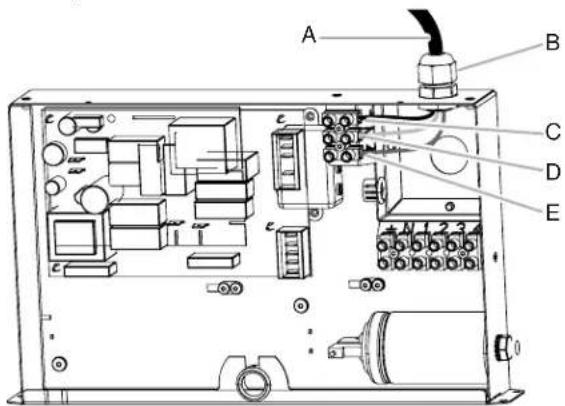

1. Install a UL listed or CSA approved 12 " strain relief.

2. Run the home power supply cable through the strain relief, into the terminal box.

A. Home power supply cable
B. UL listed or CSA approved strain relief
C. Location "L" (black wire)
D. Location "N" (white wire)
E. Location ground symbol (green or bare ground wire)

1. Loosen the screw labeled "L" on the terminal block and connect black wire C. Retighten the screw.
2. Loosen the screw labeled "N" on the terminal block and connect white wire D. Retighten the screw.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Loosen the screw labeled with the "Ground Symbol" on the terminal block and connect green (or bare) ground wire E. Tighten the screw.
2. Tighten the strain relief screws.
3. Reinstall the terminal box cover.
4. Reconnect power.

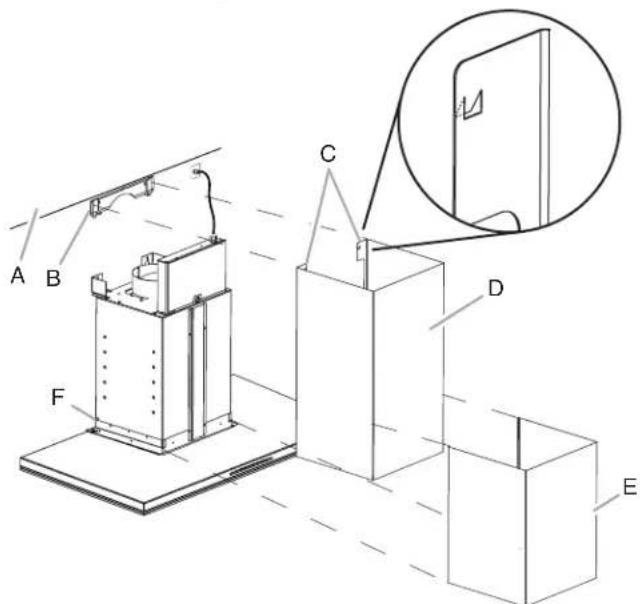

Install Chimney Covers

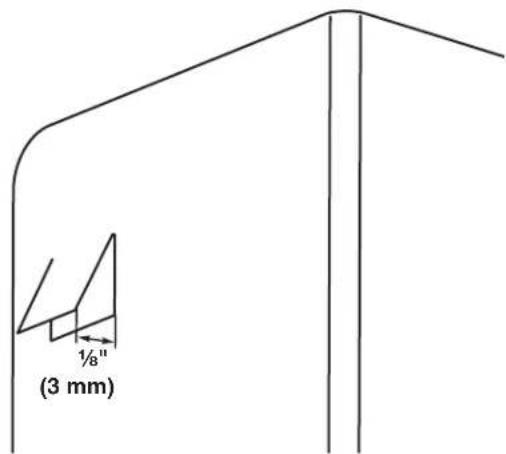

1. On the upper chimney cover, bend out tabs (2) approximately 18 " (3 mm).

1. Slide rear flanges of upper chimney cover between catch tabs on chimney cover mounting bracket and lock bent-out tabs into slots in the back plate of the chimney cover mounting bracket.
   NOTE: Once the upper chimney cover tabs are locked into the chimney cover mounting bracket, the upper chimney cover will be hard to remove. If removal is required, place a thin blade behind the top corner of the upper chimney cover and the chimney cover mounting bracket to push in the catch tabs on both sides and pull the rear side flange out of the chimney cover mounting bracket.
2. Attach the 2 plastic spacers (F), one on each side at the bottom of the blower module.
3. Widen the lower chimney cover and slide it over the upper chimney cover and blower module. The lower chimney cover must rest on the top of the hood.

A. Ceiling
B. Chimney cover mounting bracket
C. Upper chimney cover - rear flanges
D. Upper chimney cover
E. Lower chimney cover
F. Plastic spacers (2)

Complete Installation

1. For non-vented (recirculating) installations only, install the charcoal filters over the metal mesh filter. See the "Range Hood Care" section.

2. Install the metal filter. See the "Range Hood Care" section.

3. Check the operation of the range hood blower and lights. See the "Range Hood Use" section.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors, and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

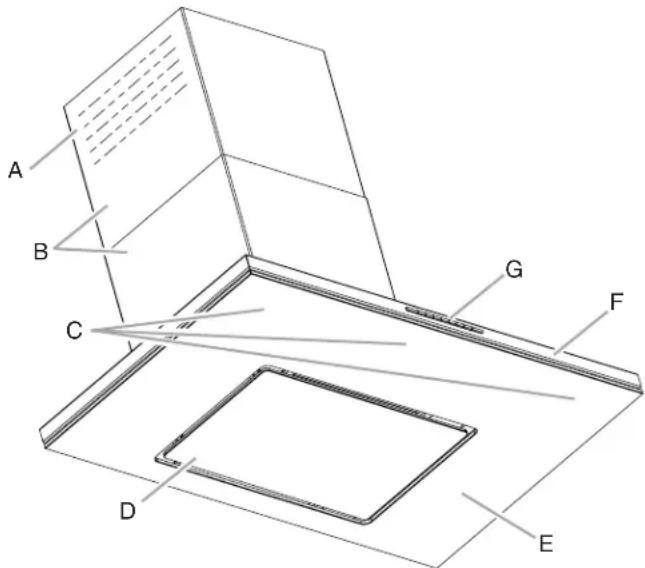

The range hood controls are located on the front of the canopy.

A. Louver holes (non-vented [recirculating] installations only)
B. Chimney covers
C. Lamps

D. Filter door glass

E. Canopy glass

F. Canopy

G. Control panel

Control Panel

Controls and Features

NOTES:

■To activate the controls, press and release the desired button.
■The control feature button will be lit when a control feature is turned on.

Sleep Mode

The range hood automatically enters Sleep mode when not in use. After 10 minutes of no range hood activity, all of the control button lights will turn off. To deactivate Sleep mode, press any button.

Auto Sense

Auto Sense allows the range hood fan to turn on automatically when it senses heat higher than its allowable temperature limit. When Auto Sense is ON, the fan speed will increase or decrease based on the temperature Auto Sense is measuring.

Auto Sense can be manually increased by pressing a higher fan speed. The fan will run at the selected speed for 10 minutes before returning to the speed selected for Auto Sense.

If Auto Sense is ON, the Auto button light will turn off and go into Sleep Mode when the vent hood is not in use. If the vent hood is turned ON by the consumer or by Auto Sense, the Auto button light will turn ON.

To Set Auto Sense:

Press AUTO.

To Select Auto Sense Cooktop Type:

NOTE: The range hood is factory set for the gas cooktop mode.

Press and hold AUTO for 5 seconds to switch between the gas cooktop and electric cooktop modes.

The Auto button light will flash 5 times when the range hood is changed to the electric cooktop mode. Auto Sense is now set to work with electric cooktops and ranges.

The Auto button light will flash 3 times when the range hood is changed to the gas cooktop mode. Auto Sense is now set to work with gas cooktops and ranges.

Changing the cooktop type will change the temperature limit for Auto Sense to turn ON. When the range hood senses a high enough temperature, the fan will start automatically.

When the temperature drops below the set temperature limit, the fan will stop automatically. The Auto button light will turn off after the range hood enters Sleep mode, but Auto Sense is still active.

To Deactivate Auto Sense:

If the Auto button is lit, press AUTO once to deactivate Auto Sense. The Auto button light will turn off.

If Auto Sense is in Sleep mode, press AUTO once to deactivate Sleep mode and turn the Auto button light on. Press AUTO again to deactivate Auto Sense and turn off the Auto button light.

Auto Sense will automatically turn off after 2 hours of no activation of the Auto Sense system. To reset Auto Sense, press AUTO.

Manual Vent Functions

Fan Speeds

Low	Press LOW to turn the fan on at Low speed.
Med	Press MED to turn the fan on at Medium speed.
Hi	Press HI to turn the fan on at High speed.
Boost	Press BOOST to turn the fan on at the highest speed. Boost will automatically turn off after 10 minutes and the fan will switch to High speed.

Timer

The range hood can be set to automatically turn off after 15 minutes.

1. Press and hold the desired fan speed button for 2 seconds. The fan will run on the chosen speed for 15 minutes and the fan speed button light will flash continuously.
   After 15 minutes, the fan will turn off automatically.

2. Press the desired fan speed button again while the fan timer is running to cancel the fan timer.

NOTE: Changing the fan speed or turning Auto Sense on will also cancel the 15-minute timer.

Filter

The Filter button lights up when it is time to replace or clean the filter. The button will be lit only when the fan is on. Press FILTER after replacing the filter to turn the Filter button light off. See the "Cleaning" section for how to replace or clean the filter.

Light

Press LIGHT to turn the range hood lights on and off.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

■Liquid detergent soap and water, or all-purpose cleanser: Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

Metal Grease Filters

The filter should be washed frequently. Place the metal filter in the dishwasher or hot detergent solution to clean.

Let the filter dry thoroughly before replacing it.

NOTE: The metal grease filter is located behind the center glass panel. The panel is hinged on the left side and magnetically secured on the right side. To access the grease filter, grasp the panel on the right-hand corners and pull down. This releases the panel from the magnets and allows the panel to swing down.

Technical line drawing of a mechanical assembly with labeled components A and B, showing internal components and an arrow indicating rotation (no text or symbols beyond labels)

A. Slot for filter cover alignment
B. Filter cover magnets
C. Filter cover
D. Tab on filter cover for alignment

To Remove Metal Grease Filters:

1. Turn off fan and lights.
2. Remove the filter holder frame and grease filter using a flat-blade screwdriver to turn the grease filter release screws 90° counterclockwise.

A. Grease filter release screw
B. Filter holder frame
C. Grease filter

To Replace Metal Grease Filter:

Replace grease filter and filter holder frame into range hood. Align the grease filter release screw and use a flat-blade screwdriver to turn the grease filter release screws 90° clockwise to lock in place.

Charcoal Filters - For Non-Vented (recirculating) Installations

NOTE: After approximately 3 years of use the charcoal filter should be replaced. To order a replacement Charcoal Filter Kit, see the "Assistance or Service" section.

The charcoal filters can be cleaned and reactivated. Clean the filter in the dishwasher using normal detergent and choosing the highest temperature setting.

To reactivate the filter, the filter should be dried in an oven for 10 minutes with a maximum temperature of 210^ (100°C).

To Remove Charcoal Filters:

1. Turn fan and lights off.
2. Remove the metal grease filters. See the "Metal Grease Filters" section.
3. Remove the upper and side lock springs.
4. Clean or discard the charcoal filter.

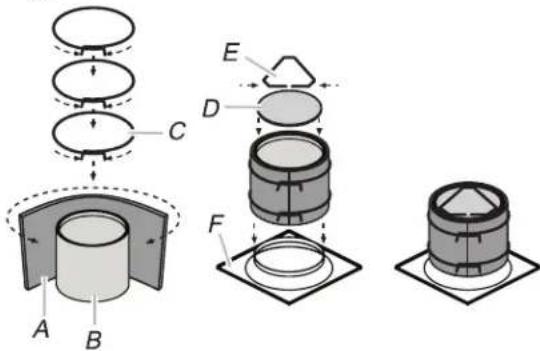

To Replace Charcoal Filters:

1. For non-vented (recirculating installations) install charcoal filter, wrapping it around the grease filter.
2. Place the charcoal filter mat around the grease filter and fix it in place by using the cap lock springs provided.
3. Position the upper cap and fix it in place using the cap lock spring provided.

A. Charcoal filter mat
B. Grease filter
C. Charcoal filter side lock springs
D. Upper cap
E. Cap lock spring
F. Grease filter support

WIRING DIAGRAM

ASSISTANCE OR SERVICE

If you need service:

Please refer to the warranty page in this manual.

If you need replacement parts:

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call Jenn-Air Customer eXperience Center toll free: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance:

If you need further assistance, you can write to Jenn-Air®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free at 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.

For further assistance:

If you need further assistance, you can write to Jenn-Air ^®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W10272069

Chimney Extension Kit (vented)

(for 9' 6" to 12' [2.89 m to 3.66 m] ceilings)

Order Part Number W10646864

Chimney Kit Recirculation

(for 7' 9" to 10' 4" [2.36 m to 3.15 m] ceilings)

(for non-vented installations)

Order Part Number W10685949

Chimney Extension Kit (recirculating)

(for 9' 6" to 12' [2.89 m to 3.66 m] ceilings)

(for non-vented installations)

Order Part Number W10686362

6" (15.2 cm) Makeup Air Kit

(consult local building codes)

Order Part Number W10446915

Vent Duct Adapter 6" to 8" (15.2 cm to 20.3 cm)

(for 8" [20.3 cm] duct installations)

Order Part Number W10685950

JENN-AIR® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://jennair.custhelp.com.

2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

https://jennair.custhelp.com

Jenn-Air Customer eXperience Center

1-800-JENNAIR (1-800-536-6247).

If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.

TWO YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Jenn-Air.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

A. 12^3/_8 " (31,4 cm)

B. 13 ^1 / _8 " (33,4 cm)

C. 36" (91,4 cm)

D. 219/16" (54,8 cm)

E. 1^5/_8 " (4,2 cm)

F. 259/16" (65,0 cm)

G. 33^1/8 " (84,1 cm) min.

54 ^3 / _4 " (139,1 cm) max.

Dimensions du placard

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A. Vis

Technical line drawing of a mechanical assembly with labeled components A and B, showing internal components and an arrow indicating rotation (no text or symbols beyond labels)

ASSISTANCE OU SERVICE

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

https://www.jennair.ca
