USER MANUAL BCD701 BLACK & DECKER

(Original instructions)

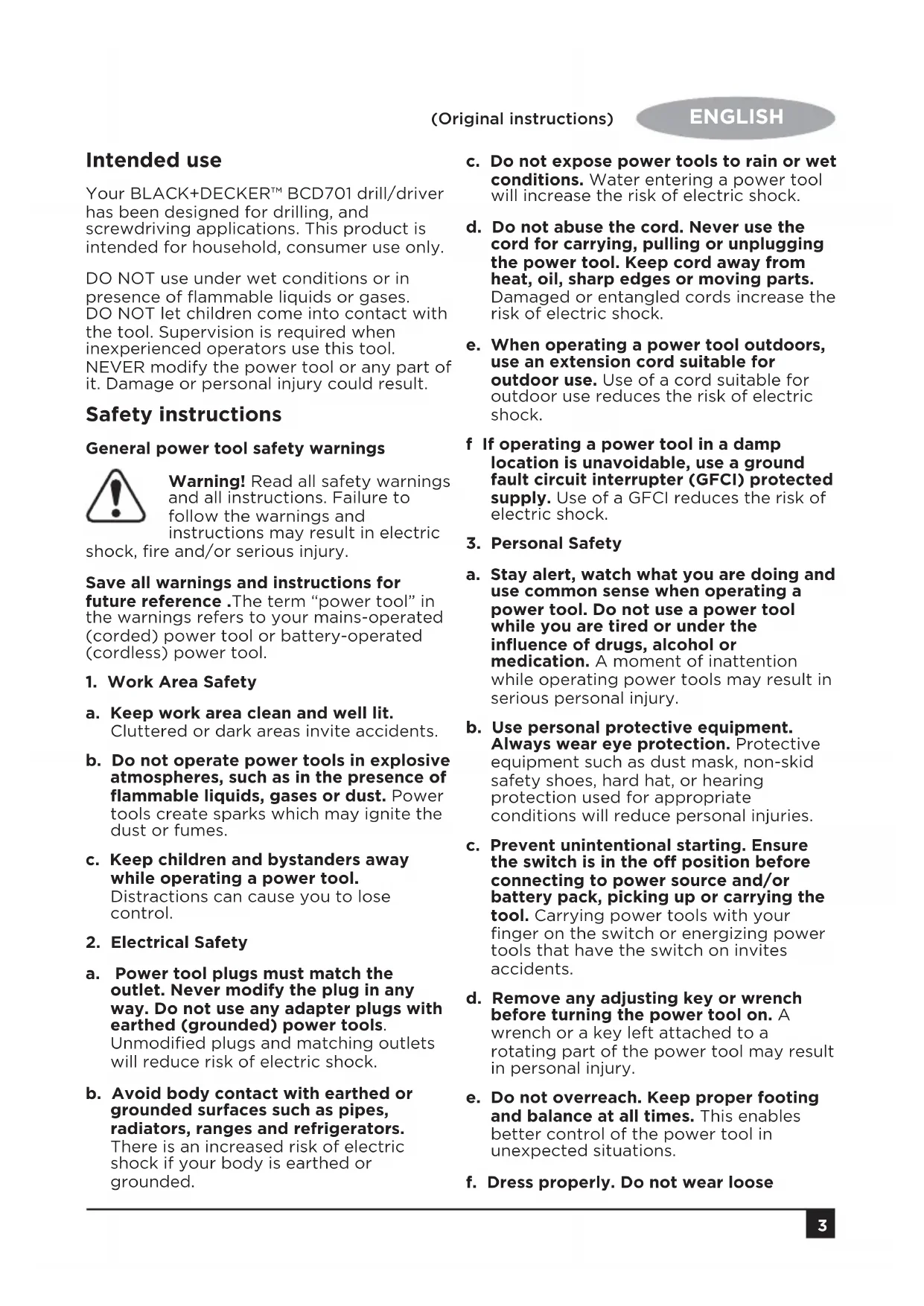

ENGLISH (Original instructions) Intended use Your BLACK+DECKER™ BCD701 drill/driver has been designed for drilling, and screwdriving applications. This product is intended for household, consumer use only. DO NOT use under wet conditions or in presence of flammable liquids or gases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool. NEVER modify the power tool or any part of it. Damage or personal injury could result. Safety instructions General power tool safety warnings Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference .The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical Safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting. Ensure the switch is in the o position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear looseclothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation.

5. Battery Tool Use and Care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Specific safety rules

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring . Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• When attaching accessories in the drill chuck, hand tighten the keyless chuck firmly.

• Use clamps or another practical way to secure and support the work piece to a stable platform . Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• Keep your hair, clothing, and gloves away from air vents . Air vents often cover moving parts in which these items can be caught.

Hold tool firmly with two hands. Use

ENGLISH (Original instructions)auxiliary handle if provided. If auxiliary handle not provided, grip tool at bottom of battery. Loss of control can cause personal injury.

Warning: Drill may stall (if overloaded or

improperly used) causing a twist. Always expect the stall. Grip the drill firmly with both hands to control the twisting action and prevent loss of control which could cause personal injury. If a stall does occur, release the trigger immediately and determine the reason for the stall before re-starting. Save these instructions Additional Safety Information

Warning: ALWAYS use safety

glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

Warning: Some dust created by

power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

Warning:Use of this tool can

generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

Warning:Always wear proper

personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

ENGLISH (Original instructions) Labels on tool The label on your tool may include the following symbols: Warning! To reduce the risk of injury, the user must read the instruction manual. The charger is intended for indoor use only. Read this entire manual carefully before using the appliance. Position of date barcode The Date Code, which also includes the year of manufacture, is printed into the housing. Example: 2017 XX JN Year of manufacturing Electrical safety Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.Features

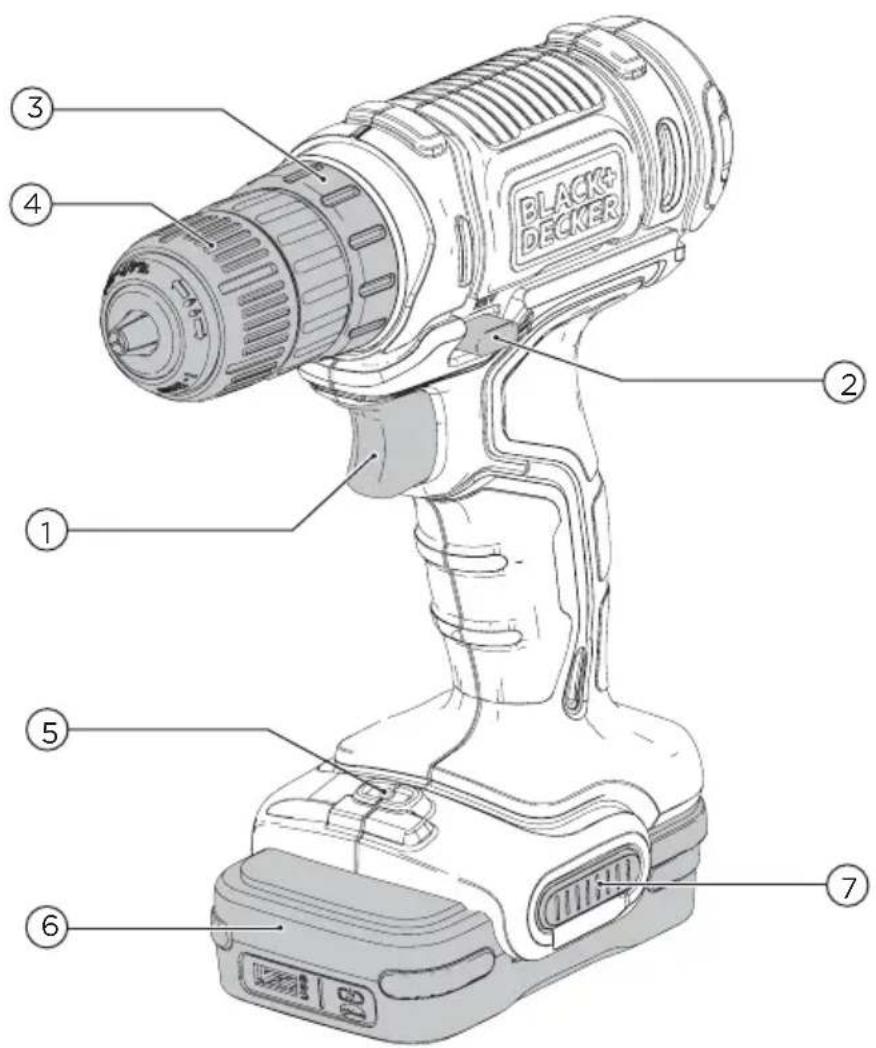

3 . Torque adjustment collar

7. Battery release button

Batteries The battery pack is not fully charged out of the carton. Before using the battery pack, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage. Read all instructions Important Safety Instructions for All Battery Packs

Warning: Read all safety warnings and all

instructions for the battery pack, and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the charging cable from the battery pack may ignite the dust or fumes.

• NEVER force the battery pack into cable insertion or tool insertion. DO NOT modify the battery pack in any way as battery pack may rupture causing serious personal injury.

• DO NOT splash or immerse in water or other liquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location. Note: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

Warning: Burn hazard. Battery liquid may be

flammable if exposed to spark or flame.

Warning: Fire hazard. Never

attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not attempt to use or charge. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling. Storage Recommendations

1. The best storage place is one that is cool

and dry, away from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to

store a fully charged battery pack in a cool dry place out of the charger for optimal results. Note: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium,

ENGLISH (Original instructions)nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative. Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop o the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc. Important Charging Notes

1. Longest life and best performance can

be obtained if the battery pack is charged when the air temperature is between 65 °F – 75 °F (18 ° – 24 °C). DO NOT charge the battery pack in an air temperature below 40 °F (4.5 °C), or above 104 °F (40 °C). This is important and will prevent serious damage to the battery pack.

2. If the battery pack does not charge

properly: a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power o when you turn out the lights; c. Move the power adapter and battery pack to a location where the surrounding air temperature is approximately 65 °F – 75 °F (18 ° – 24 °C); d. If charging problems persist, take the tool, battery pack and USB cable to your local service center.

3. The battery pack should be recharged

when it fails to produce sucient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse eect on the battery pack. Transportation

Warning: Fire hazard. Do not store

or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. Caution: GoPak battery terminal cap should be used when battery is not connected to a power tool. Terminal cap is provided for use whenever the battery is out of the tool. Remove cap before placing battery into tool. FCC requirements for all digital devices This device complies with Part 15 of the FCC Rules and Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause harmful

2. This device must accept any interference

received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference

ENGLISH (Original instructions)ENGLISH

(Original instructions) to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following meaures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3(B)/NMB-3(B) Getting started

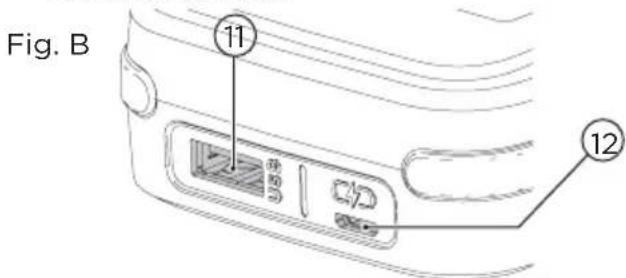

• The Micro USB port (12) on the BLACK+DECKER GoPak 2 in 1 battery is only to be used for charging the GoPak.

• The USB A port (11) on the BLACK+DECKER GoPak 2 in 1 battery is only to be used for powering USB devices (Phone/Tablet/MP3/Wearable/Game Controller/etc.). Fig. B Charging the BLACK+DECKER GoPak 2 in 1 battery (Fig. C, D)

Warning: Never attempt to charge

the BLACK+DECKER GoPak 2 in 1 battery using the tool terminals on the GoPak.

Warning: You should only charge

the BLACK+DECKER GoPak 2 in 1 battery using UL or CSA approved USB ports rated for charging high performance devices. The GoPak can pull more current than acceptable with older USB ports. An error message may display on your computer if the computer is used to charge the GoPak.

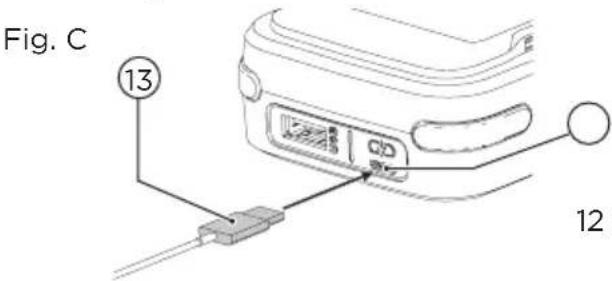

1. Plug the micro USB cable (included) (13)

into a USB power supply (not included).

2. Plug the micro USB plug of your charger

cord into the GoPak micro USB port (12).

3. As the GoPak charges, the state of charge

LEDs will illuminate. The illuminated LED(s) indicate the state of charge of the pack. The blinking LED indicates the next level of charge in progress. The state of charge button (9) is disabled during charging only.

4. four LEDs turning o. Pressing the state

of charge indicator button (9) will illuminate all four LEDs. The battery is fully charged and may be used at this time or left on the charger.

5. Recharge discharged batteries as soon as

possible after use or battery life may be greatly diminished. For longest battery life, do not discharge batteries fully. It is recommended that the batteries be recharged after each use. Fig. C State of charge indicator (Fig. D) The BLACK+DECKER GoPak 2 in 1 battery is equipped with a state of charge button (9) with a four LED display. The state of charge is an indication of approximate levels of charge remaining in the battery according to the following indicators:

96-100% charged 76-95% 51-75% 26-50% Pack needs to be charged9 ENGLISH (Original instructions) To actuate the state of charge, press the State Of Charge Indicator button. A combination of the four LEDs will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the state of charge LEDs will either not light or the bottom LED will blink. Note: The state of charge LED will only display once the state of charge button is pressed. Fig. D

• Press state of charge button at anytime to display the remaining level of charge. Note: The state of charge Indicator is only an indication of the charge left on the battery. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application. Note: GoPak battery terminal cap should be used when battery is not connected to a power tool. Terminal cap is provided for use whenever the battery is out of the tool. Remove cap before placing battery into tool. Save these instructions for Future use Components ( Fig. A)

Warning: Never modify the power tool or

any part of it. Damage or personal injury could result. Refer to Figure A at the beginning of this manual for a complete list of components. Assembly and adjustments

Warning: To reduce the risk of

serious personal injury, turn unit o and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. Gopak tool terminal cap A battery storage and carrying cap (10) is provided for use whenever the battery is out of the tool. Remove the cap as shown in Figure E before placing battery onto tool. Operation

Warning: To reduce the risk of

serious personal injury, turn unit o and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. Installing and Removing the GoPak 2 in 1 Battery in a Power Tool (Fig. F)

Warning: Remove any connected

USB cords from the BLACK+DECKER GoPak 2 in 1 battery before connecting the GoPak to the compatible tool.

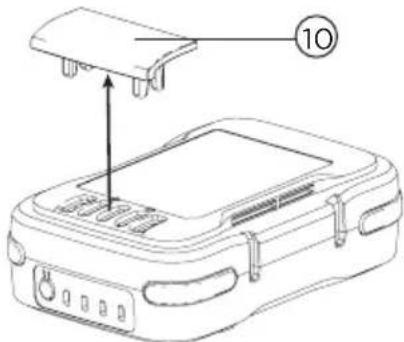

1. Remove the tool terminal cap if installed

on the BLACK+DECKER GoPak 2 in 1 battery.

2. Make certain the fwd/rev button is in the

center, lock-o position before removing or installing the battery.

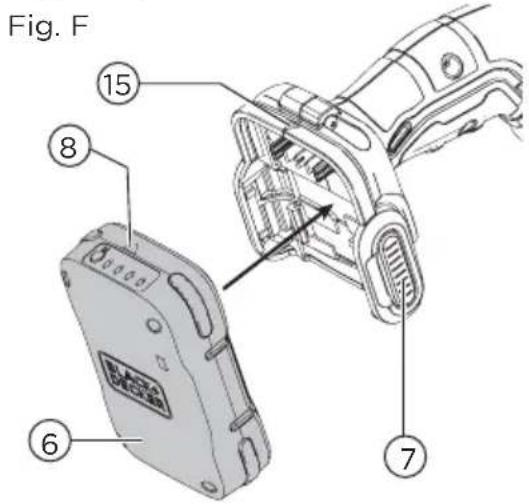

3. To power a compatible GoPak 12V MAX*

power tool, align the tool terminals on the foot of the tool with the terminal slots on the battery 6 as shown in Fig. F. Note: The state of charge indicator will face the rear of the tool and the USB ports will face the front. The arrow on the battery will align with the arrow on the tool as shown in Fig. F.

4. Snap the BLACK+DECKER GoPak 2 in 1

battery into the foot of the tool. The arrow 8 on the battery will align with the arrow 15 on the tool. Ensure the battery is fully seated and fully latched into position before using. Fig. E

ENGLISH (Original instructions)

5. To remove the BLACK+DECKER GoPak 2

in 1 battery from the tool, depress the two battery release buttons (7) located on the tool and pull the BLACK+DECKER GoPak 2 in 1 battery off the tool. Note: The BLACK+DECKER GoPak 2 in 1 battery USB ports are disabled when the trigger is pulled. Using the gopak 2 in 1 battery to charge your usb device (Fig. G)

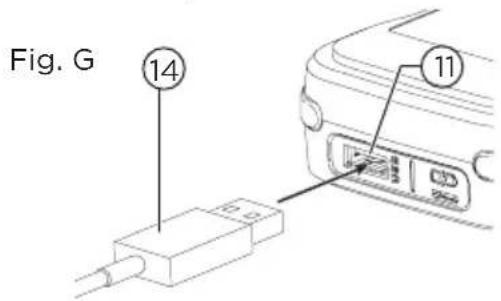

1. Plug the USB A end of your device

specific cable (14) into the BLACK+DECKER GoPak 2 in 1 battery 11 and the other end of the cable into a UL or CSA listed compatible device (Phone/Tablet/MP3/Wearable/Game Controller/etc.). Charging will start automatically. Functionality The BLACK+DECKER GoPak 2 in 1 battery can power your compatible BLACK+DECKER 12V GoPak MAX* tools or power/charge your mobile devices. The compact, slim battery housing is designed for portability. -- GoPak Charge Input: Up to 2.4A** -- GoPak Power Output: Up to 2.4A*** ** Actual input charge rate is dependant upon power adapter (not included). *** Actual output rate is dependant on the device. USB Power port The BLACK+DECKER GoPak 2 in 1 battery is equipped with a USB Type A power port. It delivers up to 2.4 amp total current. Note: The current delivered to device is dependent on user device and user's chosen cable.

Warning: Ensure the terminal cap is securly

attached to the BLACK+DECKER GoPak 2 in 1 battery when using it to power/charge your device.

• Install terminal cap on the tool terminals.

• Device charging from USB will start automatically when device is connected.

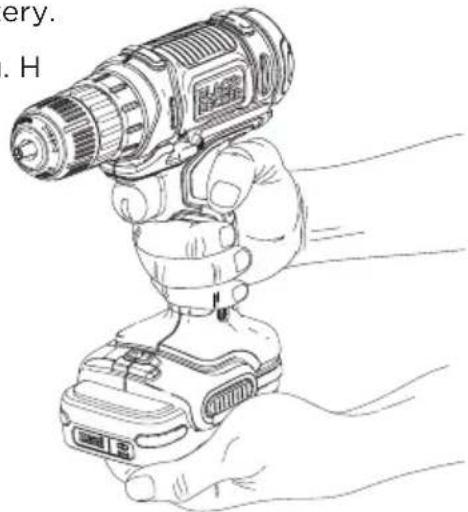

• To turn OFF, disconnect USB device. Proper hand position (Fig. H)

Warning: To reduce the risk of serious

personal injury, ALWAYS use proper hand position as shown.

Warning: To reduce the risk of serious

personal injury, ALWAYS hold securely in anticipation of a sudden reaction. Proper hand position requires one hand on the main handle and one hand around the battery. Fig. F Fig. G Fig. H

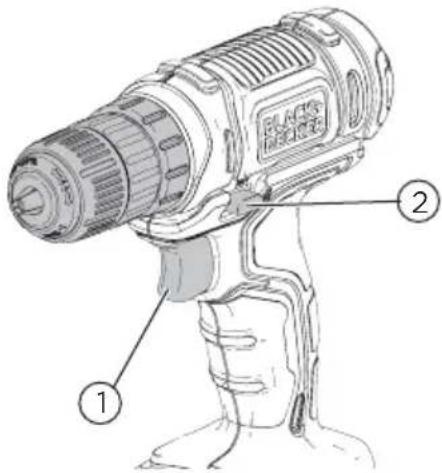

• The drill is turned ON and OFF by squeezing and releasing the trigger switch (1) . The farther the trigger is depressed, the higher the speed of the drill.

• A forward/reverse control button (2) determines the direction of the tool and also serves as a lock o button.

• To select forward rotation, release the trigger switch and depress the forward/reverse control button to the left.

• To select reverse, depress the forward/reverse control button the opposite direction. Note: The center position of the control button locks the tool in the o position. When changing the position of the control button, be sure the trigger is released. Note: Continuous use in variable speed range is not recommended. It may damage the switch and should be avoided. Torque control (Fig. J) This tool is fitted with a torque adjustment collar (3) to select the operating mode and to set the torque for tightening screws. Large screws and hard workpiece materials require a higher torque setting than small screws and soft workpiece materials.

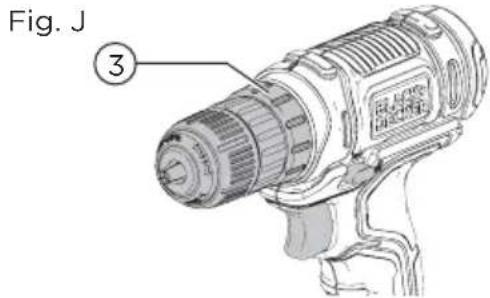

• For drilling in wood, metal and plastics, set the collar to the drilling position symbol

• For screwdriving, set the collar to the desired setting. If you do not yet know the appropriate setting, proceed as follows: -- Set the collar to the lowest torque setting. -- Tighten the first screw. -- If the clutch ratchets before the desired result is achieved, increase the collar setting and continue tightening the screw. Repeat until you reach the correct setting. Use this setting for the remaining screws Keyless chuck (Fig. K)

Warning: Make certain the battery pack is

removed to prevent tool actuation before installing or removing accessories. To insert a drill bit or other accessory:

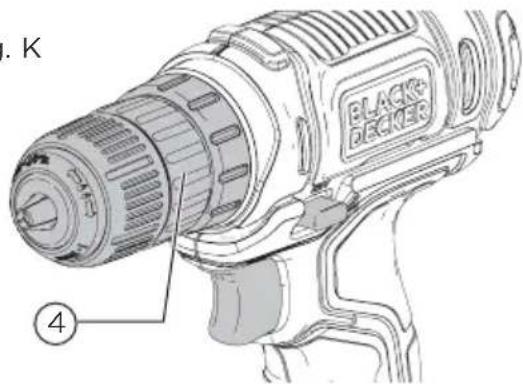

1. Grasp the rear half of the chuck (4) with

one hand and use your other hand to rotate the front half in the counterclockwise direction, as viewed from the chuck end. This will open the jaws of the chuck to allow insertion of the bit or accessory

2. Insert the bit or other accessory fully into

the chuck, and tighten securely by holding the rear half of the chuck and rotating the front portion in the clockwise direction as viewed from the chuck end.

Warning: Do not attempt to tighten drill bits

(or any other accessory) by gripping the front part of the chuck and turning the tool on. Damage to the chuck and personal injury may occur when changing accessories. Fig. I

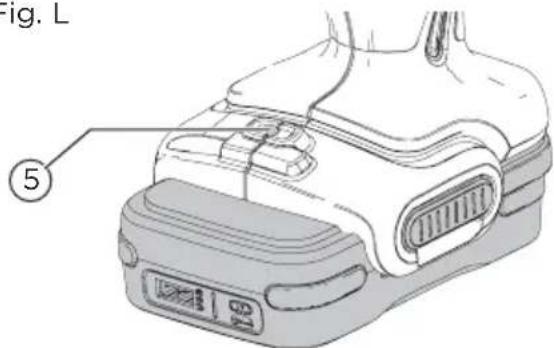

Screw driving For driving fasteners, the reversing button should be pushed to the left. Use reverse (button pushed to the right) for removing fasteners. When moving from forward to reverse, or vice versa, always release the trigger switch first. Led work light (Fig. A, L) When drill is activated by pulling the trigger switch (1) , the integrated LED work light (5) will automatically illuminate the work area. Do not use LED work light as flashlight. Drilling

Warning: Drill may stall if overloaded

causing a sudden twist. Always expect the stall. Grip the drill firmly to control the twisting action and avoid injury.

• Use sharp drill bits only.

• Support and secure work properly, as instructed in the Safety Instructions.

• Use appropriate and required safety equipment, as instructed in the Specific Safety Rules.

• Secure and maintain work area, as instructed in the Specific Safety Rules.

• Run the drill very slowly, using light pressure, until the hole is started enough to keep the drill bit from slipping out of it.

• Apply pressure in a straight line with the bit. Use enough pressure to keep the bit biting but not so much as to stall the motor or deflect the bit.

• Hold the drill firmly with two hands to control its twisting action.

• DO NOT CLICK THE TRIGGER OF A STALLED DRILL OFF AND ON IN AN ATTEMPT TO START IT. DAMAGE TO THE DRILL CAN RESULT.

• Minimize stalling on breakthrough by reducing pressure and slowly drilling through the last part of the hole.

• Keep the motor running while pulling the bit out of a drilled hole. This will help reduce jamming.

• Make sure switch turns drill on and off. Drilling in wood Holes in wood can be made with the same twist drill bits used for metal or with spade bits. These bits should be sharp and should be pulled out frequently when drilling to clear chips from the flutes. Drilling in metal Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil or lard oil. Drilling in masonry Use carbide tipped masonry bits. Refer to Drilling section. Keep even force on the drill but not so much that you crack the brittle material. A smooth, even flow of dust indicates the proper drilling rate. Troubleshooting

1. The GoPak will not power your device or

charge. a. The LED closest to the state of charge button will blink red when attempting USB functionality. -- The GoPak is too hot or too cold. Allow the GoPak to cool down or warm up.

ENGLISH (Original instructions)

2. The GoPak will not power your

compatible tool. --Attempt to charge the battery. If the LED fails to come on refer to number 1 in Troubleshooting. Problem Possible cause Possible solution Unit will not start. Battery will not charge. Unit shuts o abruptly. Battery has reached its maximum thermal limit. Out of charge. (To maximize the life of the battery it is designed to shuto abruptly when the charge is depleted.) Remove battery and charge Allow battery pack to cool down. Cables not properly connected. Allow tool to cool down. Internal components too hot. Battery not plugged in. Surrounding air temperature too hot or too cold. Battery not installed properly. Battery not charged. Check battery installation. Check the cable connections to the battery. Check the connections between the battery, the device used to charge the battery and the working outlet Move battery to a surrounding air temperature of above 40 °F (4.5 °C) or below 105 °F (+40.5 °C). Check battery charging requirements. Maintenance

Warning: To reduce the risk of

serious personal injury, turn unit o and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. Important: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts. Cleaning

Warning: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool or power supply; never immerse any part of the tool or power supply into a liquid. Repairs The BLACK+DECKER GoPak 2 in 1 battery is not serviceable.

Warning: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by a BLACK+DECKER factory service center or a BLACK+DECKER authorized service center. Always use identical replacement parts. Accessories

Warning: Since accessories, other than

those oered by BLACK+DECKER have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact BLACK+DECKER, call 1-800-544-6986.ENGLISH

(Original instructions) Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER oce at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com. Level of sound pressure according to EN 60745: Sound pressure(L

Screwdriving without impact (a

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

Warning: The declared vibration

emission level represents the main applications of the tool. However if the tool is used for dierent applications, with dierent accessories or poorly maintained, the vibration emission may dier. This may significantly increase the 1.5exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched o or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Technical data Voltage V

0-550 RPM Max. torque Nm 12.5/26 Chuck capacity mm 1-10 Max Drilling capacity Steel/wood mm 10/25 Weight kg 0.79 (with battery1.04) BCD70115 ENGLISH (Original instructions) Guarantee BLACK+DECKER is confident of the quality of its products and oers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes.

• The product has been subjected to misuse or neglect.

• The product has sustained damage through foreign objects, substances or accidents.

96-100% charged 76-95% 51-75% 26-50% Pack needs to be charged

kg 0.79 (with battery1.04) BCD70157
