USER MANUAL HDTI65001X HOOVER

ENGLISH INSTALLATION AND USER’S MANUAL

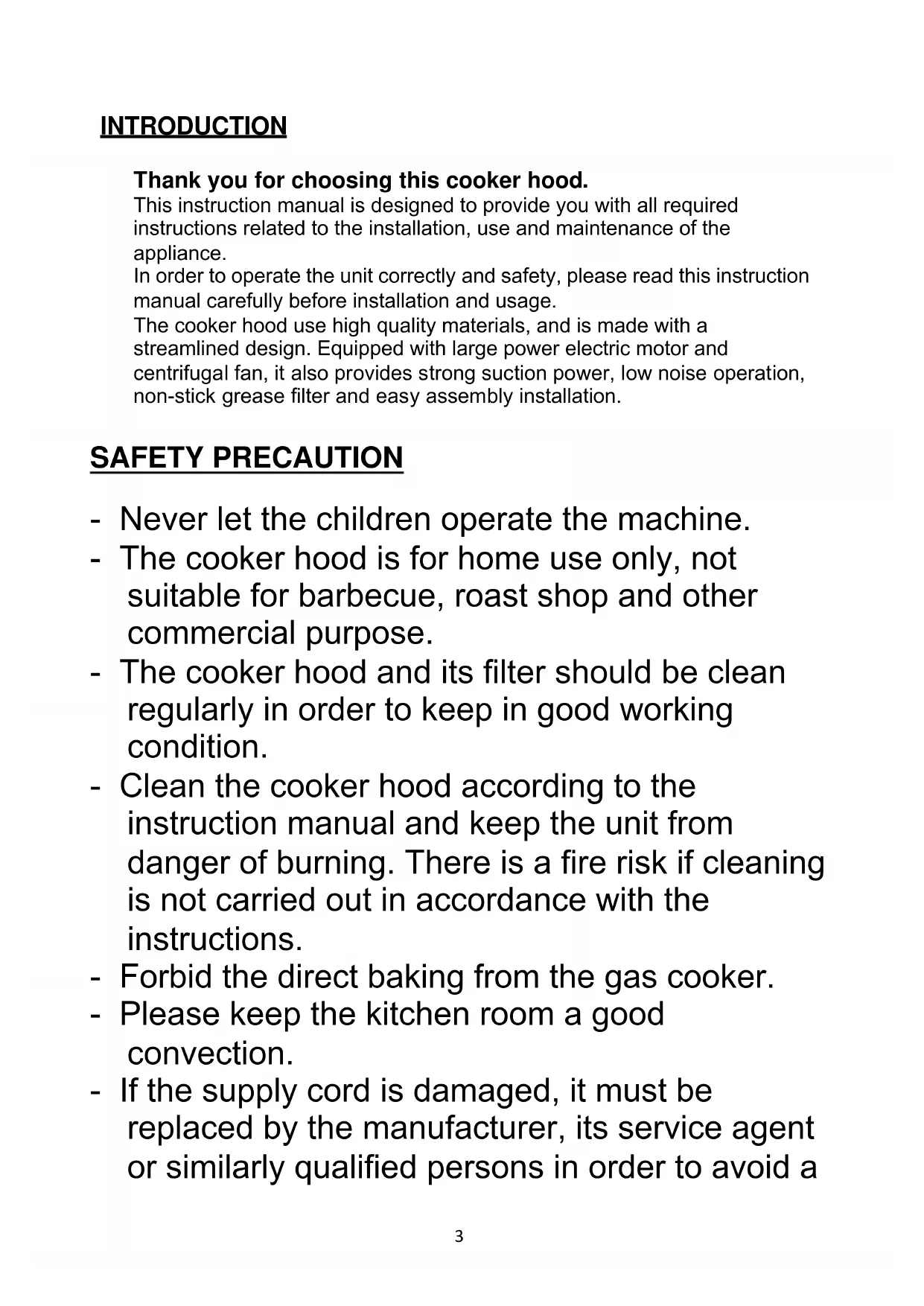

hank you for choosing this cooker hood. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage. The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation. - Never let the children operate the machine. SAFETY PRECAUTION - The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose. - The cooker hood and its filter should be clean regularly in order to keep in good working condition. - Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions. - Forbid the direct baking from the gas cooker. - Please keep the kitchen room a good convection. - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a4 hazard. - There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; - The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; - Regulations concerning the discharge of air have to be fulfilled. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision. - Do not flame under the range hood. - CAUTION: Accessible parts may become hot when used with cooking appliance. - The warning shall be in the same part of the instructions that include details of how to mount the equipment.5 Electrical Shock Hazard - Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer. - Failure to follow these instructions can result in death, fire, or electrical shock.6 INSTALLATION

1. Position the hanging plate on the

ceiling and then mark the position of the screw holes. The hanging plate should be securely fixed to the ceiling, 6 x ST6 ( 40 mm)screws for wooden ceiling 6 x expansion bolts for cement ceiling

2. Fix the angle bars to the hanging plate

with 6 xM5 screws and nuts. (Note: The Screws and nuts Must be securely tightened.)

3. Extend the angle bars to the required heigt

an then fix then in position with 12 x M5 screws and nuts with metal washers. ●IMPORTANT: The angle bars must have an overlap of AT LEAST 100MM

●IMPORTANT: This stage of the installation process MUST be completed by two people.7

3. Fix the upper chimney cover up to the hanging

plate with 3pcs screws (removing on step 1). (Note: the screws MUST be securely tightened) The el ectrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should now be connected to the electrical supply. Check that the appliance is operating correctly by selecting each speed and switching the light bulbs on and off. Use a stainless steel cleaner and polish on the stainless steel sections of the appliance. If you are using the appliance in recirculation mode, then you should now fit the carbon filter. See the “fitting the carbon filter" section. Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.8 NOTE: When activated carbon filter attached, the suction power will be lower.

tivated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward. Make sure the filter is securelylocked. Otherwise, it would loosen and cause dangerous.9 OPERATION Electronic button SE03 Off butto

It’s used for turning off the fan. Low Speed b utton It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. High Speed button When high density of smoke or steam produced, press high-speed button for highest effective ventilation. Light button10 MAINTENANCE Before cleaning switch the unit off and pull out the plug.

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust…...so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

IV. Bulb Replacement

1. Switch the unit off and unplug the appliance.

2. Remove the lamp cover by unscrewing the 2 screws.

3. Unscrew the incandescent bulb

4. Replace with the same type and rated bulb/lamp.11

TROUBLESHOOTING Fault Cause Solution Light on, but fan does not work The fan blade is jammed. Switch of the unit and repair by qualified service personnel only. The motor is damaged. Both light and fan do not work light bulb burn. Replace the bulb with correct rating. Power cord looses. Plug in to the power supply again. Serious Vibration of the unit The fan blade is damaged. Switch of the unit and repair by qualified service personnel only. The fan motor is not fixed tightly. Switch of the unit and repair by qualified service personnel only. The unit is not hung properly on the bracket. Take down the unit and check whether the bracket is in proper location. Suction performance not good Too long distance between the unit and the cooking plane Readjust the distance to 65-75cm ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product12 OBSAH ÚVOD .....................................................................................................13
