Milan 22350C - Kettle Mellerware - Free user manual and instructions

USER MANUAL Milan 22350C Mellerware

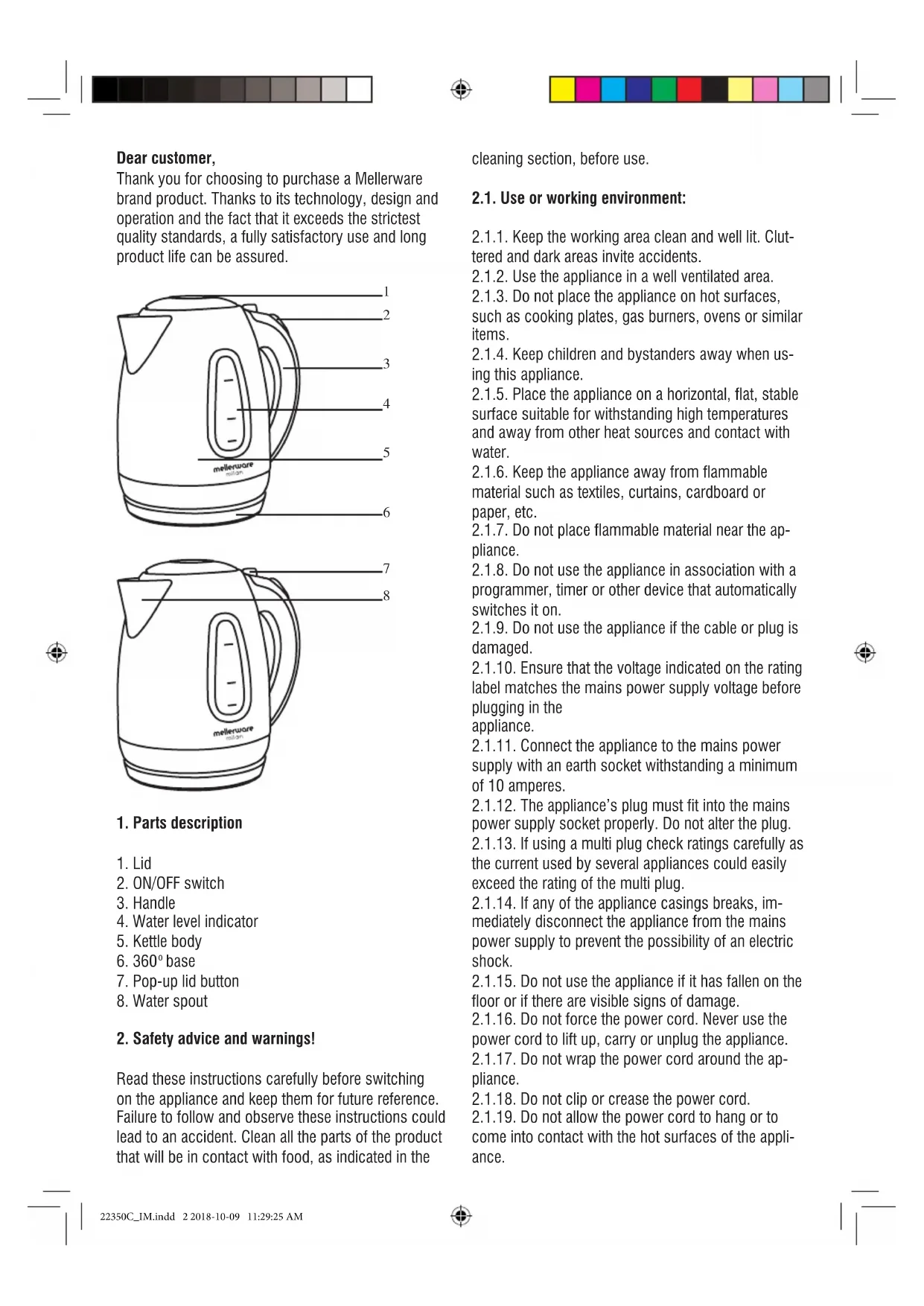

Model: 22350C complies with INTERNATIONAL IEC60335 SAFETY SPECIFICATIONS 2200W MILAN 2200W Cordless kettle 22350C_IM.indd 1 2018-10-09 11:29:24 AMDear customer, Thank you for choosing to purchase a Mellerware brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

2. Safety advice and warnings!

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use. 2.1. Use or working environment:

2.1.1. Keep the working area clean and well lit. Clut-

tered and dark areas invite accidents.

2.1.2. Use the appliance in a well ventilated area.

2.1.3. Do not place the appliance on hot surfaces,

such as cooking plates, gas burners, ovens or similar items.

2.1.5. Place the appliance on a horizontal, flat, stable

surface suitable for withstanding high temperatures and away from other heat sources and contact with water.

2.1.6. Keep the appliance away from flammable

material such as textiles, curtains, cardboard or paper, etc.

2.1.7. Do not place flammable material near the ap-

2.1.8. Do not use the appliance in association with a

programmer, timer or other device that automatically switches it on.

2.1.9. Do not use the appliance if the cable or plug is

2.1.10. Ensure that the voltage indicated on the rating

label matches the mains power supply voltage before plugging in the appliance.

2.1.11. Connect the appliance to the mains power

supply with an earth socket withstanding a minimum of 10 amperes.

2.1.12. The appliance’s plug must fit into the mains

power supply socket properly. Do not alter the plug.

2.1.13. If using a multi plug check ratings carefully as

the current used by several appliances could easily exceed the rating of the multi plug.

2.1.14. If any of the appliance casings breaks, im-

mediately disconnect the appliance from the mains power supply to prevent the possibility of an electric shock.

2.1.15. Do not use the appliance if it has fallen on the

floor or if there are visible signs of damage.

2.1.16. Do not force the power cord. Never use the

power cord to lift up, carry or unplug the appliance.

2.1.19. Do not allow the power cord to hang or to

come into contact with the hot surfaces of the appli- ance.

22350C_IM.indd 2 2018-10-09 11:29:25 AM2.1.20. Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

2.1.21. The appliance is not suitable for outdoor use.

2.1.22. Power cord should be regularly examined

for signs of damage, and if the cord is damaged, the appliance must not be used.

2.1.23. Do not touch the plug with wet hands.

2.2. Personal safety:

2.2.1. CAUTION: Do not leave the appliance unat-

tended during use as there is a risk of an accident.

2.2.2. Do not touch the heated parts of the appliance,

as it may cause serious burns.

2.2.3. This appliance is only for domestic use, not for

industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

2.2.4. This appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety.

2.2.5. This appliance is not a toy. Children should be

supervised to ensure that they do not play with the appliance. 2.3. Use and care:

sories are not properly fitted.

2.3.3. Do not use the appliance when empty.

2.3.4. Do not turn the appliance over while it is in use

or connected to the mains power supply.

2.3.5. Do not cover the cooking surface or food with

aluminium foil and other similar materials.

2.3.6. Unplug the appliance from the mains power

supply when notin use and before undertaking any cleaning task.

2.3.7. This appliance should be stored out of reach

2.3.8. Do not store the appliance if it is still hot.

2.3.9. Never leave the appliance unattended when in

use and keep out of the reach of children.

2.3.10. If, for some reason, the appliance were to

catch fire, disconnect the appliance from the mains power supply and DO NOT USE WATER TO PUT THE FIRE OUT. 2.4. Service:

2.4.1. Make sure that the appliance is serviced only

by suitably qualified technician, and that only original spare parts or accessories are used to replace exist- ing parts/accessories.

2.4.2. If the power cord is damaged, the manufactur-

er or its service agent or a similarly qualified person must replace it in order to avoid a hazard.

2.4.3. Any misuse or failure to follow the instructions

for use renders the guarantee and the manufacturer’s liability null and void.

3. Instructions for use

3.1.2. Before using the product for the first time,

clean the parts that will come into contact with food in the manner described in the cleaning section.

3.2.1. Open the lid of the kettle, fill with tap water to

the desired level. (Min. capacity is 0.6L and max. ca- pacity is 1.7L). In hard water areas, using purified or filtered water is recommended to reduce the amount of scale build up in the kettle. (Note: You may also fill through the spout, but be careful not to overfill – use water level gauge to check).

3.2.2. Close the lid until it clips. Place the kettle on

the base and plug into the mains.

3.2.3. To switch on the kettle, press the On/Off switch

to position 1. CAUTION: Do not place downward pressure on the switch). When the water has boiled the kettle will automatically switch off. You can stop the kettle at any time by pressing the On/Off switch to position 0.

3.2.4. Pour slowly and carefully. If you wish to re-

boil, please allow a minute for the kettle to cool down.

3.2.5 Warning: If the kettle has just boiled it will be

full of steam that will escape if the lid is opened.

3.2.6 IMPORTANT: Do not open the lid when steam

is coming out of the spout. Before pouring or filling always remember to disconnect the plug from the 22350C_IM.indd 3 2018-10-09 11:29:25 AMmains.

3.2.7 Note: If the kettle is switched on when empty

or with insufficient water, then the kettle will switch off automatically to protect against dry boiling. Wait ±15minutes until the heating element cools down, refill with tap water and use as normal. This protec- tion function is not designed for regular use, as it will shorten the life of the element. If the kettle is overfilled, boiling water may be ejected. The kettle is only to be used with the stand provided (cordless models only). The appliance must not be immersed in liquid during cleaning. If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid a hazard.

4. Cleaning and Maintenance

Always ensure that the kettle is disconnected from the mains before descaling. Scaling or furring is a common problem in hard water areas.

4.1.2. Fill the kettle to MAX position and boil the

water. Remove the kettle from the base unit and the plug from the power socket and place it in an empty sink or bowl.

4.1.3. Add 50 grams of Citric Acid (available from

chemists) or other descaler products (available at supermarkets) to the water or as directed.

4.1.4. Leave it to stand for approximately 5 minutes

or until the effervescence subsides, and then empty the water. Rinse thoroughly, and wipe.

5. Anomalies and repair

5.1. Take the appliance to an authorised support centre if product is damaged or other problems arise. 5.2. If the connection to the mains has been dam- aged, it must be replaced and you should proceed as you would in the case of damage.

6. Additional warnings for kettles

6.1. The kettle and base (where applicable) must not be operated with any other models of kettle.

6.1.2. The kettle is fitted with a dry-operation cutout

that switches off the kettle if it has boiled dry. If this happens allow the kettle to cool down for approxi- mately 15 minutes, then fill the kettle with cold water. This will reset the cutout so that the kettle can be used again.

while in operation. Switch off the appliance first.

6.1.5. Ensure the lid is closed properly before switch-

ing on, to prevent water splashing out when boiling. Do not open the lid when boiling

6.1.6. After the kettle has boiled it may need a minute

to cool down before restarting.

6.1.7. Take care when pouring. Pour slowly and do

6.1.8. Make sure the kettle is always used on a flat

6.1.9. Water will remain hot for considerable time

after boiling and will present a scalding hazard. Take care and keep away from children.

6.1.10. The outside surface of the kettle will become

hot during use. To avoid injuries only hold the handle.

6.1.11. Take care to avoid contact with the steam

coming from the lid or spout. PRODUCT SPECIFICATION: Voltage: 230 V ~ 50-60Hz Power: 2000W Water capacity: Minimum 0.6L – Maximum 1.7L 22350C_IM.indd 4 2018-10-09 11:29:25 AMTrouble shooting guide Problem Reason Action Pre-caution Kettle is leaking water May be condensation. This is normal if boiled a number of times in succes- sion. This kettle is for household use only. Kettle is over filled. Pour water out to MAX level. If overfilled water can eject from the kettle resulting in a hazard. Switch is sticking. Ensure the switch is clean. Keep appliance away from cooking splatter. Kettle does not work Household socket is off. Switch on household socket. Ensure water covers the ele- ment before operating. Household socket is not working. Check the socket with another appliance Appliance must be of similar wattage to prevent overload- ing. Kettle is not seated on base correctly. Seat kettle on base correctly. The life of the kettle will be reduced if not seated on base correctly. Kettle trips mains power supply Overloaded circuit. Unplug all appliances at- tached to the same same circuit. Note that there can be up to 5 household plug sockets on 1 circuit. Kettle takes too long to boil Element has lime scale deposits Descale element using a proprietary descaler or citric acid solution. If not success- ful then a new element may be required. Kettles with scale will have a reduced lifespan. Clean the scale regularly. Kettles with lime scale Element has lime scale deposits. Descale element using a proprietary descaler or citric acid solution. If not success- ful then a new element may be required. Kettles with scale will have a reduced lifespan. Clean the scale regularly. Kettle is rusting on outside Steam deposit has oxidised and turned into an orange colour. Wipe your kettle after each use to keep dry. Keeping any appliance clean at all times will extend the life of the product. Element is rusting. Rust spots on element. Water deposits on the element. Some areas have water that will result in orange or brown stains. Some stains are stubborn and a descaler may not be effective. This should not affect funtion. Use distilled water. Kettle does not switch off automatically. Lid not positioned correctly or is off. Place lid on the kettle securely. Ejecting steam from the spout or lid can be a hazard. 22350C_IM.indd 5 2018-10-09 11:29:25 AMGeagte Klient Baie dankie vir u keuse om `n Mellerware handels- merk produk te koop. Danksy die tegnologie, ontwerp, en werking en die feit dat dit voldoen aan die streng- ste gehalte standaarde, is u verseker van `n volle bevredigende gebruik en lang produklewe.

2. Interruptor “ON / OFF”

• Your household mains supply socket is in good condi- tion, working and switched on.

• The mains supply circuit is not overloaded (White trip switch on your DB board is off).

• You have read the trouble shooting guide in your Instructions for Use.

• All accessories and parts are present. The following conditions apply:

1. Please ensure you retain your original receipt as this

must be presented when making a claim under the terms of the warranty. It is impossible to determine the warranty period without your original proof of pur- chase, so please keep this in a safe place. (NB. Your warranty can be scanned onto the Mellerware web site for safe storage – see reverse side for details.)

2. If a refund or exchange is required the product must

be complete with all accessories, parts and packag- ing. Missing parts will render the warranty void.

3. Upon receipt of your appliance, check it for any

transport damage to ensure it is safe for use. Return it to the store as soon as possible for exchange if dam- aged. The warranty is void if products are damaged after use, so please do not use the damaged product.

4. Your product is designed for normal domestic

household use. Failure to read and comply with the instructions for use, cleaning and maintenance will render your warranty void, so please read these instructions carefully to ensure your safety, and to get the most effective use from the product. (e.g. not removing lime scale; water deposits; insect infesta- tion, and/or burnt products)

5. Any abuse, negligent, improper or accidental use

or care will render the warranty void and Creative Housewares (Pty) Ltd will not be liable for any loss or damage.

6. Any attempted repair, or replacement of unauthor-

ised parts will render the warranty void, so please contact an authorised service centre or service agent for any service or repair requirements.

7. NB: The warranty on replaced products will be from

the original date of purchase and not from when the date replacement was made.

8. All repairs carry a 3 month warranty even if this falls

outside of the 2 year warranty period.

9. Mellerware will attempt to conduct repairs within

reasonable time in line with industry standards but cannot be held responsible or liable for any circum- stances not under our control.

10. Terms and Conditions are subject to change without

prior notice. Repairs Out of the Warranty Period If service or repair becomes necessary outside the warranty period, this service is still available however all transport/postage, spares and labour costs will be for the customers’ account. All chargeable repairs will require the customers’ written acceptance of the quote. Once the go-ahead has been received Mellerware will undertake to conduct the repair within a reasonable time and maintain the condition of the product as received. All repairs are warranteed for 3 months from the date of the repair. For any service, enquiries and complaints please contact our Customer Care on 086 111 5006 or e-mail help@ chwsa.co.za from 08h00 to 15h00 Monday to Friday excluding public holidays. Please also note that the com- pany is normally closed for 2 weeks around Christmas and New Year. Please send all products for repair postage pre-paid to one of the service centres listed on the back of this page. 22350C_IM.indd 22 2018-10-09 11:29:28 AMWhy register your warranty? We at Mellerware pride ourselves on bringing premium quality appliances to market, and as a commitment to this level of quality we offer a 2 year warranty (1 Year Retail + 1 Year Extended) on all of our products. We often hear that our customers lose their receipts and can therefore no longer claim if they have a problem. To take advantage of the 1 Year Extended Warranty you will need to register your warranty online within the first year of purchase in order to make a valid claim. Now you can register your product, upload your warranty online, never have to worry about losing your receipt again and enjoy the benefit of your 2 year warranty. Added Benefits In addition to providing you with an online profile of your registered products we will also provide a host of value added benefits:•Incentives and Competitions for registered users•New recipes or ideas for your products•New product developments – be the first to get the latest appliances•Special offers on promotional items How to Register your Online Warranty? STEP1 Create your user prole: DESKTOP/ LAPTOP SMART PHONE/ TABLET FAX STEP2 Pick a registration method:
