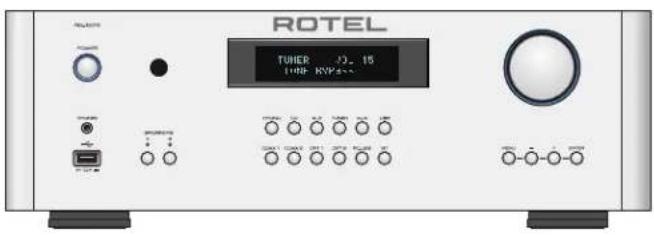

USER MANUAL RA1572 ROTEL

WARNING: There are no user serviceable parts inside. Refer all servicing

to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose

the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The apparatus should be used in non tropical climate. Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives. This symbol means that this unit is double insulated. An earth connection is not required. Important Safety Instructions You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit.

The rear panel power cord connector is the mains power disconnect device. The device must be located in an open area that allows access to the cord connector. The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not use extension cords. The mains plug is the disconnect of the unit. In order to completely disconnect the unit from the supply mains, remove the main plug from the unit and the AC power outlet. This is the only way to completely remove mains power from the unit. Use Class 2 wiring for speaker connections to ensure proper installation and minimize the risk of electrical shock. The batteries in the remote control should not be exposed to excessive temperature such as sunshine, fire or other heat sources. Batteries should be recycled or disposed as per state and local guidelines.

Pin Assignments Balanced Audio (3 pole XLR): Pin 1: Ground / Screen Pin 2: In phase / +ve / Hot Pin 3: Out of phase / ‑ve / Cold3

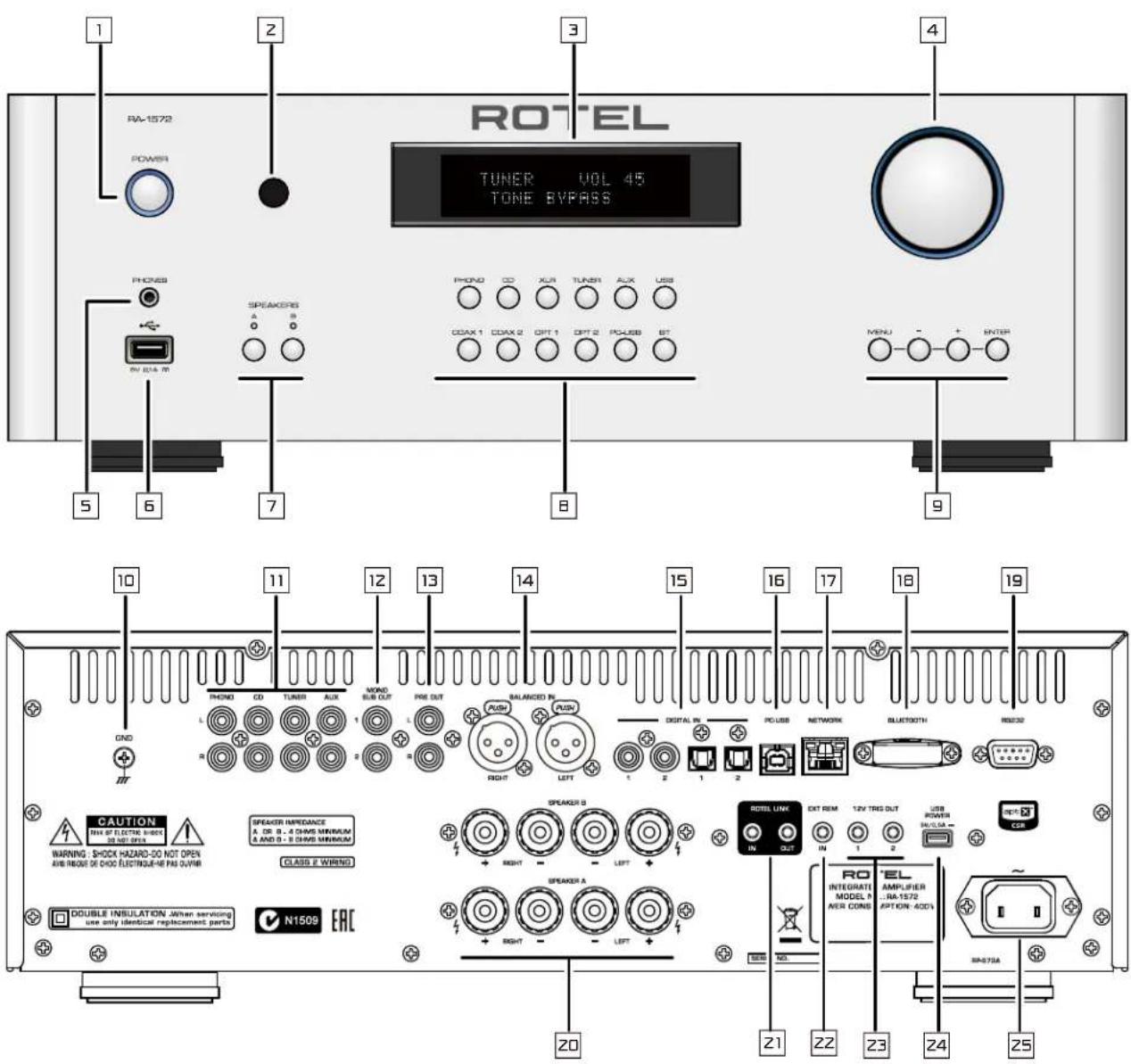

POWER Switch and Power Indicator

and Ground Connection (GND)

APTX Bluetooth Connection

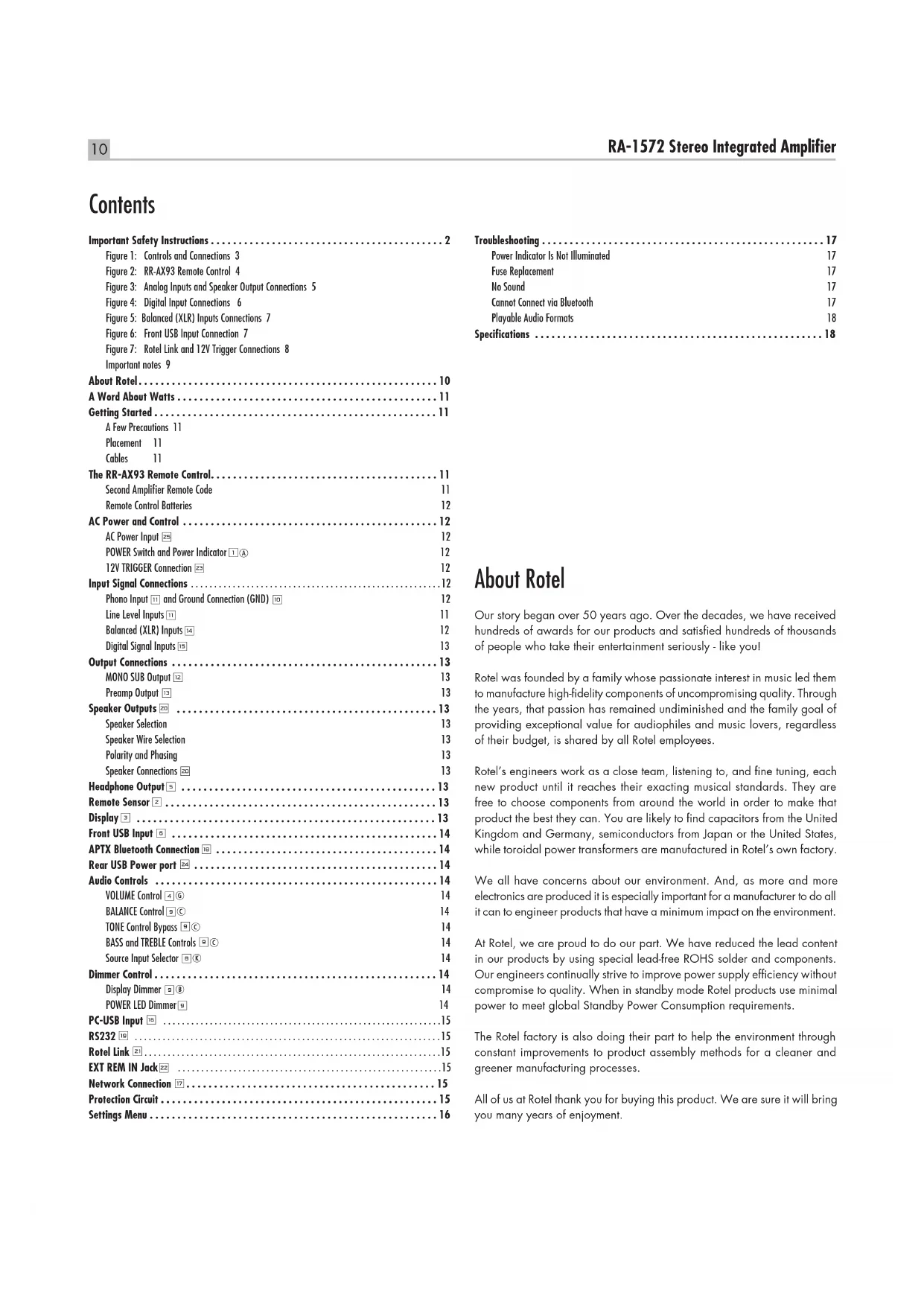

• Protection Circuit p. 15
• Settings Menu p. 16
• Troubleshooting p. 17
• Power Indicator Is Not Illuminated 17 Fuse Replacement 17 No Sound 17 Cannot Connect via Bluetooth 17 Playable Audio Formats 18 Specications A Word About Watts This amplier’s power output is rated as 120 watts for each channel, when both channels are operating together at full power. Rotel has chosen to specify the power output in this way because, in Rotel’s experience, it gives the truest value of the receiver or amplier’s power capability. When comparing specications for different products, you should be aware that power output is often specied in other ways, so you may not be comparing like with like. For example, the power output may be quoted with only one channel operating, giving a higher maximum gure. A loudspeaker’s impedance rating indicates the electrical resistance or load it offers when connected to the amplier, usually 8 ohms or 4 ohms. The lower the impedance, the more power the speaker will need. In effect, a 4 ohm speaker will require twice as much power as an 8 ohm speaker. However, Rotel ampliers are designed to work into any speaker impedance between 8 and 4 ohms, and with all the channels working up to their full power. Because Rotel designs are optimized for use with all channels operating together, Rotel is able to specify the true power output for both channels. Getting Started Thank you for purchasing the Rotel RA-1572 Stereo Integrated Amplier. When used in a high-quality music audio system, your Rotel product will provide years of musical enjoyment. The RA-1572 is a full featured, high performance component. All aspects of the design have been optimized to retain the full dynamic range and subtle nuances of your music. The RA-1572 has a highly regulated power supply incorporating a Rotel custom-designed toroidal power transformer and custom-made slit foil capacitors. This low impedance power supply has ample power reserves, which enables the RA-1572 to easily reproduce the most demanding audio signals. This type of design is more expensive to manufacture, but it is better for the music. The printed circuit boards (PCB) are designed with Symmetrical Circuit Traces. This insures that the precise timing of the music is maintained and faithfully recreated. The RA-1572 circuitry uses metal lm resistors and polystyrene or polypropylene capacitors in important signal paths. All aspects of this design have been examined to ensure the most faithful music reproduction. The main functions of the RA-1572 are easy to install and use. If you have experience with other stereo systems, you shouldn’t nd anything perplexing. Simply plug in the associated components and enjoy. A Few Precautions p. 1811

WARNING: To avoid potential damage to your system, turn off ALL

the components in the system when connecting or disconnecting the loudspeakers or any associated components. Do not turn the system components back on until you are sure all the connections are correct and secure. Pay particular attention to the speaker wires. There must be no loose strands that could contact the other speaker wires, or the chassis of the amplier. Please read this manual carefully. In addition to basic installation and operating instructions, it provides valuable information on various RA-1572 system congurations as well as general information that will help you get optimum performance from your system. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.Save the shipping carton and all enclosed packing material for future use. Shipping or moving the RA-1572 in anything other than the original packing material may result in severe damage to your amplier.If included in the box please ll out and send in the owner’s registration card. Also be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required. Placement Like all audio components that handle low-level signals, the RA-1572 can be affected by its environment. Avoid placing the RA-1572 on top of other components. Also avoid routing audio signal cables near power cords. This will minimize the chance it will pick up hum or interference. The RA-1572 generates heat as part of its normal operation. The heat sinks and ventilation openings in the amplier are designed to dissipate this heat. The ventilation slots in the top cover must be open. There should be 10 cm (4 inches) of clearance around the chassis, and reasonable airow through the installation location, to prevent the amplier from overheating. Remember the weight of the amplier when you select an installation location. Make sure that the shelf or cabinet can support it. We recommend installing the RA-1572 in furniture designed to house audio components. Such furniture is designed to reduce or suppress vibration which can adversely affect sound quality. Ask your authorized Rotel dealer for advice about component furniture and proper installation of audio components.The RA-1572 is supplied with an RR-AX93 remote control and must be placed where the infrared signal from the remote can reach the front panel Remote Sensor. Cables Be sure to keep the power cords, digital signal cables and analog audio signal cables in your installation away from each other. This will minimize the chance of the analog audio signal cables picking up noise or interference from the power cords or digital cables. Using only high quality, shielded cables will also help to prevent noise or interference from degrading the sound quality of your system. If you have any questions see your authorized Rotel dealer for advice about the best cable to use with your system. The RR‑AX93 Remote Control Some functions can be done with either the front panel controls, or the supplied RR-AX93 remote control. When these operations are described, the square call out numbers refer to the main unit, while the encircled letters refer to the remote control. Second Amplier Remote Code The factory setting is remote code 1. If you nd that the remote is conicting with other Rotel ampliers, you can change to remote code 2 with the following steps.

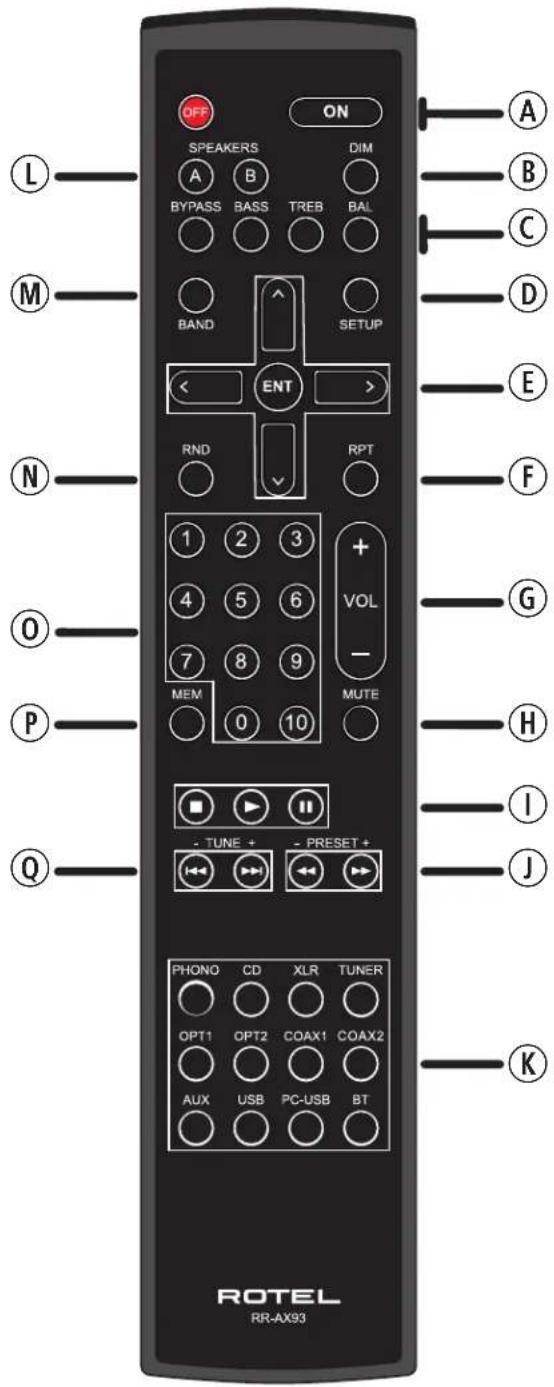

1. From the remote control press Tuner K and 2 O at the same time for 5

seconds, to set the remote control to send Audio Code 2.12 RA‑1572 Stereo Integrated Amplier 2. Point the remote at the unit and press 2 O button for 14 seconds. The unit will show “AUDIO CODE SET 1 -> 2”.3. Repeat the above procedure and press “1” button instead of “2” to change the unit back to Code 1.NOTE: The remote control can be used to operate the basic functions of Rotel tuners and CD players. Remote control buttons labeled FIJNOQ can be used to operate CD or Tuner functions in your system. For the remote to operate properly, make sure both the remote and the CD or Tuner are both in same remote code, either Code 1 or 2. Remote Control Batteries Two AAA size batteries (supplied) must be installed before the remote control can be used. To install the batteries, remove the cover on the back of the RR-AX93. Install the batteries as shown in the illustration in the battery well. Test the control for proper operation, then replace the cover. When the batteries become weak the remote control won’t operate the RA-1572 consistently. Installing fresh batteries should eliminate the problem. AC Power and Control AC Power Input

Your RA-1572 is congured at the factory for the proper AC line voltage in the country where you purchased it (either 120 volts AC or 230 volts AC with a line frequency of either 50 Hz or 60 Hz). The AC line conguration is noted on a decal on the back panel. NOTE: Should you move your RA‑1572 to another country, it is possible to recongure your amplier for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the enclosure of the RA‑1572 exposes you to dangerous voltages. Consult a qualied service person or the Rotel factory service department for information. NOTE: Some products are intended for sale in more than one country and as such are supplied with more than one AC cord. Please only use the one appropriate for your country/region.Because of its relatively high power rating, the RA-1572 can draw considerable current. Therefore, it should be plugged directly into a polarized wall outlet using the supplied cable or other high current compatible cable as recommended by your authorized Rotel dealer. Do not use an extension cord. A heavy duty multi-tap power outlet strip may be used if it (and the wall outlet) is rated to handle the current demanded by the RA-1572 and all the other components connected to it.If you are going to be away from home for an extended period of time such as a month-long vacation, it is a sensible precaution to unplug your amplier (as well as other audio and video components) while you are away. POWER Switch and Power Indicator

Press the front panel Power Switch button, to turn the unit on. The Power Indicator light is illuminated when the unit is on. Press Power Switch button again to turn the unit off.When the power switch is in the ON position, the remote control ON and OFF buttons A may be used to activate the RA-1572. In Standby mode the power LED remains illuminated, but the display is turned off. 12V TRIGGER Connection

See Figure 7Some audio components can be turned on automatically when they receive a 12V turn on signal. The two 12V Trigger Outputs of the RA-1572 provide the required signal. Connect compatible components to the RA-1572 with a conventional 3.5mm mini plug cable. When the RA-1572 is in standby mode or turned off, the trigger signal is interrupted, so the components controlled by it are turned off.NOTE: If you are using other units in the series with Rotel Link, please use the Rotel Link connection to turn the units on or off. Do not connect both the Rotel Link and 12V trigger cables. The 12V trigger’s power on or off features will override the Rotel Link features. Input Signal Connections NOTE: To prevent loud noises that neither you nor your speakers will appreciate, make sure the system is turned off when you make any signal connections. Phono Input

and Ground Connection (GND)

See Figure 3Plug the cable from the turntable into the appropriate left and right phono inputs. If the turntable has a “ground” wire, connect it to the screw terminal to the left of the Phono inputs. It will help prevent hum and noise. Line Level Inputs

See Figure 3The CD, Tuner, and Aux inputs of the amplier are analog “line level” inputs. These inputs are for connecting components such as CD players or other audio playback devices with an analog audio output.The left and right channels are clearly labeled and should be connected to the corresponding channels of the source component. The Left connectors are white, the Right connectors are red. Use high quality RCA cables for connecting input source components to the RA-1572. Ask your authorized Rotel dealer for advice about cables. Balanced (XLR) Inputs

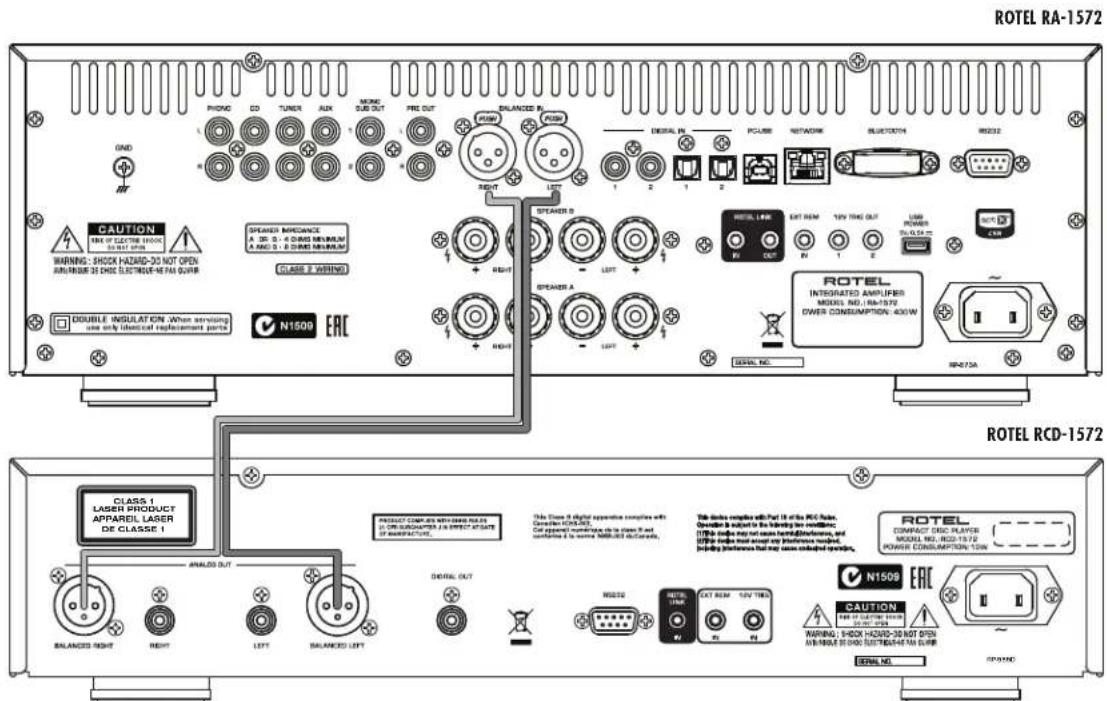

See Figure 5A pair of balanced XLR inputs accept audio signals from CD player, Blu-ray player or other source components with XLR outputs.13 NOTE: You should choose only one method of analog connection from a source component to RA‑1572. Do not connect both the RCA and XLR outputs of a source component to the RA‑1572 at the same time. Digital Signal Inputs

See Figure 4There are two sets of digital inputs labeled 1 and 2 for COAXIAL and OPTICAL respectively. Connect the COAXIAL or OPTICAL PCM outputs of your source component into these sockets. The digital signals will be decoded and played by the RA-1572. The unit is capable of decoding PCM signals up to 24 bit, 192kHz. Output Connections MONO SUB Output

There are 2 connectors for mono subwoofer output to connect to a subwoofer. These mono outputs are summed with both the left and right audio signal. They are parallel outputs allowing 2 subwoofers to be connected to the RA-1572. Preamp Output

The RA-1572 has a set of preamp outputs labeled PRE OUT. The currently selected source input is available from this output. Typically the PRE OUT output is used to provide a signal to another integrated amplier or power amplier, which is used to drive remote speakers.NOTE: Changes to the settings of the Volume, Balance or Tone controls affect the signal from the Preamp Output. Speaker Outputs

See Figure 3The RA-1572 has two sets of speaker outputs, labeled SPEAKER A and SPEAKER B. The speaker outputs are controlled by the A-B speaker selector buttons on the front panel and the buttons on the remote control. Speaker Selection If only one set of speakers will be used at any given time, the speakers may have an impedance as low as 4 ohms. If there are times when both the A and B speakers will be used, all the speakers should have an impedance of 8 ohms or more. Speaker impedance ratings are less than precise. In practice, very few loudspeakers will present any problems for the RA-1572. See your authorized Rotel dealer if you have any questions. Speaker Wire Selection Use insulated two-conductor stranded wire to connect the RA-1572 to the speakers. The size and quality of the wire can have an audible effect on the performance of the system. Standard speaker wire will work, but can result in lower output or diminished bass response, particularly over longer distances. In general, heavier wire will improve the sound. For best performance, you may want to consider special high-quality speaker cables. Your authorized Rotel dealer can help in the selection of cables for your system. Polarity and Phasing The polarity – the positive/negative orientation of the connections – for every speaker and amplier connection must be consistent so all the speakers will be in phase. If the polarity of one connection is reversed, bass output will be very weak and stereo imaging degraded. All wire is marked so you can identify the two conductors. There may be ribs or a stripe on the insulation of one conductor. The wire may have clear insulation with different color conductors (copper and silver). There may be polarity indications printed on the insulation. Identify the positive and negative conductors and be consistent with every speaker and amplier connection. Speaker Connections

Turn off all the components in the system before connecting the speakers. The RA-1572 has color-coded binding post type speaker connectors on the back panel. These connectors accept bare wire, connector lugs, or dual banana type connectors. (except in European Community countries where their use is not permitted.)Route the wire from the RA-1572 to the speakers. Give yourself enough slack so you can move the components to allow access to the speaker connectors. If you are using dual banana plugs, connect them to the wires and then plug into the backs of the binding posts. The thumbscrews of the binding posts should be screwed in all the way (clockwise). If you are using terminal lugs, connect them to the wires. If you are attaching bare wires directly to the binding posts, separate the wire conductors and strip the insulation from the end of each conductor. Be careful not to cut into the wire strands. Unscrew (turn counterclockwise) the binding post. Place the connector lug or wire around the binding post shaft. Turn the binding post clockwise to clamp the connector lug or wire rmly in place. NOTE: Be sure there are no loose wire strands that could touch adjacent wires or connectors. Headphone Output

The headphone output allows you to connect headphones for private listening. This output accepts a standard 3.5mm (1/8”) mini stereo headphone connector. Plugging in a set of headphones does not cut off the signal to the speakers. Use the front panel or remote control A-B Speaker Selector to turn off the speakers.NOTE: Because the sensitivity of speakers and headphones can vary widely, always reduce the volume level before connecting or disconnecting headphones. Remote Sensor

This remote sensor window receives IR commands from the remote control. Please do not block this sensor.14 RA‑1572 Stereo Integrated Amplier Display

The front panel display shows the source selected, volume level and tone settings. The display provides access to the setup and conguration menu options of the amplier. Front USB Input

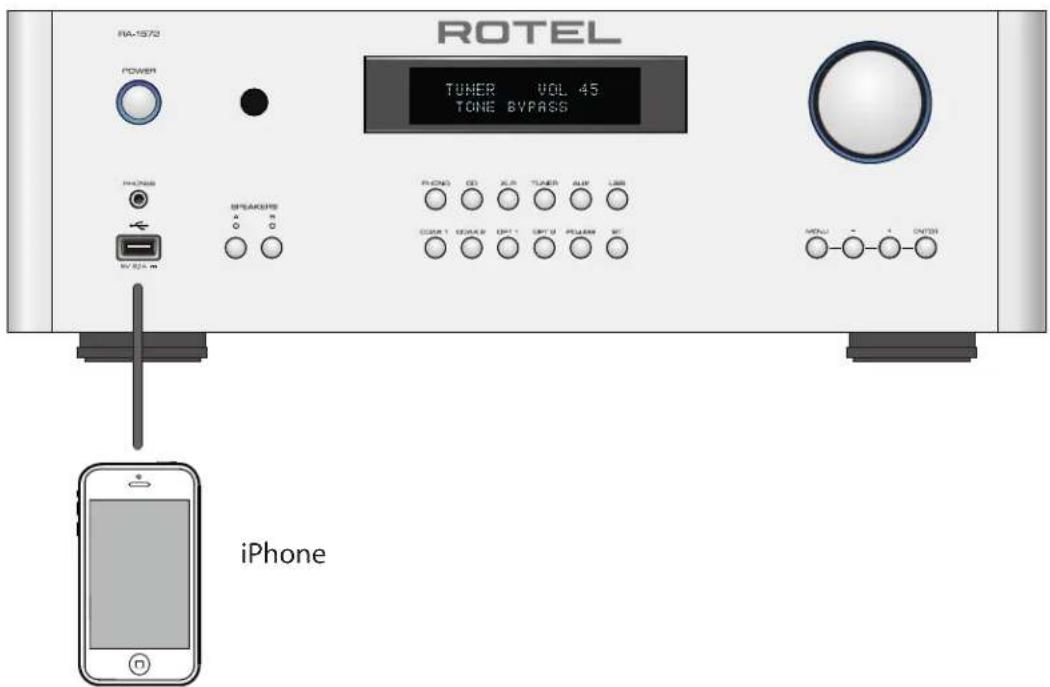

See Figure 6The front USB input can be connected to an iPhone, iPad or iPod device providing music playback. Simply plug the device into the front USB and select USB as the desired source. The device remain active allowing search and play functions. APTX Bluetooth Connection

The Bluetooth Antenna y on the RA-1572’s back panel is for wireless streaming via Bluetooth from your device (i.e. mobile phones, tablets or computers). From your device, look for “Rotel Bluetooth” and connect to it. Connection is normally automatic, but if prompted for a password, please press “0000” on your device. The RA-1572’s supports both traditional Bluetooth and APTX Bluetooth audio streaming. Rear USB Power Port

The rear USB port provides 5V/0.5 amps for charging or powering USB devices including streaming music players. This port does not allow playback of audio.The port can be congured to remain powered even when the RA-1572 is in standby mode through the front panel setup menu (See USB POWER on page 16).This conguration option allows the attached streaming source to remain powered for use with the Signal Sense function for automatic power on/ off control of the amplier. NOTE: When congured to provide continuous power to the rear panel USB port the RA‑1572 will consume additional power even when in standby mode. Audio Controls VOLUME Control

Turn the knob clockwise to increase the volume, or counter clockwise to decrease the volume. From the remote control press the volume + or - button to turn the volume up or down. Press the MUTE H button to completely mute the volume. BALANCE Control

The Balance Control adjusts the left - to - right balance of the sound output. The factory default is the center position or “0”. To change the balance from the front panel, press the MENU button to toggle the front display to BALANCE SETTING mode. Then press the - or + button on the front panel to change the value to LEFT or RIGHT. The value can change from L15 to R15. NOTE: This setting is saved permanently including after powering off the RA‑1572. To make temporary changes not saved after power off, from the remote, press the BAL C button to access the BALANCE SETTING menu, then press the up/down/left/right E arrow buttons to adjust. When nished, press the BAL C button again to exit the menu. Tone Control Bypass 9C Bass and Treble Control (Tone Control) circuits are bypassed at factory default to ensure the purest possible sound. To turn on the tone control from the front panel, press the MENU button to toggle to the Tone Bypass control then press the - or + button on the front panel to turn bypass on or off. When tone bypass is set to on, the front display will show TONE BYPASS. NOTE: This setting is saved permanently including after powering off the RA‑1572. To temporarily changes the Tone Control Bypass, press the BYPASS C button on the remote control to toggle the Bypass mode enabled and disabled. Bass and Treble Controls 9C Set the Bass or Treble controls from the front panel by pressing the MENU 9 button to toggle to the Tone control menu. Press ENTER 9 button to toggle between BASS and TREB options. Press the - or + 9 button to adjust the value. The Bass and Treble values range from -10 to +10. NOTE: These settings are saved permanently including after powering off the RA‑1572. To temporarily change the Bass and Treble settings from the remote control, press the BASS or TREB button C, then press the up/down/left/right E arrow buttons on the remote to adjust the value. NOTE: Bass and Treble changes are only available when Tone Bypass is disabled (see Tone Control Bypass section). A properly setup high-performance audio system produces the most natural sound with little or no adjustment of the tone controls. Use these controls sparingly. Be particularly careful when turning the controls up as this increases the power output in the bass or treble range, increasing the load on the amplier and speakers. NOTE: Setting the Bass and Treble controls does not automatically turn on the tone control. To turn on tone control, refer to previous section Tone Control Bypass. Source Input Selector

Press the corresponding input button on the front panel 8 or remote control K to select the desired listening source. Dimmer Control Display Dimmer

To change the brightness of the front display, press the MENU button to toggle to the DIMMER Setting. Then press the - or + button on the front panel to change the brightness. NOTE: This setting is saved permanently including after powering off the RA‑1572.15 RS232 u The RA-1572 can be controlled via RS232 for integration with automation systems. The RS232 input accepts a standard straight DB-9 Male-to-Female cable.For additional information on the connections, software, and operating codes for RS232 control of the RA-1572, contact your authorized Rotel dealer. Rotel Link

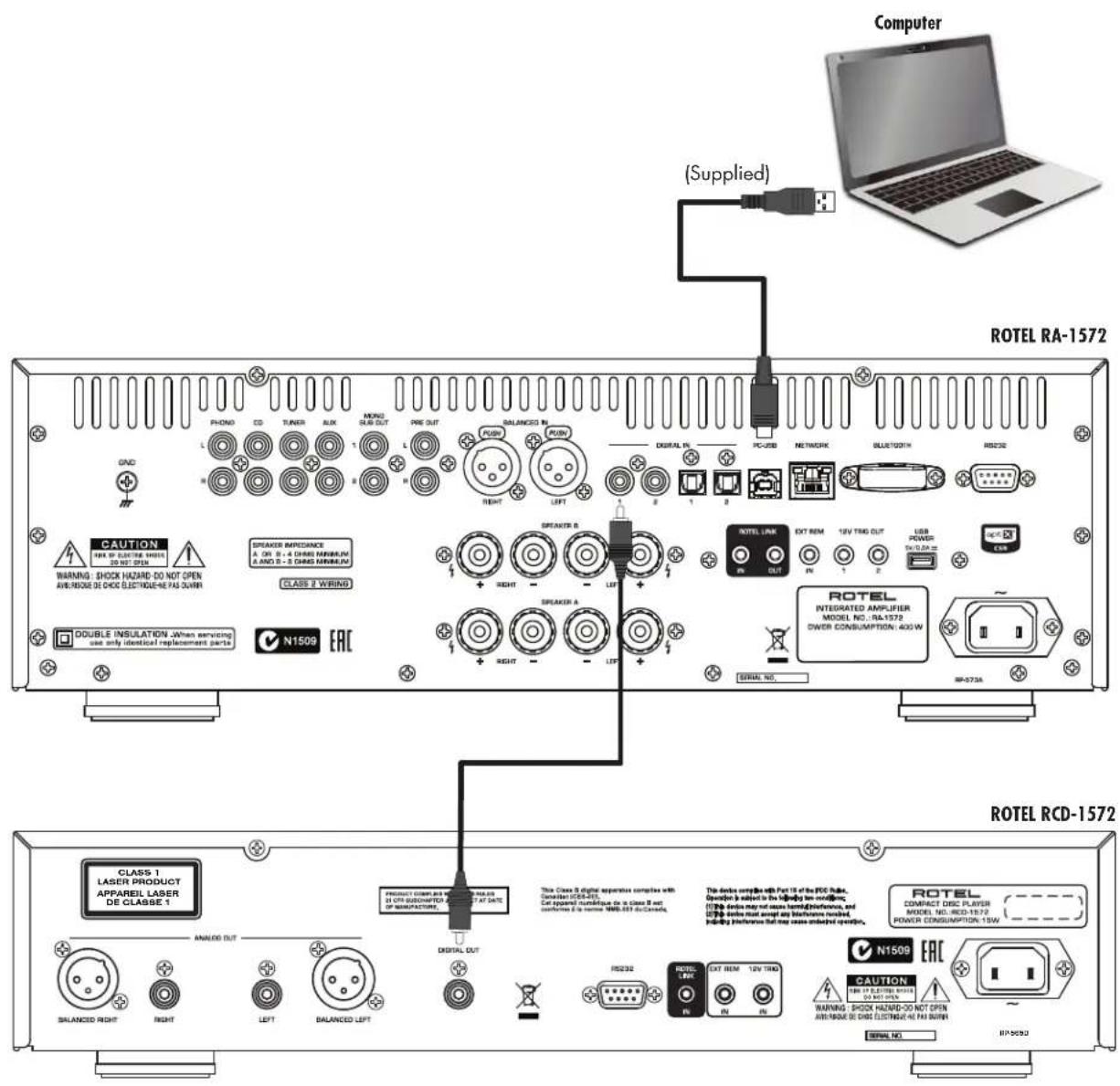

See Figure 7The ROTEL LINK OUT connection can be made with the stereo 3.5 mm cable (supplied) to a Rotel product with ROTEL LINK IN connection including a CD player. These allow the attached Rotel products to communicate with each other and be controlled via the Rotel App (available for download on the iTunes store). NOTE: Only the Rotel Link cables supplied with this product should be used. These 3.5 mm cables have WHITE connector ends and should not be confused with the 12 Volt Trigger cables that have BLACK connector ends. EXT REM IN Jack

This 3.5mm mini-jack receives command codes from industry-standard infrared receivers via hard-wired connections. This feature could prove useful when the unit is installed in a cabinet and the front-panel sensor is blocked. Consult your authorized Rotel dealer for information on these external repeaters and the proper wiring of a jack to t the mini-jack receptacle. Network Connection

The RA-1572 can be attached to a network using the rear panel NETWORK socket t. The NETWORK congurations allow both STATIC and DHCP IP addressing. See the Network section of this manual under Setting Menu for IP address conguration information.The NETWORK connection allows software updates to be downloaded from the Internet. The NETWORK connection also allows IP control for integration with automation systems.For additional information on the IP control please contact your authorized Rotel dealer. Protection Circuit The amplier has both thermal and over-current protection circuitry that protects the amplier against damage in the event of extreme or faulty operating conditions. The protection circuits are independent of the audio signal and have no impact on sonic performance. Instead, the protection To temporarily change the display brightness, press the DIM B button on the remote. POWER LED Dimmer

To change the brightness of the Power LED and the two Speaker Selector LEDs on the front panel, press the MENU button to toggle to the POWER LED Setting. Then press the - or + button on the front panel to change the brightness. Valid settings include: BRIGHT, MID, DIM. NOTE: This setting is saved permanently including after powering off the RA‑1572. PC‑USB Input r See Figure 4Connect this input using the supplied USB cable to the USB socket of your computer.The RA-1572 supports both USB Audio Class 1.0 and USB Audio Class 2.0 modes. Windows computers do not require installation of a driver for USB Audio Class 1.0 and support playback of audio up to 96kHz sampling rates. The Factory Default setting is USB Audio Class 1.0.To take advantage of USB Audio Class 2.0 audio playback supporting up to 384kHz sampling rates you will need to install the Windows driver supplied on the CD included with the RA-1572. You will also need to switch the RA-1572 to USB Audio Class 2.0 playback mode with the following: • Press MENU on the front panel until “PC-USB AUDIO CLASS” appears on the display.• Select “2.0” using the “-” button then press “ENTER”.• Power cycle the RA-1572 and reboot your PC after changing the USB Audio mode to ensure both units are properly congured.Many audio playback applications do not support 384kHz sampling rate. Please conrm your audio player supports 384kHz audio and you have 384kHz audio les to properly playback this sample rate. Also, you may need to congure the audio driver in your PC to output 384kHz or your computer may “down sample” to a lower audio sample rate. For more information please refer to your audio player or operating system information. NOTE: USB Audio Class 2.0 requires installation of the Windows PC driver on the CD ROM included with the RA‑1572. NOTE: MAC computers do not require a driver to support PC‑USB

NOTE: Upon successful installation of the driver, you may need to select the ROTEL audio driver from the audio/speaker setup of your computer. NOTE: The RA‑1572 supports both DSD and DOP audio playback in 1X and 2X formats. Consult your audio player to conrm proper operation for playback of these audio formats.16 RA‑1572 Stereo Integrated Amplier circuits monitor the temperature of the output devices and shut down the amplier if temperatures exceed safe limits.Most likely, you will never see this protection circuitry in action. However, should a faulty condition arise, the amplier will stop playing and will display “AMP PROTECTION“ on the front panel. If this happens, turn the amplier off. Let it cool down for several minutes, and attempt to identify and correct the problem that caused the protection circuitry to engage. When you turn the amplier back on, the protection circuit will automatically reset.In most cases, the protection circuitry activates because of a fault condition such as shorted speaker wires, or inadequate ventilation leading to an overheating condition. In very rare cases, highly reactive or extremely low impedance speaker loads could cause the protection circuit to engage.If the protection circuitry triggers repeatedly and you are unable to isolate and correct the faulty condition, contact your authorized Rotel dealer for assistance in troubleshooting. Settings Menu You can access the settings menu from the front panel by pressing the MENU button or the SETUP D button on the remote. You can change the value of the selected option by pressing the +/- buttons on the front panel or up/down/left/right E arrow buttons on the remote. Step through the sub-menus by pressing the MENU button on the front panel or the SETUP D button on the remote.• TONE Control: TONE BYPASS ON/OFF, BASS level and TREBLE levels can be changed to desired settings. Press the ENTER button on the front panel or on the remote to toggle between the tone setup options. (For more information on Tone Control refer to the Tone Control Bypass, Bass and Treble control sections.) NOTE: These settings are stored permanently even after the RA‑1572 is powered off.

• BALANCE: Change left/right balance (For more information on Balance sections refer to the Balance Control section). NOTE: This setting is stored permanently even after the RA‑1572 is powered off.
• DIMMER: Dims the front display. NOTE: This setting is stored permanently even after the RA‑1572 is powered off.
• POWER LED: Dims the Power LED and the LEDs above the Speaker Selector buttons on the front panel. NOTE: This setting is stored permanently even after the RA‑1572 is powered off.
• POWER ON MAX VOLUME: This sets the maximum volume level when the unit is turned ON. “45” is the factory default. NOTE: Power On Max Volume settings do not apply to sources congured with Fixed Gain.
• POWER OPTION: Enables the RA-1572 to be controlled via the network port when attached to an automation system. The power consumption is higher in Quick Power mode. If network control is not required select the Normal Power mode. “Normal” is the factory default.Valid settings include: Normal, Quick. NOTE: When the POWER OPTION is configured to Quick, the RA‑ 1572 will consume additional power in standby mode.
• USB POWER: This option allows the rear panel USB connector to provide power, even when the RA-1572 is in standby mode.To enable the continuous power mode select the ALWAYS option. To provide power only when the RA-1572 is powered on, select the NORMAL option. The default for USB POWER is set to NORMAL. NOTE: The front panel power button must be in the ON position to supply power to the rear panel USB connector. NOTE: When the USB POWER is configured to ALWAYS the RA‑1572 will consume additional power in standby mode to supply USB power.
• AUTO POWER OFF: The RA-1572 can be congured to automatically power off if unused for a specied period. If no changes are made to the unit within the specied “Auto Power Off” time the unit will automatically go to STANDBY mode. The Auto Power Off timer will be restarted if changes are made to the volume, source or playback. The default for Auto Power Off is set to DISABLE. Valid settings include: DISABLE, 1 HOUR, 2 HOURS, 5 HOURS, 12 HOURS.
• FIXED GAIN: Congures a Fixed Volume level for a specied input. To enable this feature press the +/- buttons to select the desired xed volume level for Aux, USB, PC-USB, Optical 1, Optical 2, Coax 1, Coax 2 or Bluetooth. When enabled and the input with a Fixed Volume is selected, the Volume level will immediately be set to the specied level. Valid settings include: VARIABLE, FIXED 01-95, FIXED MAX.• AUX VOL: VARIABLE (disabled) is factory default.• USB VOL: VARIABLE (disabled) is factory default.• PC-USB VOL: VARIABLE (disabled) is factory default.• OPT1 VOL: VARIABLE (disabled) is factory default.• OPT2 VOL: VARIABLE (disabled) is factory default.• COAX1 VOL: VARIABLE (disabled) is factory default.• COAX2 VOL: VARIABLE (disabled) is factory default.• BTOOTH VOL: VARIABLE (disabled) is factory default.17 NOTE: The Volume knob on the front panel and Volume +/‑ buttons on the IR remote are disabled when the volume is Fixed. To disable this feature set the Fixed Volume level to “Variable”.

• PC-USB AUDIO CLASS: Changes supported PC-USB Audio Class of the attached device. NOTE: Some computers attached to the PC‑USB do not support USB Audio Class 2.0 and do not support 32/384 audio playback. If needed the PC‑USB can be configured for USB Audio Class 1.0. Please refer to your computer operating system for details.

• NETWORK: Shows the network connection status and to view/congure the network settings. If the network is properly congured and attached, “Connected” will be displayed. To view or modify the network settings, press the ENTER button. The RA-1572 supports both DHCP and STATIC IP addressing. Select the desired IP address method and press ENTER. If DHCP is selected you can refresh IP address by pressing ENTER or press MENU to view IP address information. Press the MENU button to toggle through IP address settings. If the IP address is renewed the network will be tested and connection status will be reported. If STATIC IP address mode is selected you must congure all settings for the network including IP Address, Subnet Mask, Gateway and DNS Server. Use the up/down/left/right arrow buttons or +/- buttons to adjust the values and press ENTER to move to the next value. When the proper IP information is congured press MENU to go to the next setting. After entering the STATIC IP address information the network will be tested and connection status will be reported. NOTE: For more information regarding network connection please contact your authorized Rotel dealer. NOTE: A network connection is not required for the RA‑1572 to operate.

• MAIN: This shows the current software version loaded into the RA-1572. The software can be updated if the RA-1572 is properly connected to the Internet.

• Press ENTER to check if a new software version is available.

• If a new software version is available press the + button on the front panel or the up/right arrow buttons on the remote control to select YES then press ENTER button to begin the software update process.

• The new software will be downloaded from the Internet. The RA-1572 will power cycle when the software update is complete. NOTE: Do NOT power off the RA‑1572 during the software update process. NOTE: It is recommended to Reset Factory Defaults after the software update is complete.

• PC-USB: This shows current loaded software version for PC-USB processor.

• SIGNAL SENSE: Checks if a digital audio signal is present on the congured Signal Sense input. When this input is selected as the active listening source, the RA-1572 monitors the digital data stream to determine if there is audio. If there is no audio detected for 10 minutes, the RA-1572 will enter Signal Sense Standby Mode. When in Signal Sense Standby Mode and the RA-1572 detects audio on Signal Sense input, the unit will automatically power on. To disable this function, select the DISABLE option which is the factory default setting. NOTE: To use the Signal Sense function, the RA‑1572 must be actively listening to the configured Signal Sense source. If a source other than the configured Signal Sense source is selected, the automatic power off and power on functions will not be active. Example: if the Signal Sense source is configured as COAX 1 and the unit is listening to OPT 2, the signal sense functions will not be activated. NOTE: When the RA‑1572 enters standby mode via the remote control, the Signal Sense function will not operate until the unit detects the audio has stopped for the minimum 10 minute time‑out period. This prevents the unit from immediately powering back on if there is still active audio playing. NOTE: When the SIGNAL SENSE function is activated, the RA‑1572 will consume additional power in signal sense standby mode.

• FACTORY DEFAULT: This sets the unit back to the original state as when it left the factory. Press the + button on the front panel or RIGHT arrow button on the remote control to select <YES> then press the “ENTER” button on the front panel or on the remote control. NOTE: All previously configured options will be erased and reset to the factory default settings. Troubleshooting Most difculties in audio systems are the result of incorrect connections, or improper control settings. If you encounter problems, isolate the area of the difculty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the RA-1572, refer to the suggestions for the following conditions: Power Indicator Is Not Illuminated The Power Indicator ring around the power button and the basic items in the Display window should be illuminated whenever the RA-1572 is plugged into the wall power outlet and the POWER switch is pushed in. If it does not light, test the power outlet with another electrical device, such as a lamp. Be sure the power outlet being used is not controlled by a switch that has been turned off. Fuse Replacement If another electrical device works when plugged into the power outlet, but the Power Indicator still will not illuminated when the RA-1572 is plugged into the wall outlet, it indicates that the internal power fuse may have blown. If you believe this has happened, contact your authorized Rotel dealer to get the fuse replaced.18 RA‑1572 Stereo Integrated Amplier Specications Continuous Power Output 120 watts/channel (20 ‑ 20k Hz, < 0.03%, 8 ohms) Total Harmonic Distortion < 0.03% (20 Hz ‑ 20k Hz, 8 ohms) Intermodulation Distortion < 0.03% (60 Hz : 7kHz, 4:1) Frequency Response: Phono Input 20 Hz - 20kHz, 0 ± 0.5 dB Line Level Inputs 10 Hz - 100kHz, 0 ± 0.5 dB Damping Factor (20 Hz ‑ 20kHz, 8 ohms) 300 Input Sensitivity / Impedance Phono Input (MM) 2.1 mV / 47k ohms Line Level Inputs (RCA) 270 mV / 100k ohms Line Level Inputs (XLR) 440 mV / 100k ohms Input Overload Phono Input (MM) 32 mV Line Level Inputs (RCA) 4 V Line Level Inputs (XLR) 5.5 V Preamplifier Output Level / Impedance 1.5 V / 470 ohms Signal to Noise Ratio (A weighted) Phono Input (MM) 80 dB Line Level Inputs 100 dB Digital Section Frequency Response 10 Hz - 90k Hz (0 ± 2 dB, Max) Signal to Noise Ratio (IHF ”A” weighted) 100 dB Input Sensitivity/Impedance 0 dBfs / 75 ohms Preamplifier Output Level 1.3 V (at -20 dB) Coaxial/Optical Digital Signals SPDIF LPCM (up to 192k Hz 24 bit) PC-USB USB Audio Class 1.0 (up to 96kHz 24bit) USB Audio Class 2.0 (up to 384kHz 32bit)* *Driver installation required DSD and DoP support. Power Requirements: USA: 120 volts, 60 Hz EC: 230 volts, 50 Hz Power Consumption 400 watts Standby Power Consumption < 0.5 watts BTU (4 ohms, 1/8th power) 810 BTU/h Dimensions (W x H x D) 431 x 144 x 358 mm (17 x 5

ins.) Front Panel Height 3U (132.6 mm, 5
