HIR4 EP8V2 PT - Oven BAUKNECHT - Free user manual and instructions

Features	Details
Oven type	Built-in oven
Capacity	70 liters
Energy	Electric
Energy class	A
Cooking functions	Convection, Grill, Traditional cooking
Maximum temperature	250°C
Control panel	Touchscreen
Dimensions (HxWxD)	59.5 x 59.5 x 56.4 cm
Weight	35 kg
Cleaning	Pyrolytic self-cleaning function
Safety	Safety lock, Cool door
Included accessories	Grill rack, Baking tray
Warranty	2 years

Frequently Asked Questions - HIR4 EP8V2 PT BAUKNECHT

How do I preheat the BAUKNECHT HIR4 EP8V2 PT oven?

To preheat your oven, select the desired cooking mode, set the desired temperature using the control knob, and press \"Start\". Wait for the preheating indicator to light up.

How do I clean the inside of the oven?

Use a mild oven cleaner and a non-abrasive cloth. Apply the cleaner to the interior surfaces of the oven, let it sit for a few minutes, then wipe with a damp cloth.

What should I do if the oven does not heat?

Check that the oven is properly plugged in and that the outlet is working. Make sure the temperature is set. If the problem persists, consult the user manual for additional solutions or contact customer service.

How do I use the steam cooking function?

To use the steam cooking function, fill the water tank inside the oven, select the steam cooking mode on the control panel, then set the temperature and cooking time.

The oven makes a strange noise, what should I do?

Noise can be normal during operation, but if the noise is unusual, check if objects are stuck in the fan. If the noise persists, unplug the oven and contact after-sales service.

How do I set the time on the oven?

To set the time, press the \"Clock\" button and use the \"+\" or \"-\" buttons to adjust the time. Press \"Clock\" again to confirm the settings.

The oven displays an error code, what does it mean?

Error codes usually indicate a specific problem. Consult the user manual to identify the code and follow the appropriate troubleshooting instructions.

How do I use the pyrolytic cleaning function?

To use the pyrolytic cleaning function, remove all accessories from the oven, select the pyrolytic cleaning mode on the control panel, then follow the on-screen instructions to start the process.

The oven does not turn on at all, what should I do?

Check that the oven is properly plugged in and that the circuit breaker has not tripped. If everything seems fine and it still does not turn on, contact a qualified technician.

USER MANUAL HIR4 EP8V2 PT BAUKNECHT

BEDIENKNOPFESKOCHFELDS

A. Kochfeld vorne links.
A. Kochfeld hinten links.
A. Kochfeld hinten rechts.
A. Kochfeld vorrechts.

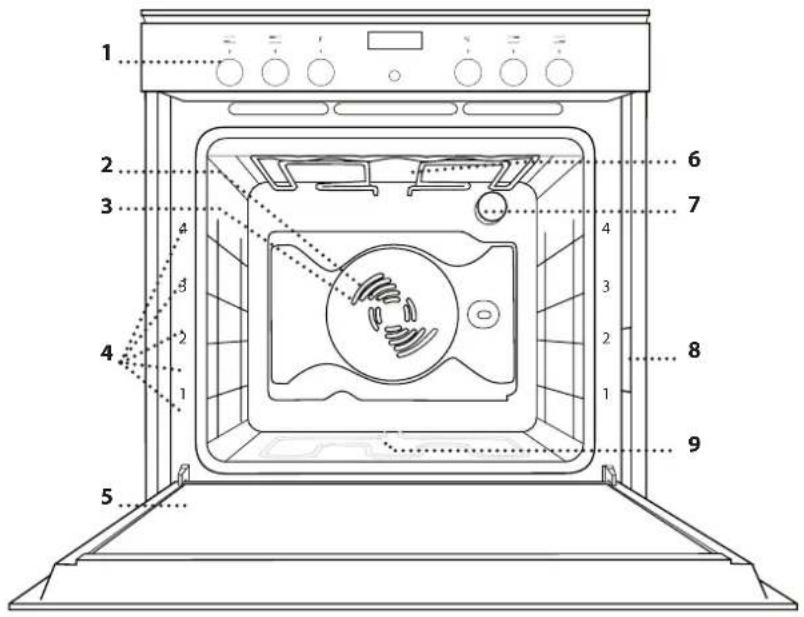

1. Control panel
   2.Fan
2. Circular heating element (non-visible)
3. Shelf guides (the level is indicated on the front of the oven)
4. Door
5. Upper heating element/grill
   7.Lamp
6. Identification plate (do not remove)
7. Bottom heating element (non-visible)

CONTROL PANEL

1234CAB

OVEN CONTROLS

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the 0 position to switch the oven off.

2. DISPLAY

3. SELECTION/CONFIRMATION BUTTON

For confirming a selected function or a set value.

Please note: the display shows for indications regarding this button.

4.ADJUSTMENT KNOB

For scrolling through the menus and applying or changing settings.

CONTROL KNOBS FOR COOKTOP

A. for front left hotplate. B. for rear left hotplate.

C. for rear right hotplate.

D. for front right hotplate.

Please note: all the knobs are retractable. Press the knobs in the middle and they pop up.

The number and the type of accessories may vary depending on which model is purchased. Other accessories that are not supplied can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards

Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

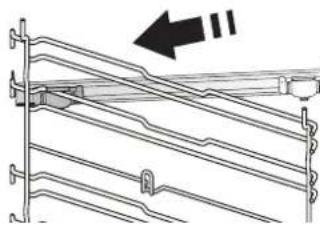

REMOVING AND REFITTING THE SHELF GUIDES

. To remove the shelf guides, remove the fixing screws (if present) on both sides with the aid of a coin or a tool. Lift the guides up and pull the lower parts out of their seatings: The shelf guides can now be removed.

. To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating. Refit the fixing screws.

Please note: The sliding runners can be already mounted on the shelf guides: to remove them, pull outward, releasing first the lower clip.

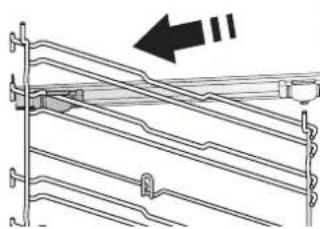

Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.

Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position.

To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level.

Please note: The sliding runners can be fitted on any level.

FUNCTIONS

OFF

For switching off the oven.

LIGHT

To switch the oven light on/off.

SPECIAL FUNCTIONS

DEFROST

To speed up defrosting of food.

WARM KEEPING

For keeping just-cooked food hot and crisp.

RISING

For optimal proving of sweet or

savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

SLOW COOKING MEAT

For slow cooking of meat at 90^

This function offers slow cooking which ensures the food remains tender and succulent. For roast joints, brown in the pan first in order to seal in the meat's natural juices. Cooking times range from 4 hours for 1Kg joints to 6-7 hours for 3kg joints. For optimum results, avoid opening the oven door during cooking and use a cooking thermometer to check the core temperature of the meat.

SLOW COOKING FISH

To cook fish gently at 85^ .This

function offers slow cooking which ensures the food remains tender and succulent. Thanks to the low temperature, the food does not brown on the outside and the end result is similar to steam cooking. Cooking times range from 2 hours for 300g fish to 4-5 hours for 3kg fish. For optimum results, keep oven door openings to a minimum during cooking in order to avoid heat dispersion.

AUTO ECOFORCED AIR*

ECO For cooking stuffed roasting joints and

fillets of meat on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this function is in use, the light will remain switched off throughout cooking but can be switched back on temporarily by pressing the confirm button. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

• Function used as reference for the energy efficiency declaration in accordance with Regulation (EU) No. 65/2014

CONVENTIONAL

For cooking meat or baking cakes with liquid centre on a single shelf.

CONVECTION BAKE

For cooking meat or baking cakes with liquid centre on a single shelf.

FORCED AIR

For cooking different foods that require the same cooking temperature on several shelves(maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500ml of drinking water. The turnspit (if provided) can be used with this function.

SETTINGS

For changing the oven settings (time, language, audible signal volume, brightness, ECO mode).

Please note: When Eco mode is active, the brightness of the display will be reduced and the light switches off to save energy. They are reactivated temporarily whenever any of the buttons are pressed.

BREAD /PIZZA

To bake different types and sizes of pizza and bread. This function contains two programmes with predefined settings. Simply indicate the values required (temperature and time) and the oven will manage the cooking cycle automatically. Place the dough on the 2nd shelf after preheating the oven.

AUTOMATIC CLEANING - PYRO

For eliminating cooking residues with an extra-high temperature cycle. Two self-cleaning cycles are available: a complete cycle and a quick cycle (ECO). It is advisable to use the complete cycle only in case of a very dirty oven, and the shorter cycle if the function is used at regular intervals.

FAST PREHEATING

For preheating the oven quickly.

COOKTOP FUNCTIONS TABLE

0 OFF For switching off the hotplate.

GENTLE HEAT

To allow dough to rise, to soften butter taken from the fridge, to keep baby bottles or food warm, also for making yoghurt, melting chocolate, etc. This function is only available when the residual heat indicator is on. For this function, make sure the residual heat indicator of the desired hotplate is on. Turn the knob to . To deselect the function, change the position of the knob.

HEAT MAINTENANCE

To maintain a constant temperature of 60^ until the end of cooking. To select this function, turn the knob to i.

FAST BOIL

This function is used to bring water to the boil rapidly and remains on for a preset time. At the end of the preset time, the cooktop automatically returns to the maximum power setting. This function can be selected even during cooking. Important: before selecting this function, make sure the pot is positioned on the selected hotplate in order to avoid any damage to the cooktop surface. The stated performance values for this function are those guaranteed for all glass ceramic cooktops. For this function, place the pot on the selected hotplate and turn the knob to To deselect, change the position of the knob.

MULTIZONE

The multizone symbol, featured on the knobs, can only be switched on for those hotplates of the cooktop equipped with double or triple zone function. These functions extend the heating area of the cooktop in order to allow the use of large, oval or rectangular pots or cooking receptacles. To switch on the dual zone (if available), turn the knob to and wait until the residual heat indicator for the hotplate begins to flash. To switch on the triple zone function (if available), wait until the LED begins flashing quickly. Select the power setting required by turning the knob anticlockwise. The residual heat indicator remains on to indicate that the cooktop is in use. To deselect, turn the knob to 0 by turning the knob anticlockwise.

FIRST TIME

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time. ENGLISH will scroll along the display. Turn the adjustment knob to scroll through the list of available languages and select the one you require.

Press the selection/confirmation button to confirm your selection.

Please note: The language can subsequently be changed from the "Settings" menu.

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display

Turn the adjustment knob to set the correct hour and press the selection/confirmation button: the minutes will flash on the display.

Turn the adjustment knob to set the minutes and press the selection/confirmation button to confirm

Please note: You may need to set the time again following lengthy power outages.

3. SET THE POWER CONSUMPTION

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3kW : If your household uses a lower power, you will need to decrease this value.

Turn the selection knob until " SETTINGS" is shown on the display, then press OK to confirm.

Turn the adjustment knob to select the "POWER" menu item and press OK to confirm.

Turn the adjustment knob to select "Low" and press OK to confirm.

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: This is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 200^ for around one hour, ideally using a function with air circulation (e.g. "Forced Air" or "Convection Bake").

Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

DAILY USE

1. SELECT A FUNCTION

Turn the selection knob to switch on the oven and show the function you require on the display: The display will show the icon for the function and its basic settings.

To select an item from the menu (the display will show the first available item), turn the adjustment knob until the item you require is shown.

Press the selection/confirmation button to confirm selection: the display will show the basic settings.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings.

The display will show the settings that can be changed in sequence.

TEMPERATURE/GRILL LEVEL

When the value flashes on the display, turn the adjustment knob to change it, then press the selection/ confirmation button to confirm and continue to alter the settings that follow (if possible).

Please note: Once the function has been activated, the temperature can be changed using the adjustment knob. DURATION

When the icon flashes on the display, use the adjustment knob to set the cooking time you require and then press the selection/confirmation button to confirm.

You do not have TO set the cooking time if you want to manage cooking manually: Press the selection/ confirmation button to confirm and start the function. In this case, you cannot set the end cooking time by programming a delayed start.

SETTING THE END COOKING TIME (DELAYED START) In many functions, once you have set a cooking time you can delay starting the function by programming its end time.

The display shows the current end time that is set and the icon flashes.

Turn the adjustment knob to set the time you want cooking to end, then press the selection/confirmation button to confirm and start the function.

Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table.

Note: Delay to start functionality is not available for Grill and Turbo Grill functions.

During the waiting time, you can use the adjustment knob to amend the programmed end time.

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press the selection/confirmation button to confirm the time that cooking will end and activate the function.

Please note: Once cooking has started, the display will recommend the most suitable level for each function.

You can turn the selection knob to 0 to pause the function that has been activated at any time.

.FAST PREHEATING

Turn the selection knob to the symbol to select the fast preheating function and confirm by pressing the selection/confirmation button: the settings are shown on the display. If the proposed temperature is that desired, press the selection/confirmation button. To change the temperature, proceed as described in previous paragraphs.

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature.

At this point, open the door, place the food in the oven, close the door and start cooking.

At the end of preheating, the oven automatically selects the conventional function: If you wish to set a different cooking function, turn the selection knob and select the desired function.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using the adjustment knob.

5.END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

Press the selection/confirmation button to continue cooking in manual mode (without a programmed cooking time) or turn the adjustment knob to extend the cooking time by setting a new duration.

BROWNING

Some functions of the oven enable you to brown the surface of the food by activating the grill once cooking is complete.

When the display shows the relevant message, if required press the selection/confirmation button to start a five-minute browning cycle.

You can stop the function at any time by turning the selection knob to 0 to switch the oven off.

.TIMER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and turn the adjustment knob: The icon will flash on the display.

Turn the adjustment knob to set the length of time you require and then press the selection/confirmation button to activate the timer. An audible signal will sound and the display will indicate once the timer has finished counting down the selected time.

Please note: The timer does not activate any of the cooking cycles. Use the adjustment knob to change the time set on the timer; turn the selection knob to t0 switch the timer off at any time.

COOKTOP OPERATION

(see the instructions supplied with the cooktop).

The oven control panel features 4 adjustable knobs for cooktop operation.

The cooktop control knobs are marked with a numerical scale corresponding to different power settings, and a series of function symbols.

Please note: The multizone function can only be switched on for the double and triple hotplates of the cooktop.

• Turn the control knob of the relevant hotplate clockwise to the desired power setting.

COOKING TABLE

RECIPE FUNCTION PREHEAT.			TEMPERATURE (°C)	COOK TIME (Min.)	LEVEL AND ACCESSORIES
Leavened cakes		Yes 160 - 180 30 - 90			2
		Yes 160 - 180 30 - 90			3 1
Filled cakes(chesecake, strudel, apple pie)		Yes 160 - 200 30 - 85			2
		Yes 160 - 200 35 - 90			3 1
Biscuits / Tartlets		Yes 170 - 180 15 - 45			3
		Yes 160 - 170 20 - 45			3 1
Choux buns		Yes 180 - 200 30 - 40			2
		Yes 180 - 190 35 - 45			3 1
Meringues		Yes 90 110 - 150			2
		Yes 90 130 - 150			3 1
Bread / Pizza / Focaccia		Yes 190 - 250 15 - 50			2
		Yes 190 - 250 25 - 50			3 1
Bread		Yes 180 - 220 30 - 50			2
Pizza		Yes 220 - 250 15 - 30			2
Frozen pizza		Yes	250	10 - 15	2
		Yes	250	10 - 20	3 1
Savoury pies(vegetable pie,quiche)		Yes 180 - 190 35 - 45			2
		Yes 180 - 190 45 - 60			3 2
Vols-au-vent / Puff pastry crackers		Yes 190 - 200 20 - 30			2
		Yes 180 - 190 20 - 40			3 1
Lasagne / Baked pasta /Cannelloni / Flans		Yes 190 - 200 45 - 65			2
Lamb / Veal / Beef / Pork 1 kg		Yes	190 - 200	70 - 100	2
Chicken / Rabbit / Duck 1 kg		Yes	200 - 230	50 - 100	2
Turkey / Goose 3 kg		Yes	190 - 200	80 - 130	1 / 2
Baked fish / en papillote(fillets, whole)		Yes 180 - 200 40 - 60			2
Stuffed vegetables(tomatoes, courgettes, aubergines)		Yes 180 - 200 50 - 60			2
Toast		-	3 (high)	2 - 5	4
Fish fillets / Steaks		-	2 (medium)	20 - 35	4 3
RECIPE FUNCTION PREHEAT.			TEMPERATURE (℃)	COOK TIME (Min.)	LEVEL AND ACCESSORIES
Sausages / Kebabs / Spare ribs / Hamburgers		-	2-3 (medium-high)	15 - 40	4 3
Roast chicken 1-1,3 kg		-	2 (medium)	50 - 65 *	2 1
Roast beef rare 1 kg		-	2 (medium)	35 - 45 *	2
Leg of lamb / Shanks		-	2 (medium)	60 - 90 **	2
Roast potatoes		-	2 (medium)	45 - 55**	2
Vegetable gratin		-	3 (high)	10 - 15	2
Lasagna & Meat		Yes	200	50 - 100 ***	3 1
Meat & Potatoes		Yes	200	45 - 100 ***	3 1
Fish & Vegetables		Yes	180	30 - 50 ***	3 1
Stuffed roasts	ECD F AFO ECO	-	200	80 - 120 ***	3
Meat pieces (rabbit, chicken, lamb)	ECD F AFO ECO	-	200	50 - 100 ***	3

• Turn food halfway through cooking.
  Turn food two thirds of the way through cooking (if necessary).
  * Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
  Download the Use and Care Guide by visiting the website docs.bauknecht.euto consult the table of tested recipes filled out for the assessment institutes in accordance with the IEC 60350 - 1 standard.

FUNCTIONS	Conventional	Grill	TurboGrill	Forced Air	Convection Bake	Bread / Pizza	Eco Forced Air
ACCESSIONS	Wire shelf	Cake tin on wire shelf	Drip tray / baking tray or cake tin on wire shelf	Drip tray	Drip tray with 500 ml of water	Baking tray

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth.
• If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To

dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.

• Clean the glass in the door with a suitable liquid detergent.
• The oven door can be removed to facilitate cleaning.

ACCESSIONS

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

CLEANING THE COOKING COMPARTMENT WITH THE PYRO CYCLE

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle.

This function enables you to eliminate cooking spatters using a high temperature. At this temperature, food residues turn into deposits that can be easily wiped away with a damp sponge once the oven has cooled down.

If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched off while running the self-cleaning cycle.

Remove all accessories from the oven before running the Pyro function (including the shelf guides).

For optimum cleaning results, remove excessive residuals inside the cavity and clean the inner door glass before using the Pyro function.

Then oven has two different pyrolytic cleaning functions: the complete cycle provides for a thorough cleaning if the oven is extremely dirty, while the quick cycle (ECO) is shorter and consumes less energy, thus making it suitable for use at regular intervals.

Only run the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking. Please note: The oven door cannot be opened while pyrolytic cleaning is in progress. It will remain locked until the temperature has returned to an acceptable level.

Ventilate the room during and after the pyrolytic cleaning cycle (until the room has been completely aerated).

REPLACING THE LAMP

1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb and screw the cover back on the light.
3. Reconnect the oven to the power supply.

Please note: Only use 20-40W/230 V type G9, T300°C halogen lamps. The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service.

• If using halogen bulbs, do not handle them with your bare hands as your fingerprints could cause damage. Do not use the oven until the light cover has been refitted.

REMOVING AND REFITTING THE DOOR

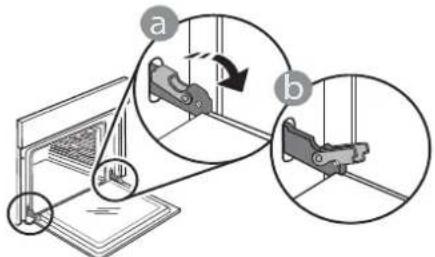

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

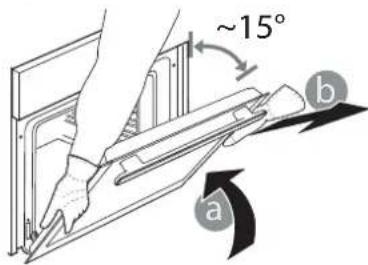

1. Take a firm hold of the door with both hands - do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

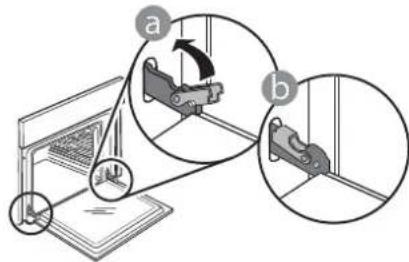

2. Lower the door and then open it fully. Lower the catches into their original position: Make sure that you lower them down completely.

Apply gentle pressure to check that the catches are in the correct position.

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.

TROUBLESHOOTING

Download the Use and Care Guide from docs.bauknecht.eufor more information

Problem Possible cause Solution
The oven is not working. Power cut.	Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.
		Turn off the oven and restart it to see if the fault persists.
The door will not open. Cleaning cycle in progress. Fault with the door lock.	Wait for the function cycle to end and the oven to cool down.	Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number.	Software problem. Contact you nearest Client After-sales Service Centre and state the number following the letter “F”.

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook various different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably dark-coloured metal cake tins and baking plates. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.

COOKING DIFFERENT FOODS AT THE SAME TIME

Using the "Forced Air" function, you can cook different foods which require the same cooking temperature at the same time (for example: fish and vegetables), using different shelves. Remove the food which requires a shorter cooking time and leave the food which requires a longer cooking time in the oven.

DESCRIPTION DU PRODUIT

65° MAINTIEN AU CHAUD

ROOSTER OPVANGBAK BAKPLAAT

SCHUIFRAILS (INDIEN AANWEZIG)

(ALLEEN BU BEPAALDE MODELLEN)

WERKING VAN DE KOOKPLAAT

(SOLO IN ALCUNI MODELLI)

3JEMEHTbI YNPABJEHNA DYXOBKN

1.PyUKA BblBOPA

BkIIOueHne dyXOBKn nyTem BbIbopa pexKIma. YTo6bl BbIKIOuHTb dyXOBKy, NOBepHnTe pyKy B noJoxHe 0.

2.ДИСПЛЕI

3.KHONKA BbIbOPA/ NOITBEPKDEHIN

IoiTBepeKxJeHne Bbl6opa pexnMa nnHaCTpOKn.

PnmuMeaHHe:Yka3aHn, KacaIOuIeCe DaHHoN KHOpKn, COpOBoXdaiOTcR CmBOJOM Ha DCnnee.

4.PUyKAPErYJINPOBKN

IpepeMeueHne MeJy nyHKtAmn MeHIO, npImeHeHne nn n3MeHeHne HaCTpoEK.

PUGCNYPABLEHBAPOUHOI PAHEJIbIO

A. nepenHna leBa 30Ha HarpeBa. B. 3aHnHa neBa 30Ha HarpeBa. C. 3aHnHa npBa 30Ha HarpeBa. D. nepenHna npBa 30Ha HarpeBa.

PpmeHHe: Bce pyKn ABJIOCTc yTaNINBaEMbIMN. YTO6bBbIDBNHyTb pyKy, HaxMnte Ha ee ueHTp.

PEWETKA NOIDOH BCTABHOI POTIBEHB

TELECKONNUECKNE HANPABJIOUUE (IPN HAIJUNI)

KoHecTBO N TIN npHaJnxHoCTe MoKeT BapbIPOBaTbCBy 3aBNCIMOCn OT npNo6peTeHHoM OMeJI. He BxOJaIeB KOMnEeK Tnp6opAp npHaJnxKHOCTN MOKHO npNo6peCTN OTJeBHO B CepBnCHOM LcHTpe.

YCTAHOBKA PEWETKIN IpyuNXIPIHADJIEXHOCTEIN

BctabBepeWetkyropn3oHTaJIbHO BdepxKaTeNpacnoIarag ee TaK,TO6bl npnOHaTbIe Kpa 6bln06paueHb BBepx.

Дугпе пинадлжноCTи, takne KaK NOДоH IN npOTnBEHB, BCTaBnIOTc rOpN3OHTaJIbHo TEM JKe cnOCo6OM,чTo n peWeTka.

CHATNE N YCTAHOBKA DEPKATEJEI NOJOK

.ДяСЯТЯДерхаTeEN NOJOK BbIBePHIne YdepKnBaOuNc BnHTbI (pnpHaJIuHn) C O6Enx CTOpOH, NcNoJIb3yMa MOHeTy nIN INHCTpyMeNT. IOnHMnTE DePxxaTeB nN3BNeKeTne HIXHHIO uAcTb n3 rHe3da.Tenepb DePxxaTeEN NOJOK MoXHO BbHyTb.

YCTAHOBKA TELECKONNUCHEKNX HANPABJIOUX

(TOJIbKO B HEKOTOPbIX MOJENIAX)

PnmeHHe:TeeckOnuueckne HappaBIOUne MoryT 6bTy b yKe yCTaHOBNeHbHa DepkaTeN NOLOK: Dn CHrTIN HaPaBnIOxN NotAHnTE INX B HappaBJeHN HApxy, OTOeINHB HxHKn 3aKIM.

BbHbTe DepeKaTeN NOJOK N3 DyXOBKn I CHIMNTe PnactIKOByIO 3aunTy C TeNECKONNuYeCKNX HappaBIAIOxN.

3akpeNTe BepxHn
3aKIM HappaBnaOuei
Ha dePkaTeI NOIOK n
CdBnHbTe ee Brny6b Do
ynopa. OnyCTnte BTOPO
3aKIM B npedymOTpeHHoe
noJoxHe.

YTo6b3aKpeNTb
depXaTeJIb, CnIbHO
HaXMMte Ha HxHIOU qAcTb
3aXIMa B HApabJIeHN
OT dEpXaTeJIa NOLKn.
Y6eINTEcB, yTO NOdBxHna
yactb HAnpAbJIoUeJ
MOKeT CBO6OJHo
Nepemeuatbc. NOBtOpnte
3Tu Ke DeJCTBnA DnA

BTOPOO DepkaTeNa NOOK Ha TOM Xe ypOBHe.

PpmeaHne:TeeckoNueeCKne Ha npablaIOuIe MoryT KpeiNbCra Ha IIO6OM yPoBHe.

OFF (BblKJI.)

BbIKIoueHne dyXOBKn.

LIGHT (CBET)

BkIoueHne/BBkIIOueHneOCBeUeHnnyxOBKn.

CNEUAlbHbIE PEXKIMbl

BEFR0AUTO

DEFROST (PA3MOPAXKUBAHNE)

PexkumДЯ уckopeHHoro

pa3MopaxnBaHn npOdyKToB.

WARM KEEPING (COXPAHEHNE TENIIA)

PexkM, no3BOJALIOUcN coXpaHrB bKO yTO nprirotobnHeHHbIe 6nOda.

RISING (ПОДьEM TECTA)

Pekim, oecpeuBaOuN

ONTUMaJIbHbIe yCNOBnДЯ NODbemTa TcTa.ДЯ NOnyueHnKaYeCTBeHHOro TeCTa He NcNoJIb3yIte peXm,ecnDyXOBKa He OCTbIJa NocJe nprirotobHeHn.

SLOW COOKING MEAT (TOMJIEHNE MRCA)

Pekm dme MeHHeHOr npuroToBneHnMa c npTtemepaType 90°C. Pnp npuroToBneHn C nCnoJb3OBAHNem 3TOrO pexm npOyKtbi OCTaOTc HxNbIMn u CoHyBMn. Pnp npuroToBneHn XapKoro cNepBa o6XapBeMraHo cKOBoPOde, yTO6bl B HEM coXpaHnncb eCTeTBHeHbIe cOKn. Bpem npuroToBneHn BapbnpyETc8 OT 4 cAcob dJa KycOB Mca Becom 1 Kr Do 6-7 cAcob dJa KycOB Mca Becom 3 Kr. DJa NOnyuHnHaHnUyUnx pe3yJbTaTOB CTapaNTecb He OTKpbIBaTb DBepuy DyxOBKn BO Bpem npuroToBneHn. IcNoJb3yIte cneuaJIbHbI TepMometp dJa N3MepeHn BHyTpHeHn TemepaTypbl MaCa.

SLOW COOKING FISH (TOMJIEHNE Pbl5bl)

PexnIM dIy MeIeHHO npiroTOBHeHn py6bl npn TempeType 85 ^ C .Pn npiroTOBHeHn c nCNOb3OBaHNem 3TOro pexnMa npOyKtbl OCTaOTc HxHBIMn COHyBMn. BlaOapra Hn3KOJ TemnepaType 6NIO He NOpymAHBaETc CahyKn IN KOHeuHb pe3yNbTaT CXOJeH CTEm, KOTOpbl NOnyuaTc npn npiroTOBHeHn Ha napy. Bpem npiroTOBHeHn BapbnpyETc oT 2 Yacob dIy pb6bl BECOM 300 rdo4-5 Yacob dIy pb6bl BECOM 3 Kr. DnA NOnyuHn HauNyUwNx pe3yNbTaTob CTapaNTecb KaM OMOHPOpe OTkpBaTb DBepuy DYXOBKn BO Bpem npiroTOBHeHn BO n36ExaHne pacceuBAHNr Tenla.

ECO F ECO FORCED AIR* (KOHBEKLUNA KO)

PexmIa3aneKaHnApaHnpoBaHHoro McaNMCbIX HnHe Ha ODHOM yPOBHe.

ДeикathяперьИстаяцрк�лсьвOSTуха npedotbpaaaetpepecuWbAHne npodyktob.В npocece npnroTOBLeHn6blD bdaHHOM pexKIme lamna dYxOBKn He rOpnt B celenx 3KOHOMn 3NeKtpo3HeprIn. Ee moXHo Ha BpemBaKlIOUHTb, Haxkab KhoNky noDTBepKdEHN.

IpnncnoJb3ObaHnpeXnMa ^ npedymatpnbauoero ONTUMN3aunO 3Hepronotpe6JeHna,DbepcaDyXOBKn DOnjKa octabaTcBc3aKpbToI Do Tex nop, noka 6JIOHO He 6ydet nonHoCTbIO roTOBO.

CONVENTIONAL (ObIyHbI)

Pexm dI npiroTOBHeM MaCa N BbInKeHn HnnporOB C MArKOHaunHKo Ha OdHom ypOBHe.

CONVECTION BAKE (KOHBEKLIOHHOE BbIIEKAHNE)

Pexm dI npiroTOBJIeHn Mca n BblKeHaHn NnporOB C mIrkOHaunHKo Ha OJHom ypOBHe.

FORCED AIR (KOHBEKLUN)

PekmДЯ npuroToBHeH6Iou npuOHaKOBoTemNepaType cpa3y Ha

HeckoIbKnx ypoBHX (He 6Oone Tpex).3ToT peXIM N03BOJnEe OndHOBpeMeHHo rTOBnTB pa3HbIe 6nIOda 6e3 nepeHoCa 3aNaXOB c OndHO Ha dpyroI.

GRILL (ΓPηMb)

PexnIM nI npiroTOBHeHna rpuJe 6nΦwTeKcOB,waunbIka,KoN6acOK,OBOUhbIX 3aIeKaHOK uXne6hBx TOCTOB.PpI npiroTOBHeHn MraCa Ha rpuJe peKOMeHdyETca NCNoNb3OBA Tb NOdoH dIy c6opa coka:Pa3MeCTnte NoDoH Ha IIObOM yPOBHe noI peWetKoH,HaINB B Hero 500 mI NITbeBOI BObl.

TURBO GRILL (TYP60FPTnIb)

PexnM nJxKapKn KpyNHbIX KyCKOB
mca (poct6nΦ, 6apaHbN HOXKN, ubiInlraT).
PekomeHnyetc uCNOB3OBA Tb NOdOH dNc6oPa
cOKOB. Pa3MeCTnte NOdoH NaIO6OM ypOBHe NOd
peWetKo, HAnuB B Hero 500 Mn NtBeBOB BObl. B
3TOM pexnme MoXHO NoIb3OBA TbCBa BepTeJOM (npn
HaNuyn).

SETTINGS (HACTPOIKN)

N3MeHeHHe HAcTpoeK DyXOBKN (aacbl, 3bIK, rPOMKOCTb 3ByKOBOrO CnIHana, RpKOCTb, peKIM "3KO").

PnmeHn: Pn deNCTByoIepeXnme"3KO npKoCTb Dcner CHxKaetc nOCBeueHne dYXOBKn BIKIOaETC B ceJAX KOHOMnn 3NeKtpO3Heprnn. NcJIeN nOCBeueHne BpemHo BKIOuayIOcT pnp HaxaTN IIOBOI KHONK.

TABJIUCA PEXKIMOB BAPOCHOH PAHEJI

BREAD / PIZZA (XJIe6 / NIIuCA)

PexnIM nI npiroTOBHeHnXle6o6yIoUhbx
n3deHn nPiuCbI pa3NnuHoro BnA n pa3Mepa.B
ETOM pexnime npedyCMOTpeHO DBe CTAHpTbIe
nporpAMMbI. IocTaToUHO yKa3aTb HyxHbIe 3HaueHnra
(temnepaTyPy n Bpem) n B dyXOBKe 6ydet
ABTomatunueckn Bbl6paH ONtUmalhbHn pexnIM
npiroTOBHeHn. YcTaHOBnte TecTo Ha 2-ynypObeH,
npedBaPnteHn nporpeB dYxOBky.

AUTOMATIC CLEANING - PYRO (ABTOMATUHECKA ONUCTKA - PYRO)

YcTpaHHeNcOCTaTKOB NnC NOMOuBb BbICOKOTempeAtypHOro uKNa.IpeDyCMOTpeHO Dba pa3nUHybIX uKNa cAmooUcTKn:NoHbI uKIn 6bICTpbI uKn ("3ko").NoHbI uKn peKOMeHdyETcBblONHrTb,ToIbKO eCnn dYXOBKa CnIbHO 3aRp3HeHa,60nee KOpOTkn-ecn daHHa fYHKcua BblONHReTcpeYlnpHo.

FAST PREHEATING (BbICTpbl HAPPEB)

Быстpbи пpeдварnteьнн HarpeB dYxOBKn.

OFF (BblKJI.)

BbIKIouHeHne 3OHbI HarpeBa.

GENTLE HEAT (UADJH HAPEB)

Pekn m nnojema TecTa, pa3mrgehn CInBouHOro MaCna nXOJOnuJIbHNiKa, noepxHaNr TeNblIMn DetCKOro NtAHn i 6yTBIOueK, npiroTOBHeHnry IorgypTob, pactaINBaHn rWokolada n np. DaHHbI peKm IOCTypeH ToIbKO npri ropAeM INHdkaTope octatoHoro Tenla. YTo6blncNoJIb3OBaTb peKm, y6eINTecb, YTO HnDKaTOP octaTOUHO rTeNla BbIbpaHHo30hHi HarpeBa rOpNT. NobepHnte pyky Ha .YTo6bl OTMeHHTb BbIbOp peKmA, n3MeHnte nOLOKeHne pykN.

HEAT MAINTENANCE (IOДЕРЖAHNE TEMNEPATypbl)

Iopdepxahne noctoHHHou TemnepaTypb60° Cdo 3aBepweHn npiroTOBneHn. YTo6b BbI6paTb 3TOT pexm, NOBepHnTe pyky Ha n

FAST BOIL (БыICTРАВAPKA)

DaHHbI pexnM NO3BOJare 6bICTPO DOBODNTB BDO KINHeH N C NocJeDyUoH N OndepXaHneM TemnepaTpyb B TeueHne 3aHaHoro BpeMeH. No IcTeueHn 3aHaHHO BpeMeH BapOuHaN aHEnb ABTomatueeCKN BO3BpaAaETC K HAcTpoKe MaKcMaJIbHO MOuHOCTN. 3TOT peXm MoxHo Bbl6pTaB N B npouce CnpuroBoHneH N u. BaxHo: Pepd Bb6Opom pexnMa y6eHntecb, YTO Ha COOTBcTByUoSe 30He HarpeBa IMeETc KaCTpION. B npotNBOM cNyae BO3MOxH NOBpeXdeHne NOBepxHO BabOuHO NaHeN. Pa6Oue NOKa3aTei DJa DAHHOro peXnMa COOTBeTCTBYOT Tem, KOTOpbIe IMeOTcY BCEx CTeKNoKepaMNUeCKNX BapOuHbIX NaHeIe. DJa NCnOLb3OBaHnR peXmnaocTabbTe KAcTpIO Ha BBb6paHHyO 3OHy HaPeBa INOBepHIne pykHy Ha. DJa OTMeHbI N3MeHIne NOLOKeHne pykN.

MULTIZONE (OBbEINHEHNE 3OH)

CnMBOI 06beHHeHna 3OH,paCNoLoKeHHbI Ha pyKax,3aTogapaeTcTolbKO B TOM Cnyae,ecnBbl6paHNaHa HArpeBa BApOuHO NaHenl NOdepXnBaET yHKUIO DBOHNO Nn TPOHNO 30Hb.I DaHHbIE yHKUIN No3BOJAO TObeHNHTb HECKoNko 30H HArpeBa BOHy O6uyo 3OHy dNRA BO3MOxHOCTN NCNOJB3OBAHNA KpyHNO NocyDbI OBaJIbHO Nn PnPmOyTOBHO FOpMb.I YTo6bIBKIIouHTb yHKUIO DBOHNO 30Hb (ecnnpedymoTeHa NOBepHnTe pykHa n DOxDITcB MURHNA INDnKaTOPa OCTaTOHOROTenla Ha 3OHe HArpeBa. YTo6bIKNIOHTb yHKUIO TPOHNO 30Hb (ecnnpedymoTeHa,DOxDITcB Ha7aHa cAToR OMRAnra INDnKaTopa.Bbl6epNTe Tpe6yEmbl yPoBeHb MOuHOctn, NOBepHyB pykPy npOTNB uACOBn CTpeKN.NHDNKATOP OCTaTOHOROTenla HaHHT RoPeTB HenpepbIBHO,yKa3bIBaYTO BApOuHa NaHENb INCNoB3yeTcN.Dn OTMeHBI NOBepHnTe pykPy npOTNB uACOBn CTpeKN Ha 0 .
