USER MANUAL ME610130 MOULINEX

Technical line drawing of a kitchen feeder with handle and screw, no text or symbols present

Technical diagram of a food cleaning machine with labeled components and warning indicators

*(в зависимости от модели) - *(залежно від моделі) - * (/лгіге байланысты) - * دسترسی بستگی به سبک دارد - مُتوفّرّة حسب MongoDBيل *availability depends on model - *selon modèle - *según el modelo - *consoante o modelo - *secondo il modello - *ανάλογα με το μοντέλο

!! 2 1 1.1.2

3 4 1.2

1 2 2

1 2 3

1 2 3 4

Illustration showing food processing steps with labeled arrows and warning symbols

Mechanical assembly diagram showing gear and shaft components with directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical device with labeled parts and warning symbol, including warning labels and numbered arrows.

1 2 3 8

1 2 9

1 2 3 10

2 1 11

Diagram illustrating food preparation steps with icons for breakfast, lunch, and cutting, showing a gear shift and waste disposal.

1 2 13

1 2 1 3 14

Diagram illustrating mechanical assembly with labeled parts and directional arrows, including crossed strips and a cross symbol.

1 2 16

1 2 3 17

1 2 18

Illustration of a hand operating a mechanical device with arrows indicating motion or assembly (no text or symbols)

Diagram showing a hand operating a device with lock and switch controls, labeled with number 20

2 O I !! 1 21

Illustration of a hand pouring food into a blender with a bowl of beans, no text or symbols present

2 1 C1e C1d 23

"click" 242

1 2 25

Illustration of a hand using a hairdryer to clean or adjust a surface, with a magnified inset showing a crossed-out device (no text or symbols present)

Diagram illustrating a mechanical process with labeled components and warning symbols, including a valve mechanism and a warning sign.

Illustration of industrial machinery components with a numbered arrow indicating process (no text or symbols present)

Illustration of a kitchen appliance with exploded view and component details (no text or symbols)

Illustration of a hand pressing down on a small kitchen appliance with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with gears and components, no text or symbols present

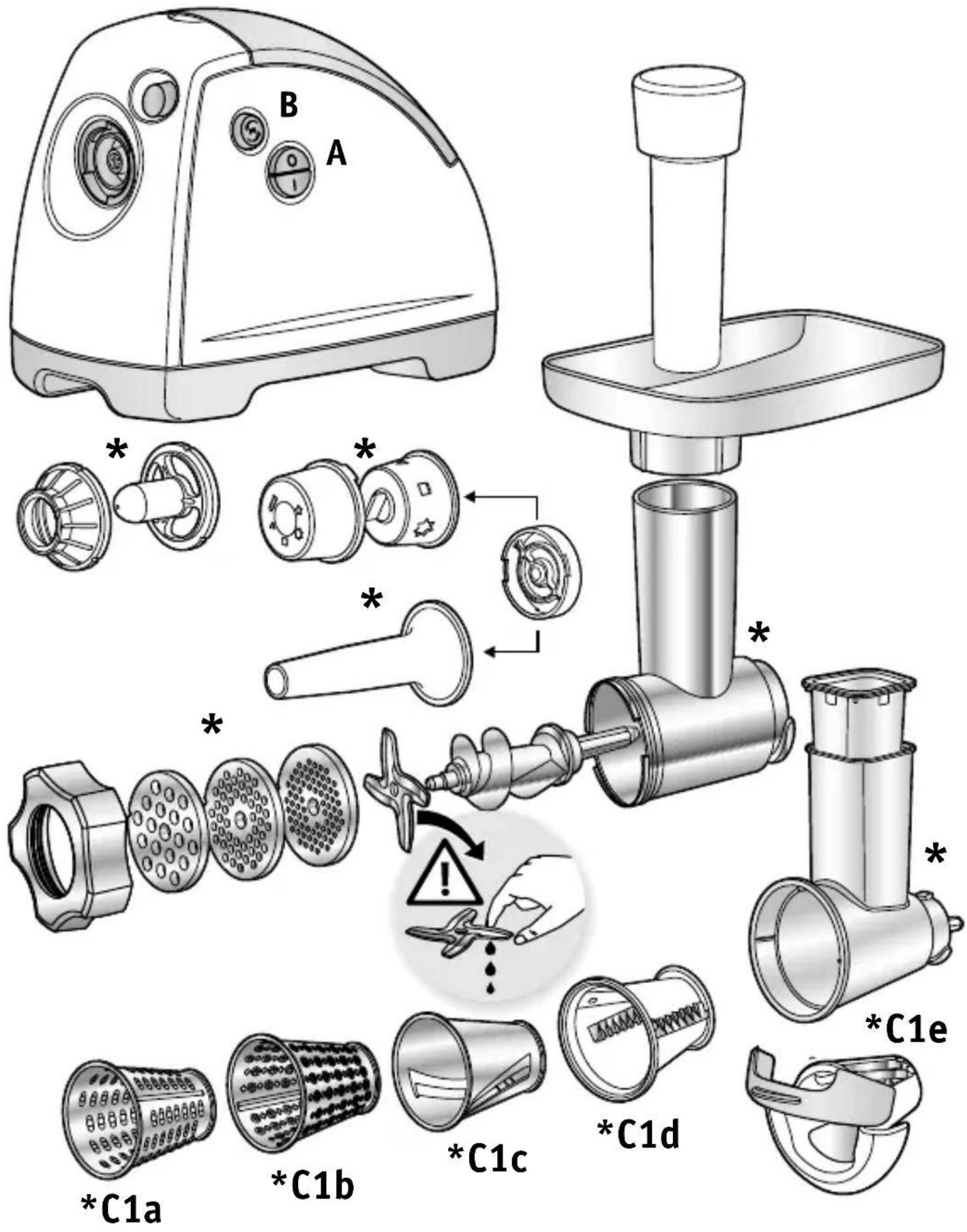

	C1a C1c C1b C1d + C1E
	×		×	×
	×		×	×
	×		×	× [IMAGE]
	×		×	×
	×		×
			×	×
			×	×
			×
			×	×
			×	×
	×		×	×
		×
	×		×	×
	×	×
		×
		×
		×

Caution : safety instruction booklet LS-123456 is supplied with the appliance.

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Wash all accessories in warm water and washing up liquid. Rinse and dry carefully. Do not put these parts into the dishwasher.

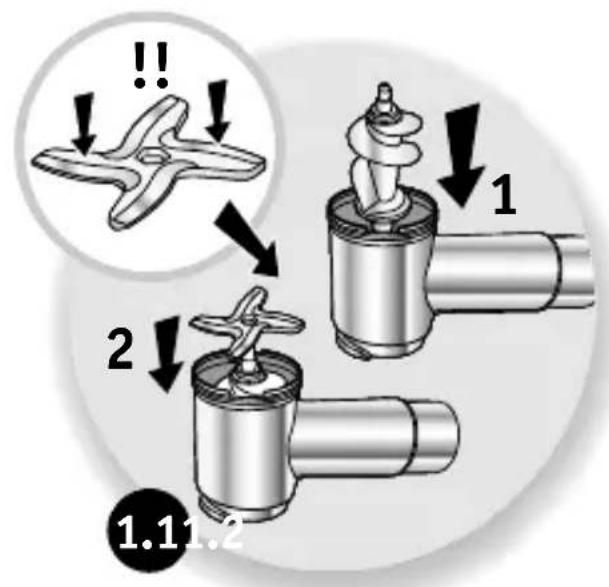

The screen and blades must be kept lubricated. Apply a little culinary oil to them.

Do not run the appliance empty if the screen has not been oiled.

WARNING! Handle the drums carefully as the blades are extremely sharp.

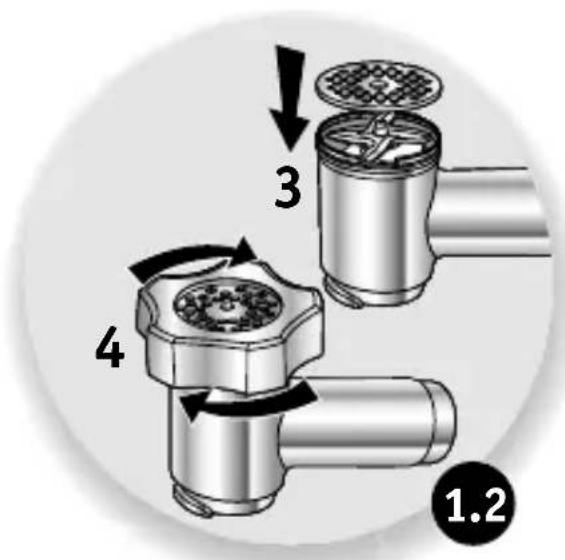

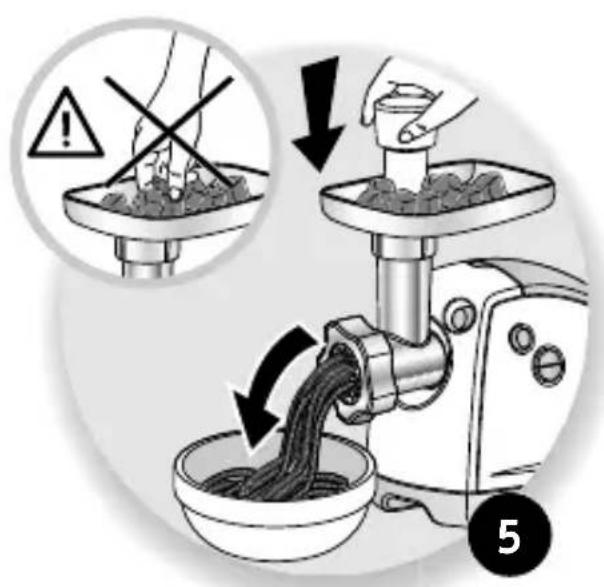

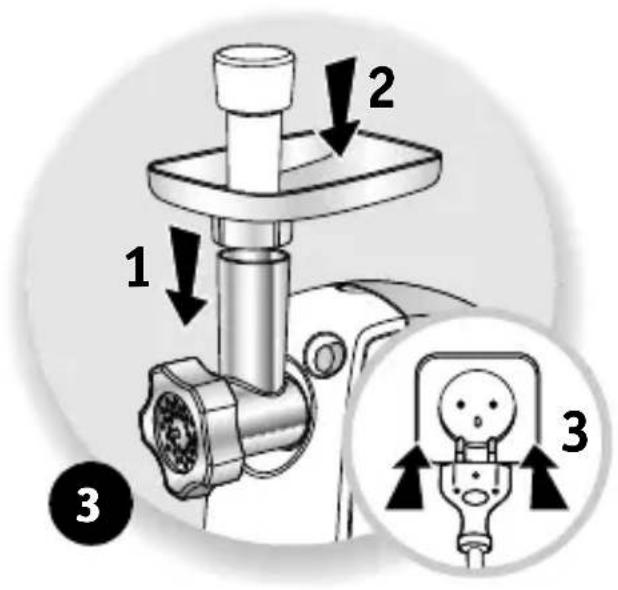

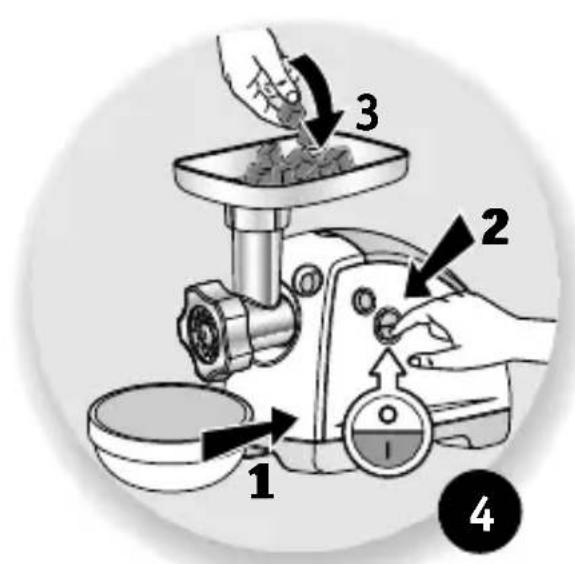

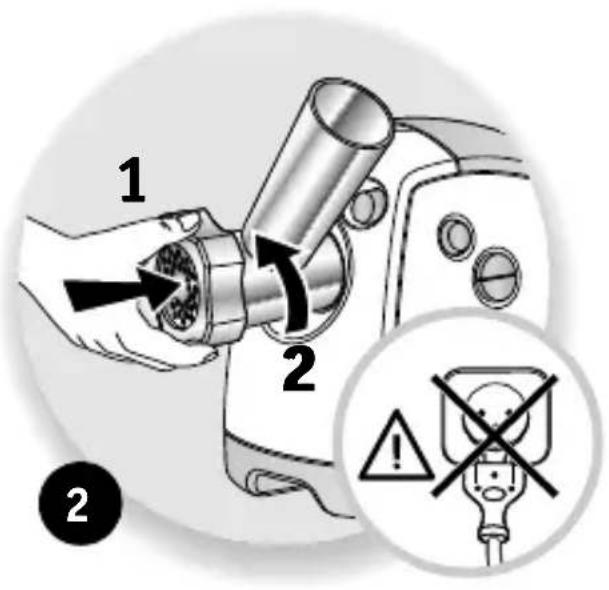

USE: MINCER HEAD

$$ 1 - 2 - 3 - 4 - 5 $$

Prepare all the food you wish to mince, removing any bones, cartilage or nerves. Thaw frozen food completely before mincing.

Cut the meat into pieces (approximately 2 cm x 2 cm).

Tip:

When you have finished mincing put a few pieces of bread through the mincer to push out all the meat.

What should you do in the event of a blockage?

Stop the mincer by pressing the "0" position on the start/stop button A.

Then press the "Reverse" button B for a few seconds in order to clear the blocked food.

Press position "I" on the start/stop button A to continue mincing.

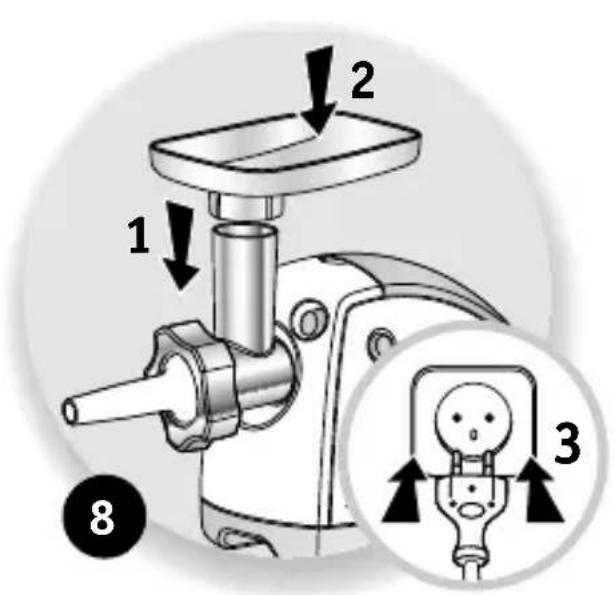

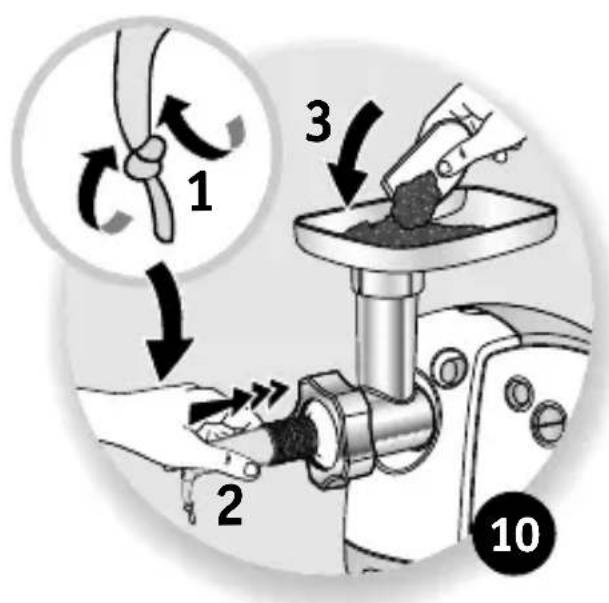

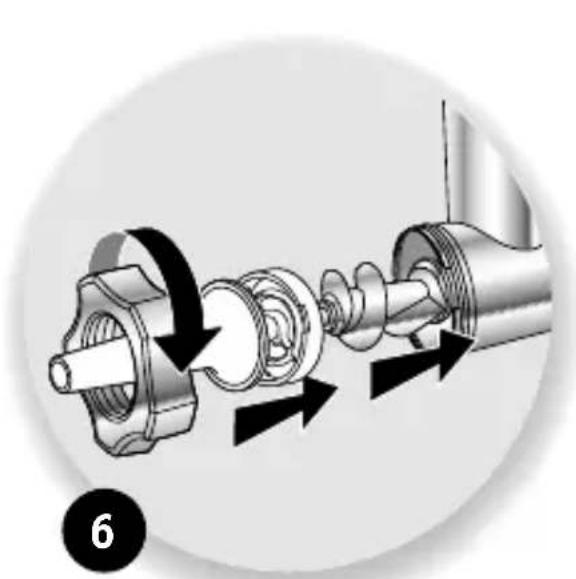

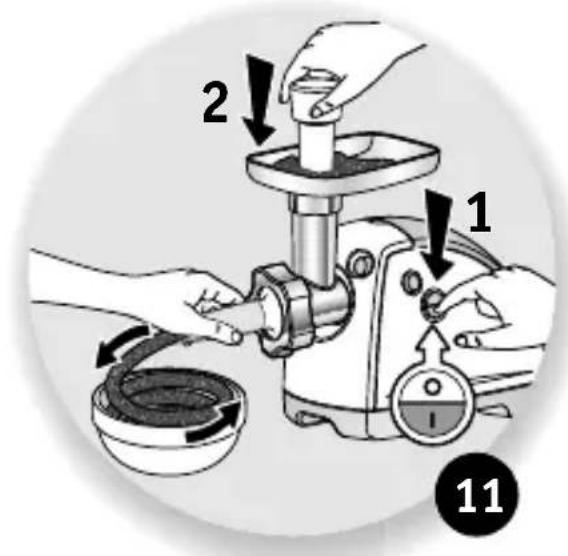

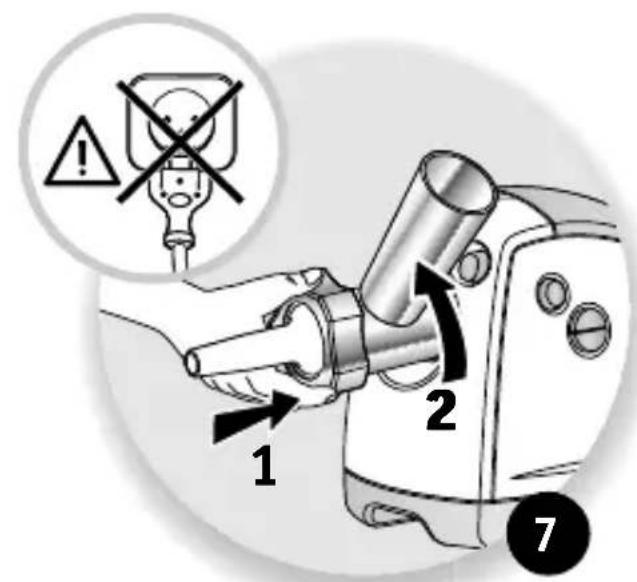

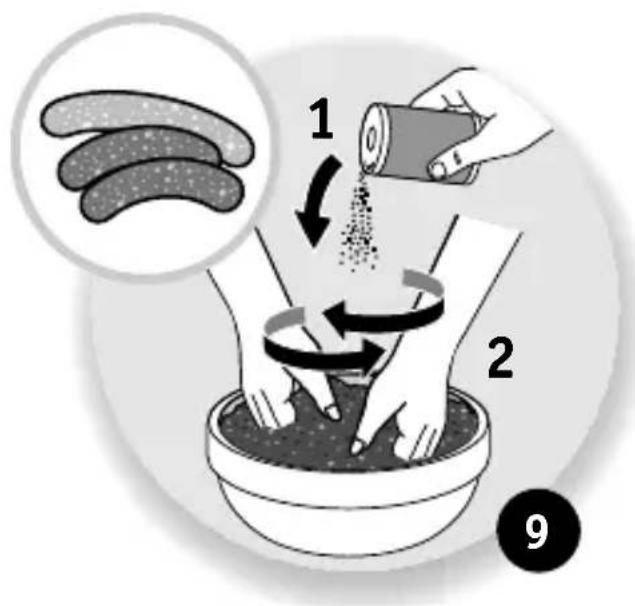

SAUSAGE NOZZLE

$$ 6 - 7 - 8 - 9 - 1 0 - 1 1 $$

The centring plate keeps the screw feeder in position while the appliance is being used.

Ease the casing along as it fills. Do not overfill the sausages as this will stretch the casing.

NB : this operation is easier if two people do it together, one feeding the mince into the mincer and the other holding the casing in position as it fills.

Make sausages of the desired length by pinching the casing and twisting it where appropriate.

For the best results take care to prevent air becoming trapped in the casing during filling and make sausages 10 cm to 15 cm in length (separate the sausages by tying a knot round the casing).

EN

Purchasing sausage skin casings (for UK only)

If your local butcher is unable to sell you some sausage skins suitable for thick sausages, we suggest contacting some of the following companies (information correct at March 2012

Ascott Smallholding Supplies Ltd

Units 21/22

Whitewalls - Easton Grey - Malmesbury

Wiltshire SN16 ORD

United Kingdom

Tel: [phone] - Fax: [phone]

e-mail:[e-mail]

www.ascott.biz

Scobie & Junor (Estd. 1919) Ltd,

1 Singer Road,

East Kilbride,

Glasgow G75 0XS

Scotland

Tel: [phone] (free phone)

Tel: [phone]

Fax: [phone]

e-mail: [e-mail]

www.scobiesdirect.com

W Weschenfelder and Sons Ltd,

2-4 North Road

Middlesborough

TS2 1DD

United Kingdom

Tel: [phone]

e-mail: via contact us section on website

HYPERLINK

"http://www.weschenfelder.co.uk"www.

weschenfelder.co.uk

Designa Sausage

15 Buxton Road - Disley - Stockport

Cheshire

SK12 2DZ

United Kingdom

Tel: [phone]

e-mail: via contact us section on website

HYPERLINK

"http://www.designasausage.com"www.de

signasausage.com

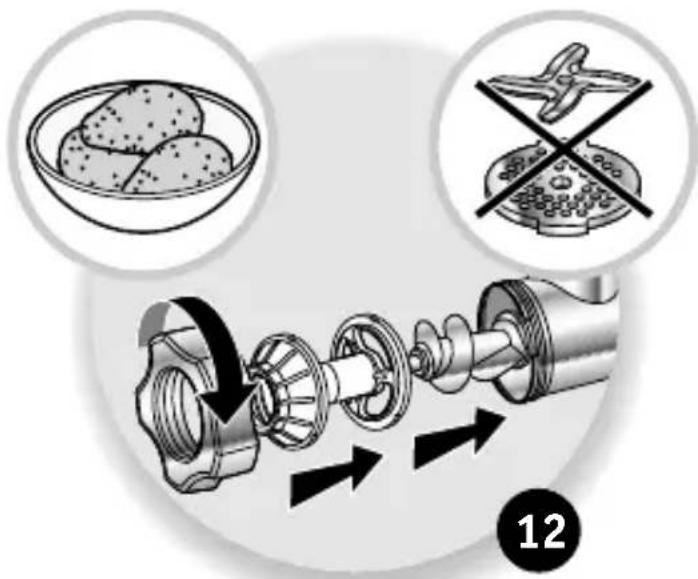

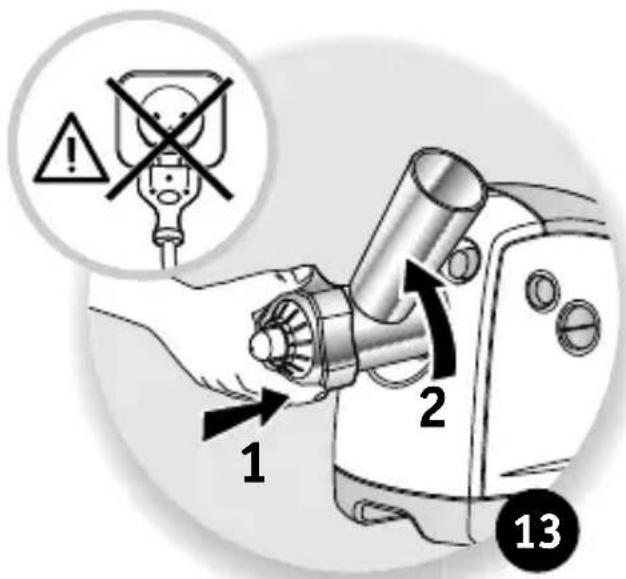

KEBBE ACCESSORY

12 - 13 - 14

To make extra fine Kebbe or Kefta mince, pass the meat through the mincer 2 or 3 times until it has the right consistency.

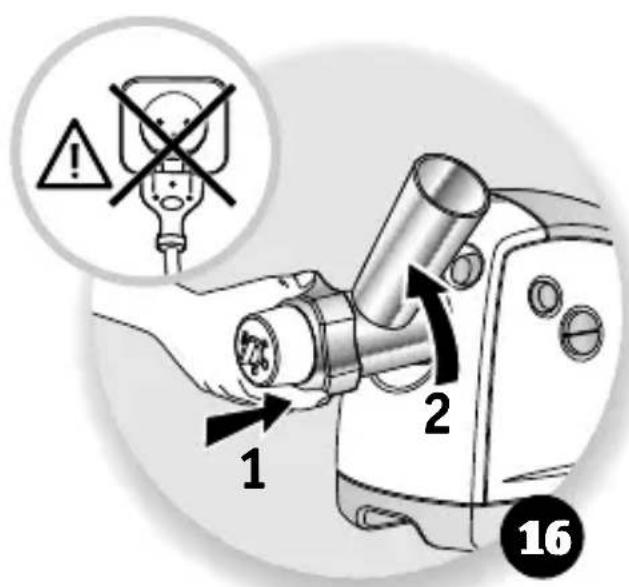

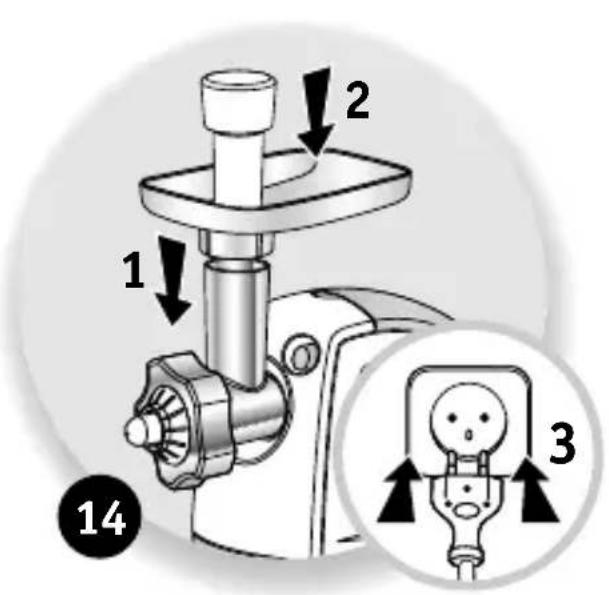

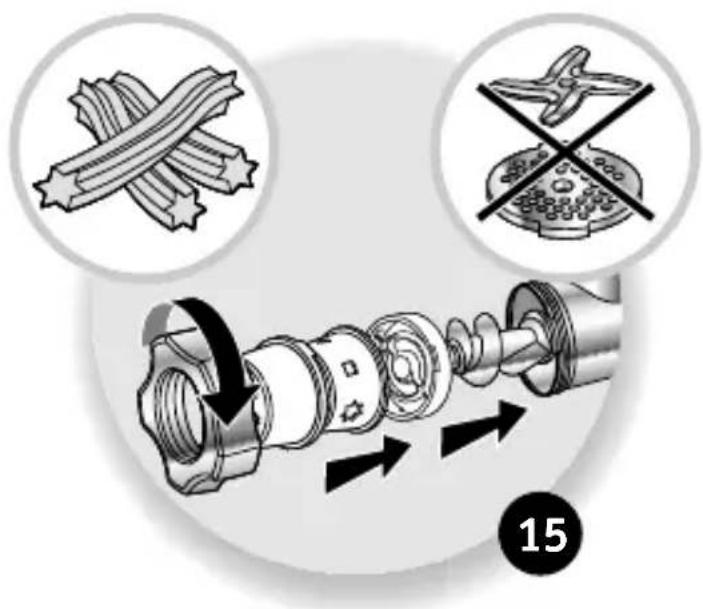

BISCUIT MAKER

15 - 16 - 17

Prepare the dough. Results will be better if the dough is not too stiff. Choose the design by pointing the arrow to the shape you want. Keep adding dough until you have made the desired number of biscuits.

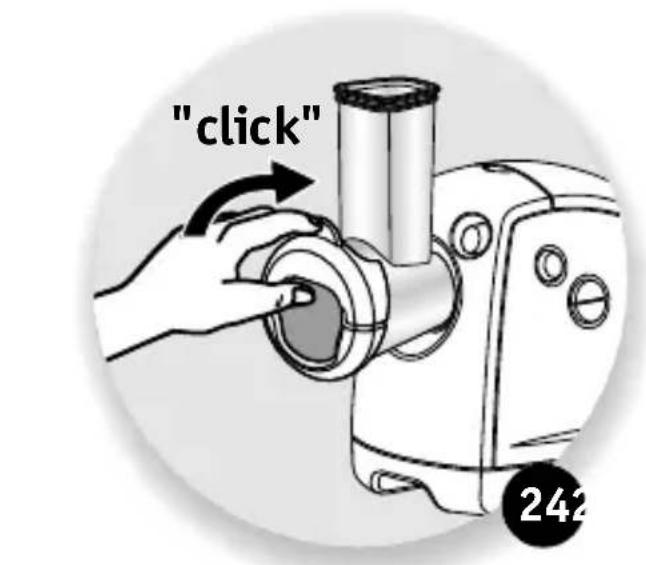

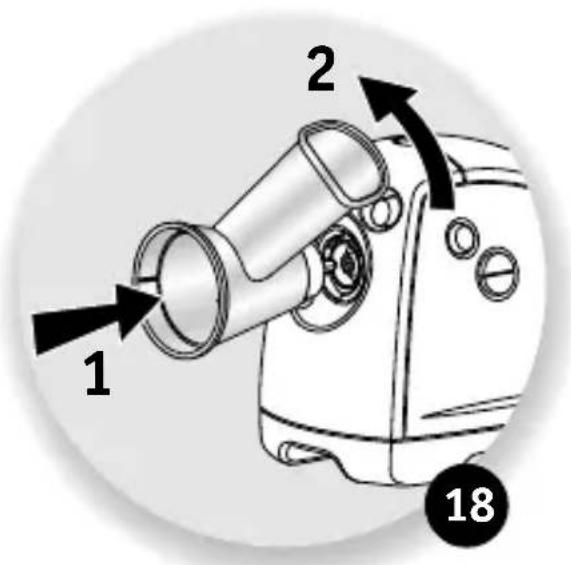

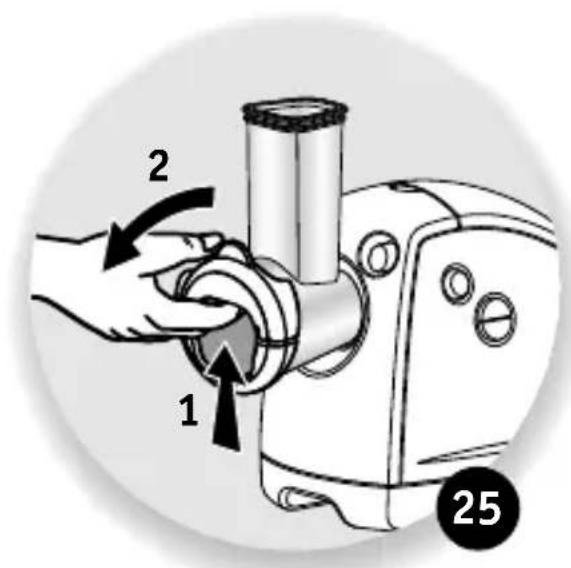

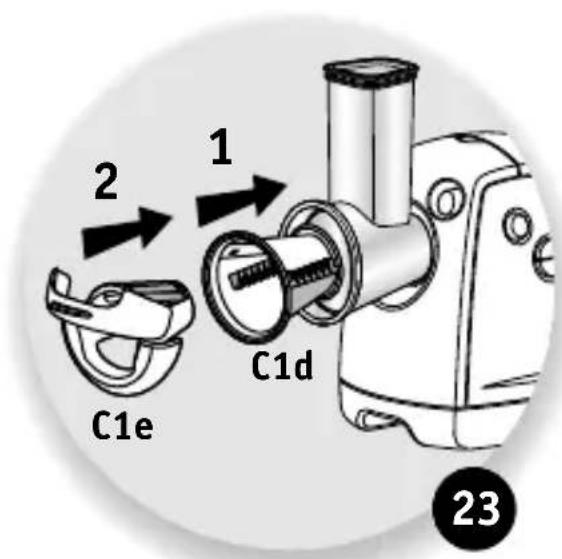

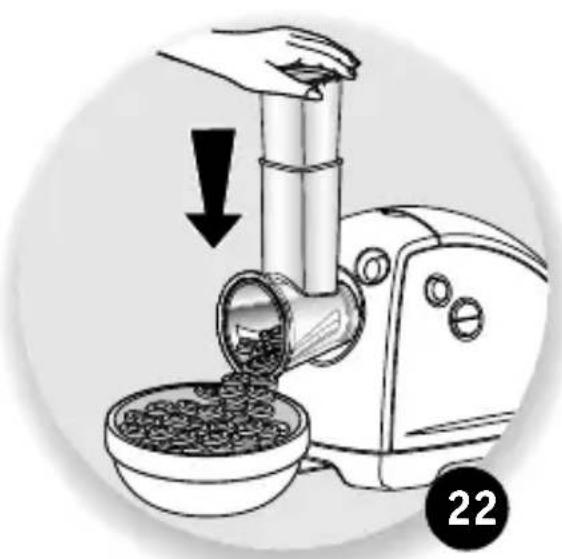

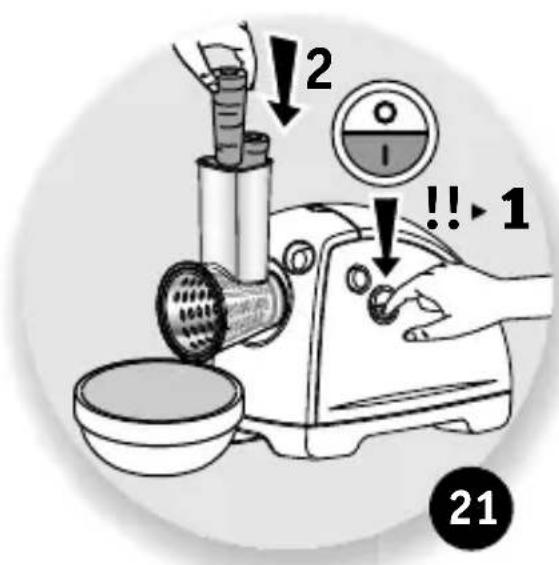

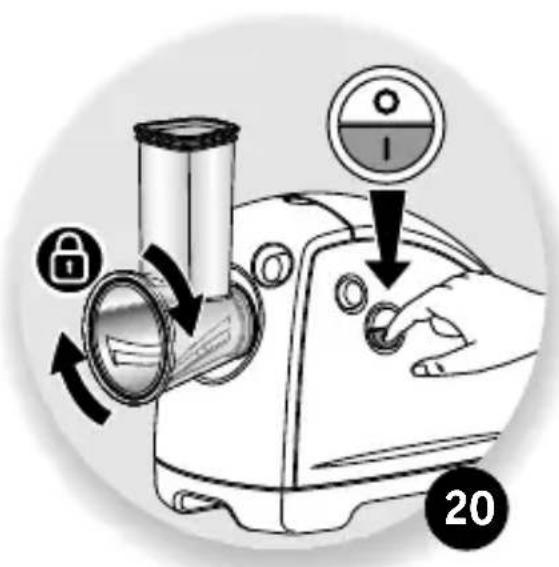

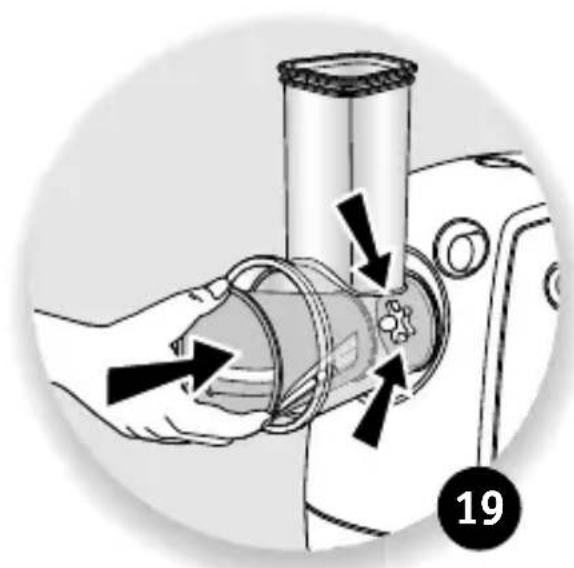

VEGETABLE CUTTER

$$ 1 8 - 1 9 - 2 0 - 2 1 - 2 2 - 2 3 - 2 4 - 2 5 $$

For best results the ingredients you use should be firm. Do not allow food remains to build up inside the unit. Do not use the appliance to grate or mince substances which are too hard, such as sugar or large pieces of meat. Cut food into small pieces so that it can be fed easily into the hopper.

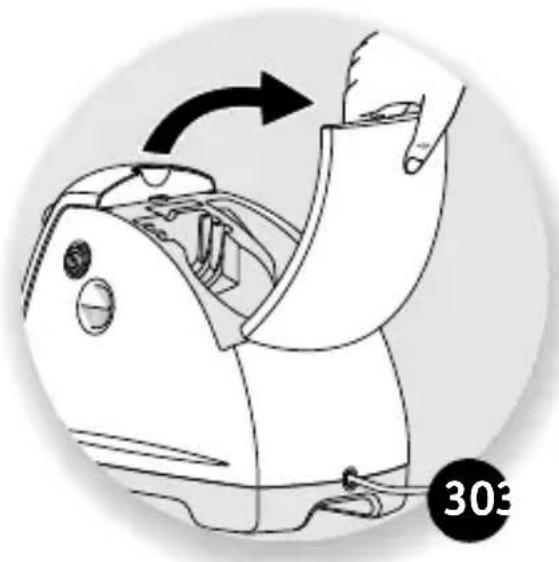

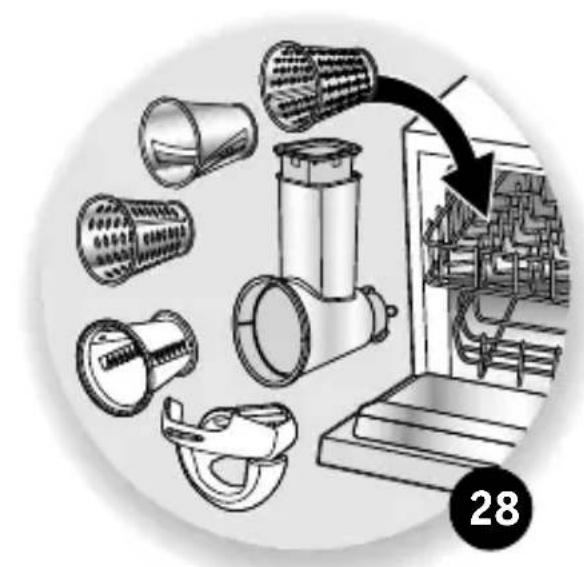

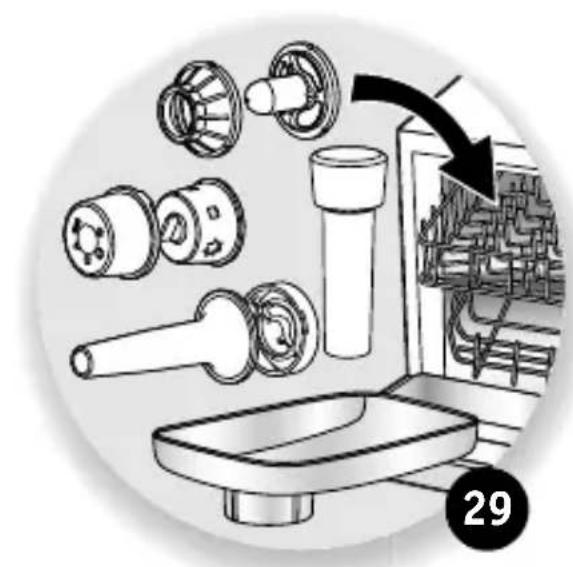

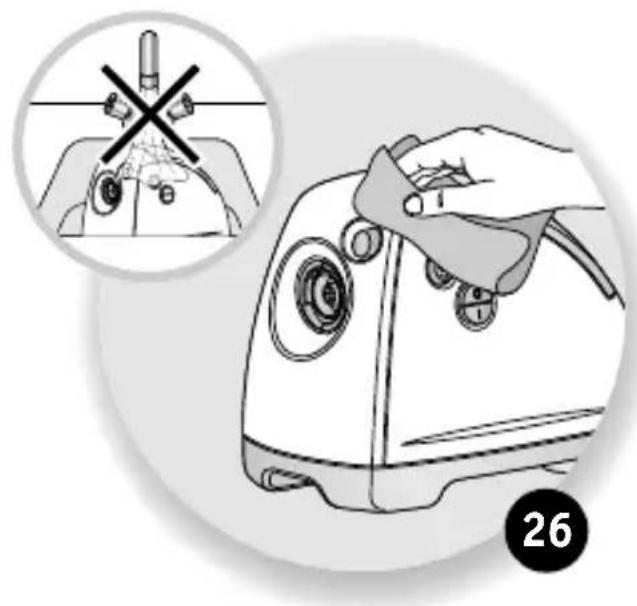

CLEANING

$$ 2 6 - 2 7 - 2 8 - 2 9 - 3 0 - 3 1 $$
