USER MANUAL BLP7600BDC BLACK & DECKER

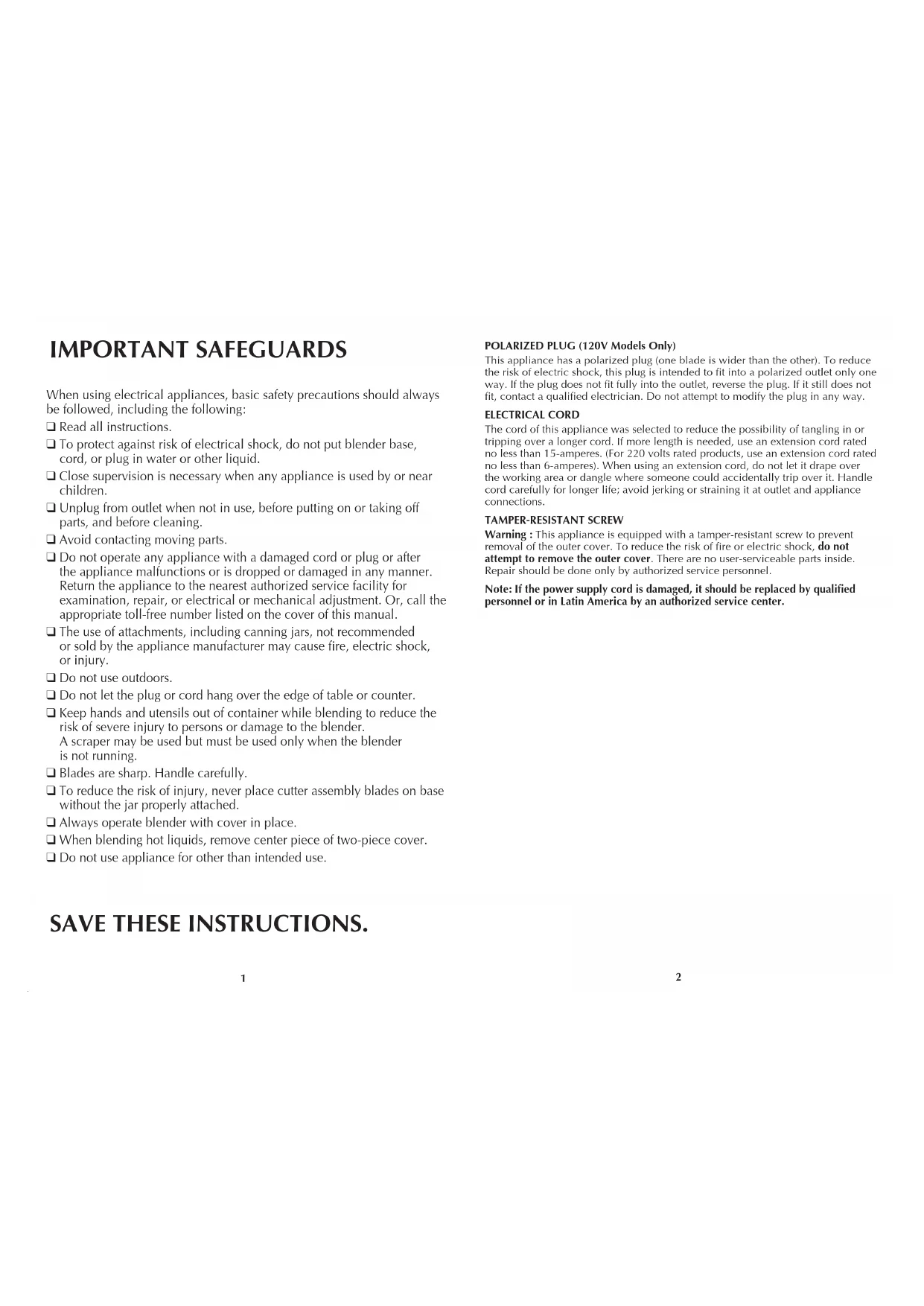

When using electrical appliances, basic safety precautions should always be followed, including the following: q Read all instructions. q To protect against risk of electrical shock, do not put blender base, cord, or plug in water or other liquid. q Close supervision is necessary when any appliance is used by or near children. q Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. q Avoid contacting moving parts. q Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual. q The use of attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury. q Do not use outdoors. q Do not let the plug or cord hang over the edge of table or counter. q Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running. q Blades are sharp. Handle carefully. q To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached. q Always operate blender with cover in place. q When blending hot liquids, remove center piece of two-piece cover. q Do not use appliance for other than intended use. IMPORTANT SAFEGUARDS SAVE THESE INSTRUCTIONS. POLARIZED PLUG (120V Models Only) This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. ELECTRICAL CORD The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 15-amperes. (For 220 volts rated products, use an extension cord rated no less than 6-amperes). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections. TAMPER-RESISTANT SCREW

Warning : This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.4

• 600-watt motor sets stainless steel blades in motion to turn fruits, frozen ingredients and even ice into smooth, healthy beverages

• Unique Intelligent Fuse System regulates internal motor temperature to extend operating life

• 7 powerful speeds and Pulse let you easily blend from savory, nutritious purees to smooth, healthy fruit drinks at the touch of a button

• Safety interlock system ensures jar stability during operation

• 42oz./5-cup glass jar with easy-pour spout

• Sure-close lid with advanced grip

• Sturdy and stylish base design

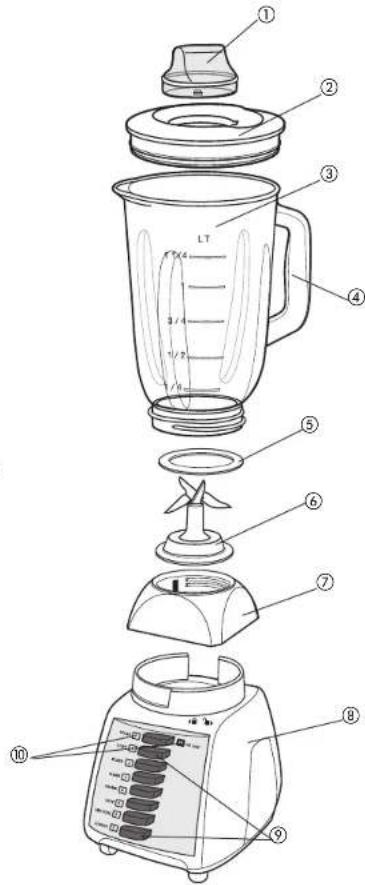

• Rubberized feet keeps unit secure during use GETTING FAMILIAR WITH YOUR UNIT (A) Product may vary slightly from what is illustrated. †1. Lid cap (Part# 081069FI) †2. Lid (Part# 081067EB) †3. 42 Oz./5 cup glass jar (Part# 99002)

10. Pulse and On/Off button

† Consumer replaceable/removable parts

1. After unpacking the blender, before rst use, wash all parts except the unit base.

2. Put the gasket on top of the blade assembly.

3. Place the blade assembly into the jar base and turn the jar

base clockwise until tight (B).

4. Interlock System : Place the assembled jar onto the unit

base and turn toward the lock symbol ( ) until secured in place. You have engaged the interlock system if you lift the jar handle and the entire blender lifts together as one unit. How to Use This product is for household use only. Your unit has an intelligent fuse system designed to protect the motor from overheating. It automatically shuts off the motor and resets the unit. Simply wait a moment, unplug the unit then plug again to restart operation.

1. Make sure the unit is OFF and plug the cord into a standard electrical outlet.

2. Place the food into the jar and the lid on the jar before blending.

3. Make sure that the lid cap is in place.

Note: When crushing hard foods, keep one hand on the lid.

4. Choose the speed that best suits your task for food or

for a few seconds, then release. Releasing the Pulse button automatically turns off the blender.

7. To add ingredients while the blender is on, remove the lid

cap and drop ingredients through the lid opening.

8. To remove the jar, grasp the handle, twist toward the unlock symbol ( ) and

lift it from the unit base.

• Cut food into small pieces 3/4” (2 cm) before adding to the blender.

• When ingredients stick or spatter along the sides of the jar, stop the blending action and remove the lid. Use a rubber spatula to push food toward the blades. Replace the lid, then continue blending.

• Some of the tasks that cannot be performed efciently with a blender are: beating egg whites, whipping cream, mashing potatoes, mixing dough, and extracting juices from fruits and vegetables.

• The following items should never be placed in the unit as they may cause damage: dried spices and herbs (ground alone), bones, large pieces of solidly frozen foods, tough foods such as turnips.

• Use the lid cap to measure ingredients up to 60 ml (2 oz.) when adding ingredients like lemon juice, cream, or liqueurs. Care and Cleaning This product contains no user serviceable parts. Refer service to qualied service personnel. CLEANING

1. Before cleaning, turn off and unplug the unit. Twist to unlock ( ), lift the jar

off the unit base, and rinse. For easier cleanup, rinse parts immediately after blending. Parts may be hand-washed.

2. Do not immerse the base in liquid. Wipe the unit base with a damp cloth and

dry thoroughly. Remove stubborn spots by rubbing with a damp cloth and nonabrasive cleaner. Note: If liquids spill into the base, wipe with a damp cloth and dry thoroughly. Do not use rough scouring pads or cleansers on parts or nish.

3. Removable parts can be washed by hand or in a dishwasher. Lid, lid cap, and

blade assembly should be placed in the top rack only. The jar is bottom rack dishwasher-safe. Do not place jar or parts in boiling liquids.

NEED HELP? For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual. One-Year Limited Warranty (Applies only in the United States and Canada) What does it cover?

• Any defect in material or workmanship; provided; however, Applica’s liability will not exceed the purchase price of the product. For how long?

• One year after the date of original purchase. What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?

• Save your receipt as proof of the date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?
