20666 - Kettle KORONA - Free user manual and instructions

Product type	Electric kettle
Brand	Korona
Model	20666
Capacity	1.7 L
Power	1850 - 2200 W
Voltage / Frequency	220 - 240 V / 50-60 Hz
Protection class	I
Temperature display	Digital, actual water temperature
Automatic shut-off	Yes, at boiling point
Dry boil protection	Yes, automatic safety shut-off
Anti-scale filter	Yes, integrated in the spout
Base	With power cord, cable guide and storage
Body material	Plastic and stainless steel
Weight	Approx. 1.2 kg
Dimensions (approx.)	24 x 19 x 22 cm
Color	White
Warranty	2 years
Manufacturer	KORONA electric GmbH, Germany

Frequently Asked Questions - 20666 KORONA

How to use the Korona 20666 kettle?

Fill the kettle with at least 0.5 L and a maximum of 1.7 L of water, close the lid, place it on the base, plug in and press the On/Off switch. The display shows the temperature. The appliance automatically turns off at boiling point. Use the handle to pour.

How to clean the kettle?

Unplug and let it cool down completely. Never immerse the appliance in water. Wipe the body with a soft damp cloth. Do not use harsh cleaners.

How to descale the kettle?

Descale every 3 to 6 months with a suitable mild descaler. Fill the kettle with the diluted descaler, bring to a boil, then rinse by boiling fresh water 4 to 5 times and discarding it.

What to do if the kettle does not turn on?

Check the mains connection, the switch, and that the kettle is correctly placed on the base. If the problem persists, contact customer service.

Why doesn't the water boil?

Make sure the lid is properly closed. Check that the water level is sufficient (minimum 0.5 L) and that the appliance is not in safety shut-off mode. If the dry boil protection has been triggered, let it cool down for 10 minutes.

The kettle stops before boiling, what to do?

This may be due to a poorly closed lid or a necessary descaling. Check the lid closure and perform descaling if needed.

Can I heat other liquids besides water?

No, this kettle is designed only for boiling water. Heating other liquids may damage the appliance and pose a burn risk.

How to store the power cord?

After cooling, wind the cord around the storage located under the base. Make sure the cord is properly secured in the cable guide.

Where to find spare parts or assistance?

Contact Korona customer service at: KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany, phone [phone], email [e-mail].

What to do in case of malfunction or breakdown?

Unplug the appliance and do not attempt to repair it yourself. Contact a qualified person or Korona customer service for inspection and repair.

USER MANUAL 20666 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

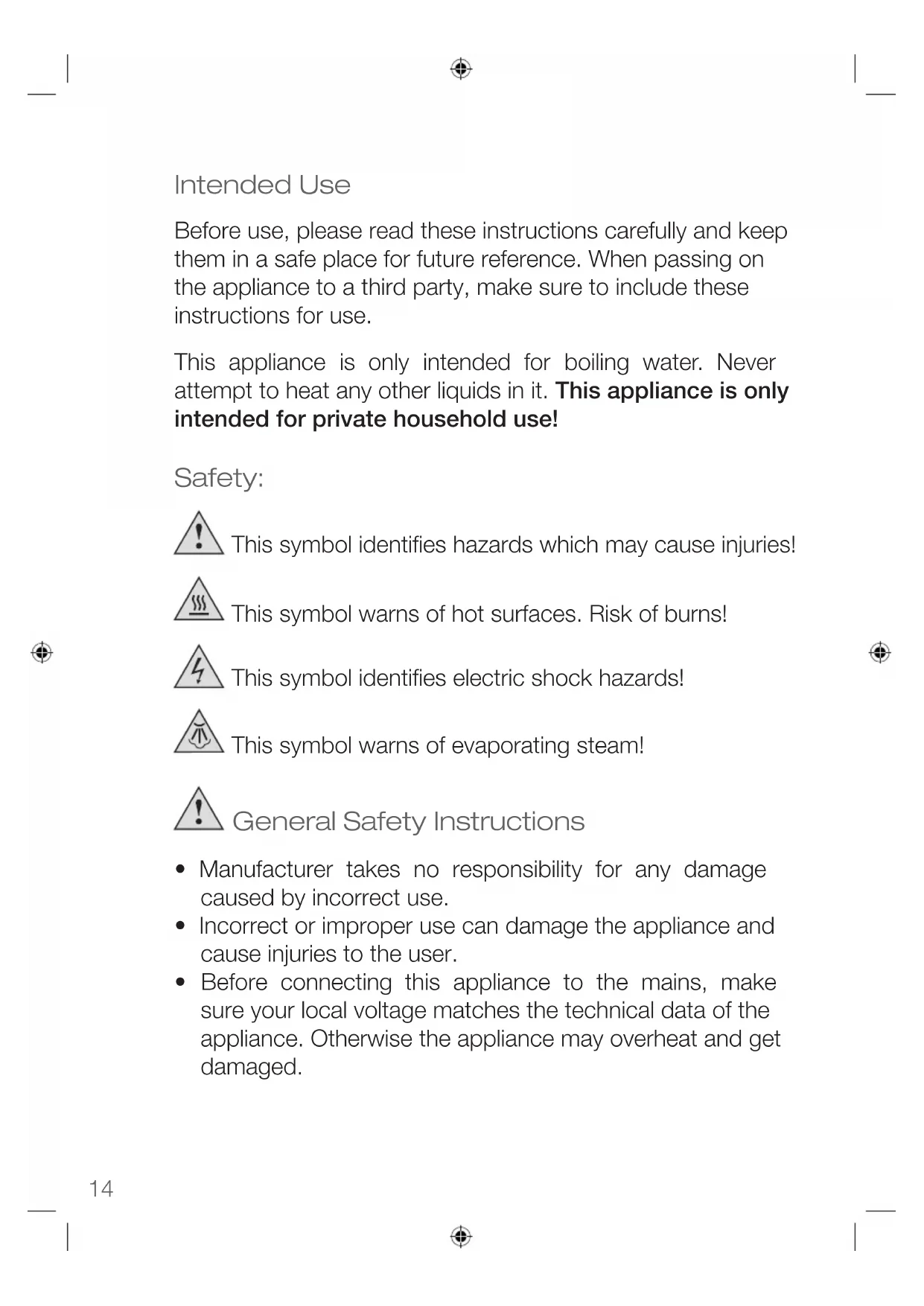

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

1 5

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1.7 L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!
• Never open the lid during operation.
• Always remove the kettle from the power base when filling it with water.
• To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5 L).

• The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

• Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

• Only use the appliance with the base provided.

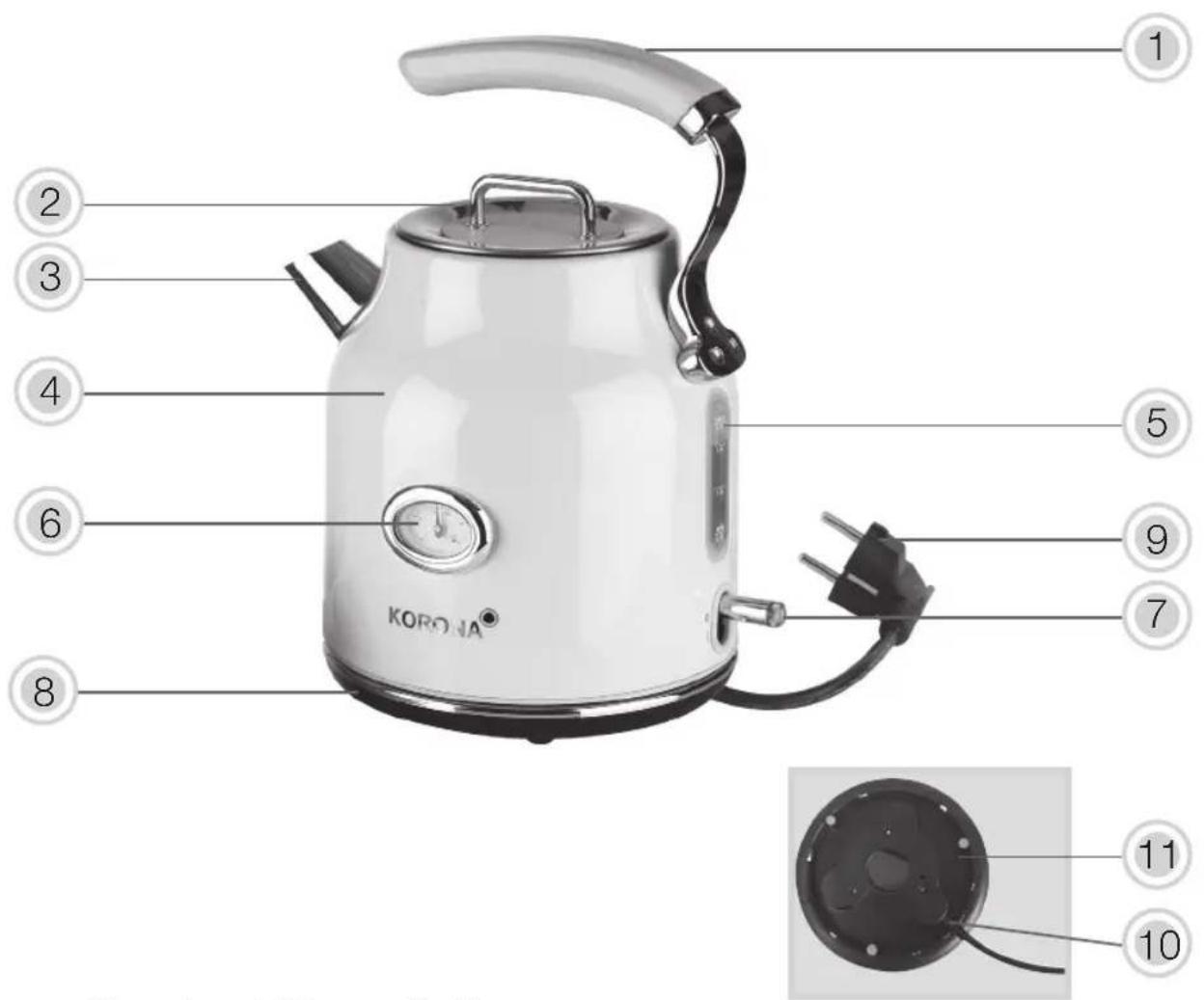

Product Description

1. Handle
2. Lid
3. Spout
4. Kettle
5. Water level indicator
6. Temperature display
7. On/Off switch with indicator light
8. Base
9. Power cord and plug
10. Cable guide (rear side)
11. Cable storage (rear side)

Before First Use

• Remove all packaging material and check whether the appliance is undamaged and complete.
• Fully unwind the power cord (9) and make sure that the power cord (9) is clamped into the cable guide (10) (rear side).
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Connect the appliance to a properly installed wall socket and boil 4-5 kettles of water using fresh water with each boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

Your appliance is fitted (inside the spout) with a scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (2) and hold the kettle (4) in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating.

Info: The kettle can also be filled with water when the lid (2) is closed by filling it through the spout (3).

1. Close the lid (2).
2. Place the kettle (4) onto the base (8) and make sure it properly fits onto the contact unit.

3. Connect it to the mains and switch on the water kettle by pressing the On/Off switch (7). The integrated indicator light lights up.

4. During the heating process the temperature display will indicate the resp. water temperature.

5. Once the boiling temperature is reached (default setting is 100^ ), the appliance switches off automatically provided that you have thoroughly closed the lid. Otherwise boiling water could spill. Danger of serious burns! The indicator light switches off as well.

Note: The boiling temperature can vary between + / - 3^ C .

1. Lift the kettle (4) off the base (8). The water is now ready for use.

Note: You can switch off the appliance resp. stop the gas process any time by simply pushing the On/Off switch cards or by removing the kettle from the base. In order to heating element to cool down, wait for approx. 20 mins before switching on the appliance again.

Attention: The appliance is getting very hot during operation. Therefore, do not touch the appliance during and/ or immediately after operation. Only use the handle. Danger serious burns!

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

During the cooling down process, the temperature ator will show the actual temperature of the water.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a boil-dry cut-out, which will switch off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out, switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

! Cleaning and user maintenance shall not be made by children without supervision.

DESCALING

Descale your appliance in regular intervals (approx. every 3 - 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the kettle.To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descending, always boil 4-5 kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cord (9) around the cord storage (11). Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special on points for disposal or your local dealer.

Your Water Kettle 20665 / 20666 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240V 50 / 60Hz

Rated Power: 1850 - 2200 W

Capacity: 1.7 Litre

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
