USER MANUAL DH 22PH HITACHI

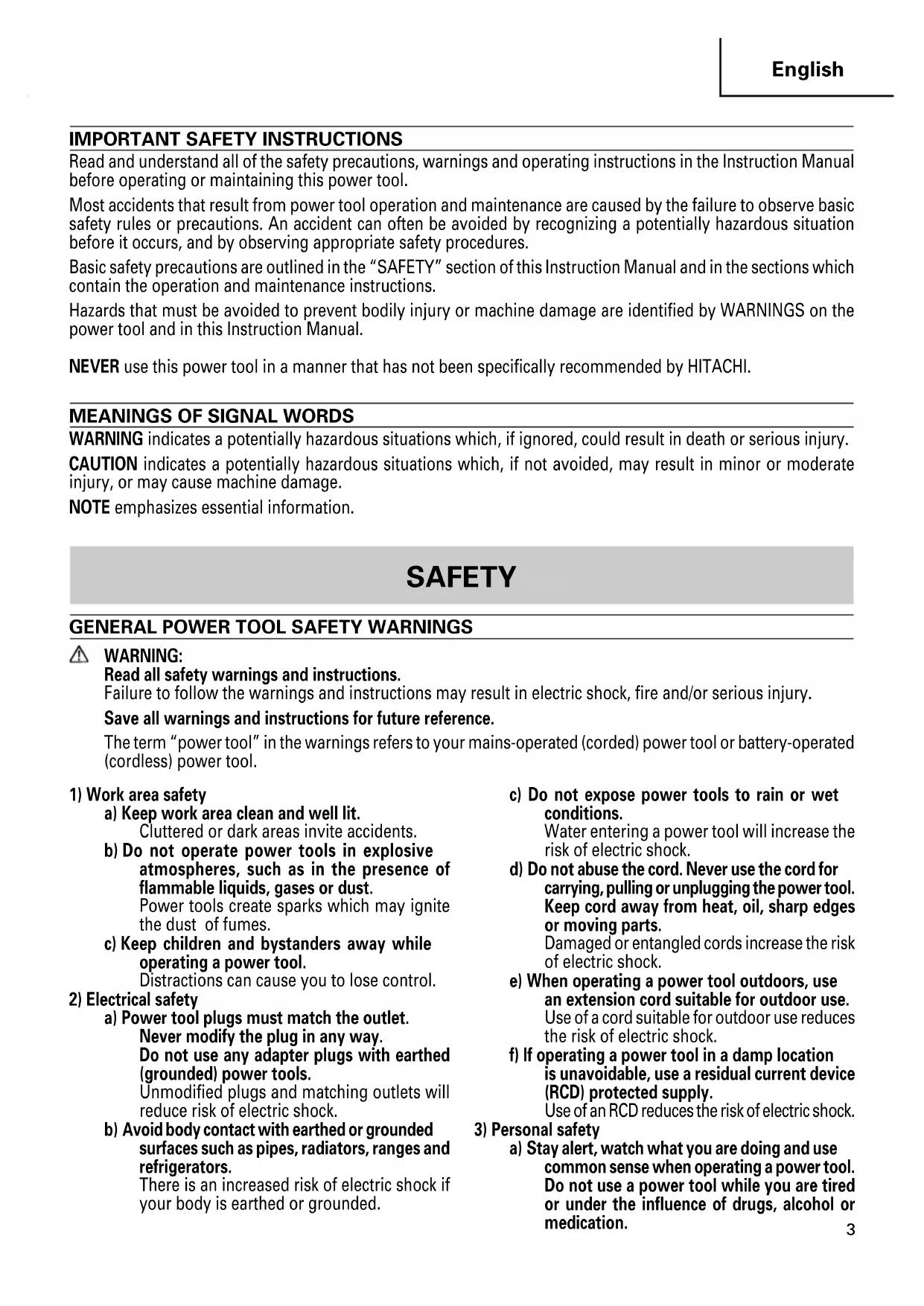

INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust of fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. 01Eng_DH22PH_US 1/22/09, 21:3034 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Exposure to noise can cause hearing loss.

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tools by insulated gripping surfaces

when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

4. NEVER touch the tool bit with bare hands after

5. NEVER wear gloves made from materials likely to

roll up such as cotton, wool, cloth or string, etc.

6. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool’s moving parts.

7. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

than those specified. NEVER use a power tool for applications other than those specified in the Instruction Manual.

10. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

11. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

12. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

13. Blades and accessories must be securely mounted

to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

14. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.

15. Operate power tools at the rated voltage.

Operate the power tool at voltages specified on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.

16. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

17. NEVER leave tool running unattended. Turn power

off. Don’t leave tool until it comes to a complete stop.

18. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

19. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

20. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

21. ALWAYS be careful with buried object such as an

OPERATION To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ ” or the words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system effective, follow these precautions:

Only Hitachi Authorized Service Center should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.

Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve. 01Eng_DH22PH_US.p65 8/16/09, 1:12 PM56 English

SAVE THESE INSTRUCTIONS

OTHER USERS AND OWNERS OF THIS TOOL! 01Eng_DH22PH_US 1/22/09, 21:3067 English Fig. 1 SPECIFICATIONS Motor Single-Phase, Series Commutator Motor Power Source Single-Phase, 120V 60Hz Current 7.0A Capacity Concrete: 1/8" ~ 7/8" (3.4mm ~ 22mm) Steel: 1/2" (13mm) Wood: 15/16" (24mm) No-Load Speed 0 – 1,400/min. Full-load Impact Rate 0 – 5,600/min. Weight 4.6 lbs (2.1 kg) FUNCTIONAL DESCRIPTION NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

Drilling anchor holes

Drilling holes in concrete

Drilling holes in tile Rotation only function

Drilling in steel or wood (with optional accessories).

Tightening machine screws, wood screws (with optional accessories). Hammering only function

Light-duty chiselling of concrete, groove digging and edging.

Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.

Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.

When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

Damaged cord must be replaced or repaired.

4. Check the receptacle

If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.

5. Confirming condition of the environment:

Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.

6. Mounting the drill bit (Fig. 2)

CAUTION: To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle.

ASSEMBLY AND OPERATION

NOTE: When using tools such as bull points, drill bits, etc., make sure to use the genuine parts designated by our company. (1) Clean the shank portion of the drill bit. (2) Insert the drill bit in a twisting manner into the tool holder until it latches itself. (Fig. 2) (3) Check the latching by pulling on the drill bit. (4) To remove the drill bit, fully pull the grip in the direction of the arrow and pull out the drill bit. (Fig.

(Optional accessories) (Fig. 4, Fig. 5) When using a rotary hammer for upward drilling operations attach a dust cup or dust collector (B) to collect dust or particles for easy operation.

Installing the dust cup Use the dust cup by attaching to the drill bit a shown in Fig. 4. When using a bit which has big diameter, enlarge the center hole of the dust cup with this rotary hammer. Fig. 3 Grip Drill bit Part of SDS-plus shank Grip Front cap Fig. 2 01Eng_DH22PH_US 1/22/09, 21:3189 English

Installing dust collector (B) When using dust collector (B), insert dust collector (B) from the tip of the bit by aligning it to the groove on the grip (Fig. 5) CAUTION:

The dust cup and dust collector (B) are for exclusive use of concrete drilling work. Do not use them for wood or metal drilling work.

Insert dust collector (B) completely into the chuck part of the main unit.

When turning the rotary hammer on while dust collector (B) is detached from a concrete surface, dust collector (B) will rotate together with the drill bit. Make sure to turn on the switch after pressing dust cup on the concrete surface. (When using dust collector (B) attached to a drill bit that has more than 7-15/32" (190 mm) of overall length, dust collector (B) cannot touch the concrete surface and will rotate. Therefore please use dust collector (B) by attaching to drill bits which have 6-17/32" (166 mm), 6-19/64" (160 mm) and 4-21/64" (110 mm) overall length.

Dump particles after every two or three holes when drilling.

Please replace the drill bit after removing dust collector (B).

8. Selecting the driver bit

Screw heads or bits will be damaged unless a bit appropriate for the screw diameter is employed to drive in the screws. Dust cup Dust collector (B) Fig. 5 Fig. 4

9. Confirm the direction of bit rotation (Fig. 6)

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. The L- side of the push button is pushed to turn the bit counterclockwise.

To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle when the drill pits and other various parts are installed or removed. The power switch should also be turned off during a work break and after work.

The rotation speed of the drill bit can be controlled steplessly by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the switch is pulled more. To turn the switch OFF, release the trigger switch to its original position. However, the switch trigger can only be pulled in halfway during reverse and rotates at half the speed of forward operation.

Pulling the trigger and pushing the stopper, it keeps the switched-on condition which is convenient for continuous running. When switching off, the stopper can be disconnected by pulling the trigger again. The switch stopper is unusable during reverse.

2. Rotation + Hammering

This rotary hammer can be set to rotation and hammering mode by turning the change lever to the mark (Fig. 7). Fig. 6 Push button

Fig. 7 Change lever 01Eng_DH22PH_US 1/22/09, 21:31910 English (1) Mount the drill bit. (2) Pull the trigger switch after applying the drill bit tip to the drilling position (Fig. 8) (3) Pushing the rotary hammer forcibly is not necessary at all. Pushing slightly so that drill dust comes out gradually is just sufficient. CAUTION:

When the drill bit touches an iron reinforcing rod, the bit will stop immediately and the rotary hammer will react to revolve. Therefore please grip the side handle and handle tightly as shown in Fig.

This rotary hammer can be set to rotation only mode by turning the change lever to the mark (Fig. 9). To drill a wood or metal material using the separately sold drill chuck and chuck adaptor, proceed as follows. Installing drill chuck and chuck adaptor (Fig. 10): Fig. 8 Front cap Grip Fig. 10 Chuck adaptor Drill chuck Part of SDS-plus shank Fig. 9 Change lever (1) Attach the drill chuck to the chuck adaptor. (2) The part of the SDS-plus shank is the same as the drill bit. Therefore, refer to the item of “Mounting the drill bit” for attaching it. CAUTION:

Application of force more than necessary will not only reducing drilling efficiency at all, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition.

Drill bit may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion.

Do not attempt to drill anchor holes or holes in concrete with the main unit in the rotation only function.

Do not attempt to use the rotary hammer in the rotation and striking function with the drill chuck and chuck adaptor attached. This would seriously shorten the service life of every components of the machine.

4. When driving machine screws (Fig. 11)

First, insert the bit into the socket in the end of chuck adaptor (D). Next, mount chuck adaptor (D) on the main unit using procedures described in 5 (1), (2), (3), put the tip of the bit in the slots in the head of the screw, grasp the main unit and tighten the screw. CAUTION:

Exercise care not to excessively prolong driving time, otherwise, the screws may be damaged by excessive force.

Apply the rotary hammer perpendicularly to the screw head when driving a screw; otherwise, the screw head or bit will be damaged, or driving force will not be fully transferred to the screw.

Do not attempt to use the rotary hammer in the rotation and striking function with chuck adaptor (D) and bit attached. Bit Socket Chuck adaptor (D) Front cap Grip Fig. 11 01Eng_DH22PH_US 1/22/09, 21:311011 English

5. When driving wood screws (Fig. 11)

(1) Selecting a suitable driver bit Employ phillips screws, if possible, since the driver bit easily slips off the heads of slotted-head screws. (2) Driving in wood screws

Prior to driving in wood screws, make pilot holes suitable for them in the wooden board. Apply the bit to the screw head grooves and gently drive the screws into the holes.

After rotating the rotary hammer at low speed for a while until a wood screw in partly driven into the wood, squeeze the trigger more strongly to obtain the optimum driving force. CAUTION:

Exercise care in preparing a pilot hole suitable for the wood screw taking the hardness of the wood into consideration. Should the hole be excessively small or shallow, requiring much power to drive the screw into it, the thread of the wood screw may sometimes be damaged.

This rotary hammer can be set to hammering only mode by turning the change lever to mark. (Fig. 12) (1) Mount the bull point or cold chisel. (2) Set the change lever to middle of mark and mark. (Fig. 13) The rotation is released, turn the grip and adjust the cold chisel to desired position. (Fig. 14) Change lever Change lever Fig. 12 Fig. 13 (3) Turn the change lever to mark. (Fig. 12) Then bull point or cold chisel is locked.

7. Using depth gauge (Fig. 15)

(1) Loosen the knob on the side handle, and insert the depth gauge into the mounting hole on the side handle. (2) Adjust the depth gauge position according to the depth of the hole and tighten the knob bolt securely.

8. How to use the drill bit (taper shank) and the taper

shank adaptor. (1) Mount the taper shank adaptor to the rotary hammer. (Fig. 16) (2) Mount the drill bit (taper shank) to the taper shank adaptor. (Fig. 16) (3) Turn the switch ON, and drill a hole in prescribed depth. (4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adaptor and strike the head of the cotter with a hammer supporting on the rests. (Fig. 17) Fig. 14 Grip Mounting hole Depth gauge Knob on side handle Fig. 15 Fig. 16 Drill bit Taper shank adaptor Front cap Grip 01Eng_DH22PH_US 1/22/09, 21:311112 English Cotter Rests Taper shank adaptor Fig. 17

Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.

1. Inspecting the drill bits

Since use of a dull tool will cause motor malfunctioning and degraded efficiency, replace the drill bit with a new one or resharpening without delay when abrasion is noted.

2. Inspecting the screws

Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately.

Using this rotary hammer with loosen screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a Hitachi Authorized Service Center.

5. How to replace grease

Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for grease replacement when any grease is leaking from loosened screw. Further use of the rotary hammer despite the grease shortage causes seizure to reduce the service life. CAUTION: A specific grease is used with this machine, therefore, the normal performance of the machine may be badly affected by use of other grease. Please be sure to let one of our service agents undertake replacement of the grease.

6. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a Hitachi Authorized Service Center, ONLY. 01Eng_DH22PH_US 1/22/09, 21:311213 English

7. Service parts list

CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS: Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. ACCESSORIES

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the HITACHI. STANDARD ACCESSORIES (1) Plastic Case (Code No. 327883) .............................................................................................................................. 1 (2) Side Handle (Code No. 324548) ............................................................................................................................. 1 (3) Depth Gauge (Code No. 310331) ........................................................................................................................... 1 01Eng_DH22PH_US 1/22/09, 21:311314 English OPTIONAL ACCESSORIES (sold separately) Adapter for slender shaft (SDS-plus shank) Drill bit (Slender shaft)

Drilling holes in concrete or tile Drill bit (Taper shank) Taper shank adapter Cotter

Demolishing operation

Drilling holes in concrete or tile

Drilling anchor holes

Groove digging and edging

Grooving Grooving chisel Cold chisel Cutter Bull point (Square type) Bull point (Round type) Drill bit Tool Adapters Use on jobs facing upwards

Anchor setting Anchor setting adapter

Drilling in steel or wood

Driver bit Drill bit for steel Drill bit for wood

Drilling holes in concrete or tile Drill Bit (Slender shaft)

Drilling anchor holes Drill Bit (Taper Shank) Taper Shank Adaptor Outer dia. Overall length Effective length Code No. 5/32

(200 mm) 303615 Drill Bit (Slender Shaft) Adaptor for Slender Shaft Outer dia. Effective Length Overall Length Code No. Code No. 1/8" 1-25/32" 3-35/64"

1/2" (12.7 mm) 9/16" (14.3 mm) 9/16" (14.5 mm) 11/16" (17.5 mm) 303618 7/8" (21.5 mm) A-taper 303619 B-taper 303620 Morse taper (No. 1) Drill bit (Taper shank) Taper shank adaptor formed A-taper or B-taper is provided as an optional accessory, but drill bit for it is not provided. Morse taper (No. 2) Drill bit (Taper shank) 01Eng_DH22PH_US 1/22/09, 21:311516 English

Drilling holes in concrete Rotary hammer chuck <Inner wedge type with the headless screw> Anchor size Code No. W1/4"

Anchor setting Anchor setting adaptor (for Rotary hammer) <Outer wedge type with the female screw> Anchor size W 1/4" W 5/16" W 3/8" (6.3 mm) (8 mm) (9.5 mm) Overall Length 10-1/4" 10-1/4" 6-1/4" 10-1/4" (260 mm) (260 mm) (160 mm) (260 mm) Code No. 302976 302975 303621 302974 <Inner wedge type with the headless screw>

nchor size W 1/4" W 5/16" W 3/8" (6.3 mm) (8 mm) (9.5 mm) Overall Length 10-1/4" 10-1/4" 6-1/4" 10-1/4" (260 mm) (260 mm) (160 mm) (260 mm) Code No. 302979 302978 303622 302977 Anchor setting adaptor (for Manual hammer) <Outer wedge type with the female screw> Anchor size Code No. W1/4"

Driving screws Drilling in steel or wood

Demolishing operation Bull point Type Overall length Code No. Round 10" (250 mm)

Cutter and chisel for SDS-plus shank and hammering only mode Cold chisel Groove digging

• For hammering only mode NOTE: Specifications are subject to change without any obligation on the part of the HITACHI. Code No. 01Eng_DH22PH_US 1/22/09, 21:311617 Français

2. Rotation + percussion

70 INTERNAL WIRE (BROWN) 1

81 CORD 1 501 CASE 1 502 SIDE HANDLE 1 503 DEPTH GAUGE 1 04Back_DH22PH_US 1/22/09, 21:3447WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construc- tion activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: ● Lead from lead-based paints, ● Crystalline silica from bricks and cement and other masonry products, and ● Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
