Technical specifications	Power: 300 W, Dimensions: 60 x 30 x 10 cm, Material: Stainless steel
Capacity	Up to 6 plates
Usage	Ideal for warming plates before serving, operates with a simple electrical connection
Maintenance	Clean with a damp cloth, do not immerse in water
Safety	Overheat protection, non-slip feet for optimal stability
General information	Weight: 2.5 kg, Warranty: 2 years, Color: Silver

Frequently Asked Questions - PG 8610 SEVERIN

How do I use the SEVERIN PG 8610 plate warmer?

To use the SEVERIN PG 8610, plug in the device, set the desired temperature using the thermostat, then place your plates on the platform. Let it heat for about 10 to 15 minutes.

What is the maximum capacity of this plate warmer?

The SEVERIN PG 8610 can hold up to 6 standard 27 cm diameter plates.

Is the SEVERIN PG 8610 plate warmer easy to clean?

Yes, the plate warmer has a smooth surface that is easy to clean with a damp cloth. Make sure to unplug the device and let it cool before cleaning.

Does the SEVERIN PG 8610 have an indicator light?

Yes, the SEVERIN PG 8610 is equipped with an indicator light that turns on when the device is running and heating.

What is the power of the SEVERIN PG 8610 plate warmer?

The SEVERIN PG 8610 has a power of 300 watts.

Can the SEVERIN PG 8610 heat other types of containers?

The SEVERIN PG 8610 is mainly designed to heat plates. For other types of containers, it is recommended to check compatibility to avoid any damage.

What should I do if the plate warmer does not heat?

Check that the device is properly plugged in, that the thermostat is set to an appropriate temperature, and that the indicator light is on. If the problem persists, contact customer service.

Is the SEVERIN PG 8610 safe to use?

Yes, the SEVERIN PG 8610 is designed with safety measures, including overheat protection. However, it is important not to touch hot surfaces during use.

USER MANUAL PG 8610 SEVERIN

Exterior view of a SEVERIN stainless steel grater with meat and vegetables on its side (no text or symbols visible)

ART.-NR. PG 8610 / PG 8615

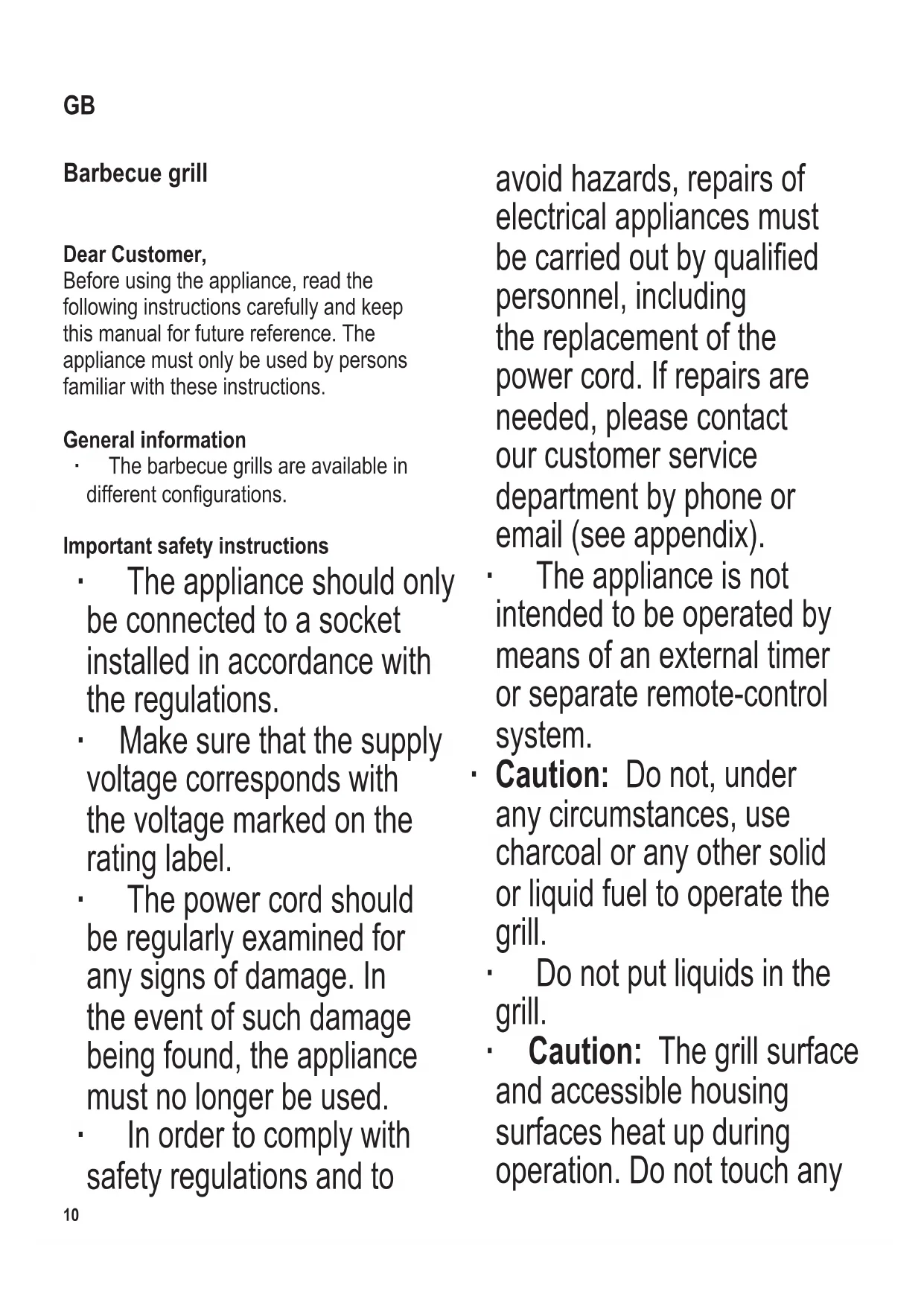

GB Instructions for use Barbecue grill 10

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

General information

- The barbecue grills are available in different configurations.

Important safety instructions

• The appliance should only be connected to a socket installed in accordance with the regulations.
  • Make sure that the supply voltage corresponds with the voltage marked on the rating label.
• The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
  • In order to comply with safety regulations and to

avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please contact our customer service department by phone or email (see appendix).

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Caution: Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

• Do not put liquids in the grill.
• Caution: The grill surface and accessible housing surfaces heat up during operation. Do not touch any

part of the appliance except the grip recesses during and after operation.

- Before cleaning, disconnect the appliance from the mains and let the grill cool down.

- To avoid the risk of electric shock, the junction box with power cord must not cleaned with or immersed in liquid.

- Clean the grill plate with hot soapy water; dry thoroughly afterwards. Ensure that the grill plate is absolutely dry, especially on the side with the junction box, before the grill is used again.

- For detailed information on cleaning the appliance, please refer to the section Cleaning and care.

• This appliance is intended for domestic or similar

applications, such as - in staff kitchens in shops, offices and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be

permitted to play with the appliance.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
- The appliance and its power cord must be kept well away from children under 8 at all times.

- Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.

- Caution: Do not, under any circumstances, cover the grill plate completely with aluminium foil, barbecue dishes or other items, as the resulting build-up of heat could cause irreparable damage to the grill.

- Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. In this case, please contact our customer service.

• During operation, the barbecue grill

must be placed on a level, heat-resistant surface, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.

• The power cord should be routed in such a way that no one is likely to trip over it.
• Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
• Before the grill is used, always check that the fat collection tray is correctly fitted in the barbecue grill.
• The barbecue grill must be supervised at all times during operation.
• Do not allow the power cord to touch any hot parts of the appliance.

- Always remove the plug from the wall socket

• after use,
• in case of any malfunction, and
• during cleaning.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- The use of an extension-lead reel causes a loss of power, possibly combined with a subsequent heat build-up in the cable. It is therefore necessary to unwind the cable completely from the reel.

- Caution: Do not move the grill when it is in use. Before carrying, transporting or storing the grill, ensure that is has sufficiently cooled down.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

- This product complies with all binding CE labelling directives.

- Do not operate the appliance outdoors.

Overview and parts included

1. Junction box with thermostat control and power cord
2. Junction box release button
3. Grill plate
4. Fat collection tray
5. Main unit

Before using for the first time

• Remove any packaging materials and stickers from the appliance and grill plate.
• Clean the grill plate with warm soapy water and dry thoroughly.
• Wipe all other parts with a damp cloth and dry thoroughly.

Grill assembly

• Prior to assembly, check that all parts are complete in accordance with the section Overview and parts included.
• Fit the grill plate onto the main unit, with the connection side facing to the right, and check that the plate is securely fitted.
• Plug in the junction box; ensure it is heard locking into place.
• Place the fat collection tray into the main unit.

Heating-up for the first time

• Let the grill heat up, as described in the section Grilling, without any food for about 10 minutes at maximum power. This will remove the smell typically encountered when first switching on a grill. A little smoke may be emitted; this is quite normal, but ensure there is adequate ventilation by opening windows or balcony doors.
• Clean the grill plate as described in the Cleaning and care section.

Grilling

• During operation, the barbecue grill must be placed on a level, heat-resistant surface, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
• Check that the barbecue grill has been correctly assembled.
• Insert the plug into a suitable earthed power outlet.
• Slide the thermostat control to position MAX.
• The indicator light shows red, and the grill plate heats up.

Model 8615:

Once the required temperature has been reached, the indicator light changes to blue.

• Let the grill heat up for about 10 minutes before putting on any food.
• The temperature can be adjusted as necessary, up or down, with the temperature control.
• The fat in the collection tray should be checked regularly and emptied as

necessary.

• Once the grilling process is finished:
- Slide the thermostat control back to position MIN.
- Remove the plug from the power outlet.
- Allow the grill to cool down.

Cleaning and care

• Ensure that the grill is thoroughly cleaned after use.
• Before cleaning, disconnect the appliance from the mains and let the grill cool down.
• Push the release button to detach the junction box and remove the grill plate.
• Do not use metallic pads, steel wool or abrasive cleaning agents.
• Wipe the grill plate with kitchen paper. To remove persistent food residues, the plate must be detached and then cleaned in soapy water with a soft sponge - it may also be left to soak for a while. The grill plate must be thoroughly dried.
• To avoid the risk of electric shock, the junction box and power cord must not cleaned with or immersed in liquid. These may be wiped with a slightly damp cloth; wipe thoroughly dry afterwards.
• If necessary, the main unit may be cleaned in warm soapy water; dry thoroughly afterwards.
• The fat collection tray can be cleaned in soapy water or in a dishwasher.
• All other parts are not dishwasher-safe.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
