K5723 - Wristwatch Calypso - Free user manual and instructions

Product type	Digital watch
Brand	Calypso
Model	K5723
Display	Hours, minutes, month, date, day of the week, AM/PM
Main functions	Alarm, stopwatch with lap measurement, hourly chime, timer, second time zone, 12/24h selector
Backlight	Electroluminescent (EL), loses brightness over time
Accuracy	±30 seconds per month at 25°C
Operating temperature	10°C - 40°C
Power supply	Button cell battery (not specified, standard type)
Water resistance	Not specified, avoid contact with water
Care and cleaning	Soft cloth and clean water, avoid chemicals
Safety	Do not open the case, avoid strong shocks and electric fields
General information	Selective collection at end of life (WEEE)
Weight	Approximately 50 g (estimate)
Dimensions	Approximately 40 mm diameter (estimate)

Frequently Asked Questions - K5723 Calypso

How to set the time on the Calypso K5723 watch?

Press the MODE button until the display flashes. Use the START/STOP and LIGHT buttons to adjust the values. Confirm with MODE.

How to use the alarm?

Press MODE multiple times to access alarm mode. Set the time with START/STOP and activate it with a dedicated button (often LIGHT). An alarm symbol appears.

How to start the stopwatch?

Press MODE until CHRONO is displayed. Use START/STOP to start/stop, and LIGHT for a lap. The stopwatch measures to 1/100th of a second.

What to do if condensation appears inside the watch?

This means water has entered. Have the watch checked immediately by a professional. Water can corrode electronic components.

How to clean my Calypso watch?

Use a slightly damp soft cloth (clean water). Avoid chemicals, soaps, or solvents. Dry with a dry cloth.

What type of battery does the watch use and how to change it?

The watch uses a standard button cell battery (type CR2032 or similar). To change it, remove the back cover with a suitable tool, replace the battery observing polarity. If necessary, consult a watchmaker.

Why is the backlight less bright than before?

The EL light gradually loses power with use. This is normal. To conserve, avoid using the backlight unnecessarily.

Is the watch waterproof?

Water resistance is not specified. It is not recommended to wear the watch underwater or in heavy rain. Avoid pressing buttons in damp environments.

How to switch from 12h to 24h display?

In time setting mode, press a specific button (often LIGHT) to toggle between 12h and 24h. Refer to the manual for the exact button.

What to do if the watch stops working?

Check the battery. If it is flat, replace it. If the problem persists, contact an authorized repair service. Do not attempt to open the case yourself.

USER MANUAL K5723 Calypso

4. HOW TO SET NORMAL TIME

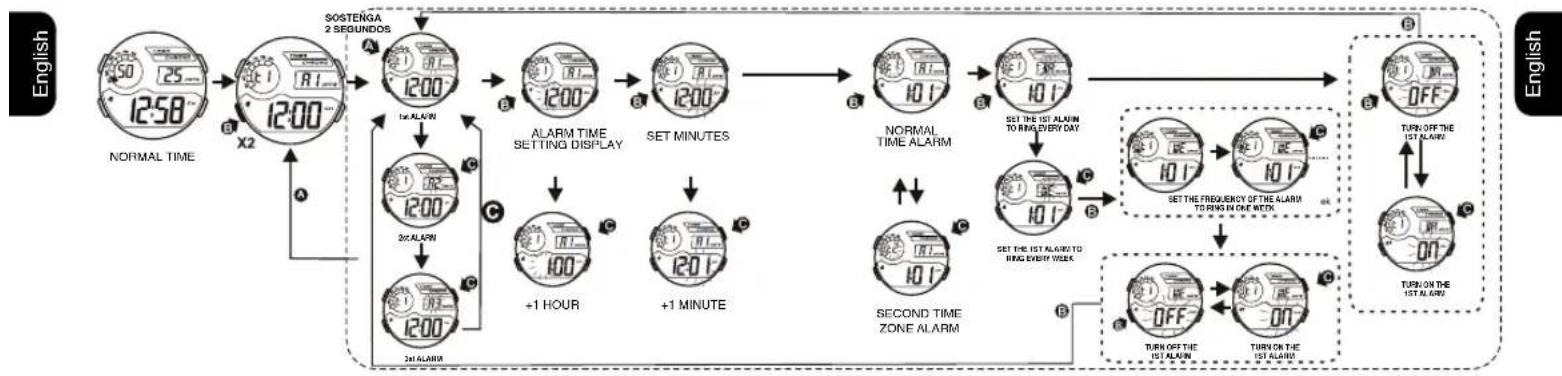

5. HOW TO SET ALARM TIME

6. HOW TO SET THE ALARM, RINGING ON THE HOUR AND KEY TONE

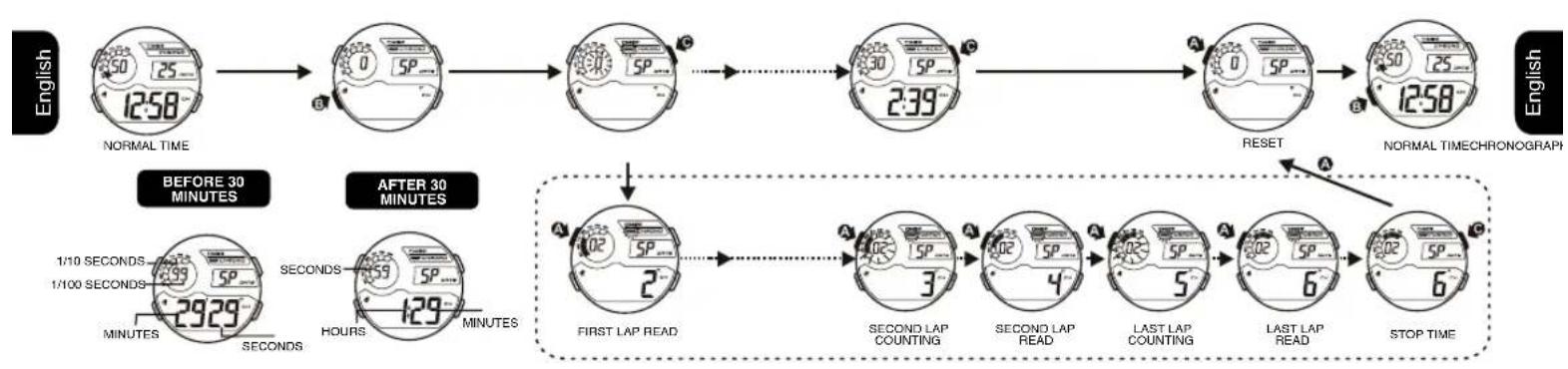

7. HOW TO USE THE CHRONOGRAPH

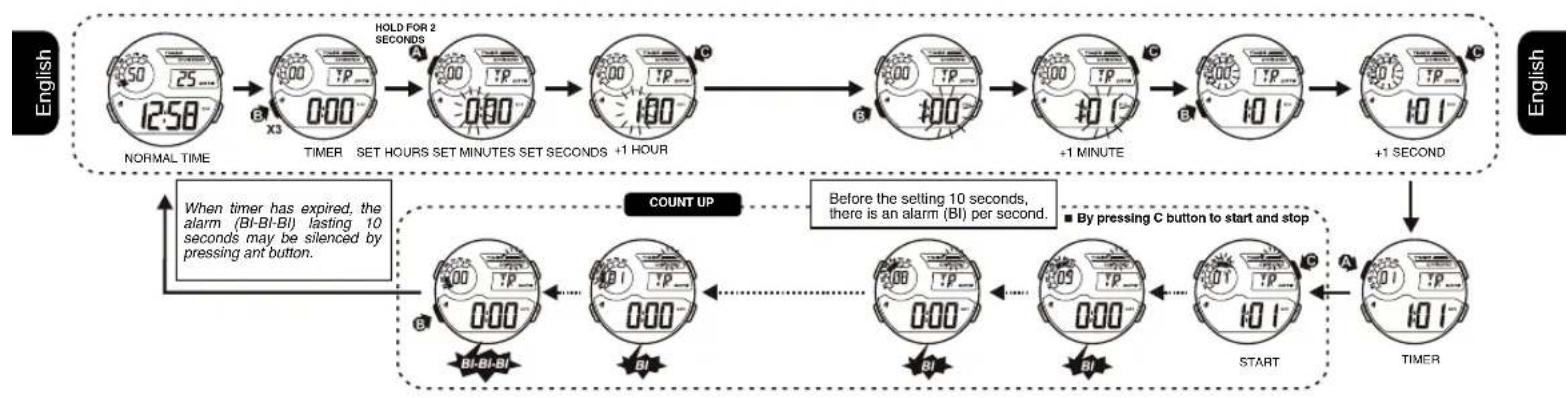

8. HOW TO USE TIMER

9. HOW TO SET SECOND TIME ZONE

10. HOW TO USE EL LIGHT

NOTE:
1. This watch features an electro-luminescent (EL) backlight, which tends to lose illuminating power after very long use.
2. The illumination provided by backlight may be hard to see under direct sunlight.

11. CARE OF YOUR WATCH

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and static electricity.

12. FEATURES AND SPECIFICATIONS

1. Standard display mode: Hour, minutes, seconds, month, day of the week.

2. Function:

Year, Month, date AM/PM and Electro-Luminiscent light.
- Alarm function with buzzer signal output.
- Chronograph function with lap operation.
- Hourly chime.
- 12/24 hour format switch option.
Second time zone.

1. Accuracy at normal temperature (25^) : + - 30 seconds a month.
2. Normal operating temperature range: 10^ - 40^

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your pitch making products at any of our retail outlets or any other authorized collection selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.

1.AFFICHAGE NORMALE ET BOUTON D'UTILISATION

BOUTONS D'UTILISATION

RÉGLAGE

ADJUSTMENT, MARCHE/ARRETE

MODE

LUMIÈRE

2.COMMENT CHANGER LE MODE D'AFFICHAGE
3.COMMENT AFFICHER LE MOIS, LA DATE

4.COMMENT RÉGLER L'HEURE NORMALE

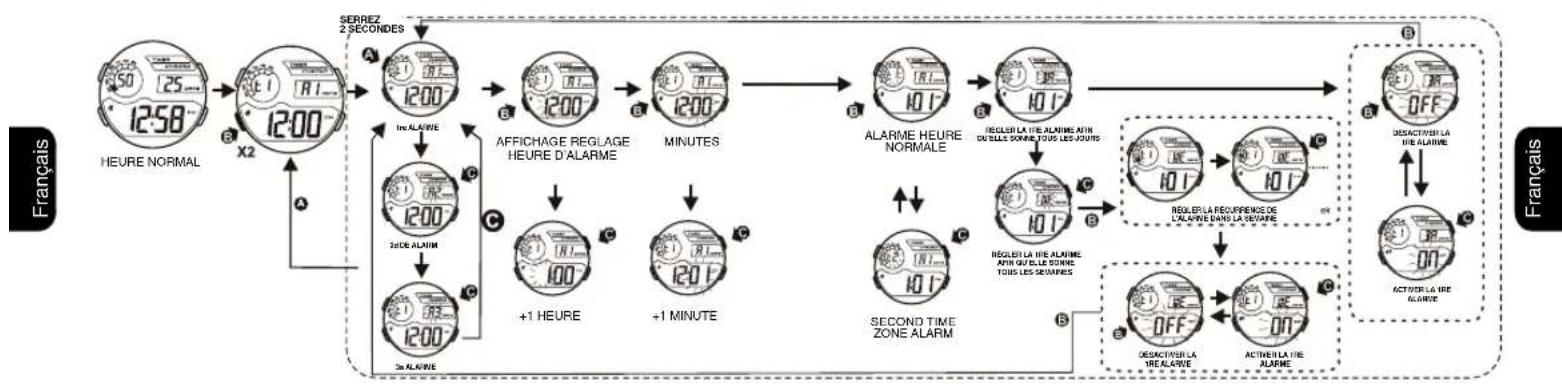

5.COMMENT RÉGLER L'ALARME

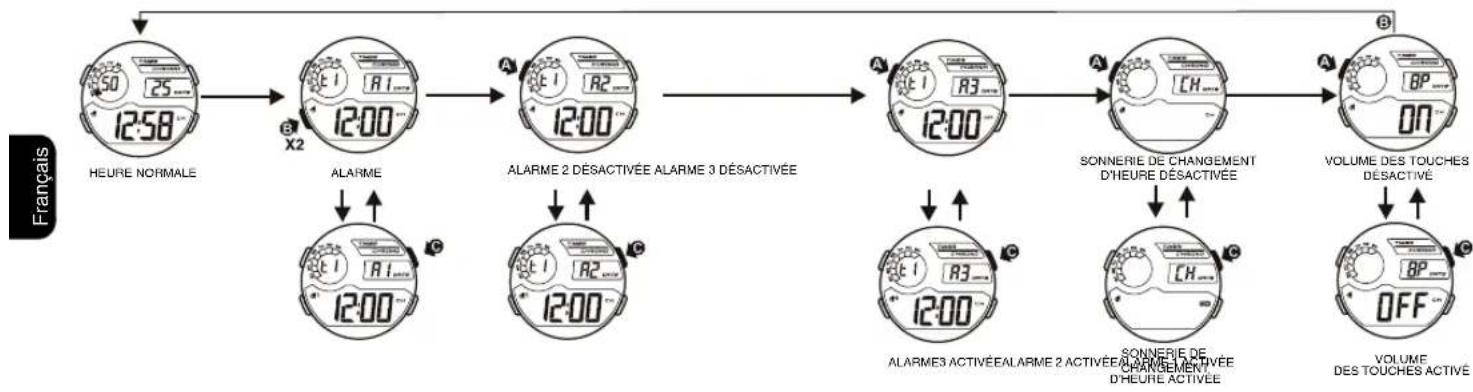

6.COMMENT REGLER L'ALARME, LA SONNERIE DE CHANGEMENT D'HEURE ET LE VOLUME DES TOUCHES

Français

7. COMMENT UTILISER LE CHRONOMÉTRE

8. POUR UTILISER LE MINUTEUR DU COMPTE A REBOURS

9.COMMENT REGLER L'HEURE D'UNE DEUXIEME ZONE

10. COMMENT ALLUMER LA LUMIERÉ ELECTRO-LUMINISCENTE
