USER MANUAL 50PM470S LG

User’s Guide Specication Creator Adviser Approver In charger DD/MM/YY Woo Mi-ra 22/03/12 Shin Hye-jung 22/03/12 Kim Jong-ok 22/03/12

Cover : Coated paper , S/W 150 g/m

Inside : Uncoated paper ,

“This part contain Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specication. (1)Eco-hazardous substances test report should be submitted when Part certication test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink. (1) Origin Notication

• LGEIN : Printed in Indonesia * LGEWA : Printed in U.K.

• LGESP : Printed in Brazil * LGEMX : Printed in Mexico

• LGEND : Printed in China * LGEIL : Printed in India

• LGEMA : Printed in Poland 22/03/12 Woo Mi-ra EKPC300178 Manual drawing update (Add sentence related LAN cable standard, Reect proofred language from foreign branch) Rev. No. DD/MM/YY Creator ECO Number Change description

13Pagination sheet Total pages : 240 pages Front Cover (ENG) P/No. A-2 A-3 A-4 ENG Cover

BlankFront Cover (ENG) P/No. A-2 A-3 A-4 ENG Cover

PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. www.lg.com PM47** PM67** PM68** PM97** P/NO : MFL67377805 (1203-REV01) Printed in KoreaA-2

A-3 SETTING UP THE TV

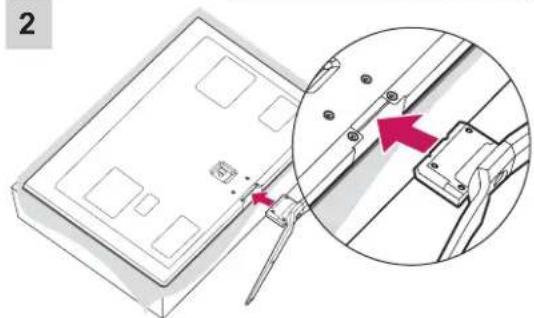

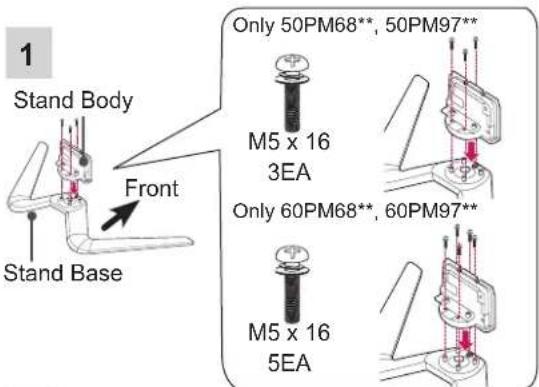

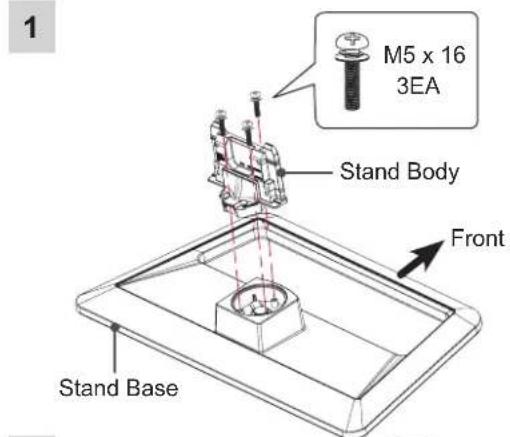

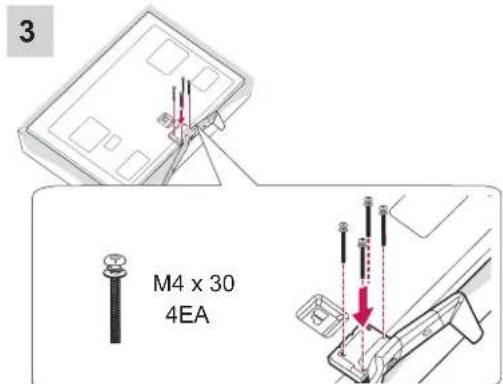

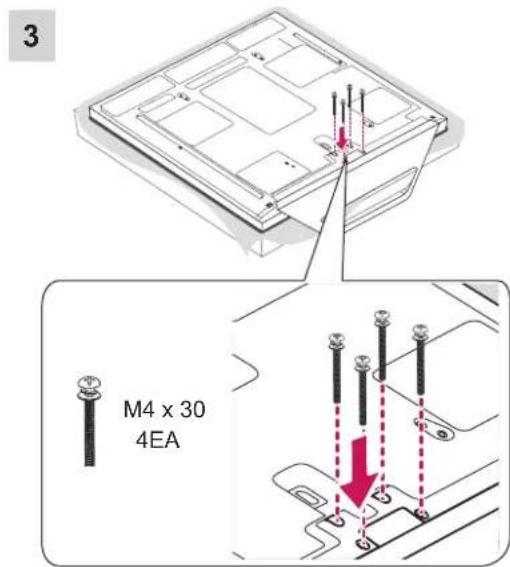

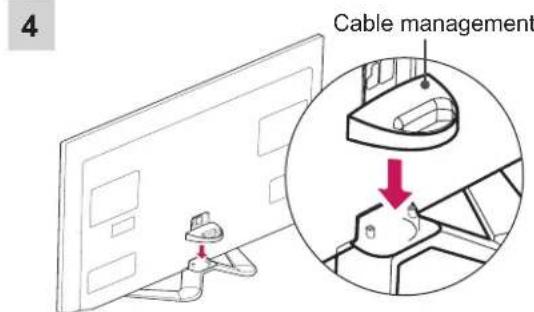

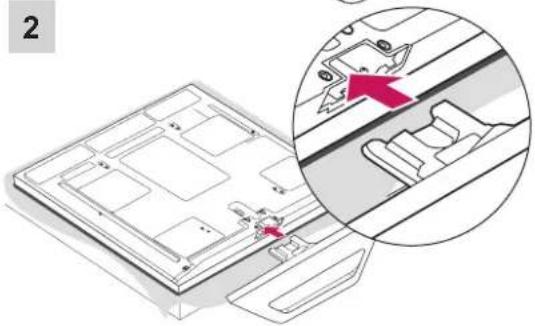

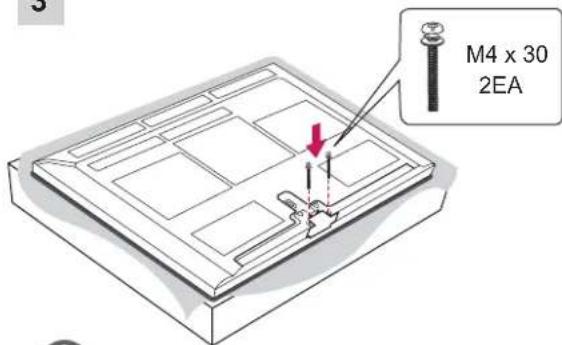

Image shown may differ from your TV. Attaching the stand 42/50PM47**, 50/60PM67**

When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

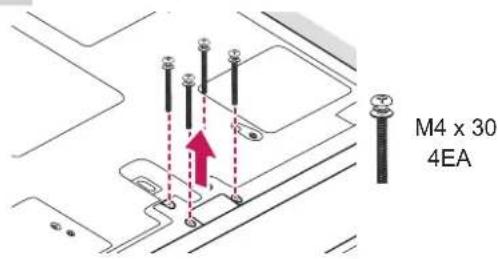

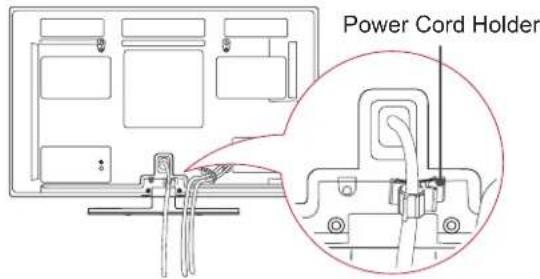

Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not fasten the screws with too much force; otherwise they may be worn out and get loosened. Tidying cables 1 Install the Power Cord Holder and Power Cord. It will help prevent the power cable from being removed by accident. 2 Gather and bind the cables with the Cable Holder. Install the LAN Cable as shown to reduce the electromagnetic wave.

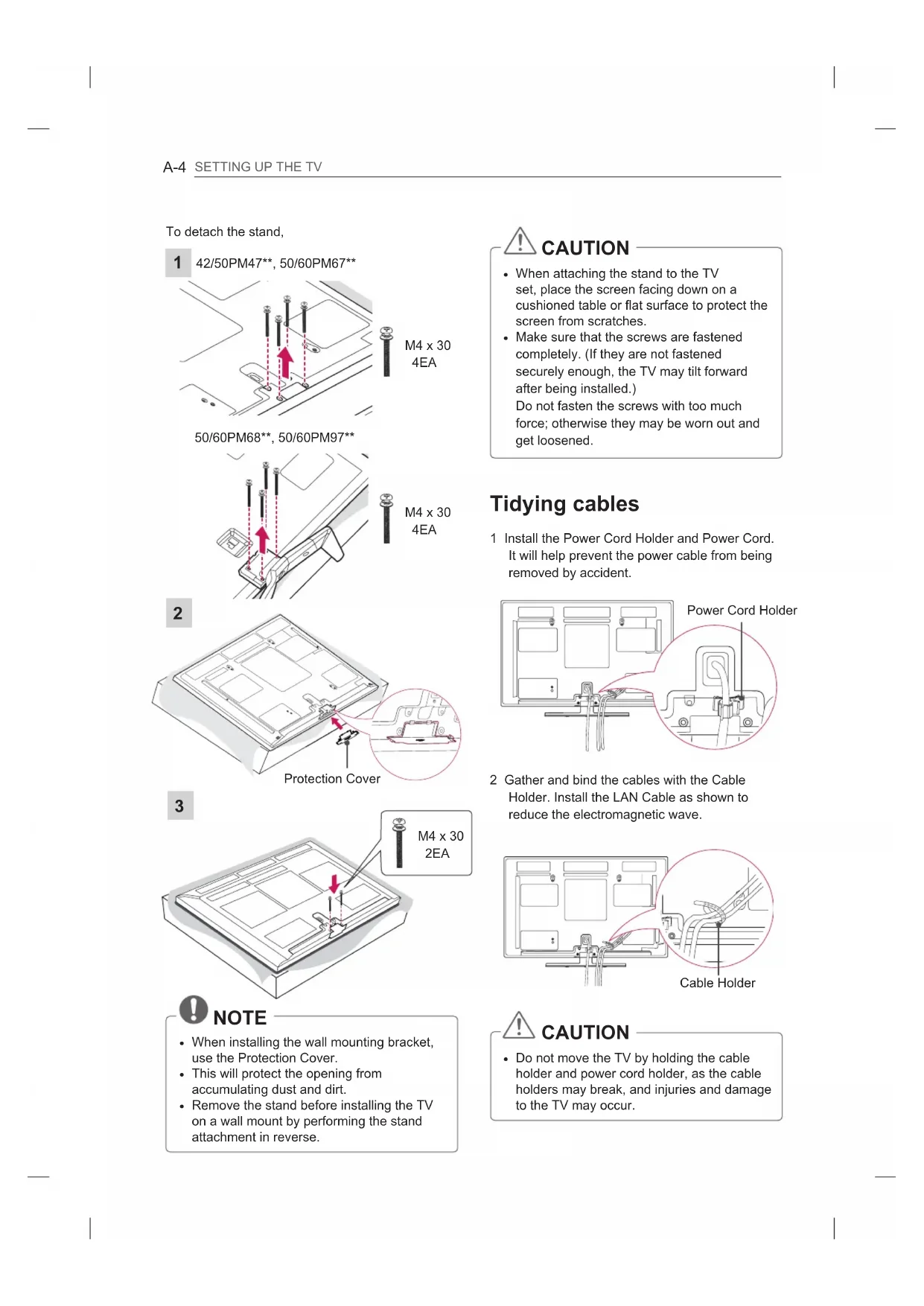

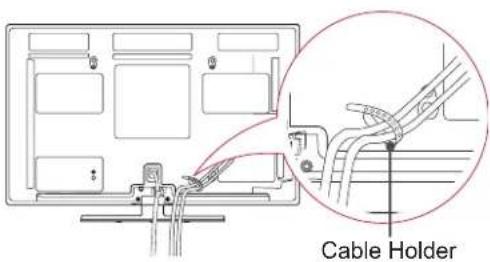

Do not move the TV by holding the cable holder and power cord holder, as the cable holders may break, and injuries and damage to the TV may occur. To detach the stand,

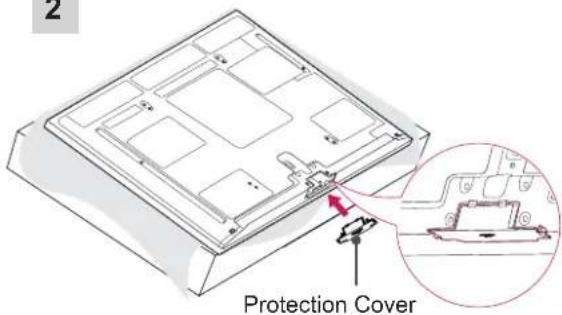

When installing the wall mounting bracket, use the Protection Cover.

This will protect the opening from accumulating dust and dirt.

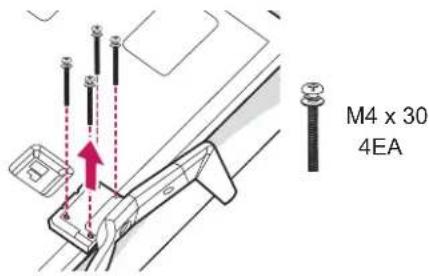

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.OWNER’S MANUAL PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. www.lg.com2 ENG ENGLISH

10 - Viewing 3D Imaging (Only 3D models)

12 Unpacking 15 Separate purchase 16 Parts and buttons 17 Lifting and moving the TV 18 Mounting on a table 19 Mounting on a wall 20 REMOTE CONTROL

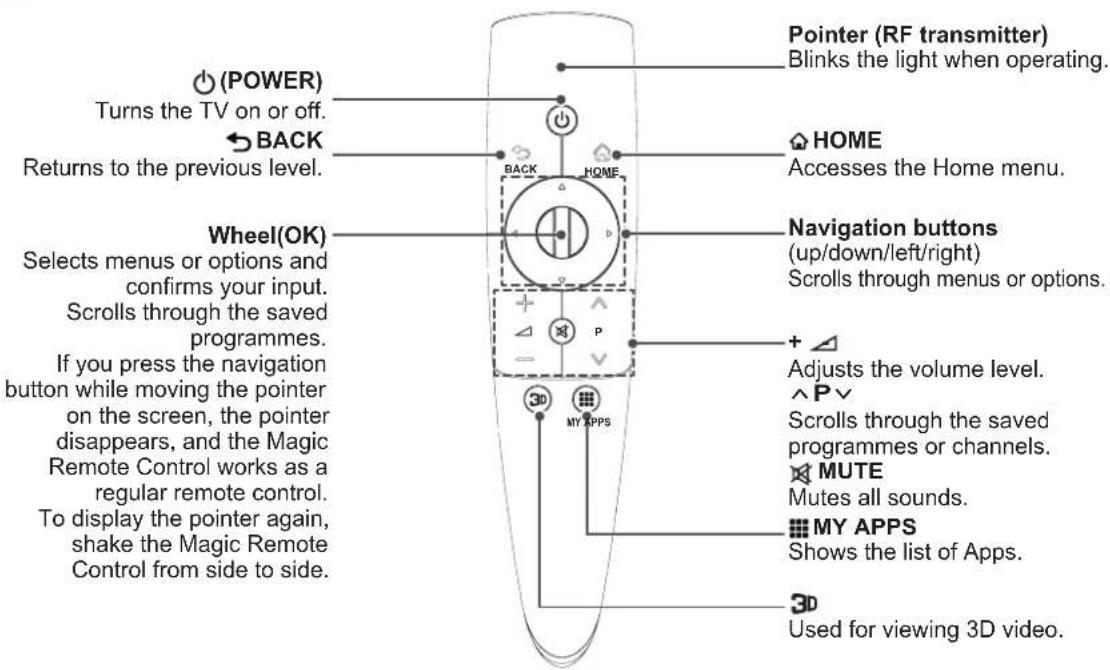

21 MAGIC REMOTE CONTROL

FUNCTIONS 22 Registering Magic Remote Control 22 How to use Magic Remote Control 22 Precautions to Take when Using the Magic Remote Control

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.3 ENGENGLISH

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays DivX video. Visit divx.com for more information and software tools to convert your les into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration. “DivX Certied® to play DivX® video up to HD 1080p, including premium content.” “DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.” “Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274” Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.4 ENG ENGLISH SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING

Do not place the TV and remote control in the following environments: - A location exposed to direct sunlight - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat - Near kitchen counters or humidifiers where they can easily be exposed to steam or oil - An area exposed to rain or wind - Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains plug is the disconnecting device. The plug must remain readily operable.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.) You may be electrocuted or injured.

Fix the power cable completely. If the power cable is not fixed completely, a fire can break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

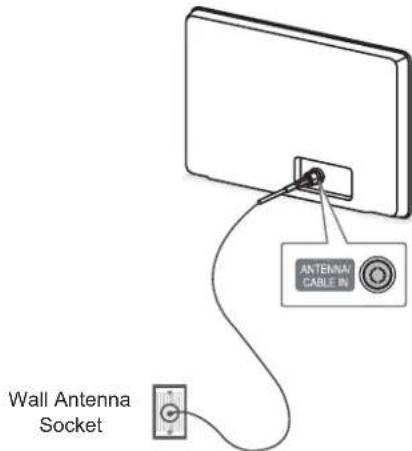

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV. It may cause fire, electric shock.5 ENGENGLISH SAFETY INSTRUCTIONS

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Desiccant

Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to protect a child from eating them. In case if they eat it, take them to consult a doctor immediately.

Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.6 ENG ENGLISH SAFETY INSTRUCTIONS

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service center for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.

If you don’t intend to use the product for a long time, unplug the power cable from the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.7 ENGENGLISH SAFETY INSTRUCTIONS CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult a qualified service man. This may create a fire hazard or an electric shock hazard. 5~7 times

We recommend that you maintain a distance of at least 5 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Make sure there are no objects between the remote control and its sensor.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.8 ENG ENGLISH SAFETY INSTRUCTIONS

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating. - The distance between the product and the wall should be more than 10 cm. - Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). - Do not install the product on a carpet or cushion. - Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it. If the wires inside the power cable are disconnected, this may cause fire.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.9 ENGENGLISH SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service center once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.10 ENG ENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models) WARNING Viewing Environment

Viewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a ashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides. - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.11 ENGENGLISH SAFETY INSTRUCTIONS CAUTION Viewing Environment

Viewing Distance - Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

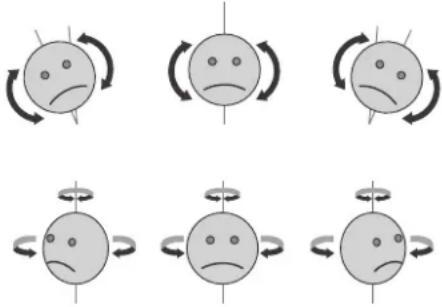

Viewing Position - Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you may not be able to view 3D contents properly. Viewing Age

Infants/Children - Usage/ Viewing 3D contents for children under the age of 5 are prohibited. - Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. - Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers - Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

Elderly - The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modied 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

When watching 3D videos under uorescent lights or with three wave length lamps, you may experience the screen blinking. When this occurs, turn the light off or turn it down.

Other electronic or communication devices should be turned off or put away from the TV because it can cause interference and prevent the 3D function from working properly.

When you watch TV lying down, 3D images may look darker or invisible.12 ENG ENGLISH

Image shown may differ from your TV.

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are using.

New features may be added to this TV in the future.

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. INSTALLATION PROCEDURE 1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available. You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION

Do not use any unapproved items to ensure the safety and product life span.

Any damage or injuries caused by using unapproved items are not covered by the warranty.

Some models have a thin film attached on to the screen and this must not be removed.13 ENGENGLISH

ASSEMBLING AND PREPARING

AV MODE INPUT Remote Control, Batteries (AAA) (See p. 20) Magic Remote Control, Batteries (AA) (Only 50/60PM97**) (See p. 21) Owner’s manual Polishing cloth (Depending on model) Use this to remove dust from the cabinet. Power Cord Power Cord Holder (See p. A-4) Protection Cover (See p. A-4) Ferrite core (Depending on model) (See p. 14) Cable Holder (Depending on model) (See p. A-4) 3D Glasses (AG-350) (Depending on model) Screw for assembly (Only 42/50PM47**, 50/60PM67**, 50PM68**, 50PM97**) (See p. A-3) Screw for assembly (Only 60PM68**, 60PM97**) (See p. A-3) Stand Body / Stand Base (Only 42/50PM47**, 50/60PM67**) (See p. A-3) Stand Body / Stand Base (Only 50/60PM68**, 50/60PM97**) (See p. A-3) Cable management (Only 50/60PM68**, 50/60PM97**) (See p. A-3)

ASSEMBLING AND PREPARING

NOTE 2 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug. 4 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L, R cable. Wind the component Y, Pb, Pr, L, R cable on the ferrite core once. Place the ferrite core close to the TV. [to an External device] [Figure 4] [to the TV] 10 mm(+ / - 5 mm) [to a wall plug] [to the TV] [Figure 2] - If there are six ferrite cores, follow as shown in Figure 1,2 and 3. - If there are seven ferrite cores, follow as shown in Figure 1,2,3 and 4. 3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable thrice on the ferrite core. Place the ferrite core close to the TV and an External device. [to the TV] [to an External device] BAA [Figure 3] [to an External device] [Figure 1] [to the TV] 10 mm(+ / - 5 mm)

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port. *A 10 mm *B 18 mm

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. How to use the ferrite core 1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable. Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV. [Cross Section of Ferrite Core] (Gray) [Cross Section of Ferrite Core] (Black) A (Gray) B (Gray) [Cross Section of Ferrite Core] [Cross Section of Ferrite Core] (Black)15 ENGENGLISH

ASSEMBLING AND PREPARING

Separate purchase Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models. AG-S3** 3D Glasses AN-WF100 Wireless LAN AN-MR300 Magic Remote Control Compatibility PM47** PM67** PM68** PM97** AG-S3** 3D Glasses

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies. P16 ENG ENGLISH

ASSEMBLING AND PREPARING

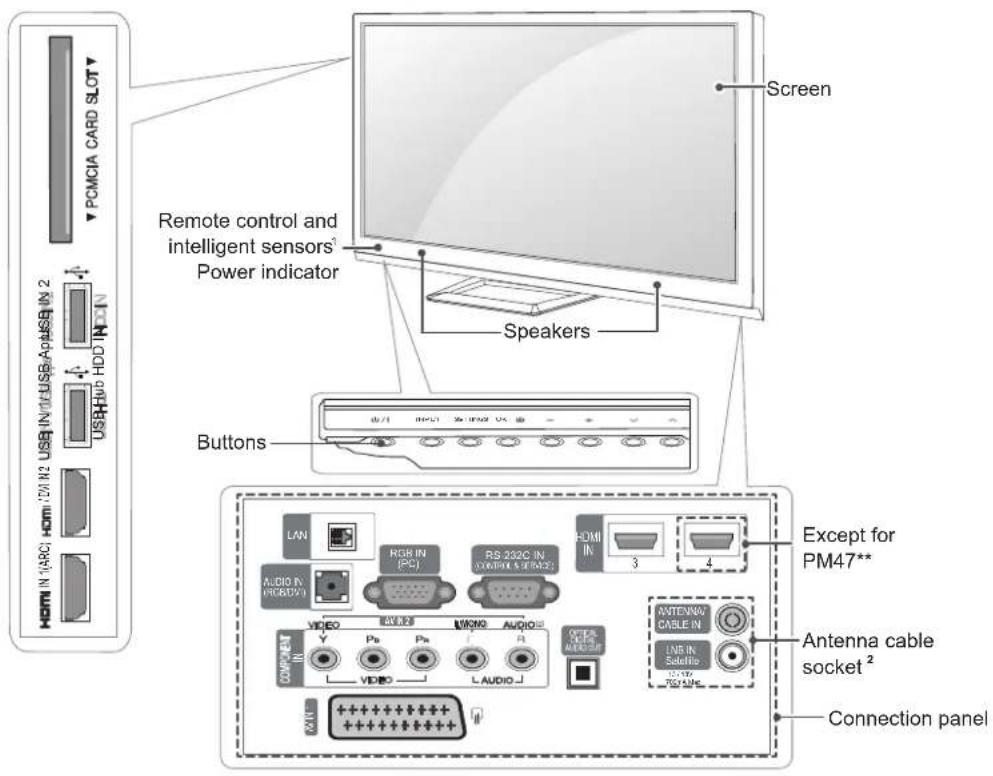

Parts and buttons 1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 Antenna cable socket - The Antenna cable socket may differ from the model. Button Description

Turns the power on or off. INPUT Changes the input source. SETTINGS Accesses the main menus, or saves your input and exits the menus.

Adjusts the volume level.

Connection panel Except for PM47** Speakers Screen Remote control and intelligent sensors

ASSEMBLING AND PREPARING

Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

It is recommended to move the TV in the box or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

When holding the TV, the screen should face away from you to avoid damage.

Hold the top and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

When transporting a large TV, there should be at least 2 people.

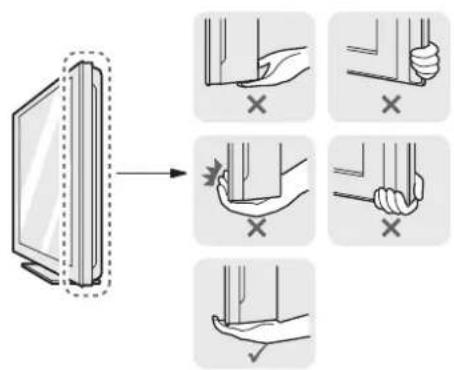

When transporting the TV by hand, hold the TV as shown in the following illustration.

When transporting the TV, do not expose the TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.18

ENGENGLISHASSEMBLING AND PREPARING

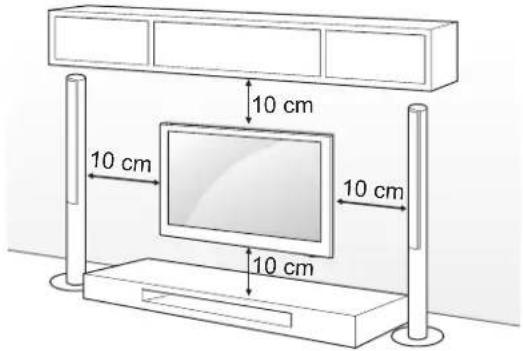

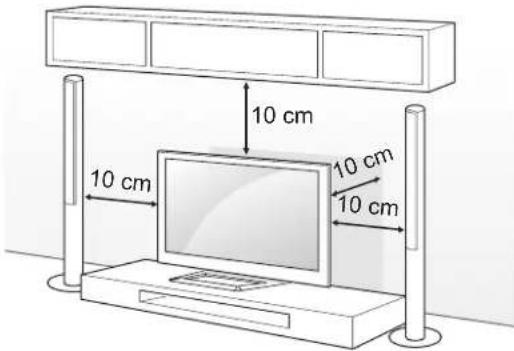

Mounting on a table 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation.2 Connect the power cord to a wall outlet. CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage.Adjusting the angle of the TV to suit view(This feature is not available for all models.)Adjusting the angle of the TV to suit viewSwivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. CAUTION When adjusting the angle of the product, watch out for your fingers.

Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.10 cm10 cm 10 cm 10 cm Securing the TV to a wall (This feature is not available for all models.)1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first.2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface. CAUTION

Make sure that children do not climb on or hang on the TV. NOTE

Use a platform or cabinet that is strong and large enough to support the TV securely.

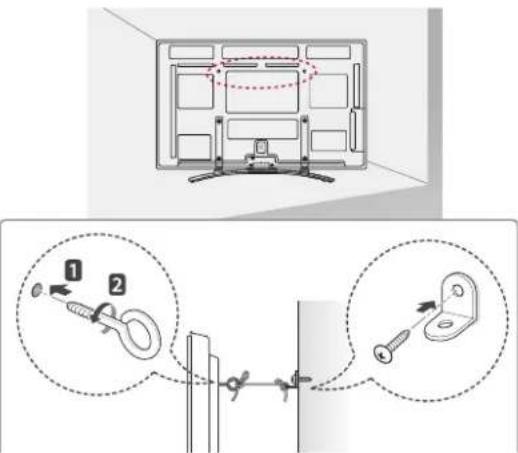

Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.

If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the TV and void your warranty.

Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit includes an installation manual and necessary parts.

The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Make sure to use the proper length.

For more information, refer to the manual supplied with the wall mount. Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel.LG recommends that wall mounting be performed by a qualied professional installer.Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.Separate purchase(Wall Mounting Bracket)Model 42/50PM47**50PM67**50PM68**50PM97**60PM67**60PM68**60PM97**VESA (A x B) 400 x 400 600 x 400Standard screw M6 M8Number of screws Wall mount bracket PSW400B, PSW400BGPSW600B, PSW600BG 10 cm 10 cm10 cm 10 cm

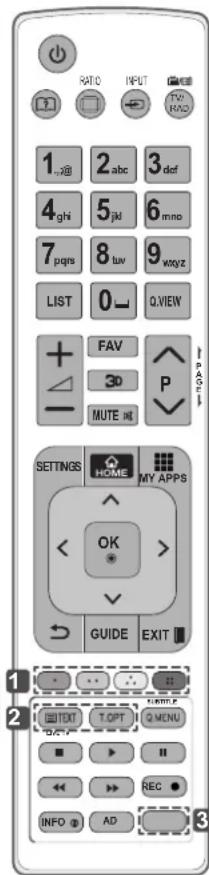

B20 ENG ENGLISH REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. EXIT Clears all on-screen displays and return to TV viewing.

TELETEXT BUTTONS These buttons are used for teletext. For further details, see the ‘Teletext’ section. SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. LIVE TV Return to LIVE TV. Control buttons ( ) Controls the Premium contents, DVR or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or DVR). REC Uses to adjust DVR menu. INFO

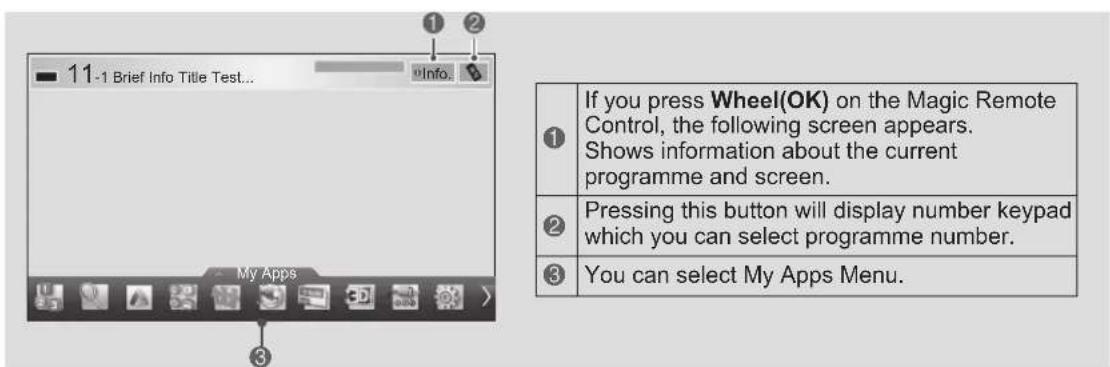

Views the information of the current programme and screen.

Switches the Audio Description On or Off.

Select the MHP TV menu source. (Only Italy) (Depending on model)

ORANGE Direct access to your internet portal of entertainment and news services developed by Orange. (Only France) CAUTION

Do not mix old and new batteries, as this may damage the remote control. Make sure to point the remote control toward the remote control sensor on the TV. RATIO INPUT TV/ RAD 1.,;@ 2 abc 3 def 4 ghi 5 jkl 6 mno 7pqrs 8 tuv

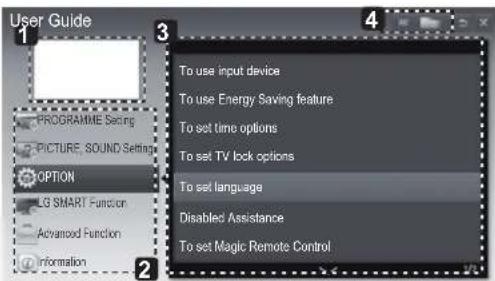

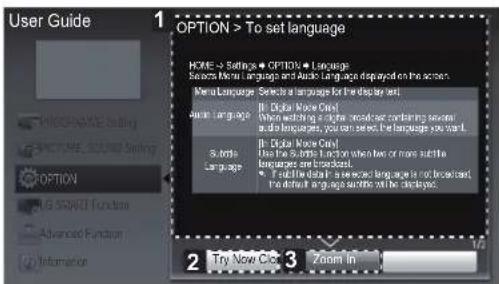

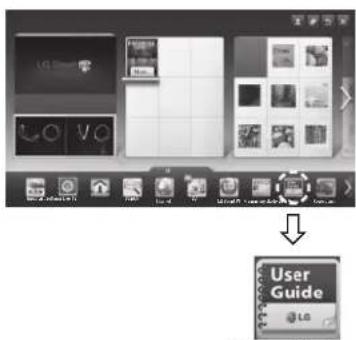

(User Guide) Sees user-guide. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme. LIST Accesses the saved programme list. (Space) Opens an empty space on the screen keyboard. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. Used for viewing 3D video. PAGE Moves to the previous or next screen. SETTINGS Accesses the main menus. HOME Accesses the Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options.

Selects menus or options and confirms your input. (Back) Returns to the previous level. GUIDE Shows programme guide.21

ENGENGLISHMAGIC REMOTE CONTROL FUNCTIONS

MAGIC REMOTE CONTROL FUNCTIONS

This item is not included for all models.When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV.To remove the batteries, perform the installation actions in reverse. CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Do not need Magic remote Dongle to operate the magic remote control. The Receiver is built into the TV. If you press Wheel(OK) on the Magic Remote Control, the following screen appears. Shows information about the current programme and screen. Pressing this button will display number keypad which you can select programme number. You can select My Apps Menu. My Apps BACK HOME

MY APPSUsed for viewing 3D video. MY APPSShows the list of Apps.Navigation buttons (up/down/left/right) Scrolls through menus or options.Pointer (RF transmitter)Blinks the light when operating. HOMEAccesses the Home menu.Wheel(OK)Selects menus or options and confirms your input.Scrolls through the saved programmes.If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Remote Control works as a regular remote control.To display the pointer again, shake the Magic Remote Control from side to side. (POWER) Turns the TV on or off. BACK Returns to the previous level.+ -Adjusts the volume level.ꕌPꕍScrolls through the saved programmes or channels. MUTEMutes all sounds.Info. 11-1 Brief Info Title Test...22 ENG ENGLISH

MAGIC REMOTE CONTROL FUNCTIONS

Registering Magic Remote Control It is necessary to ‘pair’ (register) the magic remote control to your TV before it will work. How to register the Magic Remote Control BACK HOME

MY APPS 1 To register automatically, turn the TV on and press the Wheel(OK) button. When registration is completed, the completion message appears on the screen. 2 If registration fails, turn the TV off and back on, then press the Wheel(OK) button to complete registration. How to re-register the Magic Remote Control BACK HOME 1 Press and hold the BACK and HOME buttons together for 5 seconds to reset, then register it by following “How to register the Magic Remote Control” above. 2 To re-register the Magic Remote Control, press and hold the BACK button for 5 seconds toward the TV. When registration is completed, the completion message appears on the screen. How to use Magic Remote Control 1 If the pointer disappears, move the remote control slightly to left or right. Then, it will automatically appear on the screen.

If the pointer has not been used for a certain period of time, it will disappear. 2 You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down.

If the pointer does not work properly, leave the remote control for 10 seconds then use it again. Precautions to Take when Using the Magic Remote Control

Use the remote control within the maximum communication distance (10 m). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure.

A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control.

The Magic Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.

Take care not to bump into nearby furniture or other people when using the Magic Remote Control.

Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.

It is recommended that an Access Point (AP) be located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.23 ENGENGLISH

You can also access the User Guide by pressing (User Guide) in the remote control.

Shows the current watching programme or input source screen.

Allows to select the category you want.

Allows to select the item you want. You can use

to move between pages.

Allows to browse the description of the function you want from the index.

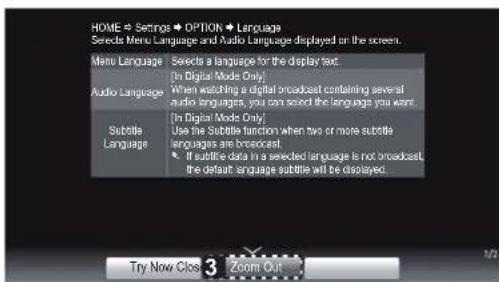

User Guide OPTION > To set languageHOME Settings OPTION LanguageSelects Menu Language and Audio Language displayed on the screen.Menu LanguageAudio LanguageSubtitle LanguageSelects a language for the display text.[In Digital Mode Only]When watching a digital broadcast containing several audio languages, you can select the language you want.[In Digital Mode Only]Use the Subtitle function when two or more subtitle languages are broadcast.✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.Try Now CloseZoom InOPTIONPROGRAMME SettingPICTURE, SOUND SettingLG SMART FunctionAdvanced FunctionInformation HOME Settings OPTION LanguageSelects Menu Language and Audio Language displayed on the screen.Menu LanguageAudio LanguageSubtitle LanguageSelects a language for the display text.[In Digital Mode Only]When watching a digital broadcast containing several audio languages, you can select the language you want.[In Digital Mode Only]Use the Subtitle function when two or more subtitle languages are broadcast.✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.Try Now CloseZoom Out

to move between pages.

Moves to the selected menu directly from the User Guide.

Zooms in or out the screen.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.24 ENGENGLISHMAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly. TROUBLESHOOTING Problem SolutionCannot control the TV with the remote control.

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed ( to , to ).No image display and no sound is produced.

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.The TV turns off suddenly.

Check the power control settings. The power supply may be interrupted.

Check if the Auto sleep feature is activated in the Time settings.

If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.When connecting to the PC (RGB/HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.

Turn the TV off/on using the remote control.

Reconnect the RGB/HDMI cable.

Restart the PC with the TV on.25 ENGENGLISH

MY APPSLIVE TVSUBTITLE

MY APPSLIVE TVSUBTITLE

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal amplifier properly to improve the image quality.

If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

It is recommended to use the TV with the HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

An external audio device that supports SIMPLINK and ARC must be connected using HDMI IN 1 (ARC) port.

When connected with a high-speed HDMI cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function. Deutsch

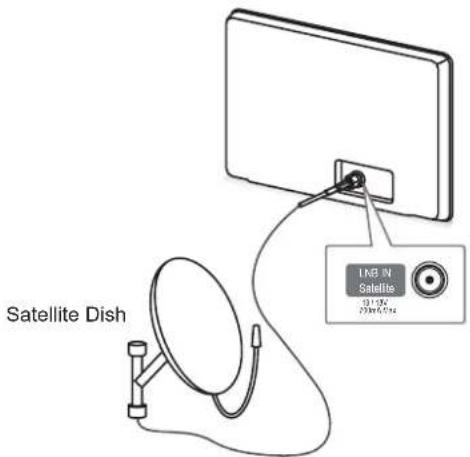

Podprte oblike zvoka za HDMI: Dolby Digital, PCM (do 192 KHz, 32 k/44,1 k/48 k/88 k/96 k/176 k/192 k, DTS ni podprt.)B-6 MAKING CONNECTIONS DVI to HDMI Connection English Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. Choose any HDMI input port to connect. It does not matter which port you use. NOTE

If cables are installed incorrectly, it could case the image to display in black and white or with distorted colour.

If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off. Digital optical audio connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown. NOTE

Do not look into the optical output port. Looking at the laser beam may damage your vision.

To use a USB Hub device, make sure that it is connected to the USB Hub port.

Connect the external power source if your USB is needed.

AV1 (When DTV scheduled recording is in progress using recording equipment.) Digital TV Digital TV O Analogue TV, AV Analogue TV

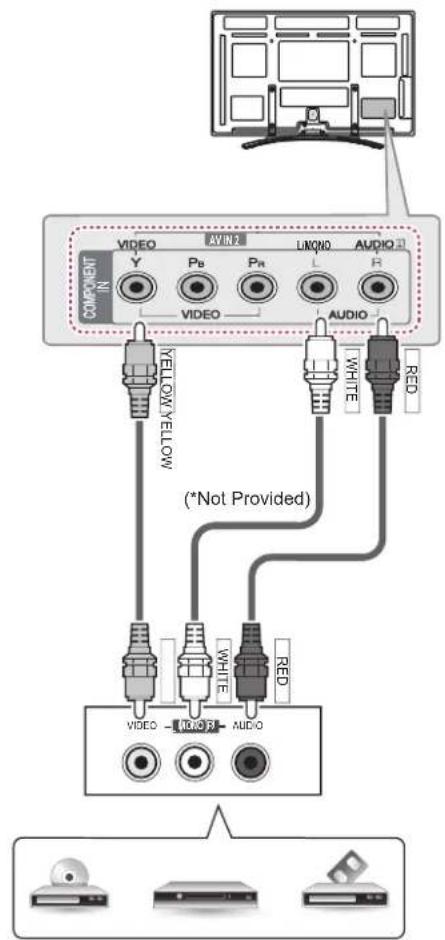

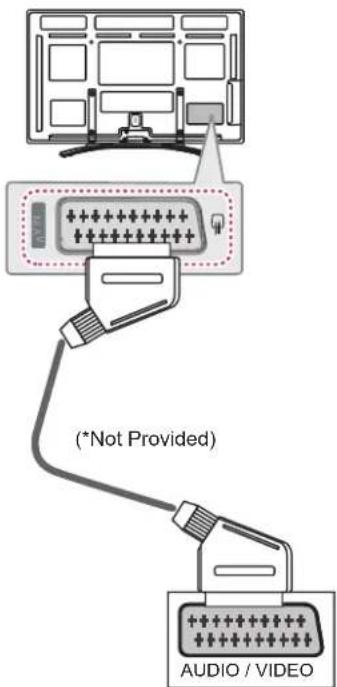

Any Euro scart cable used must be signal shielded.

When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable. (Only 3D models)

If you set the 3D mode to On while a scheduled recording is performed on digital TV, monitor out signals cannot be output through the SCART cable, and the recording cannot be performed. (Only 3D models)

The external device connection may differ from the model.

Connect external devices to the TV regardless of the order of the TV port.

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

Refer to the external equipment’s manual for operating instructions.

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

1168.0 x 704.0 x 53.0 Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Environment condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 %B-26 SPECIFICATIONS Satellite Digital TV

Programme coverage VHF, UHF C-Band, Ku-Band VHF, UHF VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47 Maximum number of storable programmes 6,000 1,500 External antenna impedance 75 Ω 1 Only satellite models 2 Only DVB-T2 support models HDMI/DVI-DTV supported mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 720x480

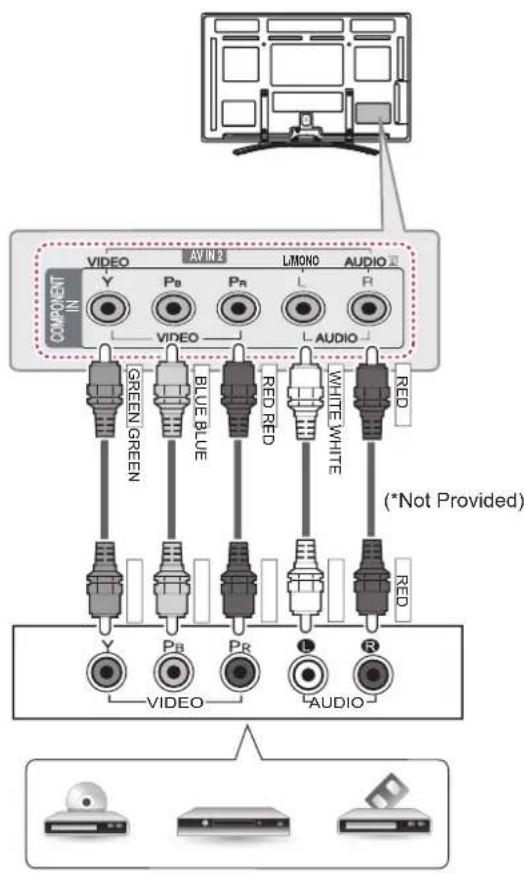

Component port connecting information Component ports on the TV Y P

Video output ports on DVD player Y P

Frame packing, Line alternative

Side-by-side(Full), Top-and-Bottom, Side-by-side(half) 720p 1280X720

Frame packing, Line alternative 89.91/90 59.94 / 60

Side-by-side(Full), Top-and-Bottom Side-by-side(half), Single Frame Sequential

Frame packing, Field alternative

Side-by-side(Full), Top-and-Bottom, Side-by-side(half)

Side-by-side(Full), Top-and-Bottom, Side-by-side(half), Checkerboard

Top-and-Bottom, Side-by-side(half), Checkerboard, Single Frame Sequential, Row Interleaving, Column Interleaving

Side by Side, Top & Bottom

USB 1080p 1920X1080 33.75 30 Side by Side, Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving, MPO(Photo) (Photo : Side by Side(half), Top & Bottom) DLNA 1080p 1920X1080 33.75 30 Side by Side, Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving (Photo : Side by Side(half), Top & Bottom) Signal Playable 3D video format DTV 720p, 1080i Side by Side, Top & Bottom y Media contents and a player need to support HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D Top & Bottom to play in 3D. y Video, which is input as HDMI,USB,DLNA, is switched into the 3D screen automatically. (This function does not support all of the 3D video format. The specific 3D video format is not switched into the 3D screen au- tomatically. ) y 2D->3D mode is available to watch for all signals. y For models supporting WiDi, you can set the 3D mode in the same way as in RGB (PC) mode.Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL Please contact LG First. If you have any inquiries or comments, please contact LG customer information centre. Customer Information Centre Country Service Country Service
