KHD223AC - Hair dryer Koenic - Free user manual and instructions

Product type	Hair dryer
Brand	Koenic
Model	KHD223AC
Power supply	220-240 V~, 50 Hz
Rated power	2200 W
Protection class	II
Number of speeds	2 (low, high)
Number of temperatures	3 (low, medium, high)
Cold air function	Yes (button to hold)
Included accessories	Concentrator, diffuser, instruction manual, warranty
Removable air intake grille	Yes (for cleaning)
Overheat protection	Yes (automatic shutdown)
Suspension ring	Yes
Intended use	Domestic, hair drying
Exterior cleaning	Damp cloth (do not immerse)
Number of pages of manual	50

Frequently Asked Questions - KHD223AC Koenic

Can I use the hairdryer in the bathroom?

Yes, but unplug it immediately after use and do not use it near water or humidity. For enhanced safety, install a 30 mA residual current device (RCD).

How to clean the air intake grille?

Unplug the device and let it cool down. Turn the grille in the direction of the arrow to remove it. Remove hair and debris, then put it back.

What is the cold air button for?

It allows you to blow cold air to set your hairstyle. Hold the button down during use; release to return to the selected temperature.

What accessories are included and how to use them?

The pack includes a concentrator for precise drying and a diffuser for curls. They attach to the air outlet and can rotate freely.

How to adjust speed and temperature?

Use the speed selector (low or high position) and the thermostat (low, medium, high temperature). Cold air is activated via a separate button.

What to do if the hairdryer suddenly turns off?

It's the overheat protection. Unplug the appliance, let it cool down completely, clean the air intake grille and check that it is not obstructed. It can then be reused.

Can the appliance be used by children?

Yes, from 8 years old under supervision. Children must not play with the appliance nor perform cleaning without supervision.

How to maintain the power cord?

Do not bend the cord and avoid contact with heat sources. Always pull the plug to disconnect, never the cord.

Can I use the hairdryer without accessories?

Yes, you can use it without concentrator or diffuser. The accessories are removable and simply snap onto the air outlet.

What to do if the appliance falls into water?

Do not touch the water. Immediately unplug the appliance from the outlet. Then have it checked by an expert before reusing.

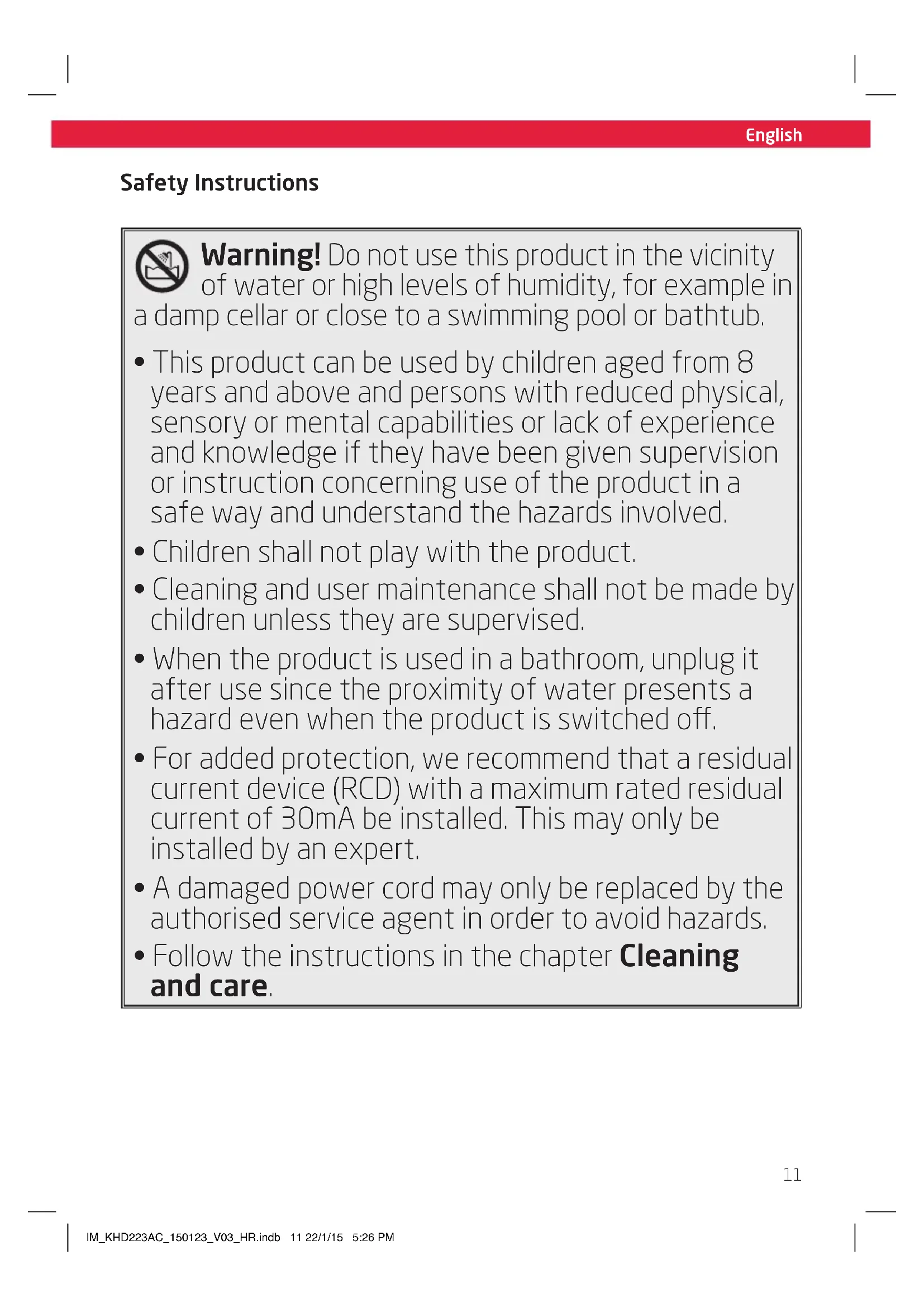

USER MANUAL KHD223AC Koenic

Warning! Do not use this product in the vicinity of water or high levels of humidity, for example in camp cellar or close to a swimming pool or bathtub.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• When the product is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the product is switched off.
• For added protection, we recommend that a residual current device (RCD) with a maximum rated residual current of 30mA be installed. This may only be installed by an expert.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Follow the instructions in the chapter Cleaning and care.

English

Safety Instructions

Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and

in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

1. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

2. Never leave the product unsupervised while it is switched on.

3. Do not place heavy objects on top of the product.

4. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

5. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

6. The mains voltage must match the information on the rating label of the product.

7. Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

8. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

9. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

10. Only unplug from the power socket by the plug itself. Do not pull on the cord.

11. Unplug the product .. when the product is not being used,

-in case of malfunctions,

• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slipresistant surface.

• Never use, expose or put the product near to: direct sunlight and dust;

• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not intended for commercial use. It is designed for household use only.

• Should the product fall into water, then unplug the power cable from the mains outlet. Do not reach into the water before the product has been disconnected from the mains supply. Get the product checked by an expert at this stage.

• If you are using the product with your hand(s), then always make sure it is turned off for safety reasons.

• The air outlet grill may become very hot during use. Make sure that the power cable does not come into contact with the air outlet grill.

• The air inlet screen can be come hot during operation. Make sure that the power cable does not come into contact with the air inlet screen.

• Never open the housing. Do not place any objects inside the air inlets and outlets.

• Make sure that any objects such as hairpins or hair clips do not get inside the product. This may cause a short circuit or damage to the product.

• Allow the product to cool down completely before you remove or install any accessories.

• Do not use sprays or water sprays in close proximity of the product.

• Never cover the air inlet and outlet openings during use. Make sure that any hair does not come into contact inside the air inlet and outlet openings.

• Should the air inlet and outlet openings be covered during operation, then the built-in thermal protection will automatically switch the product off. Pull the plug and allow the product to cool down completely before setting it back in motion. Check to see whether the air inlet screen has become dirty, and remove any debris such as hair or fluff.

• Risk of burning! Parts of the product may become very hot during operation. Hold the product therefore only with the handle.

• Clean the product and all other accessories after each use.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for drying hair only. Any other use may result in damage to product or injuries.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Content

1 x Hair dryer
1 x Concentrator
1 x Diffuser
1 x User manual
1 x warranty card

Technical data

Rated voltage: 220 - 240 V~

Rated input power: 2200 W

Rated frequency: 50Hz

Protection class: II

Part list

A Diffuser
B Concentrator
Air outlet
Air inlet grille
E Hanging loop
F Power cord with plug
G Air flow switch
H Temperature switch
Cold shot button

English

Operation

1 You can attach concentrator or diffuser to the product or without any attachment.
The attachment can rotate freely and help to achieve specific hair styles through the use of air pooling.

Caution

The concentrator or the diffuser become very hot during use. DO NOT TOUCH!

3 Connect the power plug to a suitable power outlet.
4 Switch the product on by using the air flow switch

Setting Air flow strength

Product is switched off

Gentle air flow

Strong airflow

5 Select the temperature by using the temperature switch

Setting Temperature

Low temperature

Medium temperature

High temperature

6 Press and hold the cool shot button to activate the cool air function. Stop cool air: Release the button.
7 Always switch the product off after use and unplug the power plug from the power outlet.

Protection against overheating

1. If the hair dryer becomes too hot, then it will switch itself off automatically.
2. Unplug the power plug from the power outlet and allow the product to cool down completely before you use it again.
3. Check to see if the air inlet opening is dirty, and clean it according to cleaning the air inlet grille.

Cleaning and care

Caution

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects.

Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch).

Cleaning the air inlet grille

Clean the air inlet grille regularly to remove hair and lint.
Screw the air inlet grille anti-clockwise and take off from the hair dryer.
10 Close the air inlet grille again after cleaning.

Do not dispose of this product as assorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
