| Feature | Details |
|---|---|
| Screen | 5.0-inch touchscreen, HD resolution |
| Processor | Quad-core, 1.3 GHz frequency |
| RAM | 1 GB |
| Internal storage | 8 GB, expandable via microSD |
| Rear camera | 8 MP with autofocus |
| Front camera | 2 MP |
| Operating system | Android |
| Battery | 2000 mAh, removable |
| Connectivity | 4G LTE, Wi-Fi, Bluetooth |
| Dimensions | 145 x 72 x 9 mm |
| Weight | 150 g |
| Maintenance | Regular cleaning, system updates |
| Security | PIN code lock, password |
| General information | Compatible with standard accessories, 2-year warranty |
Frequently Asked Questions - Facile Idea NGM
User questions about Facile Idea NGM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Facile Idea - NGM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Facile Idea by NGM.
USER MANUAL Facile Idea NGM
Copyright © 2015 NGM Italia

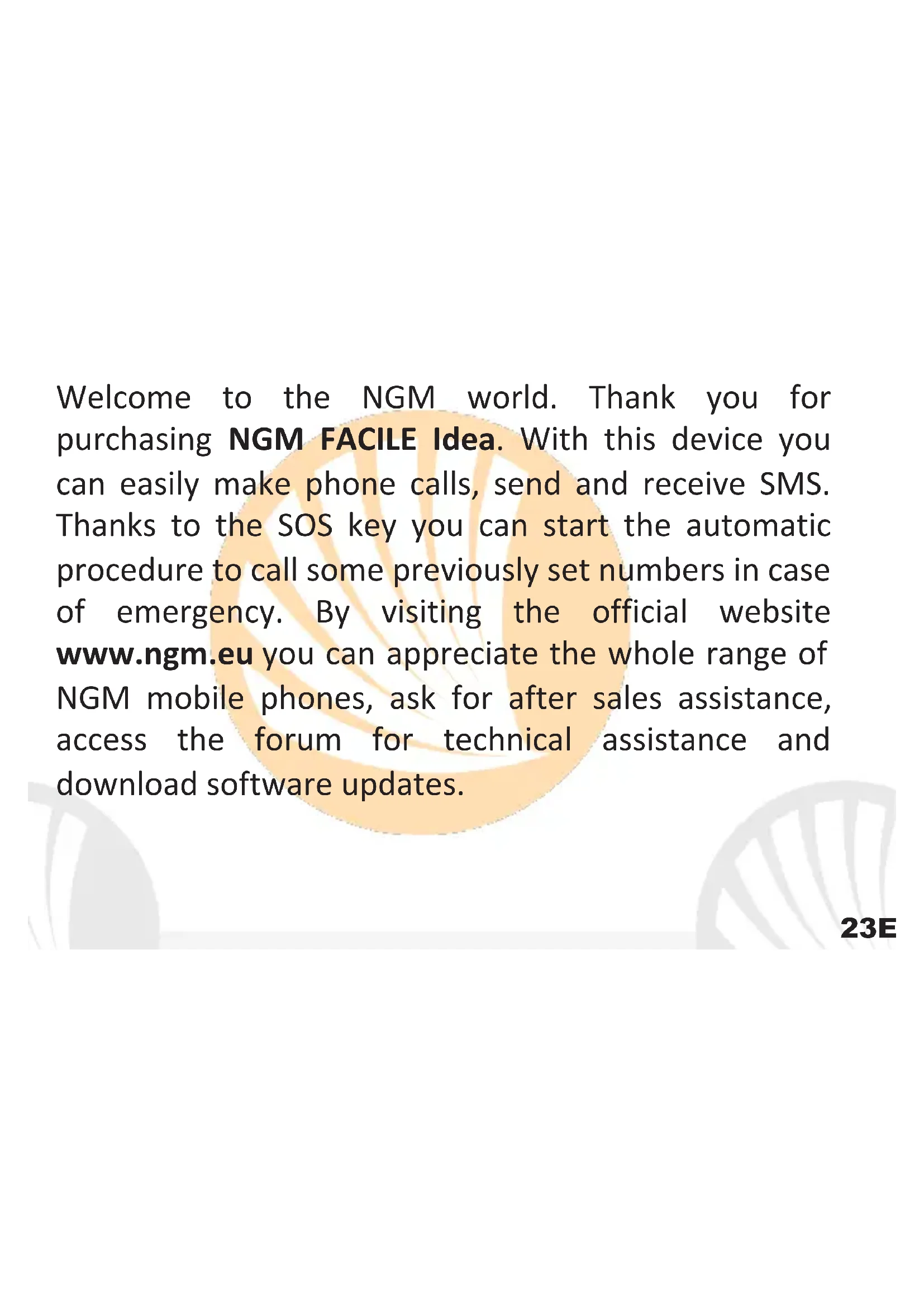

Welcome to the NGM world. Thank you for purchasing NGM FACILE Idea. With this device you can easily make phone calls, send and receive SMS. Thanks to the SOS key you can start the automatic procedure to call some previously set numbers in case of emergency. By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones, ask for after sales assistance, access the forum for technical assistance and download software updates.

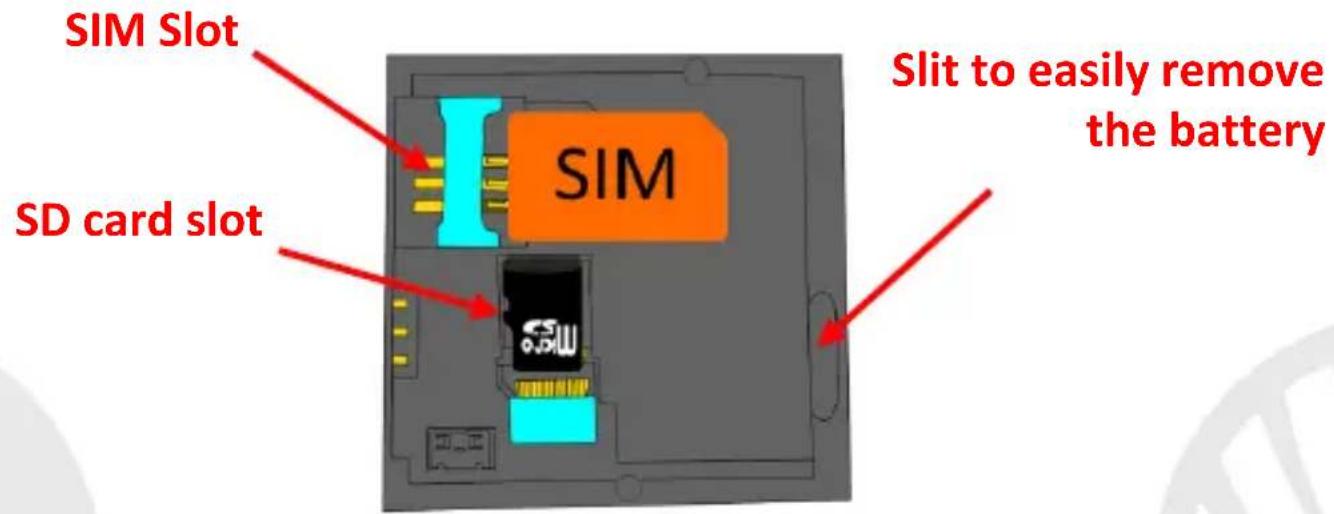

Inserting the SIM card: the SIM card contains your phone number, PIN code, links to operator services, contacts and SMS messages. To access the compartment containing the SIM slot, turn off the phone and slide down the cover. Remove the battery. Insert the SIM card into the slot with its gold contacts facing down.
24ENGLISH
Insert a memory card: in order to use camera and media player functions of NGM FACILE Idea, a micro-SD memory card is required (not included in the package): the card must be placed on the backside of the phone, next to the SIM slot. Slide in SD card, as shown below, with the gold contacts facing downwards.
Camera: To activate the camera from the main menu press the OK key. Take a photo pressing the same key. By using Options you can access to various camera settings and you can switch to Camcorder.
Connecting to a PC: Use the USB cable to connect NGM FACILE Idea to a computer. Select USB Storage on your phone. You can save songs to play with the music player in "My Music" folder, on SD card.

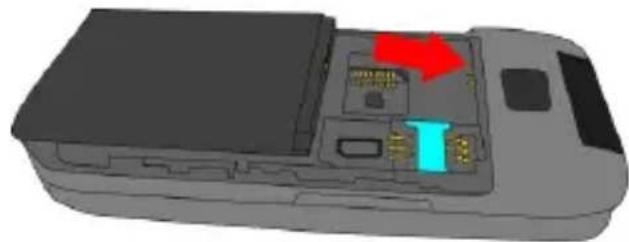

Inserting the Battery: your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing up, matching those of the phone. When done, put the hind cover back into position as shown in the following illustrations.
Inserting the battery
Placement of the cover
26ENGLISH
Charging the battery: charge the battery before starting to use the device. Connect the charger to a wall socket, and then plug the jack on the charging base (wait a moment until the red charging led on the base will light up, before inserting the phone) or put it directly on the micro USB port on the right side of the phone. When notification led becomes green, charging is complete and the phone could be removed from the charging base.
Warning: To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.
28 ENGLISH
Turn ON, Turn OFF, and key lock: to turn on and turn off the phone, press and hold the red end call key. Keypad locks closing the flip.
FM radio: NGM FACILE Idea has an internal radio antenna so that it is not need to enter the headset to listen to the radio. To power ON/OFF FM Radio, access to Multimedia > FM Radio. By selecting Options you have access to the following functions:
- Channel list to manually browse saved channels
- Manual input: for the manual search of radio channels
- Automatic Search: to automatic search radio stations
- Settings various FM Radio options
- FM Record: to record the current radio channel
- File list: recording file list
Use UP and DOWN selection keys for the manual search, M1 and M2 for the automatic search and OK button to power ON and OFF the radio.
Torch: to turn ON and OFF the torch, from the main screen access to Tools > Torch.
Dedicated keys: the UP and DOWN selection keys open some shortcuts; the UP selection key directly enters the Music Player, while the DOWN selection key opens the alarm list.
30ENGLISH
Main Menu
To access theMain Menu on your phone, press the selection key on the top left.
- Messaging to write and read SMS text messages
- Phonebook to manage and save contacts
- Calls: Call Log
- Multimedia: camera, radio, gallery...
- Audio profiles: to set and change audio profiles
- Settings: to customize your phone
- Tools: with Calendar, Bluetooth, Torch, Alarm
- SOS: to enable and customize the SOS function

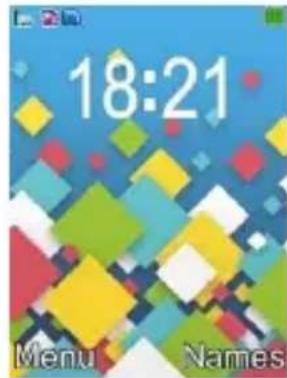

Home Screen
Making a call: to make a call from the Home screen, select the desired number using the keypad and then press the green call key. To end the call, press the red end call key.
Call a number from phonebook: from the main screen, press the upper right selection key; this will automatically open the Phonebook. Scroll through the contacts with the UP and DOWN keys and press the green call button to call the desired contact.
Call a number from the call log: from the main screen, press the green call key; the missed, received, and outgoing calls will be automatically displayed. Scroll them with UP and DOWN keys and press the green call button when you found the number you want to call.
32ENGLISH
Add contacts to the Phonebook
Select Menu > Phonebook > Add new contact, choosing to save the number on SIM or Phone. Enter the name and the new number, then press Options > Save.
Speed dial: in Menu > Phonebook > Options > Phonebook settings > Speed Dial > Set Number, you can assign to keys 2-9 some numbers that will be called automatically if you hold down the related button. This feature can be turned on and off under
Status.
The device has two other additional quick dial keys M1 and M2, to which you could associate as much numbers in the same menu.
These keys, placed to the left and to the right of OK button, will be activated with a simple press.
Memory status: this feature within the phonebook settings allows you to see how much free storage there is on the phone and SIM card.
Speech Dial: NGM FACILE Idea speaks out each number key you press. To activate this function, select Menu > Profiles > General >
Options > Customize > Dialpad > Speech Dial
[Warning: available for Italian language only]
Send and read SMS Send SMS: From the main screen, choose
Menu > Messaging > Write message and write your message.
Press Options > Send to > Enter Number and enter the number using the numeric keypad or Add from phonebook to select from the Phonebook the contact you want to text.
34ENGLISH
Read SMS: when you receive a new text message, the phone displays an envelope icon on the top bar (as long as the message is unread) and a notification pop up appears on the main screen. Press the upper left selection key to enter the Inbox or access it from the main screen by selecting Menu > Messages > Inbox. On SMS settings you could find the Memory Status, which allows you to check the number of messages on the phone and SIM card.
Bluetooth: In Tools > Bluetooth > Power ON you can turn on Bluetooth and search for other devices (headsets, phones...) by selecting the Search for devices option. Select the device you would like to associate with and confirm it on both devices.
S.O.S. Function: NGM FACILE Idea is equipped with a dedicated button for fast forwarding emergency calls (^*) . This feature can be turned on and off by selecting Menu > SOS> Status.
The SOS button is placed on the backside of the phone. In case of emergency, use this function to ask for help up to five phone numbers, previously set in Menu > SOS > SOS numbers.
Press and hold SOS button for 2-3 seconds.

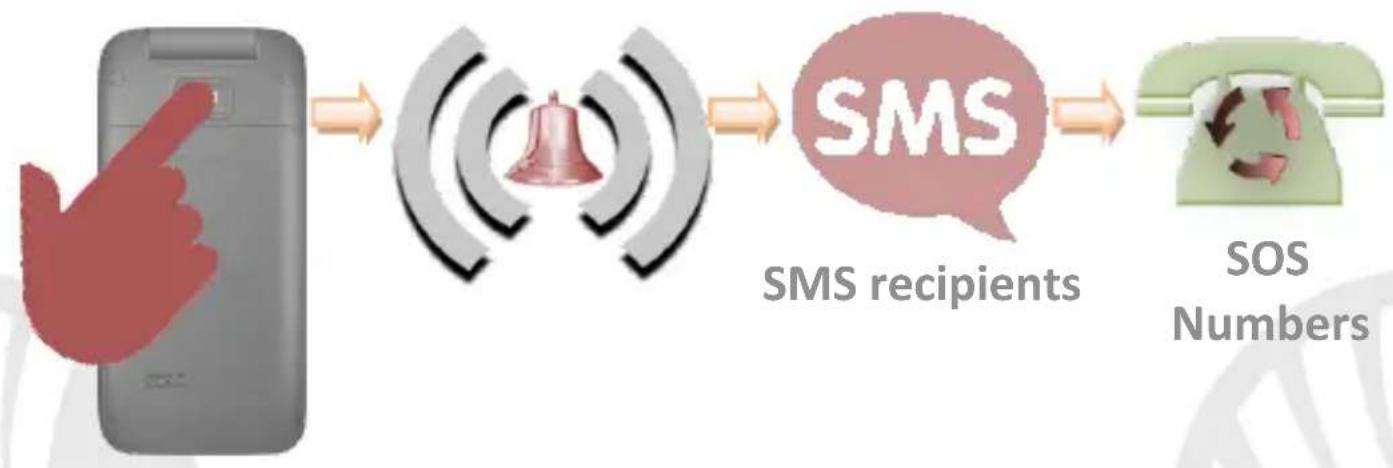

As soon as the SOS function is active, the phone will send out a high volume alarm. Then, it will send a customizable SOS message to the chosen SOS numbers. After, the phone will call the five SOS numbers, for about 25 seconds each. If there is no answer, there will be a second cycle of calls. The whole procedure will be repeated for 5 times.
36ENGLISH
If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to speaker phone (handsfree).
Attention: The SOS calls cycle will also be interrupted if the answering machine or voicemail of one of the called SOS numbers takes the call.
Set Ringtones: select Menu > User Profiles > General > Options > Customize. Select Ringtone and set the desired tone from those available.
Notification Led: the flash below the Camera can notify incoming or missed calls and messages, when flip is closed. You can enable or disable this function whenever you want for each event to notify on Settings > Notification LED.
Quickly turn on/off vibration mode: to quickly turn off incoming calls ringtone and messages tone and activate vibration, press and hold #. Pressing again#, the phone will enter in General mode.
Phone Settings: from Menu > Settings > Phone, you will access to various settings such as Date and Time, Language, and Display. Select Restore factory settings to reset the factory settings of NGM FACILE Idea: enter phone password 1122 to confirm reset.
38ENGLISH
*Limitation of Liability this is not a life-saving device but a mobile phone. NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.
Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In that case, the latter shall govern.
Copyright © 2015 NGM Italia
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
