USER MANUAL Romeo NGM
Copyright © 2013 NGM Italia

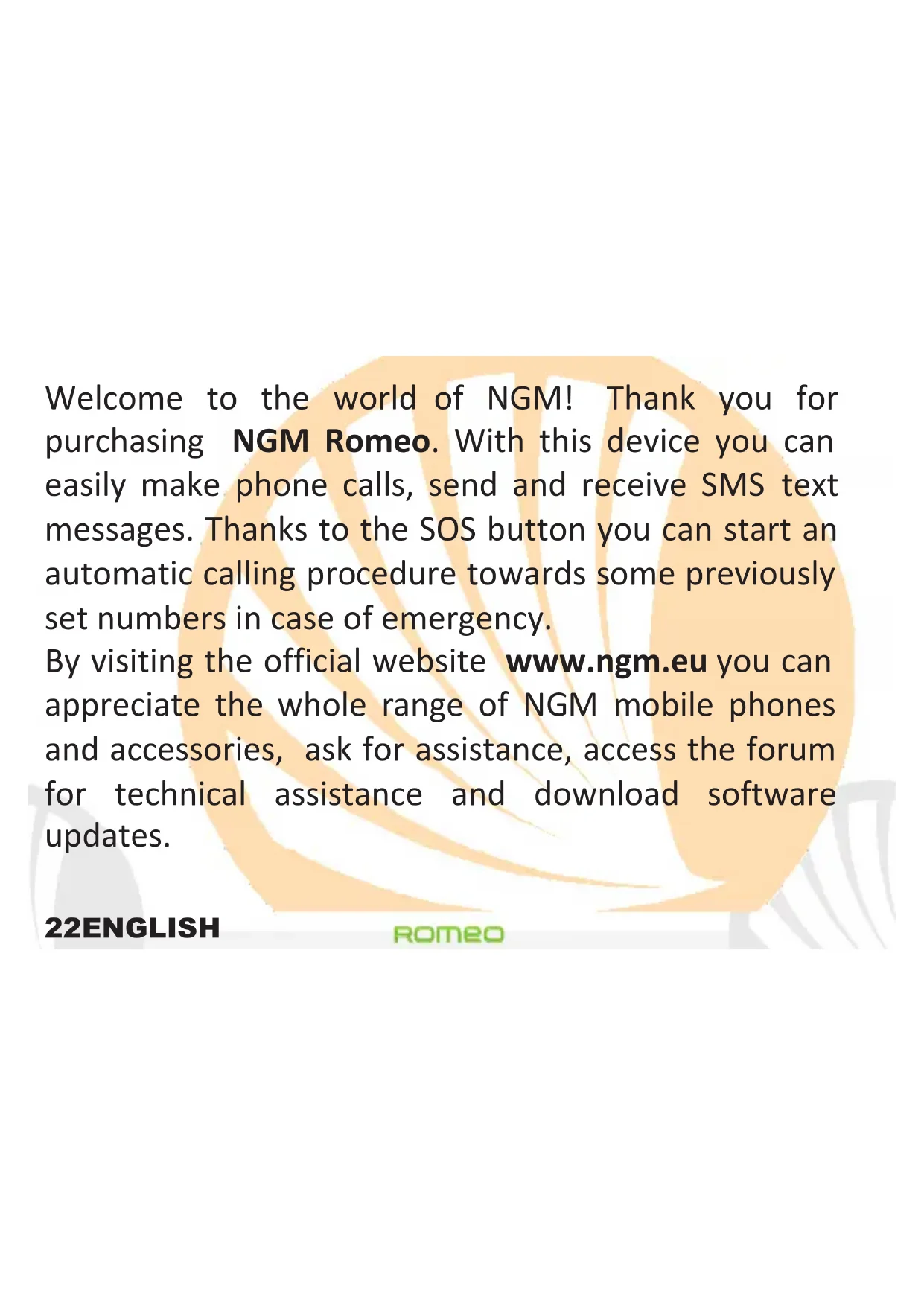

Welcome to the world of NGM! Thank you for purchasing NGM Romeo. With this device you can easily make phone calls, send and receive SMS text messages. Thanks to the SOS button you can start an automatic calling procedure towards some previously set numbers in case of emergency.
By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones and accessories, ask for assistance, access the forum for technical assistance and download software updates.
22ENGLISH
Romeo

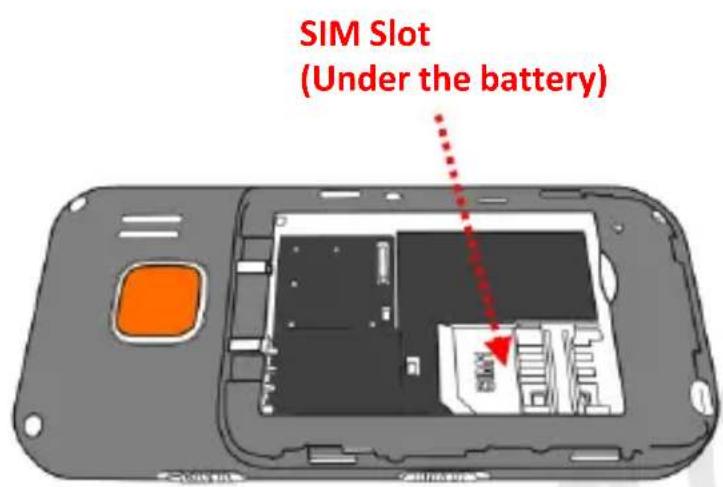

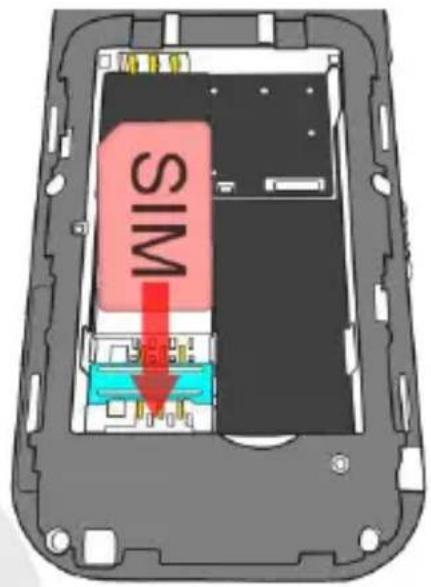

Insert the SIM card: The SIM card contains your phone number, PIN code, links to operator services, contacts and SMS messages. To access the compartment containing the SIM slot, turn off the phone and slide down the cover. Remove the battery. Insert the SIM card into the slot with its gold contacts facing downwards.
Romeo
ENGLISH

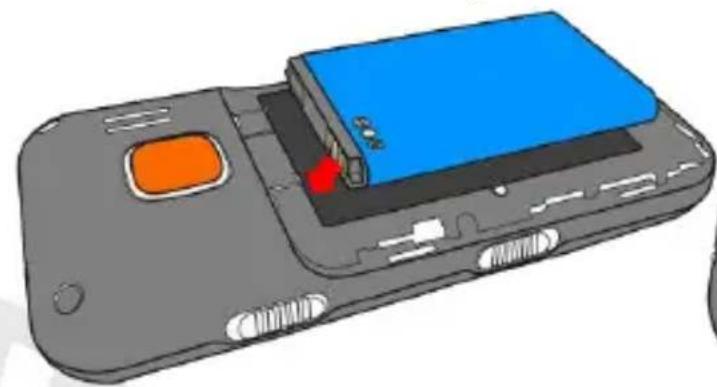

Inserting the battery: Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing up, matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.
Inserting the battery

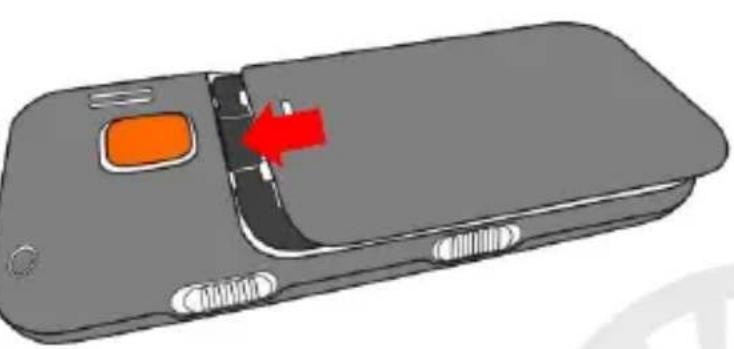

Placement of the cover
24ENGLISH
Romeo
Charging the battery: Charge the battery before starting to use the device. Connect the charger to a provided wall socket adaptor and then plug the jack into the charging base or insert it directly into its input on the top side of the phone. The charging base can also be connected to a micro USB cable to charge your phone. While the battery is charging, an animated icon on the screen shows the charging progress. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid or from the base.
Warning: To preserve the functionality of the product and the integrity of the guarantee, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It is normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.
Turn ON, Turn OFF and keypad lock: to turn on and off your phone, press and hold the red end call key. To avoid the accidental pressure of the buttons on the phone when not in use (e.g. when it is in your pocket), switch the lock key upwards on the right side of the phone. To unlock the keypad, push it downwards. FM radio: first, insert earphone jack into its plug on the upper side of the phone and then push the FM button upwards on the left side of the phone. By pressing Options with the green call button, you can access to the following functions:
- Turn off for switching the radio on and off
- Tuner for manually searching radio channels
- Channel list to manually browse saved channels
- Volume to adjust the radio volume
- Speaker to toggle between headset/speaker mode
- Set automatic search to automatically search radio channels
Torch: to turn on and off the torch, use the torch button on the right side of the phone when the phone is turned on.
Main Menu:
To access the phone Main Menu,press the UP key from the main
screen.
- Contacts: to manage and save contacts
- Messaging: to write and read SMS messages
- Call Log: to see all calls
- Settings: to customize your phone
- FM radio: to access FM Radio
- Profiles: to set and change audio profiles
- Tools: with Calendar, To Do, Alarm and Calculator
- Settings SOS: to enable and customize the SOS function

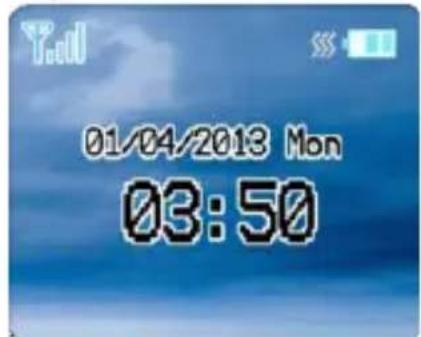

Main Screen
28ENGLISH
ROMEO
Making a call
To make a call from the Home screen, select the desired number using the keypad and then press the green call button. To end the call, press the red end call key.
Call a number from phonebook:
From the main screen, press the red end call key, this will automatically open the Phonebook. Scroll through the contacts with the UP and DOWN keys and press twice the green call button to call the desired contact.
Call a number from the call log:
From the main screen, press the green call key, so missed, received, and outgoing calls will be automatically displayed. Scroll them with the UP and DOWN keys and press again the green call button twice when you found the number you want to call.
Add contacts in Phonebook
Select Menu > Contacts > Add new. Press Options > Edit to enter the name and the new number and finally press Options > Done.
Own number: if your SIM card supports this function, in Phonebook menu you can see the SIM card number and set the user's name, by selecting Options > Edit.
Speed dialing: in Menu > Contacts > Speed Dial > Set Number, you can assign to the 2-9 keys numbers that will be called automatically if you hold down the related button. This feature can be turned on and off under State.
Memory status: This feature allows you to see how much free storage locations can be found in phone and SIM card.
30ENGLISH
Romeo
Send and read SMS
Send SMS: From the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send > Enter a recipient and enter the number using the numeric keypad or Options > Contacts to select the contact to whom you wish to send the message from the Phonebook.
Read SMS: when you receive a new text message, an envelope icon will appear on the top bar (as long as the message hasn't been read) and a notification pop up appears on the main screen. Press the green button to enter the Inbox or access it from the main screen by selecting Menu > Messages > Inbox.
In the messaging menu you can access additional features such as Templates, short preset messages and Memory status, to control how many messages are stored in the phone and in the SIM card.

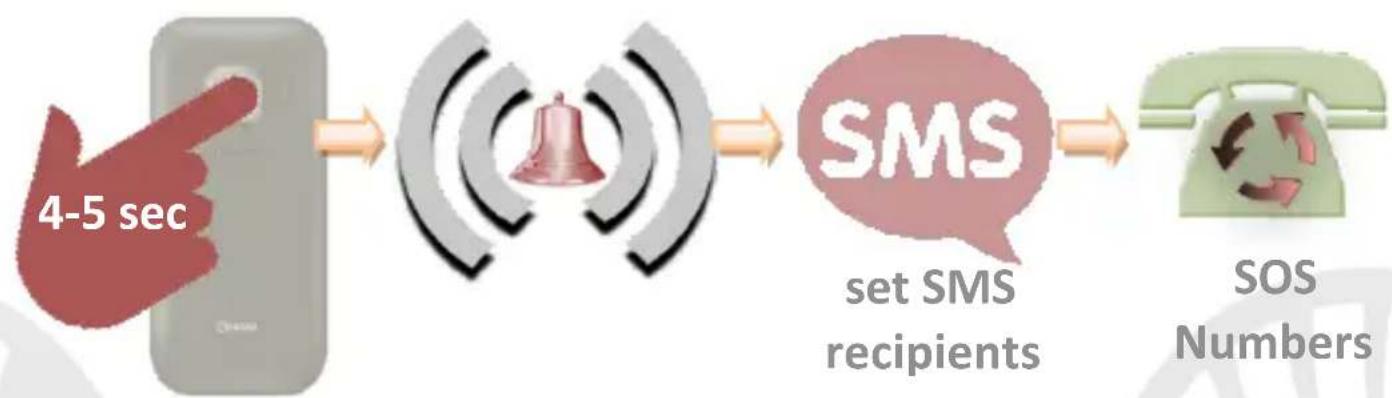

SOS function: NGM Romeo is equipped with a dedicated button for the fast dialing of emergency calls (^*) .
This feature can be turned on and off by selecting Menu > SOS > Activate. The SOS button is located at the backside of the phone and is activated when you press and hold it for 4-5 seconds, even if the keypad lock is enabled.
In case of emergency, the user can use this function to ask for help to up to five phone numbers, previously set in Menu > SOS > SOS numbers.
As soon as the SOS function starts, the phone will send out a high volume alarm. Then, it will send an SOS message to the SOS numbers set in Menu > SOS > SMS Recipients .
Then, the phone will call the five SOS numbers, for about 20 seconds each. If at the end of the cycle there was no response, the
32ENGLISH
Romeo
phone will wait for about 30 seconds and then will start a second cycle of calls.
This procedure will be repeated for 5 times. If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to hands-free.
Warning: The calls cycle will also be interrupted if the answering machine of one of the called SOS numbers answers the call.
Romeo
ENGLISH
Set Ringtones from the main screen, select Menu > Profiles > General > Options > Customize. Select Incoming call ringtone and set the desired tone among the available ones. You can also customize the following features: Alert type, Ringtone Volume, Keypad Volume, Messages tone, Ringtone type.
Quickly turn on/off the vibration mode: To quickly turn off incoming calls and alert-ringtones and activate vibration, press and hold #. By pressing again #, the phone will return to General profile.
Phone Settings
From the Settings menu you can access to Date & Time, Display, Phone (language), Network and Call settings.
The last point is for Romeo's factory data reset.
34ENGLISH
Romeo
* Limitation of Liability:
this is not a life-saving device but a cell phone. NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.
Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.
Copyright © 2013 NGM Italia
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
36ENGLISH
ROMEO
Romeo
Copyright © 2013 NGM Italia
Copyright © 2013 NGM Italia
