Facile Subito - Smartphone NGM - Free user manual and instructions

Brand	NGM
Model	Facile Subito
Product type	Smartphone (basic mobile phone)
Power supply	Rechargeable lithium-ion battery via mains charger or micro USB cable
Main functions	Calls, SMS, FM Radio, Flashlight, Alarm, Phonebook, Calculator, Calendar, SOS
Security	Keypad lock, PIN code, factory password (1122)
Maintenance and cleaning	Use original NGM chargers; charge in a covered and dry place
Spare parts and repairability	Original battery and charger recommended; access to SIM and battery compartment
General information	Website: www.ngm.eu; support via forum and e-commerce
SIM card type	Standard (full-size SIM)
Memory	Contact storage on SIM or phone, variable number of positions

Frequently Asked Questions - Facile Subito NGM

How to insert the SIM card and battery?

Turn off the phone, lift the back cover from the notch at the bottom right, remove the battery if present, insert the SIM card into the slot with the gold contacts facing down, then place the battery aligning the contacts.

How to charge the battery?

Plug the charger into a power outlet, then connect it to the micro USB port at the bottom of the phone or use the charging dock. An animated icon indicates progress. Prefer an original NGM charger.

How to turn on/off and lock the keypad?

To turn on/off, press and hold the red end call key. To lock the keypad, press the green call key then *. The same combination unlocks. Automatic locking can be set in Settings > Security > Keypad lock.

How to turn on the flashlight?

Access the main menu via Tools > Flashlight on/off to turn the flashlight on or off.

How to quickly turn vibration on or off?

Press and hold the # key to switch between ring and vibration mode. Pressing again returns to the previous mode.

How to use the FM radio?

From the main menu, select FM Radio. Use the up/down keys to change stations, * and # for volume. Press the green call key to open options: pause, auto search, stations, rename, manual search, speaker, background.

How to make a call and add contacts?

To call, dial the number on the main screen and press the green key. To add a contact, go to Menu > Phonebook > Options > New, choose the location (SIM or phone), enter the name and number, then save.

How to send and read an SMS?

To send: Menu > Messages > New, write the text, press Options > Send, then enter the number or choose a contact. To read a received message: an envelope icon appears at the top; press the green key to open the Inbox folder or via Menu > Messages > Inbox.

How does the SOS button work?

The SOS button is located on the back. Activate the function via Menu > SOS > Status. Set up to 5 emergency numbers in SOS Numbers. In case of emergency, press and hold the SOS button for 3-4 seconds: the phone sounds an alarm, sends an emergency SMS, then calls the numbers in rotation (5 cycles of 20 seconds). If answered, the call switches to speakerphone.

How to reset the phone to factory settings?

Go to Menu > Settings > Restore. When prompted for the password, enter 1122 to confirm the reset.

USER MANUAL Facile Subito NGM

Copyright © 2015 NGM Italia

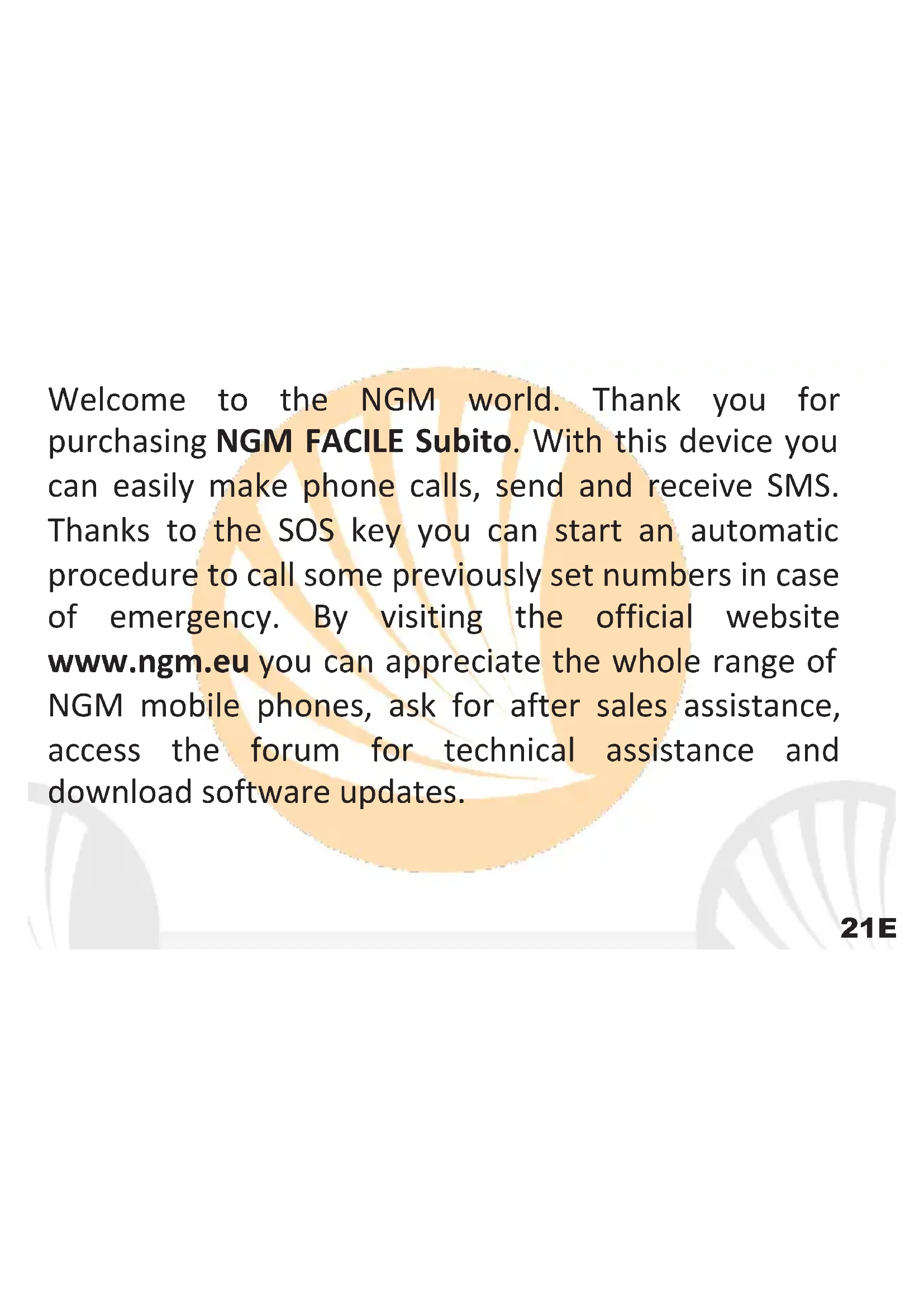

Welcome to the NGM world. Thank you for purchasing NGM FACILE Subito. With this device you can easily make phone calls, send and receive SMS. Thanks to the SOS key you can start an automatic procedure to call some previously set numbers in case of emergency. By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones, ask for after sales assistance, access the forum for technical assistance and download software updates.

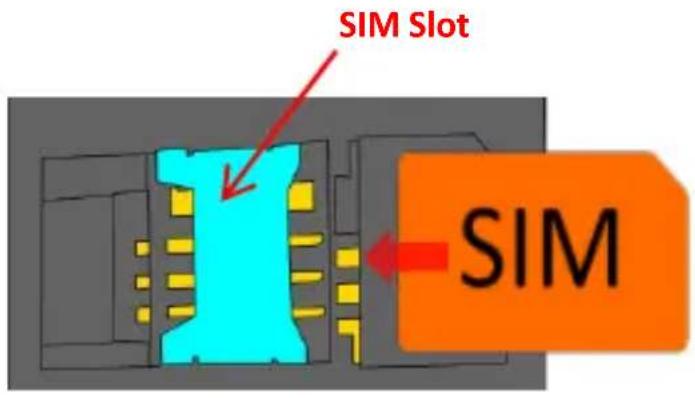

Insert the SIM card: the SIM card contains your phone number, PIN code, links to operator services, contacts and SMS messages. To access the compartment containing the SIM slot, turn off the phone and lift up the cover starting from the slit on the bottom right corner. Remove the battery. Insert the SIM card into the slot with its gold contacts facing down.

22ENGLISH

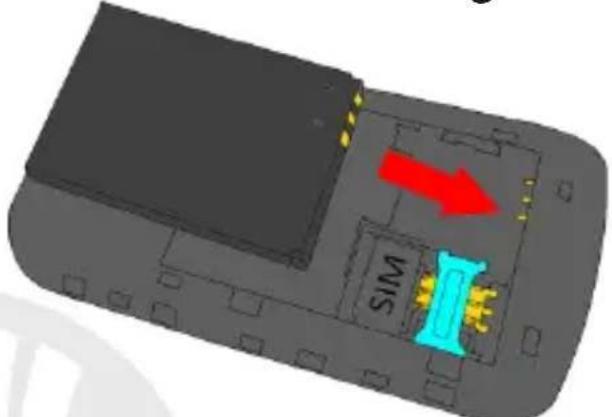

Inserting the Battery: your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing down, matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.

Inserting the battery

Slot to removing cover

Placement of the cover

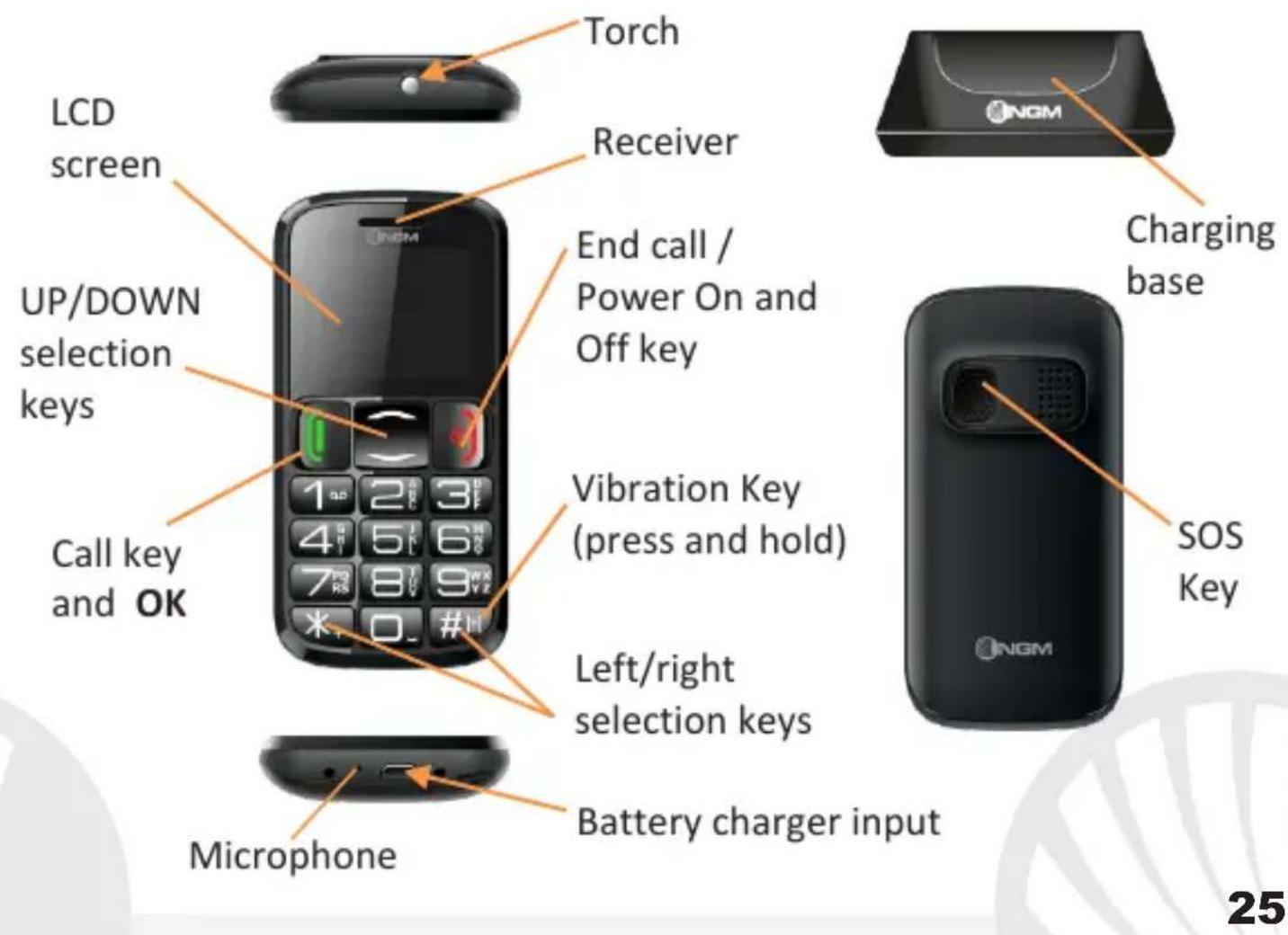

Charging the battery: charge the battery before starting to use the device. Connect the charger to a provided wall socket adapter and then plug the jack into the charging base or insert it directly into its connector on the lower side of the phone. The charging base can also be connected to a micro USB cable to charge your phone. When the battery is charging, an animated icon on the screen shows the charging progress. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid or from the charging base.

Warning: to preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.

24ENGLISH

Turn ON, Turn OFF, and key lock: to turn on and turn off the phone, press and hold the red end call key. To avoid the accidental pressure of keys (e.g. by keeping it in your pocket), press the green call button and then *. With the same combination of keys you can unlock the keypad. It is possible to set a time after which the keypad automatically locks itself in Settings > Security > Keypad lock.

Torch: switch on and switch off the flashlight from Tools > Torch on/off.

Quickly turn on/off the vibration mode: to turn off all the phone ringtones and activate the vibration mode for calls and messages, press and hold the # key. By pressing # again, the phone will return to the previous mode.

26ENGLISH

FM radio: to power on the radio, access FM Radio from the main menu. With the Up and Down selection keys, you can move through the stations, while with the * and # keys you can adjust the volume. By pressing Options with the green call key, you can access the following functions:

• Pause to pause the FM Radio
• Quick Search to quickly search for radio channels
• Channel list to manually browse through the saved channels
• Rename to rename a saved channel
• Manual search to enable the manual searching of a station
• Loudspeaker to play the radio from the speaker and not from the earphones
• Background to play FM radio in the background, while staying on the main menu or the home screen

Main Menu

To access the phone Main Menu, press UP and DOWN selection keys from the Main Menu

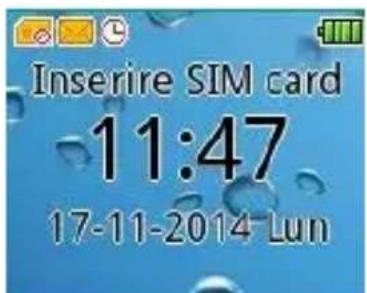

Home Screen

• Messaging to write and read SMS text messages
• Calls: to see all calls
• Settings to customize your phone
• Tools: Calendar, SIM Toolkit and Calculator
• FM radio: to access FM Radio
• Phonebook to manage and save contacts
• Alarm: To activate alarm
• SOS: to enable and customize the SOS function

28ENGLISH

Making a call: to make a call from the Home screen, select the desired number using keypad and then press the green call button. To end the call, press the red end call key.

Call a number from the Phonebook: from the main screen, press the red end call key, this will automatically open the Phonebook. Scroll through contacts with the UP and DOWN keys and press twice the green call button to call the desired contact.

Call a number from the call log: from the main screen, press the green call key; themissed, received, and outgoing calls will be automatically displayed. Scroll them with UP and DOWN keys and press again the green call button twice when you found the number you want to call.

Add contacts on Phonebook: select Menu > Phonebook > Options > Add new. Choose if you want to store the contact on your SIM card or on the Phone and press Edit to insert name and new number. At the end, confirm with Save.

Speed dial: in Menu > Phonebook > Options > Speed Dial, you can assign to the 2-9 keys any phone numbers that will be called automatically if you press and hold the related key. To add a number, select Options > Edit and insert it manually, or select Phonebook to choose it from Contacts.

Memory status: this feature on Menu > Contacts > Options allows you to see how much free storage there is on the phone and SIM card.

30ENGLISH

Send and read SMS

Send SMS: from the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send and enter the number using the numeric keypad or Send > Options > Contacts to select from Phonebook the contact you want to text.

Read SMS: when you receive a new text message, the phone displays an envelope icon on the top bar (as long as the message is unread) and a notification pop up appears on the main screen. Press the green key to enter the Inbox or access it from the main screen by selecting Menu > Messages > Inbox.

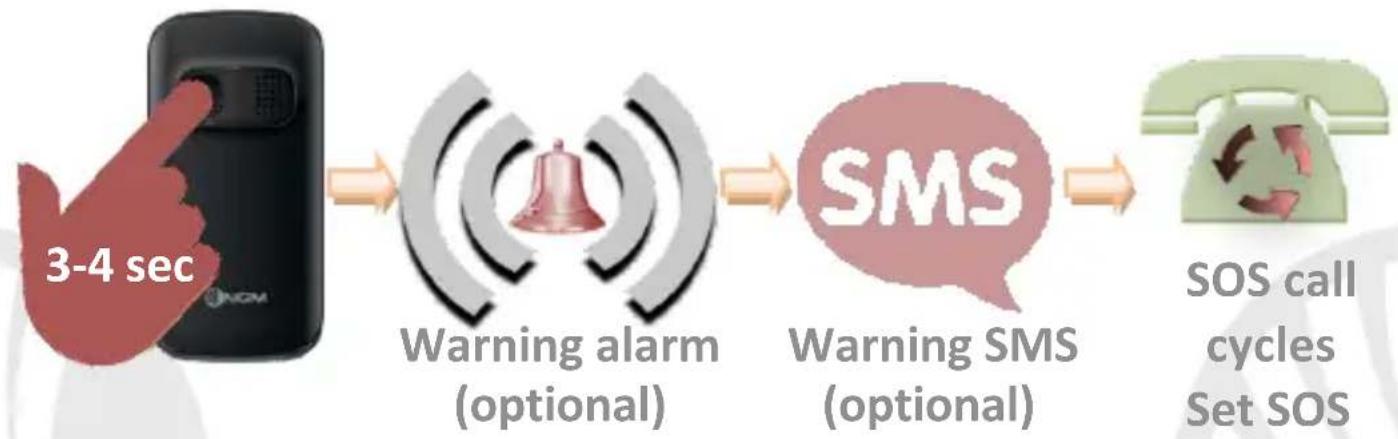

S.O.S. Function: NGM FACILE Subito is equipped with a dedicated button for fast forwarding emergency calls (*). This feature can be turned on and off by selecting Menu > SOS > Status. The S.O.S function will be activated with at least one previously set emergency number. The SOS button is located at the back of the phone and is activated by pressing and holding it for 3-4 seconds, even if the key lock is enabled. In case of emergency, use this function to ask for help up to five phone numbers, previously set in Menu > SOS > SOS numbers. As soon as the SOS function is activated, the phone will send out an high volume alarm (that can be turned on and off in SOS > SOS alarm On/Off) Then, the phone will send an SOS message to the previously set SOS numbers (only if this function was activated in Menu > SOS > SMS > Status) Then, the phone will call the five SOS numbers, for about 20 seconds each. If there is no answer, there will be a second cycle of calls.

32ENGLISH

This procedure will be repeated for 5 times. If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to speaker phone (handsfree).

Warning: The SOS calls cycle will be interrupted if the answering machine or voicemail of one of the called SOS numbers takes the call.

Set Ringtones: from the main screen, select Menu > Settings > Profiles > General > Options > Settings > Ringtones. Select Call Ringtone and set the desired tone from those available. You can also customize the following features: Alert type, Ringtones volume, Key tone (you can activate or deactivate the Voice dialer function), moreover you can enable or disable the low Battery alert.

Phone Settings: from the Settings menu you can access Security, Display, Phone (language), Network and the Call settings. With Settings > Restore factory settings, you can revert FACILE Subito to its default settings by entering the 1122 password, when requested.

34ENGLISH

* Limitation of Liability:

this is not a life-saving device but a mobile phone. NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.

Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In that case, the latter shall govern.

Copyright © 2015 NGM Italia

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
