Technical Specifications	Klarstein Brilliance Roomy microwave oven, 23-liter capacity, 800 W power, 5 power levels, 27 cm turntable.
Usage Functions	Cooking modes: microwave, defrost, reheat, quick cook. Built-in timer up to 35 minutes.
Maintenance and Cleaning	Easy-to-clean stainless steel interior, removable turntable for simplified maintenance.
Safety	Child safety lock system, overheat protection.
General Information	Dimensions: 48.5 x 38 x 28 cm, weight: 13 kg, color: black and silver, 2-year warranty.

Frequently Asked Questions - Brilliance Roomy Klarstein

The microwave does not turn on, what should I do?

Check that the appliance is properly plugged into a working power outlet. Also ensure that the door is properly closed.

How do I adjust the microwave power?

Use the power adjustment button to select the desired level. Power options are usually indicated on the control panel.

Why does my dish not heat evenly?

Make sure to turn or stir the dish halfway through cooking to ensure even heat distribution. Also avoid overloading the turntable.

How do I clean my Klarstein Brilliance Roomy microwave?

Use a soft, damp cloth with a little dish soap to clean the inside and outside of the appliance. Do not use abrasive products.

The microwave makes a strange noise, what should I do?

Check if foreign objects are stuck in the turntable or if the turntable is misaligned. If the noise persists, contact customer service.

How do I use the defrost function?

Select the defrost function on the control panel and enter the weight of the food. The microwave will automatically adjust the defrosting time.

Can the microwave be used to bake food?

The Klarstein Brilliance Roomy is a microwave and cannot replace a traditional oven. Use it mainly for reheating, cooking, or defrosting.

Where can I find the user manual?

The user manual is usually included in the packaging. You can also download it from the official Klarstein website.

My microwave displays an error code, what should I do?

Refer to the user manual to identify the error code. If the problem persists, it is recommended to contact customer service.

USER MANUAL Brilliance Roomy Klarstein

Technical diagram of a microwave oven with numbered components and labeled parts

Bedienfeld

Intelligent Menu 1.Auto reheat 2.Tea/Coffee 3.Soup 4.Parridge 5.Pizza 6.Pasta 7.Popcorn 8.Auto defrost Grill Menu 9.Grilled ham 10.Grilled bacon 11.Grilled pork chops 12.Grilled steak 13.Grilled chicken pieces 14.Grilled fish pieces Clock Micro Preset Grill Combl Defrost Weight Adjust Auto Menu < OK > 10Min 1 Min 10Sec Pause Cancel Start Quick Start

Kombination 1 [CO-1]

Kombination 2 [CO-2]

11.Grilled pork chops

12.Grilled steak

13.Grilled chicken pieces

14.Grilled fish pieces

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 14

Declaration of Conformity 14

Safety Instructions 15

Product Description 17

Care and Cleaning 23

Hints on Disposal 24

TECHNICAL DATA

Item number 10031896
Power supply 230 V ~ 50 Hz
Power microwave 900 W
Power grill 1000 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

Read all the safety and operating instructions carefully and retain them for future reference. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

To reduce the risk of fire in the oven cavity:

• Do not overcook the food.
• Remove wire twist ties from paper or plastic bags before placing bags in the oven.
• Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
• After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.
  • Built up grease may overheat and begin to cause smoke or catch fire.
• If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

To reduce the risk of explosion and sudden boiling:

• Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
• Use the wide mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
• Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
• After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
• Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

To prevent the turntable from breaking:

• Let the turntable cool down before cleaning.
• Do not place hot foods or utensils on the cold turntable.
• Do not place frozen foods or utensils on the hot turntable.

General Instructions

• Make sure the utensils do not touch the interior walls during cooking. Only use utensils that are suitable for use in microwave ovens. Do not store food or any other things inside the oven.
• Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
• When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
• Any accessories not recommended by the manufacturer may cause injuries to persons.
• Do not use outdoors.
• If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;
• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• The appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications, such as: Staff kitchen areas in shops, offices and other working environments; Farm houses; By clients in hotels, motels and other residential environments; Bed and breakfast type environments.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  • A steam cleaner is not to be used.
• The door or the outer surface may get hot when the appliance is operating.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

PRODUCT DESCRIPTION

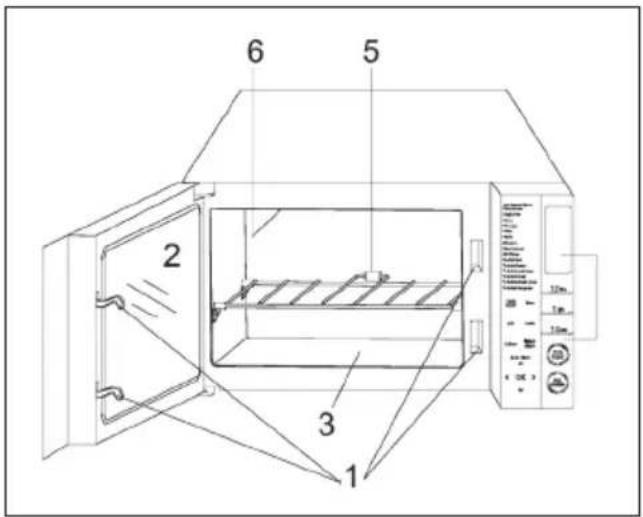

Mikrowave

1 Door Safety Lock
2 Oven Window
3 Base Plate
4 Control Panel
5 Grill Rack
6 Grill Heater

1 2 3 5 6

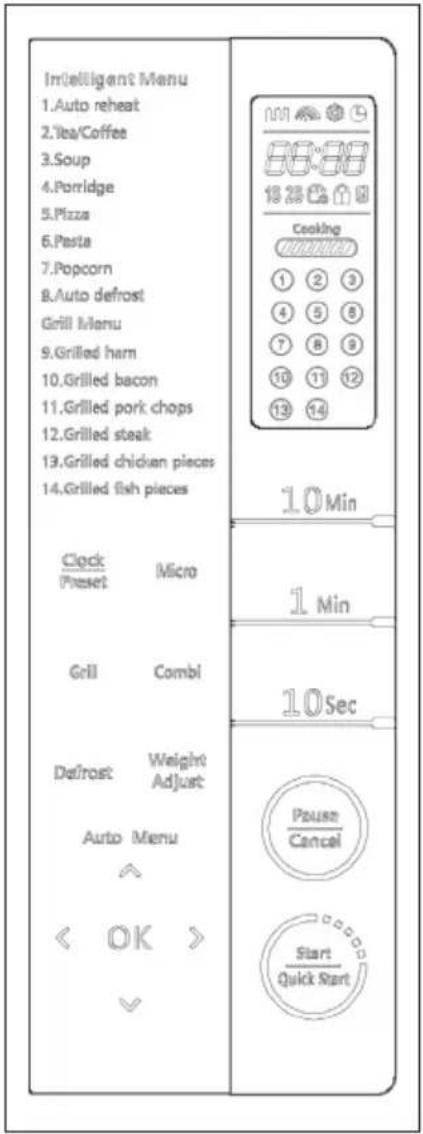

Control Panel

• Display: Cooking time, power, action indicator, and clock time are displayed
• Number pad: Input cooking time.
- Intelligent Menu: Press to select an auto-cooking menu including auto defrost

• Clock/Preset: Touch to set the digital clock or preset
• Micro: Press to select microwave power level
  • Grill: Press to set a grill-cooking program
• Combi (1/2): Cooking with combined microwave and grill power
  • Defrost: Defrost by time
• OK/Weight Adjust: Press to specify the food weight or the number of serving
• Pause/Cancel: Touch to stop cooking program or clear all previous settings before cooking starts. It is also used to set child lock.
• Start/Quick Start: Touch the button a number of times to set cooking time and cook immediately at full power level. Touch to start a cooking program.

Intelligent Menu 1.Auto reheat 2.Tea/Coffee 3.Soup 4.Porridge 5.Pizza 6.Pasta 7.Popcorn 8.Auto defrost Grill Menu 9.Grilled ham 10.Grilled bacon 11.Grilled pork chops 12.Grilled steak 13.Grilled chicken pieces 14.Grilled fish pieces Clock Micro Preset Grill Combl Defrost Weight Adjust Auto Menu < OK > 10 Min 1 Min 10 Sec Pause Cancel Start Quick Start

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Cookware Microwave Grill Combination
Heat-Resistant Glass Yes Yes Yes
Non Heat-Resistant Glass No No No
Heat-Resistant Ceramics Yes Yes Yes
Microwave-Safe Plastic Dish Yes No No
Kitchen Paper Yes No No
Metal Tray	No Yes No
Baking plate	No Yes No
Aluminum Foil & Foil Container	No	Yes	No

OPERATION

Beeps during oven settings

• ONE BEEP: Oven accepts the entry.
- TWO BEEPS: Oven does not accept the entry. Please check and try again.

Setting the clock

With the oven ready for input, touch the CLOCK/PRESET button once or twice to set the digital clock in 24 or 12 hours cycle. FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30: Choose to set the clock in 24 or 12-hour cycle by touching the CLOCK/PRESET. Press NUMBER pad to set clock "8:30". Press CLOCK/PRESET to confirm the setting. To check clock time during cooking, press the CLOCK/PRESET button once.

Express cooking

This feature allows you to start the oven quickly at high power. The longest cooking time is 10 minutes. Suppose you want to set 2 minutes for quick start: If needed, press the STOP/CANCEL button once to reset the system. Press START/QUICK START repeatedly until display 2:00.

Microwave cooking

The longest cooking time is 99 minutes and 50 seconds [99:50].

Press MICRO Power

1 time 100% (P100)

2 times 80% (P-80)

3 times 60% (P-60)

4 times 40% (P-40)

5 times 20% (P-20)

6 times 0% (P-00)

Suppose you want to cook for 5 minute at 60% power level: If needed, press the STOP/CANCEL button once to reset the system. Press MICRO button to set power P-60. Press NUMBER pad to enter cooking time until the correct cooking time "5:00" is displayed. Press START/QUICK START.

To check the power level during cooking, just press MICRO button.

Combination Cooking

Combi. 1 [CO-1]

The longest cooking time is 99 minutes and 50 seconds [99:50]. 30% of time for microwave cooking, 70% for grill cooking. Suppose you want to set combination 1 cooking for 25 minutes:

1 If needed, press the STOP/CANCEL button once to reset the system.
2 Press COMBI button once.
3 Press NUMBER pad to enter cooking time [25:00].
4 Press START/QUICK START button.

Combi. 2 [CO-2]

The longest cooking time is 99 minutes and 50 seconds [99:50]. 55% of time for microwave cooking, 45% for grill cooking. Suppose you want to set combination 2 cooking for 12 minutes:

1 If needed, press the STOP/CANCEL button once to reset the system.
2 Press COMBI button twice.
3 Press NUMBER pad to enter cooking time [12:00].
4 Press START/QUICK START button.

Grill cooking

The longest cooking time is 99 minutes and 50 seconds [99:50]. Suppose you want to program grill cooking for 5 minutes:

1 If needed, press the STOP/CANCEL button once to reset the system.
2 Press GRILL button.
3 Press NUMBER pad to enter cooking time [5:00].
4 Press START/QUICK START button.

Speed defrost

The longest cooking time is 99 minutes and 50 seconds [99:50].

1 Touch DEFROST button once.
2 Enter desired defrosting time by touching correct number pads.
3 Touch START/QUICK START button

Defrost by weight

The time and the defrosting power are adjusted automatically once the weight is programmed. The range weight of frozen foods varies from 100g to 1800g. FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

1 Place the shrimp to be defrosted into the oven.
2 Touch DEFROST button once.
3 Touch OK or WEIGHT ADJUST to enter food weight.
4 Touch START/QUICK START button.

Note: In the middle of cooking time the system will sound to remind you to turn over the food and pause until you press the button START/QUICK START to enter into the next defrosting stage, and the system resume.

Multistage cooking

Your oven can be programmed for up to 2 automatic cooking sequences. Suppose you want to set the following cooking program:

1 Enter a stage of microwave cooking program.
2 Enter another stage of microwave cooking program.
3 Press START/QUICK START button

Note: More paragraphs set is limited to microwave, grill and combination.

Preset function

Preset function allows the oven to start up in a later time. Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30:

1 Enter a cooking program.
2 Press CLOCK/PRESET button.
3 Touch number pads to enter preset time.
4 Press START button.

Note: When it reaches the preset time, the system will start the preset cooking program automatically. After starting the preset function, press CLOCK/PRESET to check the preset time, press PAUSE/CANCEL to cancel the function.

Child lock

To activate the child lock, you don't need to press any button. In standby mode, the oven will enter child lock mode automatically, when there is no operation within 1 minute. To cancel the child lock open or close the door.

INTELLIGENT MENU

For food or the following cooking mode, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food. You may need to turn food over at the middle of cooking time to obtain uniform cooking.

1 Touch 🗑️ to choose 1 \~ 14 menu.
2 Touch OK or WEIGHT ADJUST to enter food weight.
3 Press START/QUICK START button.

Intelligent Menu

1. Auto reheat
   2.Tea/Coffee
   3.Soup
   4.Porridge
   5.Pizza
   6.Pasta
   7.Popcom
2. Auto defrost
   Grill Menu
   9.Grilled ham
   10.Grilled bacon
   11.Grilled pork chops
   12.Grilled steak
   13.Grilled chicken pieces
3. Grilled fish pieces

1 The result of auto cooking depends on factors such as voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.

2 For "pasta" add boiled water before cooking.

3 For item 9\~14, oven will stop during cooking to let you turn food over and then close the door, press the START/QUICK START button to resume cooking.

CARE AND CLEANING

• The oven should be cleaned regularly and any food deposits removed.
• Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
• Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
• Do not remove the waveguide cover

How get rid of strange odors

When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them:

1 Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2 Place a cup of red tea in oven, then heat with high micro power.
3 Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter.

Control panel:

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth. Wipe clean the waveguide cover to remove any food splashed

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water. Rinse with clean water and allow drying thoroughly.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Estimado cliente:

Technical diagram of a microwave oven with numbered components for identification

Panel de control

1. Auto reheat
   2.Tea/Coffee
   3.Soup
   4.Porridge
   5.Pizza
   6.Pasta
   7.Popcorn
2. Auto defrost
   Grill Menu
   9.Grilled ham
   10.Grilled bacon
   11.Grilled pork chops
   12.Grilled steak
   13.Grilled chicken pieces
   14.Grilled fish pieces

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Intelligent Menu 1.Auto reheat 2.Tea/Coffee 3.Soup 4.Porridge 5.Pizza 6.Pasta 7.Popcorn 8.Auto defrost Grill Menu 9.Grilled ham 10.Grilled bacon 11.Grilled pork chops 12.Grilled steak 13.Grilled chicken pieces 14.Grilled fish pieces Clock Micro Preset Grill Combl Defrost Weight Adjust Auto Menu < OK > 10 Min 1 Min 10 Sec Pause Cancel Start Quick Start

CONSIGNES CONCERNANT LES USTENSILES DE CUISSON

11.Grilled pork chops

12.Grilled steak

13.Grilled chicken pieces

1. Grilled fish pieces

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Intelligent Menu 1.Auto reheat 2.Tea/Coffee 3.Soup 4.Parridge 5.Pizza 6.Pasta 7.Popcorn 8.Auto defrost Grill Menu 9.Grilled ham 10.Grilled bacon 11.Grilled pork chops 12.Grilled steak 13.Grilled chicken pieces 14.Grilled fish pieces Clock Micro Preset Grill Combl Defrost Weight Adjust Auto Menu 10 Min 1 Min 10 Sec Pause Cancel Start Quick Start

NOTE SULLE STOVIGLIE IDONEE

11.Grilled pork chops

12.Grilled steak

13.Grilled chicken pieces

14.Grilled fish pieces

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

KLARSTEIN NIEIJSRYA EIN NIEIJSRYA KLARS KLARSTEIN NIEIJSRYA EIN NIEIJSRYA KLARS KLARSTEIN NIEIJSRYA EIN NIEIJSRYA KLARS KLARSTEIN NIEIJSRYA
