USER MANUAL Excelsa Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 10

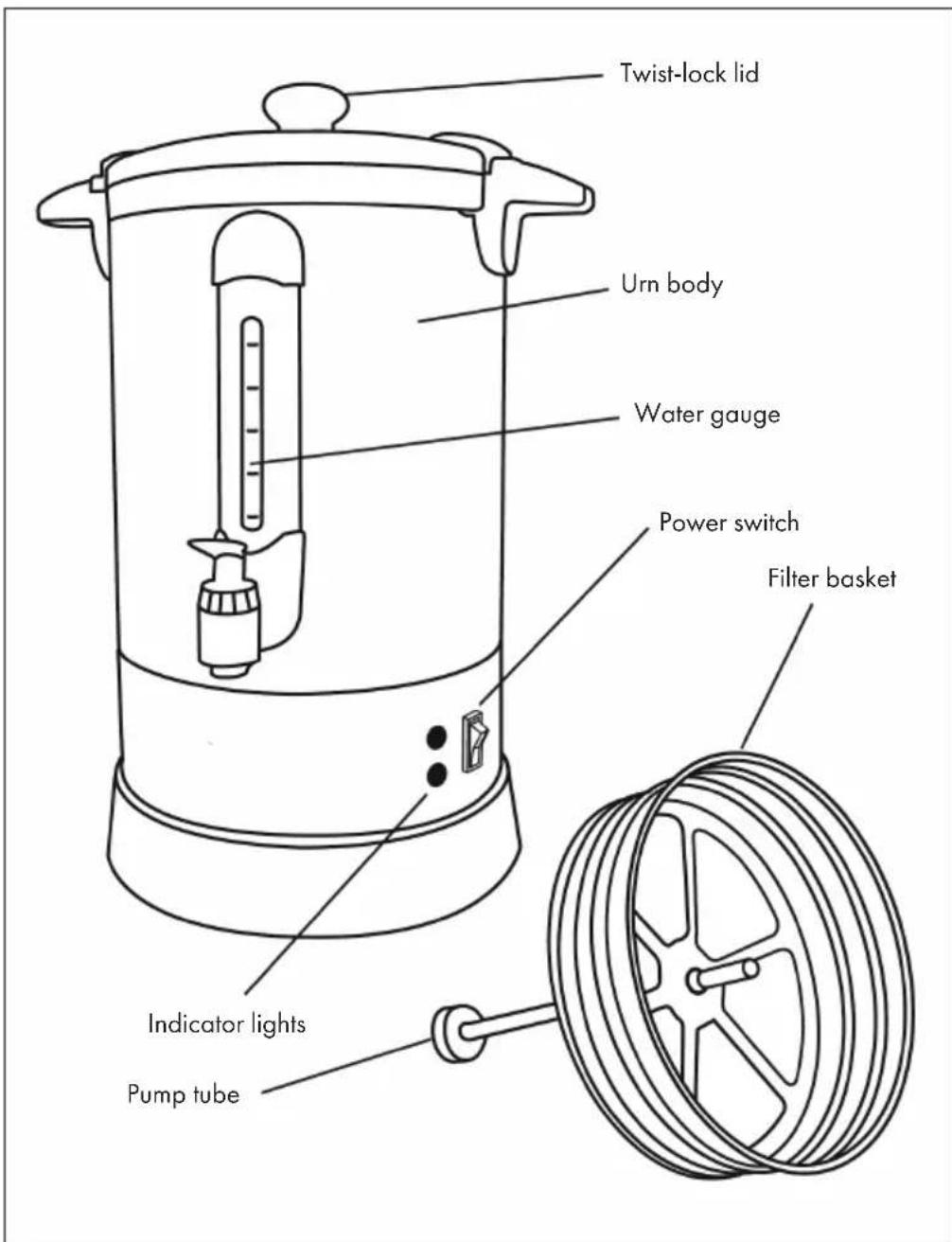

Product Overview 11

Before first Use 12

Operation 12

Resetting the Appliance 13

Care and Cleaning 13

Hints on Disposal 14

TECHNICAL DATA

Item number 10033289
Power supply 220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• Read all the safety and operating instructions and retain them for future reference.
• Don't use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervisionNever leave the operating machine unattended. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be Regularly checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable for the same type.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by and individual who is responsible for their safety or and have received instructions on how to use the device. Children should be supervised at all times in order to ensure that they do not play with device.
• Place the coffee machine on a firm and flat surface. Position it so that it cannot tip over.
• Never apply accessory attachments which are not specified for this appliance.
• Do not touch hot parts of appliance.
• Do not place the device directly next to a gas or electric cooker or any other source of heat.
• The water tank must only be filled with cold water! Never open the filter cover during the boiling process, as otherwise this may cause burns.
• The appliance is only to be used as described in this user manual.
• Do not use the appliance for any commercial purposes.
• Any other use is not intended and can result in damages or personal injuries.
• The manufacturer assumes no liability for damages caused by improper use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Danger of burns! To avoid burns, do not touch the surfaces during operation. The hot plate in particular can remain very hot for a long time during operation and even after switching off.

BEFORE FIRST USE

1. Read and follow all instructions and save for reference.
2. Remove all packaging and labels.
3. Clean all parts, except Base, following instructions in the 'Care and Cleaning' section.
4. Wipe the Base with a damp cloth.
5. To reduce risk of shock hazard never immerse the base in water or any other liquid.

OPERATION

1. Remove the lid and the fi lter basket. Add the desired amount of cold water. Fill the base up to the MAX mark on the water level indicator (approx. 6.5L).
2. Place the filter basket on the pump tube and insert both into the heating element within the base to ensure proper pump operation.
3. Add about 1 tablespoon ( 60~g / L) of coffee powder per cup to the fi liter basket. For best results, we recommend using round fi liter paper (not included).

Note: If you ONLY want to heat water, there must be no coffee powder in the filter basket. The device is not suitable for heating cocoa or mulled wine.

1. Turn the lid clockwise until it clicks into place.
2. Make sure that the ON switch is set to OFF. Connect the cable. Press the power switch to the ON position. The red heating light will illuminate to indicate the start of the brewing cycle.
3. After brewing, the yellow KEEP WARM light will illuminate to indicate that the contents are ready to serve. The contents are kept warm until the appliance is switched off. While the appliance is being kept warm, you can hear sounds similar to those of brewing, which is normal. The appliance does not brew, but only keeps the contents warm. To enjoy the best taste, do not serve the coffee until the brewing is finished.

Note: Never operate the appliance empty. This may damage the heating element.

CAUTION

Risk of burns! When removing the basket (for cleaning or to dispose of the coffee grounds after brewing), make sure that the basket and pump tube are hot. Let the basket cool down before touching it.

RESETTING THE APPLIANCE

This appliance has an overheat protection device that will automatically stop heating if operated without enough water or ambient temperatures are too high.

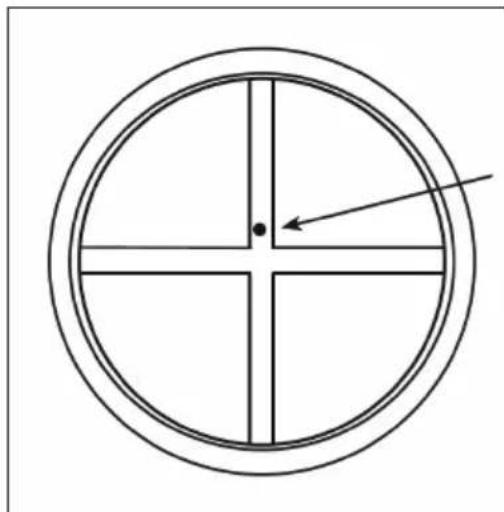

Reset button

(on the underside of the unit)

1. Unplug the appliance from the wall outlet and allow the appliance to cool down.
2. Gently press the button to reset the unit.

CARE AND CLEANING

1. Before cleaning turn off any switches and ensure the power cord is removed from the electrical outlet and allow appliance to cool.
2. Empty remaining liquid by removing lid, basket and pump tube and pouring liquid into drain.
3. Wipe the outside area with a damp cloth and dry with a lint free cloth.
4. Never place appliance in water or other liquids
5. Never use abrasive cleaners or scouring pads. DO NOT use Baking Soda because it can pit the metal and discolor permanently.
6. Allow to dry before storage.
7. In some places the water has a higher mineral content, which can discolour the inside of the base. To remove these stains, fill the appliance with cold water and add several tablespoons of vinegar. Let the appliance brew once, then turn it off and unplug it from the wall outlet. Drain the solution and rinse the appliance with clear water.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
