10032291 - Kettle Klarstein - Free user manual and instructions

Product type	Electric kettle
Brand	Klarstein
Model	10032291
Capacity	0.5 L to 1 L
Power	1850-2200 W
Power supply	220-240 V ~ 50-60 Hz
Adjustable temperature range	40 °C to 100 °C
Body material	Stainless steel
Spout material	Stainless steel
Display	LED screen
Keep warm function	Yes, adjustable 40-95 °C for 30 min
Temperature setting	In 1 °C or 5 °C increments
°C/°F switching	Yes (long press 5 s on + and -)
Automatic shut-off	Yes (boiling, empty, keep warm)
Boil-dry protection	Yes
Power base	Removable, cordless
Dimensions (L x W x H)	Approx. 22 x 15 x 22 cm
Weight	Approx. 1 kg
Care	Wipe with a damp cloth; descale with lemon juice
Safety instructions	Do not immerse, use provided base, keep out of reach of children
Repairability	Have repaired by an authorized professional

Frequently Asked Questions - 10032291 Klarstein

How to use the Klarstein 10032291 kettle to heat water to 100 °C?

Remove the kettle from its base, open the lid and pour between 0.5 L and 1 L of water. Plug in the power cord. Close the lid, place the kettle back on the base. Press the power button (flashing). The appliance heats until boiling and automatically turns off with three beeps.

How to set a precise temperature (e.g., 80 °C)?

Use the [+] and [-] buttons to adjust the temperature from 40 to 100 °C. Each press changes by 1 °C; hold down for 5 °C increments. Then press power. The kettle heats to the chosen temperature and then stops.

How to use the keep warm function?

After setting the desired temperature, press the keep warm button (icon on screen). You can adjust the temperature between 40 and 95 °C. The kettle maintains this temperature for 30 minutes, then turns off automatically.

What to do if the kettle turns off while it still contains water?

This is normal: the automatic shut-off triggers when the water boils or after 30 minutes in keep warm mode. You can turn it back on by pressing the power button after a few minutes of cooling.

How to switch between Celsius and Fahrenheit units?

Press and hold the [+] and [-] buttons simultaneously for 5 seconds. The display changes unit. Repeat to switch back.

How to clean the kettle?

For the exterior, wipe with a damp cloth. For the interior, descale regularly: fill halfway with water, add the juice of one lemon, boil, let sit for 15 minutes, then rinse thoroughly.

What is the minimum and maximum capacity of the kettle?

The minimum capacity is 0.5 L, the maximum is 1 L. Do not exceed the 'max' mark to avoid splashing.

Can the kettle operate without water?

No, it is equipped with boil-dry protection. If turned on empty, it shuts off automatically. Let it cool for 15 minutes before filling and turning on again.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, an authorized service, or a qualified person. Do not attempt to repair it yourself.

Can I use the kettle with another base?

No, use only the provided base. Using another base could damage the appliance or pose a safety risk.

USER MANUAL 10032291 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 9

Declaration of Conformity 9

Safety Instructions 10

Overview and Key Functions 11

Use and Operation 12

Care and Cleaning 13

Hints on Disposal 14

TECHNICAL DATA

Item number 10032291
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1850-2200 W
Min filling quantity 0.5 L
Max filling quantity 1 L
Adjustable temperature 40-100 °C

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Before commissioning this kettle please read the instruction manual carefully.
• Please keep the instructions, the sales receipt and, if possible, the gift box with the inner packaging.
• Always remove the plug from the socket whenever the device is not in use.Pull on the plug,not on the cable.
• Test the electrical kettle and cable regularly for damage. If there is any damage, please do not use it.
• If the supply cord is damaged, it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
• Do not repair the device by yourself, but rather consult an authorized expert.
• Keep the electrical kettle and the cable away from heat, direct sunlight, moisture, sharp edges and such like.
• Only use original accessories.
• If the kettle is overfilled, when boiling up the water, it may be ejected and spill out.
• Do not use the electrical kettle outdoors.
• Never place the electrical kettle in water or other liquid, or come into contact with such kind materials. Do not use the electrical kettle with wet hands.
• If the electrical kettle become moist or wet, remove the mains plug from the socket immediately.
• In order to protect children from the dangers of electrical appliances, never leave the children unsupervised with the electrical kettle. Place your kettle in a position that children can not reach. Take care that the cable does not hang down.
• Do not use the appliance for other than intended use.
• The kettle can only use with the standard provided.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.

OVERVIEW AND KEY FUNCTIONS

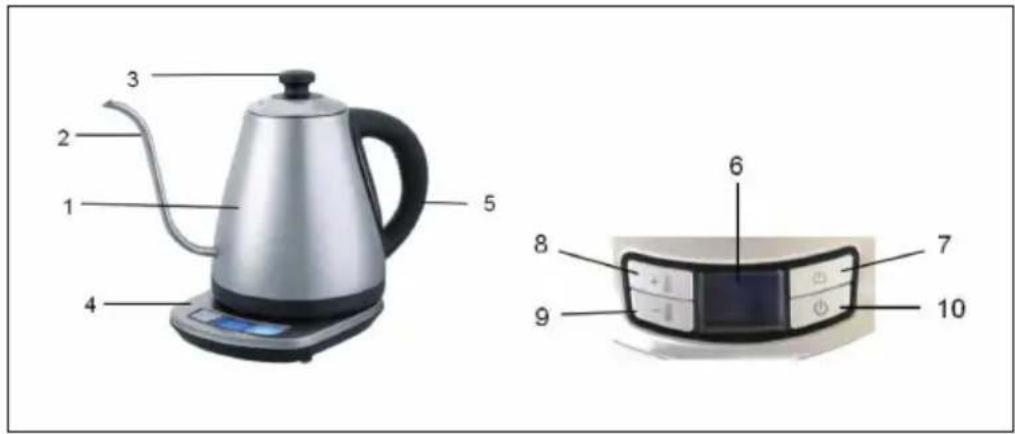

Product Description

1 Stainless steel body 6 LCD display
2 Stainless steel spout 7 Keep warm function button
3 Lid 8 Temperature adjustment button (Up)
4 Stable 360 degree power base 9 Temperature adjustment button (Down)
5 Handle 10 On/Off button

Key Functions

+	Temperature control from 40 to 100, Increase or decrease each 1 by discontinuous pressn [+] or [-], increase or decrease each 5 °C by continuous press [+] or [-]. Press [+] and [-] at the same time for 5 seconds to switch Fahrenheit mode and Celsius mode.
-
	Use the keep warm function to keep the temperature between 40-95 °C for 30 minutes.

USE AND OPERATION

Important Notes on Use

• The kettle must be placed on a stable, flat and dry surface.
• Before first use fill the kettle up to the maximum level, boil the water, pour it out and rinse the kettle. Repeat the procedure several times to remove manufacturing deposits, etc.
• The kettle turns off automatically when the water has boiled. If necessary you may turn it off using ON/OFF button (10).
• After the water has boiled or the kettle has been switched off, wait several seconds before switching it on again.
• If you switch the kettle on without water, the overheat protection will automatically shut the appliance off. Leave the kettle to cool down for about 15 minutes before refilling.

Boiling Water

1 Before filling with water, remove the kettle from the base (4).
2 Open the lid and fill the kettle with water up to the desired level (between 0.5 and 1.0L ).
3 After plugging the base to the power outlet, the display turns on for a moment, all buttons are lit and the appliance beeps twice which means that the base is connected to the power source and the kettle is placed on the base.
4 Close the lid and place the kettle on the power base (4), the appliance beeps once, the display turns on and the ON/OFF button stars to flash blue. Below the horizontal line on the display you will see the current water temperature which will be visible for about 5 seconds. If you do not perform any actions, the kettle turns off automatically.
5 Press the ON/OFF button (10) without setting other functions. The kettle turns on and beeps, the ON/OFF button will be lit red. The kettle boils water up to 100, then switches off automatically and beeps three times.

Heating up Water

If you just want to heat up the water, use the boiling temperature buttons and .

Press once to change the temperature. The temperature setting will be shown on the display. You may select between the predefined temperature settings: from 40 up to 100 press each 1, long-press each 5. If the temperature set is lower than the temperature of water in the kettle, the kettle switches off.

1. After reaching the desired temperature of water, the kettle switches off and beeps three times.

Keep Warm Function

If you want to select the keep-warm function, press the button (7), the keep-warm symbol will be shown on the display. In this mode press the temperature buttons [+ ] and [-] , to set the desired temperature. The available range of temperature setting 40-100. In order to switch off the keep-warm function, press the keep-warm button (7) again or ON/OFF button (10) to switch off the kettle. Otherwise the water temperature will be maintained at a per-set level. If no action is taken for 30 minutes in the keep-warm mode, the kettle will switch off. Press the ON/OFF button (10) again to turn on the kettle (the kettle beeps once).

Note: The kettle may be used only with the base attached. Do not open the lid when boiling water.

CARE AND CLEANING

Note: Before your cleaning, please unplug the electrical kettle and make sure it has been cooled down. Never immerse any part of the cable, plug, power cord base or kettle in water or any other liquid.

Exterior of the kettle

• Wipe the exterior of the kettle with a piece of damp cloth and then dry it with a piece of dry cloth.
• Never use harsh chemicals or abrasive cleaning agents as these may damage the finish of your kettle.

Interior of the kettle

Over using a period of time, lime scale would be built up inside of your kettle. To remove lime scale:

1 Half fill the kettle with water and add the juice of a lemon.
2 Boil up the water and allow it to stand for 15 minutes before discarding.
3 Repeat steps 1 and 2 several time, please using cold water only. Then the lime scale inside of your electrical kettle will be clean up.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
