InnerScan BC590BT - Scale TANITA - Free user manual and instructions

Features	Details
Product type	Impedance scale
Connectivity	Bluetooth
Maximum supported weight	150 kg
Accuracy	100 g
Features	Measurement of weight, fat mass, muscle mass, body water, bone mass
Display	Backlit LCD screen
Power supply	Batteries (included)
Usage	Home use, recommended for body composition tracking
Maintenance	Clean with a soft cloth, avoid abrasive products
Safety	Do not use on a wet surface, do not exceed maximum weight
General information	Compatible with the TANITA app for data tracking

Frequently Asked Questions - InnerScan BC590BT TANITA

How do I connect the TANITA InnerScan BC590BT scale to my smartphone?

Make sure Bluetooth is enabled on your smartphone. Open the TANITA app and follow the instructions to add a new device. Place the scale on a flat surface and make sure it is turned on.

Why won\u0027t my scale turn on?

Check that the scale is properly powered. Make sure the batteries are correctly inserted and not depleted. Replace the batteries if necessary.

How do I calibrate my TANITA InnerScan BC590BT scale?

The scale calibrates automatically each time you turn it on. Make sure it is on a flat and stable surface for proper calibration.

What should I do if the displayed measurements seem incorrect?

Make sure the scale is on a hard, flat surface. Avoid weighing on a carpet or soft surface. Also check that you are barefoot and that your feet are properly positioned on the electrodes.

How do I reset my scale?

To reset the scale, remove the batteries, wait 10 seconds, then reinsert them. This will reset the default settings.

Can I use the scale if I am wearing metal objects?

It is recommended not to wear metal objects, as this can affect measurement accuracy. Remove jewelry and other metal objects before weighing.

How do I change the measurement units on the scale?

To change units, press the 'Unit' button on the scale until the desired unit (kg, lb, st) appears on the screen.

Can the scale store multiple users?

Yes, the TANITA InnerScan BC590BT can store data for multiple users. Each user must create an account in the TANITA app to sync their data.

Why won\u0027t the data sync with my app?

Make sure your smartphone is near the scale and that the app is open. Also check that Bluetooth connection is active and the app is up to date.

What should I do if the scale displays an error code?

Consult the user manual for the specific error code. Generally, it is recommended to reset the scale or check the batteries.

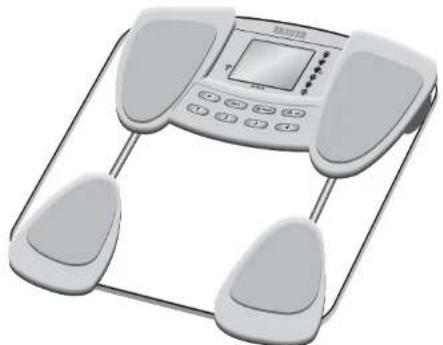

USER MANUAL InnerScan BC590BT TANITA

Body Composition Monitor

with 串 Bluetooth

Model:BC-590BT

Eng Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

F Mode d'emploi

Features and Functions 2

Preparations Before Use 2

Getting Accurate Readings 3

Automatic shut-down function 3

Switching the weight mode 3

Setting and storing personal data in memory 4

Operation with Bluetooth 5 (Using Personal key)

Operation with Bluetooth 7

(Using Guest Mode)

Error Process 9

Taking Weight Measurement Only 10

Troubleshooting 10

Output Data Format 11

Specifications 12

Bluetooth Specifications 12

Indice de materias

Introduccion 25

Thank you for selecting a Tanita Body Composition Monitor. This monitor is one in a wide range of home healthcare products produced by Tanita.

This Instruction Manual will guide you through the setup procedures and outline the key features. Please keep it handy for future reference. Additional information on healthy living can be found on our website www.lanla.com.

Tanita products incorporate the latest clinical research and technological innovations.

All data is monitored by our Tanita Medical Advisory Board to ensure accuracy.

Note : Read this Instruction Manual carefully and keep it handy for future reference.

Safety Precautions

Note that people with an electronic medical implant, such as a pacemaker, should not use a Body Composition Monitor as it passes a low-level electrical signal through the body, which may interfere with its operation.

Pregnant women should use the weight function only. All other functions are not intended for pregnant women.

Do not place this monitor on slippery surfaces such as a wet floor

Recorded data may be lost if the monitor is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data. Tanita takes no responsibility for any kind of damage or loss caused by the monitor, or any kind of claim made by a third person.

Important Notes for Users

This Body fat monitor is intended for adults and children (ages 7-17) with inactive to moderately active lifestyles and adults with athletic body types.

Tanita defines "athlete" as a person involved in intense physical activity of approximately 10 hours per week and who has a resting heart rate of approximately 60 beats per minute or less. Tanita's athlete definition includes "lifetime of fitness" individuals who have been fit for years but currently exercise less than 10 hours per week.

The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders. Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tamia takes no responsibility for any kind of loss caused by the loss of recorded data.

Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person

Note : Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or overhydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

End

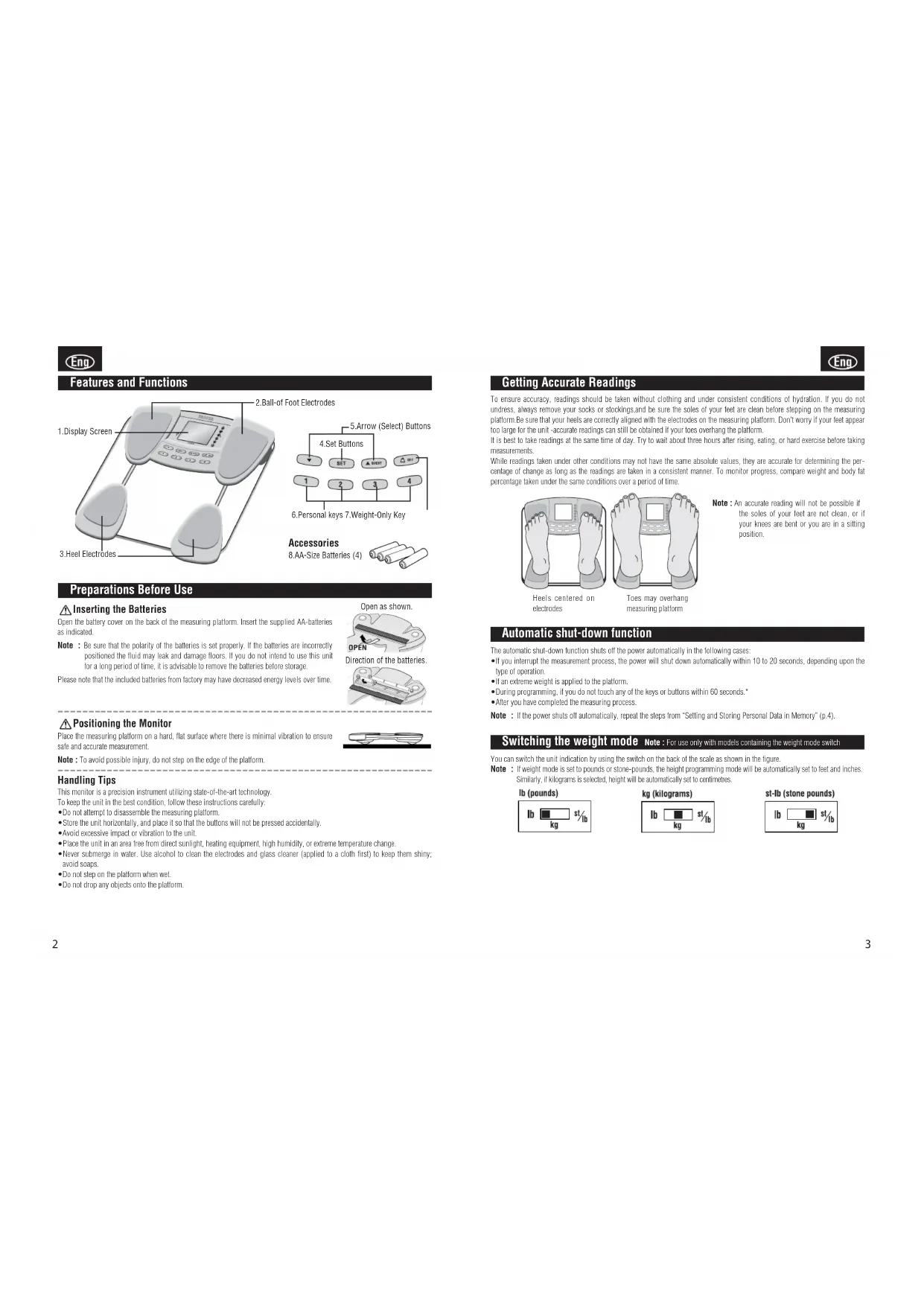

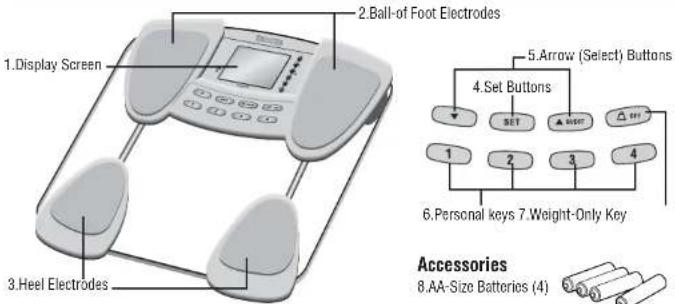

Features and Functions

Preparations Before Use

Inserting the Batteries

Open the battery cover on the back of the measuring platform. Insert the supplied AA-batteries as indicated.

Note : Be sure that the polarity of the batteries is set properly. If the batteries are incorrectly positioned the fluid may leak and damage floors. If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries before storage.
Please note that the included batorns from factory may have decreased energy levels over time.

Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Note: To avoid possible injury, do not step on the edge of the platform.

Handling Tips

This monitor is a precision instrument utilizing state-of-the-art technology.
To keep the unit in the best condition, follow these instructions carefully:
- Do not attempt to disassemble the measuring platform.
- Store the unit horizontally, and place it so that the buttons will not be pressed accidentally.
- Avoid excessive impact or vibration to the unit
- Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
- Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first); to keep them shiny, avoid scraps.
Do not step on the platform when wet.
Do not drop any objects onto the platform.

Getting Accurate Readings

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your feet are clean before stepping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit - accurate readings can still be obtained if your toes overhang the platform.

It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements.

While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

Heals centered on
electrodes

Toes may overhang.
measuring platform

Note: An accurate reading will not be possible if the solutes of your feet are not clean, or if your knees are bent or you are in a sitting position.

Automatic shut-down function

The automatic shut-down function shuts off the power automatically in the following cases:

• If you interrupt the measurement process, the power will shut down automatically within 10 to 20 seconds, depending upon the type of operation.
  If an extreme weight is applied to the platform.
  During programming, if you do not touch any of the keys or buttons within 60 seconds.
  After you have completed the measuring process.

Note : If the power shuts off automatically, repeat the steps from "Setting and Storing Personal Data in Memory" (p-4).

Switching the weight mode Note: For use only with models containing the weight mode switch

You can switch the unit indication by using the switch on the back of the scale as shown in the figure.
Note: If weight mode is set to pounds or stone-pounds, the height programming mode will be automatically set to feet and inches. Similarly, if kilograms are selected, height will be automatically set to centimeters.

Eng

Setting and storing personal data in memory

You will receive readings only if data has been programmed into one of the personal data memories or the Guest mode. The monitor can store personal details for up to 4 people.

1. Turn on the Power

Press the Set button to turn on the unit (since programmed, tapping a Personal Key turns on the unit). The unit will beep to confirm activation, the Personal Key numbers (1,2,3,4) will be displayed, and the display will flash.

Note: If you don't operate the unit for sixty seconds after the unit has been turned on, the unit will turn off automatically.

Note : If you make a mistake or want to turn the unit off before you have finished programming it, press the Weight-Only Key ( )o force quit.

2. Select a Personal Key Number

Press the Up/Down buttons to select a Personal Key. Once you reach the Personal Key number you wish to use, press the Set button. The unit will beep once to confirm.

3.Set Age

The display defaults to Age 30 (range of user age is between 7-99). An arrow icon appears on the lower left side to indicate Age setting. Use the Up/Down buttons to scroll through numbers. When you reach your age, press the Set button. The unit will loop once to confirm.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female ( , or Male ( ), , female/Athletes and Male/Athlete settings, then press the Set button. The unit will be once to confirm.

5. Specify the Height

The display defaults to 5.7" (170cm) (range of user is from 3.4" - 7.3" or 100cm - 220cm). Use the Up/Down buttons to specify Height and then press the Set button. The unit will beep once to confirm:

6. Select Activity Level

To use the DCI (Daily Calorie Index) feature property, you need to set the Activity Level. Use the Up button to specify Activity Level. Press the Set button to confirm. Level 1:Inactive Months (will be a separate item).
Level 1: Inactive lifestyles (include no exercise)
Level 2 = Knowledge about exercise (occasional, 47%; Interim Exercise)
Level 3 = Adult involved in intense physical activity (see p. 1 for Tamita's definition of Athlete)

Note: If you select the Athlete Mode, it will automatically set the Activity Level to Level 3.

The unit will keep twice and the display will flash all data (Male/Female, Age, Height, Activity Level, etc.) three times to confirm the programming. The power will then shut down automatically.

Eng

Operation with Bluetooth (Using Personal key)

1) Before activating the scale, make sure the corresponding Bluetooth device is turned on.
2) Press the personal key to turn on the scale, as noted by a single beep.

3) Within 60 seconds, activate the communication sequence within the Bluetooth device to initiate the pairing process with the scale.
If 60 seconds is exceeded an error message will appear, see page9 for error message codes.
will you want to use the scale without activating Bluetooth, press the OFF key to turn off the scale, while PCSET is displayed. Press your personal key again (within 60 seconds) to turn the scale on, the Bluetooth function will now be deactivated and you can measure body composition.
4) The pairing process is completed on the corresponding Bluetooth device and the scale, as noted by a double beep.
5) All the Pre-stored personal data will be displayed pre by one.

6) The unit will be again and the display will show "0.0". Now step onto the platform.

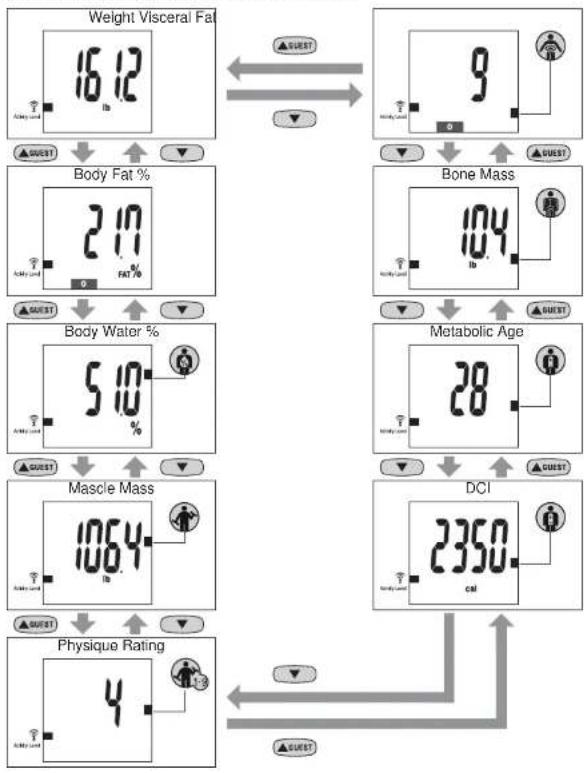

Operation with Bluetooth (Using Personal key) continued

7) The result will show after measurement is completed, noted by a double beep. The data will then be sent to the corresponding Bluetooth device.
To see other readings, carefully step off scale, press the up button continually to display readings in the order listed below. (Press the down button for reverse.)
The Up / Down buttons will not function while remaining on scale.

8) The scale will automatically shut off when

The user remains on the scale for 30 seconds.
The user gel oil from the scale, and then after 30 seconds.

Operation with Bluetooth (Using Guest Mode)

1) Before activating the scale, make sure the corresponding Bluetooth device is turned on.
2) Press the button on the scale, as noted by a single beep.

3) Within 60 seconds, activate the communication sequence within the Bluetooth device to initiate the pairing process with the scale. If 60 seconds is exceeded an error message will appear, see page9 for error message codes.
If you want to use the scale without activating Bluetooth, press the OFF key to turn off the scale, while PCSET is displayed. Press the Guest key again (within 60 seconds) to turn the scale on. The Bluetooth function will now be deactivated and you can measure body composition.
4) The pairing process is completed on the corresponding Bluetooth device and the scale, as noted by a double beep.

5) Set Age, Select Female or Male (Standard or Athlete), specify the height and the select activity level.
6) All the Pre-stored personal data will be displayed one by one.

7) The unit will beep again and the display will show "0.0". New step onto the platform.

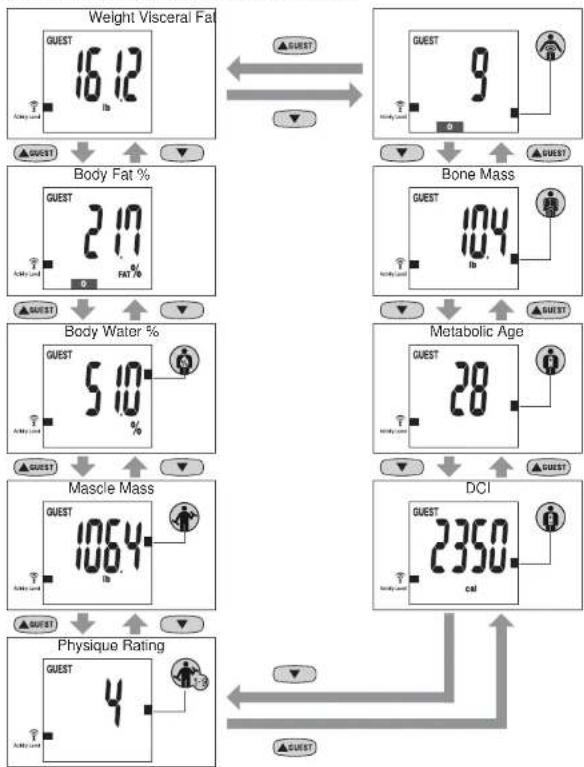

Operation with Bluetooth (Using Guest Mode) continued

8) The result will show after measurement is completed, noted by a double beep. The data will then be sent to the corresponding Bluetooth device.

To See other readings, carefully step off scale, press the up button continually to display readings in the order listed below. (Press the down button for reverse.)

The Up / Down buttons will not function while remaining on scale.

9) The scale will automatically shut off when

The user remains on the scale for 30 seconds.

The user gel oil from the scale, and then alter 30 seconds.

Error Process (Using Personal key & Guest Mode)

1) Failure to "PAIR" message

proced to the next step. If to appears, the so

This is a result of a problem with the Bluetooth device in the scale. Please contact TANITA.

2-a) If using Personal key : All the Pre-stored personal data will be displayed one by one.

2-b) If using Guest Mode : Set Age, Select Female or Male ( Standard or Athlete ), specify the height and the

select activity level. All the Pre-stored personal data will be displayed one by pre.

31 The unit will be again and the display will show a 0.0°

Now step onto the platform.

4) The complete measurement as noted by a double beeep.

*The result data will not be sent to the corresponding Bluetooth device.

5) The scale will automatically shut off when

The user remains on the scale for 30 seconds.

The user gets off from the scale, and then after 30 seconds.

Eng

Taking Weight Measurement Only (No Bluetooth Output)

Select Weight-Only Key

Press the Weight-only key. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, step onto the platform. The body weight value will appear. If you remain on the platform, the display will flash for about 30 seconds, and then the power will automatically turn off. If you stop off the platform, the weight will continue to show for about 5 seconds, the "0.0" will appear and the unit will shut off automatically.

Troubleshooting

If the following problems occur ...then...

• A wrong weight format appears followed by kg, lb, or st-lb.
  Refer to Switching the Weight Mode on p.3.
  The display shows and goes off when the personal key pressed.
  No data (age gender, height and activity level) has been stored in the memory.
• [L0] appears on the display, or all the data appears and immediately disappears.
  Balletries are low. When this message appears, be sure to replace the ballers immediately, since weak ballers will affect the
  accuracy of your measurements. Change all the batteries at the same time with new AA-size batteries.
  Note : Your settings will not be erased from the memory when you remove the batteries.
• [error] appears while measuring.
  Please stand on the platform keeping movement to a minimum.
  The unit cannot accurately measure your weight if it detects movement.
  The Body Fat Percentage is more than 75% readings cannot be obtained from the unit.
  The Body Fat Percentage reading does not appear or appears after the weight is measured.
  Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the
  measuring platform.
• [O] appears while measuring
  Reading cannot be obtained if the weight capacity is exceeded
• No reading is obtained after pressing a feature key.
  Step off scale when body fat reading appears, then press feature key.

Eng

Output Data Format

Specification

Signal Speed	9600 bps
Start Bit	1 bit
Data Bit Length & bits
Parity None
Stop bit	1 bit

Bluetooth Security Code

PIN

0000

Output Data

		Header 0	Output data (ASCII code) Substance		Mode
					kg	lb st	lb
Control Data 10 XX 2bytes fixed / fixed to "16"					✓	✓	✓
Control Data "0 X 1byte I xed / fixed Ib "1"					✓	✓	✓
Control Data "1 X 1byte I xed / fixed Ib "1"					✓	✓	✓
Control Data "2 X 1byte I xed / fixed Ib "1"					✓	✓	✓
Model No. MO "BC-5908"					10bytes fixed	✓	✓
Personal No.		PN	X (1 -- 4: Personal 0: Guest)	1byte fixed	✓	✓	✓
Body Type		BT	X (0:Standard 2:Athlete)	1byte fixed	✓	✓	✓
Gender		GE	X (1:Male 2:Female)	1byte fixed	✓	✓	✓
Age		AG	XX 1-2bytes variable length		✓	✓	✓
Height	cm	Hm	XXXX.X	4-5cytos variable length	✓	-	-
	ft - inch	HI X.Y.Y Y (X:feet Y:inch)	6bytes fixed		-	✓	✓
Activity Level		AI	X (1 -- 3)	1byte fixed	✓	✓	✓
Weight	kg	Wk	XXXX.X	3-5cytos variable length	✓	-	-
	lb	Wp	XXXX.X	3-5cytos variable length	-	✓	-
	sl - lb	Ws	XX.Y.Y.Y (X:st Y:lb)	6-7cytos variable length	-	-	✓
Total Body Fat		Fw	XX.X	3-4cytos variable length	✓	✓	✓
Total Body Water		ww	XX.X	4bytes fixed	✓	✓	✓
Muscle Mass	kg	mW	XXXX.X	3-5cytos variable length	✓	-	-
	lb	mW	XXXX.X	3-5cytos variable length	-	✓	-
	sl - lb	mW	XX.Y.Y.Y (X:st Y:lb)	6-7cytos variable length	-	-	✓
Physique Rating		PR	X 1byte fixed		✓	✓	✓
DCI (cal)		rD XXXX		1-4bytes variable length	✓	✓	✓
Metabolic Age		rA XX 2bytes fixed			✓	✓	✓
Bona Mass	kg	bW	XXXX.X	3-5cytos variable length	✓	-	-
	lb	bW	XXXX.X	3-5cytos variable length	-	✓	-
	sl - lb	bW	XX.Y.Y.Y (X:st Y:lb)	6-7cytos variable length	-	-	✓
Visceral Fat Rating		IF	XX 1-2cytos variable length		✓	✓	✓
Checksum		CS	XX 2bytes fixed		✓	✓	✓

Note: The data are divided with commas (,) for each data.

The terminal (end of data) is CR (ASCII code CD). LF (ASCII code DA).

En

[Output example (in the case to lb unit)]

Model No Personal No. Body Type Gender
M	O			1	6		-	0		1	1		-	1		1		1		-	2		1
Age
A	G			3	0				H	f		5		0	4		5		A	I		2	W	P		P	H	F		5		m	W		8	9	5		P	R		4		5		P	R		4		5		P	R		4		5		P	R		4		5		P	R		4			5		P	R		4		5		P	R		4		5		P	R		4		5		P	R		4		5		P	R		4

Specifications

Maximum Capacity	330 b / 150 kg / 23st 8lb
Gradation	0.2 ft / 0.1 kg / 0.2 ft
Power Supply	DC 6V (R6 - AA battery x 4 included)
Power Consumption	60 mA maximum
During Transmission	120 mA or less
When On	60 mA or less
When Display is Off	50 μA or less
Temperature Range for Use	41 to 95°F (5 to 35°C), 80% or less humidity (non condensation)
Temperature Range for Storage 41 to 95°F (5 to 35°C), 80% or less humidity (non condensation)

Bluetooth Specifications

Product Reference	Bluetooth Module
MITSUMI Part Number	WML-C46ASR
Application Specification	Bluetooth Ver. 2.0vEDR
Frequency Range	2.402 - 2.480 GHz
Transmission Scheme	FESS
Modulation Method	GFSK
Output Power	Class 2
Communications Range	Approx. 33 ft / Approx. 10 m (differs by usage environment)

The Bluetooth word mark and logo are owned by the Bluetooth SIG Inc. and any use of such marks by Tanita Corporation is under license. Any other trademarks or trade names mentioned are the property of their respective owners.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undes operation. This device contains FCC-ID P00WML-C46

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Tarita Corporation may void the user's authority to operate the equipment.

This device has been approved for use in USA.

Introduction

st-lb (Stone Pounds)

1. Turn on the Power

Press the Set button to turn on the unit (once programmed, tapping a Personal Key turns on the unit). The unit will beep to confirm activation, the Personal Key numbers (1,2,3,4) will be displayed, and the display will flash.

Specifications techniques

Specifications techniques Bluetooth

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA.

Tel:[phone]E-mail:1,847-640-0261

www.tanita.com

Tanita Health Equipment H.K. Ltd.

Unit 301-303 3/F Wing On Plaza

62 Mody Road, Samnatsui East,

Kawoon Hong Kong Tel: [phone]

Fax:[phone]
