Product type	Sports wristwatch
Brand	Adidas
Model	ADH1571
Case dimensions	Approximately 45 mm diameter, 12 mm thickness
Weight	Approximately 50 g
Power supply	Button cell battery (CR2025 or equivalent)
Main functions	Normal time display (12/24 h), chronograph with 10-lap memory, alarm (4 alarms), timer, dual time zone, electroluminescent backlight
Display	Digital and/or analog depending on variant
Water resistance	Up to 10 ATM (100 m) depending on model
Glass material	Mineral glass
Case material	Resin or stainless steel
Strap	Resin or silicone interchangeable
Care and cleaning	Clean with a soft, dry cloth. Avoid chemicals. Rinse with fresh water after contact with seawater.
Usage precautions	Do not operate buttons underwater. Ensure crown is fully pressed in. Respect water resistance limits.
Warranty	2 years (in accordance with applicable law)
Country of origin	China
Repairability	Battery and strap replaceable by user. For other repairs, contact an authorized watchmaker.

Frequently Asked Questions - ADH1571 ADIDAS

How do I set the time on my Adidas ADH1571 watch?

Pull the crown to position 2 (first click). Turn it counterclockwise to scroll through the hours. Continue until the date is correct (the day before the current date). Set the exact time, then push the crown back to position 1. For digital models, press and hold button A in time mode to access settings.

How do I set the date?

Pull the crown to position 2. Turn it clockwise to advance the date to the desired day. Avoid setting the date between 9 PM and 1 AM to ensure correct change the next day. Then push the crown back to position 1.

How do I use the chronograph?

Press button A (or B depending on model) to start the chronograph. Press again to stop. Press button B (or D) to reset. To record lap times, press the corresponding button while the chronograph is running. The maximum is 10 laps.

How do I set the alarm?

In alarm mode, press and hold button D (or A) for 2 seconds. The hour flashes. Use buttons C (increase) and D (decrease) to set the hour, then B to switch to minutes. Press A to exit. The alarm is automatically activated when exiting setting mode.

Is my watch waterproof? Can I swim with it?

The water resistance level is indicated on the case back (e.g., 5 ATM, 10 ATM). A 5 ATM (50 m) rating allows swimming and snorkeling, but not scuba diving. Ensure the crown is fully pressed in and never operate buttons underwater.

How do I replace the battery?

Carefully remove the case back using a suitable tool (or have it done by a professional). Replace the old battery with a new CR2025 or equivalent, observing polarity. Seal tightly. It is recommended to have this done by a watchmaker to preserve water resistance.

How do I turn on the backlight?

Press button A (or B depending on model) to activate the electroluminescent (EL) backlight. The light lasts a few seconds. On some models, auto backlight can be activated by a wrist gesture (adjustable in settings).

How do I switch between time zones?

Press button C (or D) to switch between the main time (T1) and the second time zone (T2). To set the offset, press and hold button C in T2 mode, then use buttons C and D to adjust the time difference.

How do I use the timer (countdown)?

In timer mode, press and hold button D (or A) to access settings. The hour flashes. Use C to increase, D to decrease, and B to switch to minutes/seconds. Once set, press C to start the countdown. At zero, the alarm sounds for 30 seconds.

How do I reset the chronograph to zero if the hands are not aligned?

If a chronograph hand is not at zero position (12 o'clock), pull the crown to position 3. Press A (or B) to move the hand clockwise (or counterclockwise) until it is aligned. Then push the crown back to position 1.

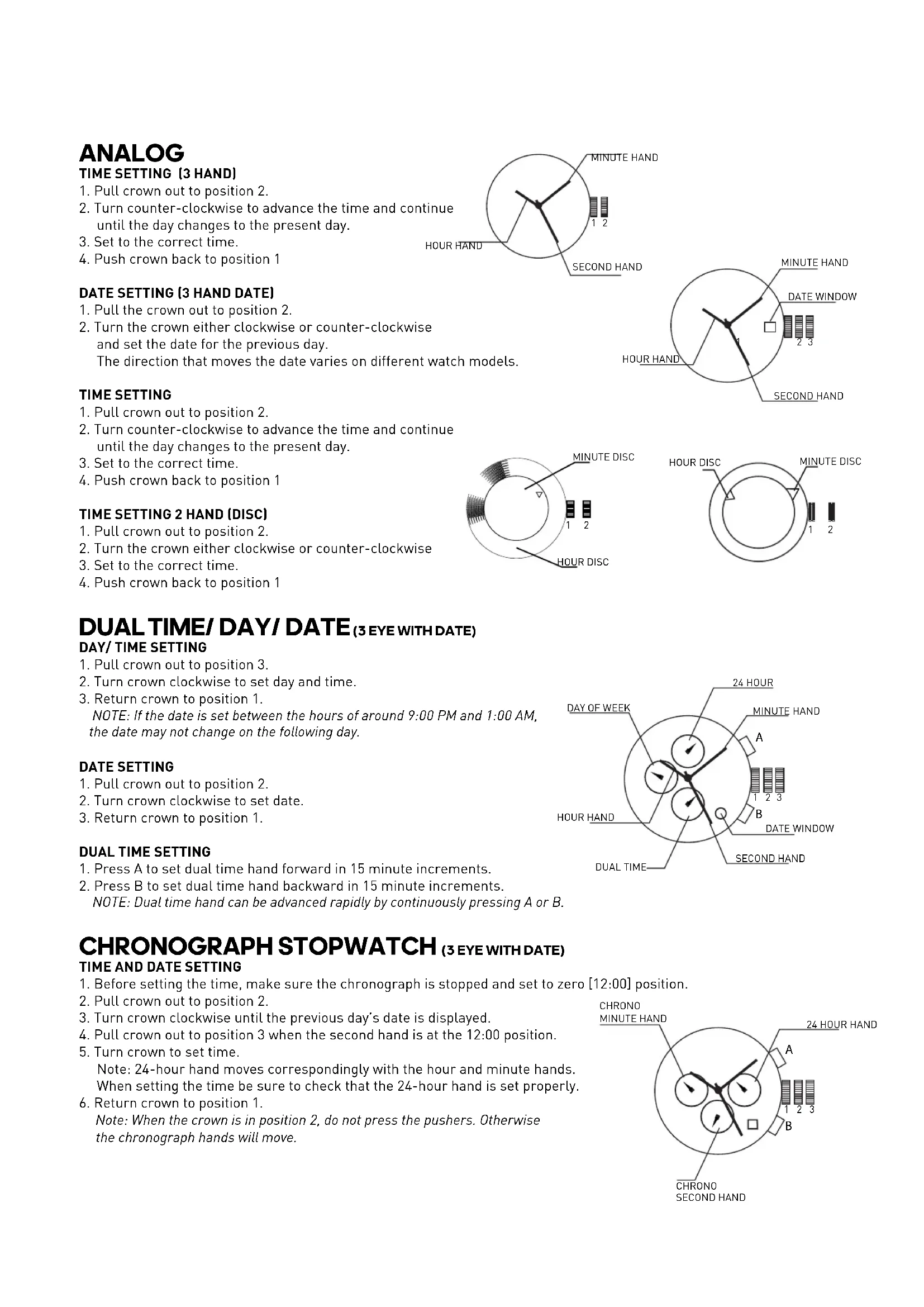

USER MANUAL ADH1571 ADIDAS

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

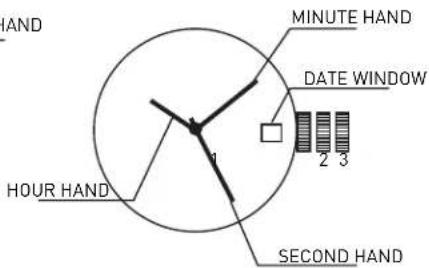

DATE SETTING (3 HAND DATE)

1. Pull the crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

TIME SETTING

1.Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

TIME SETTING 2 HAND (DISC)

1.Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise
3. Set to the correct time.
4. Push crown back to position 1

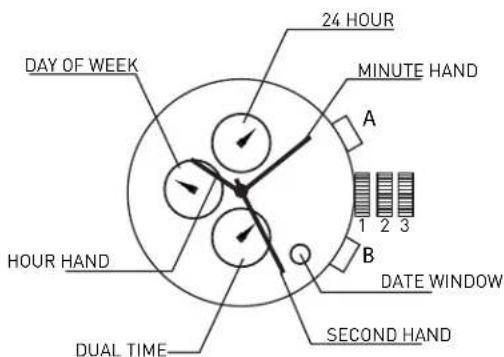

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

1. Pull crown out to position 3.
2. Turn crown clockwise to set day and time.
3. Return crown to position 1. NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

1. Pull crown out to position 2.
2. Turn crown clockwise to set date.
3. Return crown to position 1.

DUAL TIME SETTING

1. Press A to set dual time hand forward in 15 minute increments.
2. Press B to set dual time hand backward in 15 minute increments.

NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

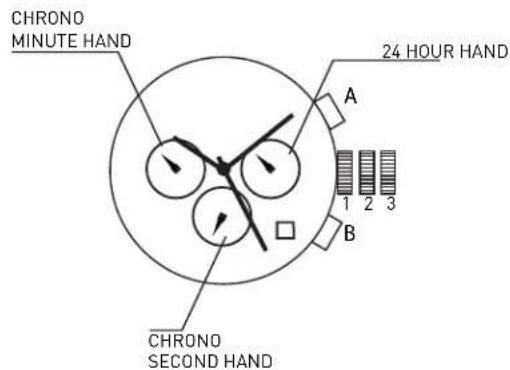

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.
4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press A to start/slop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero [12:00] position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped
   and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.

Turn crown to set time.
Note: 24-hour hand moves correspondingly with the hour and minute hands.
When setting the time be sure to check that the 24-hour hand is set properly.

& Return grown to position 1

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press B to start/slop the chronograph.
2. Press A for Split time, Press A again to restart
3. Press A to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero [12:00] position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CALAGARY (QFL769BB/QFL873AC)

NORMAL TIME DISPLAY

1. Press A for EL
2. Press C to select T1 or T2 format.
3. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.
2. Press C to increase selling value. Press D to decrease selling value.
3. Press B to enter next setting field
4. Setting sequence is hour, minute, second, year month, date,12/24 hr
5. Press A to exit setting mode.

CHRONOGRAPH MODE

1. Press B to enter chrono mode.
2. Press D to select split or lap mode. Split mode will display the full time of all records after
   each split. Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again to split time.
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
7. To review, press B to enter recall mode before resetting.
8. Press D again to reset chrono

RECALL MODE

1. Press C to recall each lap [10 maximum]
2. Press D to return to chron.

ALARM MODE

1. Press Big eniig alarm mode.
2. Press C to toggle alarm on/off.
3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set minutes.
4. Press A to exit setting mode
   NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing.
3. Press C to increase setting value. Press D to decrease setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second.
6. Press to exit setting

PEACHTREE (FL1459B)

NORMAL TIME DISPLAY

1. Press A for EL in any mode
2. Press C to toggle between Time 1 and Time 2
3. Press and hold C to set Time 1 or Time 2 as the default timer.
4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set and advance to next setting value.
4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL
5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

1. Press B to change to chronograph mode.
2. Press C to start chronograph: press D for lap when the chronograph is running.
3. Press D to change views while chronograph is running
4. Press C to stop chronograph.
   NOTE: When running, there is a maximum of 10 laps, afterward last lap will be overwritten each time
   additionl lap is recorded.

RECALL MODE

1. Press A to recall the memory when the chronograph is stopped.
2. Press A to view the next lap.
3. Press C or D to exit Recall Mode and go back to chronograph mode.

TIMER MODE

1. Press B to change to timer mode.
2. Press C to start timer.
3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.
2. Press C and D to select count down stop, count down repeat, or count up timer.
3. Press B to advance to next setting field.
4. Press C to decrease and D to increase.
5. Press B to set and advance to next setting value.
6. Setting sequence is timer type, hour, minute, second.
7. Press A to save data and exit setting mode

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

1. Press B to change to alarm mode.
2. Presse C to loop between alarms 1, 2, 3, 4
3. Press D to enable the alarm; press D again to disable the alarm.
4. Press B to exit alarm mode.

ALARM SETTING

1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.
2. Press C to increase; press D to decrease.
3. Press B to set and advance to next setting value
4. Setting sequence is hour, minute.
5. Press A to exit setting mode.

DENVER/CANDY/SYDNEY (UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16)

NORMAL TIME DISPLAY

1. Press A for E.

2. Press C to select T1 or T2 format.

TIME/CALENDAR SETTING

1. In time mode, areas and holds 0 for 2 seconds to enter time
   setting; hour will begin flashing.
2. Press C to increase setting value
3. Press B to enter next setting field
4. Setting sequence is hour, minute, day, year, month, date.
5. Press D to exit setting mode.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm/chime on/off
3. Press D to select Home Alarm or T2 Alarm.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value.
3. Press B to set minutes.

Press D to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

CHRONOGRAPH MODE

1. Press Big eni r chnp mode
2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.
   Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again in split limnc
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
   7.To review,press B to enler recall mods before rsslling.
7. Press D again to reset chrono.

RECALL MODE

1. Press C to rseall each lap [10 maximum]
2. Press D to return to chrono.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing
3. Press C to increase setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press D to exit setting mode

Seoul / Curitiba [9FL657]

NORMAL TIME DISPLAY

1. Press A to change mode. Mode sequence is normal time,
   shrnooggh, hmsr, alarm.
2. Press B for E.L.
3. Press C to Flash time zone 2. Press and hold C 2 seconds
   To logals normal time displaytime zone 2.
4. Press D to toggle key tone and/off.

NOTE: At any point in any setting mode, press B to exit setting mode.

NOTE: In any setting mode, if no pusher is operated for 30 seconds,
all changes will be saved and the setting will automatically return
to normal time

TIME/CALENDAR SETTING

1. In normal time display, press and hold B 2 seconds; auto EL
   spall will begin fashng.
2. Press C toggle auto EL on/off.
3. Press to set and advance to next setting value.
4. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
5. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto EL, chime on/off
   12/24 hour formal, hour, minutes, second year, month/dale or date/ month formal, month and date.
6. Press B to exit setting mode.
   NOTE: Weekday is automatically updated upon opening setting mode.

TIME ZONE 2 SETTING

1. To set Time Zone 2, press and hold C 2 seconds to change to Time Zone 2.
2. Press and hold B 2 seconds; time difference between time zone 1 and time zone 2 will begin flashing.
3. Press C to increase value; press D to decrease value. Press and hold C or D for
   fast increment/decrement.
4. Press B to exit setting mode.

CHRONOGRAPH MODE

1. Press A to change to chronograph mode.
2. Press B to recall lap data. Press B to scroll through laps.
3. Press C to start/slop the chronograph.
4. Press and hold D 2 seconds to reset to zero.
   NOTE: Insert chronograph indicolor here will flash in all modes if the chronograph is running.

LAP COUNTING

1. Press D while the chronograph is running for lap counting (up to 10 laps).
   NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.
2. Press C to stop chronograph
3. Press B when the chronograph is stopped to recall chronograph lap data.
4. Press C or D to exit recall mode and return to chronograph.

TIMER MODE

1. Press A to change to timer mode.
2. Press C to start/stop timer.
3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.
   Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").
2. Press A to set and advance to next setting value.
3. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.
4. Repeat steps 3 and 4 through selling sequence. Setting sequence is: timer type, hour, minute, seconds.
5. Press B to exit setting mode.

ALARM MODE

1. Press A to change to alarm mode.
2. Press C to select alarm 1-4.
3. Press D to toggle alarm on/off.

ALARM SETTING

1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.
2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
3. Press A to set and advance minute.
4. Repeat step 2.
5. Press B to exit setting mode.

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

AFFICHAGE NORMAL DE L'HEURE

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACION NORMAL DE LA HORA

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

SCHERMO CON L'ORA STANDARD

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

VISUALIZACAO NORMAL DA HORA

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

OTOBPAXEHNE ObbyHOro BPEMEHN

1. Haxmte KhoNky A JEA EL.
2. HaxmTe KhoNky C nIy Bb6opa foMpTa T1 nnT2.

YCTAHOBKA BPEMEHN

1. HaxoJcB bpeKmE BpeMeHn, HaxMnte n ydepKnBaTe KhoNky D B TeueHne 2 cekyH, UTObI BoHTn B peKm ycTaHOBKn; uO3HaauOpune Yacbl, HaHyT MrraTb.
2. HaxmTe KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bI nepeuTn K cJeDyUoEmy npaMeTpY yCTaHOBKn.
4. NocJeIOBATEbHOCTb yCTaHOBKN - Yac, MHyTa, DeHb, RoD, MeCra, DaTa.
5. Haxmte KhoNky D IaI BbIXOa n3 peXnMa yCTaHOBKn.

PEXKIM BUDINJIbHnKA

1. HaxmTe KhoNky B Dny BxOda B pexM 6yDnIbHnKa.
2. HaxmTe KhoNky C nIe BkIIOHeHry/BbIKIOHeHry 6yDnIbHnKa/3ByKOBOrO cnHaHa.
3. HaxmTe KhoNky D nIy Bbl6pa domaaHero 6yDnIbHnKa nn 6yDnIbHnKa T2.

YCTAHOBKA BydNJIbHnKA

1. Haxmte u ydepunBaTe KhoNky D TeueHne 2 cekyH, YTo6bl BoTn B pexm ycTaHOBKn 6yDnIbHnka; Cnpbl, o03HaayIoune Yacbl, HauHyT MntaTb.
2. Haxmnte KhoNky C, yTo6bIyBEnuHTb 3HaueHne yctaHOBKn.
3. Haxmte KhoNky B, yTo6bl yCtHaOBuTb MHyTbI.
4. HaxmTe KhoNky Dnla BbIXoJa n3 peXIma yctahOBKn.

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

正常时间显示

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

五圣山阿五

1. EL（前日告白福社）到自A
   2.C将T10N T2F

#
