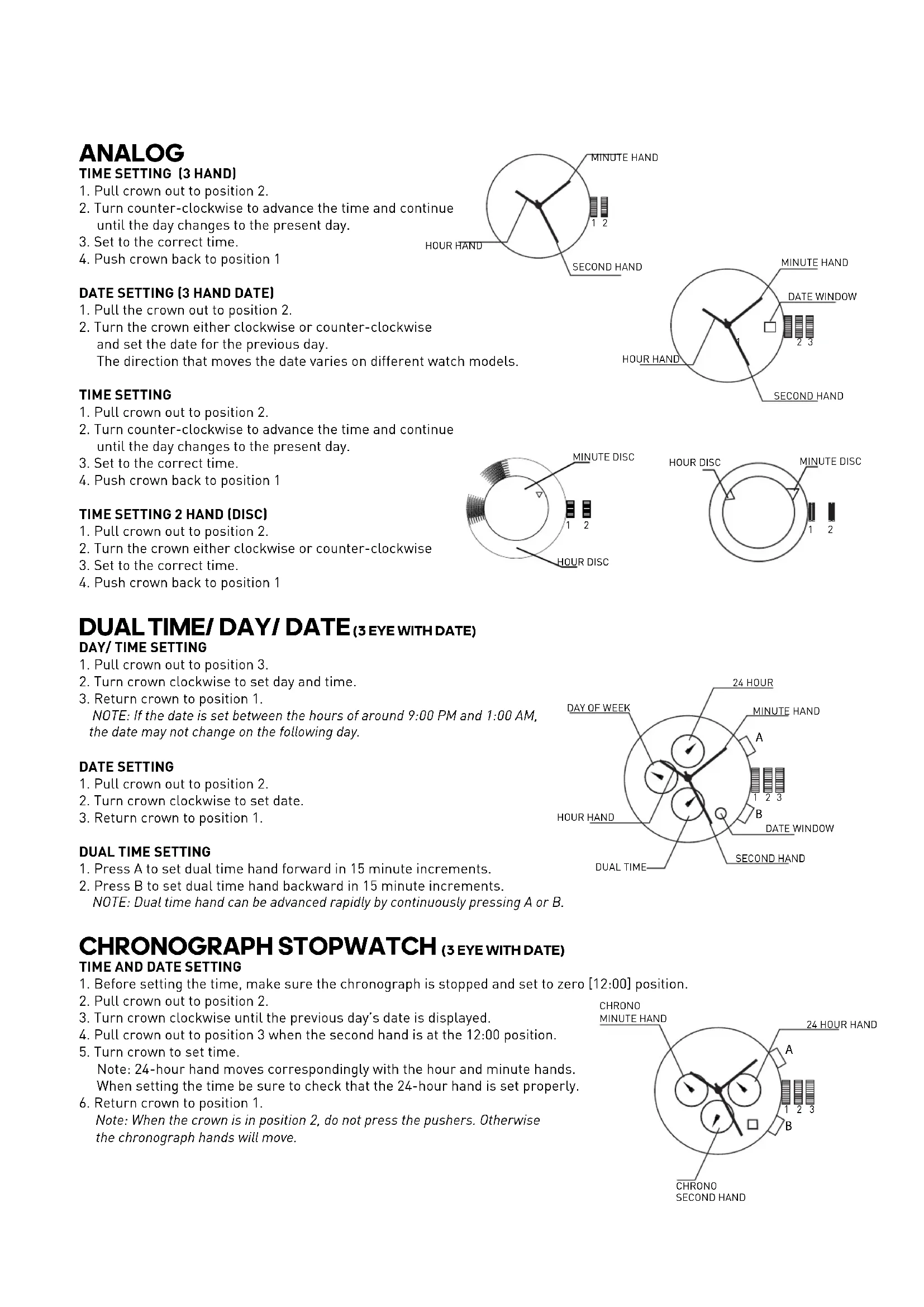

Notice ADIDAS Cypher LX1 - page 1
1 / 76
Pick your language and provide your email: we'll send you a specifically translated version.

User questions about Cypher LX1 ADIDAS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Watch in PDF format for free! Find your manual Cypher LX1 - ADIDAS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Cypher LX1 by ADIDAS.

USER MANUAL Cypher LX1 ADIDAS

  1. Pull crown out to position 2.
  2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
  3. Set to the correct time.
  4. Push crown back to position 1

ADIDAS Cypher LX1 - 1

text_image continue HOUR HAND MINUTE HAND 1 2 SECOND HAND

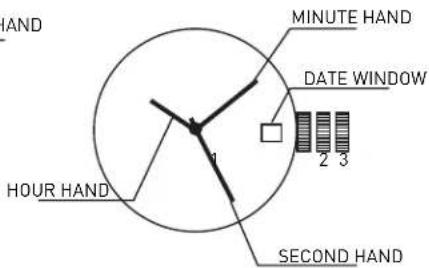

ADIDAS Cypher LX1 - 2

text_image HAND MINUTE HAND DATE WINDOW 1 2 3 HOUR HAND SECOND HAND

DATE SETTING (3 HAND DATE)

  1. Pull the crown out to position 2.
  2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day.
    The direction that moves the date varies on different watch models.

TIME SETTING

  1. Pull crown out to position 2.
  2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
  3. Set to the correct time.
  4. Push crown back to position 1

TIME SETTING 2 HAND (DISC)

  1. Pull crown out to position 2.
  2. Turn the crown either clockwise or counter-clockwise
  3. Set to the correct time.
  4. Push crown back to position 1

ADIDAS Cypher LX1 - TIME SETTING 2 HAND (DISC) - 1

text_image MINUTE DISC 1 2 HOUR DISC

ADIDAS Cypher LX1 - TIME SETTING 2 HAND (DISC) - 2

text_image HOUR DISC MINUTE DISC 1 2

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

  1. Pull crown out to position 3.
  2. Turn crown clockwise to set day and time.
  3. Return crown to position 1.
    NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

  1. Pull crown out to position 2.
  2. Turn crown clockwise to set date.
  3. Return crown to position 1.

DUAL TIME SETTING

  1. Press A to set dual time hand forward in 15 minute increments.
  2. Press B to set dual time hand backward in 15 minute increments.
    NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

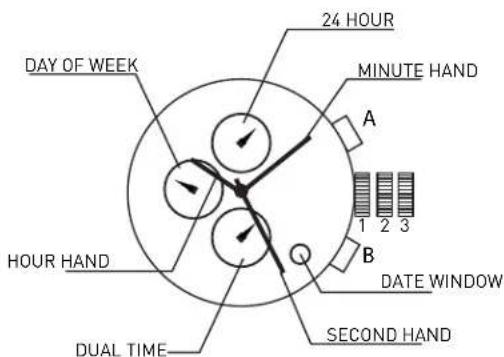

ADIDAS Cypher LX1 - DUAL TIME SETTING - 1

text_image 24 HOUR MINUTE HAND A 1 2 3 B DATE WINDOW SECOND HAND DAY OF WEEK HOUR HAND DUAL TIME

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

  1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
  2. Pull crown out to position 2.
  3. Turn crown clockwise until the previous day's date is displayed.
  4. Pull crown out to position 3 when the second hand is at the 12:00 position.
  5. Turn crown to set time.
    Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.
  6. Return crown to position 1.
    Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

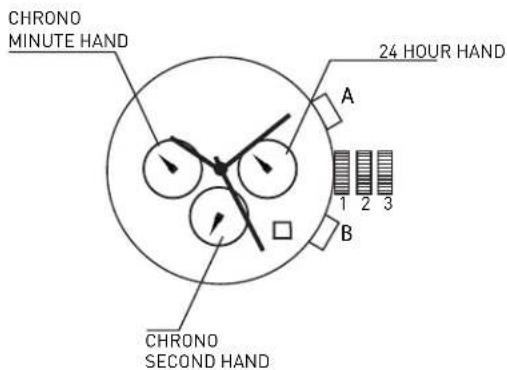

ADIDAS Cypher LX1 - TIME AND DATE SETTING - 1

text_image CHRONO MINUTE HAND 24 HOUR HAND A 1 2 3 B CHRONO SECOND HAND

CHRONOGRAPH

  1. Press A to start/stop the chronograph.

  2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

  1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.

  2. Press A to move hands clockwise; press B to move hands counter-clockwise.

  3. Return crown to position 1.

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

  1. Before setting the time, make sure the chronograph is stooped

and set to zero [12:00] position.

  1. Pull crown out to position 2.

  2. Turn crown clockwise until the previous day's date is displayed

  3. Pull crown out to position 3 when the second hand is at the 12:00 position.

  4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands.

When setting the time be sure to check that the 24-hour hand is set properly.

  1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

ADIDAS Cypher LX1 - TIME AND DATE SETTING - 1

CHRONOGRAPH

  1. Press B to start/slop the chronograph.

  2. Press A for Split time, Press A again to restart

  3. Press A to reset to zero.

CHRONOGRAPH ZERO RESET

  1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.

  2. Press A to move hands clockwise; press B to move hands counter-clockwise.

  3. Return crown to position 1.

CALAGARY (QFL769BB/QFL873AC)

NORMAL TIME DISPLAY

1. Press A for EL

  1. Press C to select T1 or T2 format.

  2. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

  1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.

  2. Press C to increase selling value. Press D to decrease selling value.

  3. Press B to enter next setting field

  4. Setting sequence is hour, minute, second, year month, date 12/24 Hr

  5. Press A to exit setting mode

ADIDAS Cypher LX1 - TIME/CALENDAR SETTING - 1

text_image 5A 5:18 12:38:56 ALM

CHRONOGRAPH MODE

  1. Press B to enter chrono mode.

  2. Press D to select split or lap mode. Split mode will display the full time of all records after

each split. Lap mode will display only the new lap time after each record has been recorded.

  1. Press C to start chronp.

  2. Press C again to split time.

  3. Repeat step 4 until desired number of laps have been reached (maximum 10).

  4. Press D to stop chrono.

  5. To review, press B to enter recall mode before resetting.

  6. Press D again to reset chrono.

RECALL MODE

  1. Press C to recall each lap (10 maximum).

  2. Press D to return to chrono.

ALARM MODE

  1. Press B to enter alarm mode.

  2. Press C to toggle alarm on/off.

  3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

  1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.

  2. Press C to increase setting value. Press D to decrease setting value.

  3. Press B to set minutes.

  4. Press A to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

  1. Press C to start countdown timer.

  2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

  1. Press B to enter timer mode.

  2. Press and hold D to enter setting mode; hour will begin flashing.

  3. Press C to increase setting value. Press D to decrease setting value.

  4. Press B to enter next setting field.

  5. Setting sequence is hour, minute, second.

  6. Press A to exit setting mode.

PEACHTREE (FL145GB)

NORMAL TIME DISPLAY

  1. Press A for EL in any mode

  2. Press C to toggle between Time 1 and Time 2

  3. Press and hold C to set Time 1 or Time 2 as the default timer.

  4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

  1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.

  2. Press C to increase setting value. Press D to decrease setting value.

  3. Press B to set and advance to next setting value

  4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL

  5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

  1. Press B to change to chronograph mode.

  2. Press C to start chronograph; press D for lap when the chronograph is running.

  3. Press D to change views while chronograph is running

  4. Press C to stop chronograph.

NOTE: When running, there is a maximum of 10 laps, afterward last lap will be overwritten each time

additional lap is recorded.

RECALL MODE

  1. Press A to recall the memory when the chronograph is stopped.

  2. Press A to view the next lap.

  3. Press C or D to exit Recall Mode and go back to chronograph mode.

ADIDAS Cypher LX1 - RECALL MODE - 1

TIMER MODE

  1. Press B to change to timer mode.

  2. Press C to start timer

  3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

  1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.

  2. Press C and D to select count down stop, count down repeat, or count up timer.

  3. Press B to advance to next setting field.

  4. Press C to decrease and D to increase.

  5. Press B In set and advance is next selling value

  6. Setting sequence is timer type, hour, minute, second.

  7. Press A to save data and exit setting mode

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

  1. Press B to change to alarm mode.

  2. Press C to toggle between alarms 1, 2, 3, 4.

  3. Press D to enable the alarm: press D again to disable the alarm

  4. Press B to exit alarm mode.

ALARM SETTING

  1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.

  2. Press C to increase; press D to decrease

  3. Press B to set and advance to next setting value

  4. Setting sequence is hour, minute.

  5. Press A to exit setting mode.

DENVER/ CANDY / SYDNEY (UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

NORMAL TIME DISPLAY

  1. Press A for EL

  2. Press C to select T1 or T2 format

TIME/CALENDAR SETTING

  1. In time mode, press and hold D for 2 seconds to enter time

setting: hour will begin flashing

  1. Press C to increase setting value

  2. Press R to enter next setting field

  3. Setting sequence is hour, minute, day, year, month, date

  4. Press D to exit setting mode

ALARM MODE

  1. Press B to enter alarm mode.

  2. Press C to toggle alarm/chime on/off

  3. Press D to select Home Alarm or T2 Alarm.

ALARM SETTING

  1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.

  2. Press C to increase setting value

  3. Press B to set minutes.

  4. Press D to exit setting mode

NOTE: Alarm turns on automatically when exiting setting mode.

ADIDAS Cypher LX1 - ALARM SETTING - 1

ADIDAS Cypher LX1 - ALARM SETTING - 2

ADIDAS Cypher LX1 - ALARM SETTING - 3

CHRONOGRAPH MODE

  1. Press B to enter chrono mode.

  2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.

Lap mode will display only the new lap time after each record has been recorded.

  1. Press C to start chron

  2. Press Canain to split lime

  3. Repeat step 4 until desired number of laps have been reached (maximum 10).

  4. Press D to stop chrono

  5. In review, press B in enter recall mode before reselling.

  6. Press Π again to reset chrono

RECALL MODE

  1. Press C to recall each lap [10 maximum]

  2. Press D to return to chrono.

TIMER MODE

  1. Press C to start countdown timer

  2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

  1. Press B to enter timer mode.

  2. Press and hold 0 to enter setting mode; hour will begin flashing

  3. Press C to increase setting value.

  4. Press B to enter next setting field.

  5. Setting sequence is hour, minute, second

  6. Press D to exit setting mode

Seoul / Curitiba (QFL657)

NORMAL TIME DISPLAY

  1. Press A to change mode. Mode sequence is normal time,

chronograph, timer, alarm.

  1. Press B for E

  2. Press C to flash time zone 2. Press and hold C 2 seconds

to toggle normal time display/time zone 2.

  1. Press D to toggle key tone on/off.

NOTE: At any point in any setting mode, press B to exit setting mode.

NOTE: In any setting mode, if no number is operated for 30 seconds

all changes will be saved and the setting will automatically return

to normal time display.

TIME/CALENDAR SETTING

  1. In normal time display, press and hold B 2 seconds; auto EL

on/off will begin flashing.

  1. Press C toggle auto EL on/off.

  2. Press A to set and advance to next setting value

  3. Press to increase dinit, press in decrease dinit. Press and held or for fact increment/decrement

  4. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto E1, chime on/off

12/31-hour format: hour, minutes, second, year, month/daily or daily/month/month, month and date

  1. Press B to exit setting mode

NOTE: Weekday is automatically updated upon exiting setting mode

TIME ZONE 2 SETTING

  1. To sel Time Zone 2, press and hold C 2 seconds to change to Time Zone 2

  2. Press and hold B 2 seconds; time difference between time zone 1 and time zone 2 will begin flashing.

  3. Press C to increase value: press D to decrease value. Press and hold C or D for

fast increment/decrement

  1. Press B to exit selling mode

ADIDAS Cypher LX1 - TIME ZONE 2 SETTING - 1

ADIDAS Cypher LX1 - TIME ZONE 2 SETTING - 2

CHRONOGRAPH MODE

  1. Press A to change to chronograph mode.

  2. Press B to recall lap data. Press B to scroll through laps.

  3. Press C to start/stop the chronograph.

  4. Press and hold D 2 seconds to reset to zero.

NOTE: Insert chronograph indicator here will flash in all modes if the chronograph is running.

LAP COUNTING

  1. Press D while the chronograph is running for lap counting (up to 10 laps).

NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.

  1. Press C to stop chronograph

  2. Press B when the chronograph is stopped to recall chronograph lap data.

  3. Press C or D to exit recall mode and return to chronograph

TIMER MODE

  1. Press A to change to timer mode.

  2. Press C to start/stop timer.

  3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

  1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.

  2. Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").

  3. Press A to set and advance to next setting value.

  4. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.

  5. Repeat steps 3 and 4 through setting sequence. Setting sequence is: timer type, hour, minute, seconds.

  6. Press B to exit setting mode.

ALARM MODE

  1. Press A to change to alarm mode.

  2. Press C to select alarm 1-4.

  3. Press D to toggle alarm on/off.

ALARM SETTING

  1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.

  2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.

  3. Press A to set and advance minute.

  4. Repeat step 2

  5. Press B to exit setting mode

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

(QFL769BB / QFL873AC)

text_image LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

text_image B LAP A P T1 T2 C D

ADIDAS Cypher LX1 - ANALOG - 1

text_image B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

AFFICHAGE NORMAL DE L'HEURE

text_image LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

RÉGLAGE DE L'HEURE ET DU CALENDRIER

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

AFFICHAGE NORMAL DE L'HEURE

text_image B LAP C A P T1 T2 A D

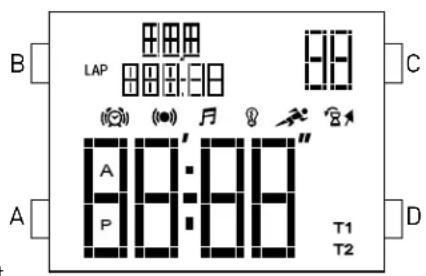

ADIDAS Cypher LX1 - AFFICHAGE NORMAL DE L'HEURE - 1

text_image B LAP A P T1 T2 C D

RÉGLAGE DE L'HEURE ET DU CALENDRIER

(QFL769BB / QFL873AC)

PANTALLA DE HORA NORMAL

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

text_image B LAP C A P T1 T2 A D

ADIDAS Cypher LX1 - PANTALLA DE HORA NORMAL - 1

text_image B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

VISUALIZZAZIONE ORARIO NORMALE

SCHERMO CON L'ORA STANDARD

text_image B LAP C A P T1 T2 A D

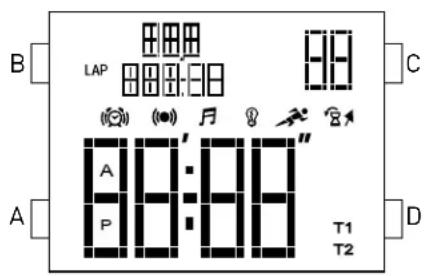

ADIDAS Cypher LX1 - SCHERMO CON L'ORA STANDARD - 1

text_image B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

ACERTO DA HORA/CALENDÁRIO

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

text_image B LAP C A P T1 T2 A D

ADIDAS Cypher LX1 - ACERTO DA HORA/CALENDÁRIO - 1

text_image B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

text_image B LAP C A P T1 T2 A D

ADIDAS Cypher LX1 - ACERTO DA HORA/CALENDÁRIO - 2

text_image B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

正常时间显示

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

时间/日历设置

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

正常时间显示

text_image B LAP A P T1 T2 C D

ADIDAS Cypher LX1 - 正常时间显示 - 1

text_image B LAP A P T1 T2 C D

闹钟模式

(QFL769BB / QFL873AC)

通常時刻表示

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

時刻/カレンダーの設定

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

通常時刻モード

(QFL769BB / QFL873AC)

정상 시간 표시

text_image A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

시간/달력 설정

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

표준 시간 표시

text_image B LAP C A P T1 T2 A D

ADIDAS Cypher LX1 - 표준 시간 표시 - 1

text_image B LAP A P T1 T2 C D

타이머 설정

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ADIDAS

Model : Cypher LX1

Category : Watch
