Product type	Gas hob with electric plate
Brand	Rosieres
Model	RGV 64 FM RB
Dimensions (W x D x H)	595 x 510 x 45 mm
Weight	Approximately 8 kg
Power supply	Gas (G20/G25 20-25 mbar or G30/G31 28-30/37 mbar) and electric 220-240 V / 50-60 Hz
Number of gas burners	4 (1 auxiliary, 2 semi-rapid, 1 rapid)
Total gas power	7.5 kW
Electric plate	1 plate of 1500 W
Ignition	Integrated electronic
Safety	Safety thermocouple (gas shut-off if flame extinguished)
Material	Stainless steel and enamel
Cleaning	Damp cloth and non-corrosive detergent. Do not use steam cleaner.
Installation	Built-in, class 3. Ventilation required. Minimum distance to furniture: 15 cm side, 5.5 cm rear, 70 cm above.
Gas conversion	Possible with injector kit provided (for LPG)
Included accessories	LPG injectors, gaskets, adapters, mounting brackets

Frequently Asked Questions - RGV 64 FM RB ROSIERES

How to light a gas burner?

Press and turn the control knob to the ignition symbol. For models with electronic ignition, press the ignition button. If the burner does not ignite within 5 seconds, turn the knob to 0 and try again. For models with a safety thermocouple, hold the knob pressed for 5-6 seconds after ignition.

What to do if a burner does not light?

Check that the burners and caps are correctly positioned. Ensure the gas supply is open. If you smell gas, do not look for a leak with a flame, shut off the supply and call a professional. If the problem persists, contact technical support.

How to clean the hob?

Before cleaning, ensure the hob is cool and unplugged. Use a damp cloth with warm soapy water or a non-corrosive detergent. For stainless steel, use a specific cleaner. Never use abrasive products, steam cleaners, or acids. Burners can be cleaned with soapy water.

Can I use copper pans on the electric plate?

It is not recommended to use concave or convex bottom containers on the electric plate. Use flat-bottom pans with a diameter not exceeding 14 cm for the electric plate. For gas burners, the diameter should match the burner size (see table in the manual).

How to convert the hob for LPG (bottle) gas?

Replace the injectors with those provided in the LPG kit. Unscrew the injectors with a 7 mm socket wrench, screw in the new injectors. Then, adjust the minimum flame by turning the adjustment screw clockwise to the stop. Also replace the rating label.

What safety distances to respect during installation?

The distance between the hob and side furniture must be at least 15 cm, with the back wall 5.5 cm, and above (hood or cupboard) at least 70 cm. The built-in cabinet must withstand high temperatures (up to 100°C) and have a thickness of 25 to 45 mm.

What to do in case of gas leak?

Do not look for the leak with a flame. Immediately shut off the gas supply, open windows to ventilate, and call a qualified professional. Do not use any electrical switches.

How to adjust the minimum flame of a burner?

After ignition, turn the knob to the minimum setting. Remove the knob and adjust the adjustment screw (diagram 9) with a small screwdriver. Turn clockwise to reduce the flame, counterclockwise to increase it. The flame should be about 3-4 mm.

Can I use a steam cleaner to clean the hob?

No, it is strictly forbidden to use a steam cleaner. Use only a damp cloth and non-corrosive detergent. Steam cleaners can damage electrical components and the surface.

How to replace the power supply cord?

The damaged power cord must be replaced by a qualified technician or by a special cord available from the manufacturer. The cable cross-section must match the appliance power (see rating plate). The ground wire (green/yellow) must be at least 10 mm longer than the other wires.

USER MANUAL RGV 64 FM RB ROSIERES

BAPOUHbIE NOBEPXHOCTN

HCTPYKUNIPOJb3OBATEJI R

NAVODILA ZA UPORABO

VGRADNJO IN PRIKLJUCITEV SL

PIANI COTTURA

ISTRUZIONI PER L'USO IT

PLACAS

INSTRUÇÉS DE UTILIZAZão PT

UPUTSTVO ZA UPOTREBU

UGRADNJA I PRIKLJUČENJE SRB

PLITE

MANUAL DE UTILIZARE RO

SIJEČNJA

UPUTE ZA UPORABU I INSTALLACIJU HR

CONTENT

GB-IE

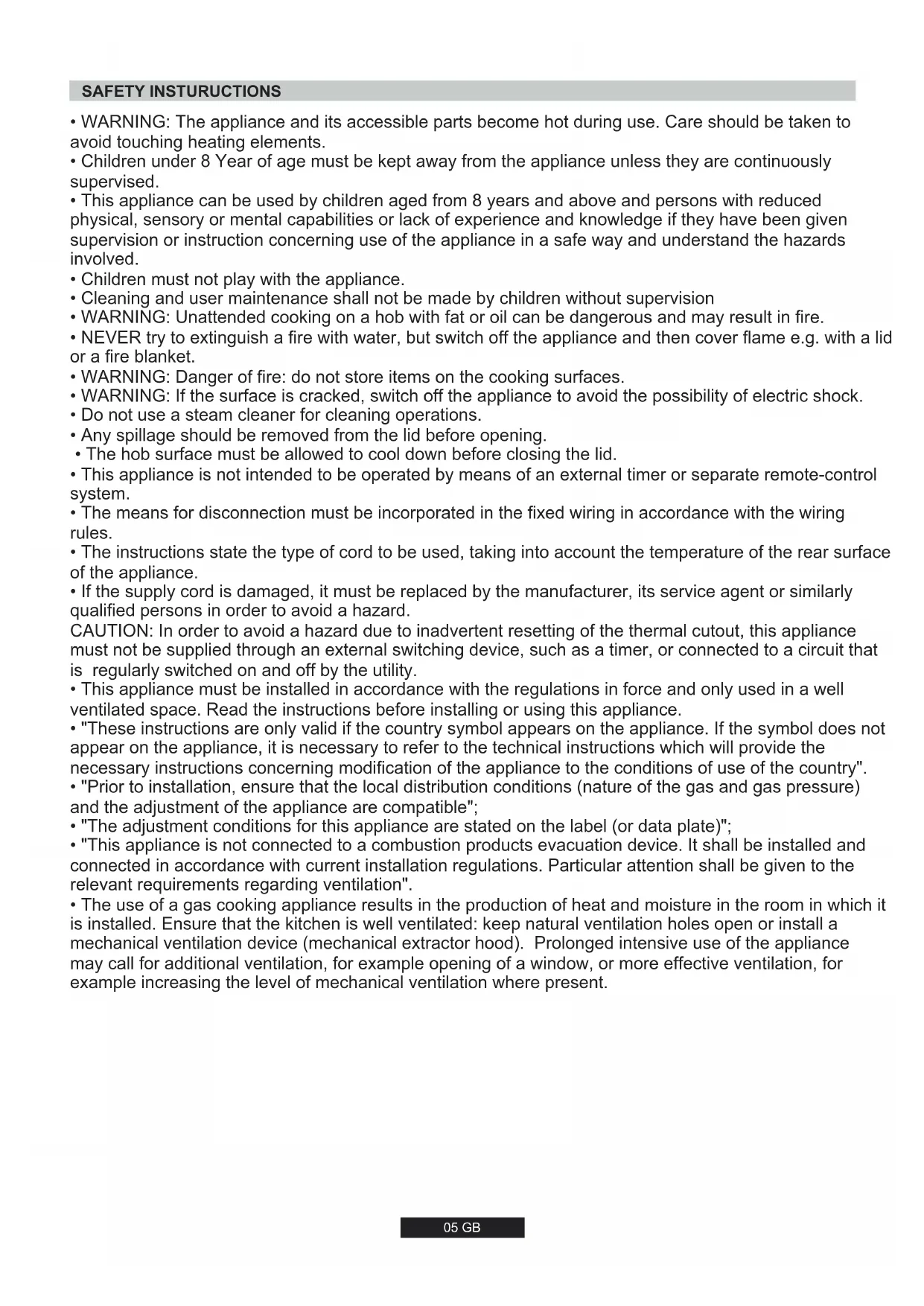

Safety Instructions 05
