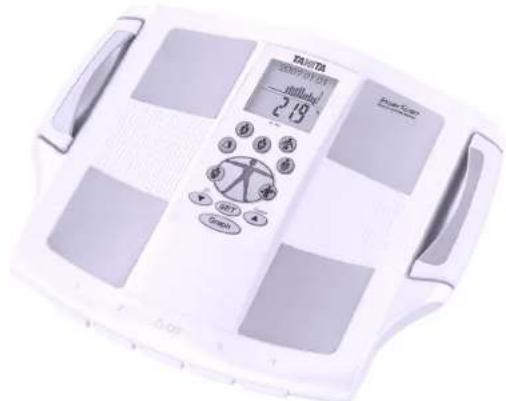

USER MANUAL InnerScan BC568 TANITA

• Tabela de conteúdo Introdução p. 25
• Características E Funções p. 25
• Preparativos Antes Do Uso p. 26
• Obtendo Leitura Precisa p. 26
• Funçào Desligamento Automàtico p. 26
• Alterando A Unidade De Medida Do Peso p. 27
• Programação (Reprogramação) Da Data E Hora p. 27
• Programar E Armazenar Dados Pessoais Na Memória p. 28
• Efectuar Leituras De Composição Corporal p. 29
• Programando Modo Convidado p. 32
• Somente A Leitura Do Peso p. 32
• Localizando Defeitos INTRODUCTION Thank you for selecting a Tanita Body Composition Monitor. This monitor is one in a wide range of homehealthcare products produced by Tanita. This Instruction Manual will guide you through the setup procedures and outline the key features. Please keepit handy for future reference. Additional information on healthy living can be found on our websitewww.tanita.com.Tanita products incorporate the latest clinical research and technological innovations.All data is monitored by our Tanita Medical Advisory Board to ensure accuracy. Actual measurements made by the BC-568 include weight and impedance. Based upon these measured values, values are calculated for: total and segmental body fat percentage, body water, total and segmental muscle mass, physique rating, bone mass, visceral fat rating with healthy range, daily calorie intake (DCI) and metabolic age.Note: Read this Instruction Manual carefully and keep it handy for future reference. Safety Precautions Note that people with an electronic medical implant, such as a pacemaker, should not use a Body Composition Monitor as it passes a low-level electrical signal through the body, which may interfere with its operation.Pregnant women should use the weight function only. All other function are not intended for pregnant women.Do not place this monitor on slippery surfaces such as a wet floor. Recorded data may be lost if the monitor is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data. Tanita takes no responsibility for any kind of damage or loss caused by the monitor, or any kind of claim made by a third person. Important Notes for Users This Body fat monitor is intended for adults and children (ages 7-17) with inactive to moderately active lifestyles and adults with athletic body types.Tanita defines “athlete” as a person involved in intense physical activity of approximately 10 hours per week andwho has a resting heart rate of approximately 60 beats per minute or less. Tanita’s athlete definition includes“lifetime of fitness” individuals who have been fit for years but currently exercise less than 10 hours per week.The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders. Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data. Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person. Note: Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc. p. 32

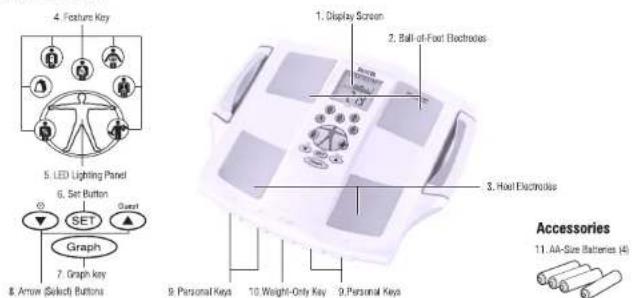

FEATURES AND FUNCTIONS

• Table des matières Introduction p. 9
• Caractéristiques p. 9
• Avant utilisation p. 10
• Comment Obtenir Des Résultats Exacts p. 10
• Fonction D’Arrêt Automatique p. 10
• Régler (Réinitialiser) la date et l’heure p. 11
• Reglage Et Enregistrement DesDonnées Personnelles En Mémoire p. 12
• Relevés De Composition Corporelle p. 13
• Programmation Du Mode Invité p. 16
• Lecture Du Poids Uniquement p. 16
• Dépannage p. 16
• Table of Contents Introduction p. 1
• Features And Functions p. 1
• Preparations Before Use p. 2
• Getting Accurate Readings p. 2
• Automatic Shut-Down Function p. 2
• Switching The Weight Mode p. 3
• Setting (Resetting) Date And Time p. 3
• Setting And Storing Personal Data In Memory p. 4
• Taking Body Composition Readings p. 5
• Programming The Guest Mode p. 8
• Taking Weight Measurement Only p. 8
• Trouble Shooting BC-568取説 09.10.21 4:19 PM ページ3GB GB p. 8

Press and hold the /Down button for 3 seconds to turn on the unit. Press the ▲ or ▼ buttons to set year and then press SET button. The unit will beep once to confirm. (Applicable year: 2006-2050) SETTING

Press the ▲ or ▼ buttons to set month and then press the SET button. The unit will beep once to confirm.

Press the ▲ or ▼ buttons to set day and then press the SET button. The unit will beep once to confirm.

Press the ▲ or ▼ buttons to set hour and then press the SET button. The unit will beep once to confirm.

Press the ▲ or ▼ buttons to set minute and then press the SET button. The unit will beep twice to confirm the programming. The unit will then shut down automatically. Note :

• If you change the date to a date prior to the current date, all tracking data for all users will be lost. After you replace the batteries, repeat step 1 – 5 on “SETTING (RESETTING) DATE AND TIME. Replacing the batteries will cause the loss of date and time settings. 60 seconds or more of inactivity will cause automatic shut off during this process. No data will be savedas a result. If you make a mistake or wish to turn the unit off before you complete the programming, pressthe OFF button to turn the unit off. No data will be saved as a result.

f you press (not press and hold) the /Down button, you can see the current date and time onthe display. Positioning the Monitor Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement. Note: To avoid possible injury, do not step on the edge of the platform. Handling Tips This monitor is a precision instrument utilizing state-of-the-art technology. To keep the unit in the best condition, follow these instructions carefully:

• Do not attempt to disassemble the measuring platform.

• Store the unit horizontally, and place it so that the buttons will not be pressed accidentally.

• Avoid excessive impact or vibration to the unit.

• Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.

• Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shiny; avoid soaps.

• Do not step on the platform when wet.

• Do not drop any objects onto the platform.

• Do not carry the unit by holding the hand-electrodes.

• Do not release the hand-electrodes until the cable is completely retracted into the unit.

• Do not pull the cable more than red mark.

PREPARATIONS BEFORE USE

Inserting the Batteries Open the battery cover on the back of the measuring platform. Insert the supplied AA- batteries as indicated. Note: Be sure that the polarity of the batteries is set properly. If the batteries areincorrectly positioned the fluid may leak and damage floors. If you do not intend to use this unit for along period of time, it is advisable to remove the batteries before storage. Please note that the included batteries from factory may have decreased energy levels over time. Heels centered onelectrodesToes may overhangmeasuring platformNote: An accurate reading will not bepossible if the soles of your feet are notclean, or if your knees are bent or you are ina sitting position.

GETTING ACCURATE READINGS

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your feet are clean before stepping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit accurate readings can still be obtained if your toes overhang the platform. It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements. While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time. SWITCHING THE WEIGHT MODE Note: For use only with models containing the weight mode switch You can switch the unit indication by using the switch on the back of the scale as shown in the figure. Note: If weight mode is set to pounds or stone-pounds, the height programming mode will be automatically set to feet and inches. Similarly, if kilograms is selected, height will be automatically set to centimetres.

AUTOMATIC SHUT-DOWN FUNCTION

The automatic shut-down function shuts off the power automatically in the following cases:

• If you interrupt the measurement process. The power will shut down automatically within 10 to 20 seconds,

• depending upon the type of operation.

• If an extreme weight is applied to the platform.

• During programming, if you do not touch any of the keys or buttons within 60 seconds.*

• After you have completed the measuring process. *Note: If the power shuts off automatically, repeat the steps from “Setting and Storing Personal Data in Memory” (p.4). BC-568取説 09.10.21 4:19 PM ページ51. Select Personal Key and Step On Using your toe, tap your pre-programmed Personal Key. The unit will beep and the display will show the programmed data. The unit will beep again and the display will show “0.0”. Now pull out the hand-electrodes, hold with arms straight down and step onto the platform. Note: Remember no shoes or socks. The display will show in the order below during the body fat % measurement. The unit will beep twice to complete the measurement. Note:
• Please grip the handle-electrode as shown, using a light-firm pressure.

• Place your hands on your side, and do not move until measurement is completed.

• If you step onto the platform before “0.0” appears, the display will show “Error” and you will not obtain a reading.Furthermore if you do not step onto the platform within about 60 seconds after “0.0” appears, thepower is shut off automatically.
• Keep your arms in straight up and down while making sure that you do not touch your legs or anypart of your body with your arms or hands.

2. Get Your Readings: Auto Display Process

After the measurement is taken, the display will automatically show the current result with the date and LED icon guide displaying Total Body Fat % and Weight (alternately 6 times) (Please refer “Daily, Weekly and Monthly Graph Function” about the graph.) Please step off from the scale. GB GB

SETTING AND STORING PERSONAL DATA IN MEMORY You will receive readings only if data has been programmed into one of the personal data memories or the Guest mode. The monitor can store personal details for up to 4 people.

1. Turn on the Power

Press the Set button to turn on the unit (once programmed, tapping a Personal Key turns on the unit.) The unit will beep to confirm activation, the Personal Key numbers (1,2,3,4) will be displayed, and the display will flash. Note: If you don’t operate the unit for sixty seconds after the unit has been turned on, the unit will turn off automatically.Note: If you make a mistake or want to turn the unit off before you have finishedprogramming it, press the Weight-Only Key ( ) to force quit. SET

2. Select a Personal Key Number

Press the Up/Down buttons to select a Personal Key. Once you reach the Personal Key number you wish to use, press the Set button. The unit will beep once to confirm.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female ( ) or Male ( ), Female/Athlete (/) and Male/Athlete ( / ) settings, then press the Set button. The unit will beep once to confirm. Athlete Mode : See explanation for use on P.1.

To use the DCI (Daily Calorie Intake) feature properly, you need to set the Activity Level. Use the Up button to specify Activity Level. Press the Set button to confirm. Level 1 = Inactive lifestyles (little or no exercise) Level 2 = Moderately active lifestyles (occasional, low intensity exercise) Level 3 = Adult involved in intense physical activity (see p.1. for Tanita’s definition of Athlete) Note : If you select the Athlete Mode, it will automatically set the Activity Level to Level 3. The unit will beep twice and your programmed data will be displayed to confirm. The power will then shut down automatically.

3. Set your Birthday

Set the date of your birthday (Year / Month / Day) using ▲ or ▼ buttons. Press the SET button to confirm at each programming. The unit will beep once to complete the programming. Note: The age range is 7 – 99 years old. Note : When you change the birthday and/or gender, the unit will show “CLEAR”.If you select “YES” using Up/Down buttons, the existing personal data and tracking data will be deleted. If you select “NO” using Up/Down buttons, no new data will be saved (existing data will be unchanged) then the unit will be shut off.

TAKING BODY COMPOSITION READINGS

aaa Body Fat %: Applicable age: 7-99. Press icon botton continually to display readings in the order listed below. Note: The unit will automatically shut off after 30 seconds of displaying result with inactivity. If you press button(s) while the current result is being displayed, the following information will appear. Note: If there is significant difference between the current and previous results, “SAVE?” will be displayed. You can select “YES” or “NO” using arrow buttons. YES: The current result will be stored. NO: The current result will not be stored. Note: If your age reaches 100 years old or more, the only weight result will be displayed. And the “AGE ERROR” will appear on the display when you press feature buttons except the weight button. Note: For children (age 7-17), the unit will only display the Weight and the Body Fat %. BC-568取説 09.10.21 4:19 PM ページ73. Daily, Weekly and Monthly graph Function

During the current result is being displayed… After completion of measurement, current result and daily graph will be displayed. If you press the “GRAPH” button while current result is displayed, the display will change to Daily a Weekly a Monthly Graph. Use ▲ or ▼ button to go back to the past result.

While the scale is off… If you press your personal number button and then the "GRAPH" button while the scale is off, the display will show the daily graph with the most recent result. If you press the “GRAPH” button again, the display will change to Daily a Weekly a Monthly Graph and go back to Daily Graph. Use ▲ or ▼ button to go back to the past result. Note: ・The Graph will be shown Calendar date for Daily Graph, 52 weeks for Weekly Graph, and 36 months for Monthly Graph. ・If there is no tracking data, the GRAPH button is not available.・If you wish to turn the unit off before automatic shut off, press the OFF button. ・If you change your birthday and gender in personal data, your tracking data will be deleted.

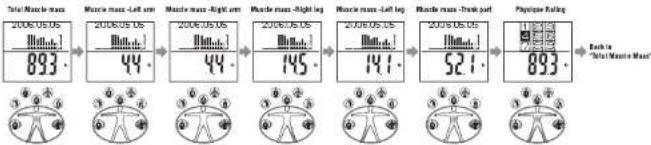

Muscle Mass: Applicable age: 18-99. Press icon botton continually to display readings in the order listed below. Weight Applicable age: 7 or over. DCI & Metabolic Age Applicable age: 18-99. You press this button then automatically display in the order below for the first time. You may press same button again to obtain each reading. Body Water % Applicable age: 18-99. Bone mass Applicable age: 18-99. Visceral Fat Applicable age: 18-99. Daily Graph Weekly Graph Monthly Graph BC-568取説 09.10.21 4:19 PM ページ99

Guest mode allows you to program the unit for a one-time use without resetting aPersonal data number.Press ▲ button to activate the unit. Then follow the steps: Set Age, Select Female or Male, and Specify Height. Note: If you step onto the platform before "0.0" appears the display will show "Error" and you will not obtain a reading. Note: Applicable age: 7-99.

TAKING WEIGHT MEASUREMENT ONLY

Select Weight-Only Key Using your toe, tap the Weight-only key. After 2 or 3 seconds, “0.0” will appear in thedisplay and the unit will beep. When “0.0” appears in the display, step onto the platform.The body weight value will appear. If you remain on the platform, the display will flashfor about 30 seconds, and then the power will automatically turn off. If you step off theplatform, the weight will continue to show for about 30 seconds then the unit will shut offautomatically. TROUBLE SHOOTING If the following problems occur ...then... ・A wrong weight format appears followed by kg, lb, or st-lb. Refer to Switching the Weight Mode on p.3.

“Lo” appears on the display, or all the data appears and immediately disappears. Batteries are low. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new AA-size batteries.Note: Your settings will not be erased from the memory when you remove the batteries. ・“NO RECORD” appears on the display. Your personal data has not been programmed. Please follow programming instructions on p.4. ・“Error” appears while measuring. Please stand on the platform keeping movement to a minimum. The unit cannot accurately measure your weight if it detects movement.The Body Fat Percentage is more than 75%, readings cannot be obtained from the unit. ・The Body Fat Percentage reading does not appear or “-----” appears after the weight is measured. Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guideson the measuring platform. ・“Loading…” appears on the display. The data is being loaded. Please wait for a moment. ・“OL” appears while measuring. Reading cannot be obtained if the weight capacity is exceeded. ・“AGE ERROR” appears on the display. If you program the wrong date and your age becomes negative years old, ”AGE ERROR” will appear on the display after you press the personal key. If your age reaches 100 years old or more, the only weight result will be displayed. BC-568取説 09.10.21 4:19 PM ページ1111
