Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENTS

Technical Data 10

Declaration of Conformity 10

Safety Instructions 11

Installation 12

Product Description 12

Contro Panel and Key Functions 13

Care and Cleaning 15

Troubleshooting 16

Hints on Disposal 16

TECHNICAL DATA

Item number 10032041

Power supply 220-240 V ~ 50 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

- Please read the operating instructions carefully before using your dehumidifier for the first time and keep it on a safe floor.

- Never immerse the appliance in water or other liquids.

- Place the unit on a stable flat surface to avoid loud noises and vibrations.

- Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or otherwise damaged.

- The appliance may only be repaired by qualified personal, improper repair work can be a source of considerable danger for the users.

- Pull out the power plug before transporting it and / or before cleaning.

- Operate the appliance only at the voltage specified on the rating label.

- The device may not be connected to a power strip with other household appliances.

- Use the appliance only in the household, and only for the purpose it was developed for.

- Do not operate this unit near heating appliances and flammable or dangerous objects.

- If the dehumidifier is operated in a room with gas driven devices, so the room must be aired regularly and often.

- Please use the function of the internal drying, if the device is not used for a long time. This will prevent formation of mildew and unpleasant smell inside the unit.

- Do not place heavy objects on the appliance.

- Do not hang curtains or wet clothes in front of the air outlet, this will overload the device.

- The drainage hose may not be installed outdoors at low temperatures.

• To prevent spillage, empty the water tank before relocating the appliance.

- Do not tip the appliance to any side as escaping water could damage the appliance.

- If the supply cord is damaged, it must be replaced by a qualified person to avoid a hazard.

- If you smell the smoke during start-up or if you can see the smoke, immediately disconnect the power plug out and contact your dealer.

- The unit should be installed with a minimum distance of 20 cm from the wall or other obstacles.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

INSTALLATION

• Empty the water tank before turn on the unit.
- During the operation, keep unit closed to the door and windows closed to save energy.
• Make sure no block at air inlet and outlet
- Place the appliance on a stable surface and allow at least 20 cm of space around the appliance and at least 50 cm in the area to allow air to circulate sufficiently.

PRODUCT DESCRIPTION

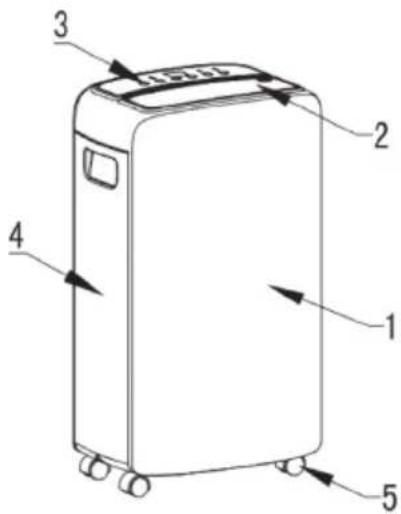

Diagram of a portable air purifier with numbered parts labeled 1 to 5

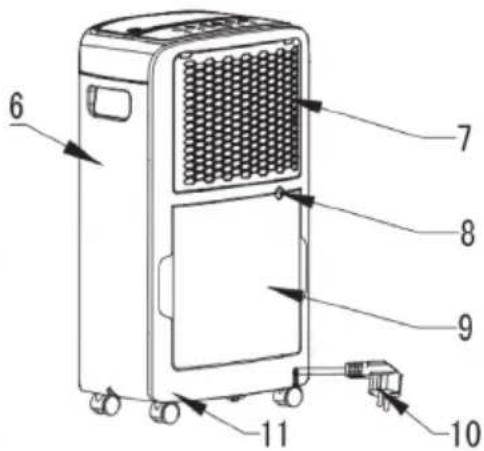

6 7 8 9 10 11

1 Front Panel 7 Filter
2 Luver 8 Water Outlet
3 Control Panel 9 Water Tank
4 Left Side Panel 10 Power Cord and Plug
5 Wheels 11 Back Panel
6 Right Side Panel

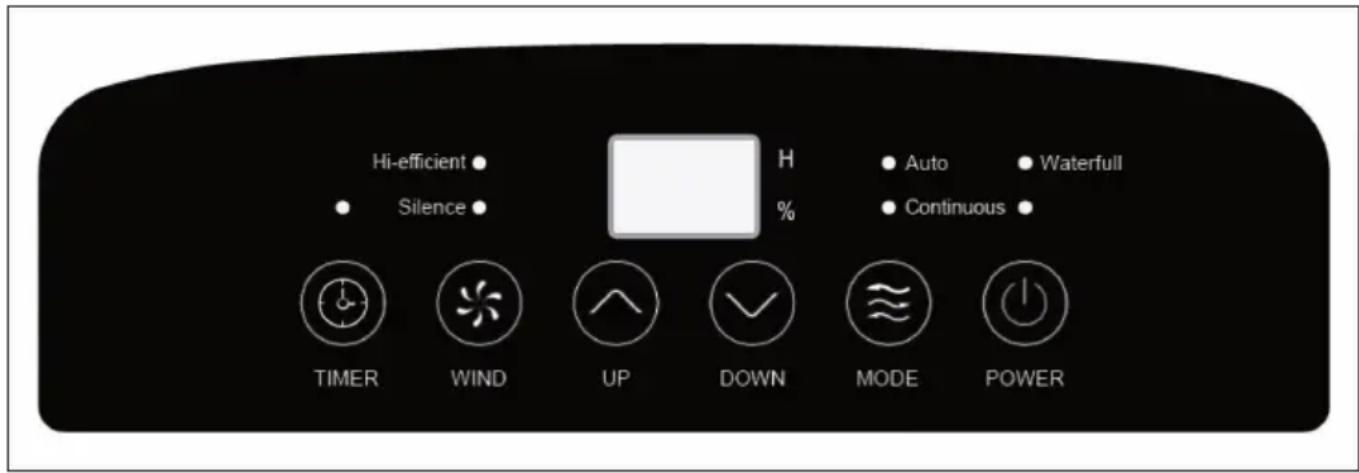

CONTRO PANEL AND KEY FUNCTIONS

Hi-efficient • Silence H % • Auto • Waterfull • Continuous TIMER WIND UP DOWN MODE POWER

POWER In standby state press the Power button to start, and during operation of the dehumidifier press the Power button to shut down. For initial startup the default is low wind, the display show the environment temperature and the default set humidity is RH50%. If the dehumidifier is not energized for the first time, after startup the state is kept the same as that before shutdown. The LED is closed, only power light is illuminated when standby.
MODE In boot state or regular boot, press this button to chose automatic dehumidification or continuous dehumidification (dry function), each function have 2 second confinnation delay time.
TIMER In boot state, press this button, the LED light and blink. In blink time, press up/down button to set the time of timing. press up/down button to add/reduce one hour. Keep pressing the up/down button to add/reduce time as well. The maximum is 24 hour, the minimum is 1 hour. LED blink 5 time to confinn the timing set. Press the timer button again to reset the timing time in timing status.
UP/DOWN	Press up/down button( each press for 5%RH to select humidity from 30-80%RH only in automatic dehumidification.
WIND Press this button to choose fan speed, high-low-high, only valid in automatic dehumidification. Keep pressing fan speed button for 5s to start inside dry.

Important Notes

• Do not use the machine when the environmental temperature is over 35^ or below 5^ .
• Pour the water when the water tank is full and the indicator will become red. Then put the water tank to the original place so that the machine can work again.
• Restart the machine after at least 3 minutes when it stopped in order to avoid to destroy the compressor.

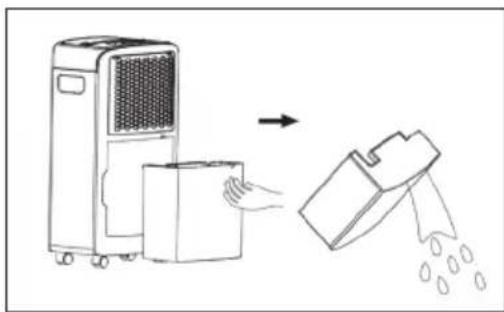

Water drainage manually

1 The compressor and motor will stop when the water tank is full and the red indicator light will be on.
2 Take out the water tank and then pour the water off.
3 Put the water tank to the original place and restart the machine (three minutes self-protect for compressor after stop).

Illustration of a portable air conditioner unit being placed into a bag with liquid droplets (no text or symbols)

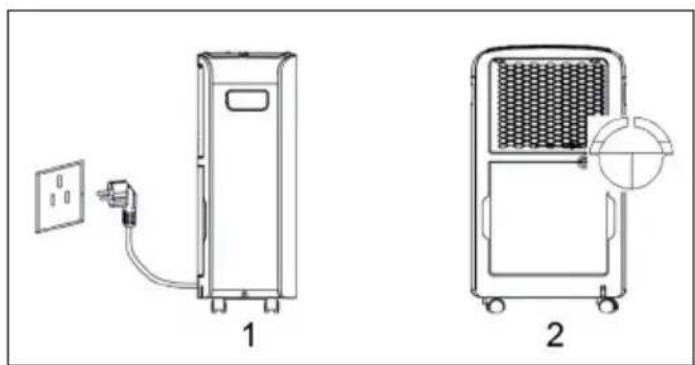

Water drainage continuously

1 Cut off the power.
2 Cut the three seal of continuous drainage hose.
3 Connect the water pipe of inner diameter (thickness = 9mm * 2mm) to the drain hose)
4 Route the other end of the hose into a drain that is deeper than the water outlet.

Technical line drawings of two household air purifiers, one with a wall socket and plug, the other with a mesh vent and circular base (no text or symbols)

Diagram of a vertical cylindrical device with attached wires and a plug, labeled '3' (no text or symbols on the device itself)

CARE AND CLEANING

NOTE: Turn off the unit, and unplug it from the wall outlet before maintenance or cleaning to avoid electric shock.

Daily maintenance

• When it is not in use for a long time, please pull the plug out of the socket.
• For a better dehumidifying effect, do not block the air inlet and outlet ventilation. There should be no obstacle around the unit.
• Clean the air filter at least once every two weeks. Never use chemical solvent such as alcohol, gasoline, benzene, etc. Use warm water (under 40°C) only.
  • Empty the water tank when the water is full.

Cleaning the unit

1 Unplug the unit before any cleaning.
2 Clean the surface of the unit softly by a moist cloth. Do not use detergents or
3 abrasive sponge, which may cause damage to the plastic surface.
4 Don't sprinkle water into the unit or control panel.

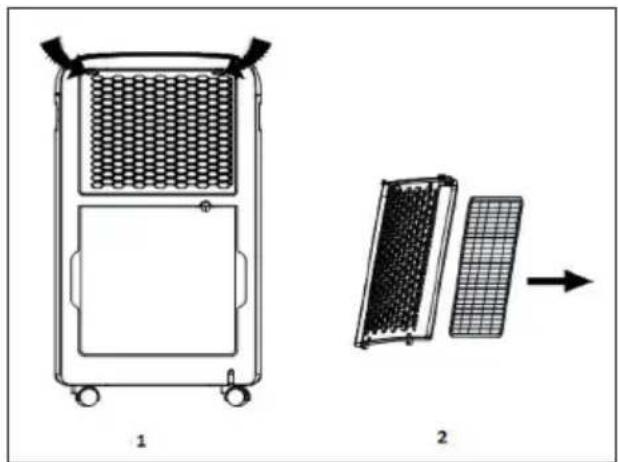

Clean and change the filter

The appliance is equipped with an extractable washable air filter. the step of uninstall as below:

1 Uninstall the filter as per the arrow in below picture.
2. Press the button in the side of filter to take out filter and clear the filter with water.
3 Replace the filter as before.

Diagram showing two views of a device with internal grid patterns, labeled 1 and 2, with no visible text or symbols.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
Unit doesn't work.	Is the power plug connected? Put the plug in the socket.
	Water tank is full or water tank is not assembled well.	Pour away the water in water-tank, and put water tank into the unit.
	Operation temperature is too low or too high	Use this dehumidifier under the environment 5-32°C.
No outlet air. Operation temperature or humidity is too low.		Under dry environment, dehumidifying effect will be not so obvious.
		Clean the air outlet or air inlet.
No outlet air. Is filter blocked? Clean the filters.
Water leakage. Drainage pipe is not tightly connected.		Check the drainage pipe.
		Pipe is blocked. Clean the debris in pipe.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
