Dr. Watson SuperSoft - Heated blanket Klarstein - Free user manual and instructions

Product type	Heated blanket
Brand	Klarstein
Model	Dr. Watson SuperSoft
Material	Plush (Cream or Beige depending on version)
Dimensions (L x W)	Approx. 180 x 130 cm
Weight	Approx. 2 kg
Power supply	220-240 V ~ 50 Hz
Heat output	160 W
Number of heat levels	6 (1-2-3-4-5-6)
Timer	Adjustable from 1 to 12 hours
Power cable length	Approx. 2 m
Control unit	Detachable for washing
Washing	Machine washable at 30 °C (wool program) or hand wash
Drying	Air dry, do not use dryer
Use	Indoor only
Intended use	To warm and relax the body, domestic use
Safety	Do not use for people insensitive to heat, children, animals
Electrical protection	Residual current circuit breaker recommended ≤ 30 mA
Storage	In a clean dry place, without folding or placing objects on top
Included accessories	Control unit, instruction manual

Frequently Asked Questions - Dr. Watson SuperSoft Klarstein

How to turn on and set the temperature of the heated blanket?

Plug in the device, press the ON/OFF button. The LCD screen lights up. Use the '+' and '-' buttons to select the heat level from 1 (minimum) to 6 (maximum). To turn off, press ON/OFF again.

Can I use the heated blanket continuously overnight?

It is recommended to use levels 1, 2 or 3 for continuous use. Do not fall asleep with the blanket on at high temperatures to avoid burns.

How to set the timer?

On the controller, use the '+' and '-' buttons to set the operating time from 1 to 12 hours. The blanket will turn off automatically after the set time.

Can I machine wash the heated blanket?

Yes, before washing, unplug the device, remove the control unit and let it cool. Wash the blanket alone at 30 °C on wool program. Never wash the control unit.

How to dry the blanket after washing?

Lay it flat on an absorbent towel or hang it on a clothesline without clips. Do not put it in the dryer and do not iron it.

The blanket emits an odor during first use. Is this normal?

Yes, a slight odor may occur during first use. It disappears after a few uses. Ensure good ventilation.

Can I use the blanket for elderly people or babies?

No, the device must not be used by people insensitive to heat, defenseless persons, babies, or animals. This presents a risk of burns.

What to do if the power cord is damaged?

Stop using the device immediately. The cord must be replaced by a qualified electrician. Never use a device with a damaged cable.

Can I fold the blanket while it is on?

No, never fold the blanket during operation. This could damage the heating elements and cause overheating. Always store it flat after cooling.

How to store the heated blanket?

Let it cool completely, then fold it carefully without creasing. Store it in a clean, dry place without placing heavy objects on top.

USER MANUAL Dr. Watson SuperSoft Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technische Daten 4

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNISCHE DATEN

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

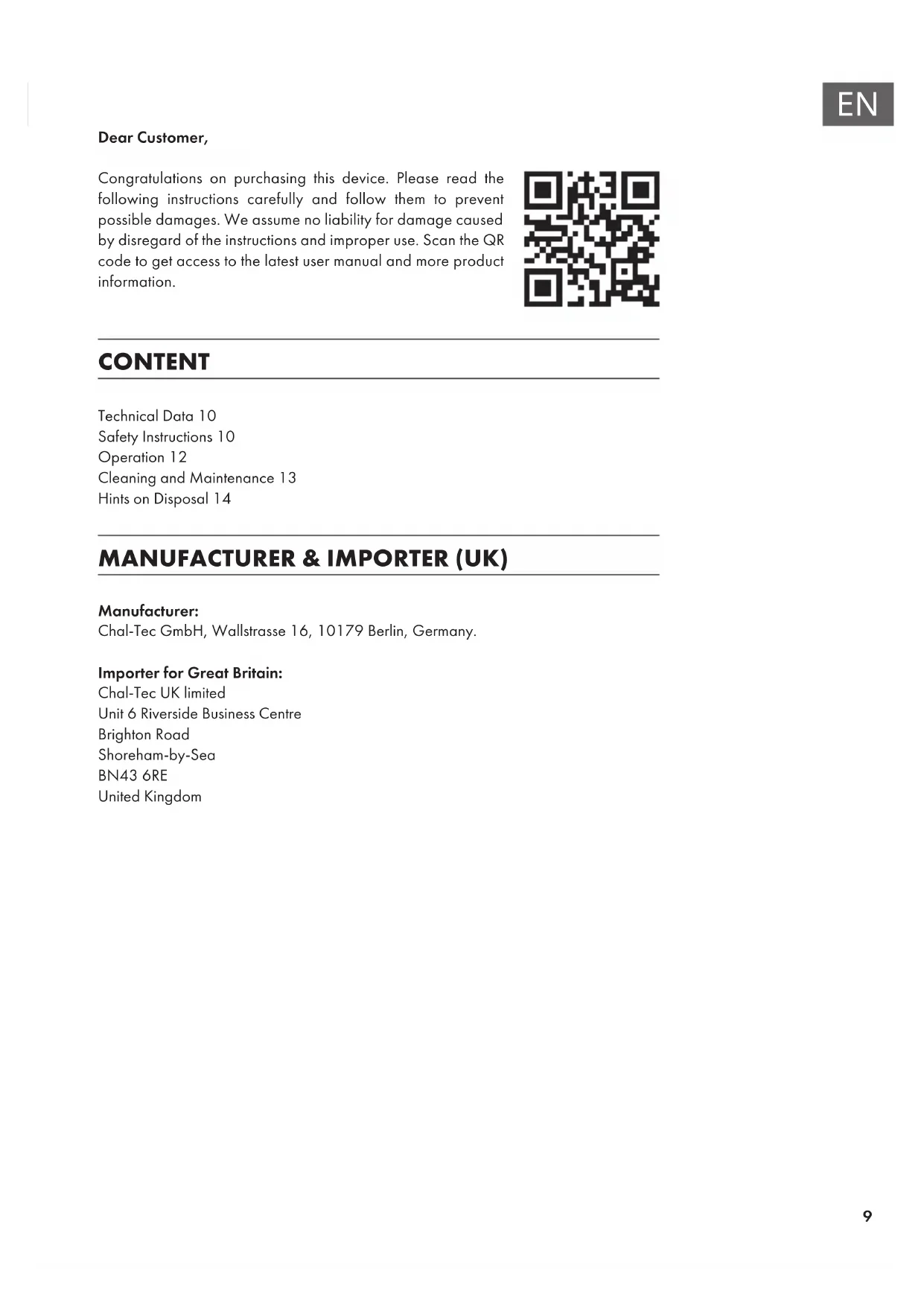

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Technical Data 10

Safety Instructions 10

Operation 12

Cleaning and Maintenance 13

Hints on Disposal 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNICAL DATA

Item number 10033005 10	033006
Material/Colours Teddy Plush, Crème Teddy Plush, Beige
Power supply 220-240 V ~	50 Hz
Heat output 160 W
Time settings 1-12 hours
Heat levels 6 power settings:	1-2-3-4-5-6
Dimensions approx. 180 x	130 cm
Weight approx. 2 kg
Power cable length approx.	2 m

SAFETY INSTRUCTIONS

• Please read this instruction manual carefully before use and keep in a safe place for future reference. If you give the appliance to another person supply them with the instruction manual.
• This appliance is intended for use as Heated Throw/Overblanket. Use it for domestic purposes and in the way indicated in this instruction manual. The appliance is designed for private use. The appliance is not suited for commercial use, medical clinic use or pets.
• Do not operate the appliance if the power cord is damaged, in case of malfunction or if it has been dropped or damaged in any manner. Should the cable be damaged, it must be replaced by a competent qualified electrician.
• An electric appliance is no toy! Never leave the appliance unsupervised when in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance. Explain to your children all risks which can be caused by electric current.
• Do not use it on persons insensitive to heat, helpless persons, infants or children without supervision. Do not use to warm animals.

WARNING

Risk of suffocation! Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within easy reach of children. Always check that the power supply corresponds to the voltage on the rating plate.

• Unplug the appliance before removing or changing accessories, before cleaning accessories or the appliance, when malfunctioning occurs during use, when the appliance is not in use and after each use.
• To unplug pull the plug, never pull on the power cable to avoid damage.
• Never move the appliance by pulling the power cable. Make sure the power cable cannot get caught in any way.
• Do not wind the power cable around the appliance and do not bend it. From time to time check if the power cable is damaged. If the appliance power cable is damaged do not use the appliance anymore.

WARNING

Danger of electric shock! The appliance power cable and the plug should never come into contact with water or any other liquids.

• Never immerse the appliance when connected with the power cable or the plug in water or any other liquid for any reason whatsoever.
• Never use the appliance near a sink or bathtub.
• Never touch the appliance with wet hands or standing on wet ground.
• Never place the appliance on wet surfaces.
• Never use the appliance outdoors. The appliance is not suited for outside use.
• Additional protection may be obtained by fitting a residual current device, that must not exceed 30 mA (IF < 30 mA) into your home installation. In this case, consult a qualified electrician.
• Before first use ensure that your mains voltage corresponds to that stated on the rating plate of the appliance. Connect this appliance to a plug which is wired according to regulations.
• Run the cable in a way that nobody can trip over it or pull on it to avoid accidents.
  • Take care that the cable never comes into contact with sharp edges and hot objects.

OPERATION

Before the First Use

• Remove all packaging parts before initial operation and save for future storage.
• When the item is used for the first time, it can let off a slight odour but this will disappear after a short while.

WARNING

Danger of burning! Prolonged use can cause serious burns especially on high heat settings. The unit can get warm during operation. Never fall asleep during use or do not use if you feel tired.

• Never cover the control unit.
- The Throw must never be used folded or crumpled.
- Do not pull on the power cable, twist or bend it sharply.
- Do not pierce the appliance with needles!
- Only use original accessories.
- Never leave the appliance unattended during operation and always unplug after use.

Use

• With the heating blanket you can warm and relax your whole body.
• The heating blanket features an electric temperature control that regulates precisely the warmth-supply according to the chosen setting (1-2-3-4-5-6).
• The two outer layers of the three-layer blanket are made of High Quality soft microfi bre fleece. The easy-care material and the detachable operating control make the blanket hand washable and machine washable up to 30 °C (wool program).

Temperature setting

1 Plug the product into a mains power socket and press the ON/OFF button. The LCD display window will illuminate.
2 Then press the temperature level setting button "+" , the temperature level will display level 1, the blanket will get warm gradually.
3 If you require a higher temperature level, continue to press the temperature level setting "+" button. The temperature level can be set to 1, 2, 3, 4, 5 or the maximum temperature level 6.
4 Should the heating blanket get too warm for you, just press the temperature level setting "-" button to lower the temperature level.
5 To switch off the device, press the ON/OFF button.

• When not in use, unplug the heating blanket from the mains power socket.
• The heating blanket is designed so that the temperature setting levels 1, 2 or 3 are suitable for continuous use. Keep the temperature level on 1, 2 or 3, if you want to use it in continuous operation.

Timer

• The controller of the heating blanket has a timer button with "+" button and "-" button. You can press these buttons to control how long you want the blanket to be left on.
• You can set the timer for up to 12 hours. Unplug the heating blanket from the mains power socket when no longer in use.

CLEANING AND MAINTENANCE

Cleaning

• Before washing the heating blanket, unplug it from the mains power socket and let it completely cool down. Unplug the control switch unit from the heating blanket using the connector on the underside.
• The electric blanket may be washed by hand according to the instructions on the label or machine wash at 30 °C (wool program).
• NEVER immerse the control unit in water as moisture must not be allowed into the unit.

Drying

• To dry the heating blanket, lay it flat on a moisture-absorbent towel or mat. Hang on a clothes line to dry naturally without using securing pegs, never dry in a dryer or iron.
• When the heating blanket is completely dry, it should be reconnected to the control switch unit in the correct manner.

Operation

- The heating blanket must only be operated with the control unit provided with it.

Storage

• When storing the heating blanket, allow it to cool down before folding.
• Store the heating blanket in a clean and dry place.
• When storing, do not place any objects on the electric blanket to prevent buckling and damage to the internal wiring.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
