USER MANUAL Hot Spot Wave Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 12

Product Data Sheets 13

Assembly 15

Operation 15

Safety Features 16

Cleaning and care 17

Hints on Disposal 17

TECHNICAL DATA

Item number 10033034 10	033035
Power consumption 1000 W	/ 2000 W 1500 W / 2500	W
Power supply 220-240 V~	50/60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

SAFETYINSTRUCTIONS

• Do not use the appliance until it is securely fixed as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fi replace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s): 10033034
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	2.0 kW	manual heat ch		charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	1.015 kW	manual heat ch		charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	1.944 kW	electronic heat		charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW			Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage heat		heat output and no room temperature control	no
In standby mode el	S8	0.000989	W Two or more		manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	o
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

PRODUCT DATA SHEET

Model identifier(s): 10033035
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	2.5 kW	manual heat	charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	1.012 kW	manual heat	charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	2.545 kW	electronic	heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption					fan assisted heat output	N/A
At nominal heat output (fan motor)	elmax	N/A kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage	heat output and no room temperature control	no
In standby mode	elsb	0.000989	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	o
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

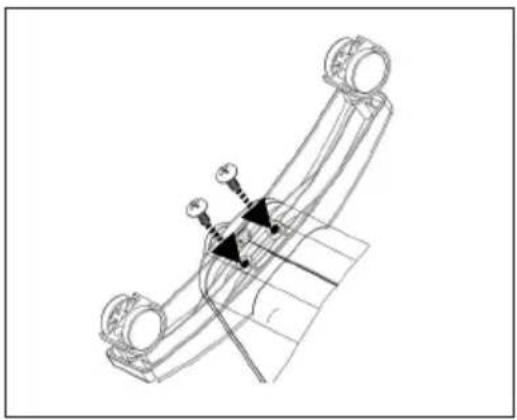

ASSEMBLY

1. Position the heater carefully upside down.

2. Press the wheels to the hole, then place screws in center round hole of foot base and screw in tightly with a screwdriver.

1. Repeat for other leg
2. Turn the heater the right way up.

Note: The heater should only be operated at a minimum distance of 1 metre from any wall or other object. Position the air flow in order to optimize the heating of the room.

OPERATION

Note: Note: During the initial period of use, odour may be produced by the materials used in the appliance. This is normal. The odour will diminish after a short period of time.

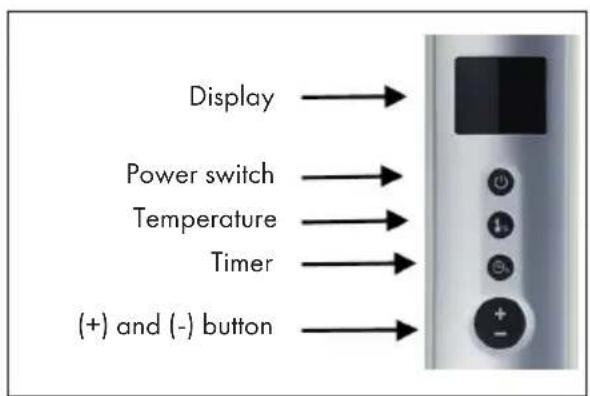

Control Panel

1. Place the heater on a flat, stable surface.
2. Uncoil the power cord and plug it into the wall outlet. Lay the power cable securely on the ground.
3. Turn on the toggle switch on the side of the unit next to the power cord. The display lights up briefly.
4. Press the button to switch the appliance ON. The digital display will display the room temperature and both power will be lit. The [-] and [+] buttons can be used to select full power or half power. This is indicated by the segments to the screen right corner.

Small segment lit = half power.

Both segments lit = full power.

Setting the Timer

Press the TIMER button. The clock symbol will illuminate. Then use the "+" and "-" buttons to set the number of hours for which the heater is to run before automatically switching off.

Note: Unplug the appliance from the mains when not in use. The cable can be wrapped around the plastic cable tidy on the front panel.

Thermostat Function

To set the thermostat :press the TEMP button, then press the [-] or [+] buttons to change the target temperature. The thermometer symbol will illuminate, and the digital display will flash, showing the target temperature. After 5 seconds the display will stop flashing and return to display the room temperature.

SAFETY FEATURES

Over-Heat Protection

• This heater is protected with an over-heat protection cut-out facility that switches it off automatically if it over-heats.
• Overheating can be caused by obstruction to the air intakes on the back of the heater or the grill on the front.
• If this occurs please disconnect the heater from the power socket and allow it to cool for 30 minutes. Remove any obstruction and turn the heater back on.
• The heater should operate normally. Should the problem persist contact your nearest service centre.

Safety Cut-Out Switch

• The heater is fitted with a safety cut-out switch to switch the heater off if it is knocked over.
• If the heater is knocked over and the cut-out switch activates turn the heater off at the power outlet and take EXTREME care when standing the heater upright as it will still be hot.
• Inspect the heater for damage especially to the heating elements and supply cord.
• If any damage is visible do not operate the heater.

CLEANING AND CARE

Note: Turn off the heater and unplug the power cord. Wait until the heater has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton. Wind the heater cable cleanly to avoid damaging the cable.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
