Technical Features	Ultrasonic humidifier, 4.5-liter tank capacity, moisture output of 300 ml/h.
Usage	Ideal for rooms up to 50 mb2, desired humidity setting, quiet operation.
Maintenance and Repair	Regular tank cleaning, filter replacement recommended every 6 months.
Safety	Safety system with automatic shut-off when the tank is empty.
General Information	Power consumption of 30 W, compact dimensions for easy storage.

Frequently Asked Questions - 10031823 Klarstein

How do I fill the Klarstein 10031823 humidifier?

To fill the humidifier, remove the water tank, open the lid, and pour clean water up to the maximum level mark. Then replace the tank.

What type of water should I use in the humidifier?

It is recommended to use distilled or demineralized water to avoid mineral buildup and extend the device's lifespan.

Why is my humidifier not producing steam?

Check if the water tank is full and properly installed. Also ensure the device is turned on and settings are correctly adjusted.

How do I clean the Klarstein 10031823 humidifier?

Unplug the device and empty the water tank. Use a mixture of water and white vinegar to clean the tank and other parts. Rinse thoroughly before reuse.

What is the noise level of the humidifier?

The Klarstein 10031823 humidifier operates at a very low noise level, typically below 30 dB, making it ideal for nighttime use.

Can I use the humidifier continuously?

Yes, you can use the humidifier continuously as long as the tank is full. It is advised to monitor and refill it regularly.

Does the humidifier have an automatic shut-off function?

Yes, the Klarstein 10031823 humidifier is equipped with an automatic shut-off function that activates when the water level is too low.

How do I adjust the humidity level?

You can adjust the humidity level using the device's control panel. Please refer to the user manual for detailed instructions on settings.

Is the humidifier suitable for large rooms?

The Klarstein 10031823 humidifier is designed for spaces up to 50 mb2. For larger rooms, multiple units may be necessary.

What should I do if the humidifier emits an odor?

If you notice an odor, it may be due to mineral buildup or mold. Make sure to clean the device regularly and use clean water.

USER MANUAL 10031823 Klarstein

Row of white icons representing kitchen appliances including blender, blender, keyboard, refrigerator, air conditioner, fan, TV, and microwave (no text or symbols)

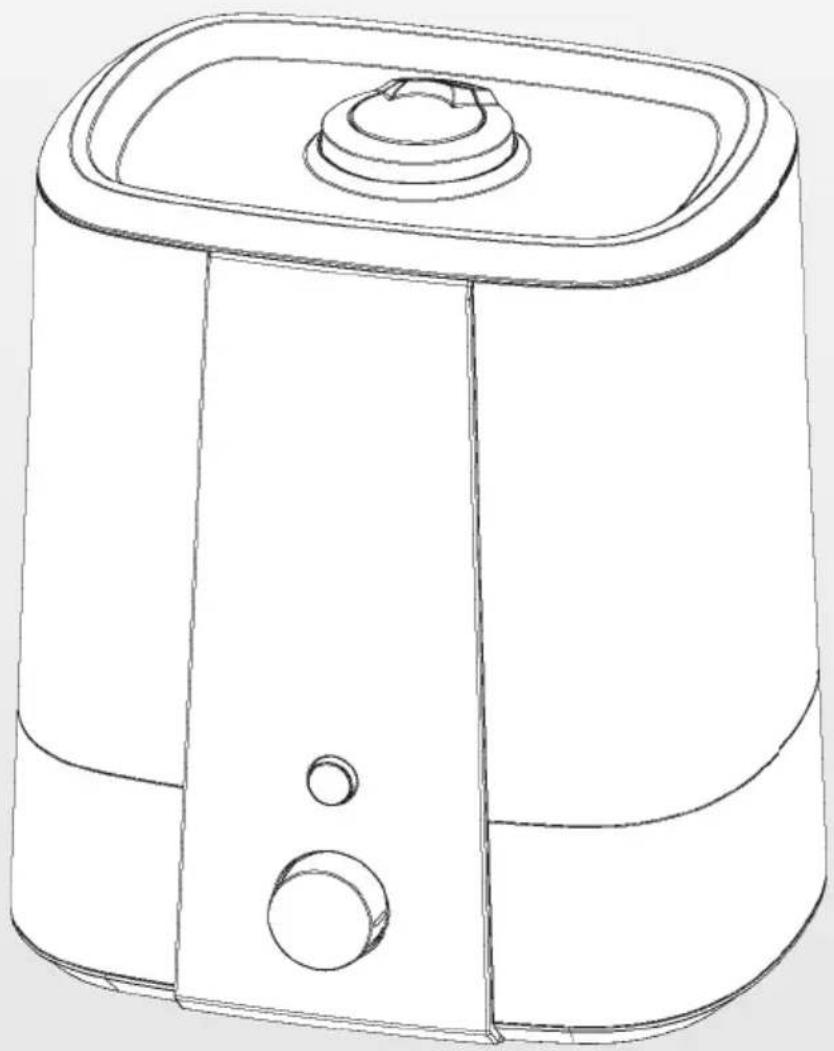

Line drawing of a cylindrical device with a top panel and two side ports (no text or symbols)

A B C D E F G H I J K

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 7

Safety Instructions 7

Product Description 8

Use and Operation 9

Cleaning and Care 10

Troubleshooting 10

Disposal and Declaration of Conformity 11

Technical Data

Item number 10031822, 10031823
Power supply 220-240 V ~ 50-60 Hz
Power consumption 24 W
Mist volume ≥ 300 ml/h
Water tank capacity 6 L

Safety Instructions

General Hints

• Don't use the stiffness material to scratch the transducer.
• Please turn off the machine and unplug the power when there is abnormal smell or noise during working.
• Please take off the plug when you clean and wash the machine.
• Don't touch the plug or wire with the wet hands to avoid creepage.
• Don't move the machine when there is water in the water sink.
• When the machine is damaged or couldn't work normally, please take it to our service place for repairing. Don't disassembly or assembly by yourself to avoid dangers.
• Please don't change the power cord by yourself.

Hints on Environment and Operation

• Set it at the firm, flat place. The humidifier should be placed at horizontal place and keep it steady.
• Set it far away from the heat source. The humidifier should be far away from the heat source, such as the stoves or fire place. Avoiding it being sun burned directly.
• Set it far away from the furniture and electronic appliance. The mist spraying from the humidifier should not be face to the furniture and the electronic appliance, which directly to avoid being damaged with damp.
• The working environment for humidifier: temperature is between 5°C to 40°C, and relative humidity is lower than 80% RH.
• Use clean water with temperature lower than 40^ (pure water is recommended).
• Clean the water tank and water sink when use again after a long time.

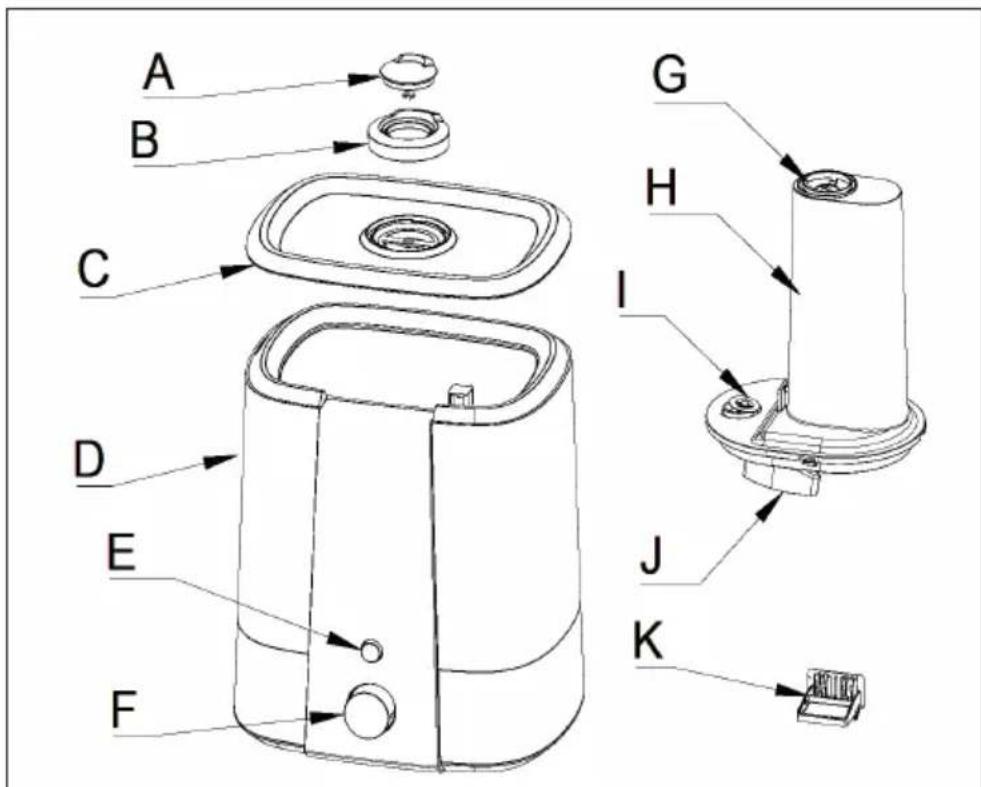

Product Description

A Nozzle-S
B Nozzle-L
C Top Cover
D Body
E LED Button
F Knob
G Mist Outlet
H Air Tube
I Valve
J Floater
K Aroma Box

A B C D E F G H I J K

Use and Operation

General Operation

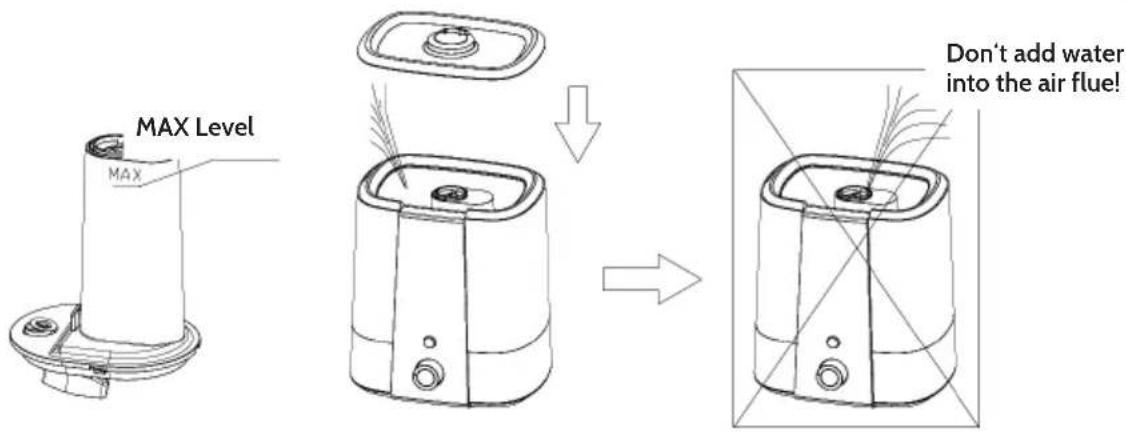

1 Open the top cover

Fill the water into the water tank. The water can't be over the MAX level. Don't add the water into the air flue. If there is too much water pouring into the air flue to make the device stop working, please pour out the water and then re-fill the water tank, and then the device will be back to normal.

MAX Level MAX Don't add water into the air flue!

Insert the plug; adjust the knob clockwise, the device will start working with the blue LED on. Press the 3 LED control button, the LED will be off; press the button one more time, the LED will be on. Adjust the knob counterclockwise, the device will stop working.

4 If the device is waterless, please refill the water tank.

Aroma Function

The machine has the aroma function. Please according to the below operation process:

a Take out the aroma box from the machine.

b Drop some ensential oil to the aroma box.

c Assemble the aroma box back to the machine.

d If don't use the aroma function, please clean the aroma pad and make it dry and then put it back to the aroma box.

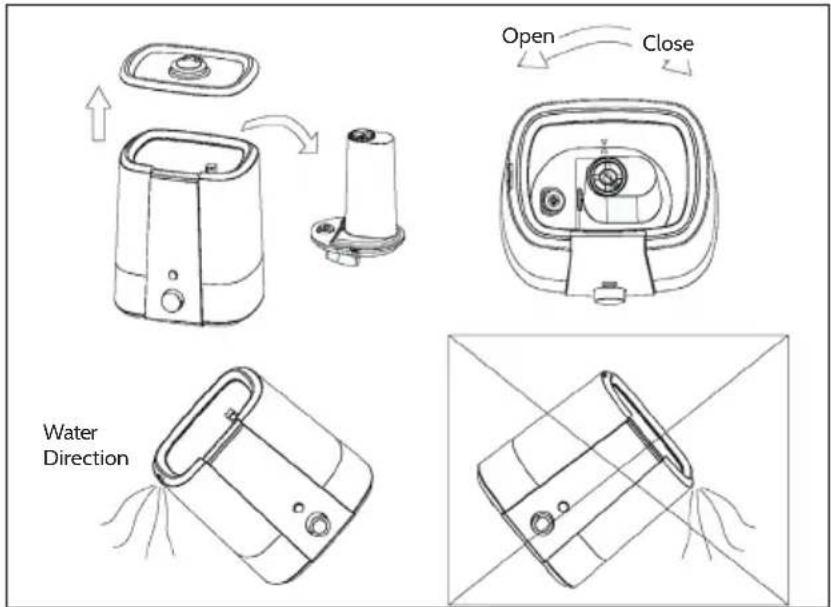

- Clean the device every week. Please disassemble the air flue before cleanness and pour out the water according to the below picture instruction. And then wipe the device by the dry cloth. Put the device in a shady and cool place. When clean the valve body and sealing ring of the air flue, please disassemble this part and clean up the water scale, dust and other dirty. After cleanness, please assemble all the spare parts together without any distortion. When assemble the air flue to the device, please make sure the air flue will be locked tight.

Open Close Water Direction

• If don't use the device for a long time, please clean the device up and put it in a shady and cool place.
• For the areas, the water is hard. There will be water scale on the transducer. The user should clean the transducer with oxalic acid based agent regularly and clean the water tank and water sink every week. Disassembe the air flue, add 10ml oxalic acid based agent to soak for 2\~5 mins and clean the scale with brush. Then flush with clean water.

Troubleshooting

If the machine doses not work appropriately, please check as following before turn to maintenance service:

Problem Possible Cause	Solution
No wind and no steam.	Check plug. Insert the plug..
	Check the power switch. Turn on the power switch.
	No water in the tank. Add water into the tank.
	Less water in the tank. Add enough water into the tank.
Problem Possible Cause Solution
No wind and no steam. The	sealing ring on the air flue was disassembled with distortion.	Disassemble the air flue, pour out the water and clean the air flue. And then assemble the valve body and sealing ring to the air flue without any distortion.
	The air flue was not locked tight.
	Other dirty on the air flue and valve body.
Steam with peculiar smell.	New device. Open the top cover and put the device in the shady and cool place for 12 hours.
	Dirty water or the water in the tank for a long time.	Clean the water tank and replace the clean water.
Noise. Less water in tank.	Add water.
	Resonance with the table surface. Put the device on the firm and flat place.
Steam out from outlet surrounding.	Clearance between steam outlet and water tank.	Soak the nozzle into the water and use it again.
There is water in the tank, but the device indicates waterless.	Something may stuck the float and water can't flow out to the water sink.	Take out the air flue and clean it. And then assemble it back to the device.
Small mist output or no mist output with indicator on.	There are scales or some dirty on the valve body. The water can't flow out to the water sink.	Clean the air flue and valve body and then try again.

Disposal and Declaration of Conformity

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
