Frequently Asked Questions - 10029122 Klarstein

How do I turn on the Klarstein 10029122?

To turn on the Klarstein 10029122, plug the device into an electrical outlet and press the power button located on the control panel.

What should I do if the device does not turn on?

Check that the device is properly plugged in and that the outlet is working. If the problem persists, try resetting the device by unplugging it for a few minutes.

How do I adjust the temperature on the Klarstein 10029122?

Use the temperature adjustment buttons on the control panel to increase or decrease the desired temperature.

The device is making noise, is this normal?

A slight noise can be normal during operation. However, if the noise is excessive or unusual, check that the device is on a flat and stable surface.

How do I clean the Klarstein 10029122?

Unplug the device before cleaning. Use a soft, damp cloth to wipe the exterior. Do not immerse the device in water.

Where can I find replacement parts for the Klarstein 10029122?

Replacement parts can be ordered directly from the Klarstein website or from authorized dealers.

The device is not heating, what should I do?

Check that the device is set to the correct temperature. If the problem persists, there may be an internal malfunction and you should contact customer service.

Does the device consume a lot of energy?

The Klarstein 10029122 is designed to be energy efficient. Refer to the manual for specific energy consumption.

How do I return or exchange the product?

To return or exchange the product, please consult the return policy on the Klarstein website or contact customer service for instructions.

USER MANUAL 10029122 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 8

Security Instructions. 8

Device Overview 10

Usage 11

Cleaning and Care 12

Disposal Considerations 13

Declaration of Conformity 13

Technical Data

Item number 10029122
Power supply 220-240 V 50 Hz
Power consumption 2520-3000 W
Max. capacity 1.7 l

Security Instructions

• Read all instructions before using.
• Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.
• The attached base cannot be used for other than intended use.
• Do not operate the appliance without load to avoid damaging the heating elements.
• Unplug from the outlet when not in use.
• Do not let the cord hang over the edge of table counter or touch hot surface.
• Do not place on or near a hot gas or electric burner or in a heated oven.

• Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

• Ensure that the kettle is used on a firm and flat surface where the children cannot touch it. This can prevent from overturning the kettle to damage the person or kettle.

• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
• Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
• Be careful when opening the lid for refilling when the kettle is hot.
• Close supervision is necessary when any appliance is used by or near children.
• Do not touch the hot surface. Use the handle or the button.
• Extreme caution must be used when moving an appliance containing hot water.
• The appliance is not a toy. Do not let the children play with it.
• The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• While the water is boiling, avoid contacting steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
• Unplug from outlet when not in use and before cleaning. Allow it to cool before putting on or taking off parts and before cleaning the appliance.
• Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not use the appliance for any other than the intended use.
• Do not move the unit while the kettle is switched on.
• The kettle can only be used with the stand provided.
• If the kettle is overfilled, boiling water may be ejected.
• Do not use the kettle outdoors.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses;
• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision
• After use, the heating element surface is subject to residual heat.

Device Overview

1 Lid button
2 Lid
3 Keys

4 Handle
5 Water gauge
6 Base

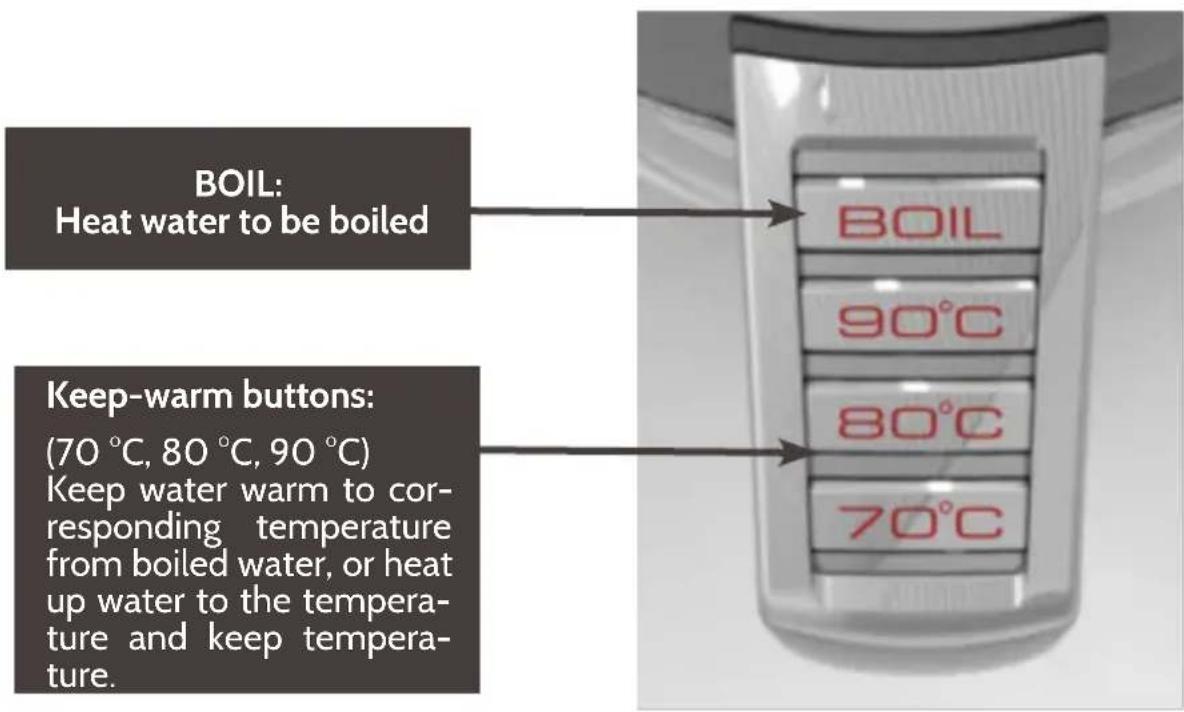

Buttons

Usage

Before using your kettle

If you are using the kettle for the first time, it is recommended that you should clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

NOTE: The max capacity of kettle is 1.7 l.

Using your water kettle

1. To fill water into the kettle, remove it from the power base and open the lid by pressing down the lid button, fill with the desired amount of water to the kettle.
2. Always fill the kettle between the minimum (0.5 l) and maximum (1.7 l) marks. Too little water will result in the kettle switching off before the water has boiled.

NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before connecting the power cord to the outlet.

1. Close the lid. Position the kettle on the power base in place. Make sure the kettle is in contact with the power base completely.
2. Energize. All 4 blue lamps twinkle for 5 seconds and stop, such the kettle enters standby mode.

a. Boil: Press "BOIL" button to enter boil-water function, the red lamp in "BOIL" button illuminates and starts to heat the water, and when the water is boiled, the kettle stops heating and then kettle enters standby mode.

b. Keep warm after boiling: Press "BOIL" button and keep-warm button (70^ / 80^ / 90^) at the same time, both red lamps in "BOIL" button and keep-warm button illumine. When the water is boiled, the kettle stops heating, and the lamp in "BOIL" button turns blue and the lamp in keepwarm button stays red; and when the water cools down to required temperature, the lamp in the keep-warm button turns blue that means the kettle enters keep-warm mode. After keeping warm for 30 minutes, all the lamps shut off and enter standby mode.
c. Heat water to required temperature and keep warm: Press keep-warm button (70^ / 80^ / 90^) , the red lamp in the button illuminates; when the water is heated up to required temperature, the lamp in the button turns blue. After keep warm for 30 minutes, the blue lamp shuts off and the kettle enter standby mode.

1. Lift the kettle from the power base and then pour the water.
2. The kettle may be stored on the power base when not in use. The kettle will not re-boil until the switch is pressed again

Notes:

• During the keep-warm mode, if you pour cool water into the kettle and let the water temperature cool down over 10^ , the kettle will re-heat again until the water temperature is up to last-required temperature.
• Boil dry: When pressing buttons without water, the kettle is dry burn and will stop heat within 35 seconds, and enter standby mode.
• Power off: Keep warm after 30 min, the kettle will auto get into standby mode or at the status of pressed "100 °C (boil) button, then pressed "100 °C (boil) button again, the kettle will also get into standby mode.
• Memory feature: The kettle features an internal "memory" that lets you leave the kettle off the base for up to 1 minute without it going into standby mode. When returned to the base, it will restart the heating and/or keep warm cycles right where they left off.

Cleaning and Care

Cleaning

Always disconnect the appliance from the power outlet before cleaning! Never immerse the kettle, power cord or power base in water, or allow moisture to contact with these parts.

• Wipe the appearance of body with a mild and damp cloth or cleaner, never use a toxic cleaner.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle so as to prevent the gloss loss

Dscaling

Your kettle should be periodically descaled by virtue of the mineral deposits in tap water may form scale on the bottom of kettle so as to cause the efficiency of operation less. You can use the commercially available descaler and follow the instructions on the package of descaler. Alternatively, you may follow the instructions as below to use white vinegar.

Warning: Danger of electrical shock

On no account must the jug kettle or its power base be immersed in water

1. Fill the kettle with 3 cups of white vinegar, then adding water to the amount so as to cover the bottom of kettle completely. Leave the solution in the kettle overnight.
2. Then discard the mixture in the kettle, filling the kettle with clean water, boiling and then throw it away. Repeat several times until the odour of vinegar has been flushed away. Any stains remaining inside the spout can be removed by rubbing with a damp cloth.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

This product is conform to the following European Directives:

2004/108/EG (EMV)

2006/95/EG (LVD)

2011/65/EU (RoHS)
