USER MANUAL WA45M7050AW SAMSUNG

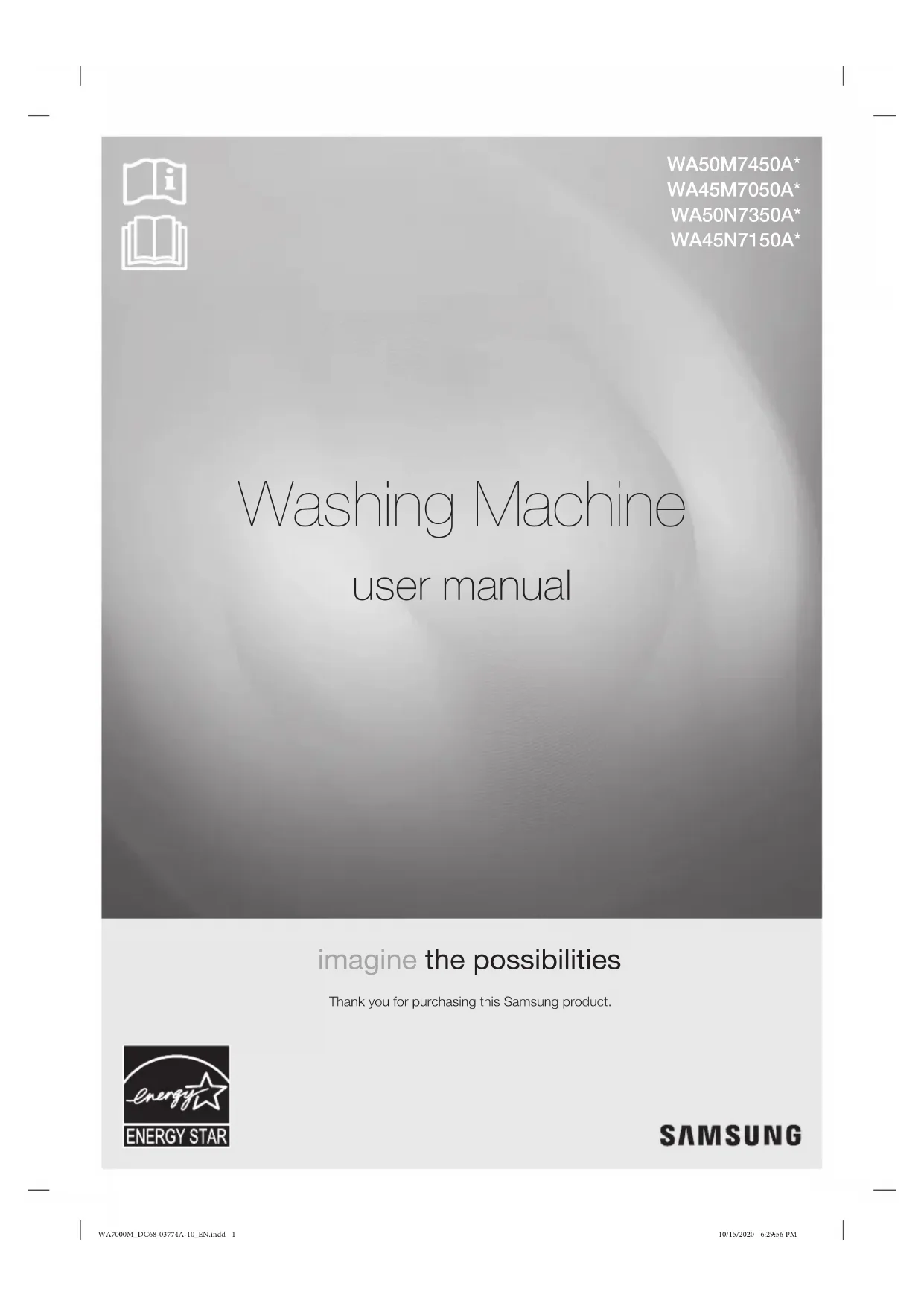

Washing Machine user manual WA50M7450A* WA45M7050A* WA50N7350A* WA45N7150A* imagine the possibilities Thank you for purchasing this Samsung product. WA7000M_DC68-03774A-10_EN.indd 1WA7000M_DC68-03774A-10_EN.indd 1 10/15/2020 6:29:56 PM10/15/2020 6:29:56 PMEnglish - 2 contents

10 Unpacking your washer 10 Overview of your washer 11 Basic location requirements 11 Electrical 11 Grounding 11 Water 12 Drain facility 12 Flooring 12 Location considerations 12 Alcove or closet installation 13 Required dimensions for Installation 14 Important note to installer 14 Installation fl ow chart OPERATING INSTRUCTIONS

18 Loading your washer 18 Getting started

29 Cleaning the exterior 29 Cleaning the interior 29 Storing your washer 29 Preserving the top cover and the front frame 29 Cleaning mesh fi lter 30 Cleaning the dispensers (WA45N7150A*, WA45M7050A*) 31 Cleaning the dispensers (WA50M7450A*, WA50N7350A*) 32 Self Clean 32 Self Clean reminder TROUBLESHOOTING

37 Fabric care chart 38 Cycle chart 40 Helping the environment 40 Declaration of conformity 40 Specifi cation WA7000M_DC68-03774A-10_EN.indd Sec6:2WA7000M_DC68-03774A-10_EN.indd Sec6:2 10/15/2020 6:30:09 PM10/15/2020 6:30:09 PMEnglish - 3 safety information Congratulations on your new Samsung Washer. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefi ts and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean: WARNINGHazards or unsafe practices that may result in severe personal injury or death.To reduce the risk of fi re, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:CAUTIONHazards or unsafe practices that may result in minor personal injury or property damage.Do NOT attempt.Do NOT disassemble.Do NOT touch.Follow directions explicitly.Unplug the power plug from the wall socket.Make sure the machine is grounded to prevent electric shock.Call the service center for help. Note These warning icons are here to prevent injury to you and others.Please heed them explicitly.After reading this section, keep it in a safe place for future reference.Read all instructions before using the appliance.

SAVE THESE INSTRUCTIONS

WA7000M_DC68-03774A-10_EN.indd Sec1:3WA7000M_DC68-03774A-10_EN.indd Sec1:3 10/15/2020 6:30:09 PM10/15/2020 6:30:09 PMEnglish - 4

SAVE THESE INSTRUCTIONS

CALIFORNIA PROPOSITION 65 WARNING

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

IMPORTANT SAFETY PRECAUTIONS

To reduce the risk of fi re, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning solvents, other fl ammable or explosive substances as they give o vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the lid of the

washing or drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with the controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless it is

specifi cally recommended in the user-maintenance instructions or in published user- repair instructions that you understand and have the skills to carry out.

9. Do not add gasoline, dry-cleaning solvents, or other fl ammable or explosive substances

to the wash water. These substances give o vapors that could ignite or explode.

10. Under certain conditions, hydrogen gas may be produced in a hot water system that

has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for 2 weeks or more, before using a washer or combination washer-dryer, turn on all hot water faucets and let the water fl ow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is fl ammable, do not smoke or use an open fl ame during this time. safety information WARNINGWARNING WA7000M_DC68-03774A-10_EN.indd Sec1:4WA7000M_DC68-03774A-10_EN.indd Sec1:4 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 5

CRITICAL INSTALLATION WARNINGS

Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use the socket for this appliance only. In addition, do not use an extension cord. - Sharing a wall socket with other appliances, using a power strip, or extending the power cord may result in electric shock or fi re. - Do not use an electric transformer. It may result in electric shock or fi re. - Ensure that the power voltage, frequency, and current match the product’s specifi cations. Failing to do so may result in electric shock or fi re. Have this appliance installed by a qualifi ed technician or service company. - Failing to do so may result in electric shock, fi re, an explosion, problems with the product, or injury. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. - Unplug the power plug and clean it with a dry cloth. - Failing to do so may result in electric shock or fi re. Plug the power plug into the wall socket in the right direction so that the cord runs towards the fl oor. - If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fi re. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line. - Improper grounding may result in electric shock, fi re, an explosion, or problems with the product. - Never plug the power cord into a socket that is not grounded correctly. Make sure the socket you use is grounded in accordance with local and national codes. Do not install this appliance near a heater or fl ammable material. Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water (rain drops). Do not install this appliance in a location where gas may leak. - This may result in electric shock or fi re. Plug the power plug into the wall socket fi rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in electric shock or fi re. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fi re. Do not pull the power cord when unplugging the power plug. - Unplug the power plug by holding the plug. - Failing to do so may result in electric shock or fi re. If the power plug or power cord are damaged, contact your nearest service center.

SAVE THESE INSTRUCTIONS

WARNING WA7000M_DC68-03774A-10_EN.indd Sec1:5WA7000M_DC68-03774A-10_EN.indd Sec1:5 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 6 INSTALLATION CAUTIONS Position the appliance so that the power plug is easily accessible. - Failing to do so may result in electric shock or fi re due to electric leakage. Install your appliance on a level and hard fl oor that can support its weight. - Failing to do so may result in abnormal vibrations, noise, or problems with the product. Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm. - Failing to do so may result in electric shock or fi re.

CRITICAL USAGE WARNINGS

If the appliance is fl ooded, cut the power immediately and contact your nearest service center. If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center. - Failing to do so may result in electric shock or fi re. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not turn any appliance or light on or o . - Do not use a ventilating fan. - A spark may result in an explosion or fi re. Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other fl ammable or explosive substances. - This may result in electric shock, fi re, or an explosion. Do not force the washer lid open while the washer is operating (high-temperature washing/ drying/spinning). - Water fl owing out of the washer may cause burns or cause the fl oor to be slippery. This may result in injury. - Forcing the lid open can damage the product or cause injury. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it. Do not insert your hand under the washer. - This may result in injury. safety information

SAVE THESE INSTRUCTIONS

WARNINGCAUTION WA7000M_DC68-03774A-10_EN.indd Sec1:6WA7000M_DC68-03774A-10_EN.indd Sec1:6 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 7 Do not touch the power plug with wet hands. - This may result in electric shock. Do not turn the appliance o by unplugging the power plug while the washer is in operation. - Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fi re. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over their head, the child may su ocate. Do not let children or infi rm persons use this washer unsupervised. - Failing to do so may result in electric shock, burns or injury. Do not insert your hand or a metal object under the washer while it is operating. - This may result in injury. For waterproof fabrics, only use the WATERPROOF cycle. - Do not use other cycles for waterproof fabrics. This may result in injury or damage to the washer, walls, fl oor, or clothing due to abnormal vibrations. - Set the temperature and spin according to the attached care label. - WARNING : Failure to closely follow these instructions may result in an abnormal vibrating and out-of-balance condition that could result in physical injury, property damage, and/or appliance damage. Do not attempt to repair, disassemble, or modify the appliance yourself. - Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse. - If you need to repair or reinstall the appliance, contact your nearest service center. - Failing to do so may result in electric shock, fi re, problems with the product, or injury. If any foreign substance such as water enters the appliance in any area other than the tub, unplug the power plug and contact your nearest service center. - Failing to do so may result in electric shock or fi re. If the water supply hose comes loose from the faucet and fl oods the appliance, unplug the power plug. - Failing to do so may result in electric shock or fi re. USAGE CAUTIONS If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp, soft cloth. - Failing to do so may result in discoloration, deformation, damage or rust. The clear portion of the lid can be broken by a strong impact. Take care when using the washer. - If the clear portion is cracked or broken, it may result in injury. After a water supply failure or when reconnecting the water supply hose, open the faucet slowly. Open the faucet slowly after a long period of non-use. - The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

SAVE THESE INSTRUCTIONS

CAUTION WA7000M_DC68-03774A-10_EN.indd Sec1:7WA7000M_DC68-03774A-10_EN.indd Sec1:7 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 8 If a drain error occurs during an operation, check if there is a draining problem. - If the washer is used when it is fl ooded because of a draining problem, it may result in electric shock or fi re due to electric leakage. Do not insert your hand under the washer. - This may result in injury. Insert the laundry into the washer completely so that laundry does not get caught in the lid. - If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage. Ensure that the faucet is turned o when the washer is not being used. - Ensure that the water supply hose connectors are properly tightened. - Failing to do so may result in property damage or injury. Open the faucet and check if the water supply hose connector is fi rmly tightened and that there is no water leaking before using the product. - If the water supply hose connectors are loose, it may result in water leakage. Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fi re, problems with the product, or injury. Do not operate the appliance with wet hands. - This may result in electric shock. Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in electric shock, fi re, or problems with the product. Do not place an object that generates a electromagnetic fi eld near the washer. - This may result in injury due to a malfunction. Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water. - This may result in burns or injury. Do not operate the washer when detergent dispenser is removed. - This may result in electric shock or injury due to water leakage. Do not insert your hand into the detergent dispenser after opening it. - This may result in injury as your hand may be caught. safety information

SAVE THESE INSTRUCTIONS

WA7000M_DC68-03774A-10_EN.indd Sec1:8WA7000M_DC68-03774A-10_EN.indd Sec1:8 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 9 Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer. - This can cause abnormal vibrations that can damage the washer, and, in the case of pets, cause severe injury or death. Do not press the buttons using sharp objects such as pins, knifes, fi ngernails, etc. - This may result in electric shock or injury. Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops or massage clinics. - This may result in the rubber seal becoming deformed and water leakage. Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of time. - This may cause the tub to rust. - If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface and use a sponge to clean it. Never use a metal brush. Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent. - This may result in spontaneous combustion or ignition due to heat from the oxidation of the oil. Do not use hot water from water cooling/heating devices. - This may result in problems with the washer. Do not use natural hand-washing soap in the washer. - If it hardens and accumulates inside the washer, it may cause problems with the product, discoloration, rust, or bad odors. Do not wash large laundry items such as bedding in the washing net. - Failing to do so may result in injury due to abnormal vibrations. - Place smaller items, such as lace socks and lingerie in the washing net. Do not use hardened detergent. - If it accumulates inside the washer, it may result in water leakage. Do not wash throw rugs or doormats. - If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may result in error such as no draining.

CRITICAL CLEANING INSTRUCTIONS

Do not clean the appliance by spraying water directly onto it. Do not use the strong acid cleaning agent. Do not use benzene, thinner, or alcohol to clean the appliance. - This may result in discoloration, deformation, damage, electric shock, or fi re. Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in electric shock or fi re.

SAVE THESE INSTRUCTIONS

WARNING WA7000M_DC68-03774A-10_EN.indd Sec1:9WA7000M_DC68-03774A-10_EN.indd Sec1:9 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 10 installing your washer Certain internal parts are intentionally not grounded and may present a risk electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: Control board, heat sink, motor, inlet valve, heater and pump.

UNPACKING YOUR WASHER

Unpack your washer and inspect it for shipping damage. Make sure you have received all the items shown below. If your washer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG (1-800-726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the washer. Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene, etc.) well out of children’s reach. When unpacking the washer, 2 person collaboration is needed. To remove the cushion bottom of the packing materials, forward dumping is strictly prohibited. When you lay the washer down to remove carton base, should protect the side of washer and lay it carefully. Never lay your washer on its back or front.

OVERVIEW OF YOUR WASHER

Parts supplied Hose guide User manual book Plastic zip hose tie Water intake cap Tools needed Wrench Flat screwdriver Level Adjustable plier Measuring tape Parts not supplied

• If you lose an accessory and want to purchase a replacement, contact the Samsung service center (1-800-SAMSUNG (1-800-726-7864)).

• The design of the parts and accessories may di er from the pictures above. Their design is subject to change without notice for product improvement.

• Do not reuse old hoses. Only use new water supply hoses when you install the washing machine. Old water supply hoses can leak or burst causing fl ooding and property damage.

• Confi rm that there are rubber washers inside the couplings of each water supply hoses. Water supply hoses Adjustable legs Drain Hose Control panel Lid Power Cord WARNINGCAUTIONWARNING WA7000M_DC68-03774A-10_EN.indd Sec3:10WA7000M_DC68-03774A-10_EN.indd Sec3:10 10/15/2020 6:30:10 PM10/15/2020 6:30:10 PMEnglish - 11

BASIC LOCATION REQUIREMENTS

• 120 Volt 60 Hz 15 AMP fuse or circuit breaker.• Individual branch circuit serving only your Washer is recommended.• Your Washer is equipped with a power cord.NEVER USE AN EXTENSION CORD. Grounding ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE. This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.An improperly connected equipment-grounding conductor can increase the risk of electrical shock. Check with a qualifi ed electrician or serviceman if you are not sure whether the appliance is properly grounded. Do not modify the plug provided with the appliance – if it does not fi t the outlet, have a proper outlet installed by a qualifi ed electrician.

IMPORTANT SAFETY PRECAUTIONS

• To prevent unnecessary risk of fi re, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT WATER PIPES. Water To correctly fi ll your Washer in the proper amount of time, water pressure of 20 to 116psi (137 to 800kPa) is required.Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve to shut o completely, or may extend the fi ll time beyond what your Washer controls allow, causing your Washer to turn o . A time limit is built into the controls to prevent fl ooding in your home if a hose becomes loose.The water faucets must be within 4 feet / 122 cm of the back of your Washer to match the inlet hoses provided with your Washer.Accessory inlet hoses are available in various lengths up to 10 feet / 275 cm for faucets that are further away from the back of your Washer.To avoid the possibility of water damage:• Have water faucets easily accessible.• Turn o faucets when the washer is not in use.• Periodically check that there is no leakage from the water inlet hose fi ttings.CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS. 01 installing your washer CAUTIONWARNINGCAUTIONWARNING WA7000M_DC68-03774A-10_EN.indd Sec3:11WA7000M_DC68-03774A-10_EN.indd Sec3:11 10/15/2020 6:30:11 PM10/15/2020 6:30:11 PMEnglish - 12 Drain facility The recommended height of the standpipe is 39 in / 99 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached to the washer at the factory. Flooring For best performance, you must install your washer on a solidly constructed fl oor. Wood fl oors may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle. Never install your washer on a platform or weakly supported structure. Location considerations Do not install your washer in areas where water may freeze, since your washer will always retain some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the pump, hoses, and other components. Alcove or closet installation MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS: Sides – 1 in / 25 mm Rear – 5.9 in / 150 mm Closet Front – 1 in / 25 mm TOP - 21 in / 533 mm Gap between end of water valve and the wall - Case 1. Assemble supply hose after installing : Over 3.9 in (10 cm). - Case 2. Assemble supply hose before installing : Over 2.8 in (7cm). If the washer and dryer are installed together, the closet front must have at least a 72 in² (465 cm²) unobstructed air opening. Your washer alone does not require a specifi c air opening. A. Recessed area B. Side view - closet or confi ned area installing your washer 1 in. (2.5 cm)

21 in. (53.3 cm) Case 1. 3.9 in. (10 cm)Case 2. 2.8 in. (7 cm)

1 in. (2.5 cm) 1 in. (2.5 cm)

Please read the following instructions carefully before installing your washer.These instructions should be retained for future reference.We recommend you hire a professional to install this washer. Installation fl ow chart STEP 1 Selecting a Location Before you install the washer, make sure the location:• Has a hard, level surface without carpeting or fl ooring that may obstruct ventilation.• Is away from direct sunlight.• Has adequate ventilation.• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).• Is away from heat sources such as oil or gas.• Has enough space so that the washer doesn’t rest on its power cord.STEP 2 Connecting the water and the drainConnecting the water supply hoseBefore installing the water supply hoses, make sure there are rubber gaskets inside the fi ttings at both ends of each new water hose. Installing the water supply hoses without rubber gaskets can cause water leakage.When you initially install the washer, be sure to use new hoses. Failing to do so may result in a water leakage or overfl ow and may damage your property.Do not connect multiple water supply hoses together to increase the length of the supply hose. Hoses connected this way can leak and the leakage can cause electrical shock. If a hose is too short, replace the hose with a longer, high pressure hose.Selectinga locationRemoving the shipping bolts(*Drum only)Adjusting the levelling feetConnecting the water and the drain[Running a test cycle]Run a test cycle(Rinse+Spin)with small amount of laundary(about 4~5 Towels)Runninga Calibration mode Powering your washing machineFinish the installation Doesa Laundary machine Vibrate?

1. Connect the ends of the water supply hoses to the HOT and COLD

2. Tighten the fi ttings by hand until they are snug, and then tighten them an

additional two-thirds of a turn with a plier. When you fasten the fi ttings, do not fasten them too tightly or apply tape or sealant to the faucets or water supply intakes. This can damage the fi ttings. After you have connected the water supply hoses to the faucets, ensure that they are connected correctly by pulling the water supply hoses downwards

3. Place the unconnected ends of the hoses into a bucket and open the

faucets connected to the two water supply hoses for 10 or 15 seconds to remove any foreign substances from the hoses. Close the faucets before continuing.

4. Connect the ends of the water supply hoses to the water supply intake

connections at the back of the washer. The water supply hose connected to the HOT faucet must be connected to the hot water supply intake and the water hose connected to the COLD faucet must be connected to the COLD water supply intake.

5. Tighten the fi ttings by hand until they are snug, and then tighten them

an additional two-thirds of a turn with a plier. To ensure the correct water usage, connect both the HOT and COLD water faucets. If either or both are not connected, an “4E” (no fi ll) error can occur. If you do not want to use the HOT water supply hose, insert the water intake cap into the HOT water supply intake hole. In this case, you must select the Tap Cold option for the water temperature. If you select the Tap Cold option, all the lamps for the water temperature options are turned o . Confi rm that the water supply hoses are not twisted or bent. If the hoses are twisted or bent, the hoses can leak and cause electric shock due to the water leakage.

6. Turn on the HOT and COLD water supplies and check all the water

supply intake connections and the faucets for water leaks. 01 installing your washer CAUTION CAUTION CAUTION WA7000M_DC68-03774A-10_EN.indd Sec3:15WA7000M_DC68-03774A-10_EN.indd Sec3:15 10/15/2020 6:30:12 PM10/15/2020 6:30:12 PMEnglish - 16 installing your washer Connecting the drain hose The end of the drain hose can be positioned in three ways: In a Wall standpipe or Floor standpipe The height of end of standpipe must be no lower than 39 in (99 cm) and no higher than 96 in (245 cm). If drain pipe are built into the wall with water valves (A), fasten the drain hose to the water hose. Make sure that the connection between the drain hose and the standpipe is not airtight. In a laundry tub The height of the tub must be no lower than 39 in (99 cm) and no higher than 96 in (245 cm). Assemble the supplied Hose guide at the end of the drain hose, and put the hanger on laundry tub. And fasten the drain hose to the leg of laundry tub. Connect the hose guide (A) within 3~5 in (7.6~12.7 cm)* from the end of the drain hose. If the drain hose is extended beyond the end of the hose guide, mold or microorganisms could spread inside the washer. Drain Hose can be installed until 96 in (245cm) maximum. But drain capability can be reduced at this height. It causes the washer to have odor, because of remained water in the drain system. If the drain hose is installed below 39 in (99 cm), water can be drained in cycles due to a siphon phenomenon. It causes the washer to display a “4E” error code. STEP 3 Leveling your washer See if the washer is level by checking the position of the tub:

1. Slide the washer into position.

2. Open the lid of the washer, and pour the water into the tub to

just below the pulsator level.

3. If the washer is level, the pulsator is positioned at the center of the

water as shown in the fi gure. If not, level your washer by turning the front leveling feet clockwise or counterclockwise as necessary. Turn the front leveling feet clockwise to raise the washer, and counterclockwise to lower the washer. The number of leveling feet di ers with the model.

Loosen LockPulsatorAdjustable legs(three) WA7000M_DC68-03774A-10_EN.indd Sec3:16WA7000M_DC68-03774A-10_EN.indd Sec3:16 10/15/2020 6:30:12 PM10/15/2020 6:30:12 PMEnglish - 17 STEP 4 Powering your washer Plug the power cord into a 3-prong, well grounded 120 volt 60 Hz approved electrical outlet protected by a 15-amp fuse or comparable circuit breaker. Your washer is grounded through the third prong of the power cord when plugged into a three-prong grounded electrical outlet. Test run Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete. STEP 5 Running a test cycle Run a test cycle as follows to check if your washer is properly installed.

1. Load about 6 pounds of laundry into the tub.

2. Press the Power button to turn on your washer.

3. Select the Rinse+Spin cycle by turning the Cycle Selector.

4. Press the Start/Pause button to start the test cycle.

5. The washer should not rock or vibrate excessively when water is supplied or when washing

or spinning, and should drain well during the spin cycle. If water leaks while water is being supplied or drained, check the water connections. Refer to the “Connecting the water and the drain” section on pages 14~15 for instructions. If the washer rocks and vibrates excessively, level your washer again. Refer to the “Leveling your washer” section on page 15 for instructions. STEP 6 Calibration mode Your Samsung washer detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. To run Calibration Mode, follow these steps:

1. Remove laundry or any contents in the machine.

2. Press and hold Temp. and Delay End simultaneously for at least 3seconds when the power

4. The pulsator rotates clockwise and counterclockwise approximately 1minute.

5. When Calibration Mode is fi nished, “0” appears on the display, and the washer automatically

turns o . The washer is now ready for use. 01 installing your washer WA7000M_DC68-03774A-10_EN.indd Sec3:17WA7000M_DC68-03774A-10_EN.indd Sec3:17 10/15/2020 6:30:13 PM10/15/2020 6:30:13 PMEnglish - 18 operating instructions

WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following:

• Fill the tub with dry, unfolded clothes evenly around in order to enhance washing e ciency and prevent excess wear, or wrinkling of the load. - For optimal washing performance, make sure the laundry is piled up evenly.

• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar lightweight items.

• When washing big bulky items or a few smaller items that don’t fi ll the tub completely – a rug, a pillow, stu ed toys, or one or two sweaters, for example – add a few towels to improve spin performance.

• Do not insert bulky items except for Bedding in this cycle. During the spin cycle, the washer may add additional water to redistribute the clothes and correct an imbalance inside the drum.

• When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.

• Infl atable items may cause damage to the laundry or the machine during the wash or drying process.

• Regardless of the size, blankets or quilts are safer and cleaner to wash one item at a time. Two di erent-sized blankets in the same load may compromise the drying performance due to unbalanced loads. To input a blanket Fold the blanket into the blanket-specifi c net as shown, and then insert in the tub below the plastic area of the tub. Make sure the laundry is inserted completely.

• Any exposed part of the laundry may cause damage to the machine or the laundry itself, or a water leak.

• Do not overload the tub. Make sure no part of the laundry is exposed outside of the tub. To add a forgotten item:

1. Press the Start/Pause button to pause the washer.

2. Wait for the door to unlock automatically, and then open the door.

1. Load your washer.

2. Add liquid (or powder) detergent and additives to the dispenser (see pages 24~26).

7. The estimated cycle time will appear in the display.

The time may fl uctuate to indicate the time remaining in the cycle better. The actual time required for a cycle may di er from the estimated time in the display depending on the water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fi ll, it will make a series of clicking noises to check the door lock and do a

• When the cycle is complete, the Door Lock light will go out and “End” (WA50M7450A*, WA50N7350A*) / “0” (WA45M7050A*, WA45N7150A*) will appear in the display.

• Pressing the Power button cancels the cycle and stops your washer.

The Wash, Rinse , and Spin indicator lights will illuminate during those portions of the cycle. WARNINGWARNINGWARNING WA7000M_DC68-03774A-10_EN.indd 18WA7000M_DC68-03774A-10_EN.indd 18 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 19 washing a load of laundry

OVERVIEW OF THE CONTROL PANEL

Cycle Selector Select the appropriate cycle for the type of load. The cycle you select determines the tumble pattern and spin speed for the cycle. To minimize wrinkling of laundry, select the PERM PRESS cycle. NORMAL - For most fabrics including cottons, linens, and normally soiled garments. HEAVY DUTY - For sturdy, colorfast fabrics and heavily soiled garments. BRILLIANT WHITES (WA50M7450A*, WA50N7350A*) - For white fabrics with or without bleach. BEDDING/WATERPROOF - For bulky and large items, such as comforters, blankets and sheets. When washing comforters, use liquid detergent, waterproof or water-resistant items. Do not wash waterproof items and non-waterproof items together. Check the specifi cation label on the fabric item and see if the item is waterproof.

Use the bedding/waterproof cycle for waterproof or water-resistant items such as plastic mats, ski pants, raincoat and comforters which hardly absorb water. DEEP WASH - Use more water in washing and rinsing. DELICATES - For sheer fabrics, bras, lingerie, silks, and other handwash- only fabrics. For best results, use liquid detergent. 03 washing a load of laundry WA45M7050A*, WA45N7150A*WA50M7450A*, WA50N7350A*

WA7000M_DC68-03774A-10_EN.indd 19WA7000M_DC68-03774A-10_EN.indd 19 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 20 PERM PRESS - For wash-and-wear, synthetic fabrics, and lightly to normally soiled garments. ACTIVE WEAR (WA50M7450A*, WA50N7350A*) - Use this cycle to wash exercise wear such as sports jerseys, training pants, shirts/tops and other performance clothing. This cycle provides e ective soil removal with gentle action for special fabric care. QUICK WASH - For lightly soiled garments needed quickly. SPIN - Drains the water and spins at a high speed. RINSE + SPIN - Use for loads that need rinsing only or to add rinse-added fabric softener to a load. Display Provides instructions and diagnostics while keeping you updated on the cycle status and time remaining. Temp. selection button Press the button repeatedly to cycle through the di erent water temperature options. Hot - Whites and heavily soiled, colorfast items. Warm - Colorfast items. Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items. Cool - Brightly colored, very lightly soiled items. Cold - Cold water with no warm water added. If you select the Cold option, all the lamps for the water temperature options are turned o . Spin selection button Press the button repeatedly to cycle through the di erent spin speed options. High - Use for underwear, t-shirts, jeans, and sturdy cottons. Medium - Use for jeans, wrinkle-free or wash-and-wear items, and synthetics. Low - Use for delicate items needing a slow spin speed. No Spin - Drains your washer without spinning. Use for extremely delicate items that cannot tolerate any spin. Soil Level selection button Press the button to select the soil level/washing time. Heavy - For heavily soiled loads. Normal - For moderately soiled loads. This setting is best for most loads. Light - For lightly soiled loads. Select Cycle Option Press these buttons to select di erent cycle options. Extra Rinse - Change from spray rinse mode to deep rinse mode, and rinse once again. Delay End - Delay the end of any cycle for up to 19 hours in one-hour increments. Displayed hour indicates the time the wash will be ended. Self Clean - Use to clean dirt and bacteria from the drum. Regular use (after every 40 washes) is recommended. Pre Soak - It adds 15 minutes soaking time at the start of the wash cycle for better stain removal. Start/Pause selection button Press to pause and restart cycles. Power button Press once to turn your washer on. Press again to turn your washer o . If the washer is left on for more than 10 minutes without any buttons being pressed, the power automatically turns o .

washing a load of laundry WA7000M_DC68-03774A-10_EN.indd 20WA7000M_DC68-03774A-10_EN.indd 20 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 21 Child Lock [ ] Child Lock prevents children from playing with your washer. Activating the Child Lock function Press and hold the Temp. and Spin buttons simultaneously for approximately 3 seconds.

• When you activate the Child Lock function, the “Child Lock [ ]” lamp blinks. Using the Child Lock function If the lid is opened when the Child Lock function is on, “dE” is displayed and an alarm sounds.

• If the water level in the tub is above the safe water level, “dE” is displayed on the LED display and the washing machine starts to drain water by force after 30 seconds.

• If the water level in the tub is above the safe water level and the Child Lock function is turned on while the door is open, “CL” is displayed on the LED display even if the power of the washing machine is turned o and the washing machine drains water by force.

• Even if the power of the washing machine is turned o , if the lid is opened while the water level in the tub is above the Reset water level, “CL” is displayed on the LED display without the alarm sounding and the washing machine starts to drain water. When the draining operation fi nishes, the power is automatically turned o again.

• You have activated the Child Lock function while the washing machine is running, the Start/ Pause button will not work.

• After the compulsory drain, the “CL” code display blinks at 1 second intervals and the product enters the “CL” mode. (When the product is in the “CL” mode, only the Power button works.)

• To cancel the “CL” mode, you need to turn the power o and then on again.

• To cancel the “dE” mode, deactivate the Child Lock function. To deactivate the Child Lock function, press and hold the Temp. and Spin buttons simultaneously for at least 3seconds. Adding laundry when Child Lock is on

• To add laundry, deactivate the Child Lock function. To deactivate the Child Lock function, press and hold the Temp. and Spin buttons simultaneously for at least 3seconds. See “Pause Option” on page 23 for additional details. Deactivating the Child Lock function Press and hold both the Temp. and Spin buttons simultaneously for approximately 3seconds.

• When you deactivate the Child Lock function, the “Child Lock [ ]” is turned o .

• The Child Lock function prevents children or the infi rm from accidently operating the washer and injuring themselves.

• If a child enters the washing machine, the child may become trapped and su ocate.

• Once you have activated the Child Lock function, it continues working even if the power is turned o .

• Forcing the lid open can result in injury or damage to the product. To add laundry after you have activated the Child Lock function, you must fi rst deactivate the Child Lock function. 03 washing a load of laundry CAUTIONWARNING WA7000M_DC68-03774A-10_EN.indd 21WA7000M_DC68-03774A-10_EN.indd 21 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 22 Sound The Sound O function can be selected during all cycles. Garment You can add or take out laundry items even after the wash has started, as long as the “Garment” light is on. Pushing the Start/Pause button unlocks the lid. If you open the lid and want to continue the wash cycle, close the lid, and then press the Start/Pause button. If you have activated the Child Lock, you must deactivate it fi rst. See page 20. Delay End You can set the washing machine to start your wash automatically at a later time, by choosing a delay time. The hour displayed indicates the time at which the wash will be ended.

1. Set your wash cycle.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay End” indicator will be lit, and the clock will begin

counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing machine on

again. Pre Soak Use this function when the laundry is heavily contaminated or stained. This function improves the wash performance by adding a Pre Soak cycle. - If you select this function, the total cycle time is increased by 15 minutes. - When the Pre Soak cycle starts, the washing machine repeats a wash cycle after supplying water and then performs a 15-minute soak cycle. - When the Pre Soak cycle is complete, the confi gured wash cycle starts without draining water. washing a load of laundry WA7000M_DC68-03774A-10_EN.indd 22WA7000M_DC68-03774A-10_EN.indd 22 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 23 Mist Shower Mist Shower sprays water from a nozzle that is independent of the main water supply system. This soaks the laundry with water from the beginning of the rinse cycle and ensures an e ective wash even with a small amount of water. (The Mist Shower function may not work if there is too large of a load in the machine.) Smart Care (WA50M7450A*, WA50N7350A*) This function enables you to check the status of the washing machine using a smartphone.

1. To enable the Smart Care function, press and hold the Self Clean key for 3 seconds after

turning the power on or when an error occurs.

• The error code history is deleted after you use this function.

2. The Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

• Android : Galaxy series, Galaxy Note series (Other devices may not be normal operation). Supported operating system: Android 2.2 or higher.

• IOS : IPhone series Supported operating system : OS 4.3 or higher.

4. Focus your smart phone’s camera on the display panel of the washing machine.

5. If the smart phone’s camera is focused on the display panel of the washing machine,

the panel and error message is automatically recognized and the error type and countermeasures are displayed on the smart phone.

6. If the smartphone fails to recognize the error code more than twice, please enter the error

code displayed on the display panel of the washer manually into the Smart Care app. Downloading the Smart Care app

• Download the Samsung Laundry App into your mobile phone from the Android market or Apple App store. (Search word : Samsung Smart Washer/Dryer) Precautions when using Smart Care

• If light from a light bulb, fl uorescent bulb, or lamp is refl ected on the display panel of the washing machine, the smartphone may not be able to recognize the panel or error message easily.

• If you hold the smartphone at too large an angle relative to the front of the display panel, it may not be able to recognize the error code. For best results, hold the smartphone so that the front of the panel and the smartphone are parallel or nearly parallel. 03 washing a load of laundry WA7000M_DC68-03774A-10_EN.indd 23WA7000M_DC68-03774A-10_EN.indd 23 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 24 Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.1. Press the Power button.2. Open the lid.

3. Load the articles of clothing one at a time loosely into the drum, without overfi lling it.

4. Add liquid (or powder) detergent, softener, and/or bleach (if necessary) to the appropriate

compartments. See pages 24~26.5. Close the lid.6. Use the Cycle Selector to select the appropriate cycle according to the type of material: NORMAL, HEAVY DUTY, COLORS/DARKS, BEDDING, DELICATES, WATERPROOF, PERM PRESS, ACTIVE WEAR, QUICK WASH, SPIN, RINSE+SPIN. The relevant indicators will illuminate on the control panel.

7. At this time, you can control the wash temperature, the number of rinse cycles, the spinning

speed, and the delay time by pressing the appropriate option button.

8. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process

indicator will light up and the remaining time for the cycle will appear in the display. Pause Option To remove or add laundry items, follow these steps:

1. Press the Start/Pause button to unlock the lid.

The lid cannot be opened when the water is too HOT.2. Remove or add laundry items.

3. Close the lid, and then press the Start/Pause button to restart the wash.

If you have Child Lock on, you must deactivate it fi rst. See page 20. When the cycle is fi nished: After the total cycle has fi nished, the power will turn o automatically.1. Open the lid.2. Remove laundry. ATC (AUTO TEMPERATURE CONTROL) ATC is the control function that the washer controls water temperature with temperature sensor (thermistor). Because there are numerous water temperatures depending on the customer’s environments (cold areas, warm areas, various water temperatures, settings of heater temperature, etcs.), ATC function in our washer maintains the certain level of wash temperature to output the best washing performance at each cycle.If you select normal & heavy duty cycles, those cycles are the regulation and UL cycle. Since new washer must reduce the amount of energy usage at fi rst priority, customer will notice more cold water entering the washer. But This is Normal, not a problem. In those regulation cycles, Hot temperature is similar to acceptable adult bath-water temperature and warm temperature is similar to comfortable swimming-pool water temperature. If customers want to wash clothes in specifi c water temperature, customers should choose a di erent cycle at each temperature (Hot/Warm/Eco Warm) washing a load of laundry WA7000M_DC68-03774A-10_EN.indd 24WA7000M_DC68-03774A-10_EN.indd 24 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 25 PREWASH (WATER JET) Water Jet helps you hand wash before the washing machine starts operation. Water Jet is available only when the door is open with the water level set to less than High.

2. Press the Water Jet button to supply water.

3. Hand wash your item.

If you want to hand wash while the machine is operating, press the Start/Pause button to stop operation, and then follow steps 1-3 above. Water Jet stops

• Water Jet stops operation automatically when the washing machine detects the maximum water level.

• Water Jet stops operation automatically 5 minutes after it begins. To add more water, press the Water Jet button again to resupply water. Water Jet drains

• Select a cycle and press the Start/Pause button. Then the washing machine drains the water to be used during the prewash.

• When the washing machine is turned o before starting the wash cycle, it drains the water to be used during the prewash. However, when it is turned o during the wash cycle, it does not drain the water. Water Jet extracts the water through the Mist Shower nozzle for 1 second and then through the Water Jet nozzle from then on when it is fi rst activated after the washing machine turns on.

• Do not abuse Water Jet. Excessive use of Water Jet increases water consumption.

• Do not block the outlet of Water Jet with hands. Water may leak outside the tub, causing a system failure.

• Due to a di erence in air pressure, Water Jet may splash water from its outlet when it is fi rst activated. 03 washing a load of laundry Ǯɇϩʪθ âʪϩ CAUTION WA7000M_DC68-03774A-10_EN.indd 25WA7000M_DC68-03774A-10_EN.indd 25 10/15/2020 6:30:14 PM10/15/2020 6:30:14 PMEnglish - 26 DETERGENT USE For best cleaning results, use high e ciency detergent such as Tide HE, Wisk HE, Cheer HE or Gain HE*. High e ciency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more e ciently and cleaning is maximized. For best results, use HE detergents only. Do not use non-HE detergent, organic detergent, natural detergent or HE detergents with natural ingredients (such as vinegar, baking soda). Reducing the amount of detergent may reduce the quality of cleaning. It is important to pre–treat stains, sort carefully by color and soil level, and avoid overloading.

• Brand names are trademarks of their respective manufacturers. FEATURES Automatic dispenser Your washer has separate compartments for dispensing detergent and color-safe bleach and fabric softener. Add all laundry additives to their respective compartments before starting your Washer. The automatic dispenser MUST ALWAYS be in place before you start your washer. DO NOT open the automatic dispenser when your washer is running.

• Never exceed the manufacturer’s recommendations when adding detergent.

• This compartment holds liquid detergent for the main wash cycle, which is added to the load at the beginning of the cycle.

• When using powdered detergent, remove the liquid detergent compartment from the detergent drawer. The washer will not dispense powdered detergent from the liquid detergent compartment. To add detergent to the automatic dispenser:

1. Open the dispenser drawer.

2. Load the recommended amount of liquid (or powder) detergent into the detergent

compartment before you start your wash.

3. Close the drawer slowly and smoothly to avoid spilling, splashing, or premature dispensing of

the contents. It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle. Do not put chlorine bleach in the dispenser drawer. washing a load of laundry WARNINGLiquid detergent compartment WA7000M_DC68-03774A-10_EN.indd 26WA7000M_DC68-03774A-10_EN.indd 26 10/15/2020 6:30:15 PM10/15/2020 6:30:15 PMEnglish - 27 Loading the Liquid (or Powder) detergent compartment

1. Pour the recommended amount of laundry detergent

directly into the detergent compartment before starting your washer.

2. If you are using color-safe bleach, add it with the detergent

to the detergent compartment. When adding color-safe bleach with detergent, it is best if both laundry products are in the same form – liquid. When using powdered detergent, remove the liquid detergent compartment from the detergent drawer. The washer will not dispense powdered detergent from the liquid detergent compartment. Loading the Bleach compartment (WA50M7450A*) (Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line.

• Avoid splashing or over–fi lling the compartment.

• Your washer automatically dispenses bleach into the tub at the appropriate time.

2. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the tub. It is a powerful chemical and can cause fabric damage, such as weakening of the fi bers or color loss, if not used properly.

• If you prefer to use color–safe, add it to the appropriate detergent compartment. DO NOT pour color–safe bleach into the Bleach compartment. 03 washing a load of laundry Liquid detergent compartment Bleach compartment WA7000M_DC68-03774A-10_EN.indd 27WA7000M_DC68-03774A-10_EN.indd 27 10/15/2020 6:30:15 PM10/15/2020 6:30:15 PMEnglish - 28 Loading the Bleach compartment (WA50N7350A*, WA45N7150A*, WA45M7050A*) Use the liquid chlorine bleach only. Add chlorine bleach to the bleach compartment. DO NOT exceed the bleach compartment.

• Avoid splashing or over–fi lling the compartment.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the tub. It is a powerful chemical and can cause fabric damage, such as weakening of the fi bers or color loss, if not used properly.

• If you prefer to use color–safe, add it to the appropriate detergent compartment. DO NOT pour color–safe bleach into the Bleach compartment. Loading the Fabric softener compartment

1. Pour the recommended amount of liquid fabric softener

into the softener compartment. For smaller loads, use less than one capful.

2. Dilute the fabric softener with water until it reaches MAX

FILL in the compartment.

3. The dispenser automatically releases liquid fabric softener

at the proper time during the rinse cycle.

• Use the softener compartment ONLY for liquid fabric softeners.

• DO NOT use the Downy Ball* in the fabric softener compartment with this washer. It will not add fabric softener at the appropriate time. Use the detergent compartment.

• Do not use liquid fabric softener that is too sticky as it may not mix with the water su ciently.

• Brand names are trademarks of their respective manufacturers. CAUTION washing a load of laundry Bleach compartment Fabric softener compartment WA7000M_DC68-03774A-10_EN.indd 28WA7000M_DC68-03774A-10_EN.indd 28 10/15/2020 6:30:15 PM10/15/2020 6:30:15 PMEnglish - 29 maintaining your washer Certain internal parts are intentionally not grounded and may present a risk electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: Control board, heat sink, motor, inlet valve, heater and pump.

CLEANING THE EXTERIOR

Turn o the water faucets after fi nishing the day’s washing. This will shut o the water supply to your washer and prevent the unlikely possibility of damage from escaping water. Leave the lid open to allow the inside of your washer to dry out. Use a soft cloth to wipe up all detergent, bleach or other spills as they occur. Clean the following as recommended: Control Panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel.

CLEANING THE INTERIOR

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes. Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your washer or laundry. Hard water deposits may be removed, if needed. Use cleaners labeled “Washer safe”.

Washers can be damaged if water is not removed from hoses and internal components before storage. Prepare your washer for storage as follows:

• Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your washer through the cycle without a load.

• Turn the water faucets o and disconnect the inlet hoses.

Unplug your washer from the electrical outlet and leave your washer lid open to let air circulate inside the drum.

• If your washer has been stored in below–freezing temperatures, allow time for any leftover water in your washer to thaw out before use. PRESERVING THE TOP COVER AND THE FRONT FRAME Do not place any heavy or sharp objects or a detergent box on the washing machine. They can scratch or damage the top cover of the unit. Since the entire washing machine has a high-gloss fi nish, the surface can be scratched or damaged. Avoid scratching or damaging the surface when using the washing machine.

CLEANING MESH FILTER

Clean the mesh fi lter of the water hose once or twice a year.

1. Turn o the washer, and then unplug the power cord.

2. Close the faucet.

3. Loosen and disconnect the water hose from the back of the washer.

Cover the hose with a cloth to prevent water from gushing out.

4. Use pliers to pull out the mesh fi lter from the inlet valve.

5. Submerge the mesh fi lter deeply in water so that the threaded

connector is also submerged.

6. Dry the mesh fi lter completely in a shaded area.

7. Reinsert the mesh fi lter into the inlet valve, and reconnect the water

hose to the inlet valve.

If the mesh fi lter is clogged, the “4E” information code appears on the washer’s display screen. 04 maintaining your washer WARNING WA7000M_DC68-03774A-10_EN.indd 29WA7000M_DC68-03774A-10_EN.indd 29 10/15/2020 6:30:15 PM10/15/2020 6:30:15 PMEnglish - 30 CLEANING THE DISPENSERS (WA45N7150A*, WA45M7050A*) The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Pull the dispenser drawer straight back until it stops.

2. Tilt the dispenser drawer upward and remove it.

3. Remove the inserts from the 3 compartments. Rinse the

inserts and the drawer with warm water to remove traces of accumulated laundry products.

4. To clean the drawer opening, use a small, non-metal brush

to clean the recess. Remove all residue from the upper and lower parts of the recess.

5. Return the inserts to the proper compartments and replace

the drawer. By placing the dispenser drawer rail on top of the compartment rail (Tilt the dispenser drawer downward and insert it.), and then push the drawer in fi rmly and slowly. maintaining your washer WA7000M_DC68-03774A-10_EN.indd 30WA7000M_DC68-03774A-10_EN.indd 30 10/15/2020 6:30:15 PM10/15/2020 6:30:15 PMEnglish - 31 CLEANING THE DISPENSERS (WA50M7450A*, WA50N7350A*) The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Pull the dispenser drawer straight back until it stops.

2. Push the ends of each side of the case at the same time.

When you feel the ends push, pull out the dispenser drawer.

3. Remove the inserts from the 3 compartments. Rinse the

inserts and the drawer with warm water to remove traces of accumulated laundry products.

4. To clean the drawer opening, use a small, non-metal brush

to clean the recess. Remove all residue from the upper and lower parts of the recess.

5. Return the inserts to the proper compartments and replace

the drawer by placing the dispenser drawer rail (B) on top of the compartment rail (A) (Tilt the dispenser drawer downward and insert it). Then push the drawer in fi rmly and slowly. 04 maintaining your washer

WA7000M_DC68-03774A-10_EN.indd 31WA7000M_DC68-03774A-10_EN.indd 31 10/15/2020 6:30:16 PM10/15/2020 6:30:16 PMEnglish - 32 SELF CLEAN Certain usage and environmental conditions may result in some residue build-up or odor in the washer tub. To prevent this build-up of residue or odor causing bacteria and keep your washer tub fresh and clean, perform the Self Clean cycle at least once a month or every 20 cycles. Perform the recommended procedure below when using the Self Clean cycle.

1. Remove all items from the washer tub and ensure the tub is empty. Laundry left in the tub during the

Self Clean cycle may be damaged.

2. Press the Power button.

3. Select the Self Clean cycle.

• Once the Self Clean cycle is selected, the only function that can be set is Delay End.

• The water temperature for Self Clean is defaulted to Hot. This temperature cannot be changed.

• In the case where residue is present in the washer tub, add 1 cup (8 fl .oz, 240ml) of liquid chlorine bleach to the bleach compartment before you start the Self Clean cycle. Do not use or mix any other detergent or chemicals during the Self Clean cycle.

• If necessary, run a RINSE+SPIN Cycle after the Self Clean cycle has completed to help remove any remaining residue.

• Check the washer tub before using the Self Clean cycle. Remove any remaining water in the tub by running a SPIN cycle prior to starting the Self Clean cycle.

• If there is chlorine bleach left in the washer tub for an extended period of time, rust can occur. Self Clean reminder

• After 20 washing cycles, the Self Clean LED reminder icon and the Self Clean cycle LED will blink on the control panel for an hour and then turn o automatically.

• The reminder will appear on the control panel for 5 additional consecutive cycles before turning o . The next reminder will not appear until another 20 cycles have been completed. CAUTION maintaining your washer WA7000M_DC68-03774A-10_EN.indd 32WA7000M_DC68-03774A-10_EN.indd 32 10/15/2020 6:30:16 PM10/15/2020 6:30:16 PMEnglish - 33 troubleshooting

CHECK THESE SOLUTIONS IF YOUR WASHER…

PROBLEM SOLUTION Will not start. • Make sure the lid is closed.

• Make sure your washer is plugged in.

• Make sure the water source faucets are open.

• Make sure to press the Start/Pause button to start your Washer.

• Make sure Child Lock is not activated. See page 20.

• Before your washer starts to fi ll, it will make a series of clicking noises to check the lid lock and do a quick drain.

• Check the fuse or reset the circuit breaker Has no water or not enough water.

• Turn both faucets on fully.

• Straighten the water inlet hoses.

• Disconnect hoses and clean the screens. Hose fi lter screens may be clogged. Has detergent remaining in the automatic dispenser after the wash cycle is complete.

• Make sure your washer is running with su cient water pressure. Vibrates or is too noisy. • Make sure your washer is set on a level surface. If the surface is not level, adjust your washer’s feet to level the appliance.

• Make sure your washer is not touching any other object.

• Make sure the laundry load is balanced. Stops • Plug the power cord into a live electrical outlet.

• Check the fuse or reset the circuit breaker.

• Close the lid and press the Start/Pause button to start your washer. For your safety, your washer will not spin unless the lid is closed.

• Before your washer starts to fi ll, it will make a series of clicking noises to check the lid lock and do a quick drain.

• There may be a pause or soak period in the cycle. Wait and it may start.

• Check the screens on the inlet hoses at the faucets for obstructions. Clean the screens periodically. 05 troubleshooting WA7000M_DC68-03774A-10_EN.indd 33WA7000M_DC68-03774A-10_EN.indd 33 10/15/2020 6:30:16 PM10/15/2020 6:30:16 PMEnglish - 34 PROBLEM SOLUTION Fills with the wrong temperature water.

• Turn both faucets on fully.

• Make sure the temperature selection is correct.

• Make sure the hoses are connected to the correct faucets. Flush water lines.

• Disconnect the hoses and clean the screens. The hose fi lter screens may be plugged.

• As your washer is fi lling, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.

• While your washer is fi lling, you may notice just hot and/or just cold water going through the dispenser when you have selected cold or warm wash temperatures. This is a normal function of the automatic temperature control feature as your washer determines the temperature of the water. Lid locked or will not open. • Press the Start/Pause button to stop your washer.

• It may take a few moments for the lid lock mechanism to disengage. Does not drain and/or spin. • Check the fuse or reset the circuit breaker.

• Straighten the drain hoses. Eliminate kinked hoses. If there is a drain restriction, call for service.

• Close the lid and press the Start/Pause button. For your safety, your washer will not spin unless the lid is closed. Load is too wet at the end of the cycle.

• Use the High spin speed.

• Use high e ciency detergent to reduce over–sudsing.

• The Load is too small. Very small loads (one or two items) may become unbalanced and not spin out completely. Leaks water. • Make sure all hose connections are tight.

• Make sure the end of the drain hose is correctly inserted and secured to the drainage system.

• Use high e ciency detergent to prevent over–sudsing. Has excessive suds. • Use high e ciency detergent to prevent over-sudsing.

• Reduce the detergent amount for soft water, small or lightly soiled loads.

• Non-HE detergent is NOT recommended. Has an odor. • Check your Detergent . Excessive suds collect in nooks and crannies and cause mold.

• Run cleansing cycles to sanitize the machine periodically. (Silver Care or Sanitize Cycle or Self Clean)

• Dry the interior of your washer after the total cycle has fi nished. troubleshooting WA7000M_DC68-03774A-10_EN.indd 34WA7000M_DC68-03774A-10_EN.indd 34 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 35 INFORMATION CODES The Washer may display information codes to help you understand what is occurring with your Washer better.

Unbalanced load prevents washer from spinning. Redistribute the load, and then press the Start/ Pause button. dC/dC1 The washer did not properly lock the door. Make sure the door is fi rmly closed. Restart the washer. If the code reappears, call customer service. dC3 Add Door did not lock. Make sure the Add Door is fi rmly closed. Restart the washer. If the code reappears, call customer service. ddC Add Door open while working

The washer does not drain. The washer may detect a small clog while draining.

1. Restart the washer.

2. Select the Spin Only cycle.

3. Press the Start/Pause button to drain the

water. If the washer still does not drain, call customer service.

Water is not being supplied to the washer. Make sure the water taps are open. Make sure the water hoses are not clogged. Make sure the water taps are not frozen. Make sure the washing machine is operating with su cient water pressure. Make sure that the cold water tap and the hot water tap are properly connected. Clean the mesh fi lter as it may be clogged. 4C2 The hot water was supplied from the course washing the delicacy clothes. Make sure the cold water supply hose is fi rmly connected to the cold water tap. If it is connected to the hot water tap, the laundry may be deformed with some cycles.

Temperature sensor problem. Restart the washer. If the code reappears, call customer service.

Water temperature control problem. (Heater control) Call customer service.

Water level sensor problem

The Water Level sensor is not working properly bC2 Jammed button.

Communication error (SUB(sensor) PBA MAIN PBA) AC4 Communication error (WIFI PBA MAIN PBA) AC3 Communication error (DR Module MAIN PBA) AC5 Communication error (LCD PBA MAIN PBA) AC6 Communication error (Inverter PBA MAIN PBA)

MEMS sensor problem.

Clutch Problem. Sud The washer has detected too many suds. The washer will stop operating until the amount of suds has reduced. The washer will then resume normal operation.

• Show additional rinsing in sensing unbalance.

• Method of releasing the display. Any key input. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG). troubleshooting WA7000M_DC68-03774A-10_EN.indd 36WA7000M_DC68-03774A-10_EN.indd 36 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 37 appendix

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. Wash Cycle Special Instructions Warning Symbols for Laundering Normal Line Dry/ Hang to Dry Do Not Wash Permanent Press / Wrinkle Resistant / Wrinkle Control Drip Dry Do Not Wring Gentle/Delicates Dry Flat Do Not Bleach Hand Wash Heat Setting Do Not Tumble Dry Water Temperature** High No Steam (added to iron) Hot Medium Do Not Iron Warm Low Dryclean Cold Any Heat Dry Clean Bleach No Heat/Air Do Not Dry Clean Any Bleach (when needed) Iron-Dry or Steam Temperatures Line Dry/ Hang to Dry Only Non-Chlorine (color-safe) Bleach (when needed) High Drip Dry Tumble Dry Cycle Medium Dry Flat Normal Low Permanent Press/ Wrinkle Resistant/ Wrinkle Control Gentle/ Delicates ** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 105° - 125 °F / 41° - 52 °C, for Warm 85° - 105 °F / 29° - 41 °C and for Cold 60° - 85 °F / 16° - 29 °C. (Wash water temperature must be a minimum of 60 °F / 16 °C for detergent activation and e ective cleaning.) The clothes washer can not ensure these temperatures because the actual temperature of the water entering your washer depends on water heater settings and regional water supply temperatures. For example, cold water entering the home in the northern states during winter may be 40 °F / 4 °C which is too cold for e ective cleaning. In this situation, you will need to adjust the water temperature by selecting a warm setting, adding some hot water to the MAX FILL line, or using your Washer’s heating option, if available. 06 appendix WA7000M_DC68-03774A-10_EN.indd 37WA7000M_DC68-03774A-10_EN.indd 37 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 38 CYCLE CHART Use this chart to set the best cycle and options for you laundry. WA50M7450A*, WA50N7350A*

DEEP WASH ACTIVE WEAR

• Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut o the power cord so that the appliance cannot be connected to a power source. Remove the lid so that animals and small children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.

• Use stain removal products and bleaches before the wash cycle only when necessary.

• Save water and electricity by only washing full loads (the exact amount depends upon the program used).

DECLARATION OF CONFORMITY

This appliance complies with UL2157. SPECIFICATION

Height 45.0" (114.4 cm) 43.9" (111.5 cm) B. Width 27.0" (68.6 cm) 27.0" (68.6 cm) C. Height with lid open 59.0" (150.0 cm) 58.1" (147.6 cm) D. Depth 29.3" (74.4 cm) 29.3" (74.4 cm) WATER PRESSURE 20-116 psi (137-800 kPa) WEIGHT 64.0 kg 58.5 kg SPIN REVOLUTION 800 rpm

appendix WA7000M_DC68-03774A-10_EN.indd 40WA7000M_DC68-03774A-10_EN.indd 40 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 41 LIMITED WARRANTY (U.S.A.) SAMSUNG WASHER LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of: One (1) year parts and labor, Three (3) years stainless tub part (Part Only), Ten (10) years washing DD motor part (Part Only). This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modifi cation or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s fi nishes; damage caused by abuse, misuse, pest infestations, accident, fi re, fl oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fl uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues. WA7000M_DC68-03774A-10_EN.indd 41WA7000M_DC68-03774A-10_EN.indd 41 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 42

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specifi c rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specifi c rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, fi rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgefi eld Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support LIMITED WARRANTY (U.S.A.) WA7000M_DC68-03774A-10_EN.indd Sec11:42WA7000M_DC68-03774A-10_EN.indd Sec11:42 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 43 warranty (CANADA) SAMSUNG WASHER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year part and labor, Ten (10) years washing DD motor part (Part Only). This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specifi ed above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior fi nish; accidents, abuse, neglect, fi re, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fl uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fi xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. WA7000M_DC68-03774A-10_EN.indd Sec11:43WA7000M_DC68-03774A-10_EN.indd Sec11:43 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMEnglish - 44 EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specifi c rights, and you may also have other rights, which vary from province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada. 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) warranty (CANADA) Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. WA7000M_DC68-03774A-10_EN.indd Sec11:44WA7000M_DC68-03774A-10_EN.indd Sec11:44 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMmemo WA7000M_DC68-03774A-10_EN.indd Sec11:45WA7000M_DC68-03774A-10_EN.indd Sec11:45 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMmemo WA7000M_DC68-03774A-10_EN.indd Sec11:46WA7000M_DC68-03774A-10_EN.indd Sec11:46 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMmemo WA7000M_DC68-03774A-10_EN.indd Sec11:47WA7000M_DC68-03774A-10_EN.indd Sec11:47 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMQUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) MEXICO 800-SAMSUNG www.samsung.com/mx/support DC68-03774A-10 Scan this with your smartphone WA7000M_DC68-03774A-10_EN.indd Sec11:48WA7000M_DC68-03774A-10_EN.indd Sec11:48 10/15/2020 6:30:17 PM10/15/2020 6:30:17 PMLave-linge manuel d'utilisation WA50M7450A* WA45M7050A* WA50N7350A* WA45N7150A* Un monde de possibilités Nous vous remercions d'avoir choisi ce produit Samsung. WA7000M_DC68-03774A-10_CFR.indd 1WA7000M_DC68-03774A-10_CFR.indd 1 10/15/2020 6:31:04 PM10/15/2020 6:31:04 PMFrançais - 2 table des matières
