USER MANUAL CDXG1302U SONY

FM/MW/LW CD Car Audio

FM/MW/LW CD Car Audio

Operating Instructions

GB

Bedienungsanleitung

DE

Mode d'emploi

FR

To cancel the demonstration (DEMO) display, see page 12.

For the connection/installation, see page 21.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see "Connection/Installation" (page 21).

Made in Thailand

This product is classified as a Class 1 Laser product under IEC/EN 60825-1:2007 and IEC/ EN 60825-1:2014.

• Emission Duration: Continuous
• Laser Output: Less than 55.8 μW Wavelength: 775 nm to 800 nm

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area).

CE

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

This equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity.

The software loaded on this equipment is verified to comply with the essential requirements of the Directive 2014/53/EU.

The software version can be checked in the firmware setup item of the general setup menu.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

This product has been manufactured by or on behalf of Sony Corporation.

EU Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be

sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with

separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead. By ensuring that these products and batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

CAUTION

The following frequency 65 - 74 MHz range is not allocated to sound broadcasting in the European Common Allocations table and cannot be used in Europe.

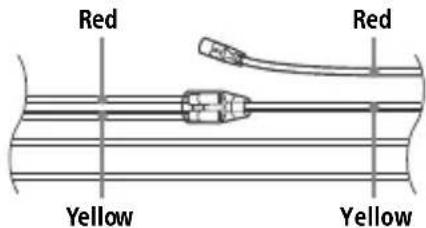

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 12). The unit will shut off completely and automatically in the set time after the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second), which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls. 5

Getting Started

Detaching the Front Panel 7

Resetting the Unit. 7

Setting the Clock. 7

Checking the Battery Voltage 8

Connecting a USB Device. 8

Connecting Other Portable Audio Device 8

Listening to the Radio

Listening to the Radio 9

Using Radio Data System (RDS). 9

Playback

Playing a Disc 10

Playing a USB Device 10

Searching and Playing Tracks 11

Settings

Canceling the DEMO Mode 12

Basic Setting Operation 12

General Setup (GENERAL) 12

Sound Setup (SOUND) 13

Display Setup (DISPLAY). 14

Additional Information

Updating the Firmware 15

Precautions 15

Maintenance 16

Specifications 16

Troubleshooting 18

Messages. 19

Connection/Installation

Cautions 21

Parts List for Installation. 21

Connection 22

Installation. 24

Guide to Parts and Controls

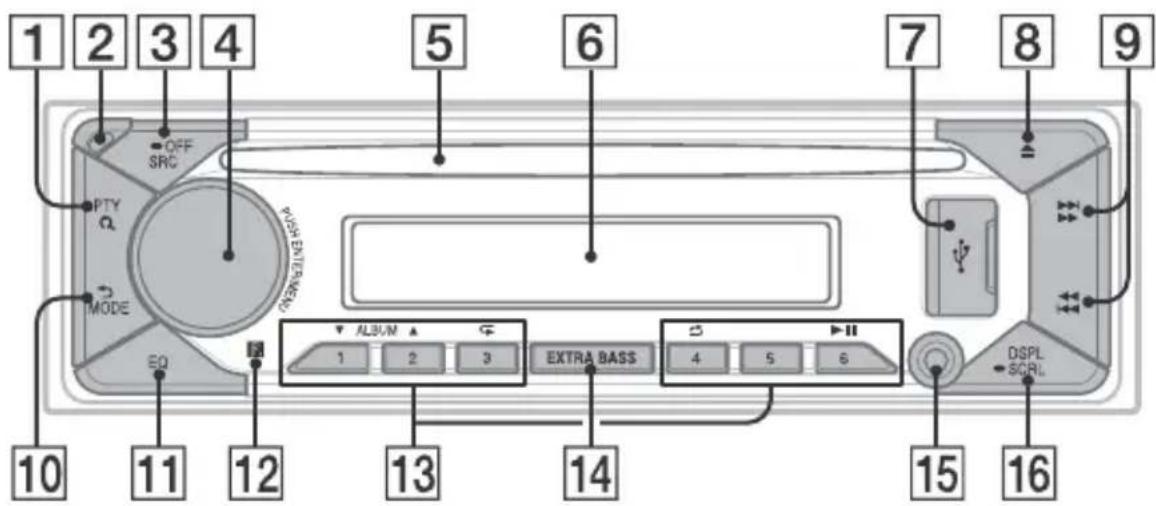

Main unit

1 PTY (program type)

Select PTY in RDS.

Q (browse) (page 11)

Enter the browse mode during playback.

Not available when a USB device in

AndroidTM mode is connected.)

2 Front panel release button 3 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

4 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

Press SRC, rotate then press to change the source (timeout in 2 seconds).

MENU

Open the setup menu.

5 Disc slot 6 Display window USB port 8 (disc eject)

9 SEEK - / +

Tune in radio stations automatically. Press and hold to tune manually.

1/prev/next) (fast-reverse/fast-forward)

10 (back)

Return to the previous display.

MODE (page 9)

11 EQ (equalizer) Select an equalizer curve. 12 Receptor for the remote commander Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

ALBUM ▼/▲

Skip an album for audio device. Press and hold to skip albums continuously.

(Not available when a USB device in Android mode is connected.)

(repeat)

(Not available when a USB device in Android mode is connected.)

(shuffle)

(Not available when a USB device in Android mode is connected.)

II (play/pause)

14 EXTRA BASS Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF]. 15 AUX input jack 16 DSPL (display) Press to change display items. SCRL (scroll) Press and hold to scroll a display item.

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

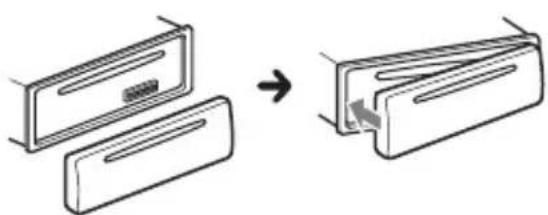

Attaching the front panel

Resetting the Unit

Before operating the unit for the first time, after replacing the car battery, or changing the connections, you must reset the unit.

1 Press DSPL and EQ for more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some stored contents.

Setting the area/region

After resetting the unit, the area/region setting display appears.

1 Press ENTER while [SET AREA] is displayed. The area/region currently set appears. 2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it. 3 Rotate the control dial to select [YES] or [NO], then press it. If the setting area/region is changed, the unit is reset, then the clock is displayed.

This setting can be configured in the general setup menu (page 12).

Setting the Clock

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET CLOCK], then press it. 3 Rotate the control dial to select [MANUAL], then press it. The hour indication flashes. 4 Rotate the control dial to set the hour and minute. To move the digital indication, press 1 1 / 1 (SEEK-/+). 5 After setting the minute, press MENU. The setup is complete and the clock starts.

To display the clock

Press DSPL.

To set the clock automatically

Select [AUTO ] in step 3.

Checking the Battery Voltage

You can check the current battery voltage. (Not available while the source is off and the clock is displayed.)

1 Press DSPL repeatedly until the battery voltage display appears.

Connecting a USB Device

1 Turn down the volume on the unit. 2 Connect the USB device to the unit.

Connecting Other Portable Audio Device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → SET AUX VOL.

Listening to the Radio

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3 or MW/LW). 2 Press MENU, rotate the control dial to select [GENERAL], then press it. 3 Rotate the control dial to select [SET BTM], then press it.

The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3 or MW/LW). 2 Perform tuning.

To tune manually

Press and hold SEEK-/+ to locate the approximate frequency, then press SEEK-/+ repeatedly to fine adjust to the desired frequency.

To tune automatically

Press SEEK-/+.

Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcement (TA)

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET AF/TA], then press it. 3 Rotate the control dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it.

To store RDS stations with the AF and TA setting

You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement

Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)

When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [SET REGIONAL] in [GENERAL] to [SET REG-OFF] during FM reception (page 13).

This function does not work in the UK and some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

During FM reception, press a number button (1 to 6) on which a local station is stored.

Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Selecting program types (PTY)

1 Press PTY during FM reception. 2 Rotate the control dial until the desired program type appears, then press it.

The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Playback

Playing a Disc

1 Insert the disc (label side up).

Playback starts automatically.

Playing a USB Device

AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit.

Some digital media players or Android smartphones may require setting to MTP mode.

• e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed.

For details on the compatibility of your Android smartphone, visit the support site on the back cover.

• Playback of the following files is not supported. MP3/WMA/FLAC:

copyright-protected files - DRM (Digital Rights Management) files Multi-channel audio files

MP3/WMA:

• lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (page 13).

1 Connect a USB device to the USB port (page 8).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB].

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

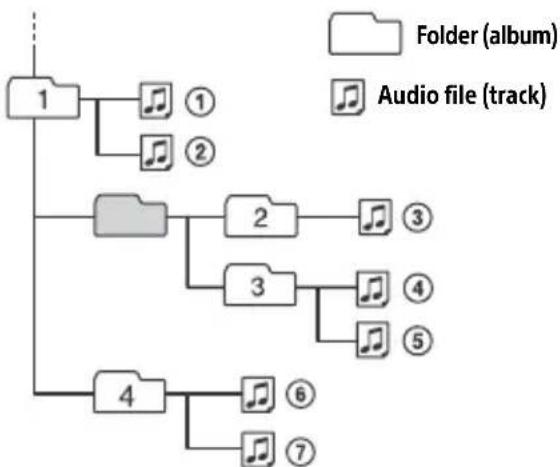

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (QuickBrowZerTM)

Not available when a USB device in Android mode is connected.

1 During CD or USB playback, press (browse) to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

• During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm. 3 Repeat step 2 to search the desired track.

Playback starts.

To exit the Quick-BrowZer mode

Press (browse).

Searching by skipping items (Jump mode)

Not available when a USB device in Android mode is connected.

1 During CD or USB playback, press (browse). 2 Press (SEEK +). 3 Rotate the control dial to select the item.

The list is jumped in steps of 10% of the total number of items.

4 Press ENTER to return to the QuickBrowZer mode.

The selected item appears.

5 Rotate the control dial to select the desired item, then press it.

Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET DEMO], then press it. 3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete. 4 Press (back) twice.

The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)

1 Press MENU. 2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings. 3 Rotate the control dial to select the options, then press it.

To return to the previous display

Press (back).

General Setup (GENERAL)

AREA (area) Specifies the area/region to use this unit: [EUROPE], [RUSSIA]. If the area/region currently set is changed, this unit is reset, then the clock is displayed. (Available only while the source is off and the clock is displayed.)

DEMO (demonstration) Activates the demonstration: [ON], [OFF].

CLOCK (clock) (page 7) Sets the clock: [AUTO], [MANUAL].

CAUTION ALARM (caution alarm) Activates the caution alarm: [ON], [OFF] (page 7). (Available only while the source is off and the clock is displayed.)

BEEP (beep) Activates the beep sound: [ON], [OFF].

AUTO OFF (auto off) Shuts off automatically after a certain time when the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second): [ON] (30 minutes), [OFF].

STEERING (steering) Registers/resets the setting of the steering wheel remote control. (Available only while the source is off and the clock is displayed.) STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use. CUSTOM (custom) Input mode for the steering wheel remote control PRESET (preset) Input mode for the wired remote control excluding the steering wheel remote control (Automatically selected when [RESET CUSTOM] is performed.) EDIT CUSTOM (edit custom) Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-) to the steering wheel remote control:

1 Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it. While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed.

3 To register other functions, repeat steps 1 and 2.

(Available only when [STR CONTROL] is set to [CUSTOM].)

RESET CUSTOM (reset custom)

Resets the registered functions of the steering wheel remote control: [YES], [NO].

(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting. If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE (USB mode)

Changes the USB mode: [ANDROID], [MSC/MTP].

(Available only when the USB source is selected.)

AF/TA (alternative frequencies/traffic announcement)

Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA-ON], [AF/TA-ON], [AF/TA-OFF].

(Available when any source is selected.)

REGIONAL (regional)

Restricts reception to a specific region: [ON], [OFF].

(Available only when FM is received.)

BTM (best tuning memory) (page 9)

(Available only when the tuner is selected.)

FIRMWARE (firmware)

(Available only while the source is off and the clock is displayed.)

Checks/updates the firmware version. For details, visit the support site on the back cover.

FW VERSION (firmware version)

Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO].

Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup (SOUND)

This setup menu is not available when the source is off and the clock is displayed.

EQ10 PRESET (EQ10 preset)

Selects an equalizer curve from 10

equalizer curves or off:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP],

[EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

The equalizer curve setting can be memorized for each source.

• [KARAOKE] reduces the vocal sound but cannot fully remove it during playback. Also, using a microphone is not supported.

EQ10 CUSTOM (EQ10 custom)

Sets [CUSTOM] of EQ10.

Setting the equalizer curve: [BAND1] -

[BAND10] (32 Hz, 63 Hz, 125 Hz, 250 Hz,

500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz).

The volume level is adjustable in 1 dB

steps, from -6 dB to +6 dB.

BALANCE (balance)

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER (fader)

Adjusts the relative level: [FRONT-15] -

[CENTER] - [REAR-15].

([ATT] is displayed at the lowest setting.)

Selects the subwoofer phase: [SUB NORM], [SUB REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency: [80Hz], [100Hz], [120Hz].

HPF FREQ (high pass filter frequency)

Selects the front/rear speaker cut-off

frequency: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume)

Adjusts the volume level for each connected auxiliary device:

[+18 dB] - [0 dB] - [-8 dB].

This setting negates the need to adjust the volume level between sources.

(Available only when the AUX is selected.)

Display Setup (DISPLAY)

DIMMER (dimmer)

Change the display brightness: [OFF], [ON], [CLK] (clock).

To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

• To set the brightness when the dimmer function is activated:

Set [DIMMER] to [ON], then adjust [BRIGHTNESS].

• To set the brightness when the dimmer function is deactivated:

Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS (brightness)

Adjusts the display brightness. The brightness level is adjustable: [1] - [10].

SND SYNC (sound synchronization)

Activates the synchronization of the illumination with the sound: [ON], [OFF].

Not available when no source is selected and the clock is displayed.)

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF].

(Not available when the AUX or tuner is selected.)

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Note

During the update, do not remove the USB device.

Precautions

• Do not leave the front panel or audio devices on the dashboard.
• When the unit is turned on, the power antenna (aerial) extends automatically.
• Do not splash liquid onto the unit.

Moisture condensation

Do not splash liquid onto the discs. When moisture condensation occurs inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

• Discs that this unit CANNOT play
• Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
• Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit. -8cm (1B4in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.
• Discs that this unit CANNOT play
• CD-R/CD-RW of poor recording quality.
• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.
• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

Playback order of audio files

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Cleaning the connectors

Avoid touching the connectors directly. The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Note

For safety, do not remove the front panel while driving.

Specifications

Tuner section

FM

Tuning range:

When [AREA] is set to [EUROPE]:

87.5 MHz - 108.0 MHz

When [AREA] is set to [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (at 50 kHz step)

FM3: 65 MHz - 74 MHz (at 30 kHz step)

Usable sensitivity: 7 dBf

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

MW/LW

Tuning range:

531 kHz - 1,602 kHz (MW),

153 kHz - 279 kHz (LW)

Sensitivity: MW: 26 µV, LW: 50 µV

CD Player section

Signal-to-noise ratio: 95 dB

Frequency response: 20 Hz - 20,000 Hz

Maximum number*1 of:

Folders (albums)*2: 150

Files (tracks) and folders*3: 300

Displayable characters for a folder/file name:

32 (Joliet)/64 (Romeo)

Corresponding codec: MP3 (.mp3), WMA

(.wma)

1 CD-R/CD-RW only 2 including the root folder *3 may be less than the measured value if folder/file names contain many characters

USB Player section

Interface: USB (Full speed)

Maximum current: 500 mA

Maximum number of recognizable folders and files:

Folders (albums): 256

Files (tracks) per folder: 256

Compatible Android Open Accessory

protocol (AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bit rate: 32 kbps - 192 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Supported file system: FAT16, FAT32

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4Ω - 8Ω

Maximum power output: 55W × 4 (at 4Ω)

General

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 50 mm × 176 mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

Mounting dimensions:

Approx. 182 mm × 53 mm × 159 mm

(7 1/4 in × 2 1/8 in × 6 3/8 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Android is a trademark of Google LLC.

libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 21). If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

The position of the fader control [FADER] is not set for a 2-speaker system. The volume of the unit and/or connected device is very low. - Increase the volume of the unit and connected device.

No beep sound.

An optional power amplifier is connected and you are not using the built-in amplifier.

Stored stations and correct time are erased.

The fuse has blown. Makes a noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.

• Set [DEMO-OFF] (page 12).

The display disappears from/does not appear in the display window.

The connectors are dirty (page 16).

The display/illumination flashes.

The power supply is not sufficient.

• Check that the car battery supplies enough power to the unit. (The power requirement is 12 VDC.)

The operation buttons do not function. The disc will not eject.

The connection is not correct.

• Press DSPL and EQ for more than

2 seconds to reset the unit.

The contents stored in memory are erased.

The clock set automatically is not accurate.

The clock data on radio waves is not accurate.

• Set the clock manually (page 7).

Radio reception

The radio reception is poor.

Static noise occurs.

Connect the antenna (aerial) firmly.

65 MHz to 74 MHz in FM3 cannot be tuned in.

[AREA] is set to [EUROPE].

• Set [AREA] to [RUSSIA] (page 12).

RDS

RDS services cannot be received (when [AREA] is set to [RUSSIA]).

FM3 is selected. - Select FM1 or FM2. - RDS services are unavailable in the current region.

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal.

• Deactivate TA (page 9).

No traffic announcements.

Activate TA (page 9). The station does not broadcast any traffic announcements despite being TP.

• Tune in another station.

PTY displays [- - - - -]

The current station is not an RDS station, or the radio reception is poor.

Program service name flashes.

There is no alternative frequency for the current station.

• Press ↓↓/↑↑ (SEEK -/+) while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

CD playback

The disc does not play.

Defective or dirty disc. The CD-R/CD-RW is not for audio use (page 15).

MP3/WMA files cannot be played.

The disc is incompatible with the MP3/WMA format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA files take longer to play than others.

The following discs take a longer time to start playback.

• A disc recorded with a complicated tree structure.
• A disc recorded in Multi Session.
• A disc to which data can be added.

USB device playback

A USB device takes longer to play.

The USB device contains files with a complicated tree structure.

The audio file cannot be played.

For details on supported formats, see "Specifications" (page 16). If the audio file still cannot be played, refer to the operating instructions supplied with the USB device, or contact the manufacturer of the USB device.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name (QuickBrowZer) cannot be performed.

Set [USB MODE] to [MSC/MTP] (page 13).

The sound cannot be output during playback in Android mode.

Check the status of the audio playback application on the Android smartphone.

Messages

The following messages may appear or flash during operation.

INVALID: The selected operation could be invalid.

READ

Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

(underscore): The character cannot be displayed.

For CD playback:

CD ERROR

Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO DISC

Insert a disc containing playable files (page 16).

CD NO MUSIC

Insert a disc containing playable files (page 16). CD PUSH EJT: The disc could not be ejected properly. Press the eject button.

L L L or : The beginning or the end of the disc has been reached.

For USB device playback:

HUB NO SUPRT: USB hubs are not supported.

NOT SUPPORT ANDROID MODE

A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID]. - Set [USB MODE] to [MSC/MTP] (page 13).

USB ERROR

Connect the USB device again.

USB NO DEV

Make sure the USB device or USB cable is securely connected.

USB NO MUSIC

Connect a USB device containing playable files (page 16).

USB NO SUPRT

For details on the compatibility of your USB device, visit the support site on the back cover.

USB OVERLOAD: The USB device is overloaded.

Disconnect the USB device, then press SRC to select another source. The USB device has a fault, or an unsupported device is connected.

For RDS operation:

NO AF: No alternative frequencies.

Press [144 / 10] (SEEK- / +) while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears).

NO PI: No program identification. The selected station has no PI (program identification) data.

Select another station.

NO TP: No traffic programs. The unit will continue searching for available TP stations.

For steering wheel remote control operation:

ERROR

Register again from the function where the error occurred (page 12).

TIMEOUT

Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 12).

For firmware update operation:

FILE ERROR: The updater is not stored in the USB device. Store the updater in the USB device, then try again (page 15).

UPDATE ERROR PRESS ENTER: Firmware update is not completed properly.

Press ENTER to clear the message, then try again. During the update, do not turn the ignition to the OFF position, nor remove the USB device (page 15).

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of device playback trouble, bring the device that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead ⑥ to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 30 degrees.

Parts List for Installation

① (2)

(3) (4)

(5)

(6)

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see "Removing the protection collar and the bracket" (page 24).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

Connection

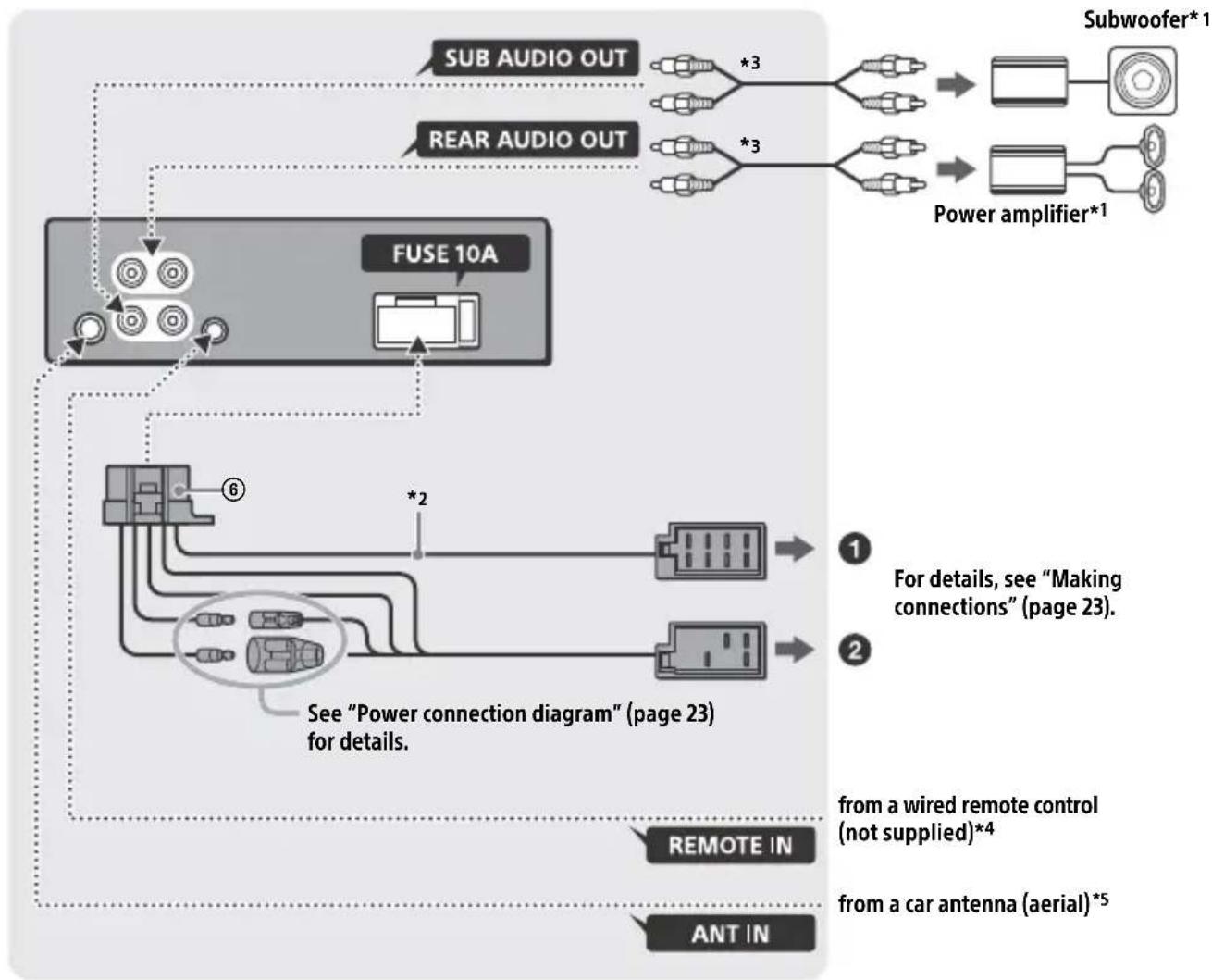

1 Not supplied 2 Speaker impedance: 4Ω - 8Ω × 4 3 RCA pin cord (not supplied) 4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 24). *5 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ⑥ may damage the antenna (aerial).

To the car's speaker connector

1	Rear speaker (right)	⊕	Purple
2			Purple/black striped
3	Front speaker (right)	⊕	Gray
4			Gray/black striped
5	Front speaker (left)	⊕	White
6			White/black striped
7	Rear speaker (left)	⊕	Green
8			Green/black striped

To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) / power amplifier control (REM OUT)	Blue/white striped
15	switched power supply	Red
16	ground (earth) Black

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker lead.

Notes

• Preparation of the rear speaker leads is required.
• Use a subwoofer with an impedance of 4Ω to 8Ω and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

Before connecting the speakers, turn the unit off. Use speakers with an impedance of 4Ω to 8Ω, and with adequate power handling capacities to avoid damage.

Power connection diagram

Check your car's auxiliary power connector, and match the connections of leads correctly depending on the car.

Auxiliary power connector

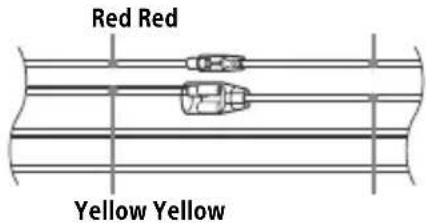

Common connection

12	continuous power supply	Yellow
15	switched power supply Red

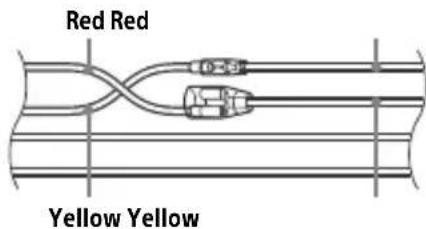

When the positions of the red and yellow leads are inverted

12	switched power supply	Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 12).

Installation

Removing the protection collar and the bracket

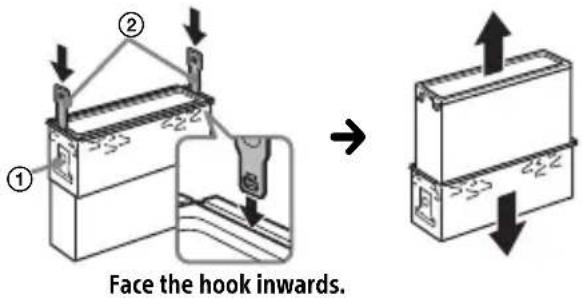

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③ then pull it out.

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Mounting the unit in the dashboard

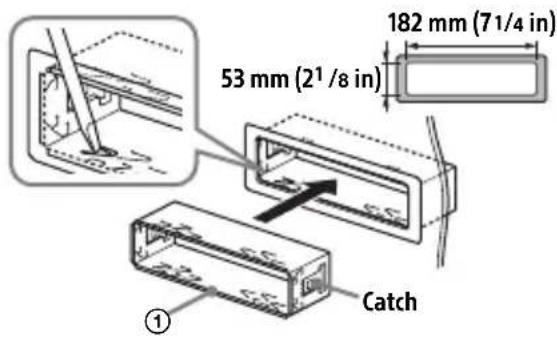

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (3/32 in).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

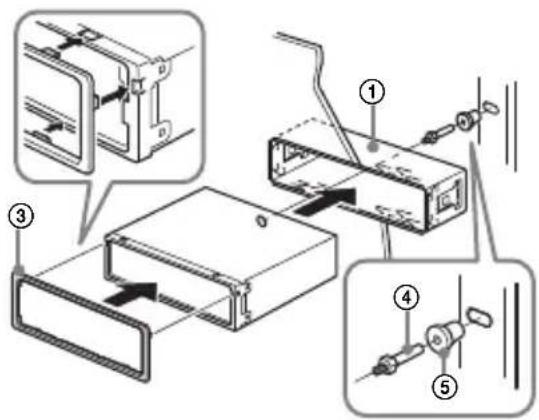

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Make sure the 4 catches on the protection collar are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 7).

Resetting the unit

For details, see "Resetting the Unit" (page 7).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power

connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

FW VERSION (Firmware version)

Connection/Installation

Caution 23

Playback starts.

DEMO (demonstration)

Allows you to activate the demonstration: [ON], [OFF].

CLOCK (Clock) (page 7)

EDIT CUSTOM (edit custom)

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

[BAND1] - [BAND10] (32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz).

Connection/Installation

Caution

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

(32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz).

Interface: USB (Full speed)

Maximum current: 500 mA

Folders (albums): 256

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

EDIT CUSTOM (custom editor)

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

[BAND1] - [BAND10] (32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz).

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

3TOT product meets Class 1 laser safety requirements in accordance with IEC/EN 60825-1:2007 and IEC/EN 60825-1:2014.

Radiation duration: continuous. Laser power: less than 55.8 mW. Wavelength: 775 nm - 800 nm.

The label with the operating voltage and other characteristics is located on the bottom of the housing.

The CE marking is valid only in those countries where it is required at the legislative level. Basically, this is the European Economic Area.

The date of manufacture is indicated on the product and also on the packaging in the following format:

MM.YYYY, where MM is the month and YYYY is the year of manufacture.

Car audio system with FM/MW/LW radio reception.

Storage information

Authorized representative in Ukraine for compliance with technical regulations: LLC "Sony Ukraine", st. Ilyinskaya, 8, Kyiv, 04070, Ukraine.

Storage conditions

The product should be stored in its original packaging in dark, dry, clean, well-ventilated areas, isolated from places where acids and alkalis are stored.

Storage temperature: from -20 to +60 °C. Relative storage humidity: 80% or less, without condensation.

Operating temperature: from 0 to 40 °C. Operating relative humidity: 40-60%.

Shelf life is not established.

Disposal

Electrical and electronic equipment (Directive applies in EU countries and other countries where separate collection systems are in place)

Warning: When the engine is switched off, the device may remain in the ON position.

Make sure the AUTO OFF function is set (p.14). The device will turn off completely automatically after a set time when the device is turned on and the display is shown (for example, when the OFF button is pressed and held for 1 second). This prevents battery drain. If the AUTO OFF function is not set, each time you turn off the engine, press and hold OFF until the screen goes dark.

Sony is not responsible for services provided by third-party suppliers.

Services provided by third-party suppliers may be changed, suspended, or terminated without prior notice. Sony is not responsible for situations of this kind.

Importer on the territory of the Customs Union countries: "Sony Electronics", Russia, 123103, Moscow, Karamyshevsky proezd, 6

Organization authorized to accept consumer claims on the territory of Kazakhstan: "Sony Electronics" Representative Office in Kazakhstan, 050010, Republic of Kazakhstan, Almaty, Dostyk Avenue, building 117/7

Kazakhstan Zhergіlіktі tutynushylardyn talaptaryn kabyldauғa uakılettі organ: «Sony Electronics» AK Kazakhstan dagy okіldіgі, 050010, Kazakhstan Respublikasy, Almaty k., Dostyk dangyly, 117/7 uy

Table of Contents

Parts and Controls Guide .5

Getting Started

Chapter 7

Device reset 7

Setting the clock 8

Checking the battery voltage 8

Connecting the USB device 8

Connecting another portable audio device 9

Listening to the radio

Listening to the radio 9

Radio Data Systems (RDS) 10

Playback

Playing a disc 11

Playing a USB device 11

Searching and playing tracks 12

Parameters

Canceling DEMO mode 13

Basic settings for parameters 13

Setting general parameters (GENERAL) 14

Sound settings (SOUND) 15

Display settings (DISPLAY) 16

To stop playback

Press and hold the OFF button for about 1 second.

Playback in the selected mode may not start immediately.

Available playback modes depend on the selected audio source.

Searching for tracks by name (Quick-BrowZer™)

Not available if the USB device is turned off or Android is in use.

1 During CD or USB playback, press the (BROWSE)* button to display the search category list. When the track list appears, press the BACK button until the search category is displayed. *During USB playback, press and hold the (BROWSE) button for more than 2 seconds to return directly to the beginning of the category list. 2 Turn the rotary knob to select the desired search category, then press the rotary knob to confirm. 3 Repeat step 2 to find the desired track. Playback will start.

1 Press the MENU button. 2 Turn the rotary knob to select the setting category, then press the rotary knob. The adjustable items vary depending on the source and parameters. 3 Turn the rotary knob to select the parameter, then press the rotary knob.

CLOCK (clock) (p. 8)

Setting the clock: [AUTO], [MANUAL].

CAUT ALM (caution alarm sound)

Setting of the warning beep signal: [ON], [OFF] (p.7).

(Available only when the power is off and the clock is displayed.)

BEEP (beep signal)

Activation of the beep signal: [ON], [OFF].

AUTO OFF (automatic power off)

Automatic power off after a specified time when the unit is off and the clock is displayed (press the OFF button and hold it for about 1 second): [ON] (30 minutes), [OFF].

STEERING (steering wheel)

Registration/change of the steering wheel remote control settings

(Available only when the power is off and the clock is displayed.)

STR CONTROL (steering wheel remote control)

Select the input mode for the connected steering wheel remote control.

To avoid malfunctions, select the appropriate input mode for the connected remote control before use.

of the steering wheel remote control.

CUSTOM (custom)

Input mode for the steering wheel remote control.

PRESET (standards)

Input mode for wired test except for the test of the installation control

Remote control test (selected automatically when [RESET CUSTOM] is performed).

EDIT CUSTOM (custom mode setting)

Function registration (SOURCE, ATT, VOL + / - , SEEK + / - ) for the remote control

[OFF], [R&B], [ROCK], [POP], [HIP-HOP],

[EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

The selected equalizer curve for each source can be stored in memory.

*When [KARAOKE] is selected, the vocal sound during playback is attenuated, but not completely eliminated. The use of a microphone is not supported.

EQ10 CUSTOM (custom equalizer settings EQ10) Selection of the [CUSTOM] option for EQ10. Setting the equalizer curve: [BAND1]-[BAND10] (32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz). The volume level is adjustable in the range from -6 dB to +6 dB in 1 dB steps.

BALANCE (balance) Adjustment of the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER (signal distribution) Adjustment of the relative level: [FRONT-15] - [CENTER] - [REAR-15].

S.WOOFER (subwoofer) SW LEVEL (subwoofer level) Adjustment of the subwoofer volume level: [+6 dB] - [0 dB] - [-6 dB]. ([ATT] is displayed if the minimum value is set.) SW PHASE (subwoofer phase) Selection of the subwoofer phase: [SUB NORM], [SUB REV]. LPF FREQ (low-pass filter frequency) Selection of the subwoofer filter frequency: [80Hz], [100Hz], [120Hz].

HPF FREQ (high-pass filter frequency) Selection of the cutoff frequency for the front/rear speakers: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume level) Adjustment of the volume level for each connected auxiliary device: [+18dB] - [0 dB] - [-8 dB]. This setting eliminates the need to adjust the volume for different sources. (Available only when the AUX source is selected.)

Display settings (DISPLAY)

DIMMER (backlight adjustment) Change display brightness: [OFF], [ON], [CLK] (clock). To make this function active only for a certain time, select [CLK], then set the start and end times. - To set brightness when the backlight control function is on: set [DIMMER] to [ON] and adjust [BRIGHTNESS]. - To set brightness when the backlight control function is off: set [DIMMER] to [OFF] and adjust [BRIGHTNESS]. The brightness setting is saved and applied when the backlight control function is turned on or off.

If the malfunction cannot be resolved following this instruction, contact your nearest authorized Sony service center.

Copyright

Windows Media is a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product without a license from Microsoft or an authorized Microsoft subsidiary is prohibited.

Android is a trademark of Google LLC.

libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.Org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The troubleshooting table below will help eliminate most problems that may arise during operation of the device. Before reviewing the table, refer to the section on connection and operation of the device. For additional information on using the fuse and removing the device from the instrument panel, see "Installation/Connection" (p.25). If the malfunction cannot be eliminated, visit the support website indicated on the back cover.

Troubleshooting

No sound is heard.

→ The signal distribution regulator [FADER] is not set for a system with 2 speakers. → The volume level of this device or the connected device is very low. - Increase the volume of this device and the connected device.

No audio signal is heard.

→ An external power amplifier is connected, and the built-in one is not used.

The programmed radio stations and time settings have been deleted from memory. The fuse has blown. A sound is heard when switching the ignition key position.

→ The wires are not correctly connected to the power connector of the vehicle's auxiliary equipment.

During playback, the demonstration starts.

→ If, with the demonstration mode [DEMO-ON] turned on, no operations are performed for 5 minutes, the demonstration starts. - Set the value to [DEMO-OFF] (p.14).

The display/indicator disappears in the display window.

→ The contacts are dirty (p.18).

The display/indicator flickers.

Insufficient power supply. - Make sure that the device receives sufficient power from the car battery. (Power supply requirement: 12V DC.)

The control buttons do not work. The disc is not ejected.

Temporary connection. - Press and hold the DN SPL and EQ buttons for more than 2 seconds to reset the device. The memory contents will be deleted.

The automatic time setting was inaccurate.

Road messages are not transmitted.

→ Turn on TA (p. 10). → The station does not transmit road messages, although it is of type TP. - Tune to another station.

When the PTY function is turned on, the [---] indicator is displayed.

The current station is weak, and the number of preset stations is insufficient.

The name of the program service is displayed.

→ For the selected data, the station is not using the alternative frequency.

• Press the /I (SEEK -/+) button until the name of the program service appears. The [PI SEEK] indicator appears, and the device searches for another station with the same PI (program identification) data.

CD playback

The compact disc does not play.

→ The disc is scratched or dirty. → CD-R/CD-RW discs are not intended for audio playback (p. 18).

MP3/WMA files cannot be played.

→ The disc is not compatible with the MP3/WMA format and version. For detailed information on playable discs and formats, visit the website whose address is indicated on the back cover.

An audio file cannot be played.

→ For information on supported formats, see the "Technical Specifications" section (p. 19). If audio cannot be played as before, see the operating instructions supplied with the USB device, or contact the manufacturer of this USB device.

Cannot perform album skip, element skip (transition mode), or search by name (QuickBrowZer).

→ For the [USB MODE] parameter, set the value to MSC/MTP.

In Android mode, audio from the device is not played.

→ Restart the application for playing audio on an Android smartphone.

Messages

During operation, the device may display or receive the following messages.

INVALID: The selected operation may not be supported.

READ

→ Wait for reading to complete. Playback will start automatically. This may take some time depending on the file structure.

(Underlined): Cannot display symbol.

CD playback:

CD ERROR

→ Correctly insert the disc, or make sure the disc is not empty or damaged.

CD NO DISC

Insert a disc with playable files (p. 19).

CD NO MUSIC

Insert a disc with playable files (p. 19).

CD PUSH EJECT: Could not eject the disc correctly. → Press the button (eject).

Pull the disc toward the end.

USB device playback:

HUB NO SUPRT: USB hubs are not supported.

NOT SUPPORT ANDROID MODE

→ A USB device that does not support the AOA (Android Open Accessory) protocol 2.0 is connected when the [USB MODE] parameter is set to [ANDROID]. - Set the [USB MODE] parameter to [MSC/MTP] (p. 15).

USB ERROR

Reconnect the USB device.

USB NO DEV

→ Make sure the USB device or USB cable is securely connected.

USB NO MUSIC

→ Connect a USB device with playable files (p. 19).

USB NO SUPRT

If you have any questions about USB device compatibility, please visit the support website listed on the back cover.

USB OVERLOAD: The USB device is overloaded.

Disconnect the USB device, then press the SRC button or select another source. The USB device is damaged, or an unsupported device is connected.

RDS operation:

NO AF: No alternative frequencies. Press the I/（SEEK-/+） button until the program service name appears. The device starts searching for frequencies with the same PI (program identification) data (PI SEEK indicator appears).

NO PI: No program identification. The selected station has no PI data (program identification). Select another station.

NO TP: No traffic announcement. The device continues searching for stations broadcasting the TP program.

Precautions

Carefully choose the installation location to avoid interfering with driving. Do not install the device where it will be exposed to dust, dirt, excessive vibration, or high temperatures, such as in places exposed to direct sunlight or near heater vents. For reliable and safe installation, use the mounting parts included in the kit.

Note on the power supply wire (fuse)

When connecting this device together with other audio components, the nominal current value in the vehicle's power supply circuit must not exceed the total current value indicated on the fuses of all components.

Adjusting the installation angle

Adjust the installation angle so that it is less than 30 degrees.

List of parts for installation

①

②

(3)

(4)

⑤

(6)

B 3TOT cncOK BXOINT He BCE coJepeKmOe KOMnJIeKTA NOCTaBKn. -KpoHwTeH ① 3aUHTHaMaHKeTa ③ npKpeJIeHbI K yCTpOuCTBy DO NOCTaBKn. Ipeed yCTaHOBkoYCTPOINCTBa BOCNoJIb3yITecb KJIIOUaMn DnIaDemOHTaKa ② ，TO6bl OTcoEduHNbKPOHwTeH ① OT yCTpOInCTBa.DoONHInTeJbHbIE CBeJeHnA cm.B pa3dJe "OTcoeDInHeHne 3aUHTHOm MaHXKeTbN KPOHwTeHa" (cTp.29). -CoxpaHnte KJIIOU INI JIe MoHTaJa ② IINCPOJb3OBAHN B6yDyuSEm, NOCKoJIky OHI TaKKe NOTpe6yIOTc npN DeMOHTaKe aannapata n3 aBTOMO6nJI.

Поклоченье

1 He BXOДNT B KOMПЛЕКТ NOCTaВK. 2 Полhoe copotnbIeHne rpoMkorOBopuTeJe: 4 Ω - 8 Ω × 4 3 Ka6eNb c pa3bemAmu RCA (He BXoIIT B KOMNJIeK T NOCTaBkU). *4B 3aBnCmOCTn OT Tuna aBTOMo6nla, BO3MOxHO, NOTpe6yETcra NcNoJb3OBaTb aAnTeP dJa npOBoHoro pNtTa INCTaHnOHoro ynpabLeHnra (He BXoNT B KOMnKeT NoCTaBKn). IOnONHnTeIbHbIe CBeDeHnro O6 nCNoJb3OBaHn INpOBoHoro NylTa DInCTaHnOHoro ynpabLeHnra CM. B pa3dene "NcNoJb3OBaHne npOBoHoro NylTa DInCTaHnOHoro ynpabLeHnra" (ctp.28). 5 B 3aBncuMoCTn OT Tnna ABTomo6nla NcNoJIb3yIte aAnTep (He BXoJIT B KOMnJIeKT NocTaBKn), ecJI pa3bem paIIOaHTehHbI He NODxOJNT.

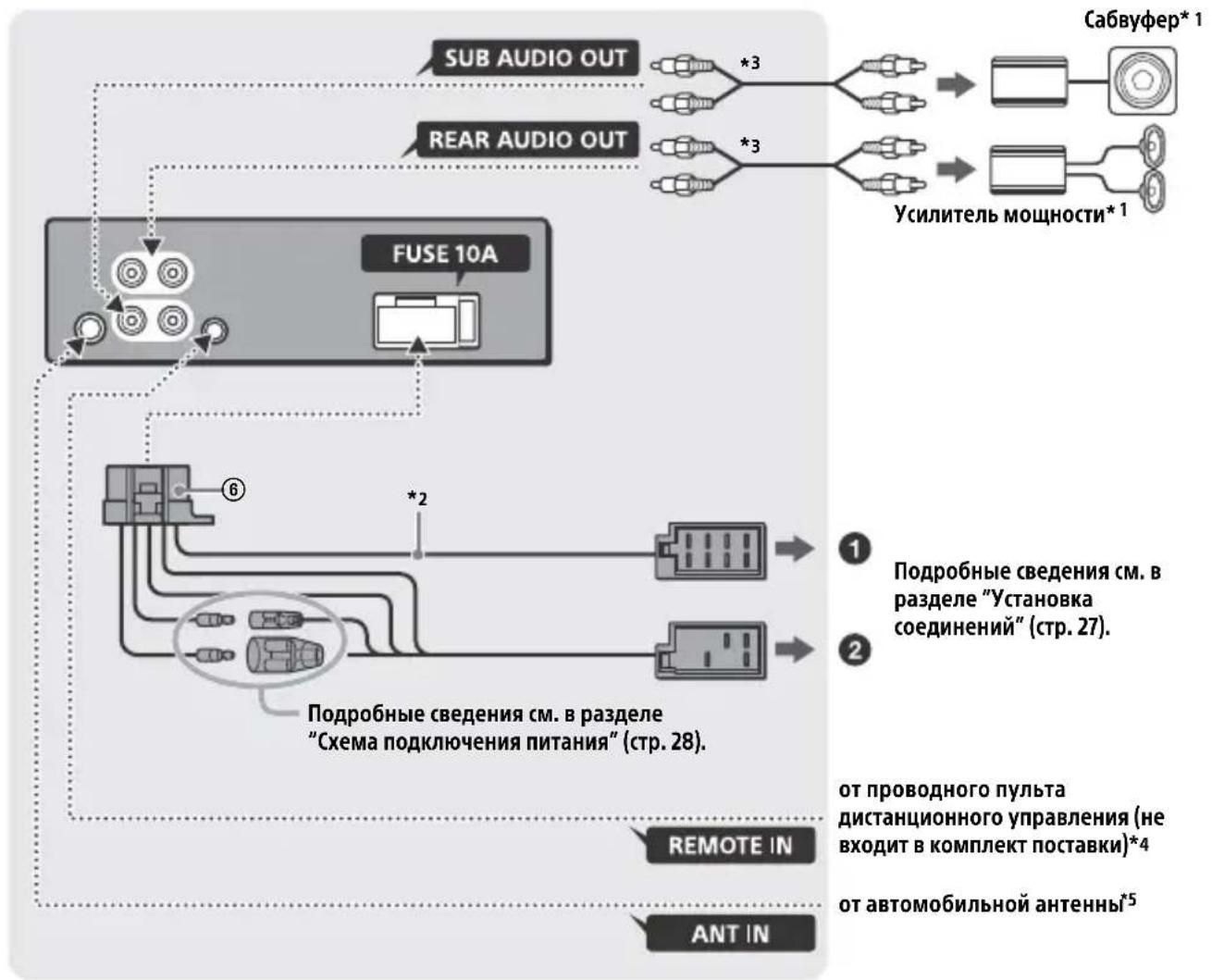

YcTaHOBka coeHHeHn

Ecnncnoj3yeTcBHeuHna aHTehHa C 3JeKtpoPnBODom6e3peJeHoro6loka, POnCoeDnHeHne3TOrOyCTPOICTBa C NOMOUsbIO npNlaRaEMoO nPoBOda NITaHnA ⑥ MOKeT npNBecTN K NOBpeXdEHnO aHTeHhbl.

Kpa3bemy rpOMKOROBOpTeJra aBTOMO6nla

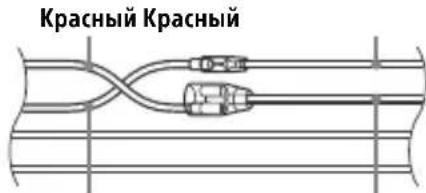

EcnKpaChbI N XeJIbI npoBoda nepeCTaBHeHbI MeCTaMn

XeIbI XeIbI

"Pepe3arpy3ka yctpoiCTBa" (ctp. 7).

Replacement

Fuse

Mandatory

Use only those

that correspond to

the current rating indicated on the

original

fuse (10 A)

Fuse. If the fuse

blows, check the connection

and replace the fuse.

If after replacement the fuse again

blows, this may indicate

a malfunction of the device. In this case

6paTncbK 6bnxkaWemy dInepey Sony.

Bulgarian

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

Croatian

Sony Corporation ovime izjavljuje da je ova oprema u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: http://www.compliance.sony.de/

Czech

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/

Estonian

If you have any questions or for the latest support information on this product, please visit the web site below:

Support site

Register your product online now at:

Support by Sony app - Find information and get notification about your product:

Smartphone app

https://sony.net/SBS
