Technical specifications	Combined refrigerator, energy class A+
Total capacity	350 liters
Dimensions	H 185 cm x W 60 cm x D 65 cm
Cooling system	Static cooling
Number of drawers	3 drawers in the freezer
Additional features	LED lighting, glass shelves, vegetable drawer
Usage	Temperature adjustment via a mechanical thermostat
Maintenance	Manual defrosting of the freezer recommended
Safety	Door lock, temperature alarm
General information	2-year warranty, annual energy consumption of 300 kWh

Frequently Asked Questions - DNE65020X BEKO

Why is my BEKO DNE65020X refrigerator not cooling properly?

Check if the thermostat is set to an appropriate temperature. Also ensure that the vents are not blocked and the doors close properly.

How do I defrost my BEKO DNE65020X refrigerator?

Unplug the appliance, empty it completely, and leave the door open to allow the frost to melt. Use a container to collect the defrost water.

What is the normal noise for a BEKO DNE65020X refrigerator?

Refrigerators can make normal operating noises such as a slight humming or clicking. If the noise is loud or unusual, it may indicate a problem.

How do I clean the inside of my BEKO DNE65020X refrigerator?

Use a mixture of warm water and baking soda to clean the interior. Avoid harsh chemicals that could damage surfaces.

Why is there condensation inside my BEKO DNE65020X refrigerator?

Condensation can be caused by a door not closing properly or ambient temperature being too high. Check the door seals and adjust the temperature if necessary.

How do I set the temperature of my BEKO DNE65020X refrigerator?

Use the control panel to adjust the desired temperature. The ideal temperature for the refrigerator is between 2b0C and 5b0C.

What should I do if my BEKO DNE65020X refrigerator does not turn on?

Check that the appliance is properly plugged in and the outlet is working. Also ensure that the circuit breaker has not tripped.

How do I extend the lifespan of my BEKO DNE65020X refrigerator?

Make sure to regularly clean the condenser coils, keep the door seals in good condition, and avoid overloading the appliance.

USER MANUAL DNE65020X BEKO

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

CONTENTS

1 The refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

For products with a water dispenser; .6

Child safety 6

HCA Warning 6

Things to be done for energy saving ..7

compartment 7

3 Installation 8

Points to be considered when re-transporting your refrigerator .....8

Electric connection 8

Disposing of the packaging .....9

Disposing of your old refrigerator .....9

Placing and Installation 9

Changing the door opening direction ....10

Adjusting the legs 10

Floor balance adjustment .....10

4 Preparation 11

5 Using your refrigerator 12

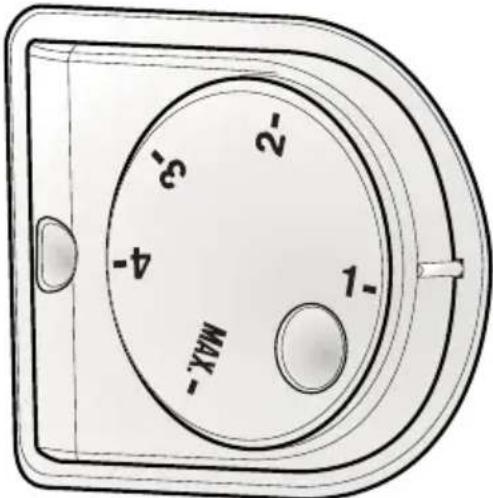

Temperature setting button .....12

Setting the temperature of your refrigerator 12

Dual cooling system ......12

Hygiene - Ion 13

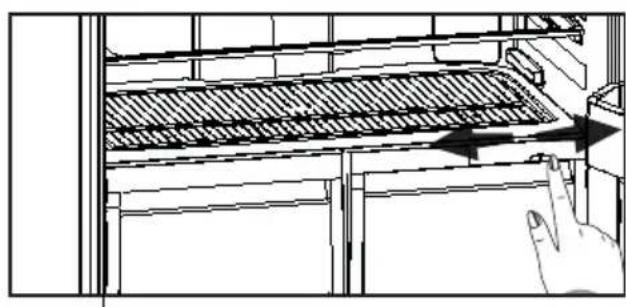

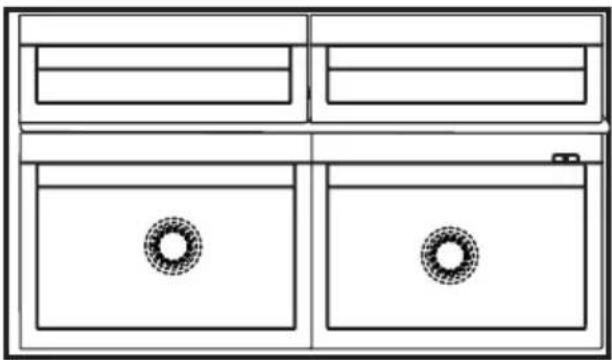

Humidity control in the crisper .....13

Chiller compartment ....14

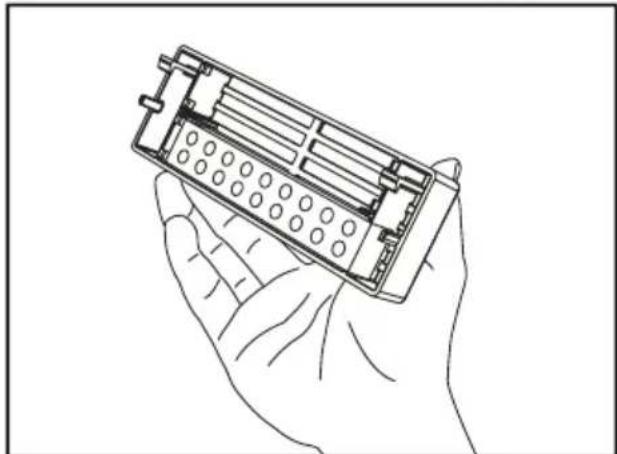

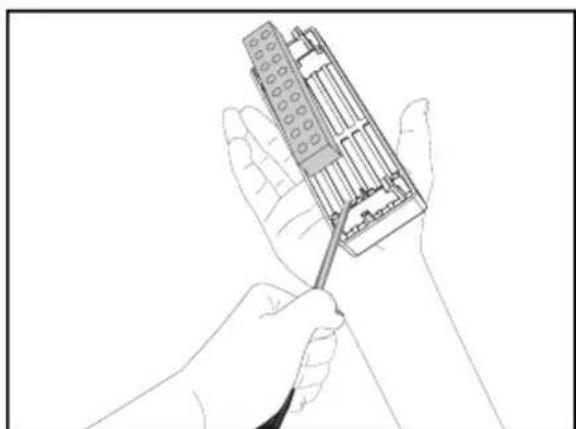

Description and cleaning of odor filter: 14

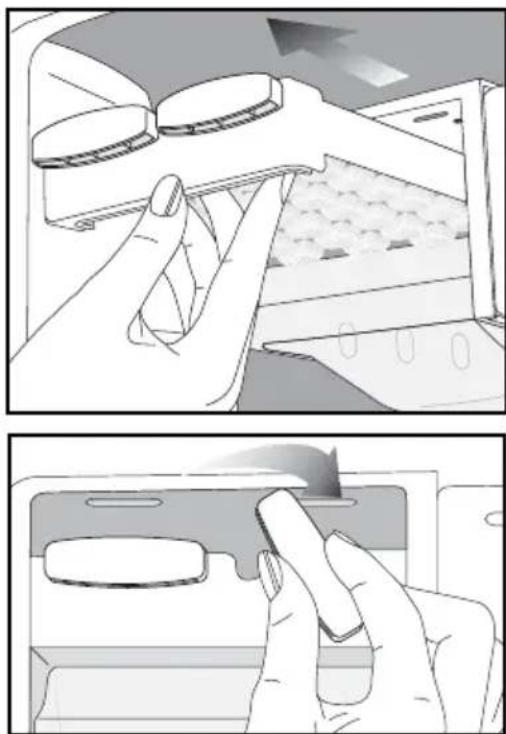

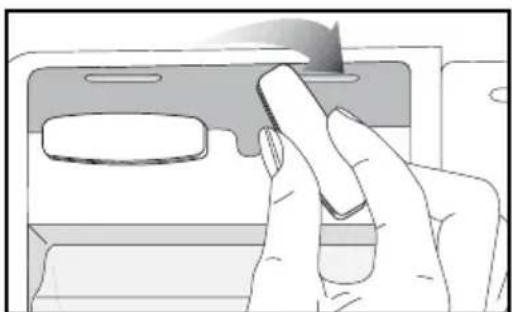

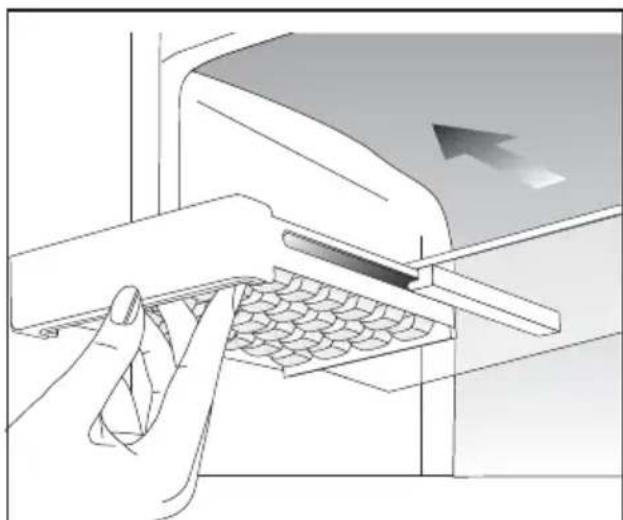

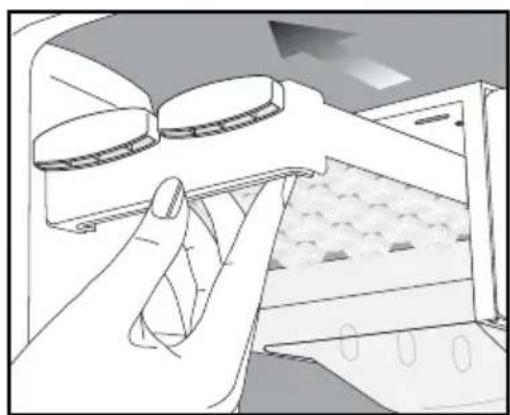

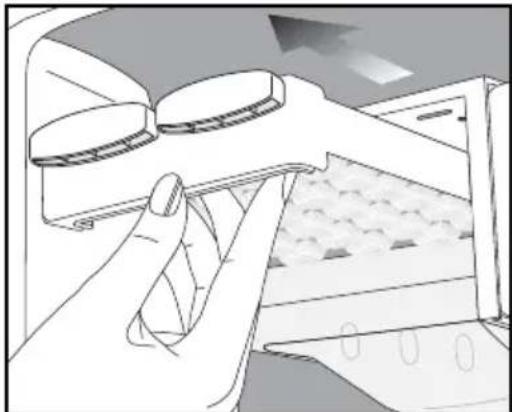

Icematic and ice storage container .15

Dual cooling system: 16

Freezing fresh food 16

frozen food 17

Placing the food 17

Deep-freeze information .....17

Changing the illumination lamp .....18

Water dispenser 19

6 Maintenance and cleaning 21

Protection of plastic surfaces .....21

7 Troubleshooting 22

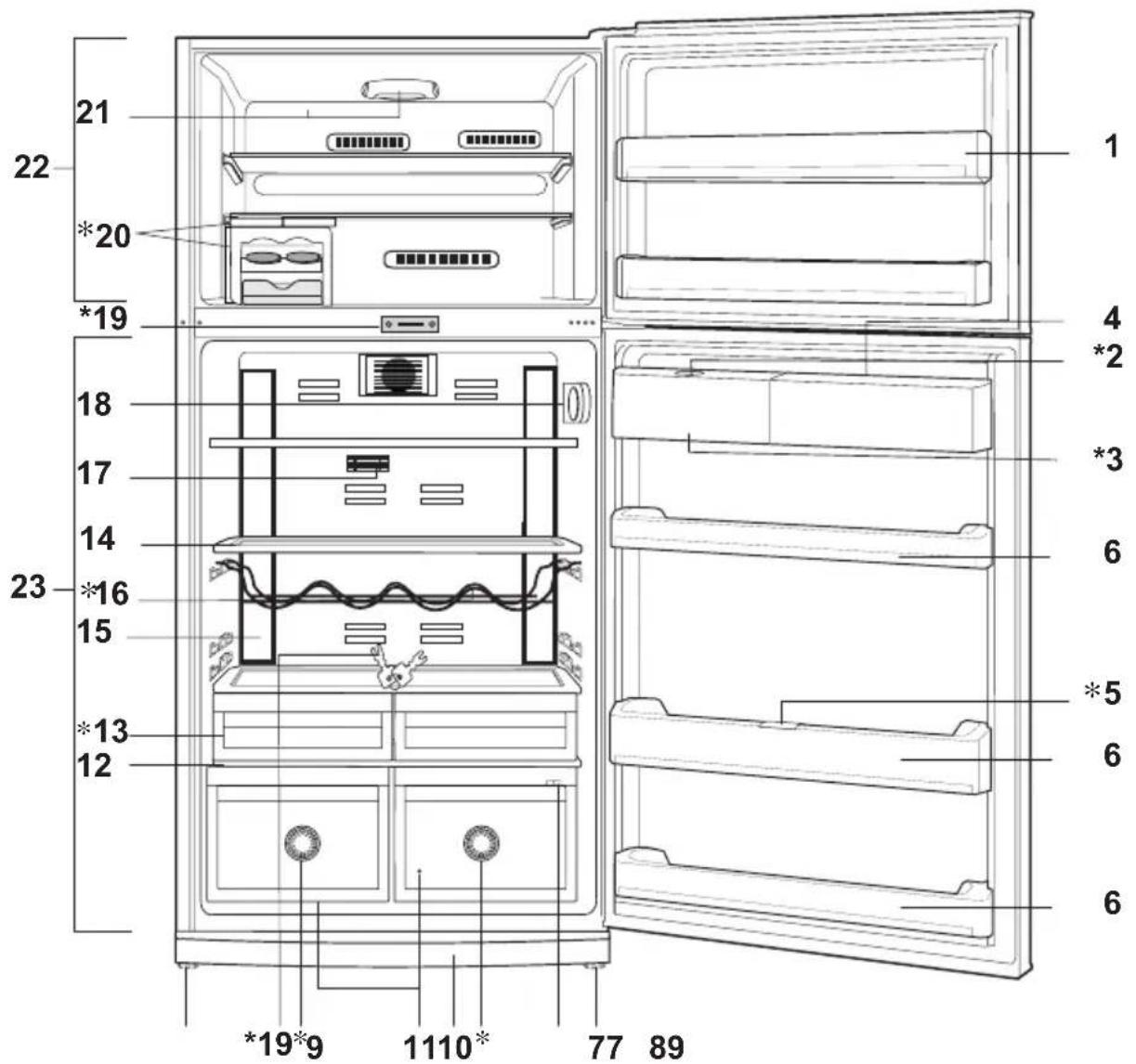

1 The refrigerator

1 21 22 *20 *19 4 *2 18 17 *3 14 23 *16 15 *13 12 *5 6 6 6 *19*9 1110* 77 89

1. Freezer compartment door shelves

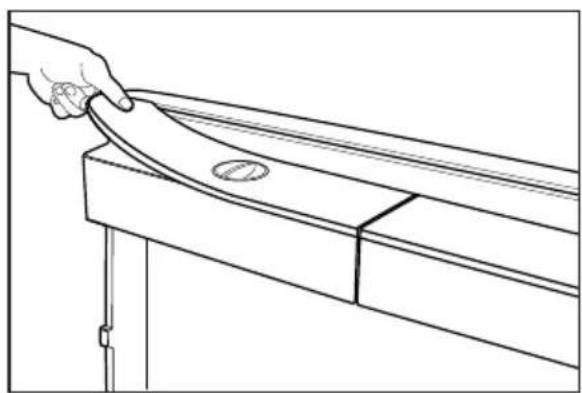

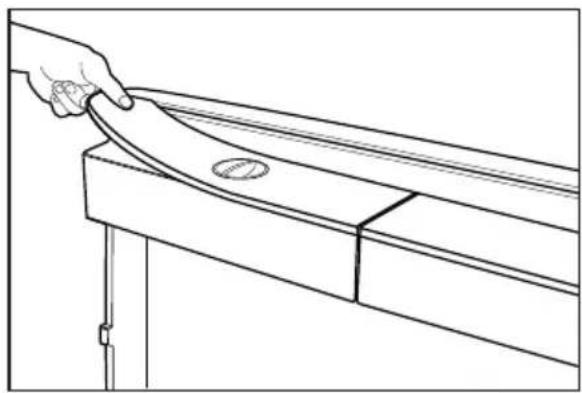

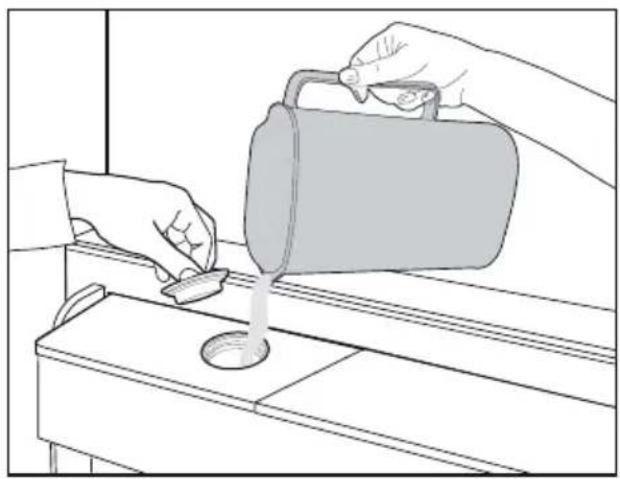

2. Water dispenser tank filler cap

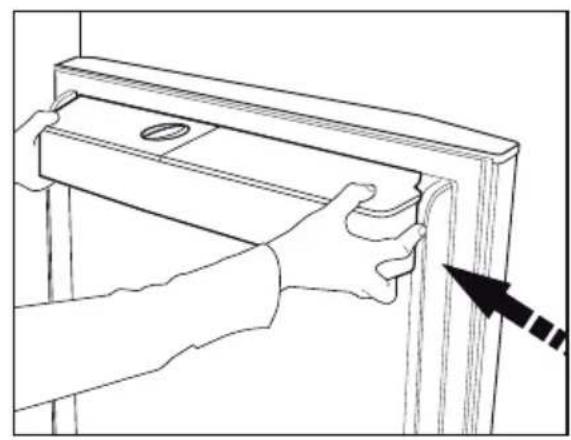

3. Water dispenser tank

4. Egg holder

5. Fridge compartment door shelves

6. Adjustable front legs

7. Crisper or chiller compartment adjustment slider

8. Ventilation lid

9. Crispers

10. Crisper cover

11. Chiller compartment

12. Fridge compartment glass shelves
13. Fridge compartment interior light
14. Wine rack
15. Odor filter (Carbon)

16. Fridge compartment temperature setting button

17. Icematic or Ice cube tray

18. Freezer compartment interior light
19. Freezer compartment
20. Fridge compartment

\* OPTIONAL

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information.

Failure to observe this information may cause injuries or material damage.

Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

• indoors and in closed areas such as homes;
  – in closed working environments such as stores and offices;
  – in closed accommodation areas such as farm houses, hotels, pensions.

outdoors.

General safety

product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

may stick to your hand.

or defrosting.

should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

such as the door as a means of support or step.

refrigerator.

refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

holes on your refrigerator with any material.

performed by incompetent persons create a risk for the user.

maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

the plug.

tightly closed and vertically.

flammable and explosive substances in the refrigerator.

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

Consult with the service agent if you have any concerns.

be guaranteed only if the earth system in your house complies with standards.

and wind is dangerous with respect to electrical safety.

is a power cable damage to avoid danger.

outlet during installation. Otherwise, risk of death or serious injury may arise.

storing food items. It must not be used for any other purpose.

located on the left wall inside the refrigerator.

electricity-saving systems; they may damage the refrigerator.

do not look at the blue light with optical tools.

wait for at least 5 minutes to start the refrigerator after power failure.

handed in to the new owner of the product when it is given to others.

when transporting the refrigerator.

place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

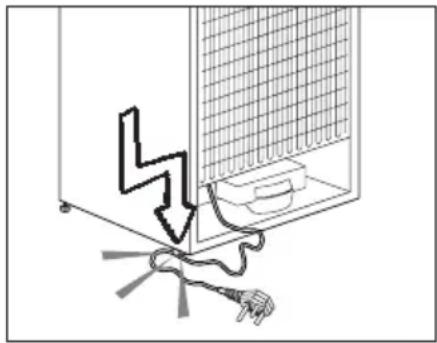

Diagram showing a device with a lightning bolt and plug, no text or symbols present

outlet is loose.

inner or outer parts of the product for safety purposes.

inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

on top of the refrigerator, otherwise this may cause electric shock or fire.

with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects

may fall down when you open or close the refrigerator's door.

vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

refrigerator should be unplugged. A possible problem in power cable may cause fire.

cleaned; otherwise, it may cause fire.

regularly with a dry cloth; otherwise, it may cause fire.

are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

hold it from door handle. Otherwise, it may be snapped.

next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

Child safety

kept away from reach of children.

them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

For products with a water dispenser;

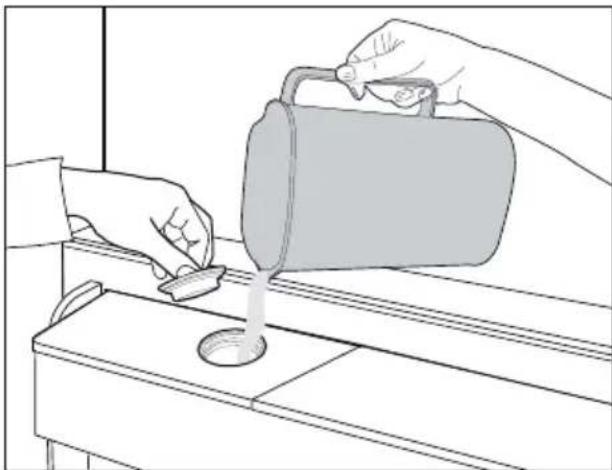

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

Things to be done for energy saving

refrigerator open for a long time.

refrigerator.

that the air circulation inside of it is not prevented.

direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

closed containers.

compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

compartment will both provide energy saving and preserve the food quality.

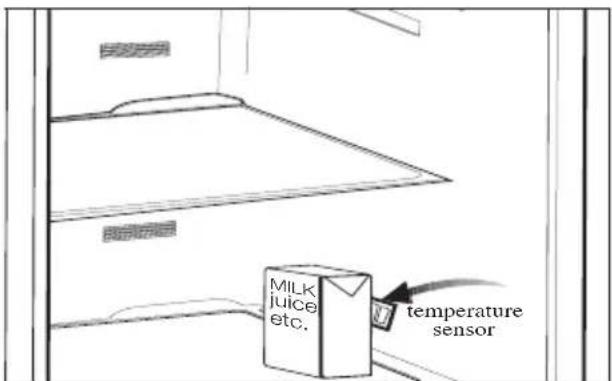

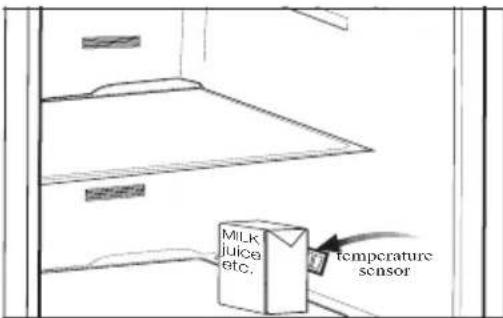

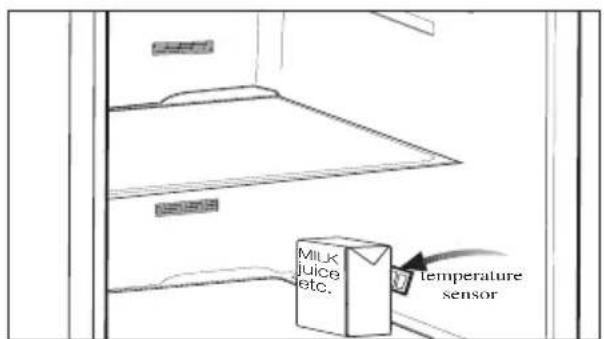

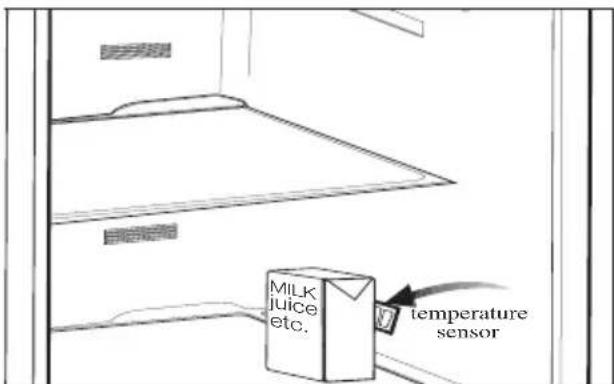

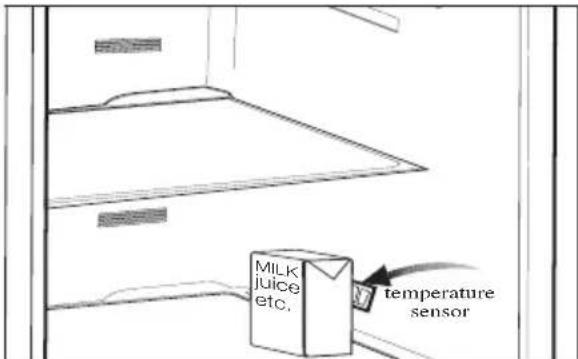

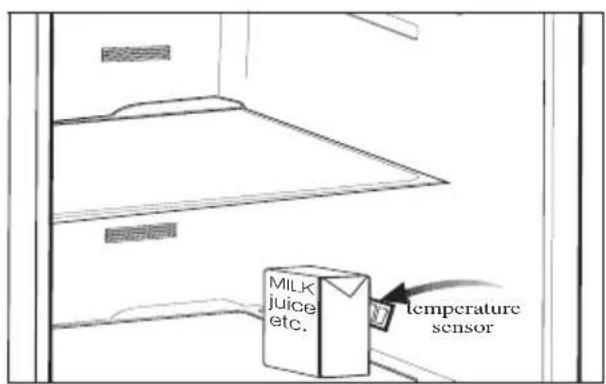

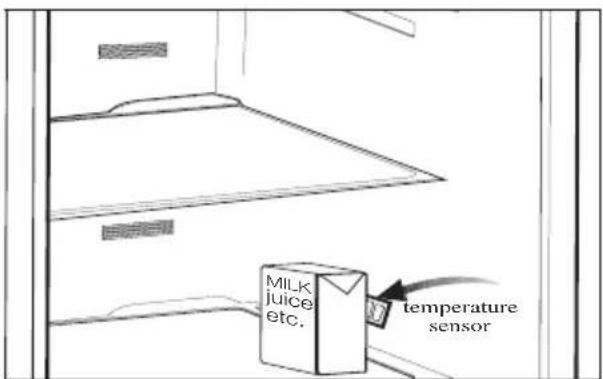

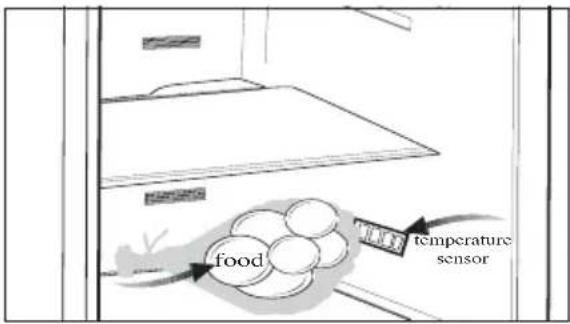

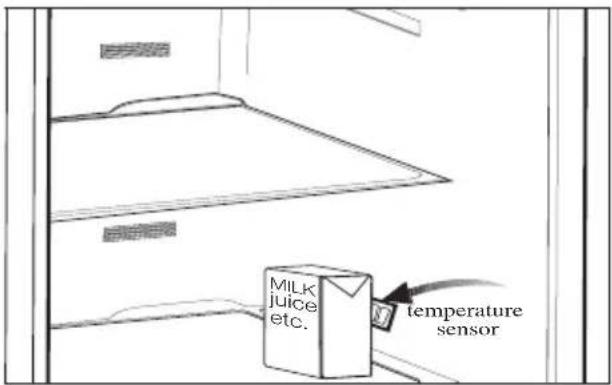

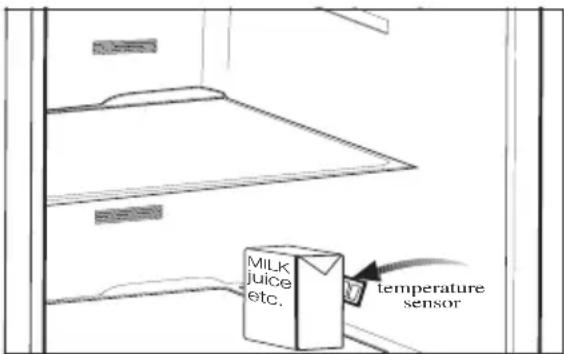

Reccomendations for freshfood compartment \* OPTIONAL

to contact with the temperature sensor in freshfood compartment. In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs.

appliance.

food temperature sensor

MILK JUICE etc. temperature sensor

3 Installation

⚠️Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.

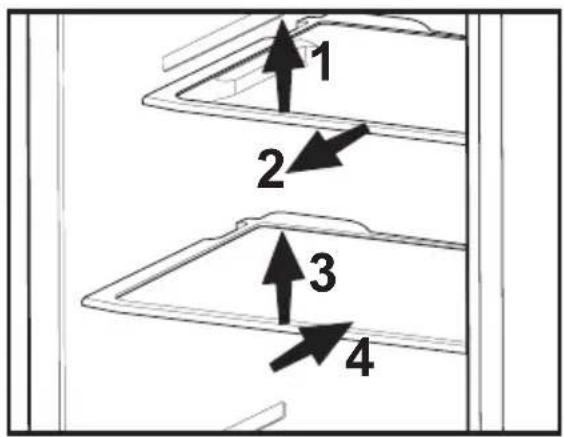

2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable4 source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities. 5

Before operating your refrigerator

check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

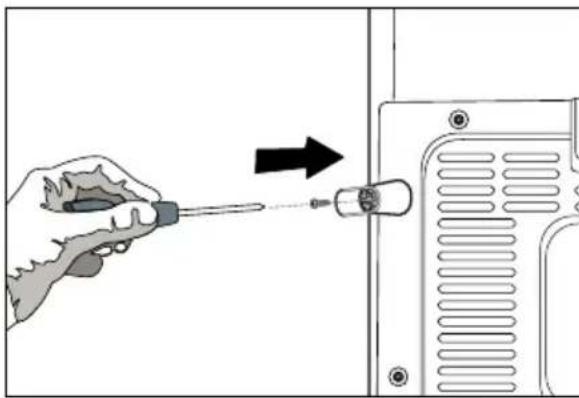

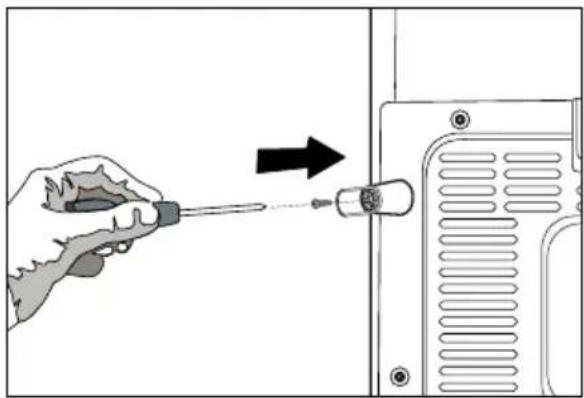

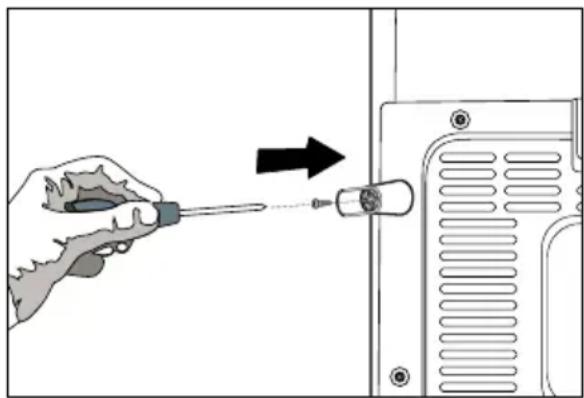

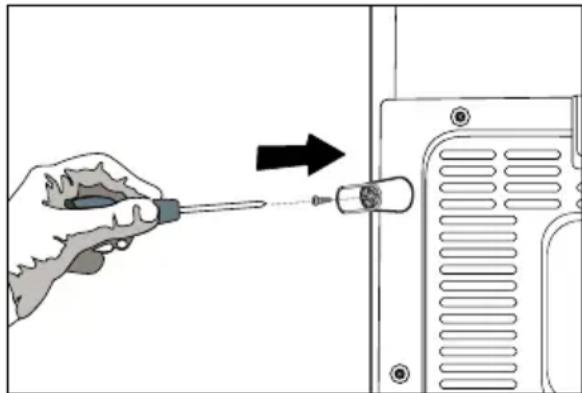

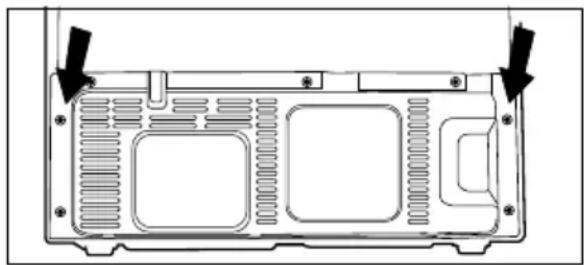

2. Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

1. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
2. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
3. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

with national regulations.

accessible after installation.

your mains voltage.

must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.
△Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be

packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste. The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

or waste collection center of your municipality about the disposal of your refrigerator.

out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
   sources, humid places and direct sunlight.
2. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.
3. Place your refrigerator on an even floor surface to prevent jolts.

Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.

Above description is a general expression. For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

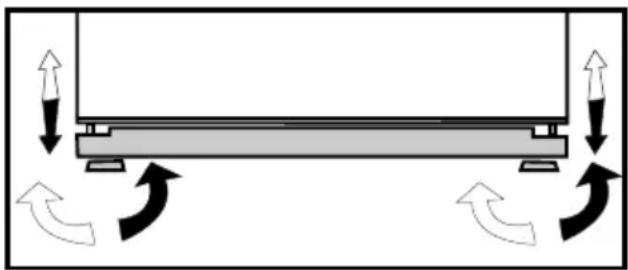

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Floor balance adjustment

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. (See Figure A) The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

4 1 2 3

Door height adjustment

In case there is a problem with the alignment of the doors with respect to each other, they may be aligned by ascension vertically in the order given below. Ensure that door shelves are empty when adjusting the door height.

unscrewing its screws as shown in the figure below.

4 Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
i If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in problems" section.
  i Original packaging and foam materials should be kept for future transportations or moving.

This appliance is designed to operate at temperatures specified in the table below is equipped with Advanced Electronic Temperature Control System [AETCS] which ensures that at the advised setting [4 - four on the knob] the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. When first

placed in low ambient temperatures because the freezer will not reduce to it's standard operating temperature. Once it has reached its steady operating state it can be re-located. So you may then install your appliance in a garage or an unheated room without having to worry about frozen food in the freezer being spoilt. However at low ambient temperatures mentioned above, fridge contents are likely to freeze, so check and consume food in the fridge accordingly. When the ambient temperature returns to normal, you may change the knob setting to suit your needs.

If the ambient temperature is below 0^ , the food in the fridge compartment will freeze. So, we recommend you don't use the fridge compartment in such low ambient conditions. You can continue using the freezer compartment as usual.

5 Using your refrigerator

MAX -1 4 3 2 -1

Temperature setting button

Temperature setting button allows you to make the temperature setting of your refrigerator.

Setting the temperature of your refrigerator

The overall temperature setting of your refrigerator is made by means of the temperature setting button on the right wall of the fridge compartment. This button has 5 different temperature setting position. Select the position suitable to your needs.

Dual cooling system

Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher then other refrigerators. Odours in the compartments do not get mixed. Also additional power saving is provided since the automatic defrosting is performed individually.

Hygiene - Ion

Hygiene+: The photocatalyst filter in the air channel of refrigerator helps to clean the air inside. Also this filter reduces bad smells.

Ion+: Ionizer, that is in the air channel of refrigerator, ionizers the air. With the help of this system airborne bacteria and bad smells originated from these bacteria will be reduced.

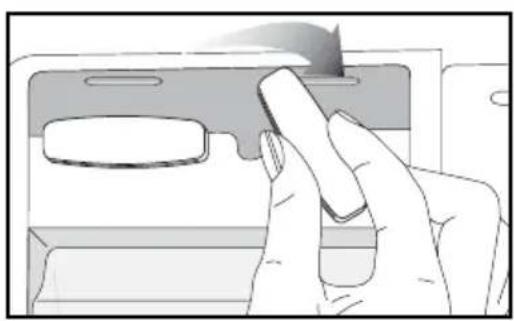

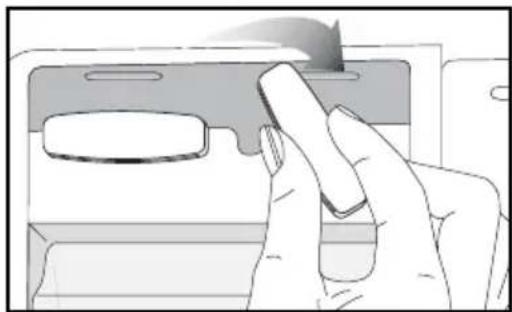

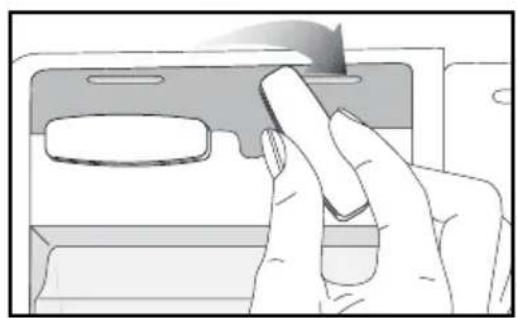

Humidity control in the crisper

Humidity level can be adjusted by sliding the humidity adjustment slider to the right or left.

this compartment, set the humidity adjustment slider to the closed position.

this compartment, set the humidity adjustment slider to the open position.

Technical line drawing of a door handle assembly with hand pointing to a component (no text or symbols)

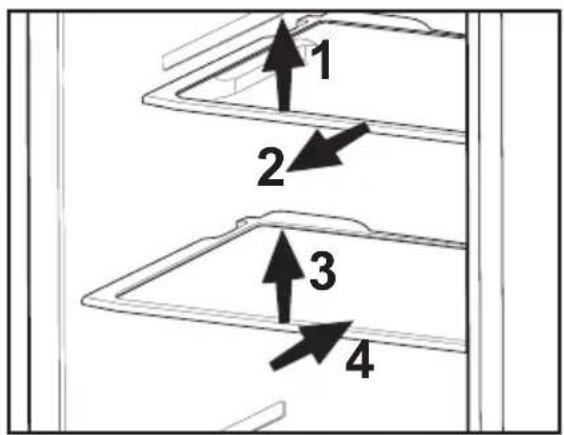

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

1 2 3 4

Blue light

(OPTIONAL)

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of a four-panel cabinet or drawer with two doors and one ring, no text or symbols present.

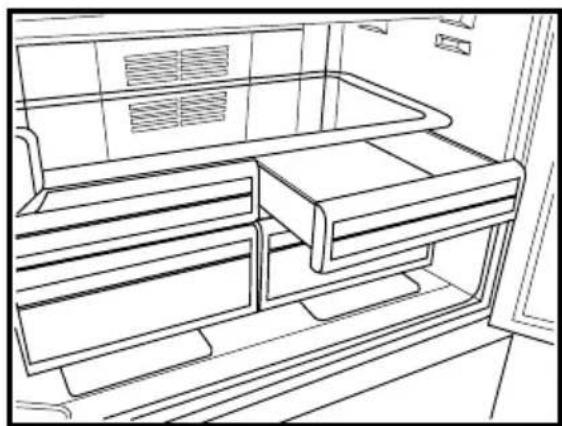

Chiller compartment

(OPTIONAL)

This compartment is used to keep frozen food that needs to be thawed slowly (such as meat and fish). Chiller compartment is the coolest place in your refrigerator where you can keep dairy products, meat, fish and poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.

Line drawing of an open refrigerator interior showing front and side views (no text or symbols)

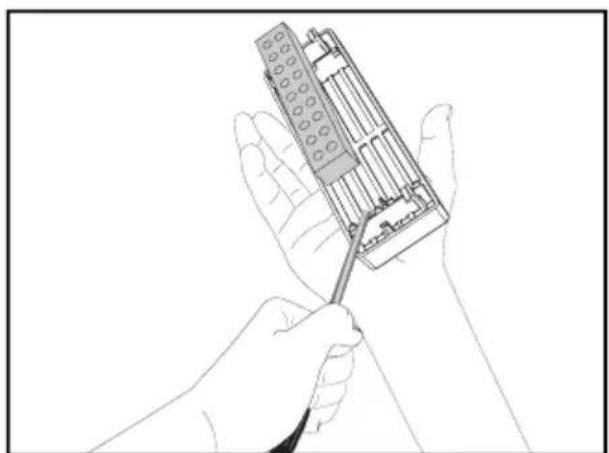

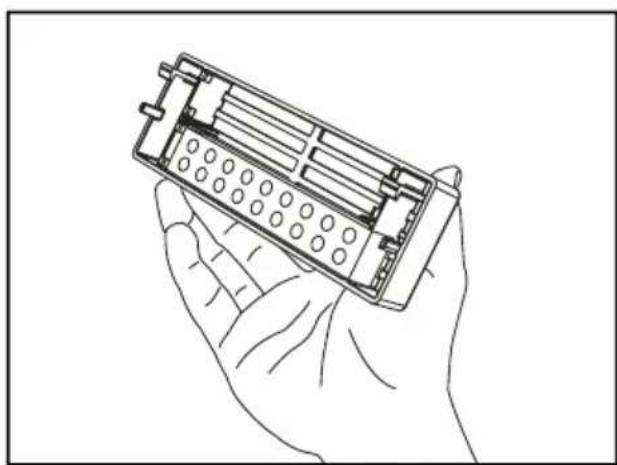

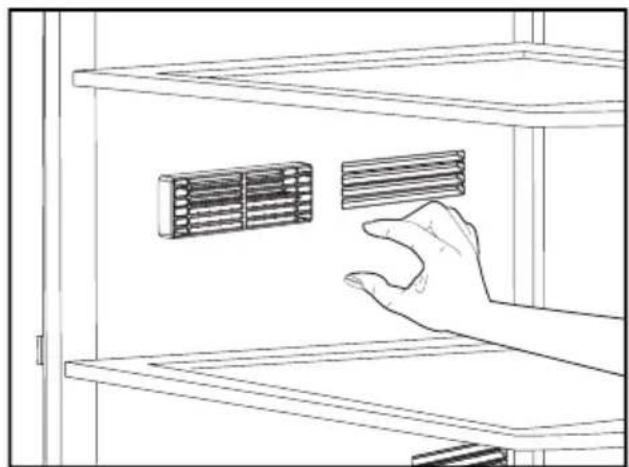

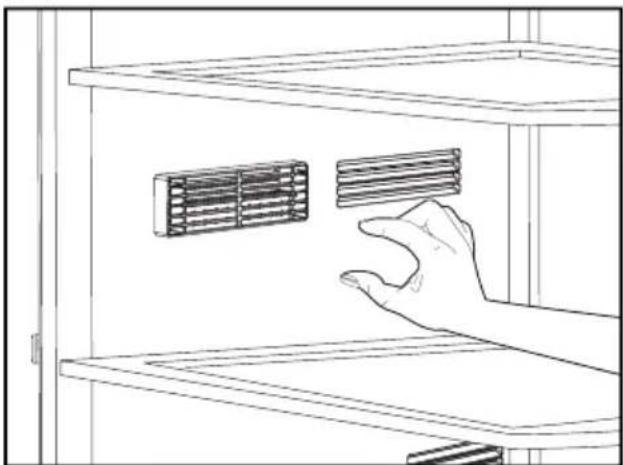

Description and cleaning of odor filter:

Odor filter prevents unpleasant odor build-up in your refrigerator.

Pull the cover, into which the odor filter is installed, downwards and remove as

for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Line drawing of a hand placing a grid component into a cabinet shelf (no text or symbols)

Line drawing of a hand holding an open battery pack (no text or symbols)

Line drawing of a hand holding a handheld electronic device (no text or symbols visible)

Icematic and ice storage container

(OPTIONAL)

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Illustration of a hand using a magnifying glass to interact with a device, showing a textured surface (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Making ice (OPTIONAL)

Fill the ice container with water and place it into its seat. Your ice will be ready approximately in two hours. You can easily remove your ice by slightly twisting the ice container.

Illustration of a hand using a tool to press or install a grid-patterned device (no text or symbols visible)

Dual cooling system:

Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher then other refrigerators. Odours in the compartments do not get mixed. Also additional power saving is provided since the defrosting is performed individually.

Freezing fresh food

them in the refrigerator.

temperature before putting them in the refrigerator.

must be fresh and in good quality.

according to the family's daily or meal based consumption needs.

airtight manner to prevent them from drying even if they are going to be kept for a short time.

must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

after they are thawed and they should never be re-frozen.

instructions to obtain the best results.

1. Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
2. Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
3. Take special care not to mix already frozen food and fresh food.

Freezer Compartment Adjustment	Fridge Compartment Adjustment	Explanations
-18°C 4°C		This is the normal recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		refrigerator will return to its previous mode when the process is over.
-18°C or colder 2°C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18°C or colder Quick Fridge		You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Recommendations for preservation of frozen food

should be stored in accordance with the frozen food manufacturer's instructions for a ✦*** (4 star) frozen food storage compartment.

by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as quickly as possible after purchase.

2. Ensure that contents are labeled and dated.

dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg tray Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume.

It is possible to keep the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

WARNING!

according to the family's daily or meal based consumption needs.

airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

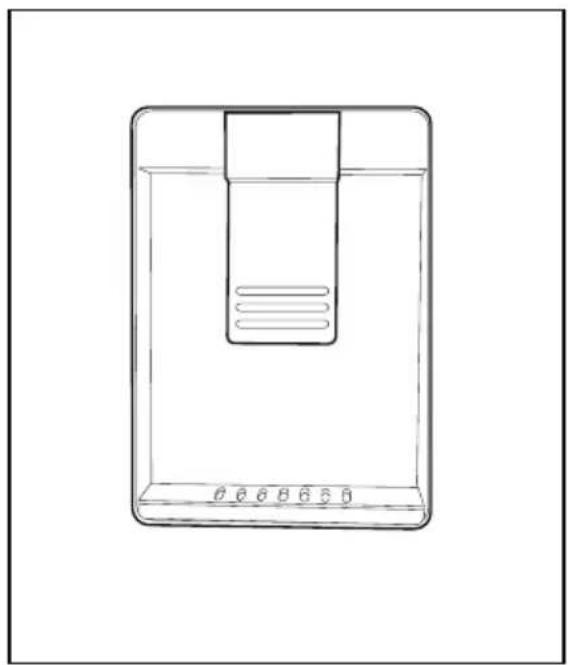

Water dispenser

(OPTIONAL)

Water dispenser is a very useful feature to obtain chilled water without opening the door of your fridge. Since you do not have to open the door of your fridge frequently, you also save on electricity.

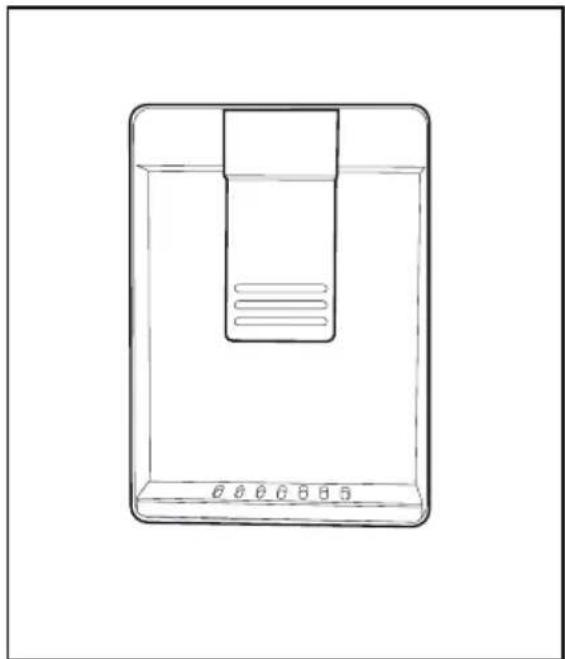

Using the water dispenser

Push in the lever of the water dispenser

you cut off the dispensing.

When operating the water dispenser, maximum flow is achieved by fully depressing the lever. Please note, how much water flows from the dispenser depends on how far you depress the

glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you depress the lever a small amount, then water will trickle; this is perfectly normal and is not a fault.

Line drawing of a rectangular device with internal components and a base, no text or symbols present

Filling in the water tank of water dispenser

Open the cap of the water tank as illustrated in the figure. Fill in with pure and clean drinking water. Close the cap.

Caution!

than drinking water; beverages such as fruit juice, carbonated fizzy soda drinks, alcoholic drinks are not suitable for use with water dispenser. If such liquids are used, the water dispenser will malfunction and may be damaged beyond repair. The guarantee does not cover such uses. Some chemical ingredients and additives in such drinks

damage water tank material.

[6.4 pints], do not overfill.

rigid cup. If you are using a plastic disposable cup, then push the lever with your fingers from behind the cup.

Line drawing of hands pouring liquid from a container onto a sink (no text or symbols)

Cleaning the water tank

top cover mechanism from the water tank. Clean the water tank with warm clean water, reinstall the top cover. When installing the water tank, make sure that hooks it fits securely into the hangers on the door. Make sure that parts removed during cleaning (if any) are installed correctly into their original locations. Otherwise, water may leak.

Line drawing of a person using a tool to adjust or install a wooden shelf panel (no text or symbols present)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Important:

Water tank and components of water dispenser are not dishwasher-proof.

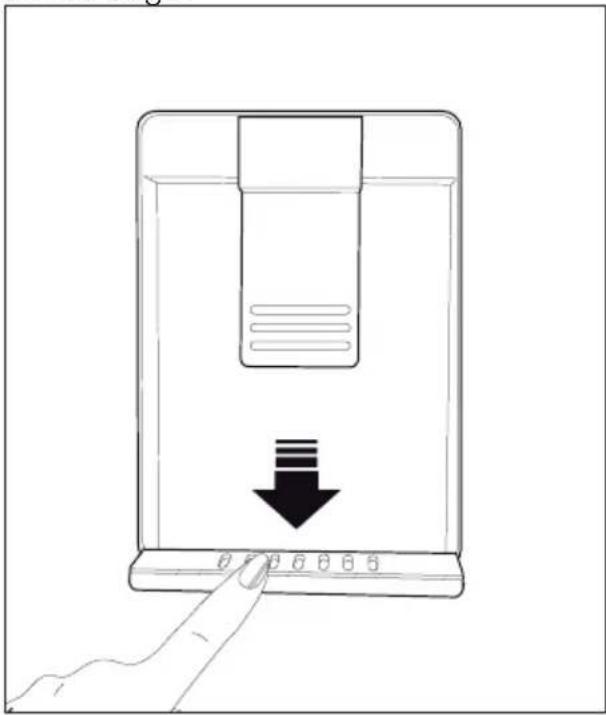

Water tray

(OPTIONAL)

Water that drips while using the water dispenser accumulates in the drip

towards yourself and empty it from time to time.

shown in the diagram by pressing down on the edge.

Line drawing of a device with a hand pointing to a button labeled 'Down' and a downward arrow (no text or symbols present)

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.

⚠️ We recommend that you unplug the appliance before cleaning.

⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

cabinet of your refrigerator and wipe it dry.

solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

⚠️ Make sure that no water enters the lamp housing and other electrical items.

⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

Check door seals regularly to ensure they are clean and free from food particles.

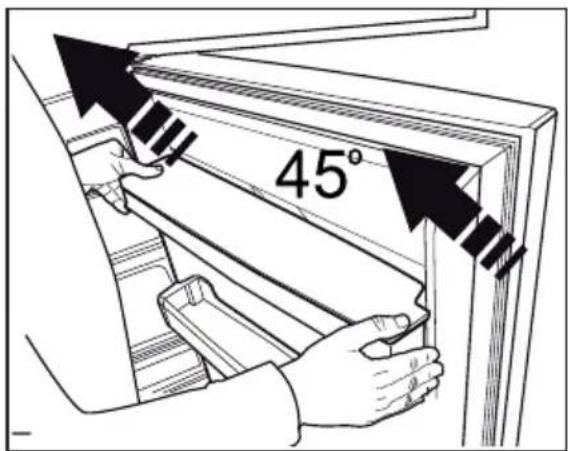

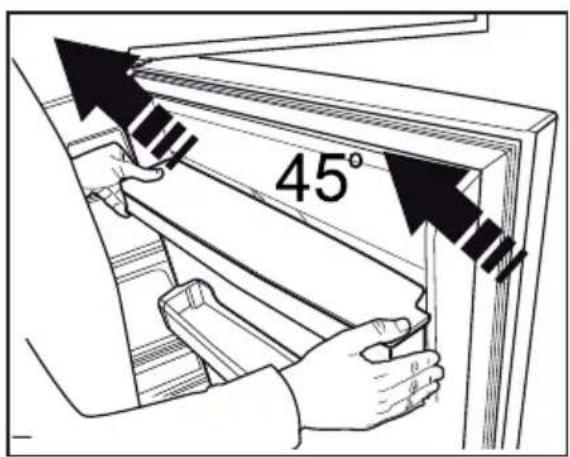

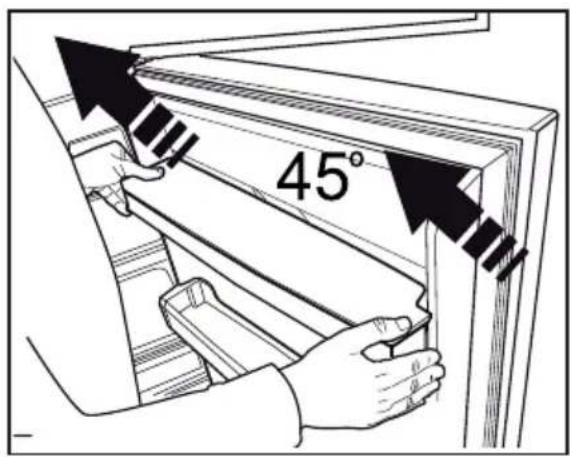

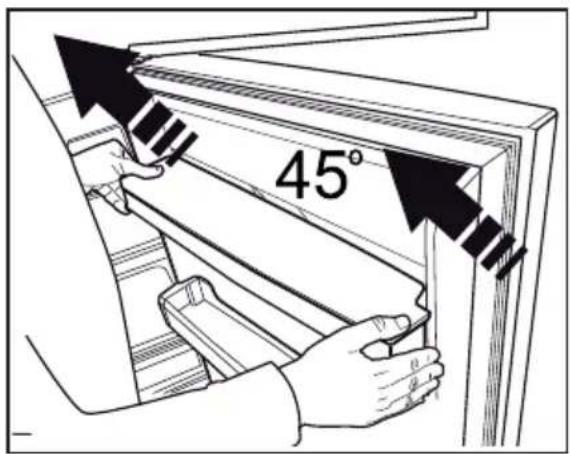

⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

socket securely.

temperature falls below 10 °C.

refrigerator frequently.

places.

with liquid content in open containers.

level.

Compressor is not running

i Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.defrosting refrigerator. Defrosting cycle occurs periodically.fit into the socket.temperature value.the power restores.

The operation noise increases when the refrigerator is running.

i The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

for a longer period of time.operates for longer periods in hot ambient.refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.Do not put hot food into the refrigerator.has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequentlyclosed completely.refrigerator temperature to a warmer degree and wait until the temperature is achieved.causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are frozen.

temperature to a warmer value and check.

Temperature in the fridge or freezer is very high.

compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.

doors frequently.

When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.

Do not put hot food into the refrigerator.

Vibrations or noise.

slowly, balance it by adjusting its legs. Also make sure that the floor is strong enough to carry the refrigerator, and level.

on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing or spraying.

your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

i Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

i Hot and humid weather increases icing and condensation. It is normal and not a fault.

doors frequently. Close them if they are open.

Humidity occurs on the outside of the refrigerator or between the doors.

There may be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

regularly with a sponge, lukewarm water or sodium bicarbonate diluted in water.different container or different brand packaging material.in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odors.refrigerator.

The door is not closing.

packages that are obstructing the door.balance the refrigerator.capable to carry the refrigerator.

Crispers are stuck.

drawer.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical line drawing of a computer monitor rear panel with ventilation grilles and mounting holes (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Diagram of a kitchen or storage cabinet interior with a hand pointing to the door (no text or symbols present)

Line drawing of a four-panel cabinet or drawer with two doors and one door, no text or symbols present.

Kühlfach

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Illustration of a hand using binoculars to clean or inspect a material (no text or symbols visible)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand using a tool to press or install a grid-patterned object, with no visible text or symbols.

Line drawing of a hand placing a grid into a rack with two rectangular compartments (no text or symbols)

gereinigt werden.

Line drawing of a hand holding an electronic device with multiple ports and a grid array (no text or symbols)

Line drawing of two hands holding a handheld electronic device (no text or symbols visible)

Line drawing of a rectangular electronic device with a central screen and base, no text or symbols present.

Line drawing of hands pouring liquid from a container into a tank on a tray (no text or symbols)

Wassertank reinigen

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Wichtig:

Line drawing of a device with a hand pressing a button and a downward arrow indicating action (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical line drawing of a computer monitor rear panel with ventilation grilles and mounting holes (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion or force, no text or symbols present.

Technical line drawing of a mechanical assembly with a hand interacting with a component (no text or symbols present)

1 2 3 4

Éclairage bleu (EN OPTION)

Line drawing of a four-panel cabinet or drawer with two doors and one ring, no text or symbols present.

Compartiment Zone fraîche

Line drawing of an open refrigerator interior showing front and side views (no text or symbols)

sa place.

Line drawing of a hand placing a rack-mounted device into a cabinet shelf (no text or symbols)

Line drawing of a hand holding an open battery pack with internal circuitry (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to press or install a patterned sheet on a machine (no text or symbols visible)

Line drawing of a rectangular device with a lid and internal structure, no text or symbols present

Illustration of hands pouring liquid from a container into a small bowl on a tray (no text or symbols)

Line drawing of a device with a finger pressing down on a control panel, showing a downward arrow (no text or symbols)

of mentale stoornis of ongeschoolde of

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature SENSOR

MILK juice etc. temperature sensor

3 Installatie

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Vloerafstelling

2 3 4- MAX- -1 1

Technical line drawing of a door frame with a hand pointing to a handle, showing internal structure and motion arrows (no text or symbols)

Glijdende schappen

Line drawing of a four-panel cabinet or drawer with two doors and one door, no text or symbols present.

Chillervak

Line drawing of an open refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand placing a grid component into a cabinet shelf (no text or symbols)

Line drawing of a hand holding an open battery pack (no text or symbols)

Line drawing of a hand holding a mechanical component with a tool (no text or symbols)

Icematic en ijsbakje

(OPTIONEEL)

Illustration of a hand using a tool to press or install a grid-patterned object, with no visible text or symbols.

Two-panel illustration showing hands using a device to interact with a screen (top) and a smartphone (bottom), both without any visible text or symbols.

Tweeledig koelsysteem:

Line drawing of a rectangular electronic device with a central screen and base, no text or symbols present.

Line drawing of hands pouring liquid from a container onto a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden shelf panel (no text or symbols)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a refrigerator interior with a lightning bolt and wiring, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Inštalácia

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Technical line drawing of a mechanical assembly with a hand pointing to a component (no text or symbols present)

Zasúvacie police telesa

Line drawing of a four-panel cabinet or drawer with two doors and one door, no text or symbols present.

Priečinok ochladzovača

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a hand reaching for a wall-mounted grid component inside a cabinet shelf (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-like internal structure (no text or symbols)

Line drawing of hands holding a handheld electronic device (no text or symbols visible)

Icematic a nádoba na skladovanie l'adu

(VOLITEL'NÉ)

Illustration of a hand using a computer to press or install a grid-patterned device (no text or symbols visible)

poškodit.

Illustration of a hand using a tool to clean or inspect a material, with no visible text or symbols.

Illustration of a hand pressing down on a device panel with a scroll wheel (no text or symbols visible)

Line drawing of a rectangular electronic device with a central screen and base, no text or symbols present

Illustration of hands pouring liquid from a container into a tank on a tray (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

45°

Line drawing of a hand adjusting a curved metal bracket with a circular hole, no text or symbols present

Dôležité:

Vodná nádrž a komponenty dávkovača riadu.

Vanička na vodu

(VOLITEL'NÉ)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

6 Údržba a čistenie

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installazione

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

MAX -1 4 3 2 -1

Technical line drawing of a door handle assembly with hand pointing to a component (no text or symbols)

Ripiani estraibili

Line drawing of a cabinet with two doors and one donut (no text or symbols)

Scomparto Chiller

(OPZIONALE)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a hand placing a grid into a rack with a vent, no text or symbols present

Line drawing of a hand holding an electronic device with internal components (no text or symbols)

Line drawing of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a hand using a computer to interact with a device, showing screen and keyboard (no text or symbols)

Illustration of a hand pressing a button on a device panel (no text or symbols visible)

Illustration of a hand using a tool to press or adjust a textured surface, with no visible text or symbols.

Sistema dual cooling:

Line drawing of a rectangular device with internal components and a base, no text or symbols present

Illustration of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden door panel (no text or symbols)

45°

Line drawing of a hand adjusting a curved mechanical component (no text or symbols)

Importante:

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a device with a lightning bolt and plug, no text or symbols present

food temperature sensor

MILK JUICE etc. temperature sensor

3 Установка

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

4 1 2 3

Technical line drawing of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

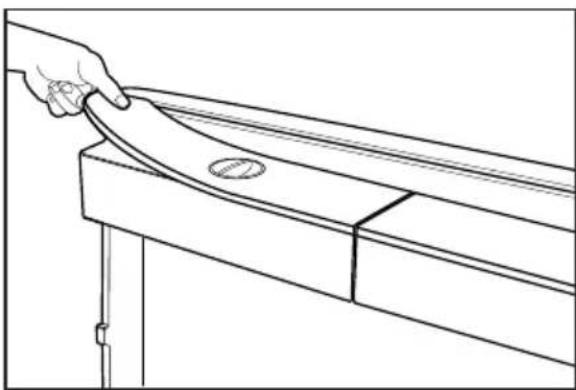

Выдвижные полки

Line drawing of a four-panel cabinet or drawer with two doors and one door, no text or symbols present.

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a hand placing a grid into a rack with two outlets (no text or symbols)

Line drawing of a hand holding an electronic device with internal components (no text or symbols)

Line drawing of a hand holding a small electronic device with a screwdriver inserted (no text or symbols)

Illustration of a hand using a tool to interact with a device, showing no text or symbols present.

Illustration of a hand holding a small object over a device panel (no text or symbols visible)

Illustration of a hand using a computer to press a keyboard, with an arrow indicating the process (no text or symbols present)

Line drawing of a rectangular device with internal components and a base, no text or symbols present

Line drawing of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of a person using a tool to adjust or install a wooden shelf panel (no text or symbols present)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Важное замечание

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

Technical diagram of a computer monitor rear panel showing internal compartments and mounting points (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

ضبط الاتزان الأرضي

Technical line drawing of a mechanical assembly with a hand pressing a component (no text or symbols)

Line drawing of a hand placing a ventilation vent into a rack (no text or symbols)

Line drawing of a hand holding an electronic device with internal components (no text or symbols)

Line drawing of a hand holding a mechanical device with a tool, no text or symbols present

Line drawing of a cabinet with four drawers and two circular cutouts (no text or symbols)

صندوق مېرد المياه

(اختياري)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Illustration of a hand using a tool to press or adjust a textured surface, with no visible text or symbols.

Illustration of a hand using a magnifying glass to interact with a device, showing a textured surface (no text or symbols)

Illustration of a hand pressing down on a device panel with a scroll wheel (no text or symbols visible)

Line drawing of hands pouring liquid from a container onto a surface (no text or symbols)

Line drawing of a rectangular device with internal components and a base, no text or symbols present

درج المياه

(اختياري)

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

تنظيف خزان المياه

Line drawing of a person using a tool to adjust or install a wooden shelf panel (no text or symbols present)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3

Встановлення

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Technical line drawing of a door handle assembly with hand pointing to a component (no text or symbols)

Line drawing of a four-door refrigerator with two doors and one door, no text or symbols present

Охолоджувач

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Line drawing of a hand placing a grid into a rack (no text or symbols)

Line drawing of a hand holding an open battery pack (no text or symbols)

Line drawing of hands holding a mechanical component with a tool, no text or symbols present

Illustration of a hand using a computer to interact with a device, showing screen and screen (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand using a tool to press or install a grid-patterned object, with no visible text or symbols.

Line drawing of a rectangular device with a lid and internal structure, no text or symbols present

Illustration of hands pouring liquid from a container into a sink (no text or symbols)

Line drawing of hands installing or adjusting a wooden shelf panel (no text or symbols)

45°

Line drawing of a hand holding a curved object on a wooden beam, with no visible text or symbols

Важливе зауваження.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

6 Догляд і чищення
