S1360BBPX - Basket PKM - Free user manual and instructions

Product type	Cooker hood
Brand	PKM
Model	S1360BBPX
Color	Black, glass
Installation width	60 cm
Height (telescopic)	78 to 108 cm (chimney 33-73 cm)
Depth	31,3 cm
Net / gross weight	12,3 kg / 14,2 kg
Power supply	220-240 V ~ 50 Hz
Total power	62 W
Lighting	2 x 1 LED (max 28 W)
Controls	5 push buttons, 3 speeds + light
Operating modes	Extraction and recirculation
Grease filter	Aluminium, hand washable (not dishwasher safe)
Charcoal filter	Model CO4 (not included), replace every 3-6 months
Duct diameter	120 mm minimum
Minimum distance	65 cm (electric cooking), 75 cm (gas), 85 cm (coal/wood)
Non-return valve	Included
Safety	Earth connection mandatory, child protection (monitoring), automatic shutdown?
Maintenance	Clean grease filters monthly, replace bulb by a professional
Included accessories	Non-return valve, exhaust pipe, mounting hardware, template, manual

Frequently Asked Questions - S1360BBPX PKM

What is the minimum distance between the hood and the hob?

The minimum distance depends on the type of cooking: 65 cm for electric or ceramic hobs, 75 cm for gas cookers, and 85 cm for coal, oil or wood cookers. Respect these distances to ensure safety and proper operation.

How to install the charcoal filter?

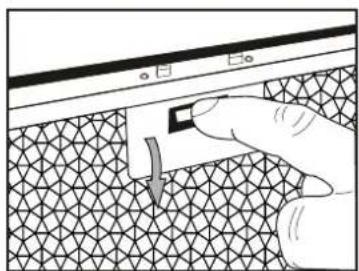

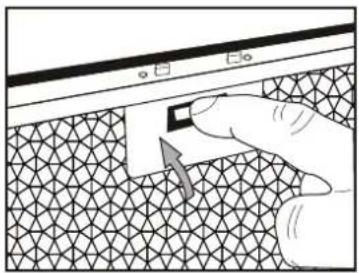

Turn off and unplug the hood. Remove the grease filters. Install the CO4 charcoal filter on the top of the motor by turning it in a bayonet fitting. Replace the grease filters. The charcoal filter is not included in the delivery.

How to clean the grease filters?

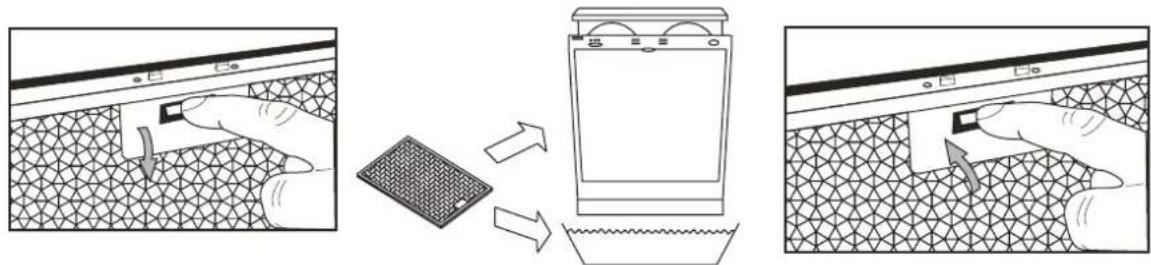

The aluminium grease filters should be cleaned once a month by hand with a mild, non-abrasive detergent. Do not wash them in the dishwasher. Dry them before putting them back.

What to do if the hood does not work at all?

Check that the plug is properly inserted and that the socket is powered. Check the fuse. If the problem persists, try another socket. If nothing works, contact after-sales service.

How to replace the LED bulb?

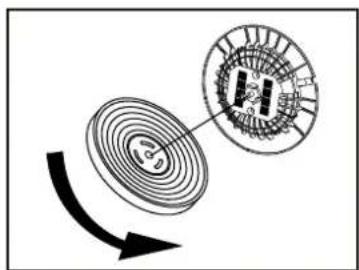

Unplug the hood and let the bulb cool down. Use a cloth or glove to avoid fingerprints. Turn the bulb counterclockwise to remove it. Replace it with a bulb of the same type (max 28 W). Put it back by turning clockwise.

Why is my hood making noise?

The noise may come from an exhaust duct that is too long or bent, a clogged filter, or a poorly fixed motor. Make sure the duct has a diameter of at least 120 mm and that the filters are clean. If the noise persists, check the motor mounting.

Can the hood be used in recirculation mode without a charcoal filter?

No, the charcoal filter is essential in recirculation mode to absorb odors. Without it, the air is not filtered and odors persist. Install a suitable charcoal filter (CO4) if you use this mode.

How to install the hood correctly?

Use the supplied template to drill the holes. Fix the hood with the screws and wall plugs suitable for the wall. Respect the minimum distances. The exhaust duct should be short and straight, with a diameter of 120 mm. For installation, it is advisable to have help from a second person.

What to do if the hood vibrates?

Vibrations may be due to a poorly fixed motor or a badly installed hood. Check that all screws are tight and that the hood is firmly attached. If the problem persists, contact a professional.

What are the possible operating modes?

The hood can operate in extraction mode (exhausts air outside) or recirculation mode (filters air with a charcoal filter before returning it to the kitchen). The choice depends on your installation.

USER MANUAL S1360BBPX PKM

Exterior view of a black stainless steel kitchen air conditioner unit (no text or symbols visible)

Deutsch

Englisch

Français

Nederlands

Seite 2

Page 21

Page 39

Pagina 56

www.pkm-online.de

Exploded view diagram of a printer with numbered parts for identification

1 Abdeckung Fettfilter

2 Fettfilter

3 Motor

4 Gehäuseabdeckung

5 Gehäuse

6 Rückschlagventil

7 Äußerer Kamin

Technical line drawing showing a mechanical assembly with tool and component details (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and magnified views of the tool path.

Technical diagram showing a mechanical assembly with a 10mm bolt and a light bulb, alongside its close-up view.

Diagram illustrating a hand holding a magnifying glass over a device, with an icon of a cross symbol inside the magnifying glass.

Diagram of a mechanical press or stamping device with a cylindrical component and rotating base (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram of a pipe or channel with a brick wall and water flow indicators (no text or symbols)

Technical diagram showing a cross-section of a mechanical or structural component with labeled parts and directional arrows.

Diagram showing a mechanical device with a pencil and a downward arrow inside a box, labeled with an inset image of the pencil.

Simple line drawing of a kitchen appliance with a door and a cabinet, no text or symbols present

Technical diagram illustrating a screwdriver tool application with labeled components and magnified views

Line drawing of a kitchen sink with a mounted device and a side view showing a handle (no text or symbols)

Close-up of a circular industrial fan or vent with a mesh grille and central hub, no visible text or symbols.

Motorgehäuse

Hand holding a small object over a mesh-patterned surface, no text or symbols visible

Diagram showing a rotating mechanical component with concentric rings and a magnified inset of its internal structure (no text or symbols)

Hand pressing a button on a textured surface with a small square object (no text or symbols visible)

Collection of simple line drawings representing sun, wind, solar, and other symbols (no text or labels)

Diagram illustrating a kitchen appliance cleaning process with labeled steps and material handling

Close-up of a hand pressing down on a textured surface with a small object, no visible text or symbols

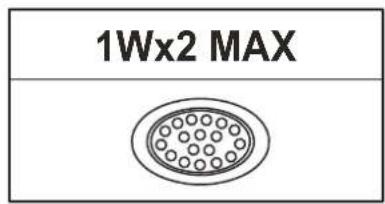

1Wx2 MAX

Hand pressing a button on a textured surface with a triangular pattern (no text or symbols visible)

m --- = 0,45 m

S13-60BBPX/S13-60BWPX

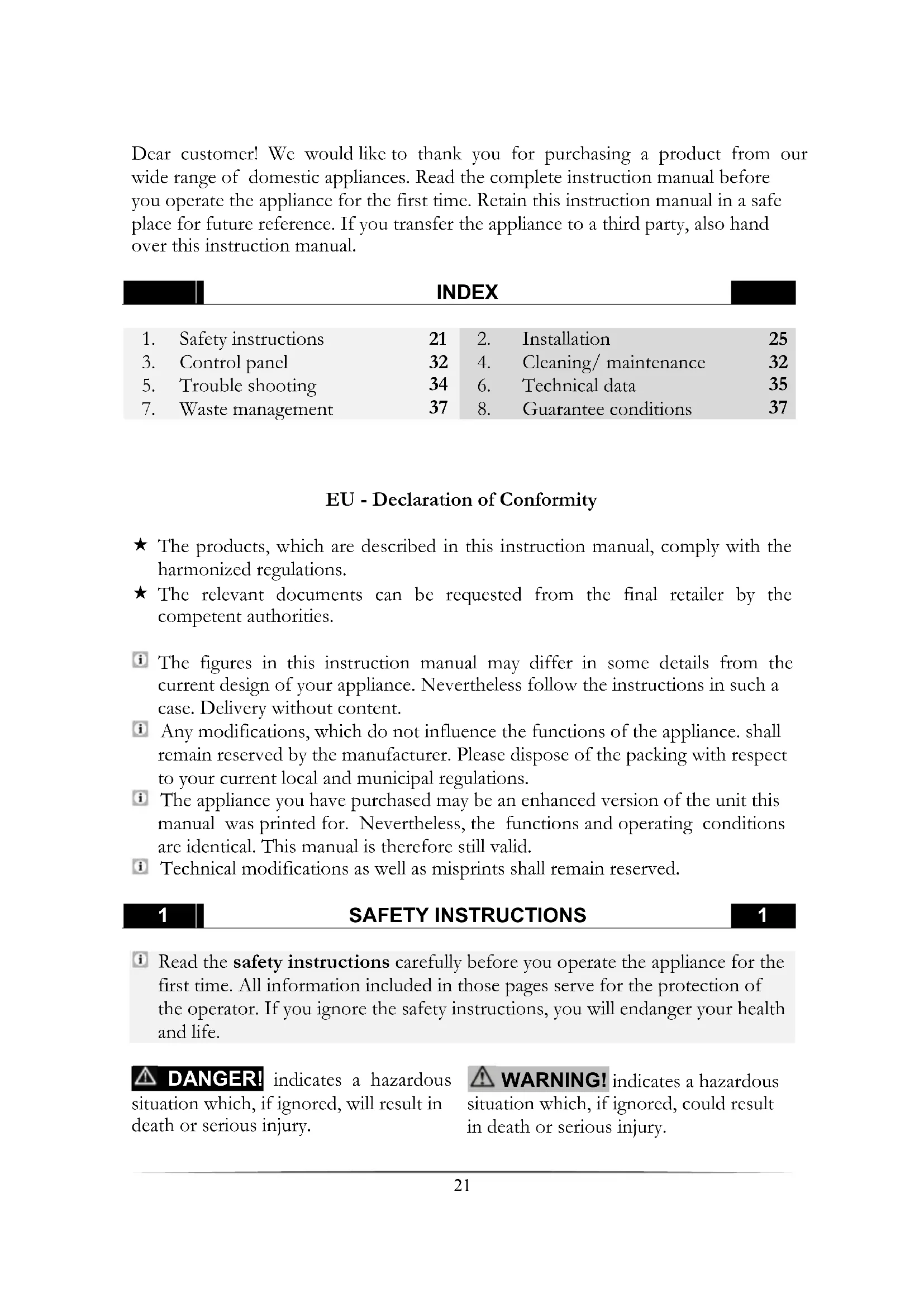

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

INDEX

1. Safety instructions 21 2. Installation 25
2. Control panel 32 4. Cleaning/ maintenance 32
3. Trouble shooting 34 6. Technical data 35
4. Waste management 37 8. Guarantee conditions 37

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

1

SAFETY INSTRUCTIONS

1

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous NOTICE! indicates possible damage to situation which, if not avoided, may the appliance. result in minor or moderate injury.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for extracting/recirculating cooking vapors in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

Important NOTICE when unpacking the chimney!!

Unpack the parts of the chimney very carefully; otherwise you will damage the chimney!

1. Both parts are fitted into each other.
2. Pull the inner part carefully inwards and lift it carefully.
3. Keep lifting it carefully to take out the "small" chimney.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home.
   Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When

you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.

Do not unplug the appliance and do not use the control panel.

Do not touch the appliance until the gas has gone.

Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10 ^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:

Minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

1. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
2. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
3. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
4. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. The extracted air must not be conducted by an exhaust pipe of a heater or similar, not electrically-operated appliances.
7. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF

FIRE! Clean or replace the filters regularly.

1. Disconnect the appliance from the mains before cleaning and maintenance.

2. Failure to do so will cause an increased risk of fire due to deposits of fat.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!

4. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

5. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.

2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.

2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney

3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.

4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.

5. Take the enclosed parts from the packaging and its polystyrene-components.

6. Check that the power cord and the appliance are not damaged before electrical connection.

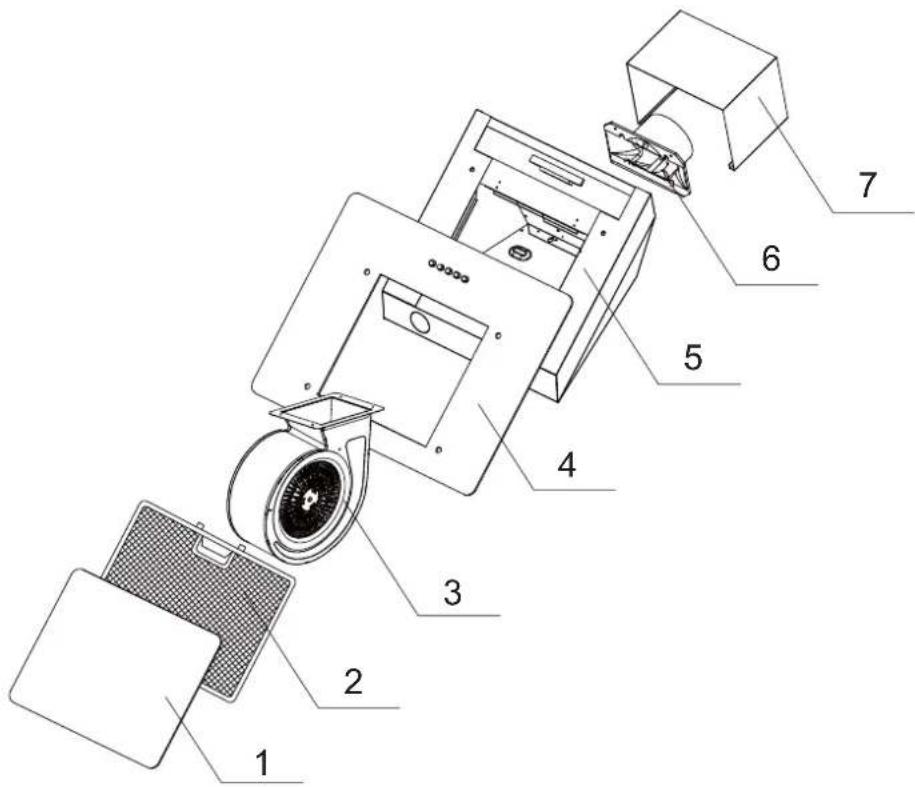

Scope of delivery

Exploded diagram of a refrigerator internal components with numbered labels

1 Grease filter cover-panel

2 Grease filter

3 Motor

4 Cover panel (housing)

5 Housing

6 One-way valve

7 Outer chimney

Also included: chimney fixing clamp, drill-hole stencil, instruction manual.

Installation

1. The diameter of the exhaust hose must meet the diameter of the connecting ring.

2. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

3. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120 mm. Otherwise you have to expect increased noise and decreased performance of your appliance.

4. The proper maximum bending angle outwards is 120^ .

5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.

6. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^0 is required. Otherwise condensate will get into the motor of the hood.

7. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.

8. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.

Installation steps

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

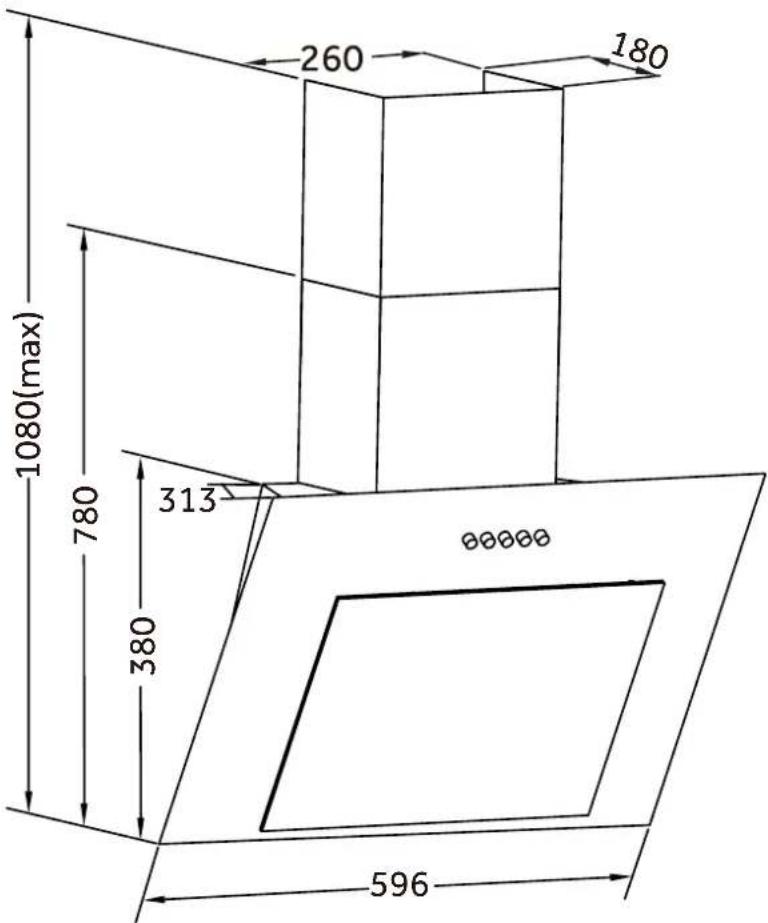

260 180 1080(max) 780 313 380 596

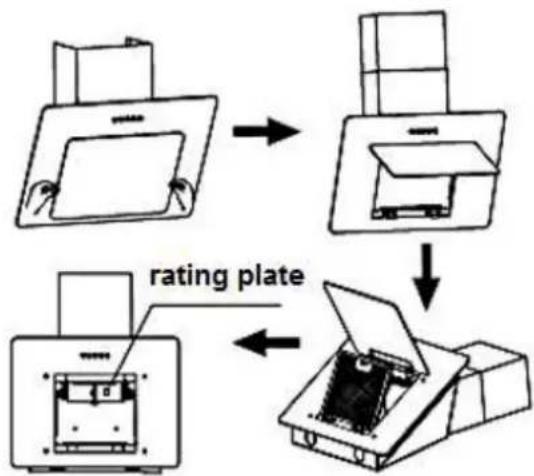

1. The data on the rating plate inside the appliance must meet the data of your energy supply.


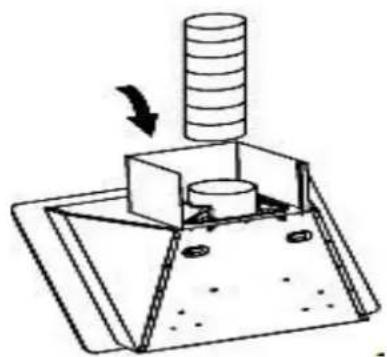

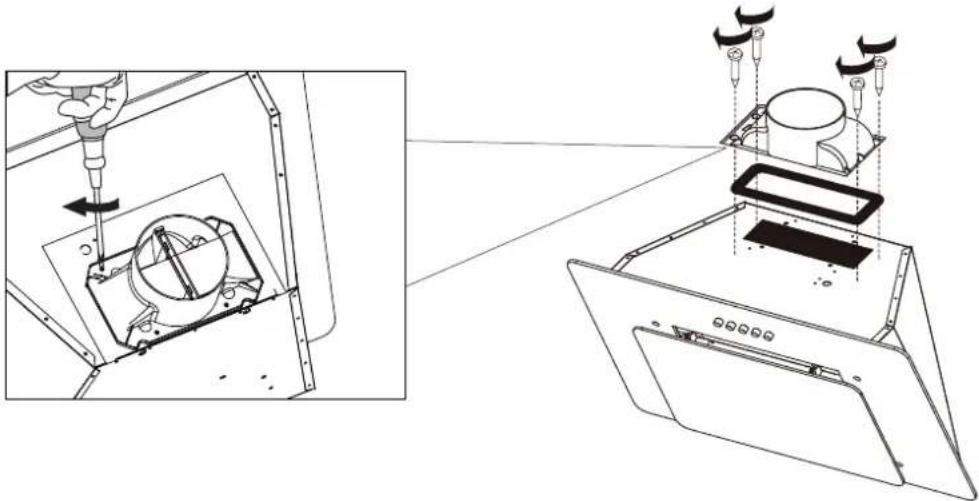

1. Fix the one-way valve on the air outlet before installing the appliance.

Technical line drawing showing a mechanical assembly with tool and component details (no text or symbols)

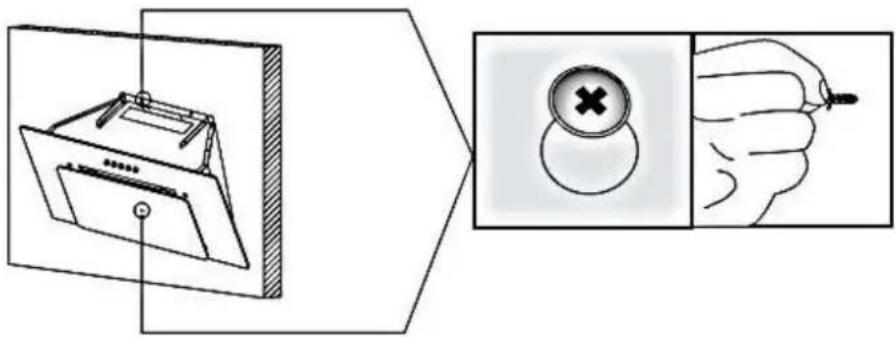

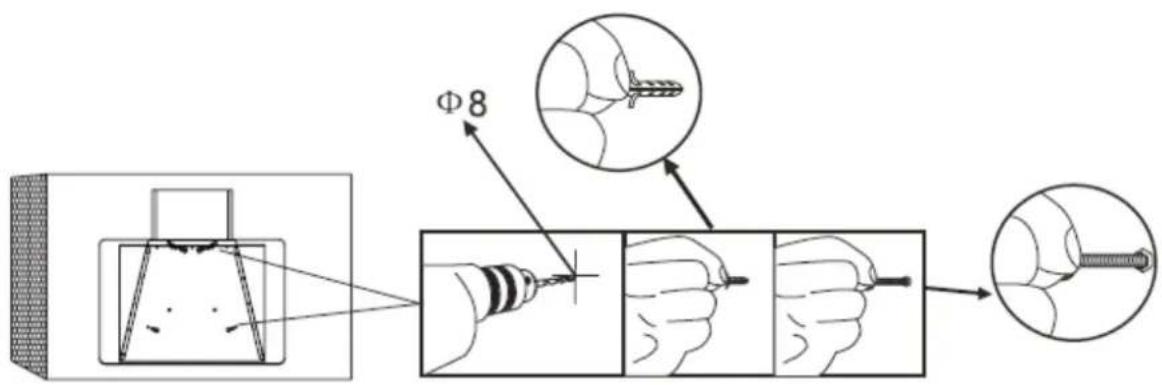

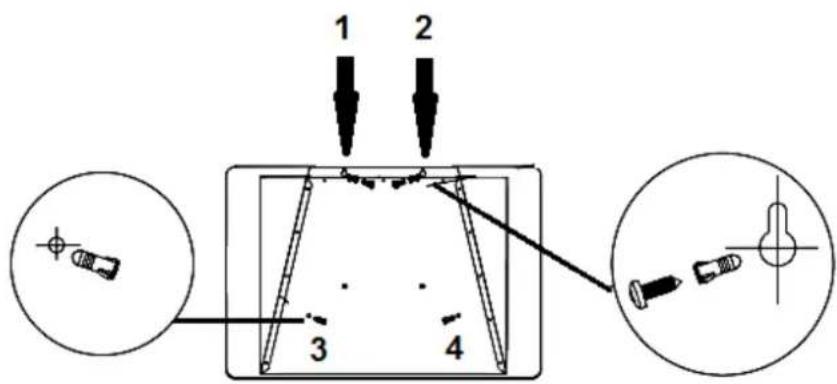

1. Adjust the appliance relevant to the figure above. Drill four holes (diameter 8 mm/use the stencil) into the wall. Install the 4 dowels in the holes. Now screw 2 screws into the dowels (no. 1 and 2). The distance screw head wall must be 10mm .

⚠ WARNING! Do not damage the wiring in the wall while drilling

1 2 3 4

Diagram illustrating a mechanical assembly process with labeled components and magnified views of the tool path.

1. Position the appliance on the 2 screws (see step 4) and adjust it. Install the screws no. 3 and 4 through the openings of the housing. The distance screw head wall must be 10 ~mm .

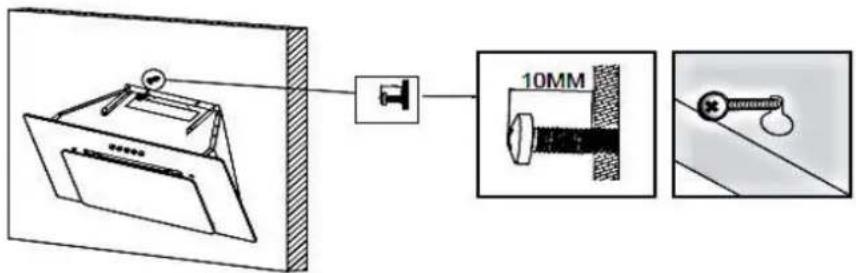

Diagram showing installation of a 10mm bolt with a close-up view of the bolt being held.

1. Tighten the screws. Start with the upper ones.

Diagram illustrating a hand holding a pencil, showing a sketch of a device and its magnified view with a cross symbol.

1. Connect the exhaust hose and the one-way valve.

Diagram of a mechanical press or stamping device with a cylindrical component and rotating arrow (no text or symbols)

1. Fix the chimney clamp and the inner chimney with the 4*8 screws.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. You can diversify the exhaust duct..

Strictly observe the safety instructions in this manual.

Diagram of a brick wall section with visible cracks and insulation (no text or symbols)

Technical diagram showing a cross-section of a mechanical or structural component with labeled dimensions and directional arrows.

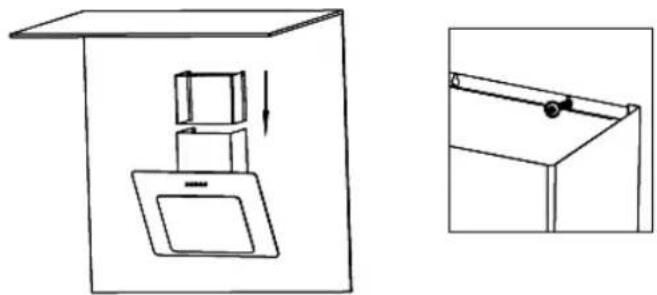

Vertically. If your kitchen is situated under an attic, you can install the exhaust hose through a cupboard and the attic to a suitable roof-outlet.

Horizontally. If there is some free external wall area above your appliance, you can install the exhaust hose to a suitable wall-outlet.

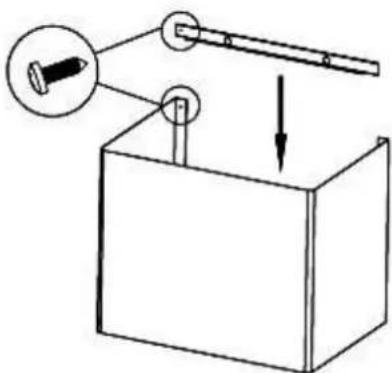

1. Fix the chimney clamp and the outer chimney with the 3.5*8 screws.

Diagram showing a mechanical setup with a pencil and lever, labeled with an arrow indicating direction or force.

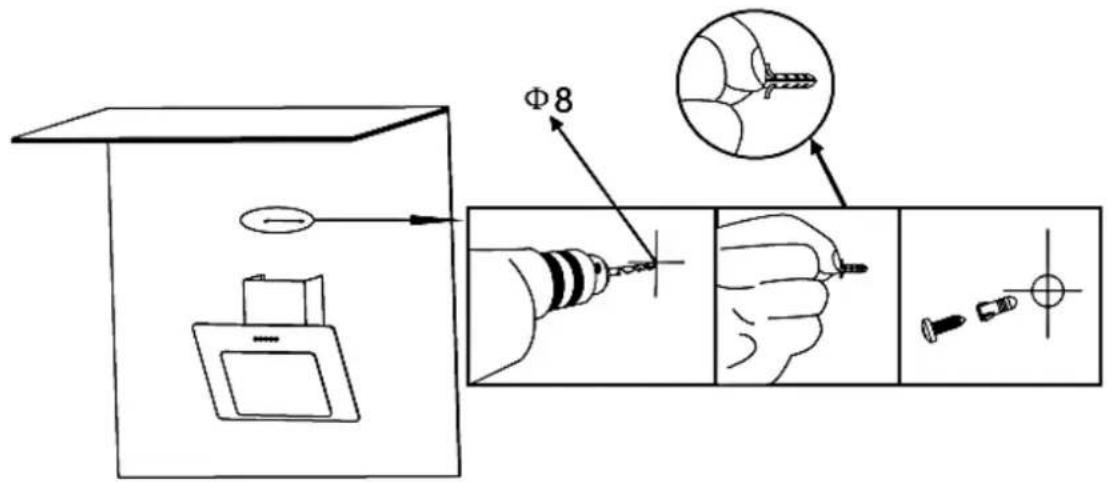

Fix the chimney clamp at the corresponding place on the wall.

1. Move the chimney up and down and adjust it properly.

Simple line drawing of a cabinet or rack with an arrow indicating upward motion (no text or symbols)

1. Drill two holes (diameter 8 mm/use the stencil) into the wall. Now screw the screws and the dowels into the holes. The distance screw head wall must be 10 ~mm .

⚠ WARNING! Do not damage the wiring in the wall while drilling.

Technical diagram illustrating a hand tool application process with labeled components and magnified views

1. Position the inner chimney on the 2 screws and adjust it. Tighten the screws.

Line drawing of a cabinet with an open lid and a side view showing the exterior shelf (no text or symbols)

Insert the grease filters and connect the appliance to the mains ^3 . Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

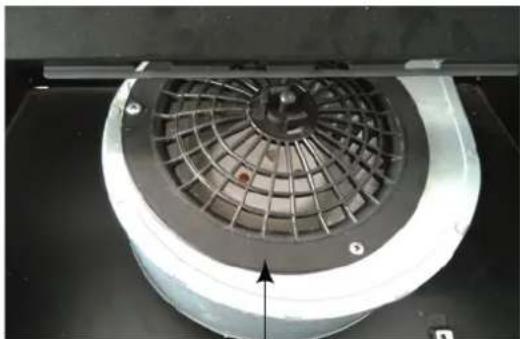

Carbon filter

Close-up of a circular industrial fan or vent with a mesh grille and central hub, no visible text or symbols.

Motor housing

1. Before you install any carbon filters: switch the appliance off and disconnect it from the mains.
2. Remove the grease filters.

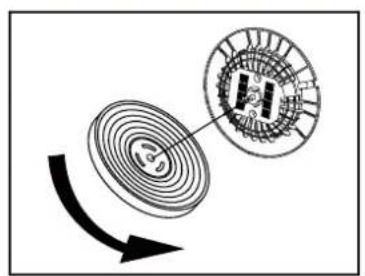

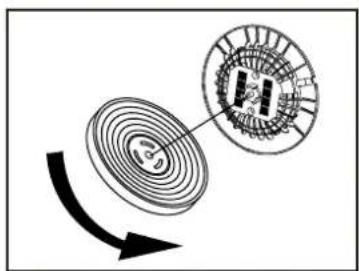

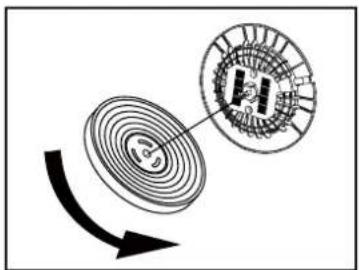

3. Install the carbon filter CO4 on the top side of the motor (bayonet catch).

Hand holding a small object over a mesh-patterned surface, no text or symbols visible

Diagram showing a circular component with concentric rings and an arrow indicating rotation (no text or symbols)

Hand pressing a button on a textured surface with a triangular pattern (no text or symbols visible)

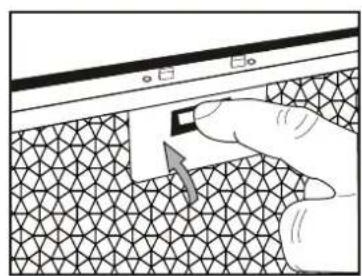

1. Replace the grease filters.
2. The suction capacity is decreased by installed carbon filters.
3. Carbon filters are not included in delivery.
4. Use carbon filters for recirculating mode only.

3

CONTROL PANEL

3

Collection of nine simple line drawings representing sun, wind, solar, and other symbols (no text or labels)

Buttons
	Switches the light on..
○	Off.
	Low speed.
	Medium speed.
	High speed.
NOTICE! Never press two speed-buttons at the same time. To change the speed select "0" first!

Only switch on the lights while the appliance is operating.

Do not switch on the lights to lighten the room.

4

CLEANING/MAINTENANCE

4

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.
Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

➢ Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Clean the glass panels ^4 with a suitable detergent only.
4. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.

5. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.

6. Such changes do not influence the capacity of the appliance and are no reason for complaint.

7. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
8. Do not use any abrasive detergents.

Grease filter

Metal/aluminium

Diagram illustrating a kitchen cleaning process with labeled steps and material handling

You do not need to replace metal filters. Clean them once a month carefully by hand. Do not use any acrid, abrasive or corrosive detergents!

Do not clean the filters in a dishwasher; otherwise you will damage the filters.

Dry the filters properly before you reinstall them.

Replacing of the illuminant

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

Hand using a tool to cut or mark a textured surface with a downward arrow (no text or symbols visible)

1Wx2 MAX

Hand holding a small object over a textured surface, with no visible text or symbols

1. Replace a defective illuminant immediately.
2. Disconnect the appliance from the mains.
3. Let the illuminant cool down before replacing.
4. Remove the installation-rim of the illuminant by turning it anticlockwise.
5. Take the illuminant off its holder and replace it by a new one of the same kind and power.
6. Fix the installation-rim by turning it clockwise.
7. The maximum power of the illuminant must not be more than 28W.

----m ---= 0,45 m

Minimum distance illuminate any objects/surfaces e.g. lids, oven covers to avoid any risk of burns by hot objects/surfaces and to avoid fire hazard.

Only use self shielded illuminants to avoid any risk of burns by hot objects/surfaces or fire hazard and to protect yourself from UV-radiation.

Carbon filters

Conventional carbon and active carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

5

TROUBLE SHOOTING

5

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse.
The voltage is too low. Compare the data on the model plate with the data of your energy supplier.

Light is on but motor does not work.

▶ ventilation damper blocked.
▶ motor mounting defective.

remove blockage.

replace motor.

Abnormal motor-smells.

▶ motor defective

replace motor

Smear of oil.

▶ one-way valve is leaky
➢ connection base chimney-telescopic chimney is leaky

seal the valve

seal the connection with a suitable material

Appliance vibrates.

➢ motor not properly fixed
▶ hood not properly fixed

fix motor properly
fix hood properly

Insufficient extracting capacity.

too much distance hood-hob
▶ too much draught because of open

▶ lower position of hood
▶ close the doors/windows

doors and/or windows

Appliance is unstable.

➢ mounting rail is not firmly fixed
- fix mounting rail properly
screws are not firmly tightened
▶ tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
◆ Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
❖ Install a cover panel with moveable slats, which do not obstruct the air vent.
◆ Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6

TECHNICAL DATA

6

S13-60BBPX/S13-60BWPX

Model	Cooker hood
Material	stainless steel
Installation width	60.00 cm
Push buttons	5
Recirculation/extraction mode ^5	✓	✓
Grease filter	1*aluminium.
Lights amount/W/kind	2	2*1 LED
Connected load	62 W
Voltage	220~240V/50Hz
Carbon filter	1*CO4

Dim. H/W/D in cm	78.00-108.00	60.00	31.30
Telescopic chimney in cm	33.00-73.00
Weight net / gross in kg	12.314.2

Included accessories: swing check valve, exhaust hose, fixing material, instruction manual.

7

WASTE MANAGEMENT

7

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

8

GUARANTEE CONDITIONS

8

for large electric appliances PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;

2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;

3. damage caused by handling errors or false operation;

4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Exploded diagram of a device with numbered parts for identification

Technical diagram showing assembly of a device with internal components and alignment lines (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and magnified views of the tool path.

Diagram showing installation of a kitchen appliance via a 10mm bolt, with close-up view of the component.

Diagram illustrating a device setup and its magnified view of a circular object with a cross symbol, likely demonstrating a precision or inspection process.

Diagram of a mechanical press or stamping device with a cylindrical component and base, showing no text or symbols.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram of a pipe or channel structure with no visible text, numbers, or symbols

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows

Diagram showing a mechanical device with a pin and lever, labeled with an arrow indicating downward motion.

Simple line drawing of a cabinet with an open lid and a downward arrow indicating motion (no text or symbols)

Technical diagram illustrating a hand tool application process with labeled components and magnified views

Simple line drawing of a cabinet with an open lid and a stack of boxes, no text or symbols present.

Simple line drawing of a cabinet or support structure with a handle and mounting bracket (no text or symbols)

Close-up of a circular industrial fan or vent with radial mesh structure, no visible text or symbols

Boîtier de moteur

Hand holding a small object over a mesh-patterned surface, no text or symbols visible

Diagram showing a rotating mechanical component with concentric rings and a magnified inset of its internal structure (no text or symbols)

Hand pressing a button on a textured surface with a small object (no text or symbols visible)

Collection of nine simple line drawings representing sun, wind, solar, and moon symbols (no text or labels)

Boutons

Diagram illustrating a kitchen cleaning process with labeled steps and material handling

Close-up of a hand pressing down on a textured surface with a tool (no text or symbols visible)

1Wx2 MAX

Hand holding a tool interacting with a mesh-patterned surface (no text or symbols visible)

m --- = 0,45 m

S13-60BBPX/S13-60BWPX

Exploded diagram of a refrigerator internal components with numbered labels

1 Vetfilter kap-panel
3 Motor
5 Behuizing
7 Buitenste schoorsteen

Technical diagram showing mechanical assembly with tool and component details (no text or symbols)

Diagram showing installation of a 10mm bolt with a close-up view of the bolt being inserted into a wall.

Diagram illustrating a mechanical device and its corresponding magnified view of a circular component with a cross symbol, likely demonstrating a precision or inspection process.

Diagram of a mechanical press or stamping device with a cylindrical component and rotating arrow (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram of a pipe or channel structure with directional arrows indicating flow or movement (no text or symbols)

Technical diagram showing a cross-section of a mechanical or structural component with labeled dimensions and directional arrows.

Diagram showing a mechanical device with a pin inserted into a box, labeled with an arrow indicating direction or force.

Simple line drawing of a kitchen appliance with a door and a cabinet, no text or symbols present

Technical diagram illustrating a screwdriver tool application process with labeled components and magnified views

Simple line drawing of a box with a stack of boxes and an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical bracket or frame with a hanging weight (no text or symbols)

Close-up of a circular industrial fan or vent with a mesh grille and central hub, no visible text or symbols.

Motor housing

Hand holding a tool interacting with a mesh-patterned surface (no text or symbols visible)

Diagram showing a rotating disc with concentric rings and a magnified circular structure (no text or symbols)

Hand pressing a button on a textured surface with triangular patterns (no text or symbols visible)

Collection of simple line drawings representing sun, wind, solar, and other symbols (no text or labels)

Knoppen

Hand holding a tool interacting with a textured surface, no visible text or symbols

1Wx2 MAX

Close-up of a hand pressing a small black object on a textured surface, with no visible text or symbols.

Apparaat is instabiel.

S13-60BBPX/S13-60BWPX

Please contact the shop you purchased the appliance at.

Subject to alterations
