Technical specifications	Upright freezer, 200-liter capacity, energy class A+, dimensions: 85 x 60 x 60 cm
Usage	Ideal for storing frozen food, with several drawers for easy organization.
Maintenance and repair	Regular cleaning recommended, manual defrosting required, check door seals for good tightness.
Safety	Equipped with a locking system, compliant with electrical safety standards.
General information	2-year warranty, after-sales service available, annual energy consumption of 250 kWh.

Frequently Asked Questions - DO937DV DOMO

How do I set the temperature on my DOMO DO937DV freezer?

To set the temperature, turn the adjustment knob located inside the freezer. It is usually marked from 1 to 5, where 1 is the highest temperature and 5 the lowest.

My freezer is making noise, is that normal?

A certain level of noise is normal during freezer operation. However, if the noise is loud or unusual, check if the freezer is level and nothing is blocking the fan.

What should I do if my freezer is not freezing properly?

Check that the door is properly closed and the seal is in good condition. Also ensure the temperature setting is appropriate and the freezer is not overfilled.

How do I defrost my DOMO DO937DV freezer?

To defrost, unplug the freezer and let the ice melt naturally. Place towels to absorb the water. Never use sharp objects to remove the ice.

Is there a warranty for the DOMO DO937DV freezer?

Yes, the DOMO DO937DV freezer is generally covered by a 2-year warranty. Check the documents provided with your product for more details.

How do I clean the inside of the freezer?

Unplug the freezer and let it defrost if necessary. Use a mixture of warm water and baking soda to clean the interior. Rinse with clear water and dry thoroughly.

Why is my freezer consuming more energy?

High energy consumption can be due to poor insulation, a faulty door seal, or an overloaded freezer. Check these points to improve energy efficiency.

How do I know if my freezer is broken?

If the freezer is not freezing, you hear unusual noises, or the temperature alarm activates, there may be a problem. Contact a technician for diagnosis.

Can I store hot food in the freezer?

It is not recommended to put hot food directly into the freezer as it can raise the internal temperature and affect operation. Let the food cool before placing it inside.

USER MANUAL DO937DV DOMO

White semi-framed refrigerator with 'DOMO' branding on top (no other text or symbols visible)

DO937DV

Handleiding Diepvriezer
Mode d'emploi Congélateur
Gebrauchsanleitung Gefrierschrank
Instruction booklet Freezer
Manual de instrucciones Congelador
Istruzioni per l'uso Congelatore
Návod k použití Mrazák
Návod na použitie Mraznička

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

- Installeer de handgreep.

Diagram illustrating door opening and door placement process with directional arrows and labeled components

Simple line drawing of a rectangular appliance with a lid and base, no text or symbols present

Line drawing of a mechanical component with a circular inset showing a small object (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

1. Maak de scharnierpin los van de scharnierbeugel. Keer de beugel om en maak de pin weer vast.

Unscrew Screw

Line drawing of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a circular component labeled 'B' (no text or symbols on the device itself)

HET APPARAAT VERPLAATSEN

MED MAX MIN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection status.

Simple line drawing of a rectangular object with a lid and base, no text or symbols present

Line drawing of a mechanical component with a pointer and circular annotation (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Technical line drawing of a vehicle suspension system with an inset circular detail showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a circular component on the left (no text or symbols)

MED MAX MIN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmark and cross symbols, likely indicating approval or rejection status

Diagram illustrating door opening and door placement process with directional arrows and labeled components

Line drawing of a simple kitchen appliance with a lid and handle (no text or symbols)

Line drawing of a mechanical component with a tool and a circular indicator labeled '测量' (measurement) on the right side (no text or symbols on the main diagram)

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Technical line drawing of a vehicle suspension system with an inset circular detail (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and internal components (no text or symbols)

MED MAX MIN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

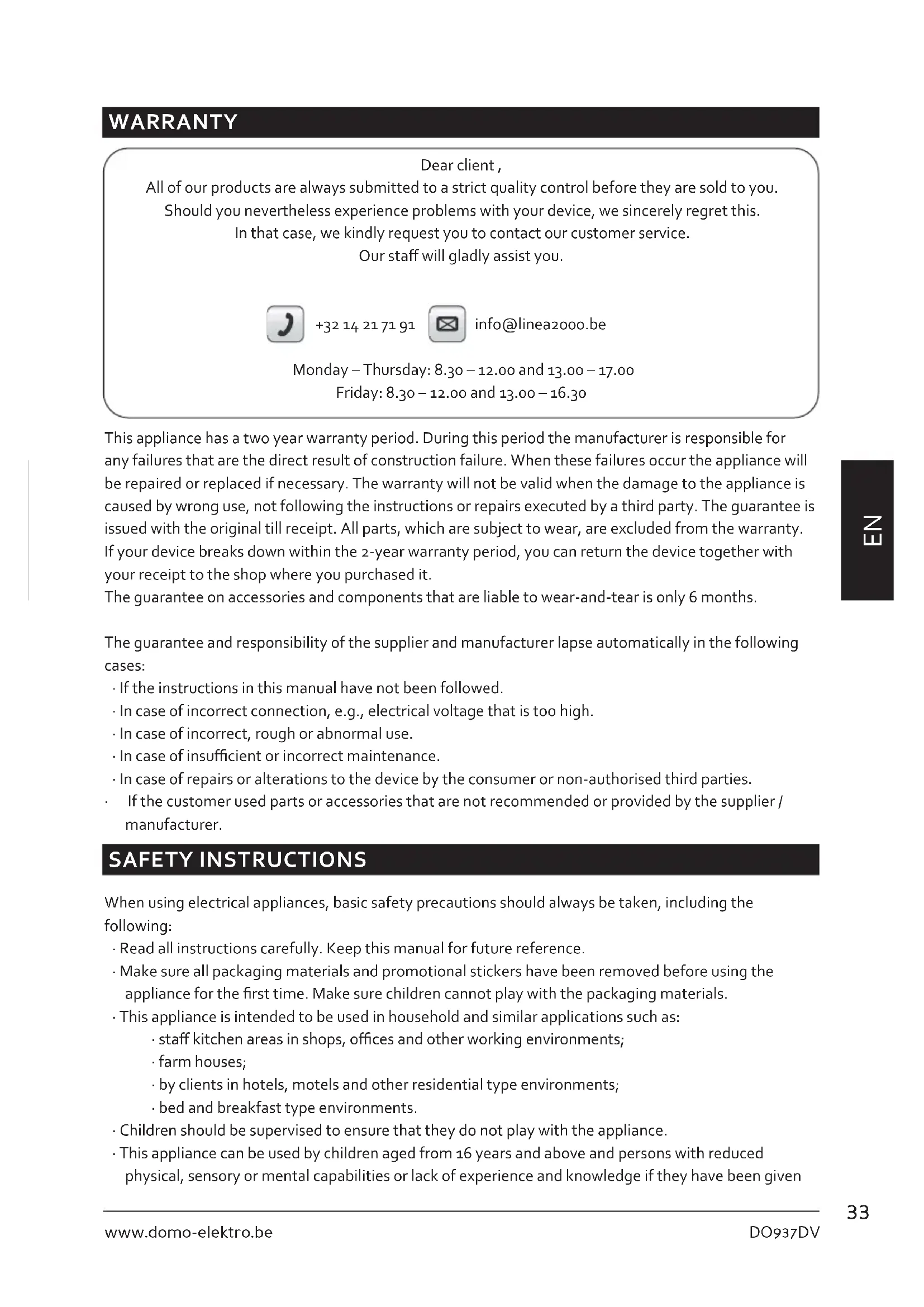

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Keep the cord away from sharp edges and hot parts or other heat sources.

- Before use, remove all packaging materials and any promotional stickers.

- Keep the ventilation openings free of obstructions.

- Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

- Make sure that the plug does not get squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause fire.

· Make sure that you have access to the plug of the appliance.

- Do not pull the cord.

- If the socket is loose, do not plug in the appliance. (risk of electric shock or fire)

· This is a heavy appliance. Be careful when moving it.

- Avoid long exposure to direct sunlight.

- The appliance may not be used with an extension lead or a multiple socket.

· This cooling unit is not intended for use as a built-in appliance.

· Follow the instructions below to prevent contamination of food:

- Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly. Keep the condensation channel and drainage hole at the back of the appliance clean.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not come into contact with or drip onto other food.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it dry and leave the door ajar to prevent mould from growing in the appliance.

WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

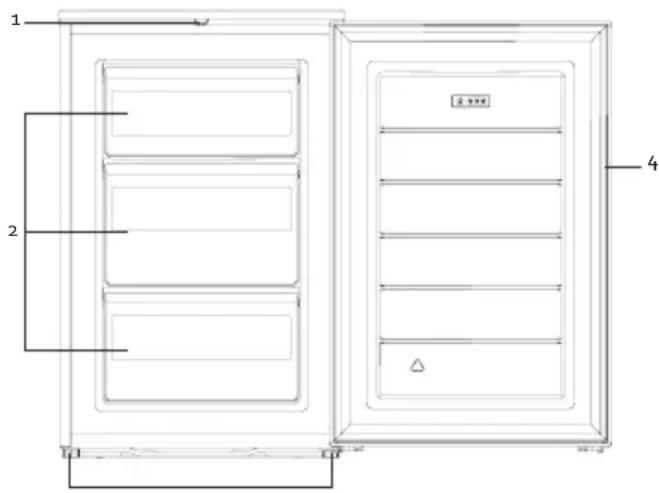

PARTS

1. Temperature control knob
2. Freezer drawers
3. Levelling feet
4. Handle

1 2 4

3

BEFORE THE FIRST USE

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
  · Make sure that you have access to the plug of the appliance.
• Make sure that the air can circulate around the freezer.
• For uneven surfaces, front feet can be aligned.

Two diagrams showing a checkmark and a cross symbol on a stand, likely indicating approval or rejection status.

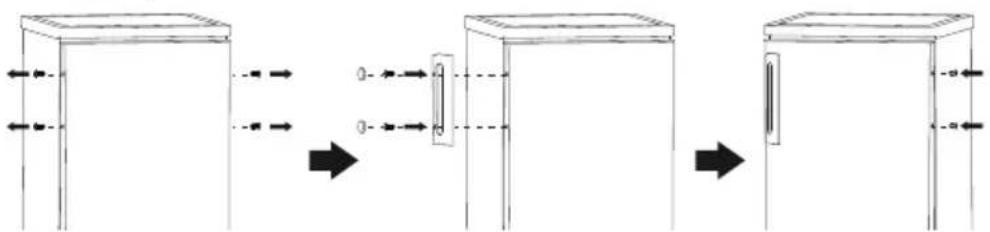

- Install the handle.

- Allow the appliance to stand for 24 hours before turning it on. This allows the cooling agent to settle.

· After installation, let the freezer turned on for 12 hours before using it. This way the desired temperature can be reached.

The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the back of the appliance.

· SN: Subnormal: ambient temperature between 10°C and 32°C

· N: Normal: ambient temperature between 16°C and 32°C

- ST: Subtropical: ambient temperature between 16°C and 38°C

· T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

The freezer has a reversible door. If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the door, you should ensure the appliance is unplugged and empty.

1. Remove the screws on the back of the top cover.

unscrew

1. Remove the top cover from the freezer.

Simple line drawing of a rectangular box with a lid and a small handle, no text or symbols present.

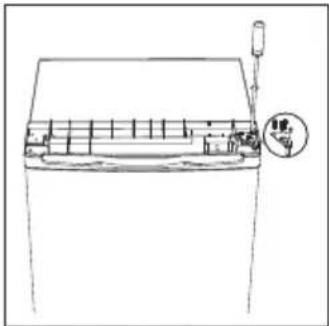

1. Remove the three screws and then remove the top hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from being scratched.

Line drawing of a mechanical component with a labeled inset showing a circular detail (no text or symbols present)

1. Remove the bottom screw, hinge bracket and adjustable foot from the bottom of the appliance.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

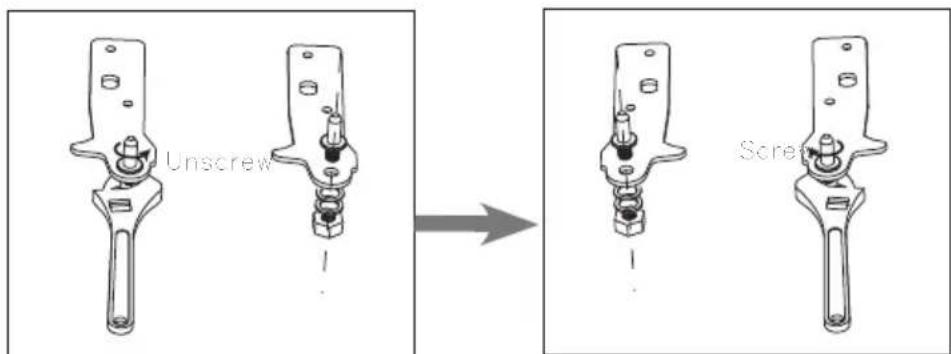

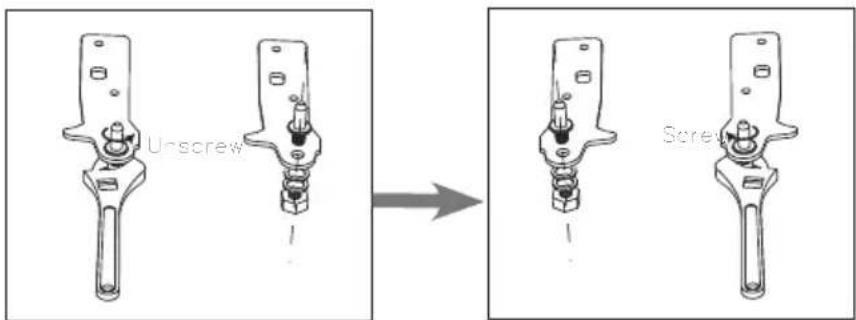

1. Take the hinge pin out of the hinge bracket. Turn the bracket around and tighten the pin again.

Unscrew Screw

1. Attach the screws, hinge bracket and adjustable foot to the opposite side of the bottom. Loosely secure.

Line drawing of a vehicle frame with an inset circular detail showing a vertical structure (no text or symbols)

1. Carefully set the door back into place. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Insert the hinge back and screw it to the top of the appliance.

Line drawing of a mechanical device with a circular component labeled 'MT' (no text or symbols on the device itself)

1. Put the top cover back and fix it in place with the screws.

screw

MOVING YOUR APPLIANCE

• If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.
• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the freezer to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes.
• Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

USE

TEMPERATURE CONTROL

The freezer is controlled with a temperature control knob located inside the appliance. Adjust the control knob as desired to suit your individual preference. There are three different settings, with MIN being the warmest and MAX the coldest. Position MED is the recommended position for normal use.

MED MAX MIN

• The running time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in.
• When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

· To store deep-frozen food.
· To make ice cubes.
• To freeze food.

Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.
   Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

- When you freeze fresh foods whit a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.

- Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

· Once defrosted, food should be consumed quickly.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Freezer compartment Type of food
Top drawer Ice cream, frozen fruit,	frozen baked goods
Middle drawer Frozen vegetables and fries
Bottom drawer Raw meat, poultry,	fish

CLEANING AND MAINTENANCE

CLEANING

1. Do not use abrasive cleaning agents or solvents.
2. Turn the appliance off. Disconnect the mains plug from the mains socket.
3. Take out the food and store in a cool location.
4. Clean the appliance with a soft cloth, warm water and detergent.
5. Wipe the door seal with clear water only and then wipe dry thoroughly.
6. After cleaning reconnect and adjust the temperature control knob as desired.
7. Put the food back into the appliance.

DEFROSTING

A layer of frost in the freezer will impair refrigeration of the frozen food and increases power consumption. Remove the layer of frost regularly. Do not scrape off frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Disconnect the appliance from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the freezer compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences;

1. Remove all foods.
2. Disconnect from electrical outlet.
3. Clean the freezer thoroughly, including defrost pan.
4. Leave door open to avoid possible formations of condensate, mold or odors.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your freezer temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, take steps to protect your food by blacking dry ice on top of packages.
• Frozen food should not be affected if the power failure lasts for less than 15 hours.
  · Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Does not work.

• Check connection of power cord to power source.
• Plug in unit
• Use proper voltage.

The appliance is too cold.

- The temperature has been set too cold. Raise the temperature slightly.

The food is not frozen.

• The temperature has not been set correctly. Reset the temperature.
  · The door has been left open too long. Only open the door when it is necessary.
  · The appliance is positioned too close to a source of heat.

Formation of ice on the seal of the door.

- The seal of the door does not seal properly. Thaw the ice on the seal and reshape the rubber with your hand so that the door closes properly.

Unusual noise.

· The appliance is touching the wall or another object. Gently move the appliance.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed out by a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Two vertical signs with checkmark and cross symbols, likely indicating approval or rejection status

Simple line drawing of a rectangular appliance with a lid and base, no text or symbols present

Technical line drawing of a mechanical frame with an inset circular detail showing internal components (no text or symbols)

Unscrew Screw

Technical line drawing of a mechanical device with a circular inset showing a lever mechanism (no text or symbols)

Line drawing of a mechanical device with a circular component labeled 'S1' (no text or symbols on the device itself)

MED MAX MIN

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmark and cross symbols, likely indicating approval or rejection status

· Montare la maniglia.

Diagram illustrating door opening and door positioning steps with directional arrows and dimension labels

Simple line drawing of a rectangular box with a lid and a side panel, no text or symbols present.

Line drawing of a mechanical component with a pointer and circular gauge (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Diagram of a vehicle suspension system with an inset showing a vertical valve mechanism (no text or labels)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

MED MAX MIN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two simple diagrammatic boxes with checkmark and cross symbols, likely indicating approval or rejection status.

Simple line drawing of a rectangular box with a lid and a small handle, no text or symbols present.

Line drawing of a mechanical component with a pointer and circular annotation (no text or symbols)

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Line drawing of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a dial indicator (no text or symbols)

MED MAX MIN

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two vertical signs with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Line drawing of a refrigerator with top panel and side arm (no text or symbols)

Line drawing of a mechanical component with a pointer and circular annotation (no text or symbols)

Technical line drawing of a mechanical frame with an inset circular detail showing internal components (no text or symbols)

Unscrew Screw

Diagram of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a circular indicator showing 'M' and 'B' (no text or symbols on the diagram itself)

MED MAX MIN

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with a small transparent clip, placed on a plain white surface (no text or symbols visible)

Three product photos: square-wrapped cards, clear glass coffee maker, and rectangular milk container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
