Rocket - Hand blender PALSON - Free user manual and instructions

Product type	Immersion blender
Brand	Palson
Model	Rocket
Body material	Plastic
Blade material	Stainless steel
Power	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Chopper bowl capacity	500 ml
Speeds	Variable + Turbo
Included accessories	Stirring whisk, beating whisk, chopper bowl with lid and blade
Cable length	1.2 m
Weight	1.0 kg
Max continuous function	1 minute
Maximum food temperature	Not specified (avoid boiling foods)
Safety	Double insulation, unplug before cleaning
Maintenance	Motor unit: damp cloth; accessories: dishwasher
Warranty	2 years
Certifications	CE
Recycling	WEEE collection point

Frequently Asked Questions - Rocket PALSON

How to use the immersion blender?

Firmly attach the stirring whisk (5) to the motor unit (4). Insert the blender into the container, select the speed with the selector (1) and press the push button (2) for normal speed or the turbo button (3). Do not exceed 1 minute of continuous use.

How long can I use the appliance continuously?

The immersion blender should not be used for more than 1 minute continuously. After use, let it rest for 1 minute before using it again.

How to clean the immersion blender?

Clean the motor unit with a soft damp cloth. The accessories (whisks, chopper bowl) are dishwasher safe. For the bowl blade, use hot water with a little liquid soap and rinse. Dry all parts before storing.

Can I put the accessories in the dishwasher?

Yes, the accessories (stirring whisk, beating whisk, chopper bowl and its lid) are dishwasher compatible. However, the motor unit must never be immersed.

How to use the chopper bowl?

Attach the blade (9) in the bowl (7), add ingredients in pieces of similar size, close the lid (8) by turning clockwise until it clicks. Insert the motor unit into the lid and turn counterclockwise to lock. Press the push button (2) to chop.

What to do if the appliance does not work?

Check that the appliance is properly plugged in and that the voltage matches the one indicated on the label. Make sure the accessories are securely attached. If the problem persists, visit www.palson.com or contact your dealer.

Can I blend hot foods?

Avoid blending boiling foods. The appliance is designed for warm or cold foods. If you want to blend hot soup, let it cool slightly before blending.

How to change speed?

Turn the speed selector (1) located on the push buttons (2-3) to choose the desired speed. You cannot modify the turbo button (3) during operation.

How to attach and remove accessories?

To attach, snap the accessory onto the motor unit and turn if necessary (e.g., chopper bowl). To remove, simultaneously press the removal buttons (12) on both sides of the motor unit and pull the accessory.

Where to find spare parts?

To obtain spare parts or information about after-sales service, visit www.palson.com or contact your retailer.

USER MANUAL Rocket PALSON

Hand food processor/blender

Mixeur plongeant

خلاط يدوي

Блендер с чашей

Rocket

Cod. 30821

E

MODO DE EMPLEO

GB

OPERATING INSTRUCTIONS

F

MODE D'EMPLOI

AR

طريقة الاستعمال

RU

ИНСТРУКЦИИ

PALSON®

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color gradient bar transitioning from black to white (no text or symbols)

E ESPAÑOL 2

GB ENGLISH 5

F FRANÇAIS 8

AR اللغة العربية 11

RU РУССКИЙ 14

Labeled diagram of a kitchen appliance showing various kitchen utensils and components with numbered labels

FIG. 1

Three-panel image showing a laboratory setup: a tripod stirrer, a test tube in a beaker with chopsticks, and a bowl with chopsticks (no visible text or symbols)

FIG. 3FIG. 2

E

Our products have been developed to reach the highest standards of quality, functionality and design. We hope you enjoy your new ROCKET hand food processor blender by PALSON.

IMPORTANT

Carefully read these instructions before using the blender and keep the instructions, the warranty, the receipt and, if possible, the box with its inner packaging. If you give this device to another person, make sure to include these instructions.

IMPORTANT SAFETY RECOMMENDATIONS

1. Read all the instructions before use.
2. To avoid an electric discharge, do not submerge the blender or allow the cable to come into contact with water or any other liquids.
3. Unplug the blender from the power outlet when not in use, before inserting or removing accessories and before cleaning.
4. If the electric cord is damaged it must be substituted by the manufacturer, by an authorized technical service or a qualified technician in order to avoid any danger.
5. Do not use outdoors.
6. Do not let the cable hang over the countertop or let it touch hot surfaces, such as an oven.
7. Always unplug before assembly, disassembly or cleaning.
8. The blades are sharp. Handle with caution.
9. Before plugging in, make sure that the voltage corresponds to the nominal current shown in the blender label.
10. Do not plug in the blender until it is completely assembled and always unplug before disassembly or handling the blades.
11. Do not let children use the blender unsupervised.
12. Do not allow the motor unit, the cord or the plug to get wet.
13. This blender has been designed to process normal household quantities.
14. Use for short periods of time only. Do not use the blender for more than 1 minute at a time, let it rest for 1 minute after using and do not use on hard food for more than 10 seconds.
15. While using the power button (2), you may use the speed selector (1) to blend at the desired speed. However, the speed of the turbo button (3) cannot be changed.
16. Always unplug if left unsupervised and before assembly, disassembly or cleaning.
17. Incorrect use may lead to injuries.
18. Please handle the sharp blades with caution, when emptying the container and during cleaning.
19. Unplug the mixer before changing the accessories or handling moving pieces.
20. This product is not allowed for unassisted or unsupervised use by children or people whose physical, sensory or mental state prevents them from using the appliance safely. Children should be supervised to ensure that they do not play with the product.
21. Keep your hands and utensils away from the container when mixing and away from the blades when chopping food to avoid serious injuries or damage to the unit. You may use a spatula, but only when the mixer is not in use.

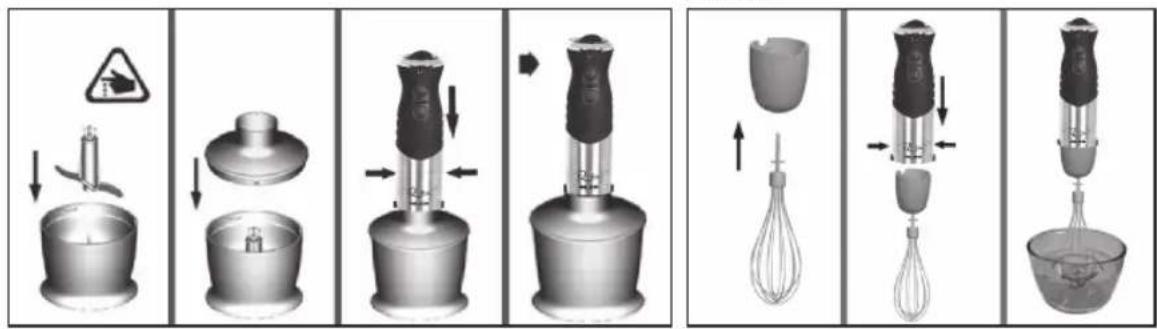

HOW TO USE THE CHOPPING BOWL (FIG 2)

1. Place the blades inside the chopper bowl (7). Insert the previously chunked ingredients and place the lid on the container.

The lid (8) will be properly closed when you hear it click. To close the lid, you must twist it clockwise.

1. Insert the motor body (4) on the top of the chopper bowl lid (8) and twist it counterclockwise until it fits.
2. By pressing the power button (2) the blades will begin spinning.
3. You may chop potatoes, nuts, onions, etc.
4. Introduce all ingredients chopped to about the same size so that they blend homogeneously.
5. To release the chopper bowl lid (8), twist it counterclockwise.
6. Before inserting an accessory to remove food from the chopper bowl, make sure that the blades (9) have stopped completely.

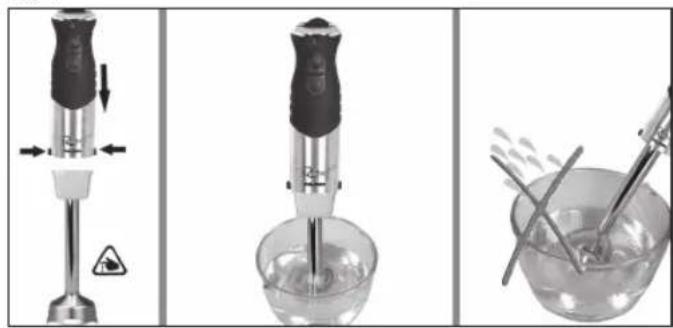

HOW TO USE THE GRINDING ROD (FIG .1)

The grinding rod is perfectly suited to prepare sauces, soups, mayonnaise and baby food, as well as mixing and making shakes.

Insert the grinding rod (5) firmly into the motor body (4).

Insert the grinder in the bowl. Choose the desired speed by using the speed selector (1) located above the power buttons (2-3).

Press both release buttons (12) at the same time to release the grinding rod (5). You may use the grinder in the measuring jug or any other container.

Do not use the blender for more than 1 minute at a time, and let it rest for 1 minute after use.

CAUTION: The blades are very sharp.

CAUTION: Do not use on food without any water or liquids.

HOW TO USE THE WHISK (FIG 3)

1. Insert the whisk attachment (6) firmly into the motor body.
2. Insert the blender into the container. Choose the desired speed by turning the speed selector (1).
3. Press both release buttons (12) at the same time to release the whisk (6). You may use the whisk in the measuring jug and any other container.
4. Do not use the blender for more than 1 minute at a time, and let it rest for 1 minute after use.

CLEANING AND MAINTENANCE

• Clean the motor with a soft wet cloth.
• The attachments can be washed in a dishwasher.
• To clean the chopper bowl blades (9) in the event that they have any residues, clean with warm water and soap and rinse with water.
• Dry all pieces and store them in a dry place.

Function Ingredients		Maximum amount	Max time
			Chop Grind
Cutting and grinding	Potato 400 g 50 sec.	30 sec.
	Melon 400 g 50 sec.	30 sec.
	Carrot 400 g 50 sec.	30 sec.
Chopping and mixing	Beef 300 g (10 g/piece)	30 sec.
	Ham 300 g (15 g/piece)	30 sec.
	Onion 400 g (20 g/piece)	30 sec.
	Strawberry 200 g 25 sec.
	Cheese 100 g 20 sec.
	Almonds 100 g 20 sec.
	Hazelnuts 100 g 20 sec.
	Walnuts	100 g 20 sec.
Whisk	Eggs	6 yolks	25 sec.

ENVIRONMENT

Do not throw the appliance out with normal household waste if it is broken; take it to an official collection point for recycling. In this way you contribute to protecting the environment.

GUARANTEE AND SERVICE

If you need a service or information, or you have a problem, please visit our website www.palson.com or contact your distributor.

Thank you for your confidence in choosing one of our products.

F

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product.
